Author Topic: Newbies Post Up Here - Rig Specs & Info Thread  (Read 451343 times)
P
Custom as Hell
Administrator
*****
Offline Offline

Posts: 2701


If its free, its P


« on: May 17, 2007, 06:45:58 PM »

OLD RIG :  Turd
89 C1500ish former 2wd.
350TBI/ SM465 (currently) / NP205     Got a TH350 auto awaiting implant
4linked fore and aft with 12" Fox CO's up front and 16" SAW's in the back
D60/14B  Lincoln Lockers, DE Full Hydro, Discs out back,35spl chromo outters and Warn prem's
3 swangin beverage holders and a bench seat with laps for 3
Boatsided, narrowed, shortened, chopped , and hacked.









NEW RIG:   I built myself a buggy finally !!!    XRRA wanna be  Caddi Buggy
TBI350/TH350 with UltraBell , TCI full manual valve body     B&M for now, want an Art Carr shifter badly..
D300 with 4.1 gears and an HDrear output  twinstick with custom shifters
D60 front welded, 35spl Yuk's and Longfield joints   PSC steering
14B Shaved, welded Disc brakes
42 Iroks on H2's
4links with jj's on the uppers and 3" Ballistic joints on the lowers  Radflo  N2 14"ers all around and 2" N2 bumps front soon to be 4" N2 bumps rear ( got them just not on right now )
T-Max 6500lb comp winch up front with synthetic rope


[attachment deleted by admin]

[attachment deleted by admin]
« Last Edit: July 22, 2009, 12:08:52 PM by Matt O. » Logged

" If a guy hasnt got any gamble in him, he isnt worth a crap"
Evel Knievel

OG Hardline Custom/ Hardline Crawler
Matt O.
Administrator
*****
Offline Offline

Posts: 9970



« Reply #1 on: May 22, 2007, 08:00:38 AM »

Matt Overton (aka BamaTJ)

Out with the OLD and in with the new

OLD:
99 TJ, HP60, 14B, 5.13's, Coilovers, 107"WB, PSC Full Hydro, 40" Creepys, 4100lbs.  Lots of other stuff.  Buildup Thread is here: http://www.pirate4x4.com/forum/showthread.php?t=471690  Sold to a guy in Colorado so it will get to wheel all the sweet places out West for the rest of its days.



NEW:
S&N Fab Bravo Chassis #2 , TJ Skins, 107" WB, Dynatrac 60's, 4.56's, PSC Full Hydro, Bilstein Coilovers, 7075 AL Links, 39" Red Labels and WE Wheels, 3600lbs





[attachment deleted by admin]
« Last Edit: July 22, 2009, 12:15:18 PM by Matt O. » Logged

Matt O.
2007 JKU Rubicon on 35's
Brock
**
Offline Offline

Posts: 346


« Reply #2 on: May 23, 2007, 03:32:43 PM »

My junk:
 Grin
Logged
Cole
Guest
« Reply #3 on: May 25, 2007, 06:16:49 AM »

Here's mine
Fireball
92 YJ Buggy
Superchared LT1
Front and Rear steer Rockwells.
47" LTB's with stazwork wheels
Any the rest is not important.


Logged
blacksheep10
Easyline Crawler
****
Offline Offline

Posts: 10297


XBJRA champ/ 555 and team Nasty codriver


« Reply #4 on: May 29, 2007, 08:49:04 AM »

since paul posted up the pic with dubs, I have to as well.  they were mine first (we need a flipoff smiley)

mine is an erection...I mean an evolution.  started full cab with 40's, vortec 350 carbed, 400/205/60/14rear/4.56 welded both ends

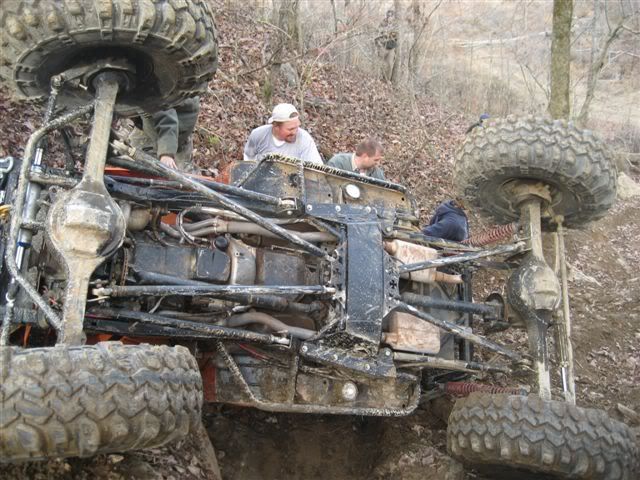

rolled the shit out of it a bunch, this is after its 5 rollover, 3 of them over backwards onto the top from the top of a hill with 3 other flops mixed in

then came the new tube and shit

and the latest, alloy usa shafts, ctm's, more recentered hummers, still vortec 350, but with AFI tbi on it, 350/231 planets/205, de ram now, all big boy 1"x1 1/4" lowers with 1/2" wall tube, 3/4"x7/8" uppers with .250" wall tube, all chromo with kevlar races.  also putting a suspension seat in it, plastic doesn't fawking cut it.
Logged

Kelly Kaiser
Vertical Limits
913.731.3040

Liberals should pay in blood for what they have done and are doing to our once great nation

Team Nasty, the name says it all, now get your clothes off and grab a Keystone
Rokcrler
***
Offline Offline

Posts: 4151



« Reply #5 on: June 07, 2007, 06:50:56 PM »

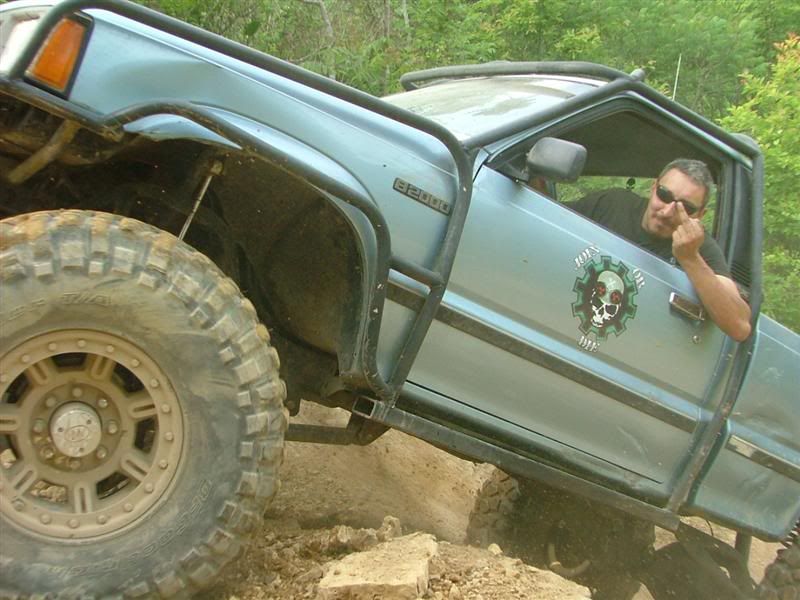

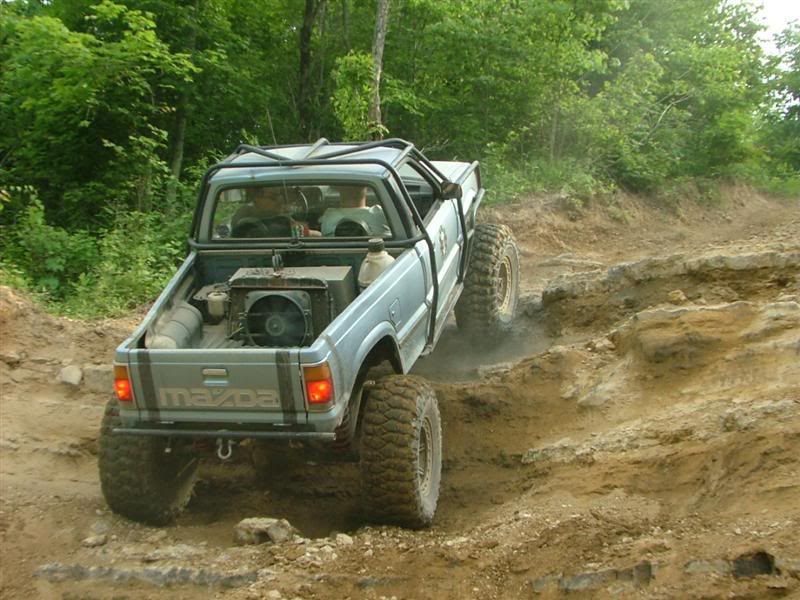

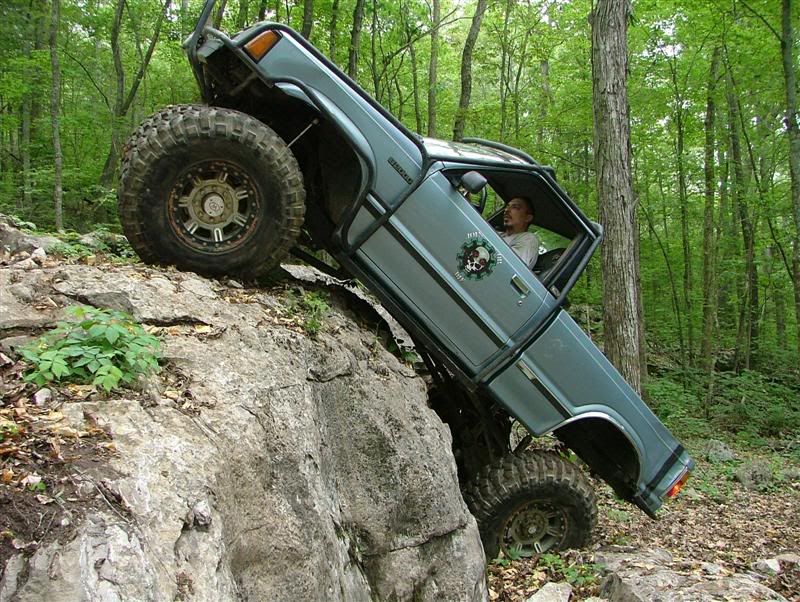

Mo (Rokcrler)
'86 Mazda B2000
Mopar 360, TF727, D300
D60s



Logged

~Mo~
www.extremerocrigs.com - Badass deals on weepow parts
www.bluetorchfab.com - Badass Fab Parts
www.cartotracks.com - Badass Maps
www.4wdfactory.com - Badass deals
www.cipherauto.com - Badass Suspenson Seats
jbrowning

Offline Offline

Posts: 30



« Reply #6 on: June 11, 2007, 02:46:34 PM »




95 YJ, 4 Banger, D44 front & rear, 5.89's, Spool rear, Detroit front, Yukon Shafts & Super Joints,
Redneck Ram, Cage, 39.5 Iroks, Warn Hubs, Warn 9000, Custom fenders using a 5lb sledge Shocked
Logged
zr2x350
*
Offline Offline

Posts: 220

Zr2OneTon2


« Reply #7 on: July 04, 2007, 09:09:07 PM »

First off I'd like to say wasup to everyone.
98 Zr2 body, D60 front 35 spline inner and out 4340 yukons yukon sj's, d60 rear 30spline chromos, lockrites f/r,5.13's f/r, fully built th400, 39.5x 13.50 x 17 iroks, h2's,  redneck ram hydro assist, hy steer, fuel injected vortec 350(few things done) Stak 2 speed twin stick 3.75:1, A LOT of fabrication.
I'm obviously not done with this stage yet, but I'm workin on it.  I still got a lot of things to get done but heres a pic.  And yes I know I gotta do some work on the sackles, that was the first attempt.

Logged

You gotta know what to do and when to do it.
cadpwrdyj
*
Offline Offline

Posts: 244



WWW
« Reply #8 on: July 06, 2007, 08:44:31 AM »

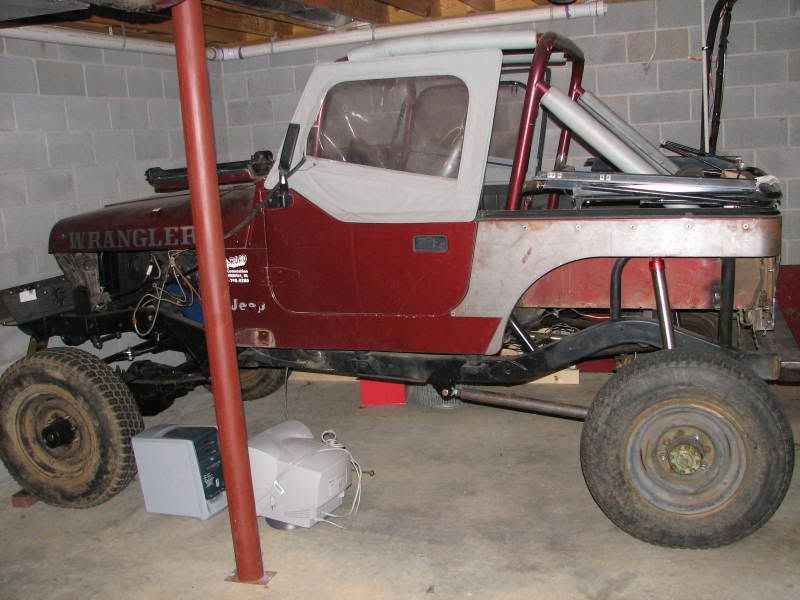

FIrst off...wanted to say hello to all...I live in Corner/Warrior and I have been riding the trails around Gardendale and Fultondale since about 1992, haven't been out much since I sold my jeep about 7 years ago but I have been working on one when time permits.  I figured it was time I knocked the dust off this thing and get it running before I have to rebuild stuff again because it has sat for so long.....Anyway here is a pic of my loooong project that I keep hopping on and off again for about 4 years now...Currently rewiring the whole thing and putting the TBI from a 454 on it.  Its got a 500 cid Cad motor, TH-400, NP205, Front and rear 60's with 5.38's....PS I will need some one to build me some fenders and a dash if anyone knows someone let me know....



Here's my other toy for those of you that like these kinda rigs....


and last but not least my lil tow rig....
Logged

39.5 TSL's,TR's, 500 CID, and TH400
CheapJ7
Easyline Crawler
****
Offline Offline

Posts: 4120


Mustache rides?


« Reply #9 on: July 14, 2007, 06:59:17 PM »

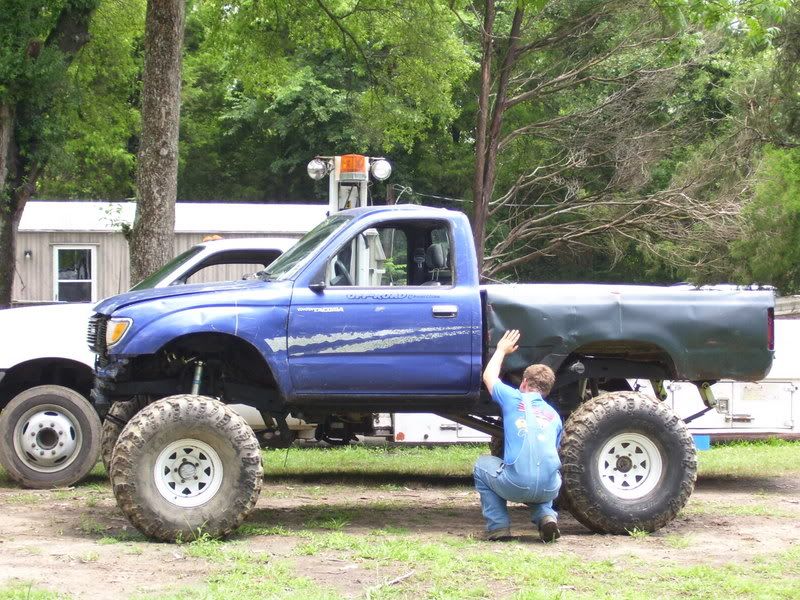

Well, here's my junk.  Still needs some major tube work, but it's coming along.

Specs:
96 Taco 2.7 5-speeed
44 and a 9 5:13's
lockright and a spool- w chromo's
Full hydro, w hi-steer to come
2 tall all-pro leaves
14" bilsteins
36 roks on some 15x8 freebies

More wheeling pics to come




« Last Edit: July 14, 2007, 07:01:18 PM by CheapJ7 » Logged

$ JRich  $      http://www.wesleyboobietrap.com/
3rd gen 4runner. 4.30 gears, factory elocker. 285's. Ice cold a/c!  Soon the be armored, lifted, and locked in the front.   Family wheeler
David
***
Offline Offline

Posts: 714



« Reply #10 on: July 17, 2007, 02:06:42 PM »

1984 CJ 7
D60's F/R
42" Iroks
Full Hydro
225:1 Crawl Ratio




« Last Edit: July 17, 2007, 02:09:56 PM by DavidsCJ7 » Logged
Speeding
Hardline Forum Member #1.
Administrator
*****
Offline Offline

Posts: 4554


Forum member #1


WWW
« Reply #11 on: July 23, 2007, 07:55:15 PM »

I just realized I never did this!

My name is Ricky and I like to go four wheeling and take pictures.

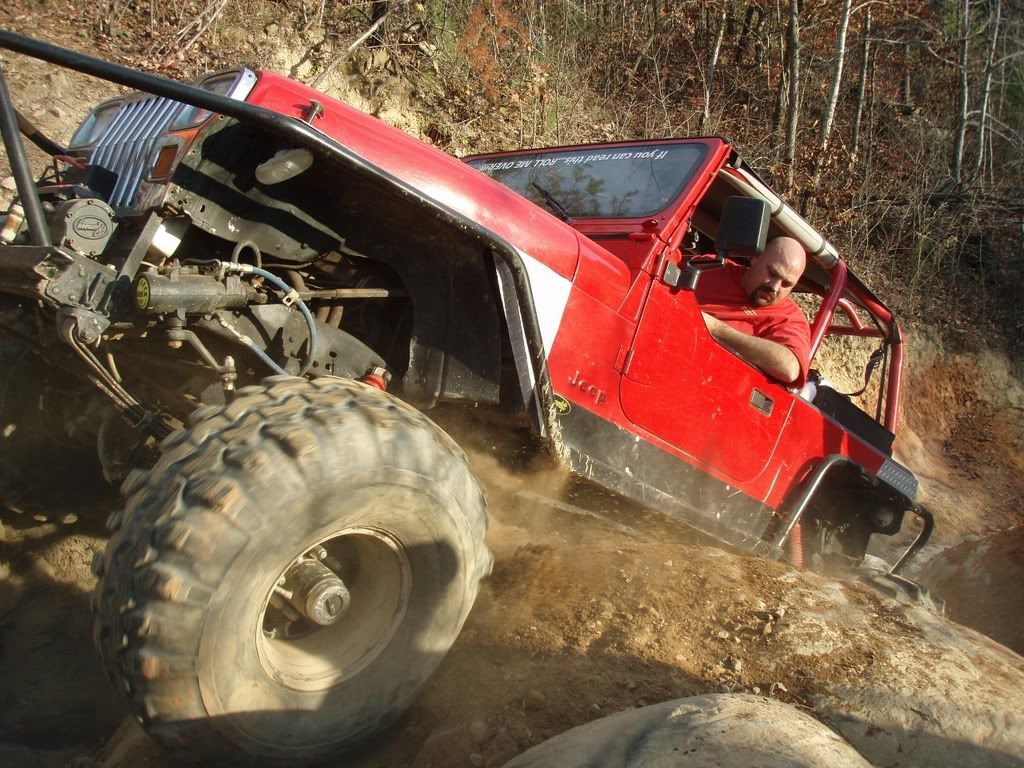

This is my Jeep:

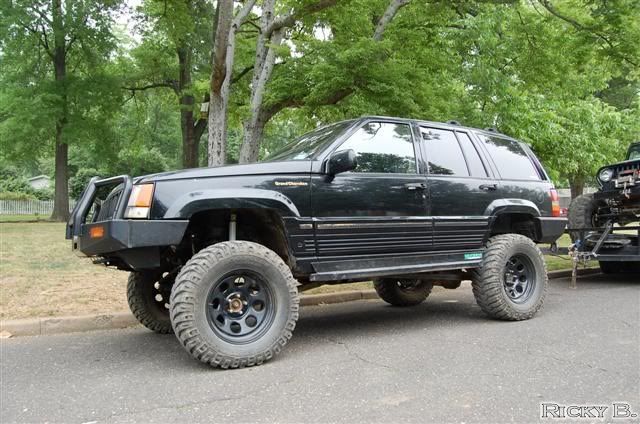

This is my rental Jeep Grin:
Logged

JohnG
Administrator
Hardline Crawler
*****
Offline Offline

Posts: 8614


38 Special & Solo Buggy


« Reply #12 on: July 24, 2007, 07:38:26 AM »

Damn if Ricky does it, how I feel really obligated!   Grin

Single Seater:









And the Purple Jeep:











And the Rhino:






Logged

Retired: I wake up in the morning with nothing to do and I go to bed at night with only half of it done!
Deep South
**
Offline Offline

Posts: 391

Web Wheeler


« Reply #13 on: August 28, 2007, 08:16:58 AM »

1978 fj40  - 283 v8

Logged

fishtrapfurniture.com
Deep South
**
Offline Offline

Posts: 391

Web Wheeler


« Reply #14 on: September 05, 2007, 09:30:22 AM »

Logged

fishtrapfurniture.com
Deep South
**
Offline Offline

Posts: 391

Web Wheeler


« Reply #15 on: September 05, 2007, 09:39:54 AM »

Logged

fishtrapfurniture.com
Deep South
**
Offline Offline

Posts: 391

Web Wheeler


« Reply #16 on: September 05, 2007, 09:42:13 AM »

 Roll Eyes

Logged

fishtrapfurniture.com
Deep South
**
Offline Offline

Posts: 391

Web Wheeler


« Reply #17 on: September 05, 2007, 09:43:12 AM »

 Flip Gotcha

Logged

fishtrapfurniture.com
Deep South
**
Offline Offline

Posts: 391

Web Wheeler


« Reply #18 on: September 05, 2007, 09:57:00 AM »

Logged

fishtrapfurniture.com
Deep South
**
Offline Offline

Posts: 391

Web Wheeler


« Reply #19 on: September 05, 2007, 10:04:00 AM »

Logged

fishtrapfurniture.com
trevro99

Offline Offline

Posts: 41


« Reply #20 on: October 19, 2007, 11:47:15 AM »

Here is my web wheelin machine  Grin

99 TJ, HP60, 14B, 5.13's, custom 3 link front, 4 link rear, 106' WB, 40" Iroks


Build Thread:
http://www.pirate4x4.com/forum/showthread.php?t=591360
Logged

2003 Jeep Rubicon
SWERVIN

Offline Offline

Posts: 12


« Reply #21 on: October 23, 2007, 07:54:00 PM »

Here's mine.  Reciently completed T-fab 3 seater w/ LS1, TH350, Atlas, 60/14Bolt, 44's and plenty of cooler room.


Logged

T-FAB 3 seater buggy
InittowiniT
**
Offline Offline

Posts: 311



« Reply #22 on: December 05, 2007, 10:14:57 AM »

My name is Ronny, Pdaddy knows me as the Cheap Bastard My rigs specs: Redman, sign Aries, Likes long walks when you run out of propane Flip Gotcha

K-5 Frame Wrangler Tub
Home Grown 4-link rear
Leaf Front
D60/14B 4.56
350 Propane 465 205
39.5's Tsl and Boggers Baby!
Hydro-Steer and B.S.




Logged
rocfun
***
Offline Offline

Posts: 870


CUSTOM FABRICATION


« Reply #23 on: December 06, 2007, 07:36:51 PM »

nah  he is more lucky than cheap  gets more sweet deals than anybody i have ever seen
 he is only a cheap bastard when it comes to lunch and ordering pizza.  king of the free lunch  ha ha
just giving you shit.
ronny and randy both have as much time and work in my buggy as i do,

here is mine on about it's 3rd time of being chopped up and built again.
about 6 or so feet of cj-5 frame  tube the rest of the way back.  turned into 4-seater
60/14blt   /  35  spline molys /  DE full hydraulic  /  lead spring front /  coils and 4-link outback
350 tbi / th350 / 203- 300 dbler  with big shaft kit f/r
44" tsl's  on beadlocks  and some sweet trucker girl drive flanges


[attachment deleted by admin]
« Last Edit: December 06, 2007, 08:09:18 PM by rocfun » Logged

Patrick Murrah or MURRAH MOTORSPORTS  on Facebook & Instagram
Juan_Hong_Loe
Easyline Crawler
****
Offline Offline

Posts: 2128

That's dumb


« Reply #24 on: December 07, 2007, 05:54:52 PM »

Here is my former Jeep that has been scrapped to build the buggy that I am currently building.

Here is another of the rides that I have wheeled recently!

And the Current project, 2 seater fusion chassis, TPI 383 TH350 Dana 300 4-1 kit, Shaved 60, Shaved 14 Bolt, 5.13 and a few other misc. parts I keep adding.


Daniel
Logged
