4 seater 4runner buggy on tons

Meyer1011

Member
Joined
Nov 3, 2019
Messages
19

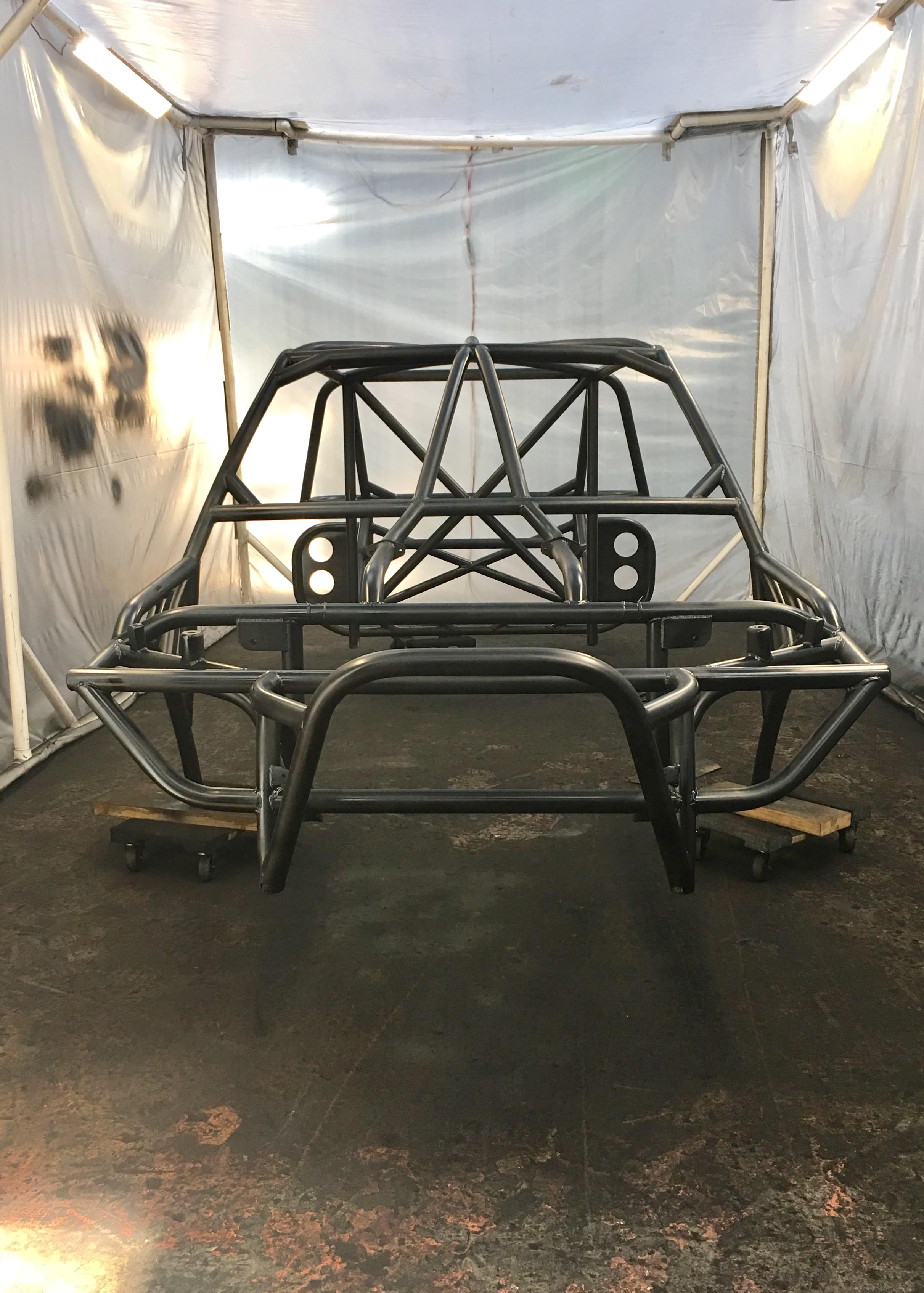

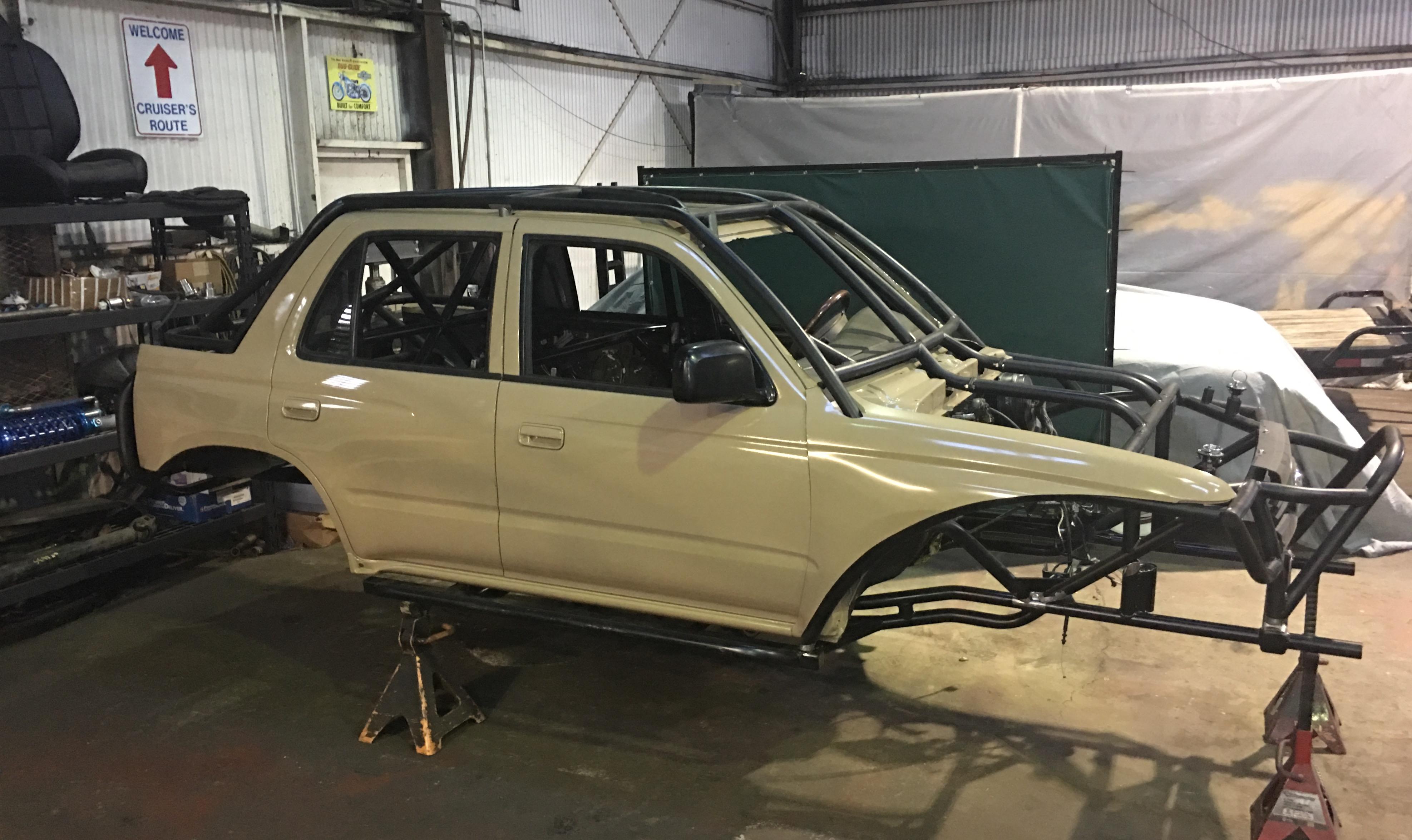

Very nicely built buggy only around 4 ' of frame left the rest is all 1.75 dom construction.
22k obo located central Indiana
Text if you have questions 812-552-3440
Drivetrain.
3.4 v6 new timing belt water pump seals and wires.
Aluminium radiator with dual fans
A 340 trans with derale cooler and rad design gated shifter.
Toy gear driven t- case with 23 spline marlin crawler everything 4.7 gear set with big outputs
Drive shafts are trail gear long slip with creeper joints

Axles

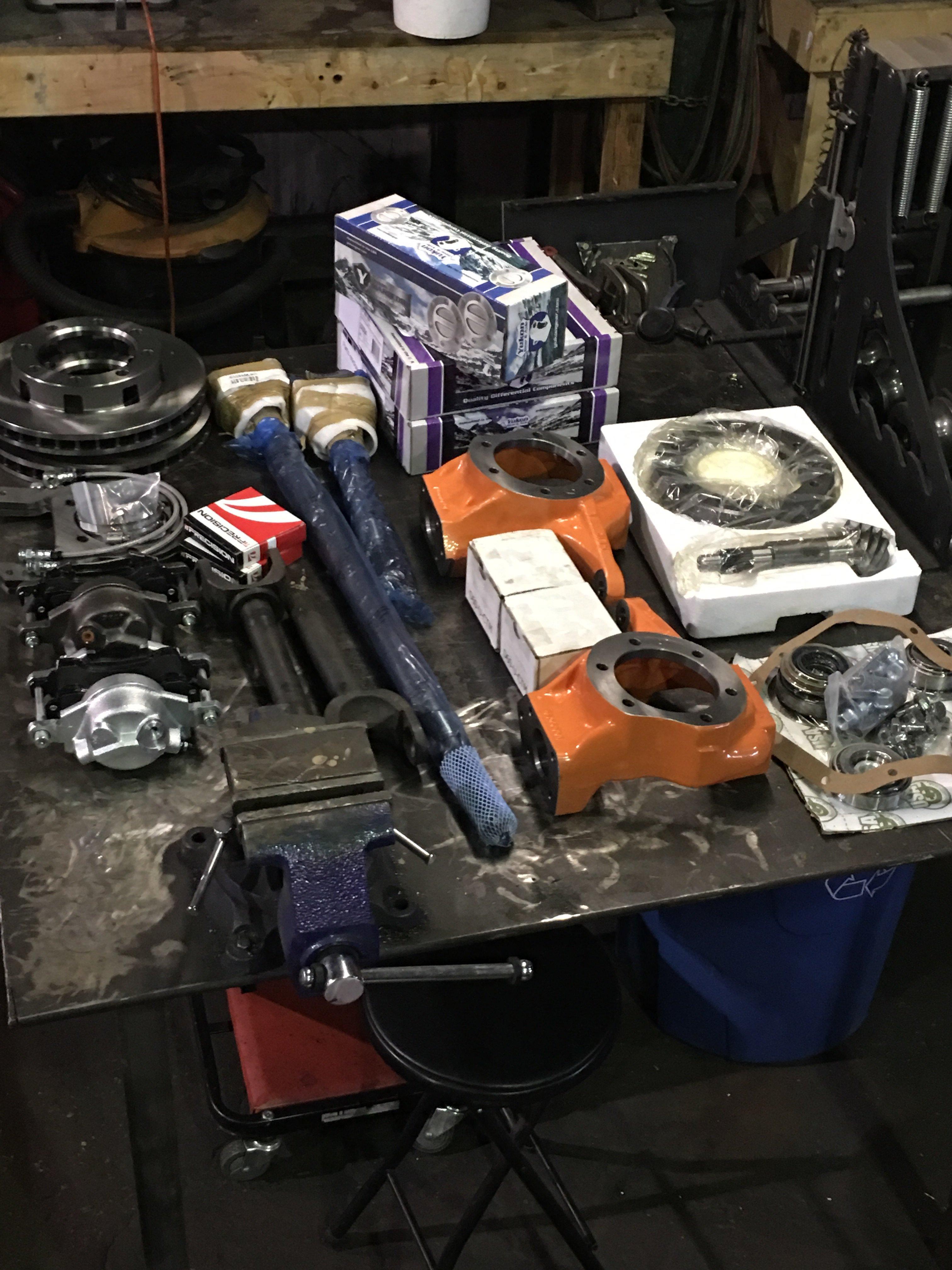

Dana 60 front with 5.13 spooled Yukon inner shafts with Foote usa 35 spline outers ctm u joints with ried knuckle and high steer.

14 bolt rear with 5.13 & Detroit locker

Suspension

Double triangulated four link with 1.25 hiems

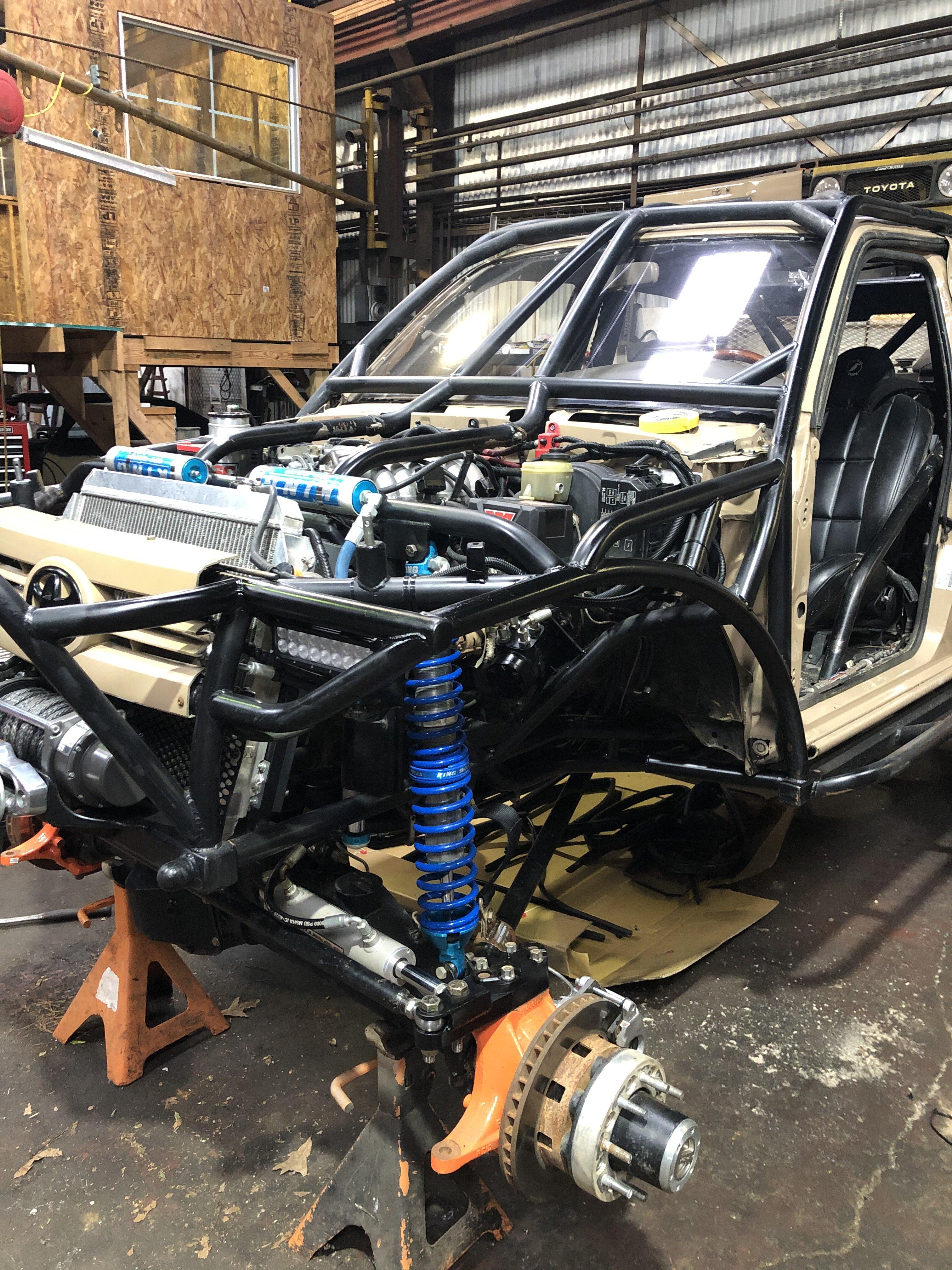

King remote res coilovers front 14" rear 16" king bump stops.

Interior

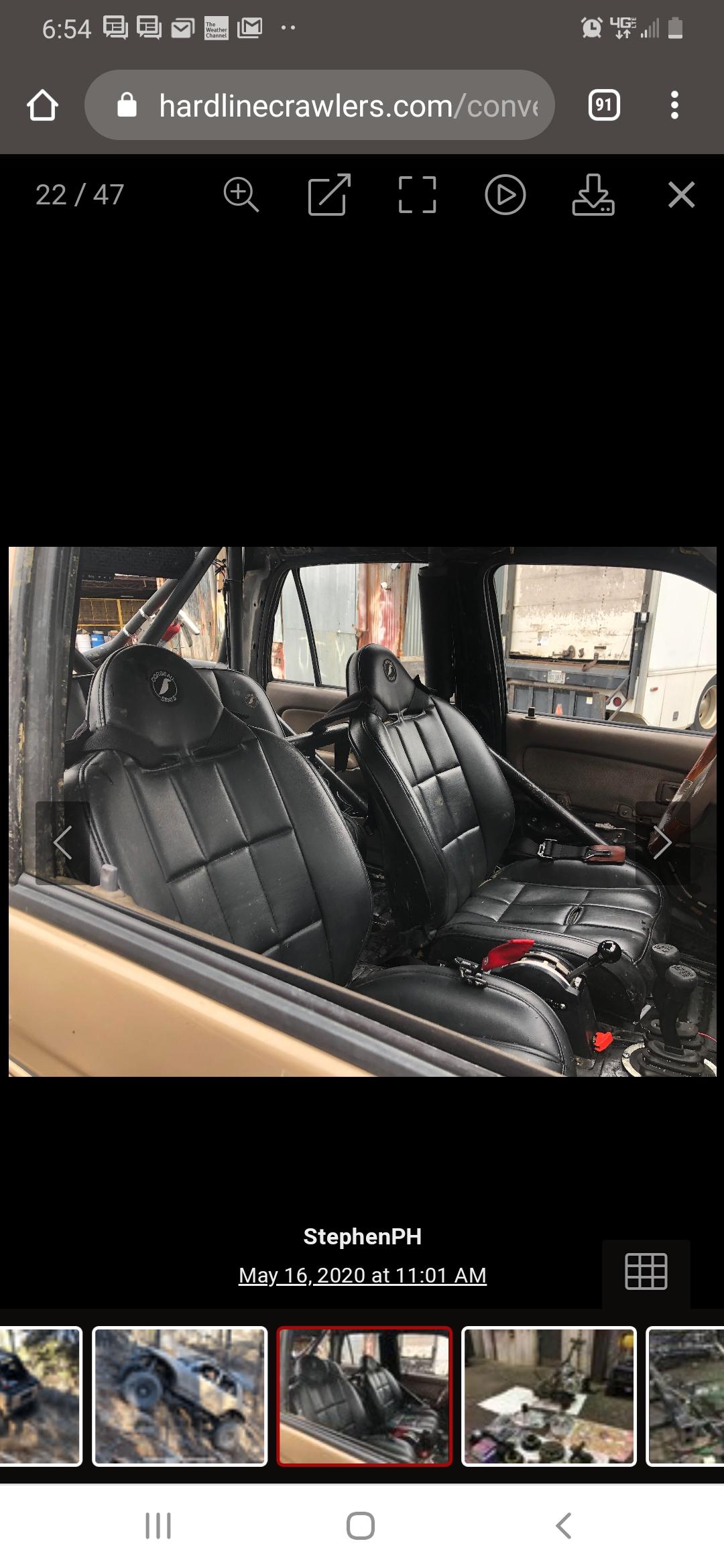

Corbeau seats front and rear the rear is a 36 bench factory heat still works

8k warn winch with synthetic rope
39" red labels with method bead locks have extra spare with beadlock also.
Psc steering ram with trail gear pump.

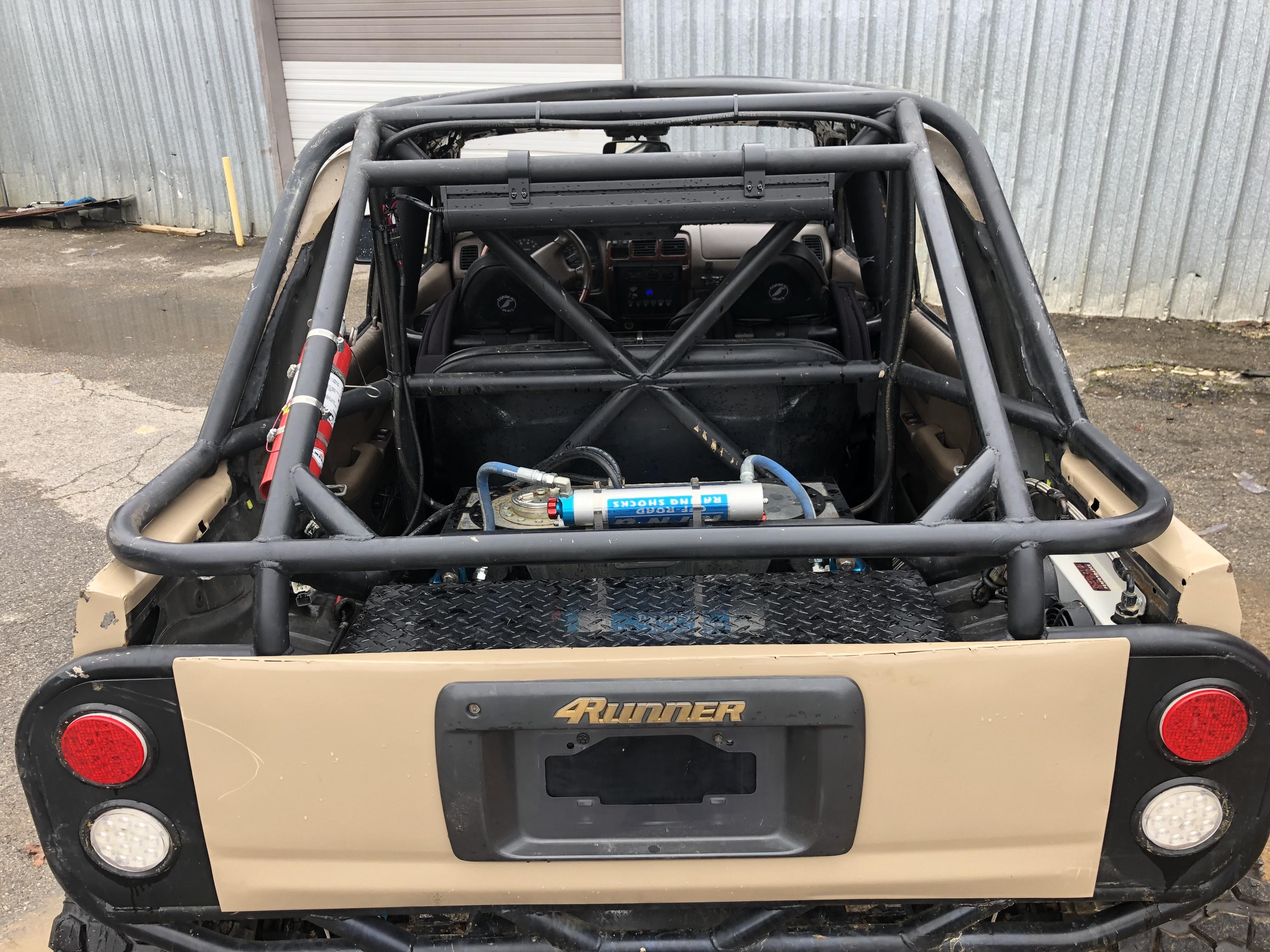

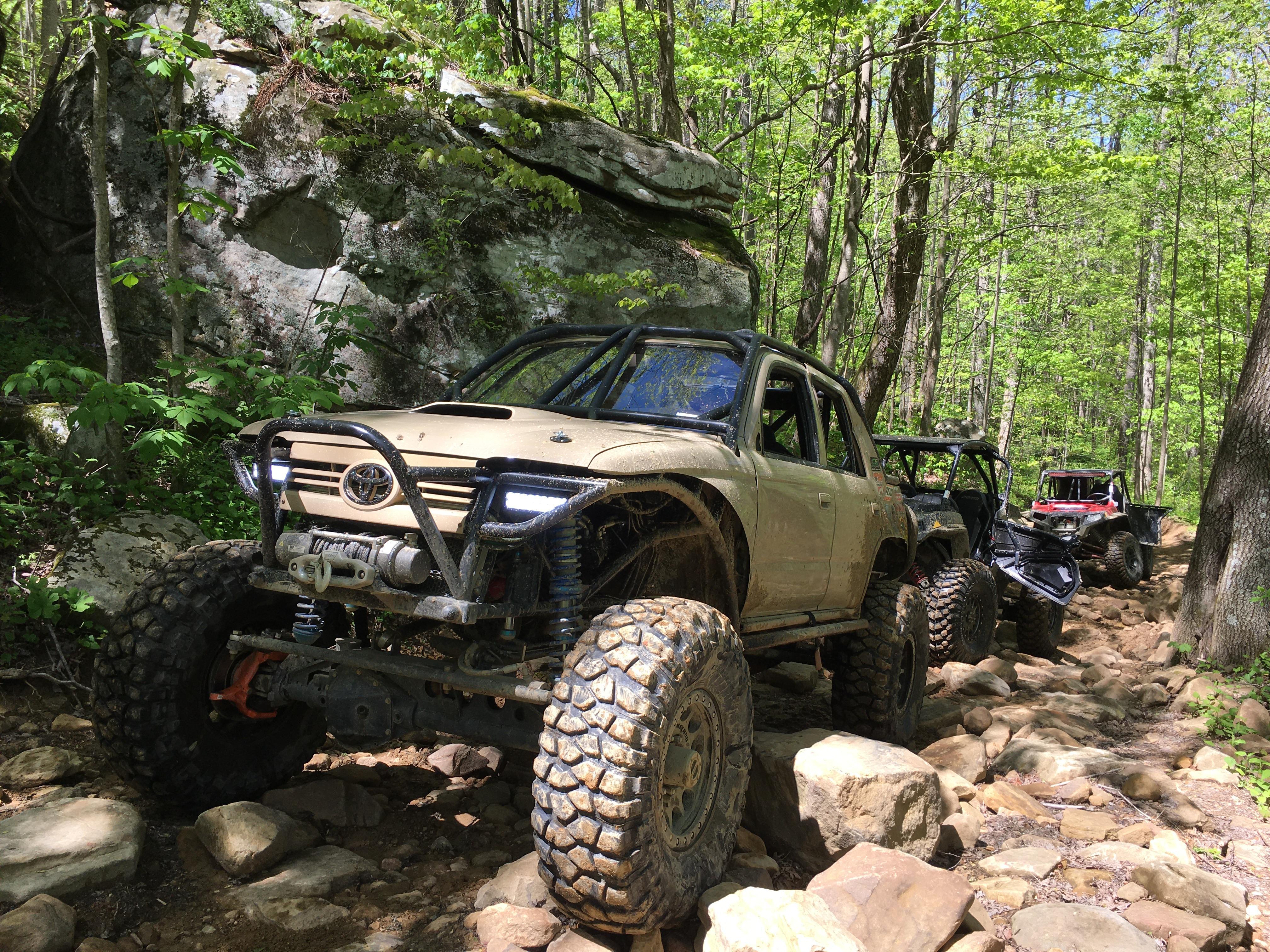

The buggy is very capable and works great just going anther route . The body is a little more dented than in the pics but have multiple painted doors and front fenders to freshen up.


Attachments

  • 54AD2010-505A-4B22-AB76-5586AD47FE98.jpeg
    1.3 MB · Views: 1,572
  • 06D58BA4-6E67-4083-BDC8-FA20811D5F68.jpeg
    2.4 MB · Views: 1,545
  • 257F6100-F76F-4654-88F8-CC9DCDACD561.jpeg
    2 MB · Views: 1,443

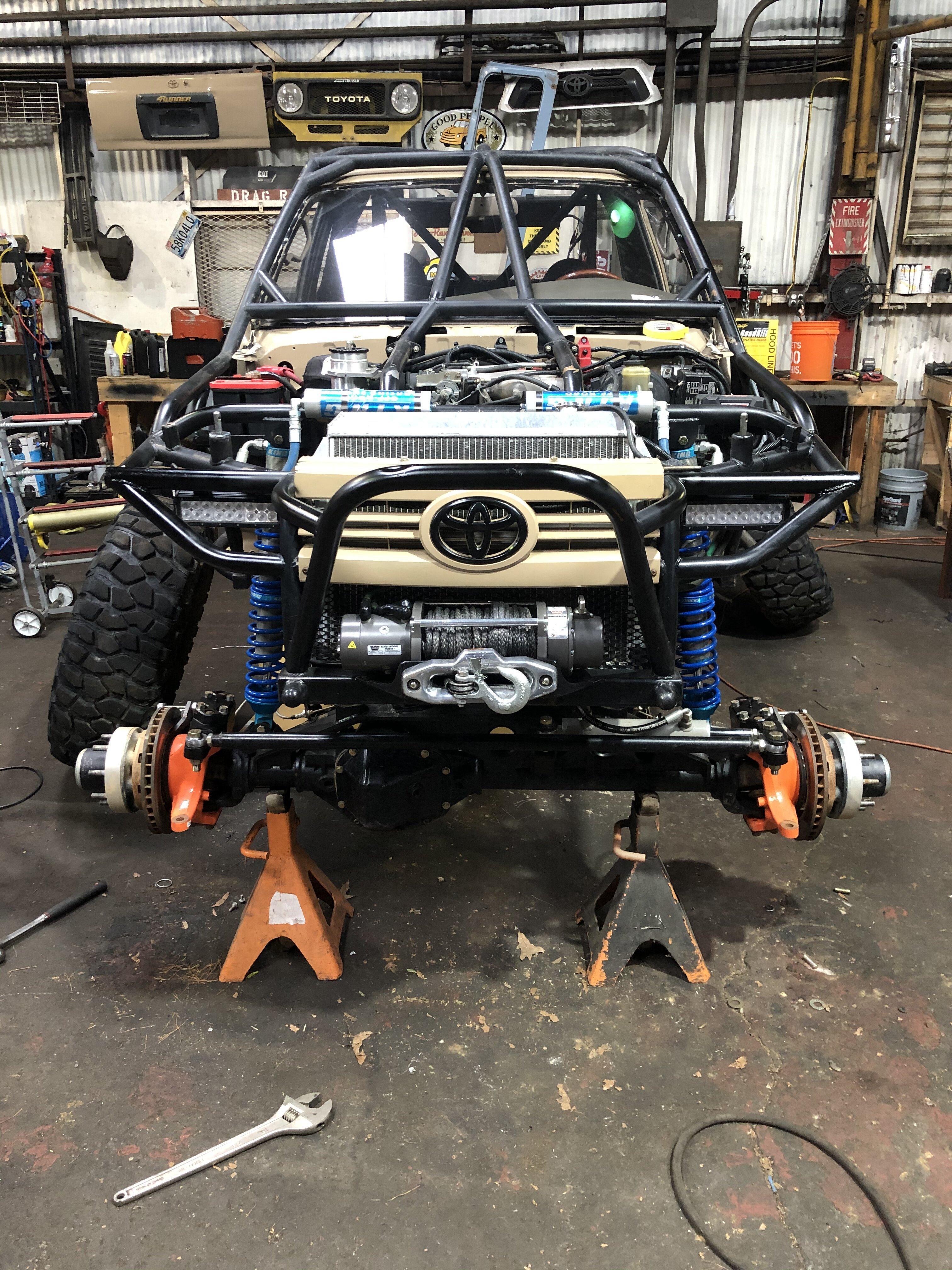

  • B42FED45-9BF8-4592-B397-59FA34A0E0CD.jpeg
    1.8 MB · Views: 1,173
  • Screenshot_20200517-065427_Chrome.jpg
    209.1 KB · Views: 1,266

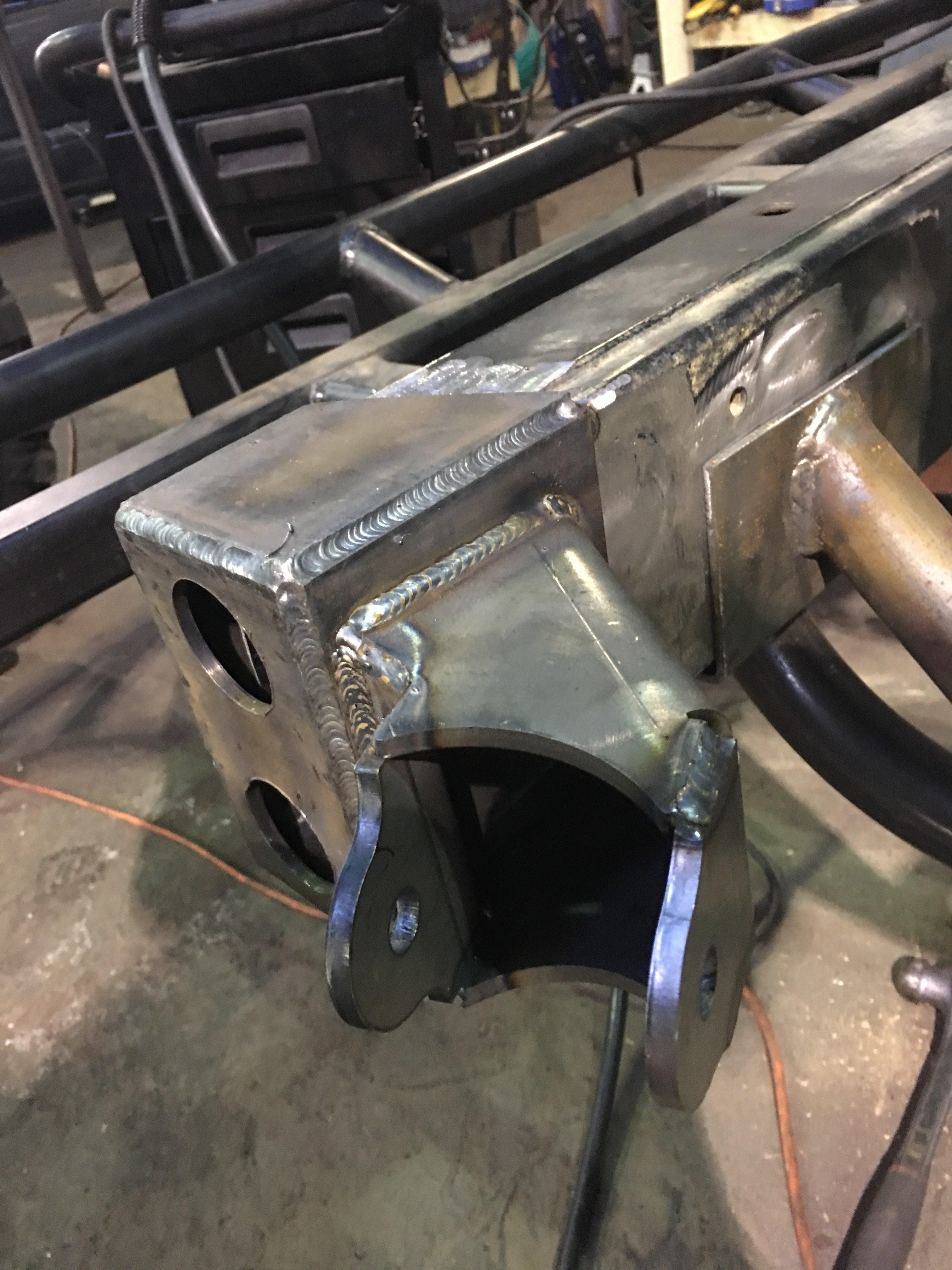

I built this rig. No shortcuts. All new parts.


Attachments

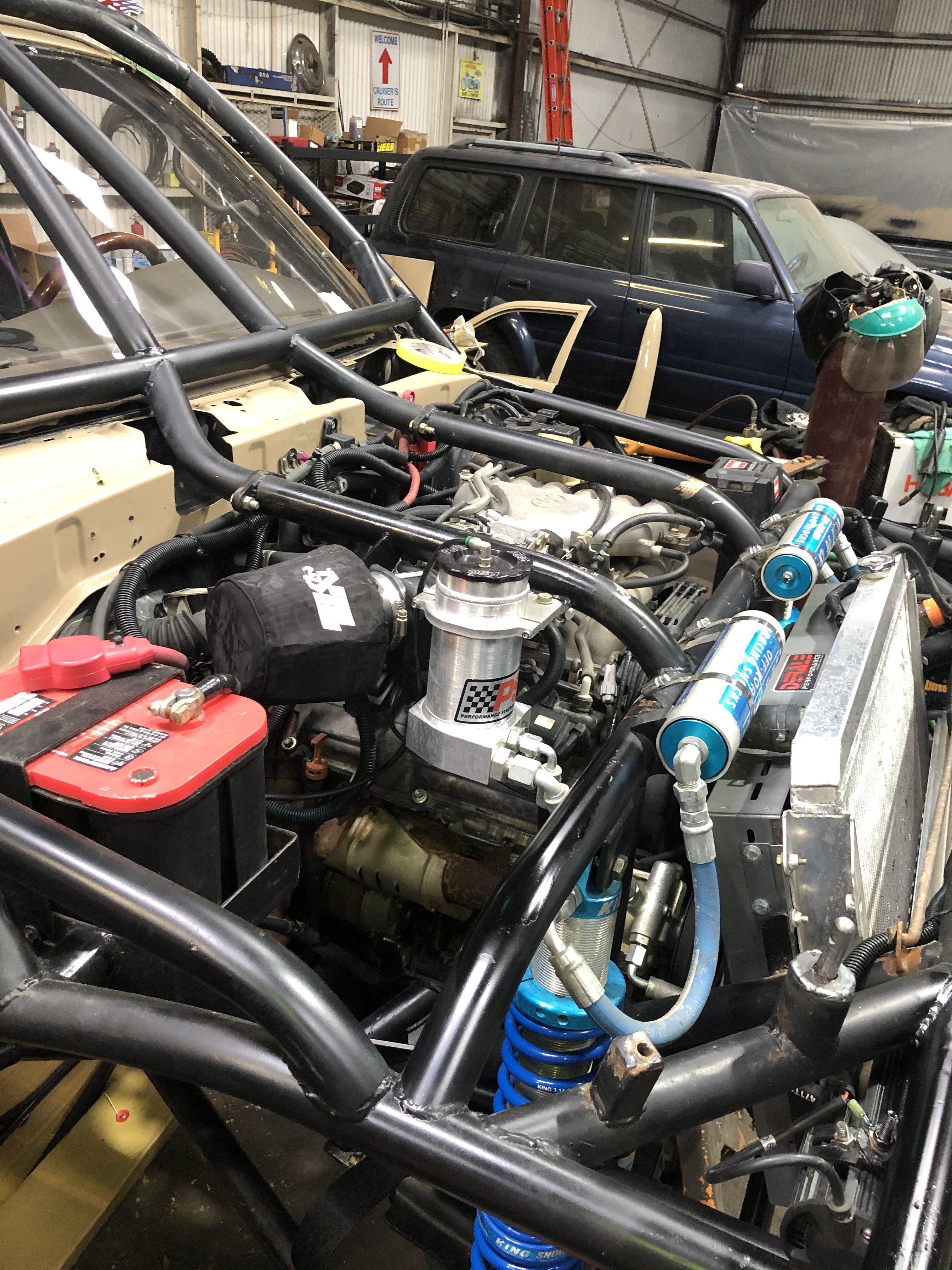

  • 59E3A5F8-7D91-4103-8D3E-016CAAE35354.jpeg
    1.7 MB · Views: 756
  • 4320858E-1AA5-4F7E-8F7D-6FAE07E7ACEF.jpeg
    1 MB · Views: 761
  • 767185E0-0FE2-4EAF-89DF-859B402CB164.jpeg
    712.2 KB · Views: 708
  • 579045DB-B522-4301-B8A9-9537ED0B639D.jpeg
    694.6 KB · Views: 661
  • 1E8EC77D-A960-41D3-8AF9-D4E15646FD8F.jpeg
    1.2 MB · Views: 876
