Here are a few pics of my first build. I started this build around Aug/Sept 2013. Finished it about 6 months ago

EXTERIOR
2005 Colorado/Canyon extended cab
1 3/4 .120 DOM on cage, .188 on lower frame rail and impact areas
4 linked front and rear on Fox air shocks
1 1/4 heims on lowers and 3/4 heims on uppers


DRIVETRAIN
2006 LS 6.0
Built th350 - TCI internals, full rev manual valve body, art carr shifter
Atlas II case - 3.8:1 HD outputs 1350 yokes
.188 chromo driveshafts - Carolina Driveline


AXLES
Chevy Dana 60 front
Yukon chromo axles
5.38 gears
Yukon grizzly locker
full hydro steering - PSC
undercover fab diff cover

14 bolt rear w/ disc brakes
5.38 gears
welded carrier
undercover fab shaved diff cover


OTHERS
TWF double beadlocks w/ inner and outer reinforcement rings
43" Super Swamper SX's
31x19 aluminum radiator
RCI fuel cell
TWF 20" lightbar


Attachments

  • BO 2.jpeg
    BO 2.jpeg
    749.2 KB · Views: 241

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

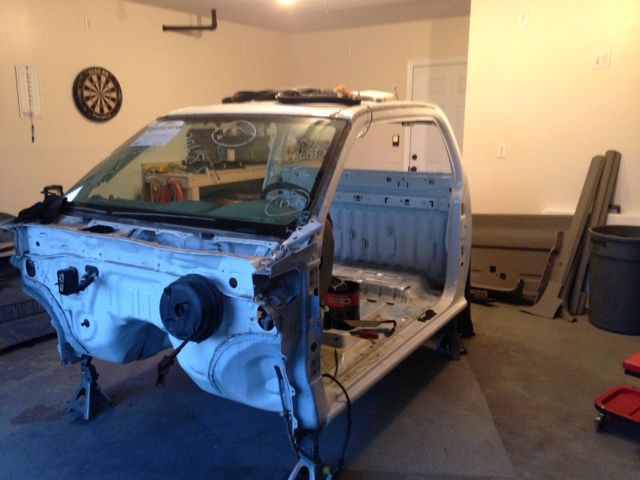

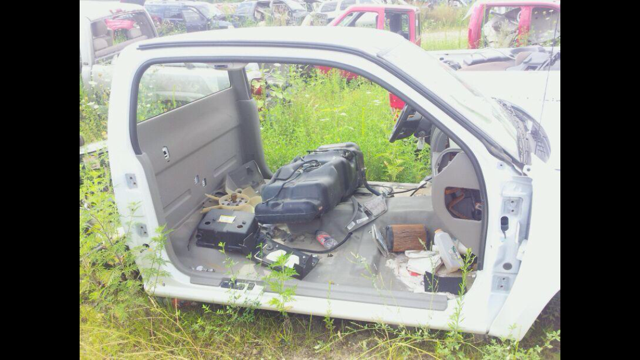

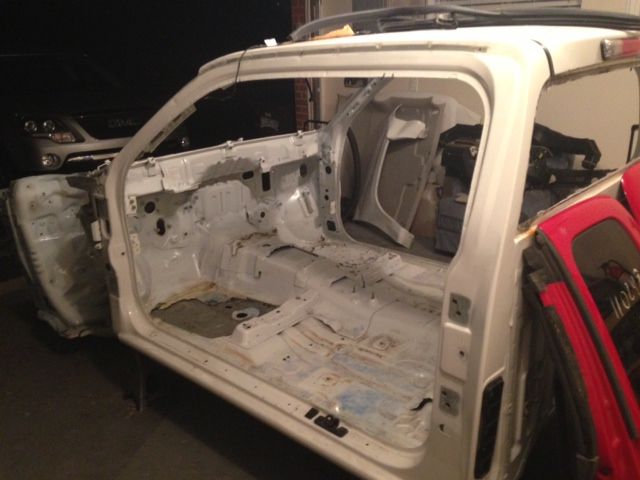

Here is the cab when I picked it up


Attachments

  • BO cab 1.PNG
    BO cab 1.PNG
    318.4 KB · Views: 1,883
  • BO cab 2.JPG
    BO cab 2.JPG
    45.3 KB · Views: 1,839
  • BO cab 3.JPG
    BO cab 3.JPG
    42.4 KB · Views: 1,834

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

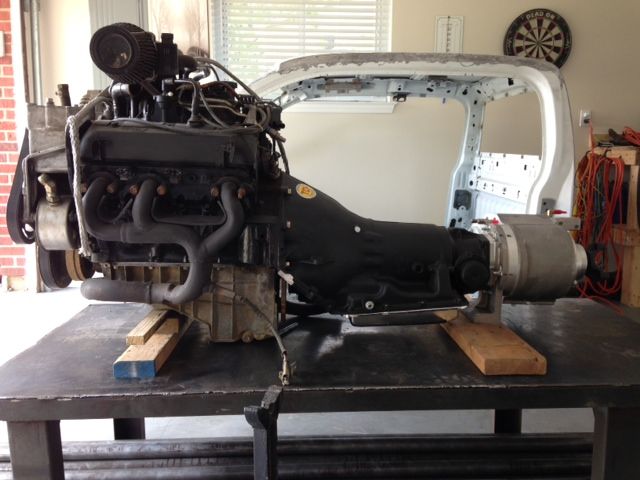

2001 4.3 w/ cam

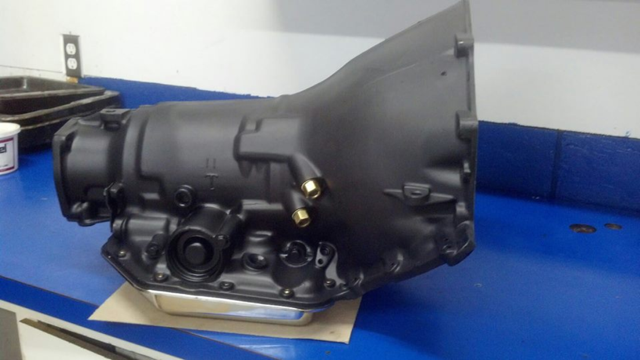

built th350 full reverse man valve body TCI internals

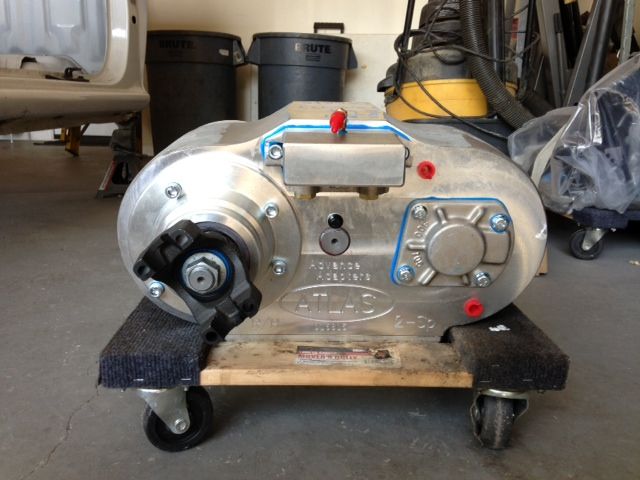

Atlas II t case 3.8:1


Attachments

  • BO drivetrain.JPG
    BO drivetrain.JPG
    52.4 KB · Views: 1,809
  • BO trans.PNG
    BO trans.PNG
    274.5 KB · Views: 1,855
  • BO atlas.JPG
    BO atlas.JPG
    53.2 KB · Views: 1,827

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

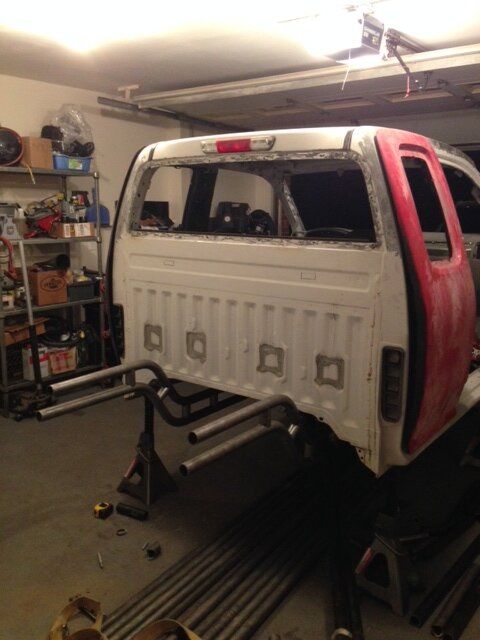

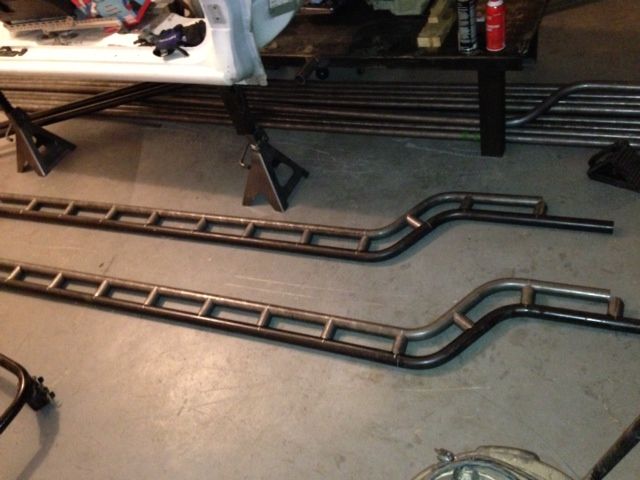

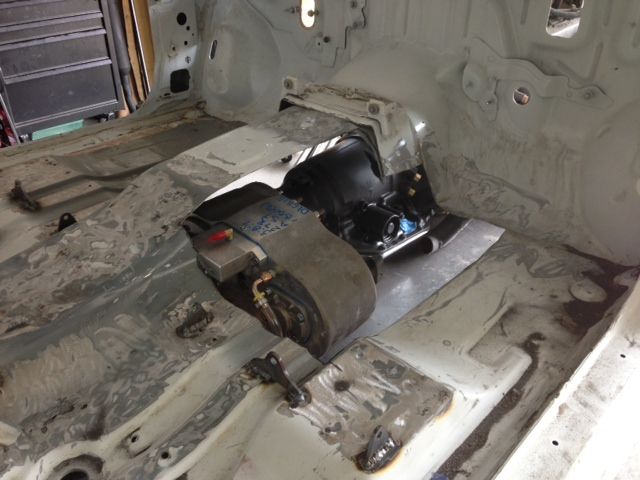

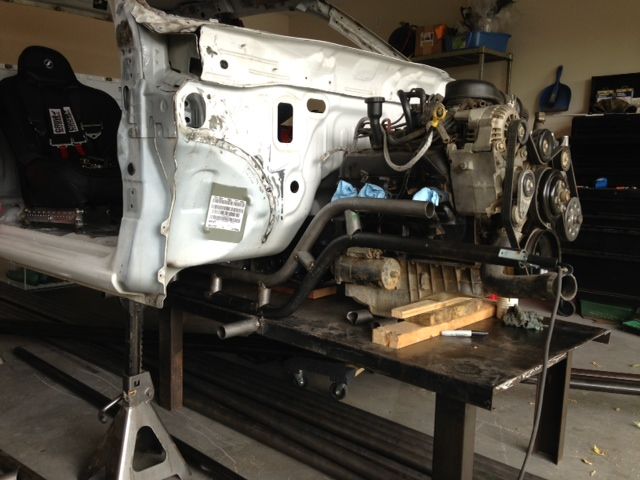

getting everything in place and frame rails built


Attachments

  • BO frame rails.JPG
    BO frame rails.JPG
    49.2 KB · Views: 1,806
  • BO on table.JPG
    BO on table.JPG
    55.3 KB · Views: 1,794
  • BO frame rear.JPG
    BO frame rear.JPG
    45.4 KB · Views: 1,780
  • BO console before.JPG
    BO console before.JPG
    50.6 KB · Views: 1,780

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

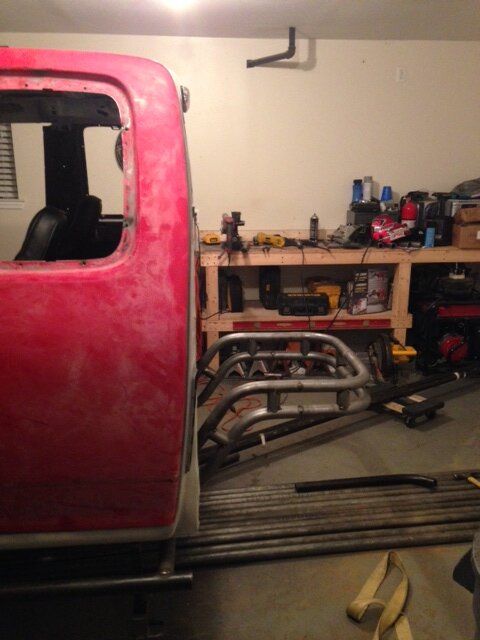

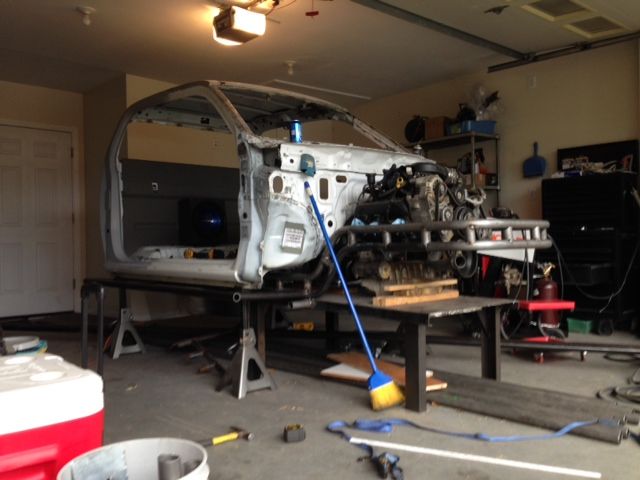

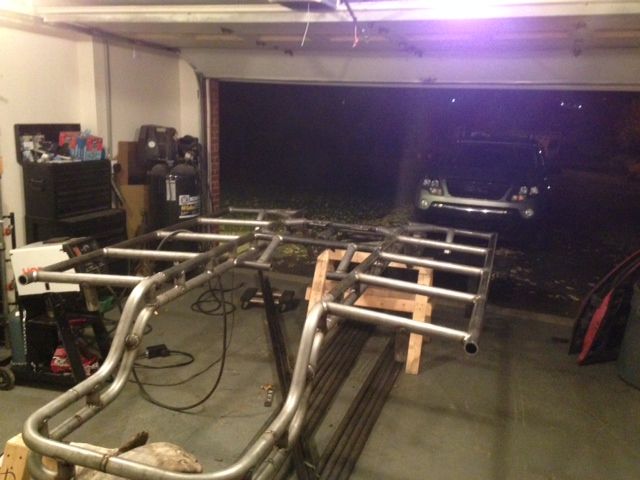

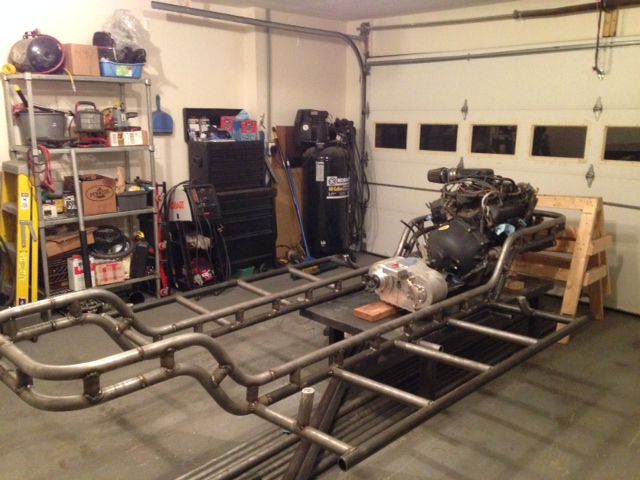

frame finished and cab removed for finish weld


Attachments

  • BO frame 2.JPG
    BO frame 2.JPG
    49 KB · Views: 1,750
  • BO frame 1.JPG
    BO frame 1.JPG
    59.2 KB · Views: 1,752
  • BO frame rear 2.JPG
    BO frame rear 2.JPG
    45.4 KB · Views: 1,759
  • BO frame front.JPG
    BO frame front.JPG
    46 KB · Views: 1,756

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

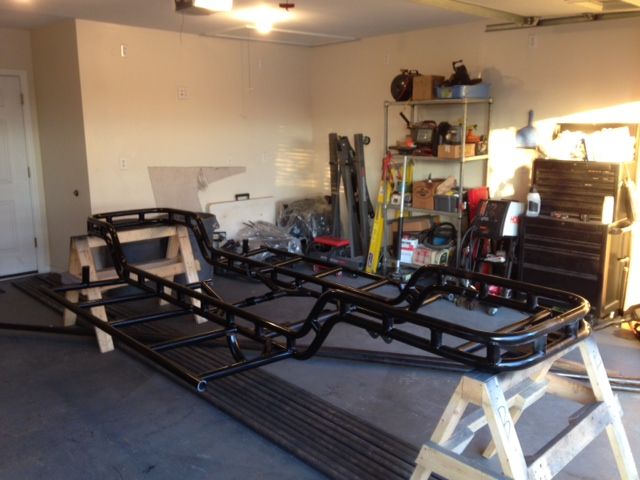

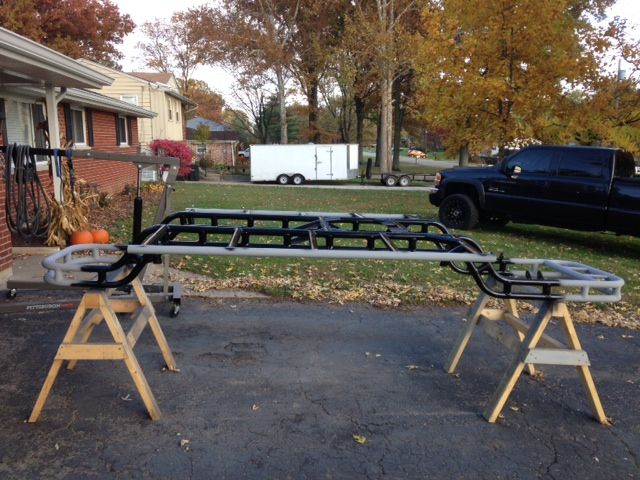

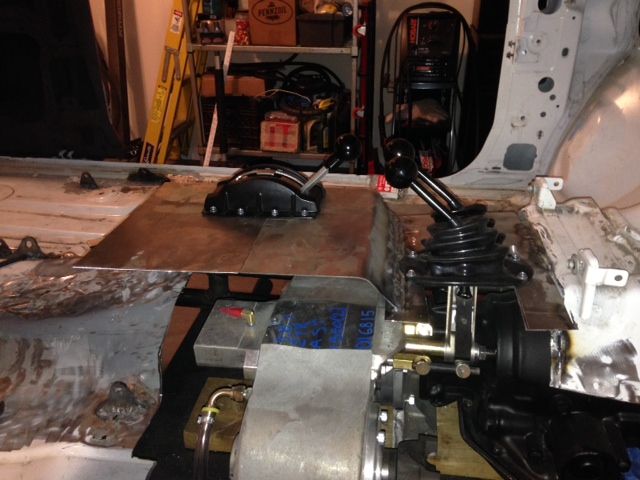

winch mounts made, frame primed and painted, started on console


Attachments

  • BO frame 3.JPG
    BO frame 3.JPG
    78 KB · Views: 1,738
  • BO frame 4.JPG
    BO frame 4.JPG
    49.6 KB · Views: 1,733

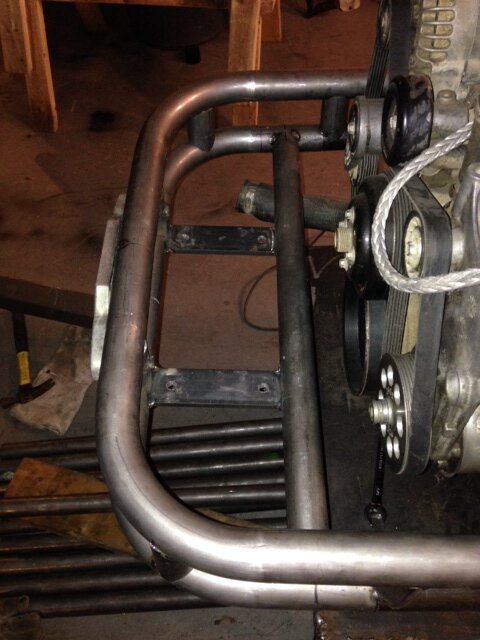

  • Bo winch mount.JPG
    Bo winch mount.JPG
    53.2 KB · Views: 1,725
  • Bo console 1.JPG
    Bo console 1.JPG
    56.4 KB · Views: 1,729

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

console finished, cab removed

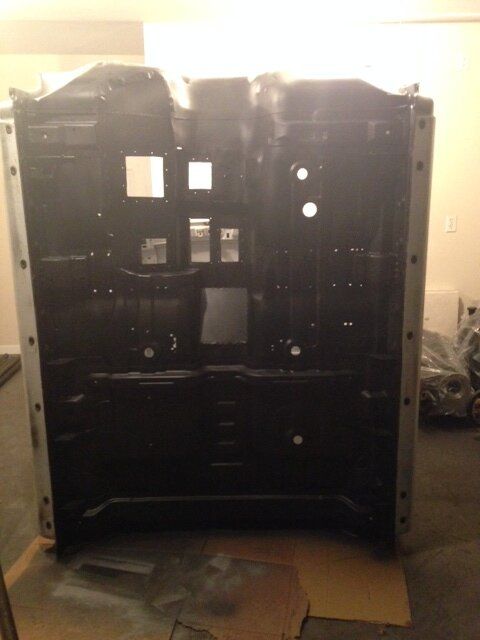

cab undercoated

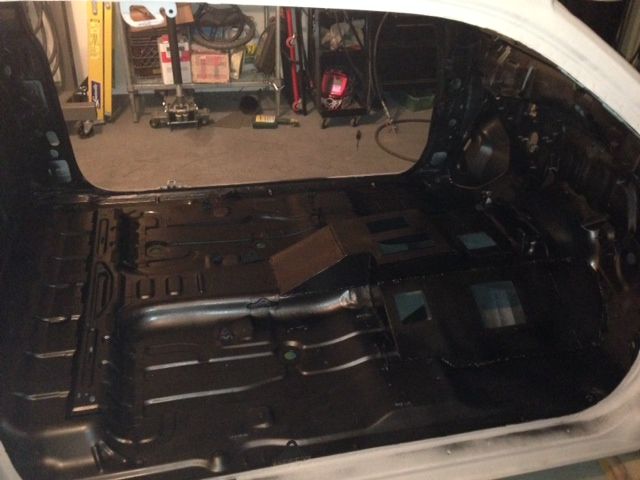

interior I used spray in bedliner

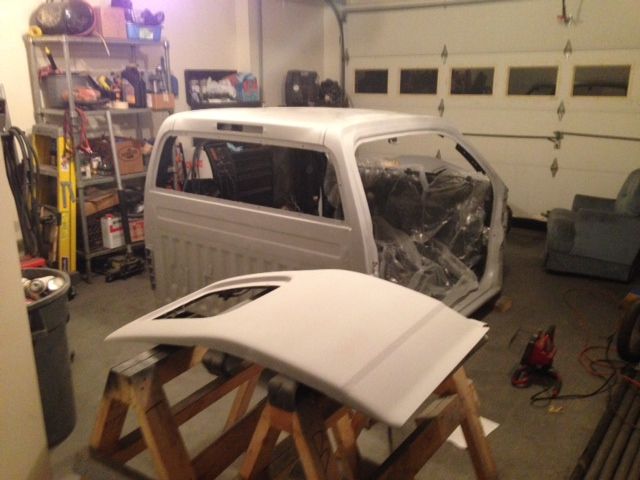

cab primed


Attachments

  • BO cab primer.JPG
    BO cab primer.JPG
    47.9 KB · Views: 1,688
  • BO linex.JPG
    BO linex.JPG
    44 KB · Views: 1,706
  • BO undercoat.JPG
    BO undercoat.JPG
    32.7 KB · Views: 1,700

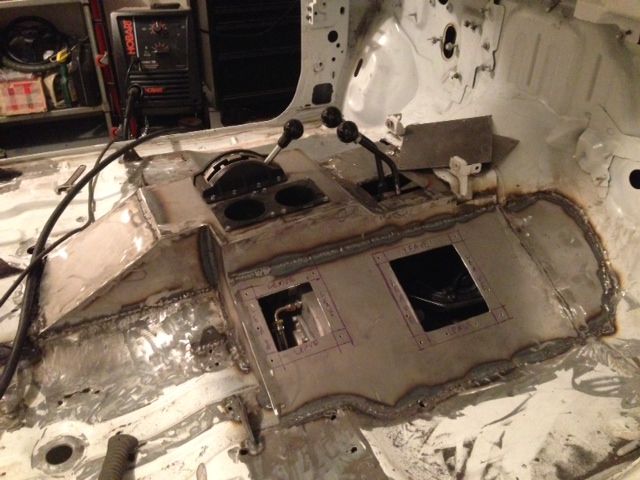

  • Bo console 2.JPG
    Bo console 2.JPG
    59.8 KB · Views: 1,717

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

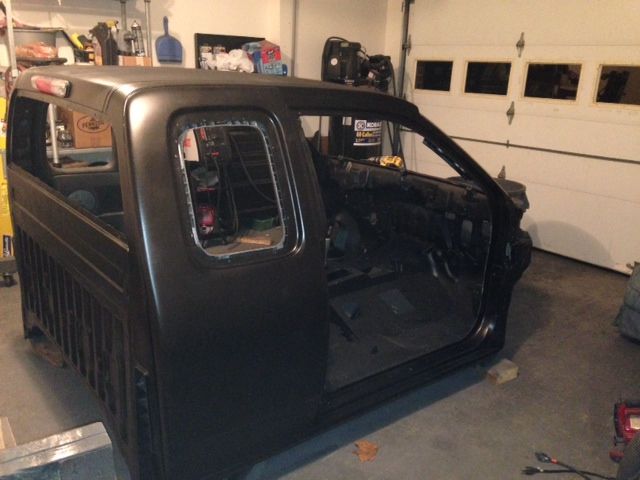

cab painted

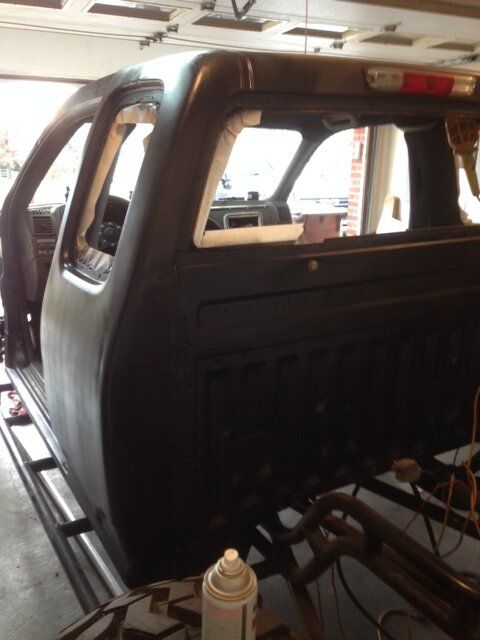

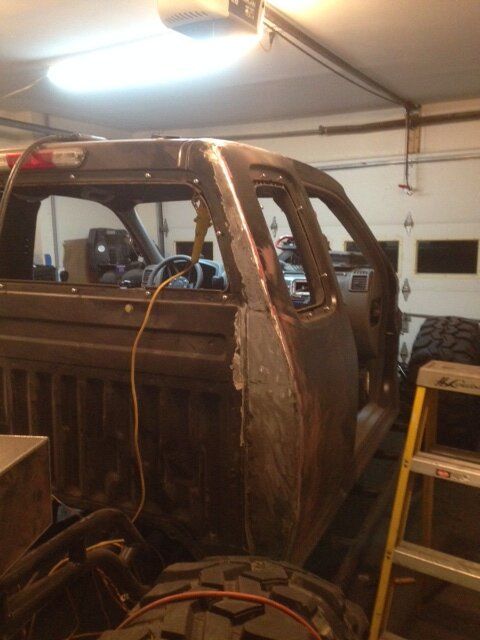

extended cab doors welded shut, bondo and repainted


Attachments

  • BO cab paint.JPG
    BO cab paint.JPG
    45.7 KB · Views: 1,685
  • BO doors welded.JPG
    BO doors welded.JPG
    45.4 KB · Views: 1,678

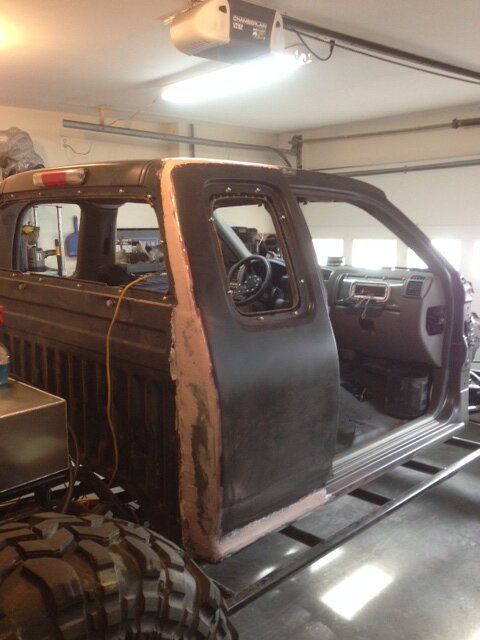

  • BO doors bondo.JPG
    BO doors bondo.JPG
    48.2 KB · Views: 1,665
  • BO doors finished.JPG
    BO doors finished.JPG
    42.9 KB · Views: 1,672

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

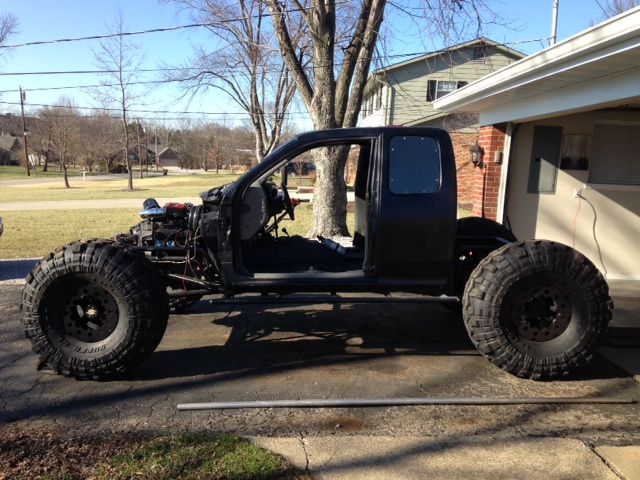

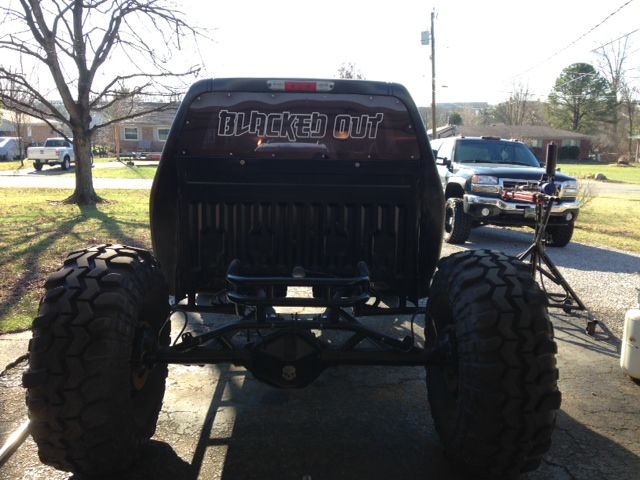

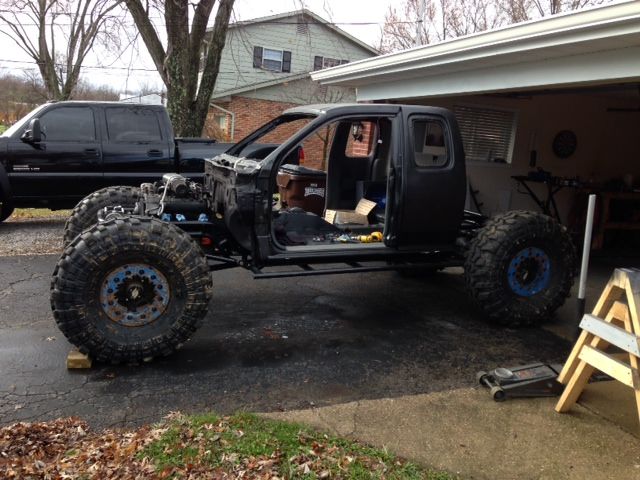

cab mounted
linked front and rear roller at this point


Attachments

  • BO roller 2.JPG
    BO roller 2.JPG
    59 KB · Views: 1,644
  • BO roller 3.JPG
    BO roller 3.JPG
    75.9 KB · Views: 1,643

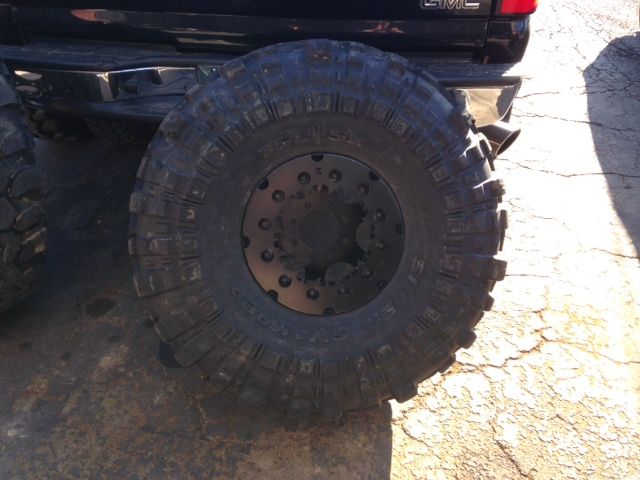

  • BO rims.JPG
    BO rims.JPG
    50.5 KB · Views: 1,662
  • BO roller.JPG
    BO roller.JPG
    71.1 KB · Views: 1,659

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

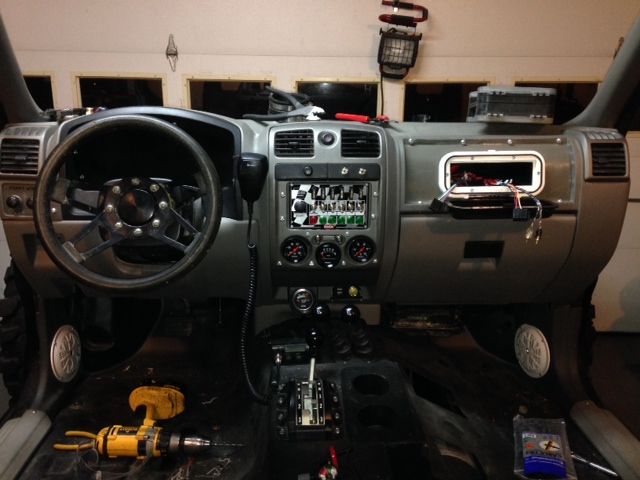

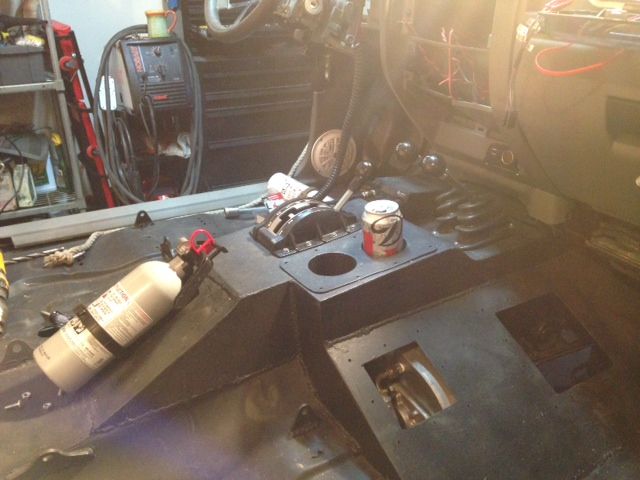

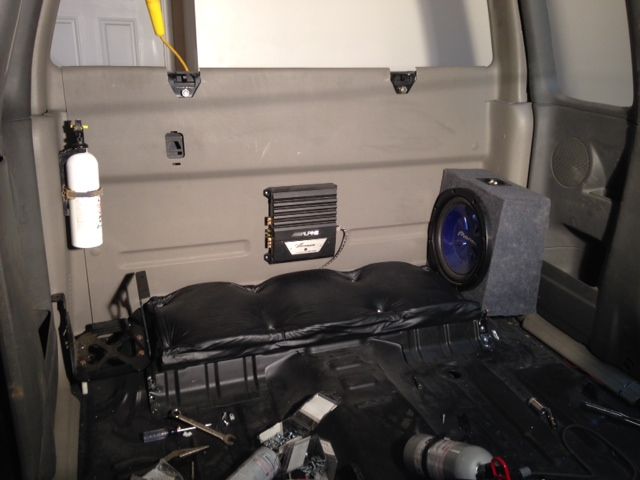

heres some interior pics.... 12'' sub, amp, battery mounted, small bench seat made in the rear
console and dash almost finished up

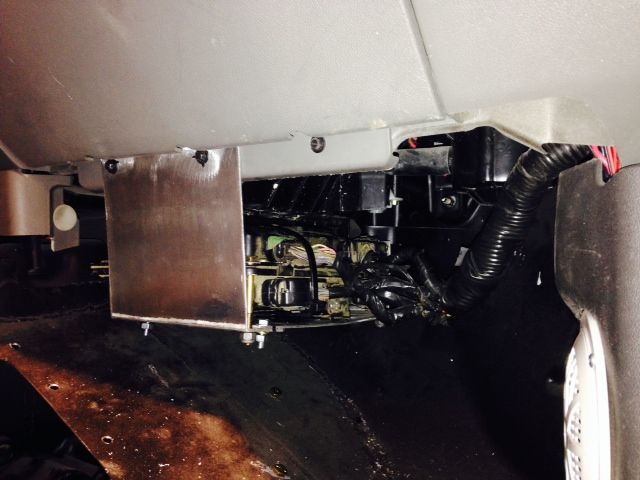

ecm mounted


Attachments

  • BO console after.JPG
    BO console after.JPG
    48.1 KB · Views: 1,621
  • BO interior rear.JPG
    BO interior rear.JPG
    39.6 KB · Views: 1,613
  • BO interior dash.JPG
    BO interior dash.JPG
    48.8 KB · Views: 1,610
  • BO ecm mount.JPG
    BO ecm mount.JPG
    47 KB · Views: 1,602

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

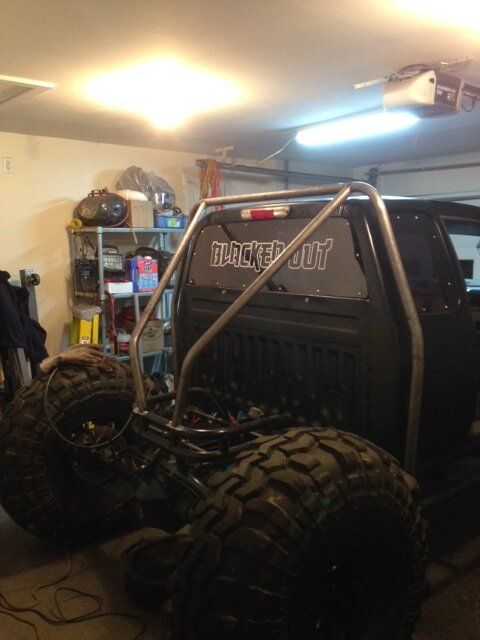

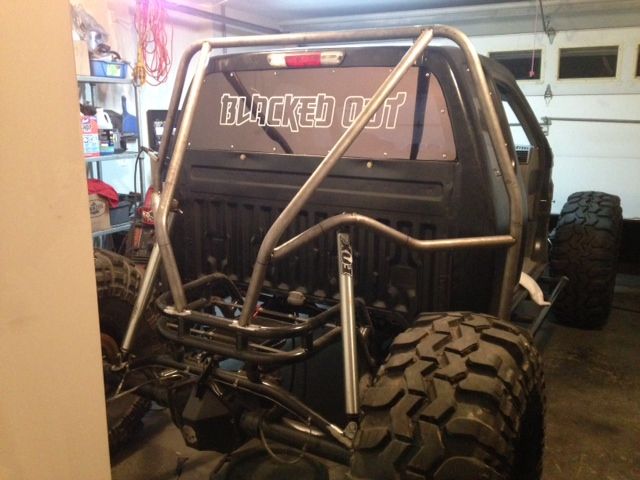

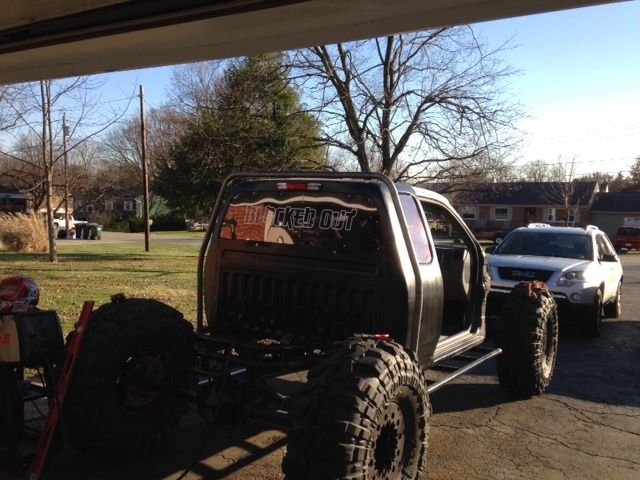

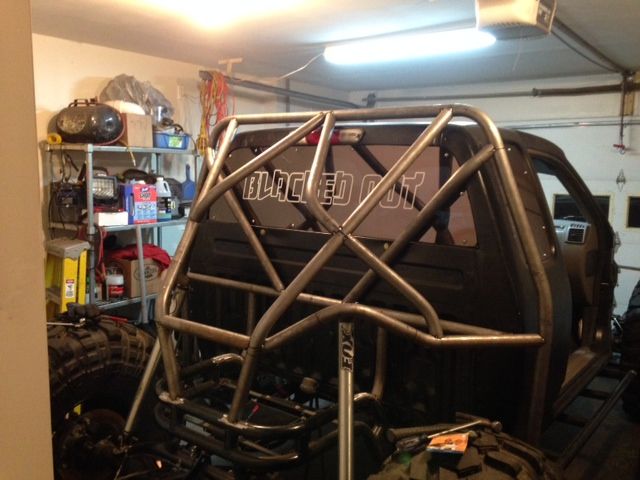

started caging the back first


Attachments

  • BO cage 4.JPG
    BO cage 4.JPG
    53.8 KB · Views: 1,581
  • BO cage 3.JPG
    BO cage 3.JPG
    53.7 KB · Views: 1,579
  • BO cage 2.JPG
    BO cage 2.JPG
    41.9 KB · Views: 1,577
  • BO cage 1.JPG
    BO cage 1.JPG
    66.7 KB · Views: 1,591

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

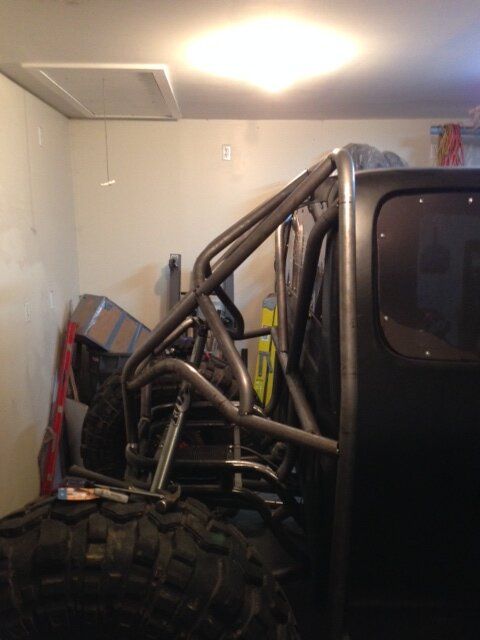

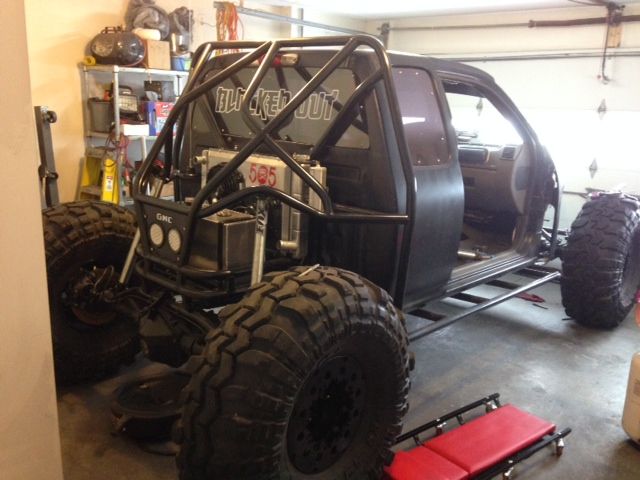

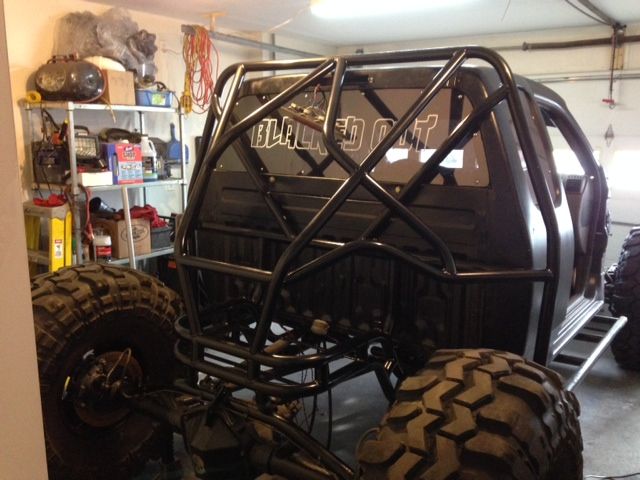

rear finished
radiator and catch can mounted, fuel cell mounted


Attachments

  • BO cage 5.JPG
    BO cage 5.JPG
    35.2 KB · Views: 1,555
  • BO cage 6.JPG
    BO cage 6.JPG
    58.9 KB · Views: 1,564
  • BO rear 3.JPG
    BO rear 3.JPG
    53.2 KB · Views: 1,556

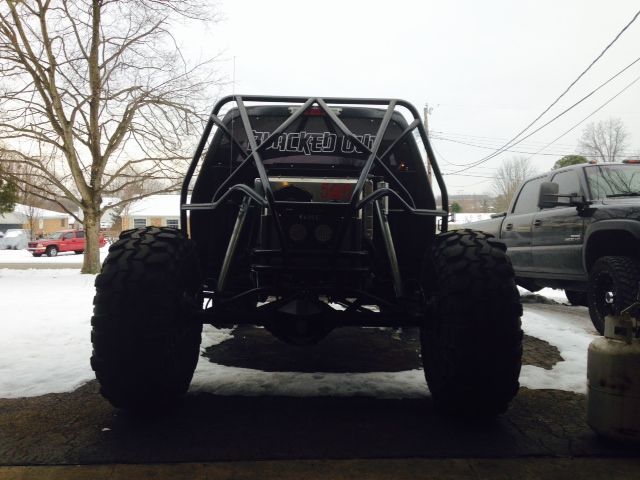

  • BO rear view.JPG
    BO rear view.JPG
    53 KB · Views: 1,552

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

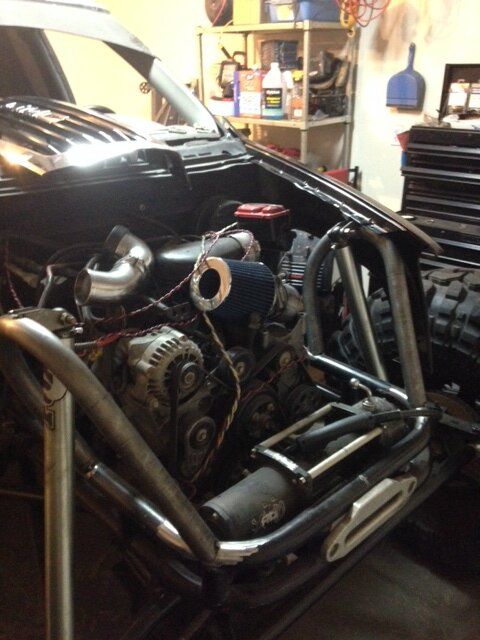

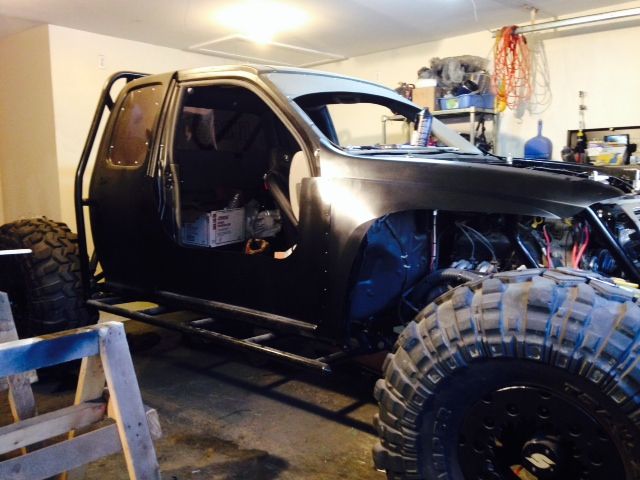

shock hoops made

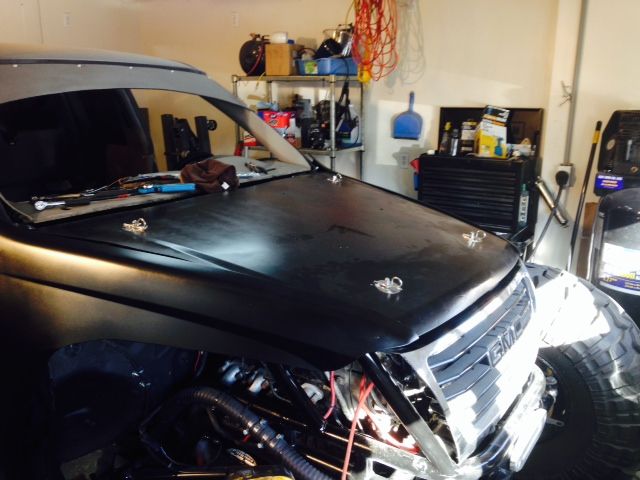

fenders and hood cut and narrowed
grille mounted


Attachments

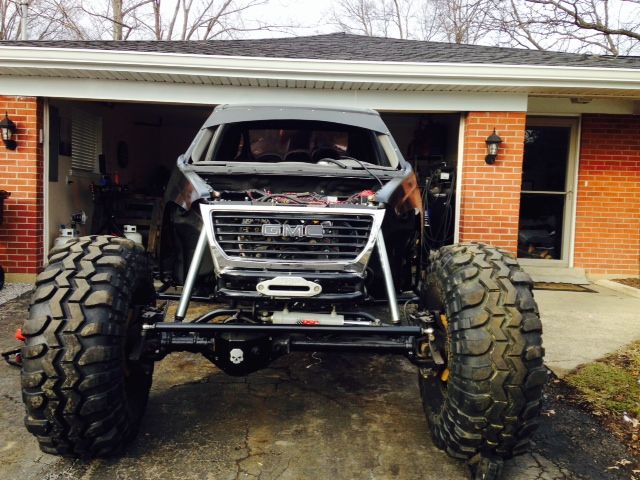

  • BO front view 1.JPG
    BO front view 1.JPG
    79.3 KB · Views: 1,536
  • BO door panel.JPG
    BO door panel.JPG
    56.7 KB · Views: 1,541
  • BO hood.JPG
    BO hood.JPG
    54.5 KB · Views: 1,542
  • BO shock hoops.JPG
    BO shock hoops.JPG
    58.3 KB · Views: 1,537

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

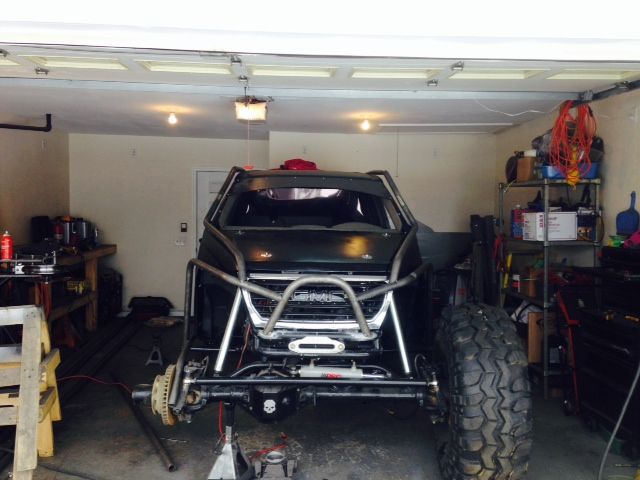

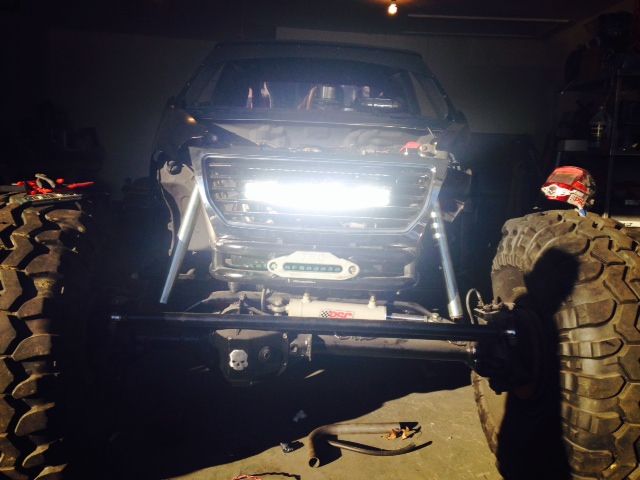

TWF light bar mounted behind the grille

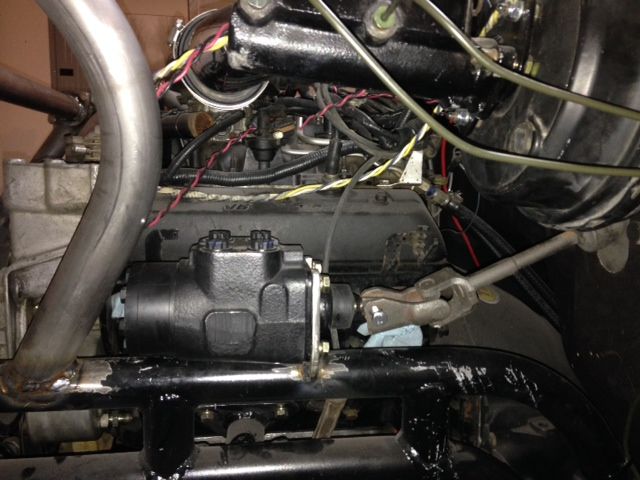

Orbital mounted
started caging the rest


Attachments

  • BO lightbar 1.JPG
    BO lightbar 1.JPG
    55.7 KB · Views: 1,529
  • BO lightbar 2.JPG
    BO lightbar 2.JPG
    45.2 KB · Views: 1,526
  • BO orbital.JPG
    BO orbital.JPG
    59.4 KB · Views: 1,524
  • BO cage 7.JPG
    BO cage 7.JPG
    50.7 KB · Views: 1,527

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

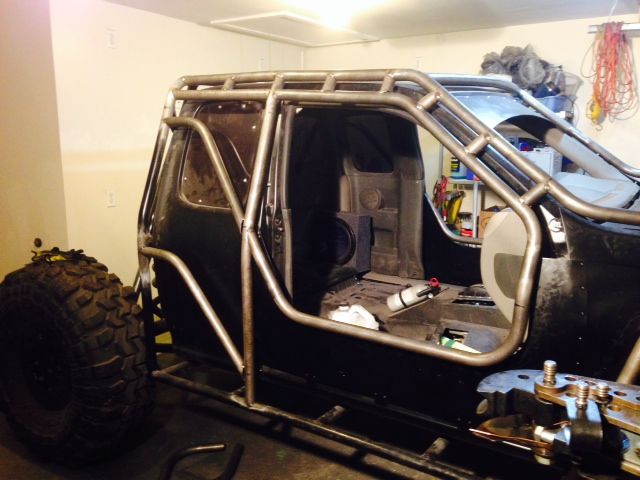

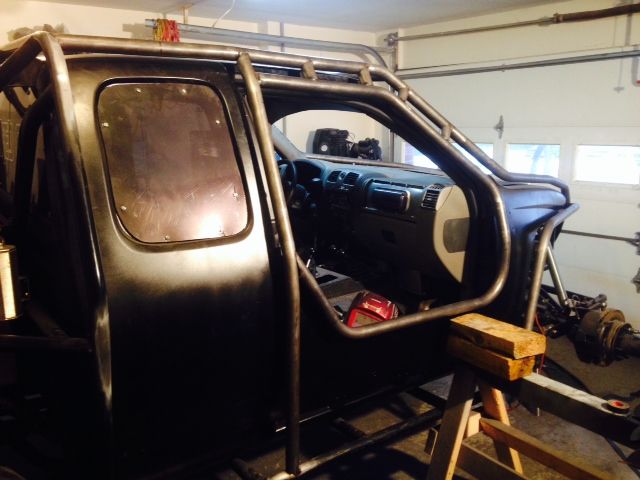

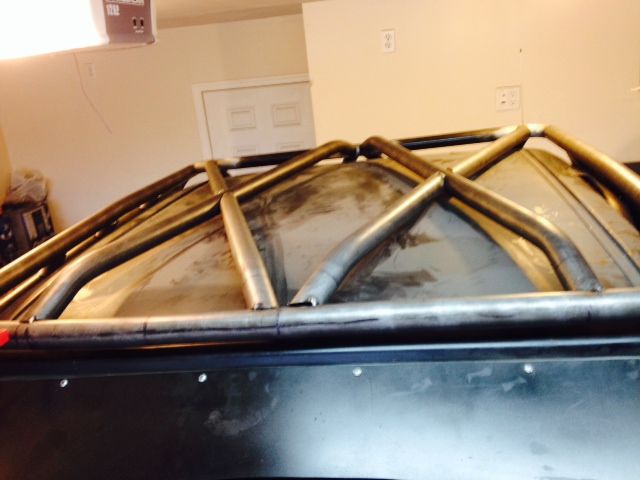

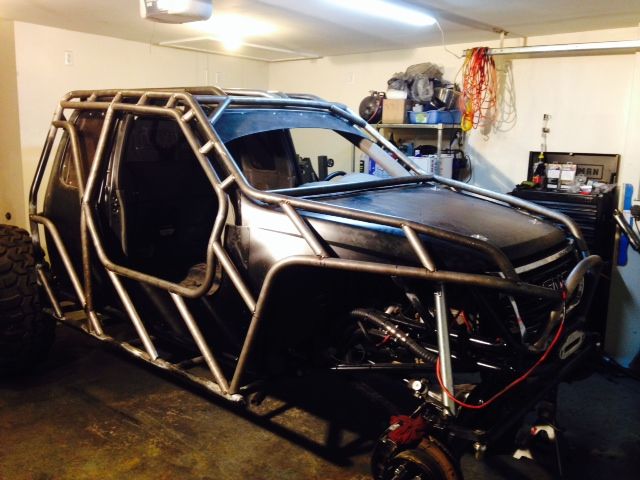

more pics of cage


Attachments

  • BO cage 11.JPG
    BO cage 11.JPG
    58.5 KB · Views: 1,510
  • BO cage 10.JPG
    BO cage 10.JPG
    41.2 KB · Views: 1,525
  • BO cage 9.JPG
    BO cage 9.JPG
    53 KB · Views: 1,532
  • BO cage 8.JPG
    BO cage 8.JPG
    49.7 KB · Views: 1,518

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
Re: "Blacked Out"

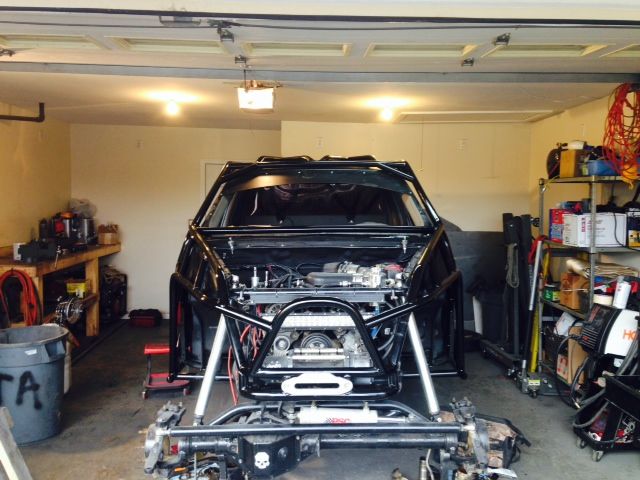

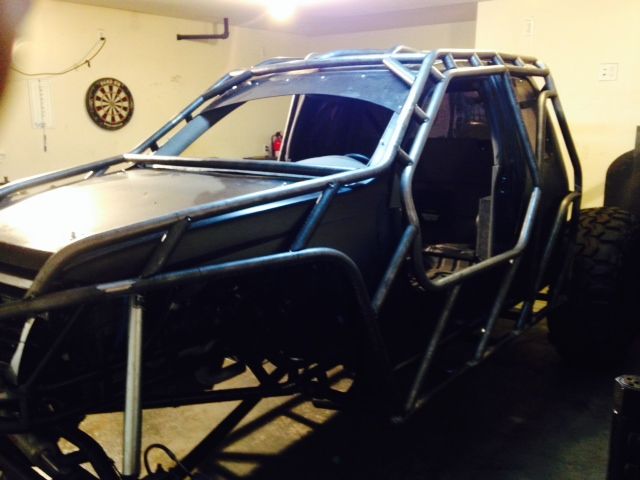

finished cage, welded, primed and painted
this is basically the finished product, just before the first pic I posted


Attachments

  • BO cage 12.JPG
    BO cage 12.JPG
    42.5 KB · Views: 1,516
  • BO cage 13.JPG
    BO cage 13.JPG
    64.8 KB · Views: 1,518
