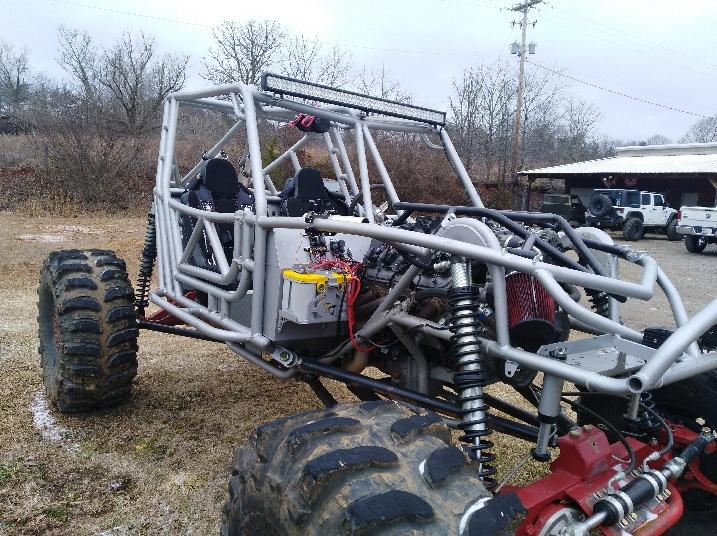

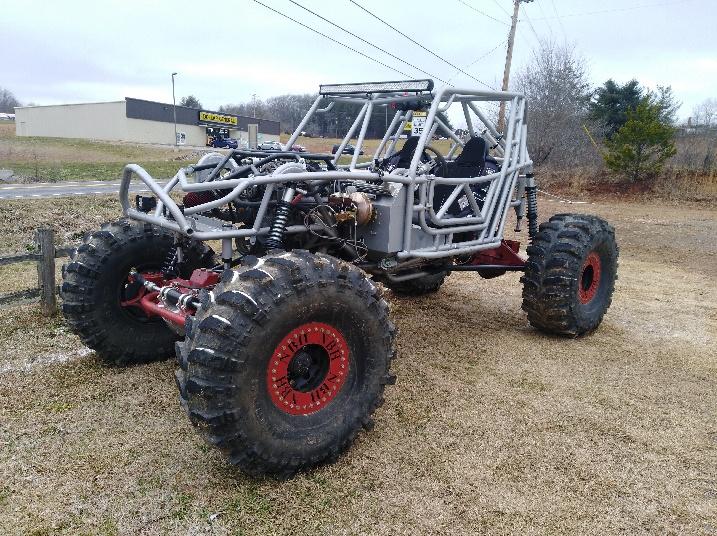

This is a Wide Open Design chassis that has been modified for better departure angle and painted.

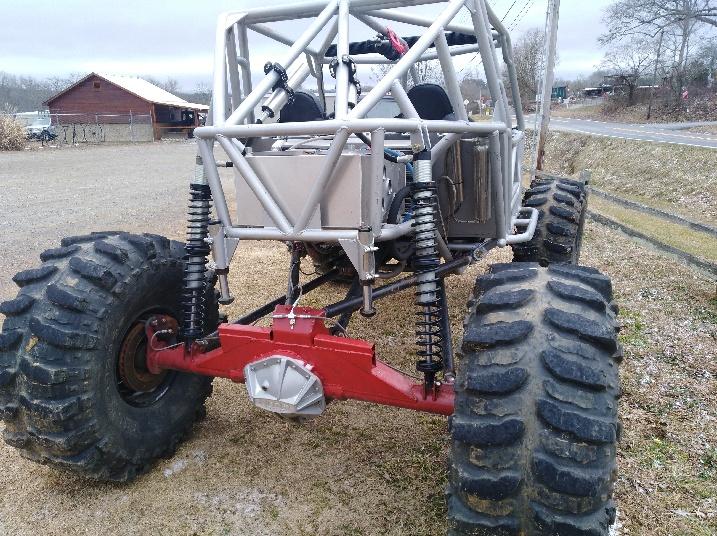

Built Chevy 1 tons, nitro 5.38's with spools front and rear. 35 spline chromoly shafts and Excalibur solid U-joints and drive slugs.
8" dual ended full hyrdo steering
1.75 hiems all around.
122" wheelbase
4 wheel disk with 100% braided stainless lines from master cylinder to calipers.
Custom 16.5 bead locks
44" boggers with small lugs cut out.
2" .250 links
16" 2.56 FOA coil overs all around
2.5 Air Bumps all around
Drive Train
Fresh rebuilt 6.0 LS
Polished cranks and rods
Mild flow work on heads with all new guts
Micro squirt EFI system to tune on the fly and harness is 1/3 as complicated as a factory LS harness.
Street tuned ECU
Bullet proofed TH350 manual valve body, with custom turbo to LS 3500 converter, B & M shifter with reverse lockout removed.
NP205 just built and upgraded.

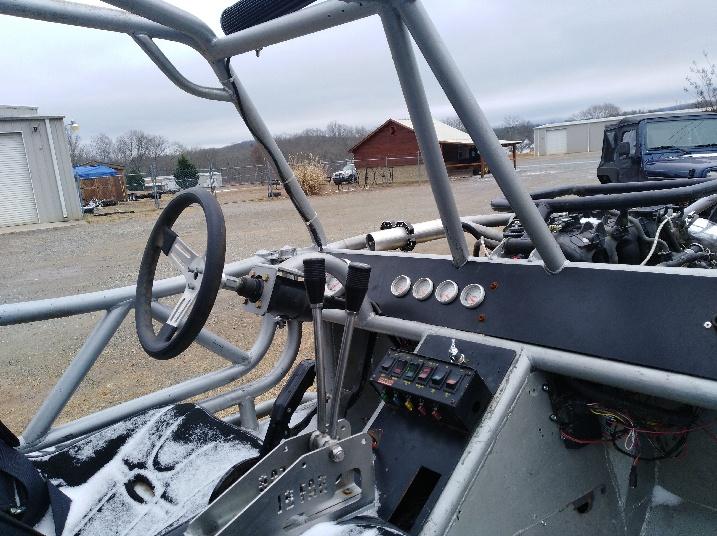

JS Fab cable twin stick.
1410 u joints all around
Aeromotive Phantom 340 pump with braided stainless lines
Aluminum 15 gallon cell
Rear mounted radiator with dual pulling fans.
Painless wiring harness for everything.
Seats and buggy are built for a taller person to be able to drive it.
Pro Armor padded harnesses
May consider a partial trade, must have cash with trade.
Asking $25K
Call Jim 706-455-5798
Located in Morganton, GA
Built Chevy 1 tons, nitro 5.38's with spools front and rear. 35 spline chromoly shafts and Excalibur solid U-joints and drive slugs.
8" dual ended full hyrdo steering
1.75 hiems all around.
122" wheelbase
4 wheel disk with 100% braided stainless lines from master cylinder to calipers.
Custom 16.5 bead locks
44" boggers with small lugs cut out.
2" .250 links
16" 2.56 FOA coil overs all around
2.5 Air Bumps all around
Drive Train
Fresh rebuilt 6.0 LS
Polished cranks and rods
Mild flow work on heads with all new guts
Micro squirt EFI system to tune on the fly and harness is 1/3 as complicated as a factory LS harness.
Street tuned ECU
Bullet proofed TH350 manual valve body, with custom turbo to LS 3500 converter, B & M shifter with reverse lockout removed.
NP205 just built and upgraded.
JS Fab cable twin stick.
1410 u joints all around
Aeromotive Phantom 340 pump with braided stainless lines
Aluminum 15 gallon cell
Rear mounted radiator with dual pulling fans.
Painless wiring harness for everything.
Seats and buggy are built for a taller person to be able to drive it.
Pro Armor padded harnesses
May consider a partial trade, must have cash with trade.
Asking $25K
Call Jim 706-455-5798
Located in Morganton, GA
