New front end

[GaryTJ]

Starting a new project. Going to replace the ft axle and trying to do a step by step how I did it for those with an interest.

86 Ford hp dana 60 axle, shorten it to 62" WMS, new ARB, Gears, Axles(Bobby Long CV's), 1/2 ton ford rotors with chev 3/4 brakes, chev 1 ton TRE's, and mount to my existing 3 link front suspension and reinstall the ram assist.

Just starting out, but what I have done so far...

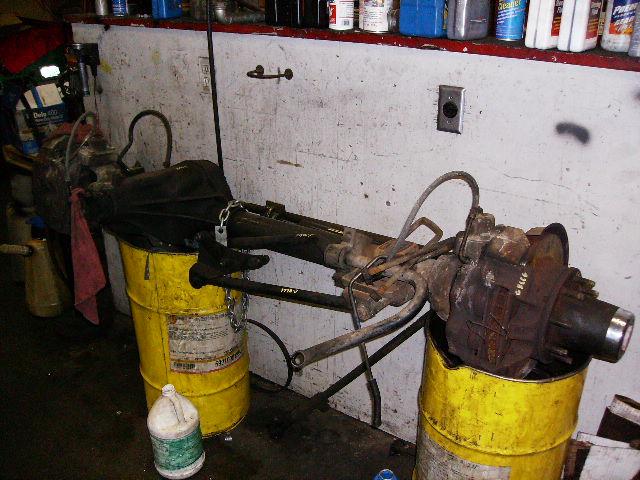

old axle.
View attachment 17451

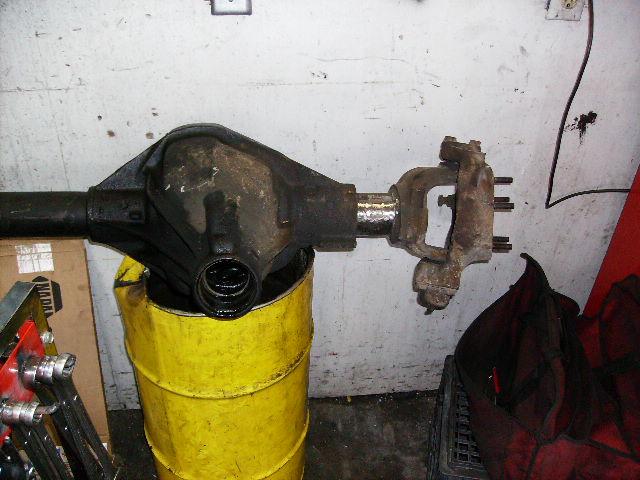

stripped down.
View attachment 17450

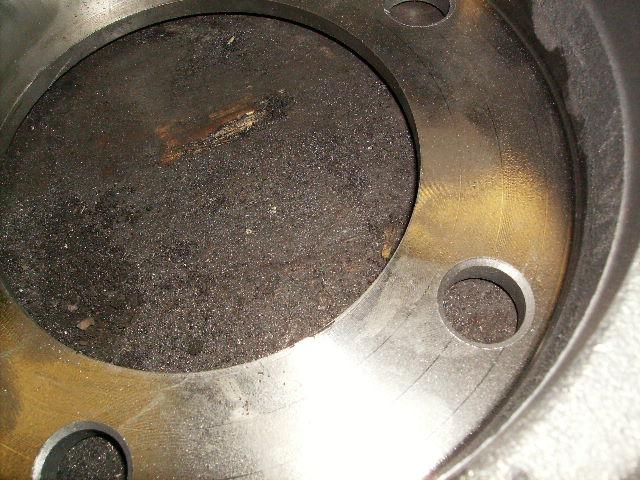

Ford rotors. I have to machine out the center hole to fit the 60 hubs.
View attachment 17453

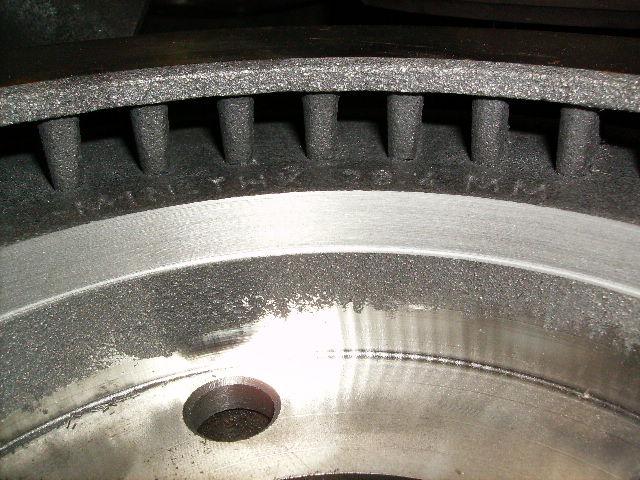

The only machined inner surface is the one I need to machine, so I have to make another to be able to chuck them true.
View attachment 17452

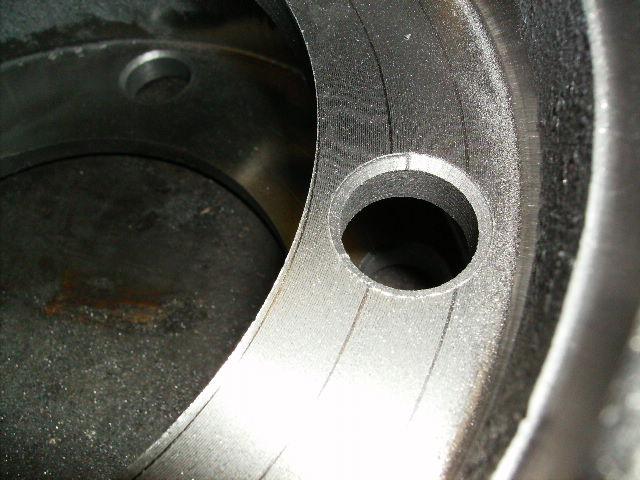

Then I can machine the center out.
View attachment 17454



[GaryTJ]

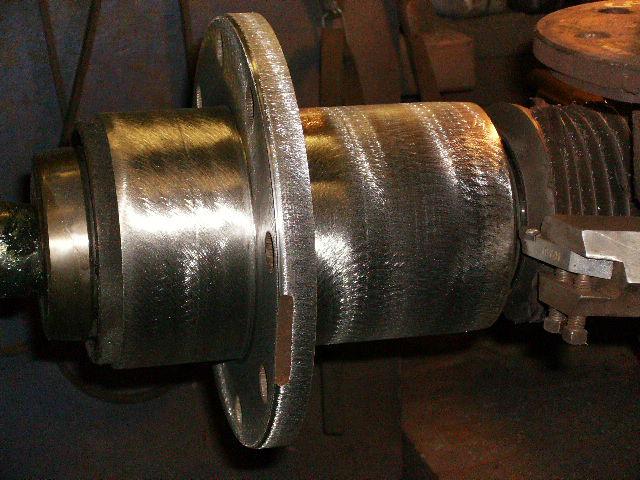

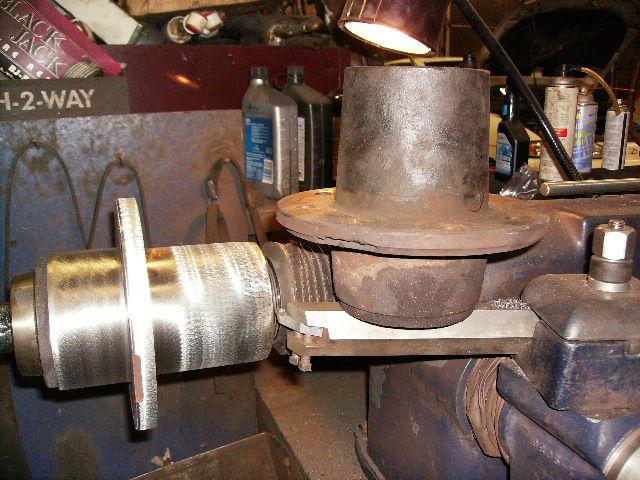

Next machine the hubs down to 4.5" backside diameter and 4.25 outside diameter to fit into 15" wheels and run the ford rotors.

View attachment 17455

View attachment 17456

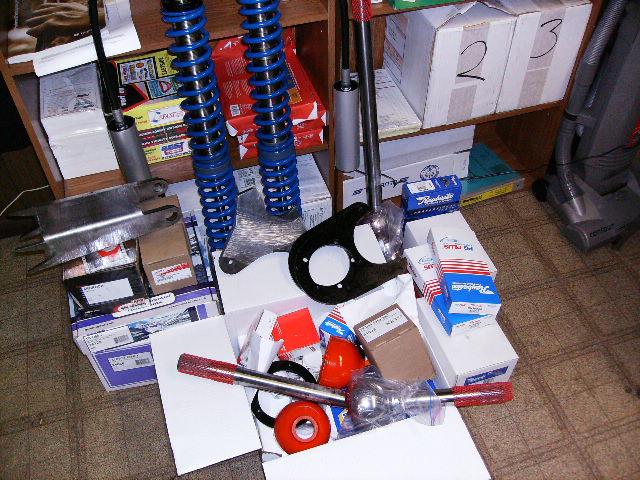

and a box of parts waiting for install. I still need the ARB and will be lookin for one this weekend at the swapmeet.

View attachment 17457

Will continue after this weekend.



[Hip]

you make me sickuke:

i want one:eeek:



[blackcj71]

Niice I love the Brake lathe use as well:redneck:



[no excuses]

nioce :awesomework:



[NotMatt]

Bobby's CV's...



[Bunk1]

Quality chatter. But hey, If it works run with it....



[jeepmauler]

Quality chatter. But hey, If it works run with it....

I was gonna say somethin.....but I ain't mean like you:flipoff:
HAHA.....maybe neck that bar down a smidge on the tool post and GET SOME!!:redneck:



[JOOP]

Thats kick ass man. but damn you just kinda kicked me in the nuts with my new 44. I was all excited about having it, now I'm just :booo:



[Bunk1]

I was gonna say somethin.....but I ain't mean like you:flipoff:
HAHA.....maybe neck that bar down a smidge on the tool post and GET SOME!!:redneck:

Im not mean, Im an a**hole.

Really, Ya gotta give him props. I woulda done the same thing if i was in his shoes.



[darius]

I was gonna say somethin.....but I ain't mean like you:flipoff:
HAHA.....maybe neck that bar down a smidge on the tool post and GET SOME!!:redneck:

Im not mean, Im an a**hole.

Really, Ya gotta give him props. I woulda done the same thing if i was in his shoes.

you guy's are jerkfaces, I was like hell yes, that's some backyard ****, the rough finish is nothing that a little emery cloth won't fix.:redneck:



[crash2]

you guy's are jerkfaces, I was like hell yes, that's some backyard ****, the rough finish is nothing that a little emery cloth won't fix.:redneck:

I was thinking the chatter gives it kinda cool look..

Its by time gary :awesomework:



[Pat]

Why can't I see the pictures?
This project sounds really cool,
but this thread makes little sense without visuals.



[The Internet]

Why can't I see the pictures?
This project sounds really cool,
but this thread makes little sense without visuals.

Sorry about that. Try hitting F5 or shift + refresh on your broser. :kiss:



[darius]

I was thinking the chatter gives it kinda cool look..

Its by time gary :awesomework:

Probably, but the emery cloth will give the swirl effect that most definitely "get's the bitches"



[crash2]

Why can't I see the pictures?
This project sounds really cool,
but this thread makes little sense without visuals.

click

click---ops click :redneck:

Kinda like watching a -----ummmm--never mind :redneck:

Probably, but the emery cloth will give the swirl effect that most definitely "get's the bitches"

Yes it would---don't know about the bitchs part



[darius]

click

click---ops click :redneck:

Kinda like watching a -----ummmm--never mind :redneck:



Yes it would---don't know about the bitchs part

ok that's enough BS already:fawkdancesmiley:



[Pat]

Sorry about that. Try hitting F5 or shift + refresh on your broser. :kiss:

Still no worky.
Are you not feeling well Internet?
I see file name, size, views, but no linky format either.



[84Toyota4x4]

I actually was trying to devise a way to use a brake lathe at work to machine out the centers of some Chevy rotors for my rear disc swap when I was working at a repair shop. I never did though. Got the brakes working pretty damn good after I swapped the front end around and used the bigger calipers and stuck a proportioning valve in there.

One of these days Ill get the rear disc done after I get tired of cleaning the mud out. But, then again, you have to actually WHEEL to get them dirty in the first place, haha.

Nice work man, looks like a ton of fun. Im always excited when I get some new parts, a pile like that would probably keep me in a good mood for a long time, haha.

~T.J.



[Binder]

Nothing wrong with back yard machine work. Shiiiiiiit I would have mounted it on a front axle then put the rig in gear.............Go to town with a die grinder.:redneck:
