New TJ Buggy build. Still prefer the jeep look after all these years.

Gotta love a jeep!

  • ?

    Votes: 3 60.0%
  • ?

    Votes: 2 40.0%

  • Total voters
    5

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
Parts List:

DriveTrain:
383 Stroker appx 450Hp pwr band around 1800-7000 rpm
Powerglide with 2000 stall
Atlas II 3.0:1

Axles:
Dana 60 with all the typical goodies
Corp 14 (typical stuff) 4.56:1

Body
2000 TJ Sahara tub with hood and grill only (two seater)

Traditional type frame with 2x4 rect tubing 50ksi (1/8 wall in front of firewall and 3/16 under tub). Body will be independent of cage and frame. All link geometry on new frame predesigned to fit existing axles out of my cj. Flat belly at bump is 15", ride height belly is 22". Wheelbase is 116". Top of cage will be around 74" at ride height depending on head room could change little either way. 1.75 Dom cage and all links 2" 1/4wall with 1.25" heims.

This Tj is built simple and to ride. Not fancy, and no bling bling here. Chrome and fancy curves dont get you up a hill any quicker.


Attachments

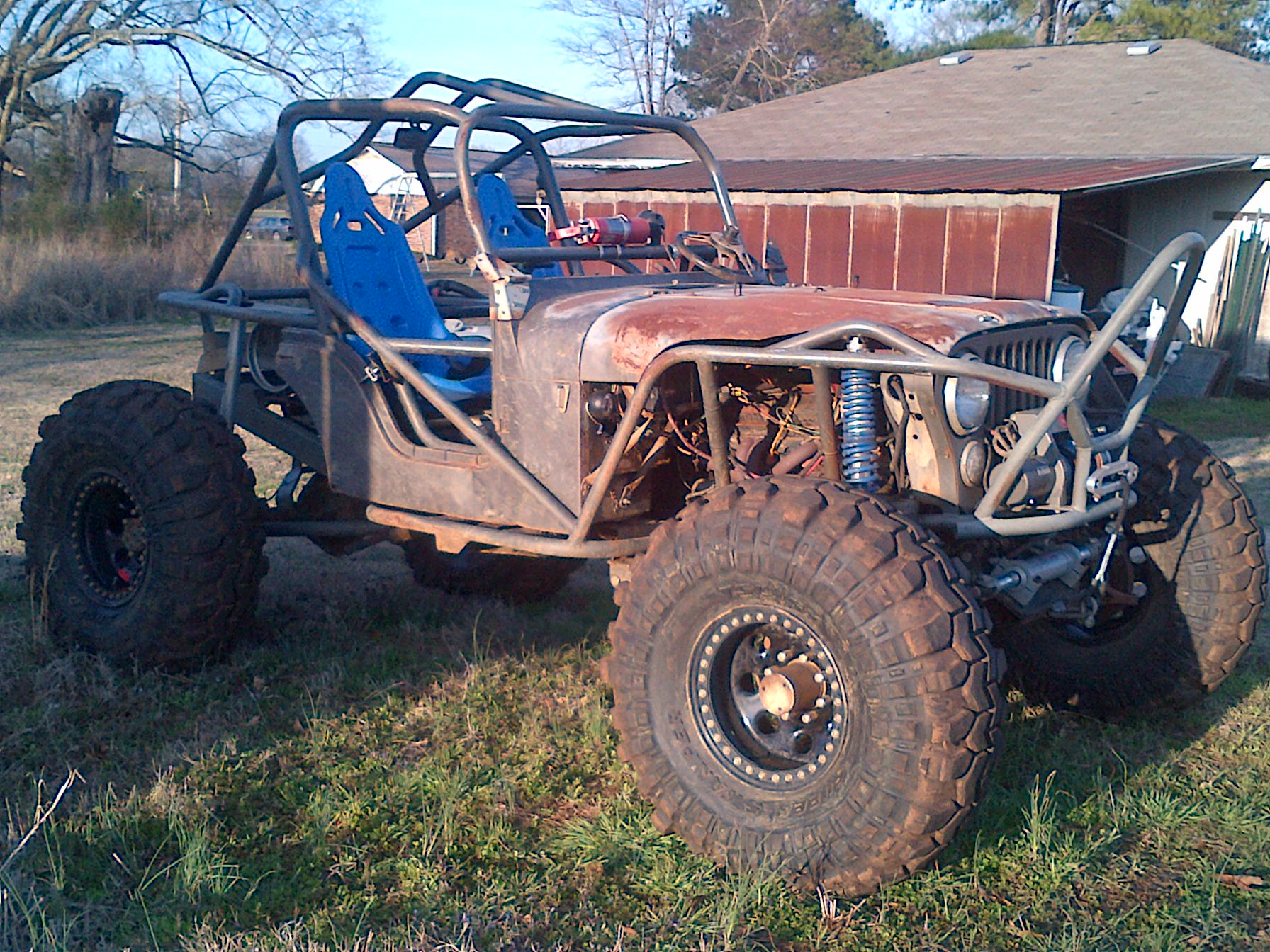

  • IMG-20140318-00199.jpg
    475.5 KB · Views: 112

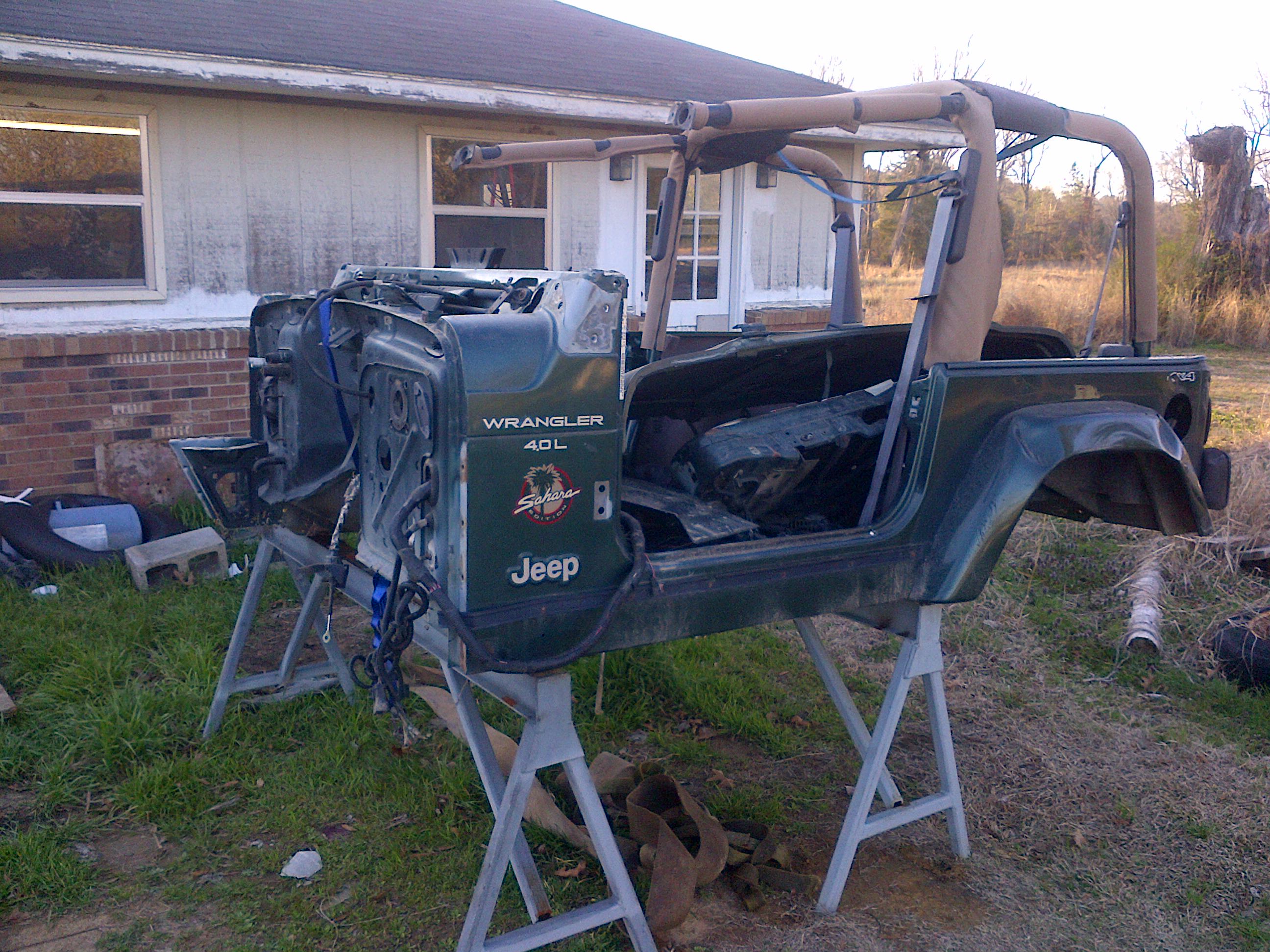

  • IMG-20140318-00198.jpg
    802.5 KB · Views: 99

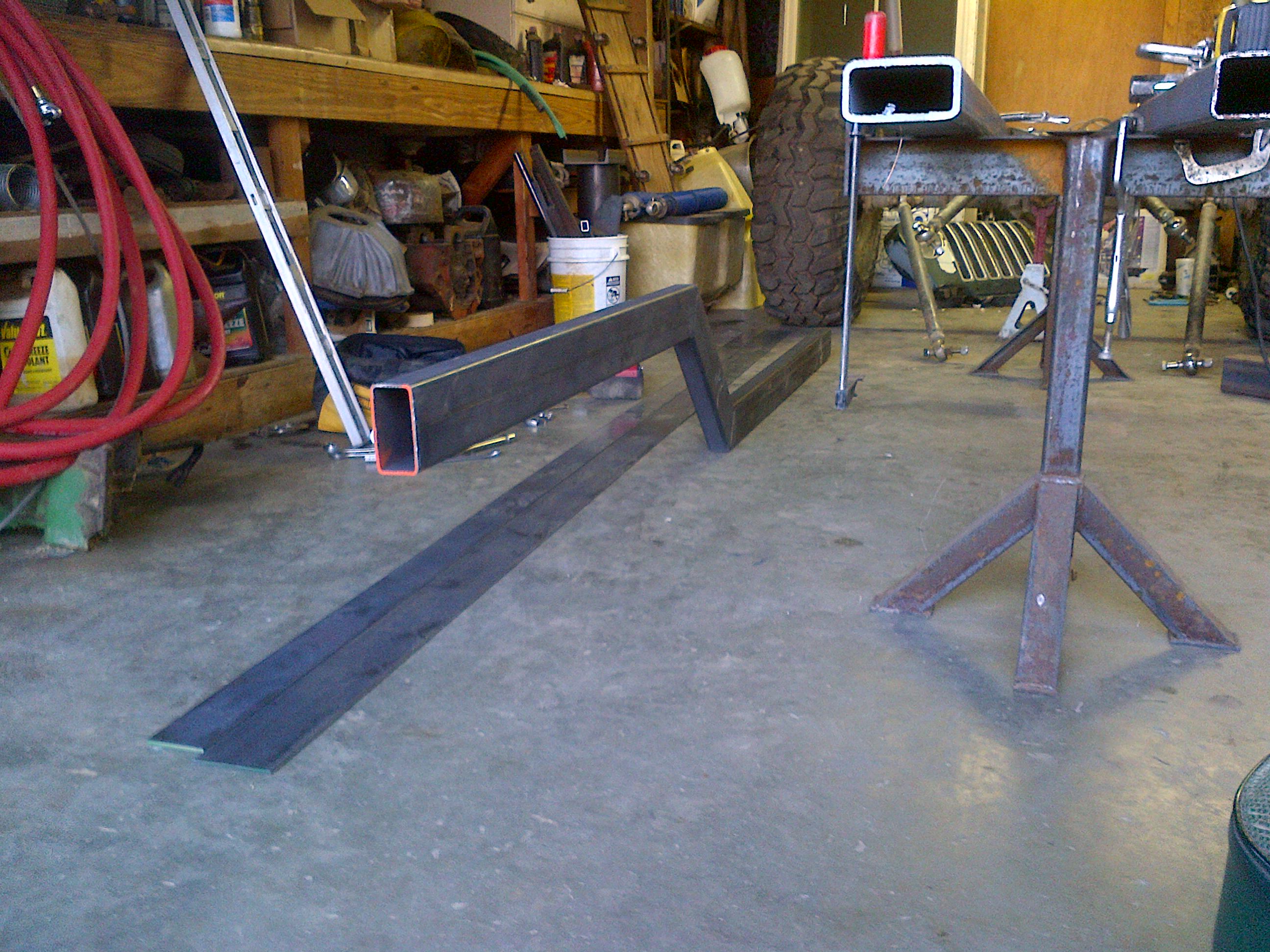

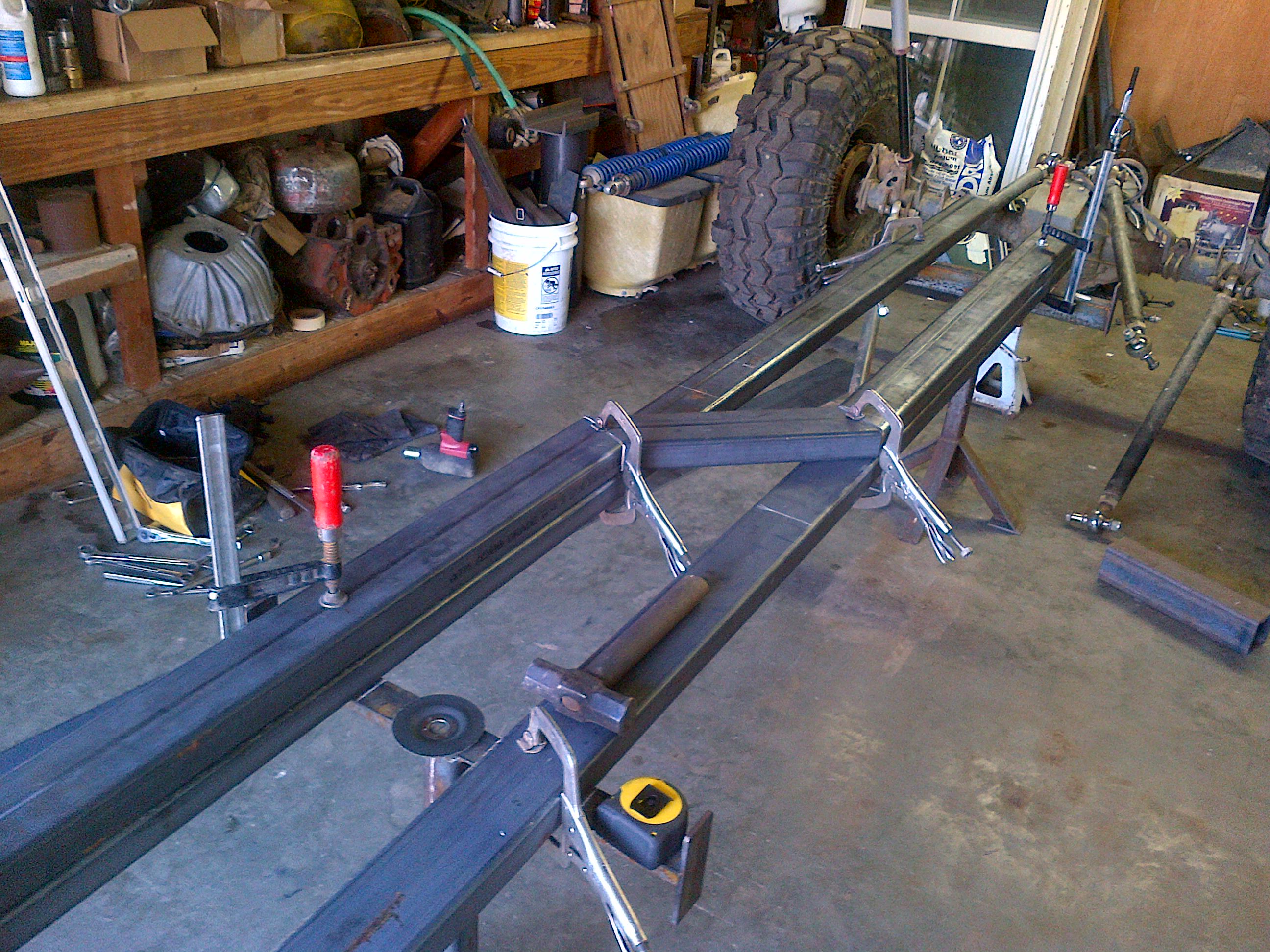

  • IMG-20140320-00201.jpg
    832.9 KB · Views: 97
  • IMG-20140320-00202.jpg
    794.6 KB · Views: 99

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS

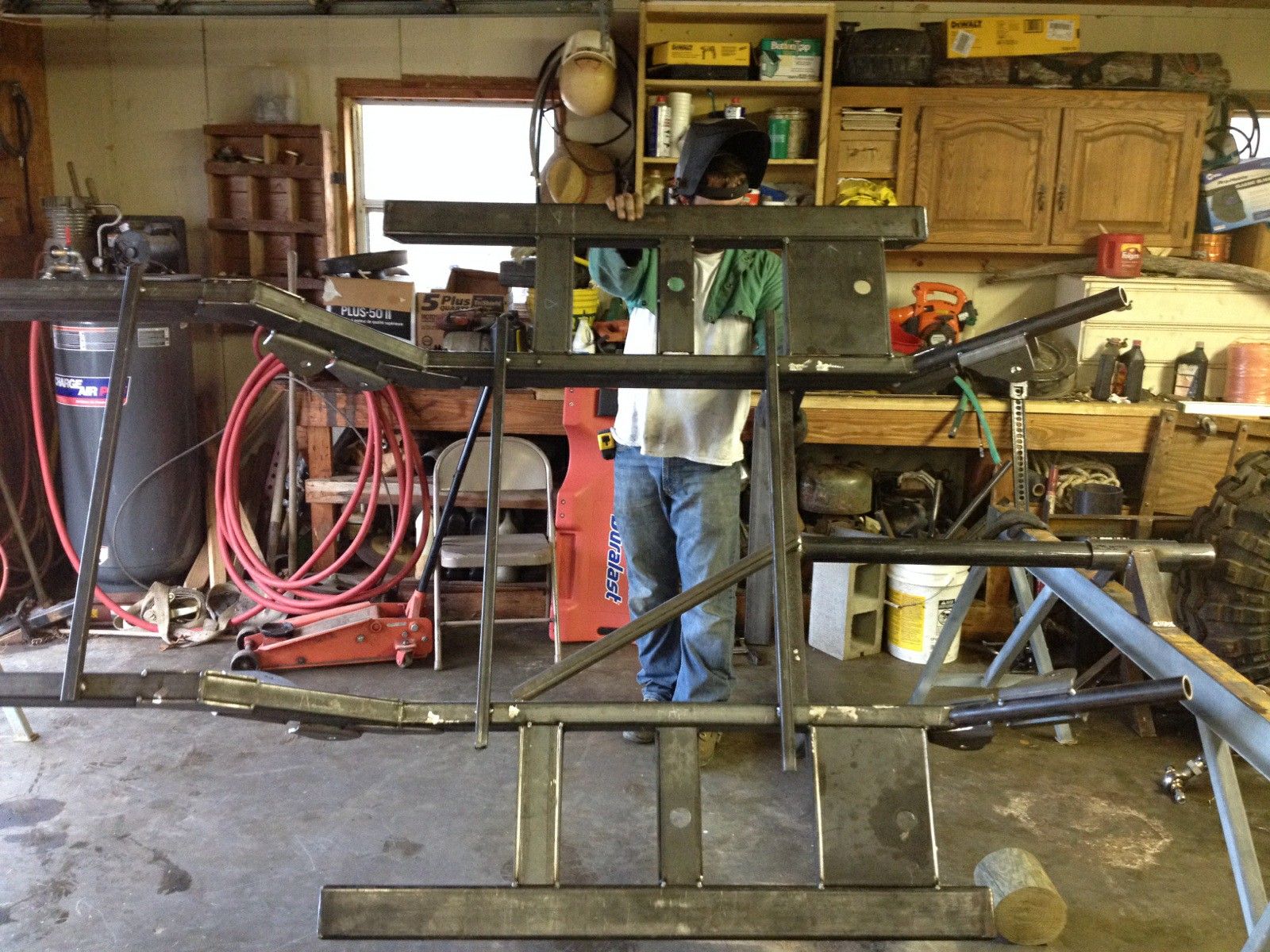

more pics


Attachments

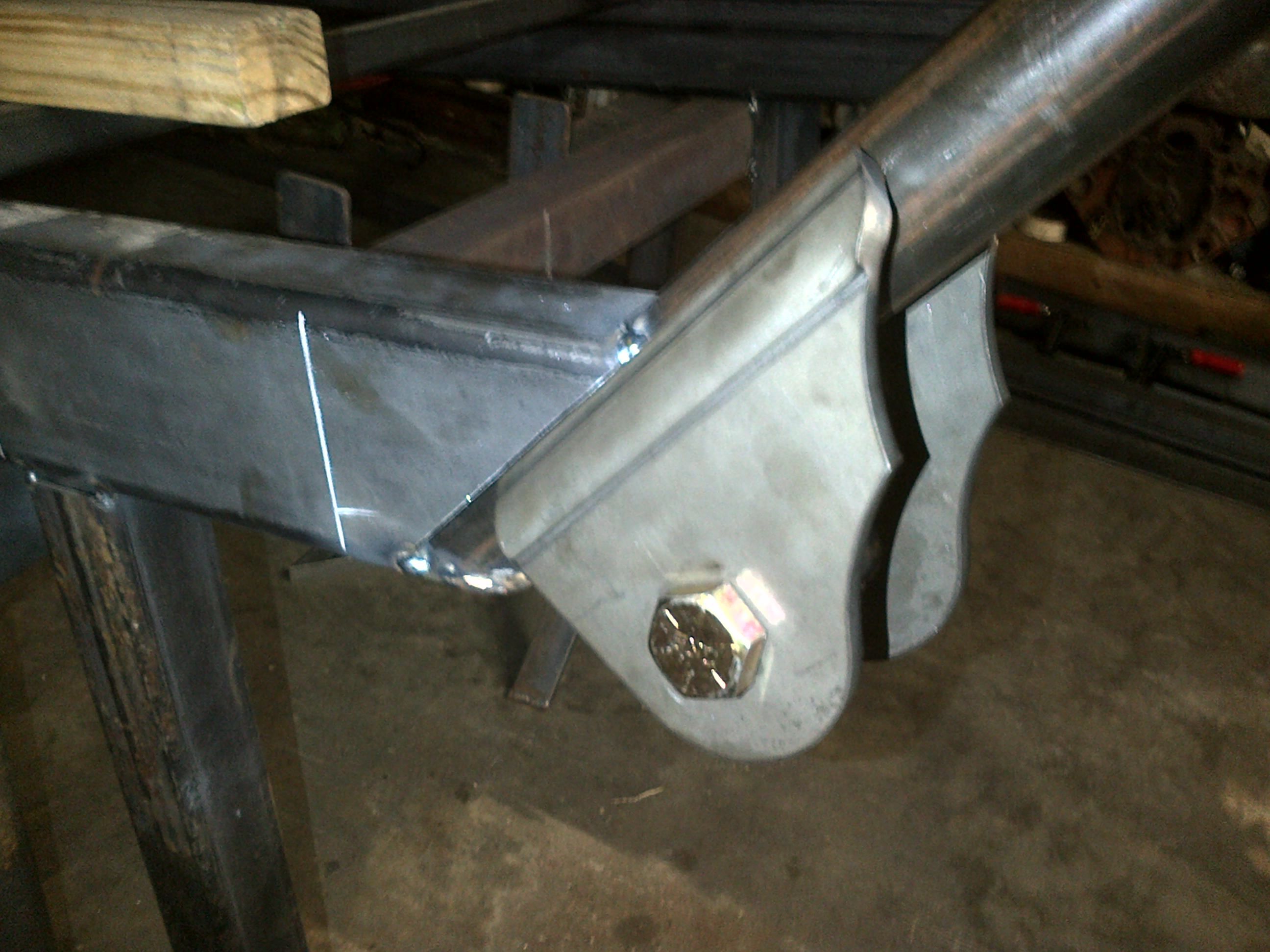

  • IMG-20140321-00208.jpg
    405.8 KB · Views: 89

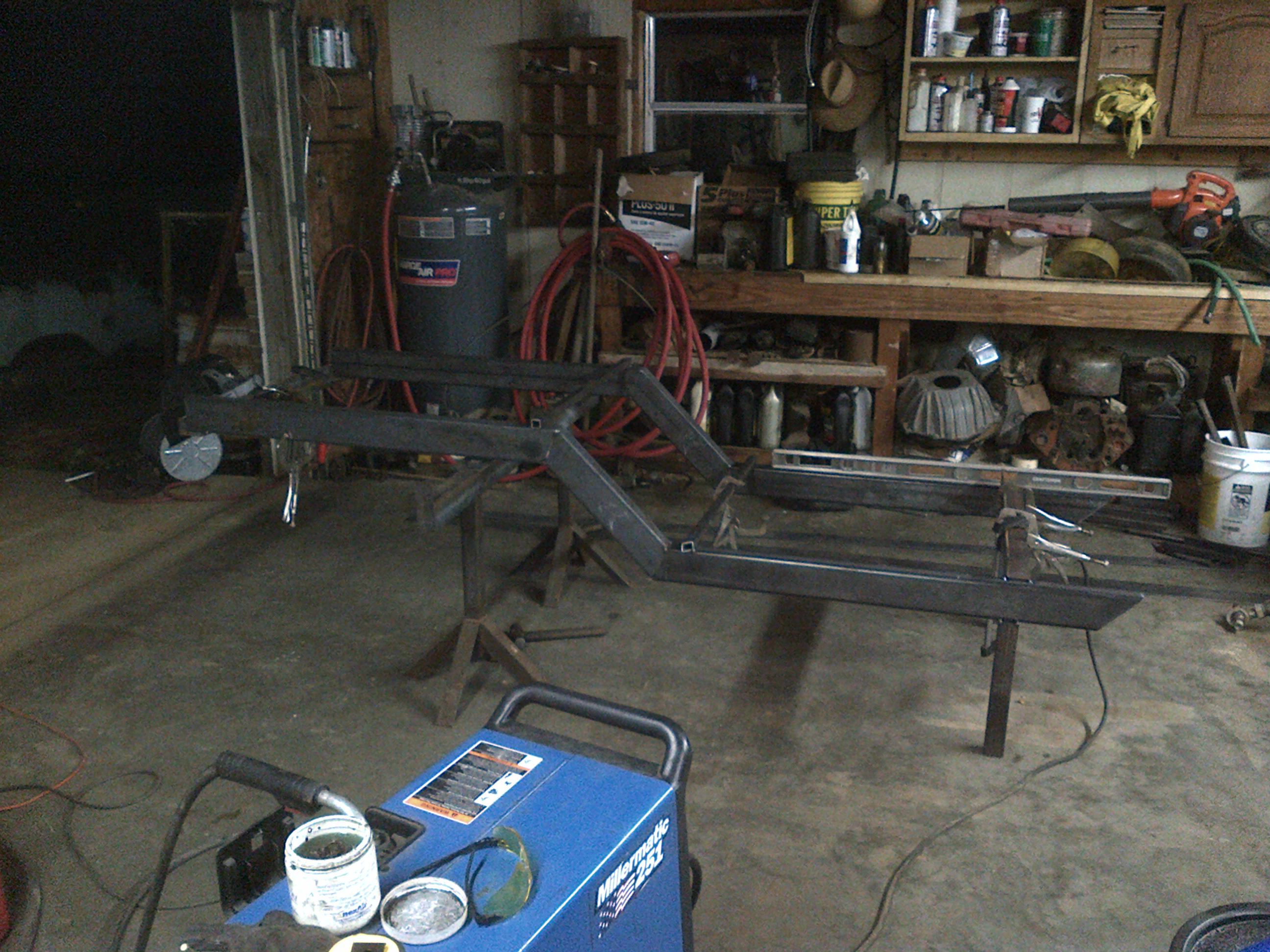

  • IMG-20140320-00205.jpg
    630.4 KB · Views: 84

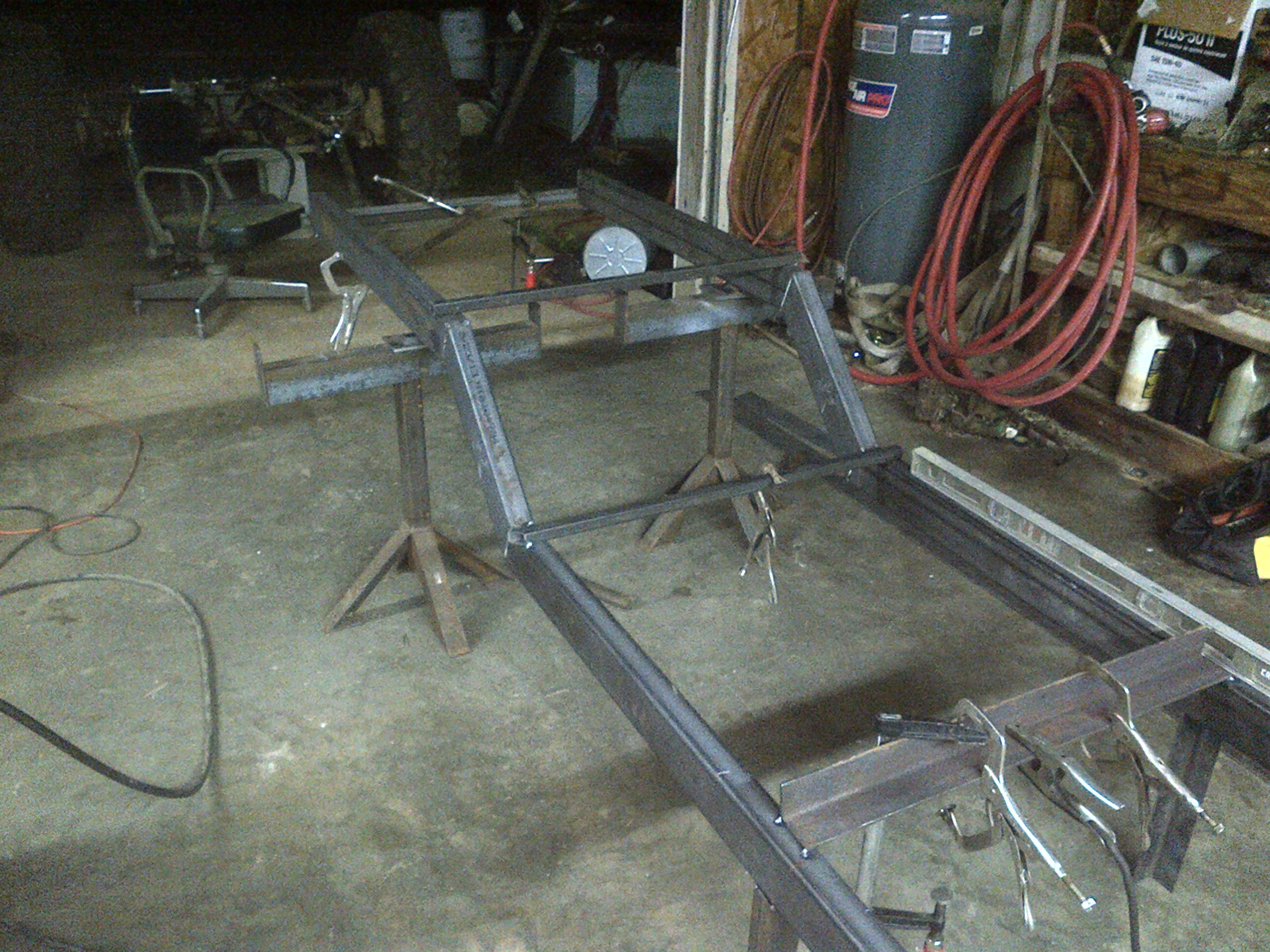

  • IMG-20140320-00204.jpg
    783.5 KB · Views: 81
  • IMG-20140320-00203.jpg
    756.9 KB · Views: 91

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS

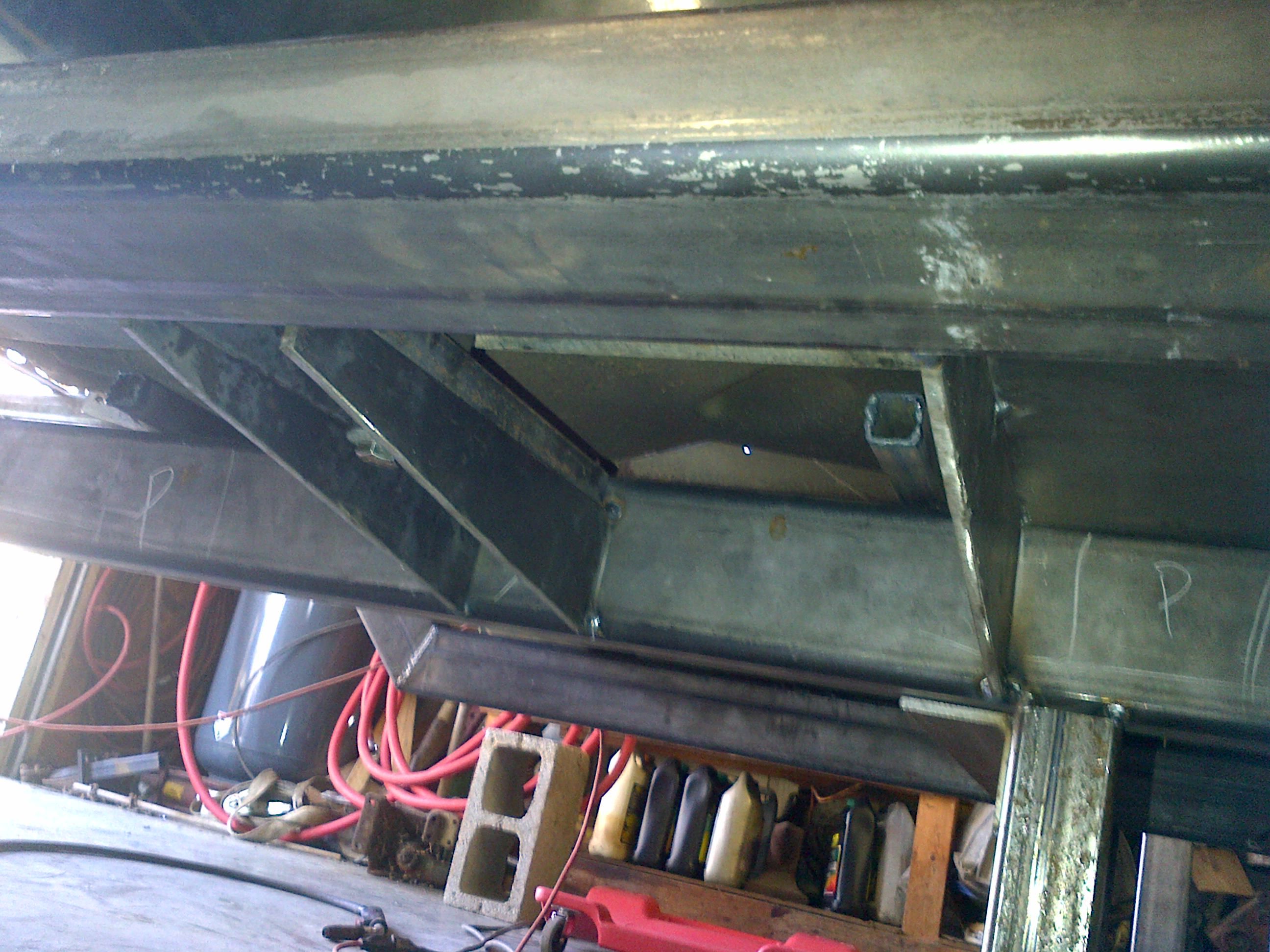

more


Attachments

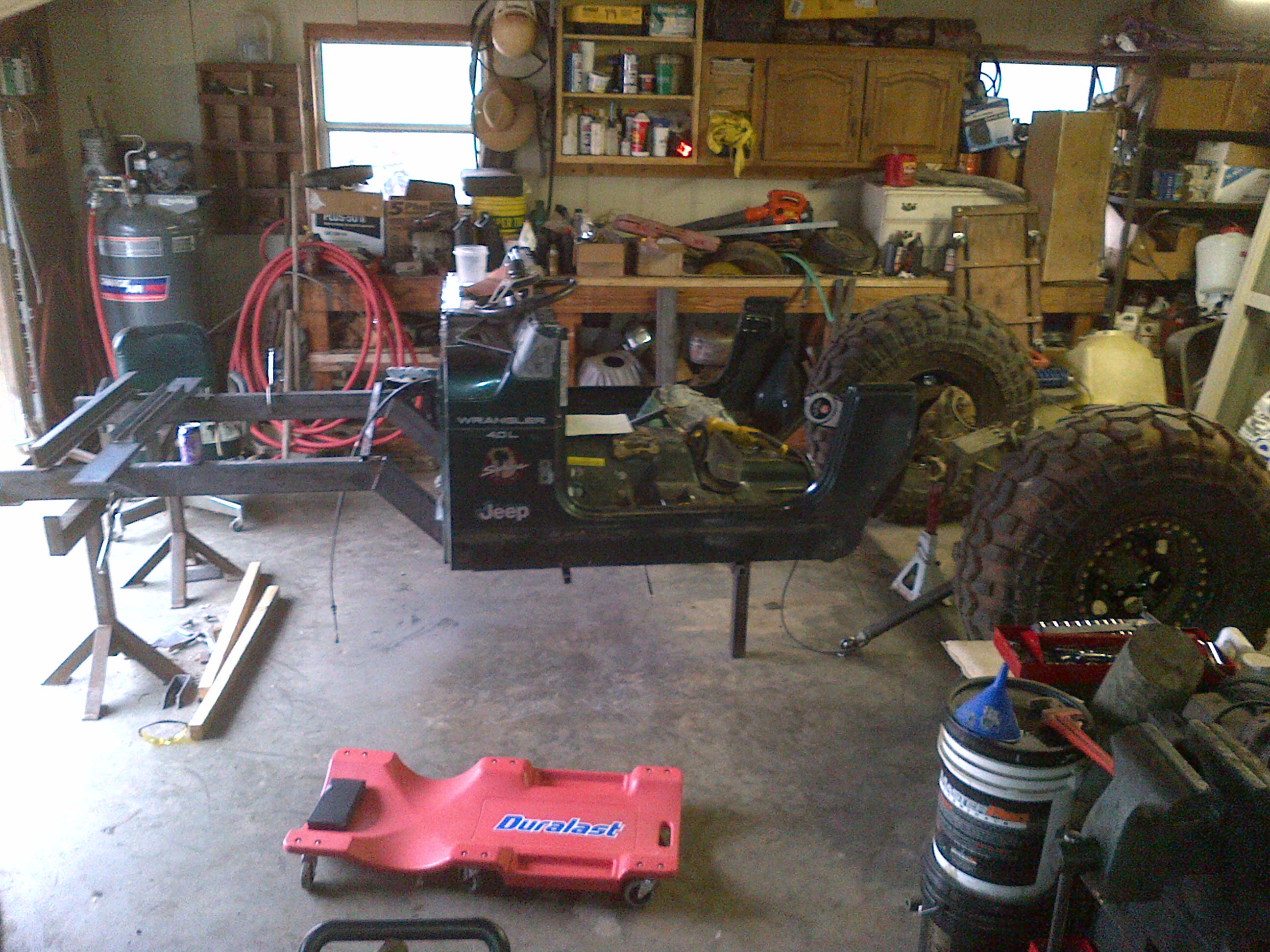

  • IMG-20140322-00209.jpg
    738.4 KB · Views: 86

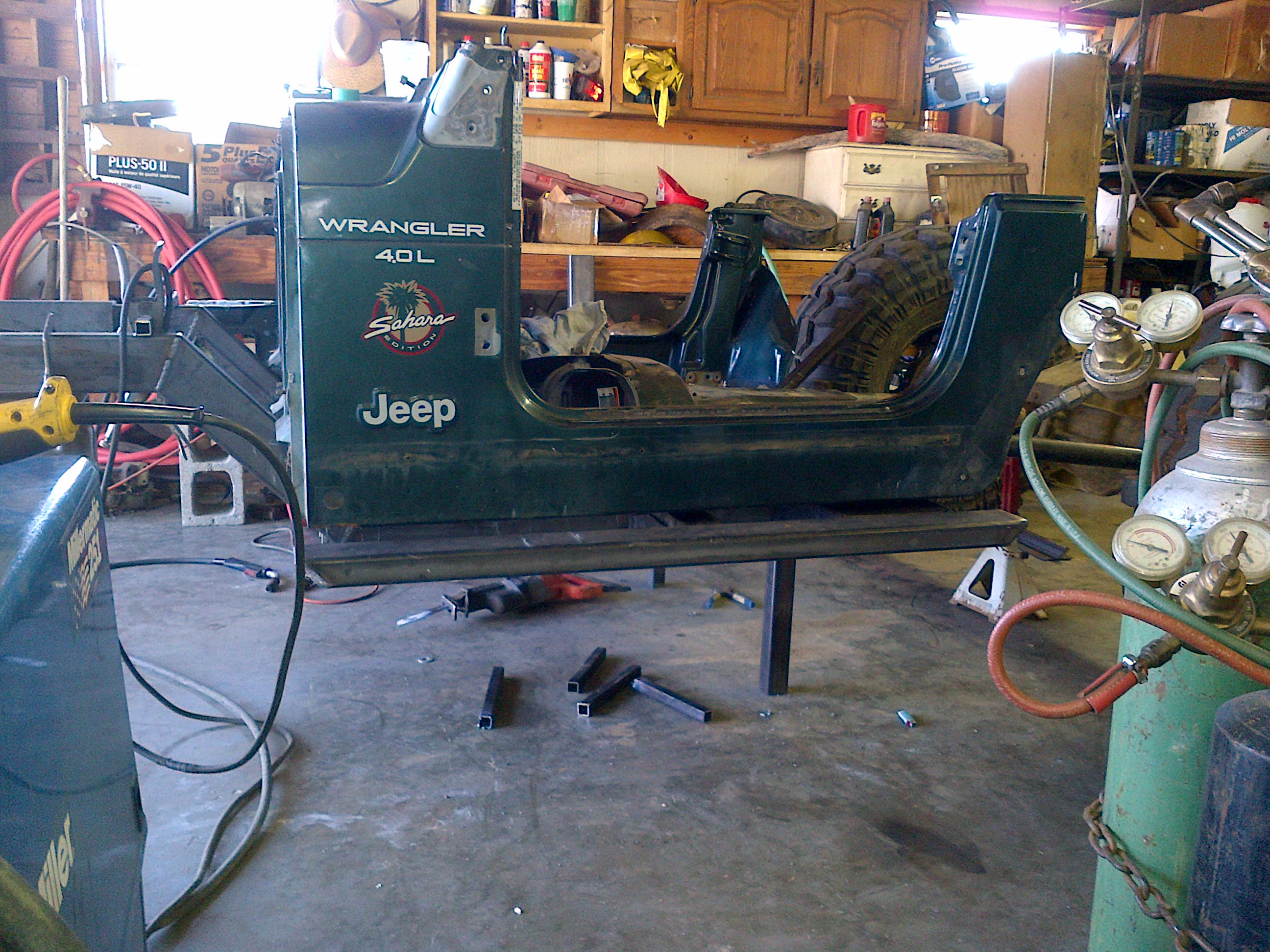

  • IMG-20140323-00211.jpg
    765.5 KB · Views: 79

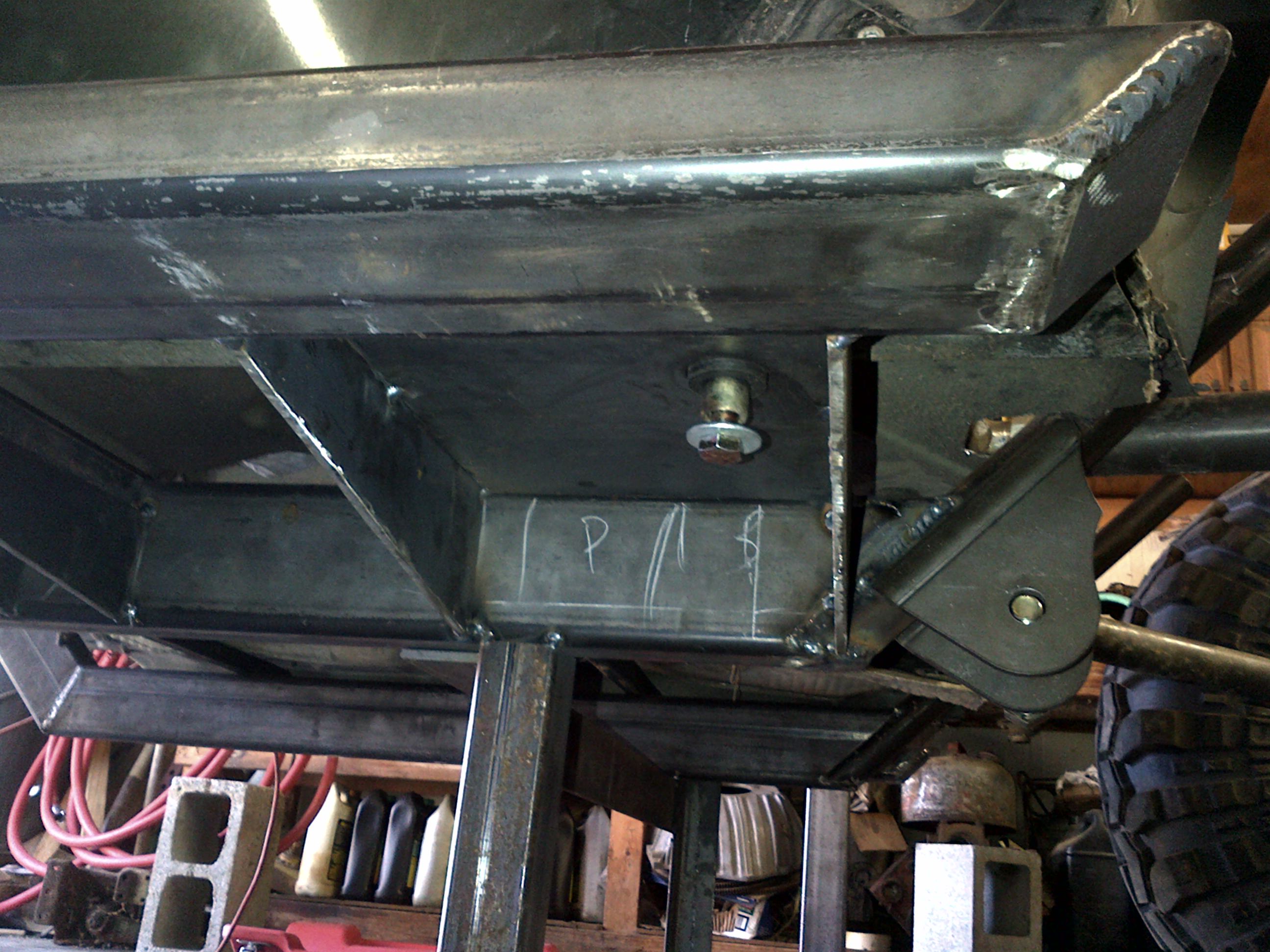

  • IMG-20140323-00212.jpg
    528.8 KB · Views: 86
  • IMG-20140323-00213.jpg
    580.1 KB · Views: 81

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more


Attachments

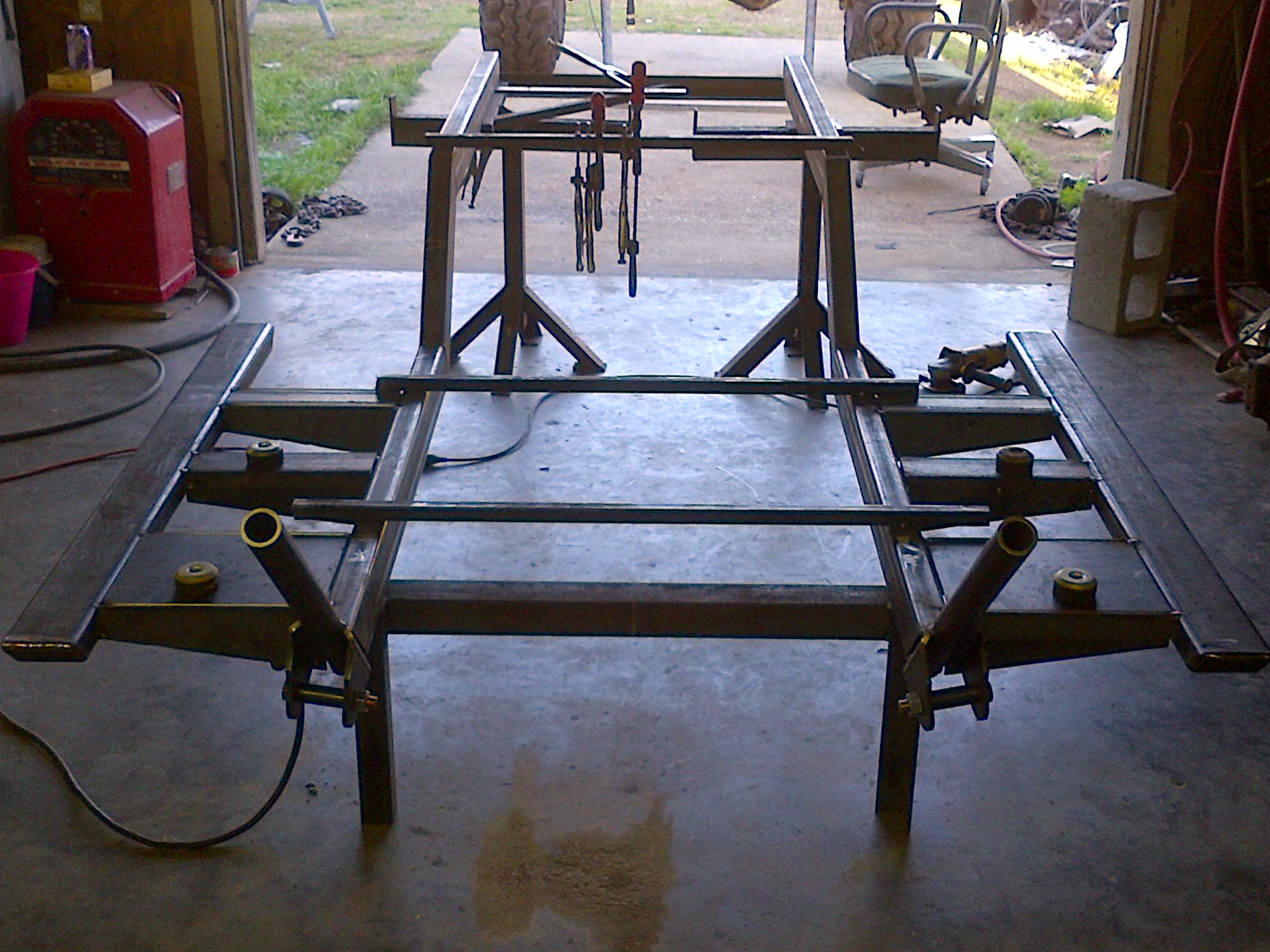

  • IMG-20140323-00218.jpg
    323 KB · Views: 70

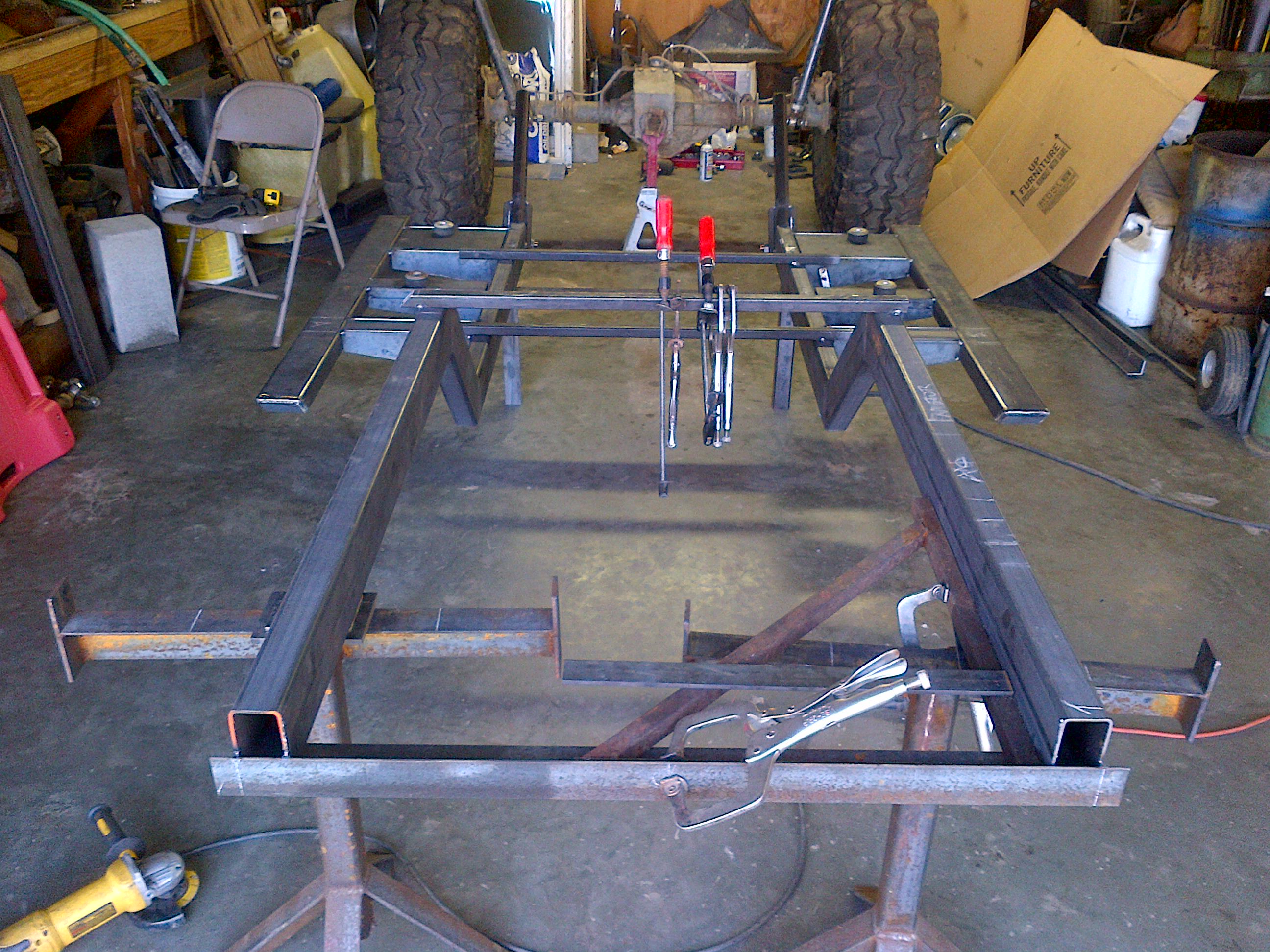

  • IMG-20140323-00217.jpg
    791.3 KB · Views: 72

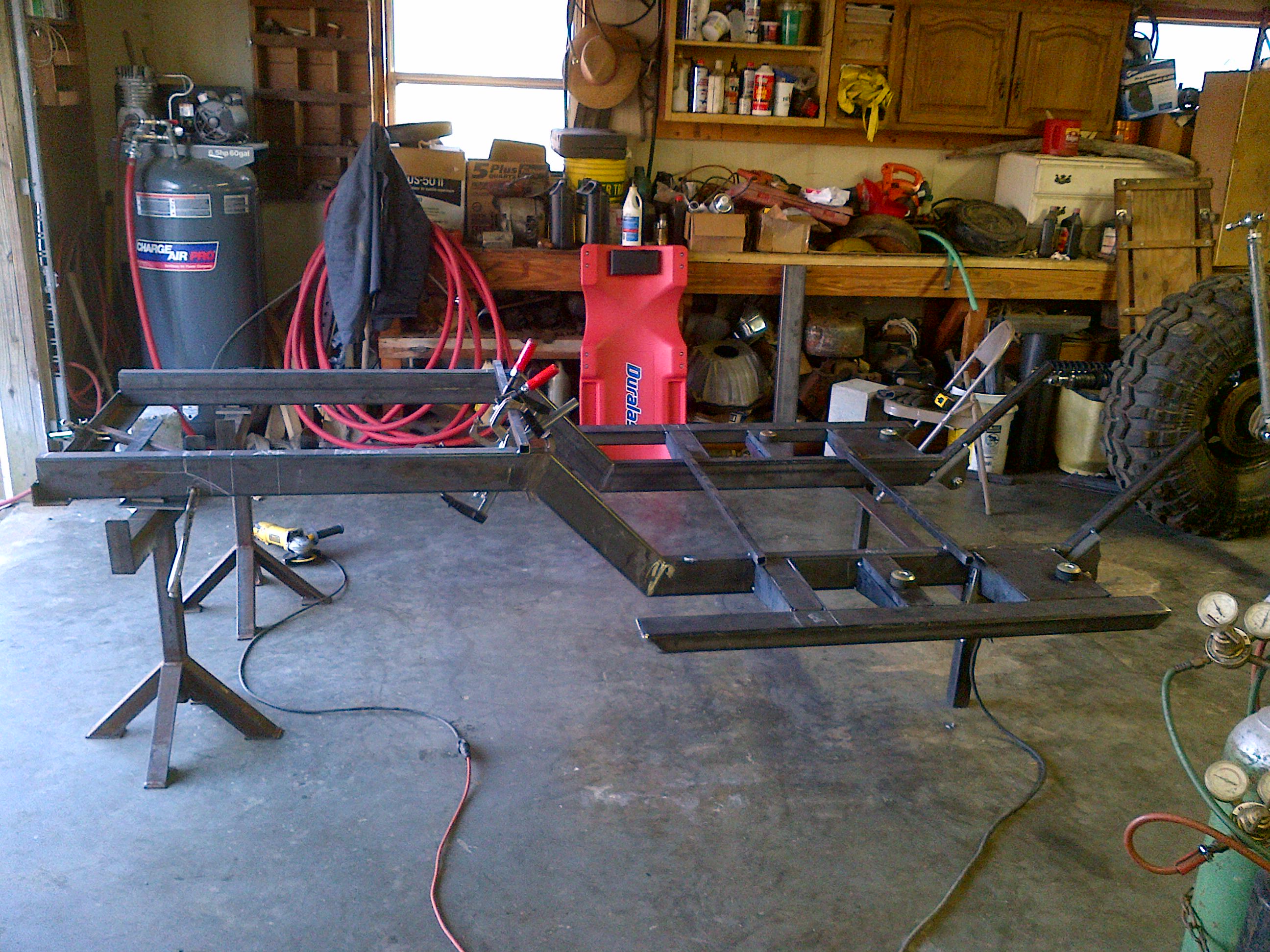

  • IMG-20140323-00216.jpg
    815.7 KB · Views: 76

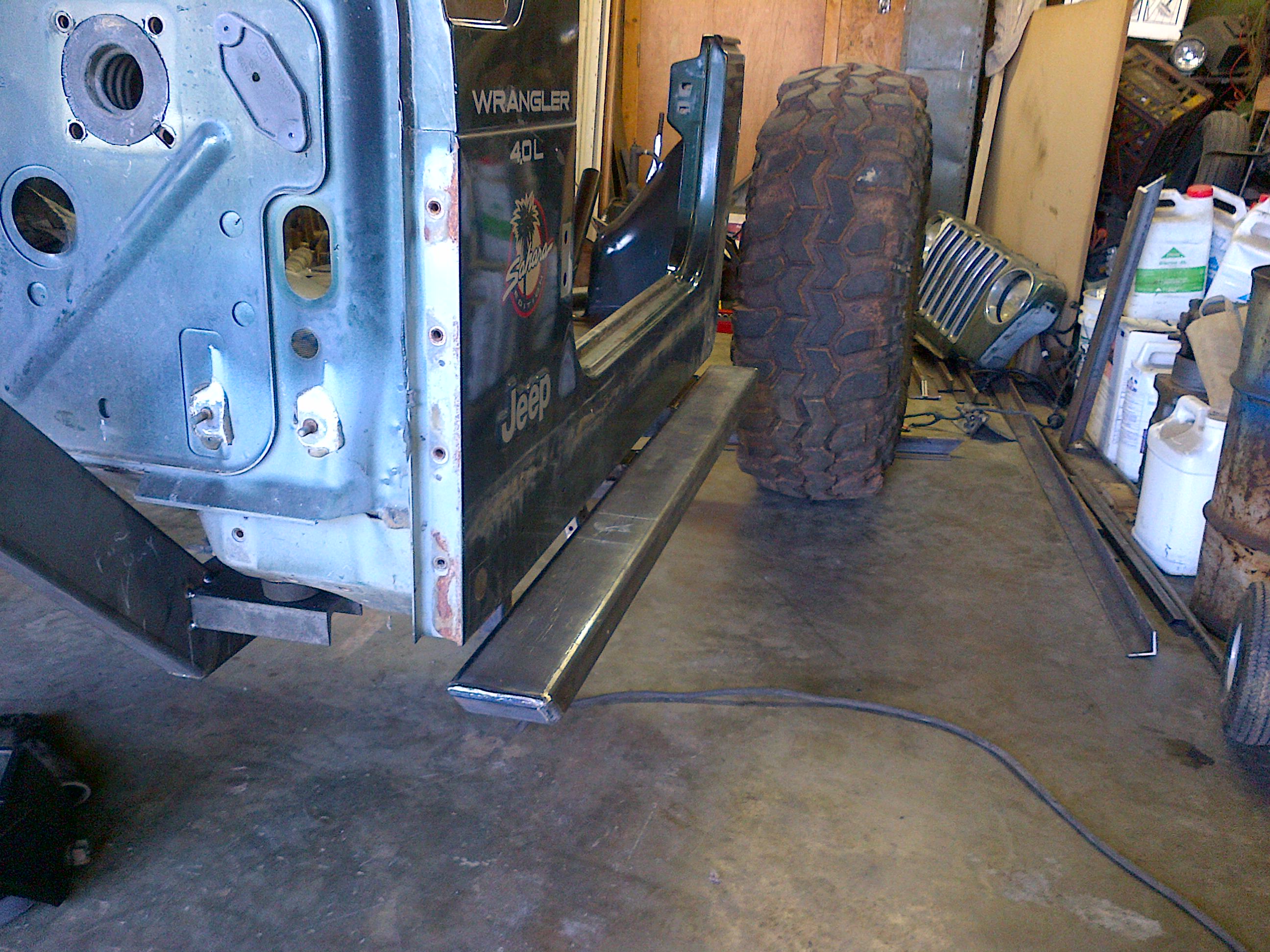

  • IMG-20140323-00215.jpg
    768.4 KB · Views: 79

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more

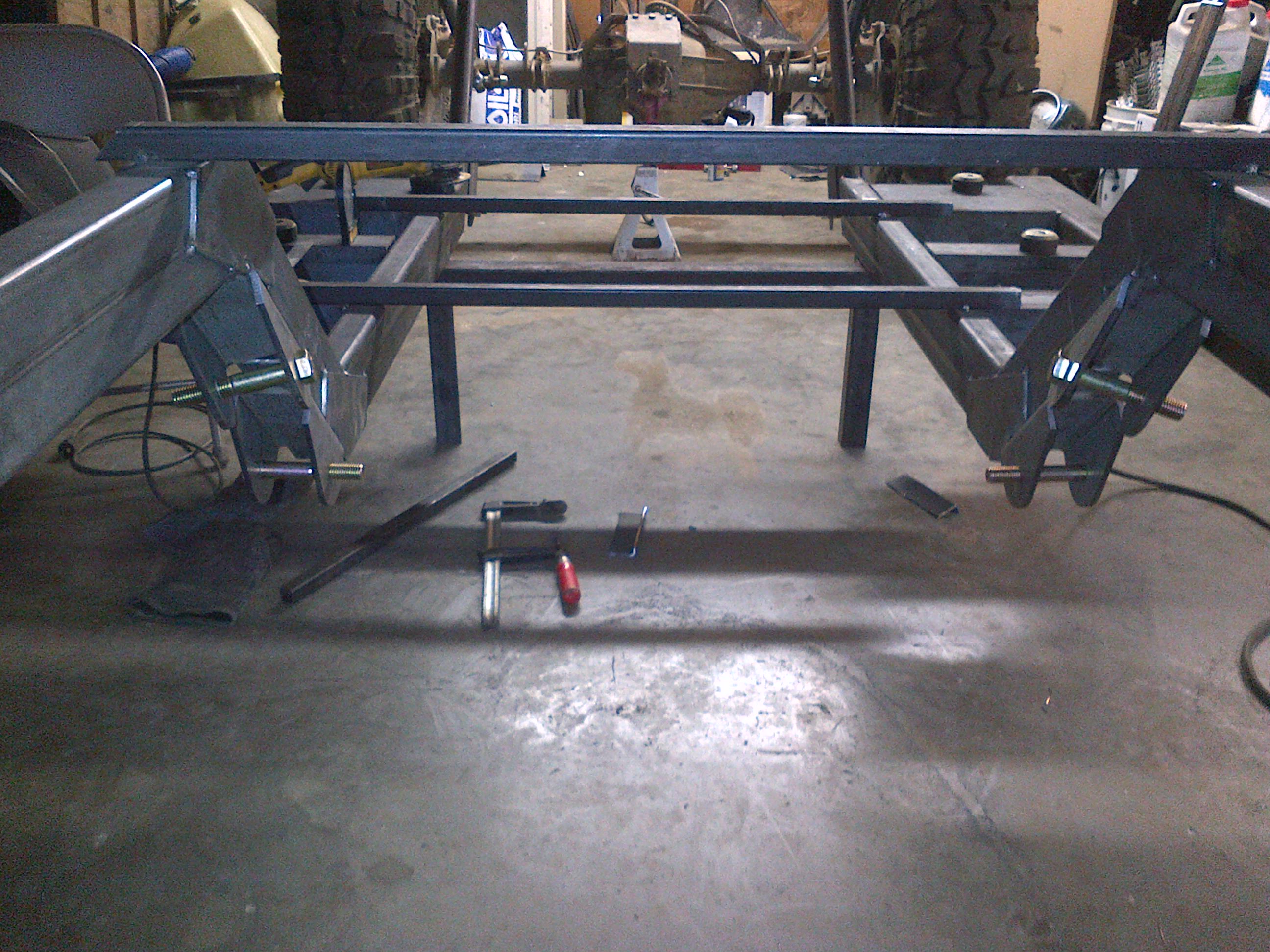

Attachments

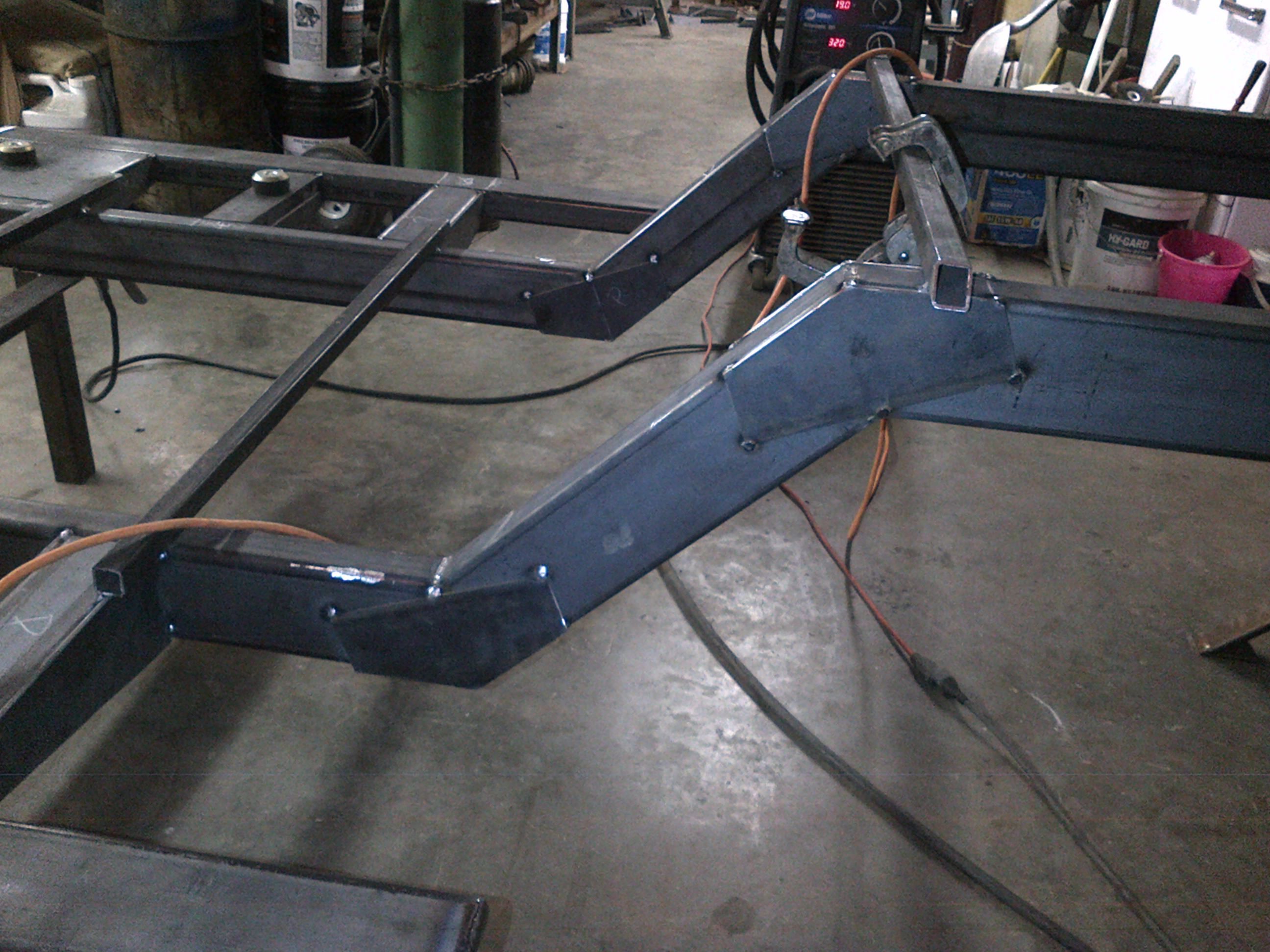

  • IMG-20140323-00219.jpg
    535.7 KB · Views: 70

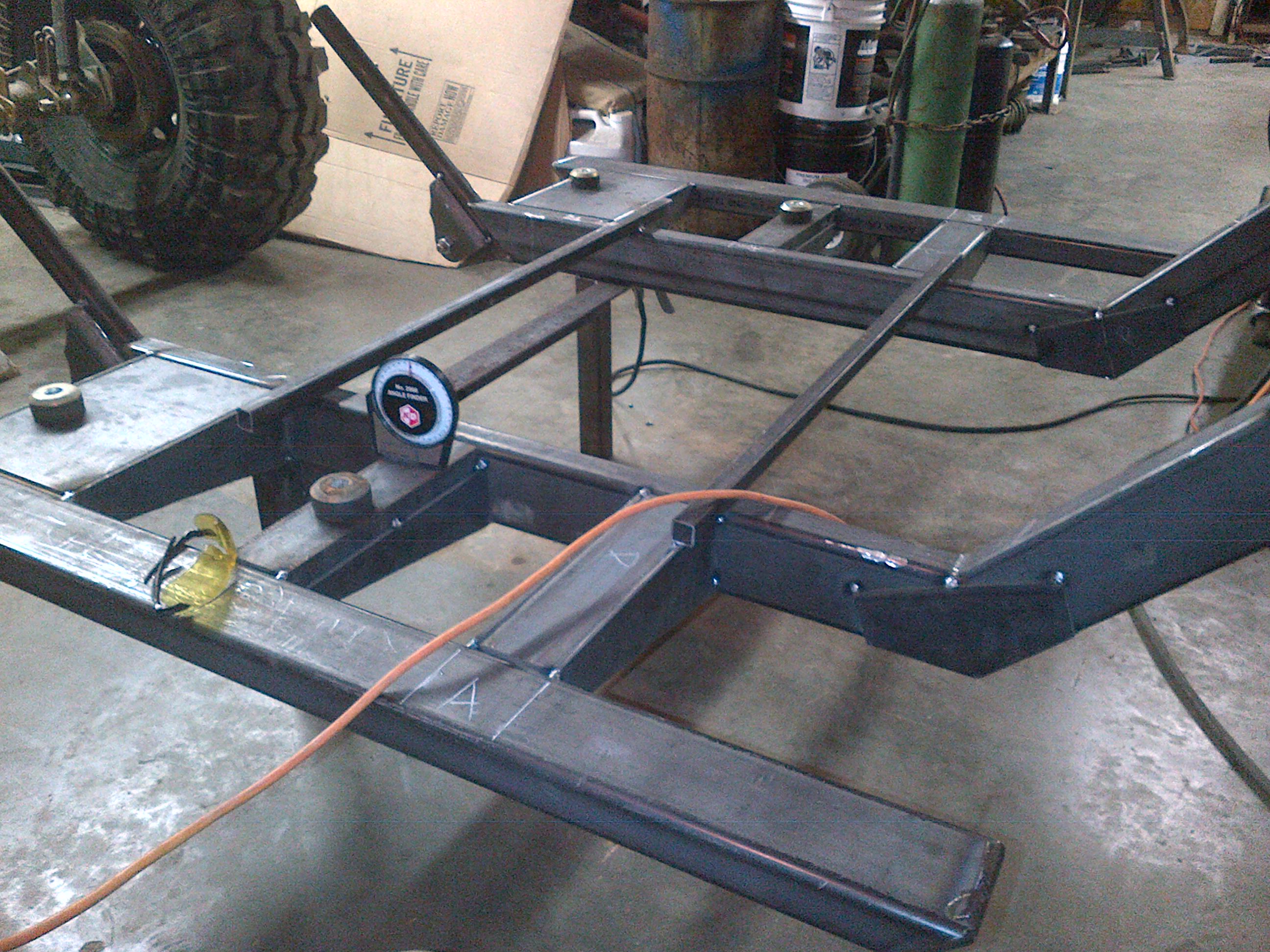

  • IMG-20140323-00220.jpg
    793.9 KB · Views: 72
  • IMG-20140326-00221.jpg
    719.3 KB · Views: 75

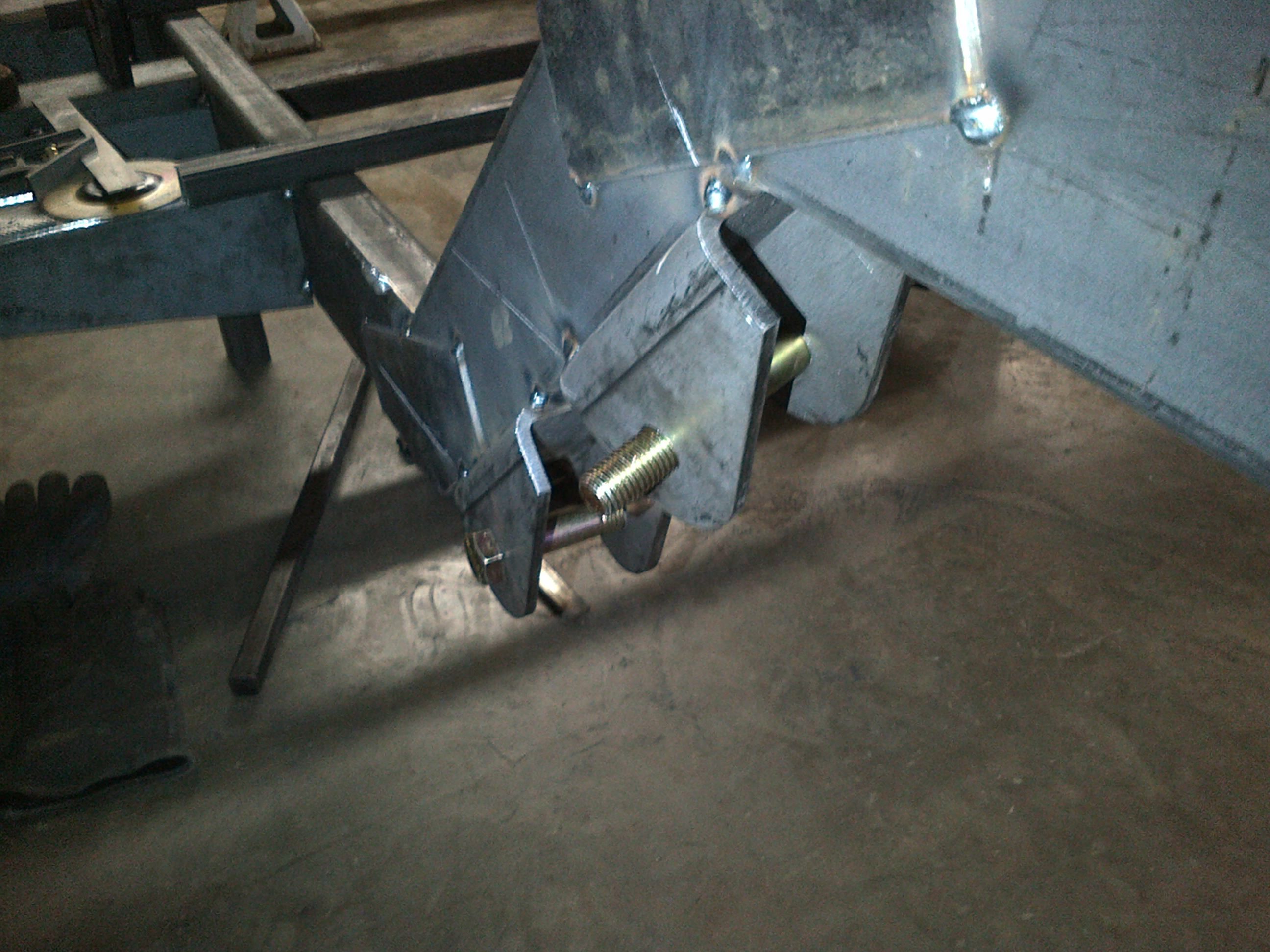

  • IMG-20140326-00222.jpg
    495.5 KB · Views: 71

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more


Attachments

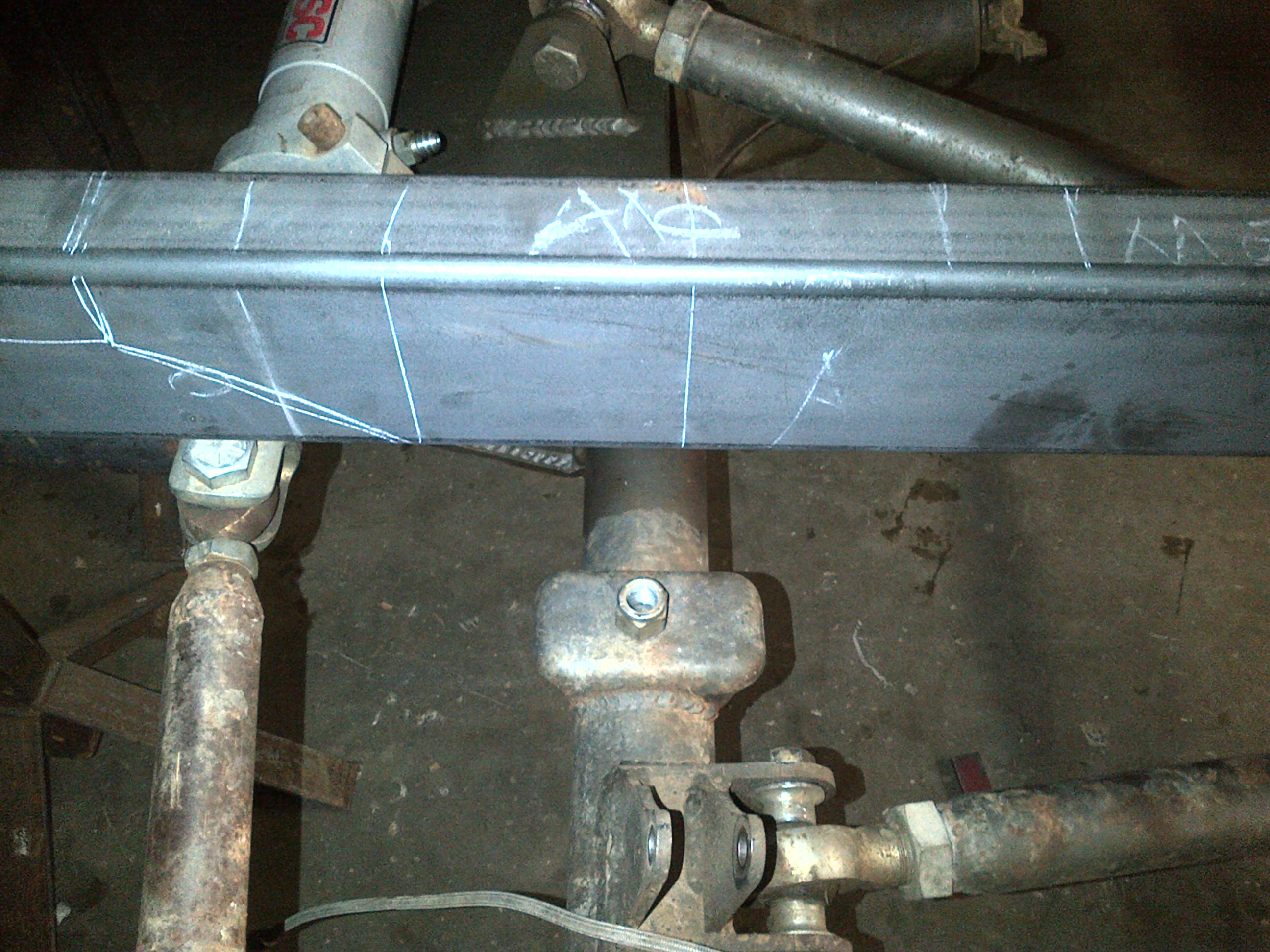

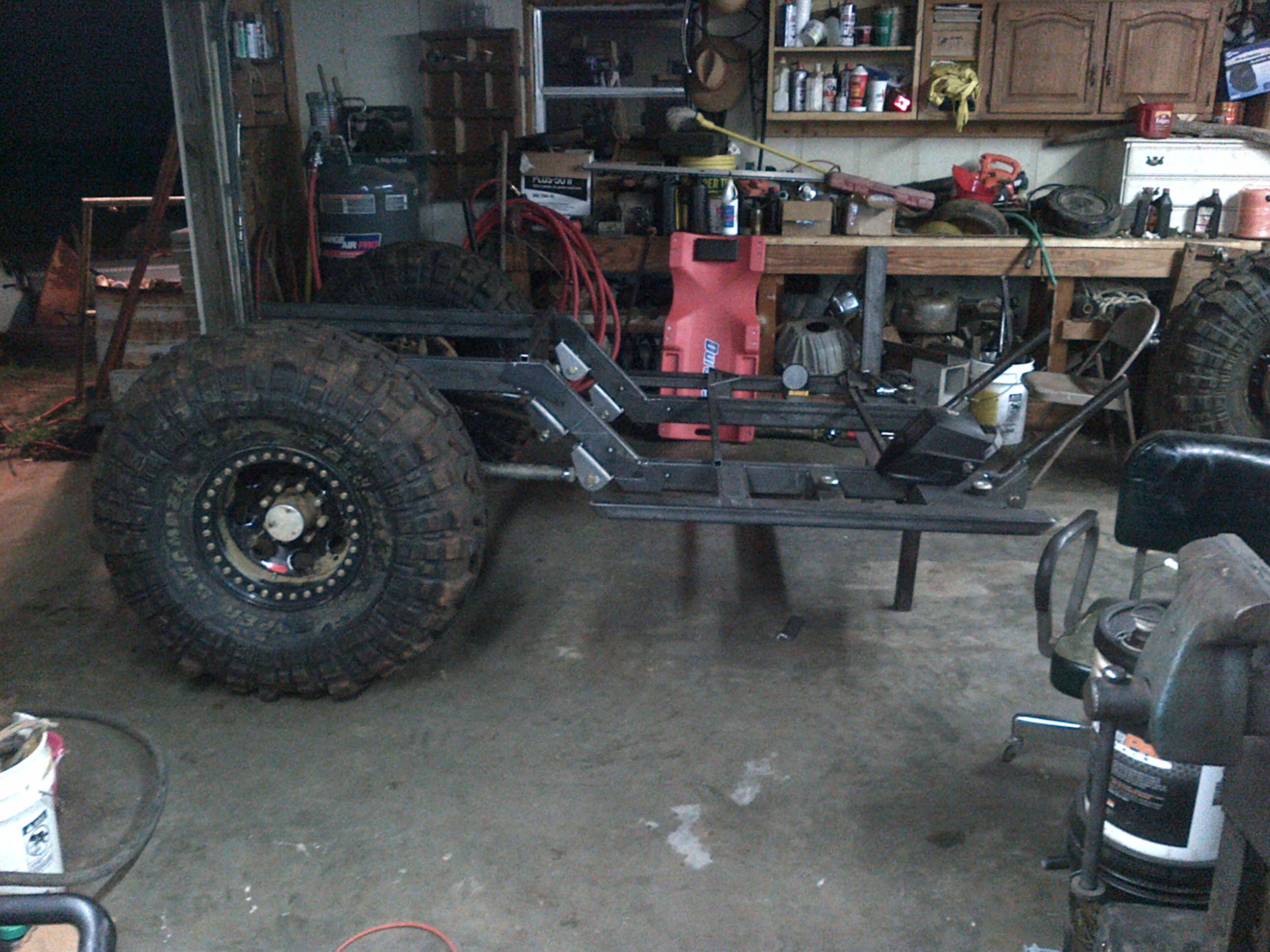

  • IMG-20140326-00226.jpg
    653.7 KB · Views: 75

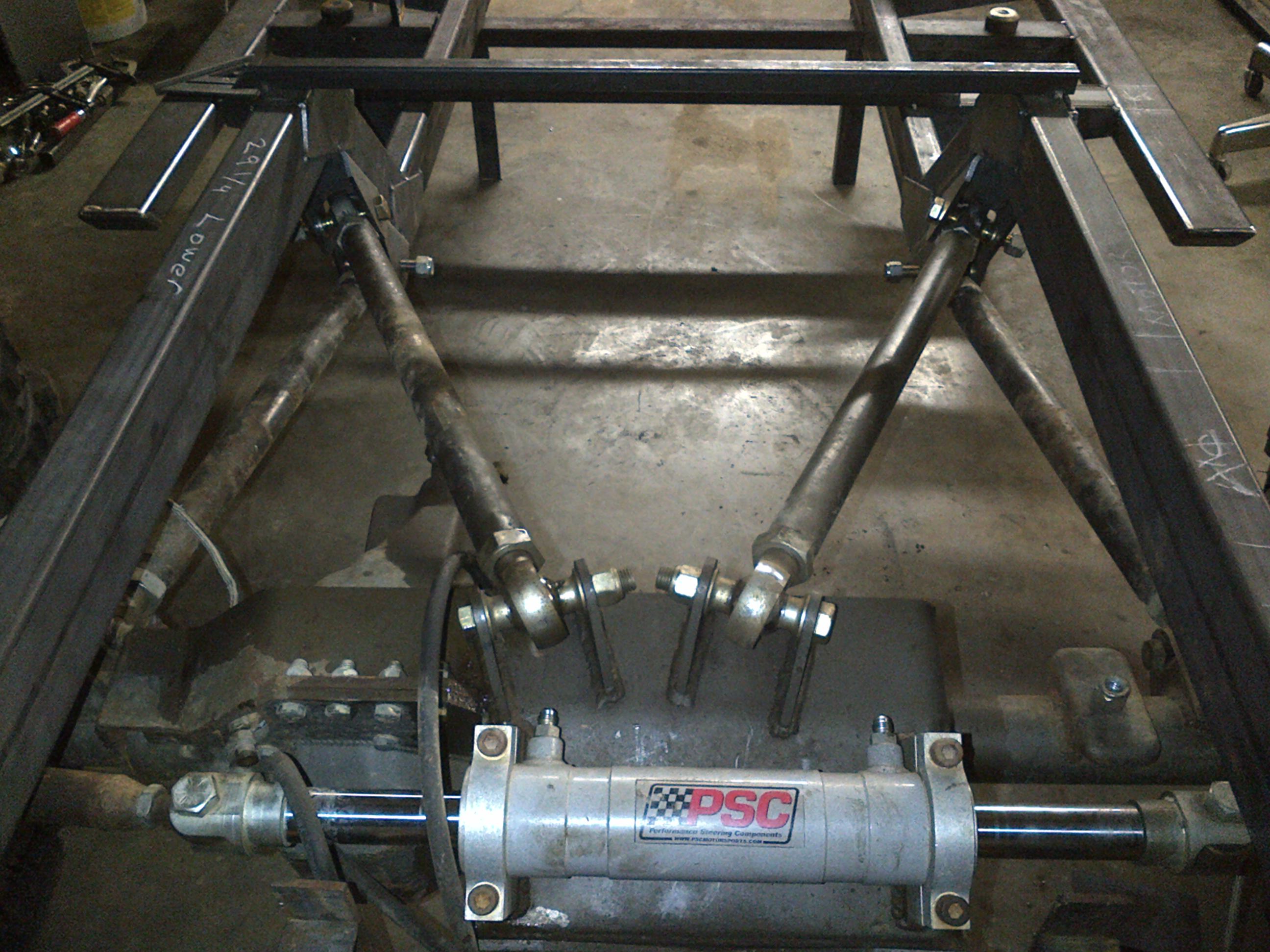

  • IMG-20140326-00225.jpg
    558.5 KB · Views: 69

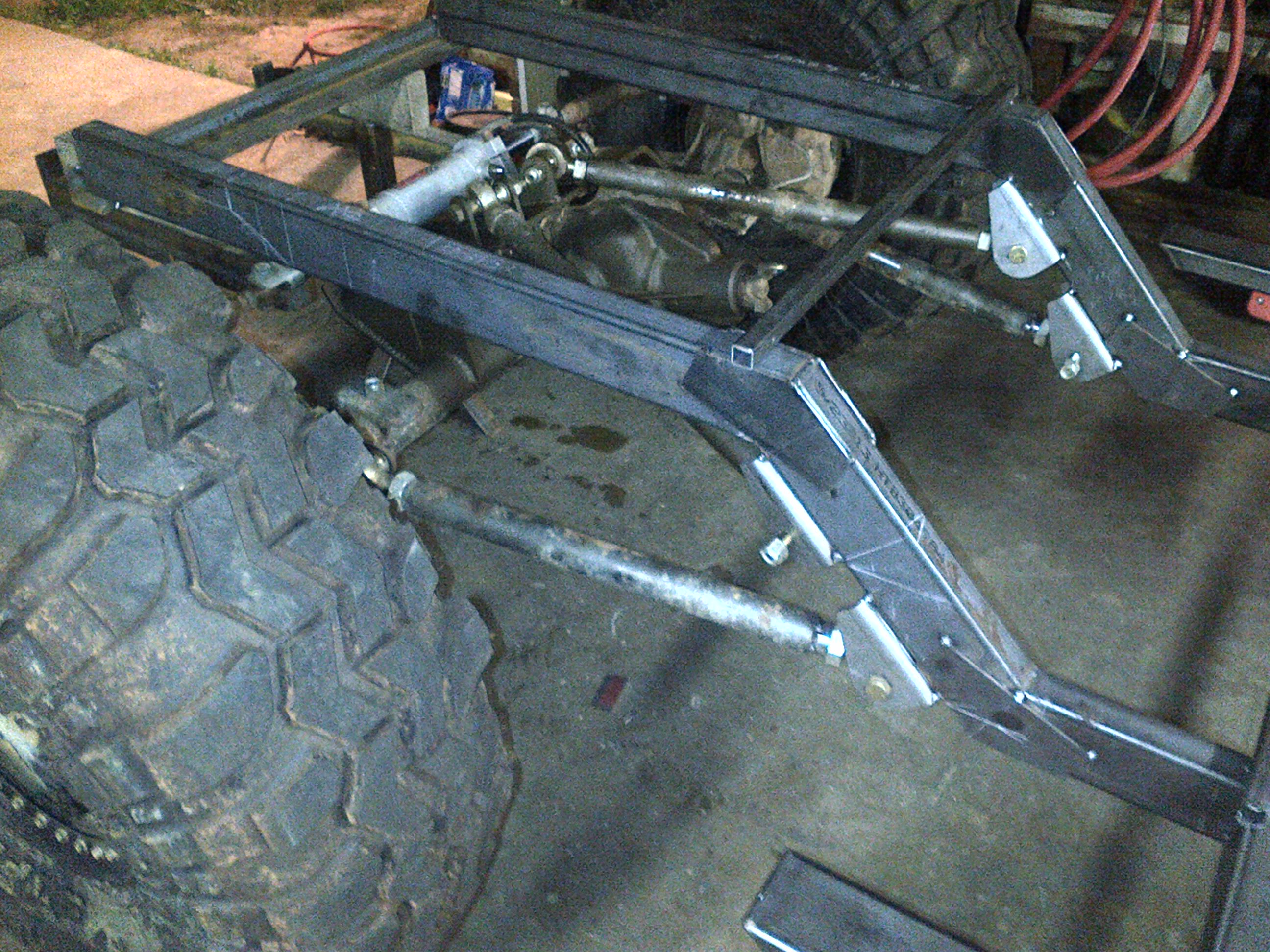

  • IMG-20140326-00224.jpg
    853.9 KB · Views: 75

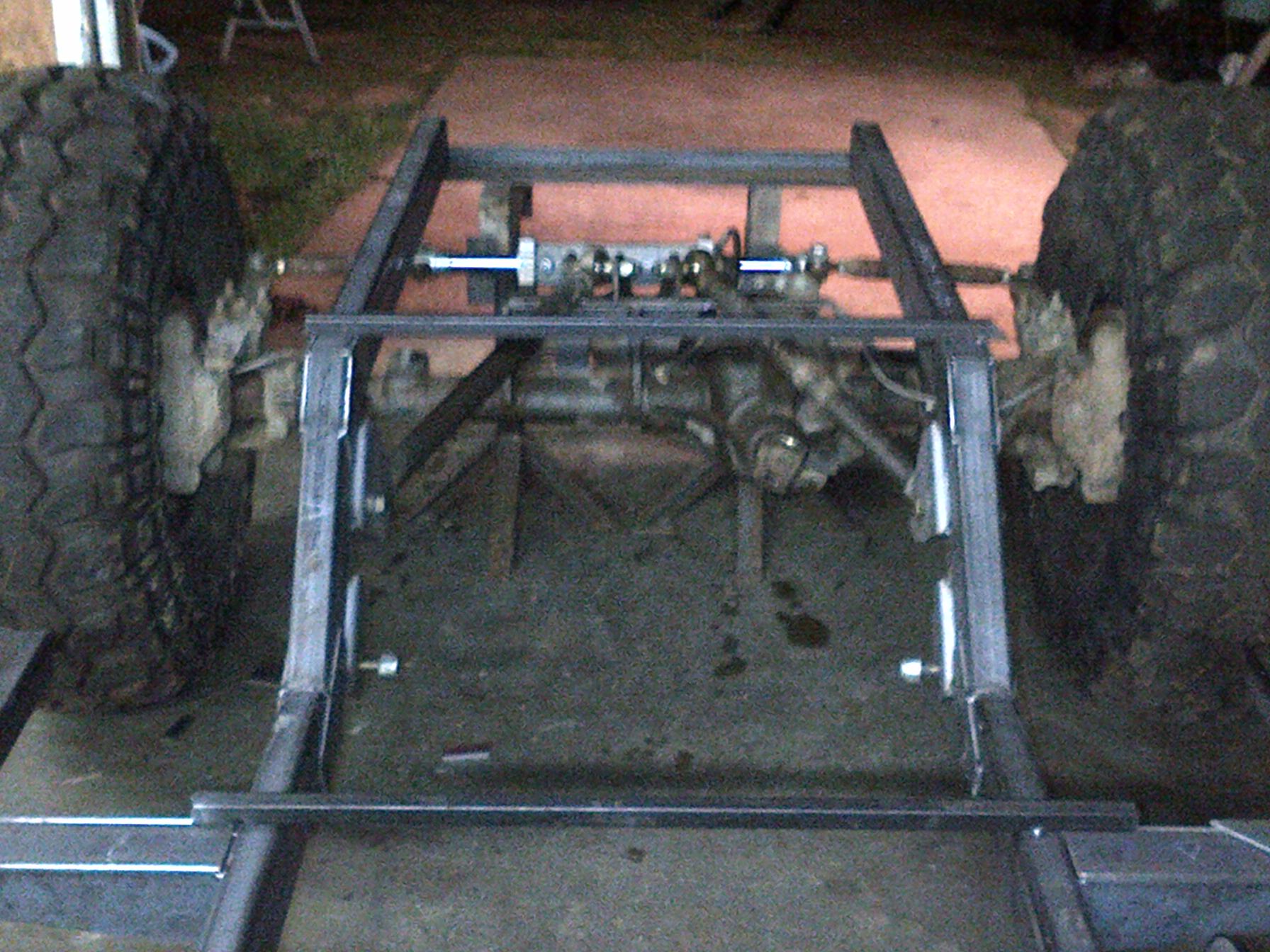

  • IMG-20140326-00223.jpg
    359.8 KB · Views: 70

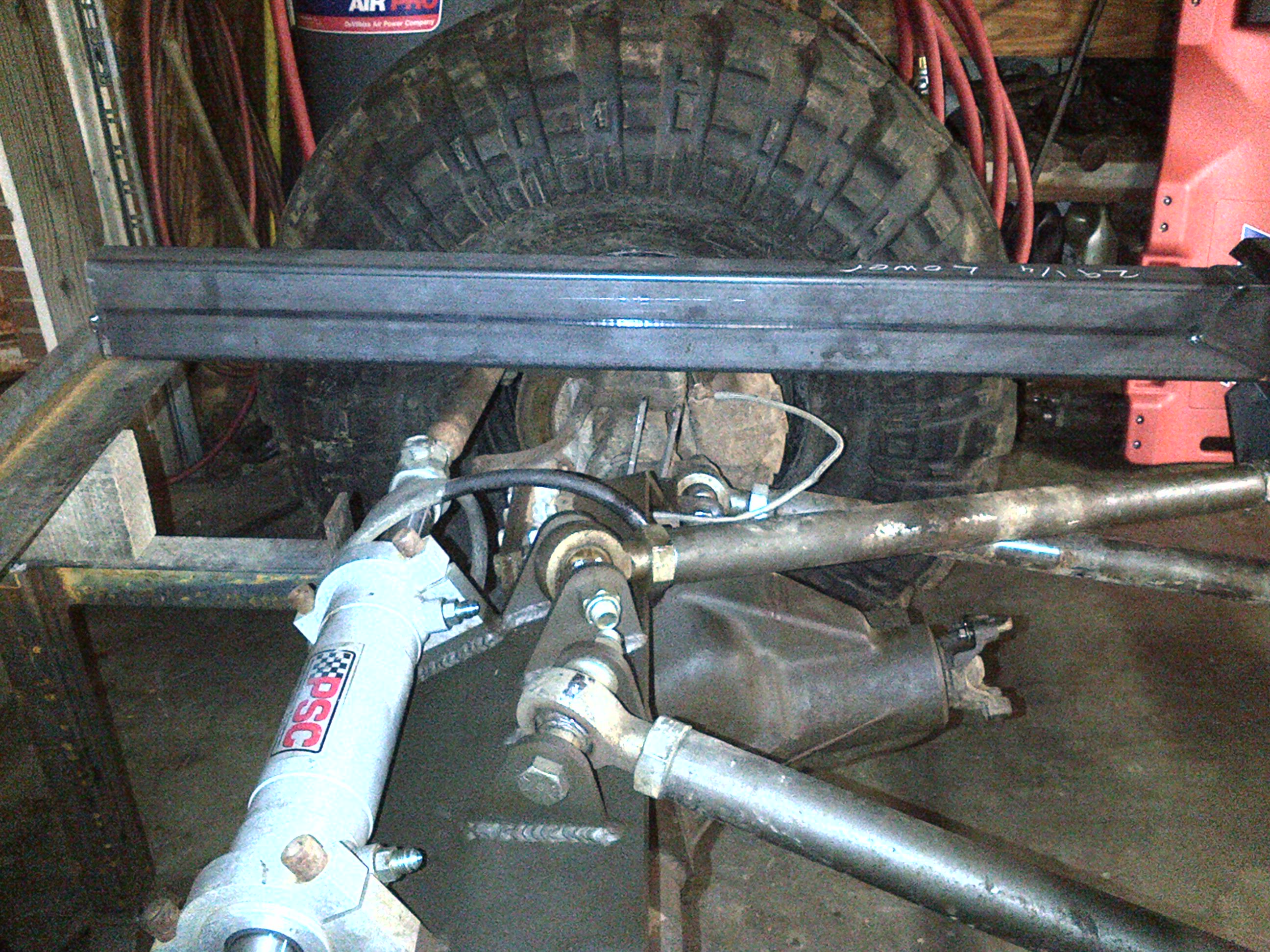

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more


Attachments

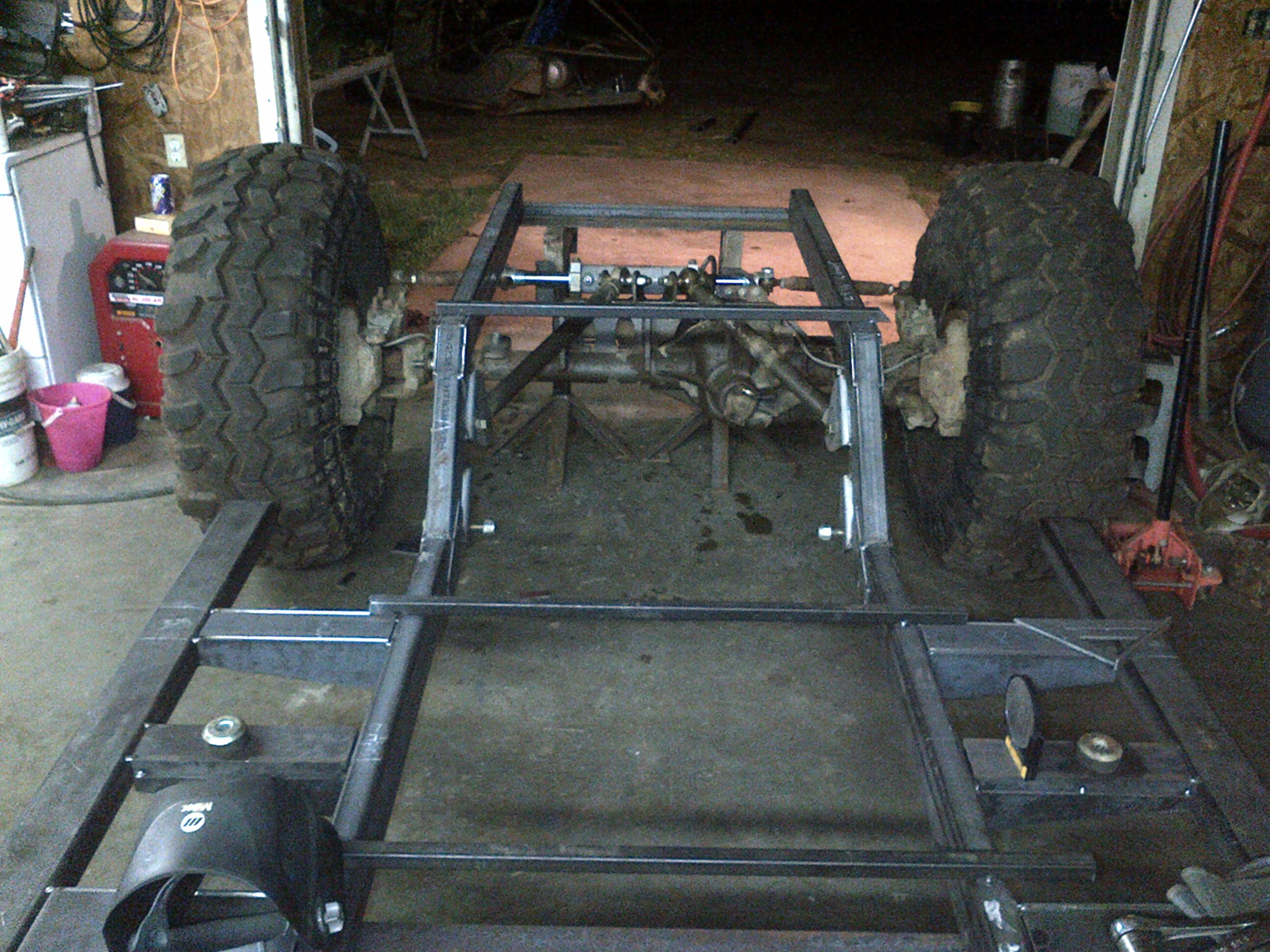

  • IMG-20140326-00227.jpg
    729.6 KB · Views: 71
  • IMG-20140326-00228.jpg
    854.9 KB · Views: 71
  • IMG-20140326-00229.jpg
    659.5 KB · Views: 68

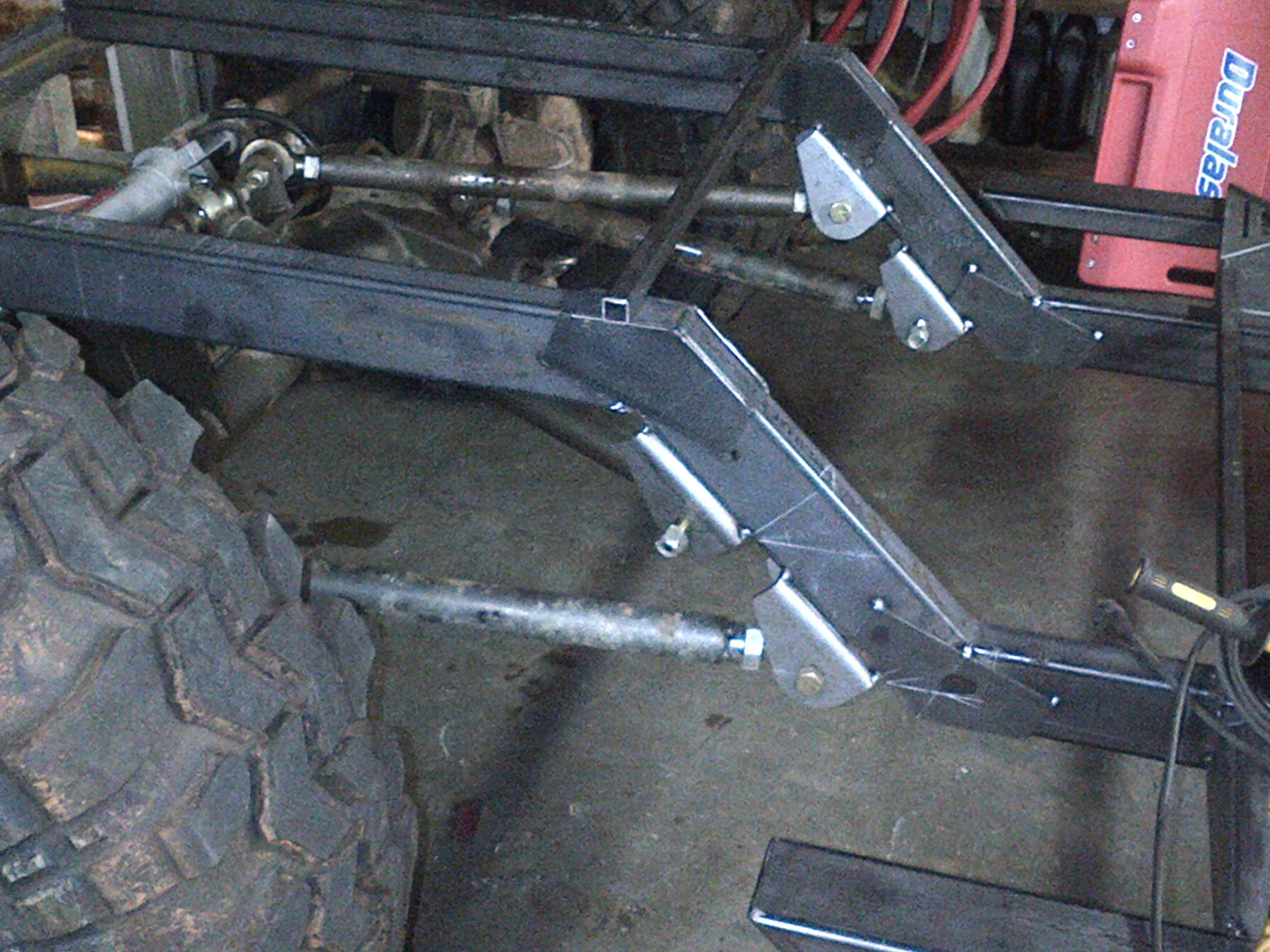

  • IMG-20140326-00230.jpg
    356.1 KB · Views: 71

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS

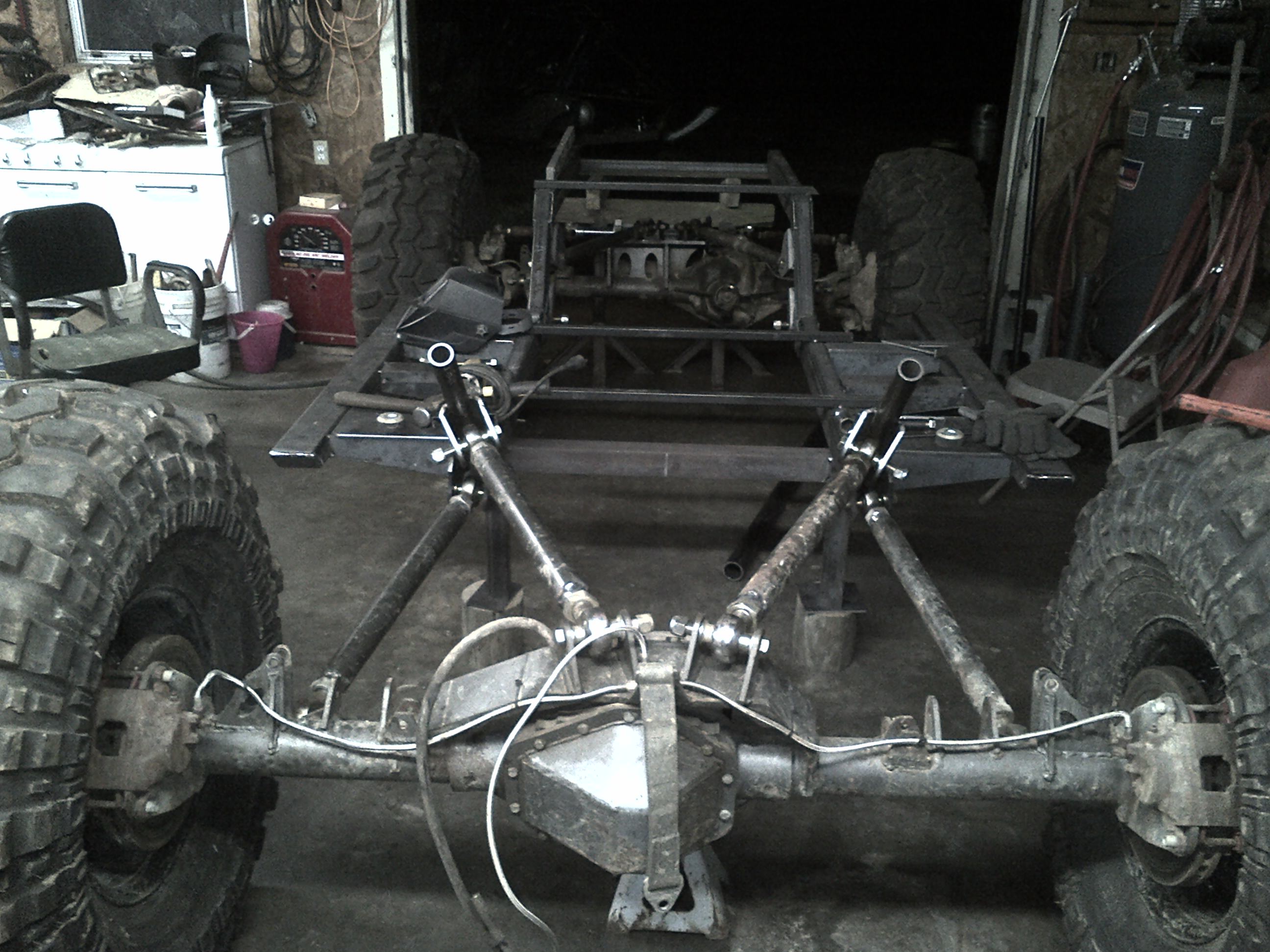

more


Attachments

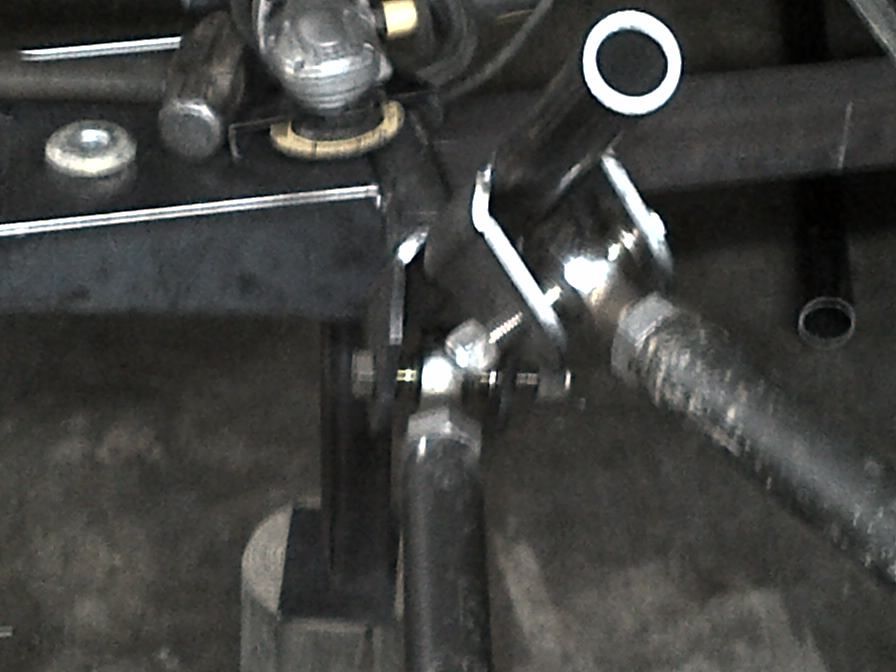

  • IMG-20140327-00238.jpg
    61.3 KB · Views: 73

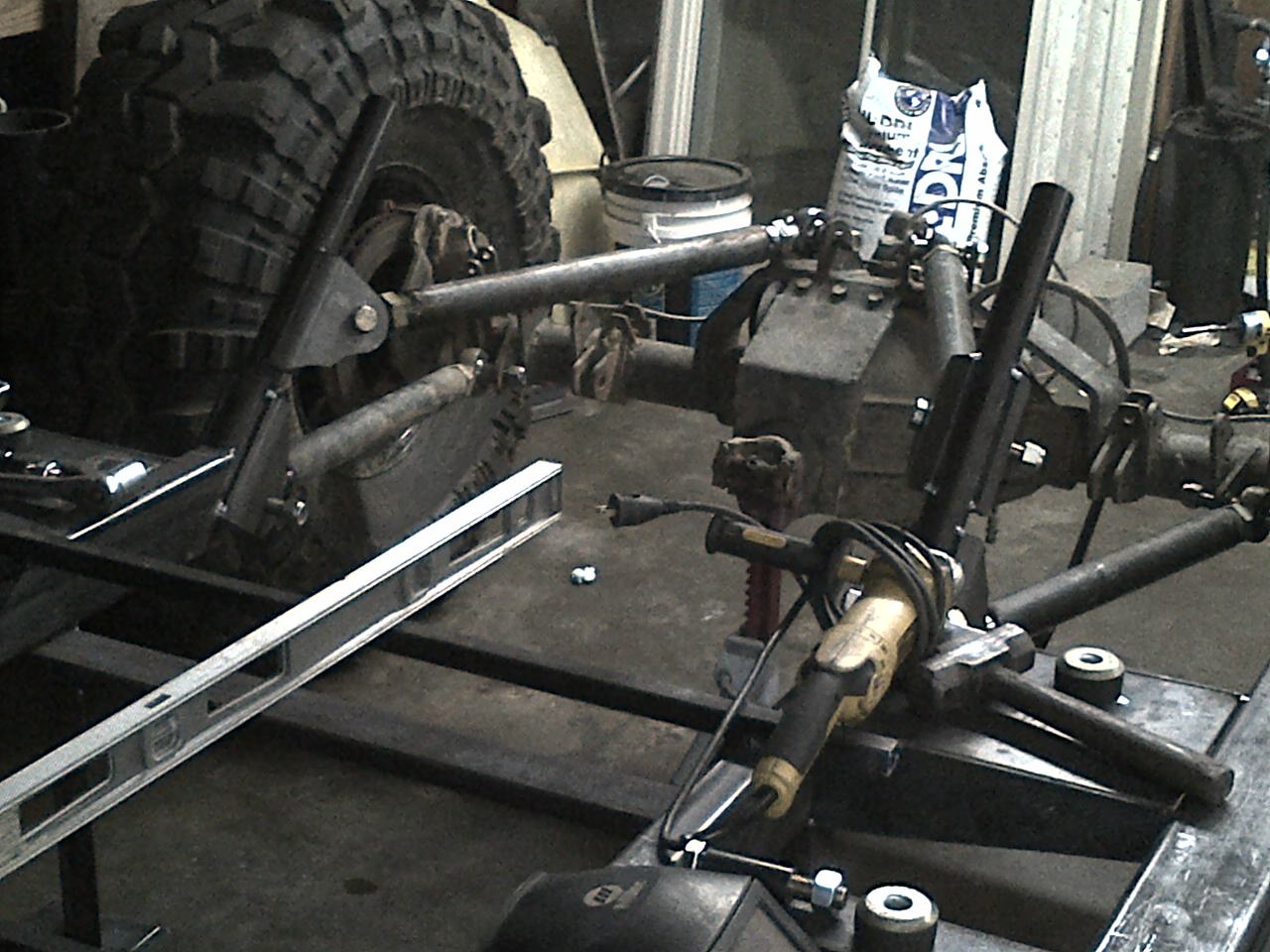

  • IMG-20140327-00237.jpg
    168.8 KB · Views: 67

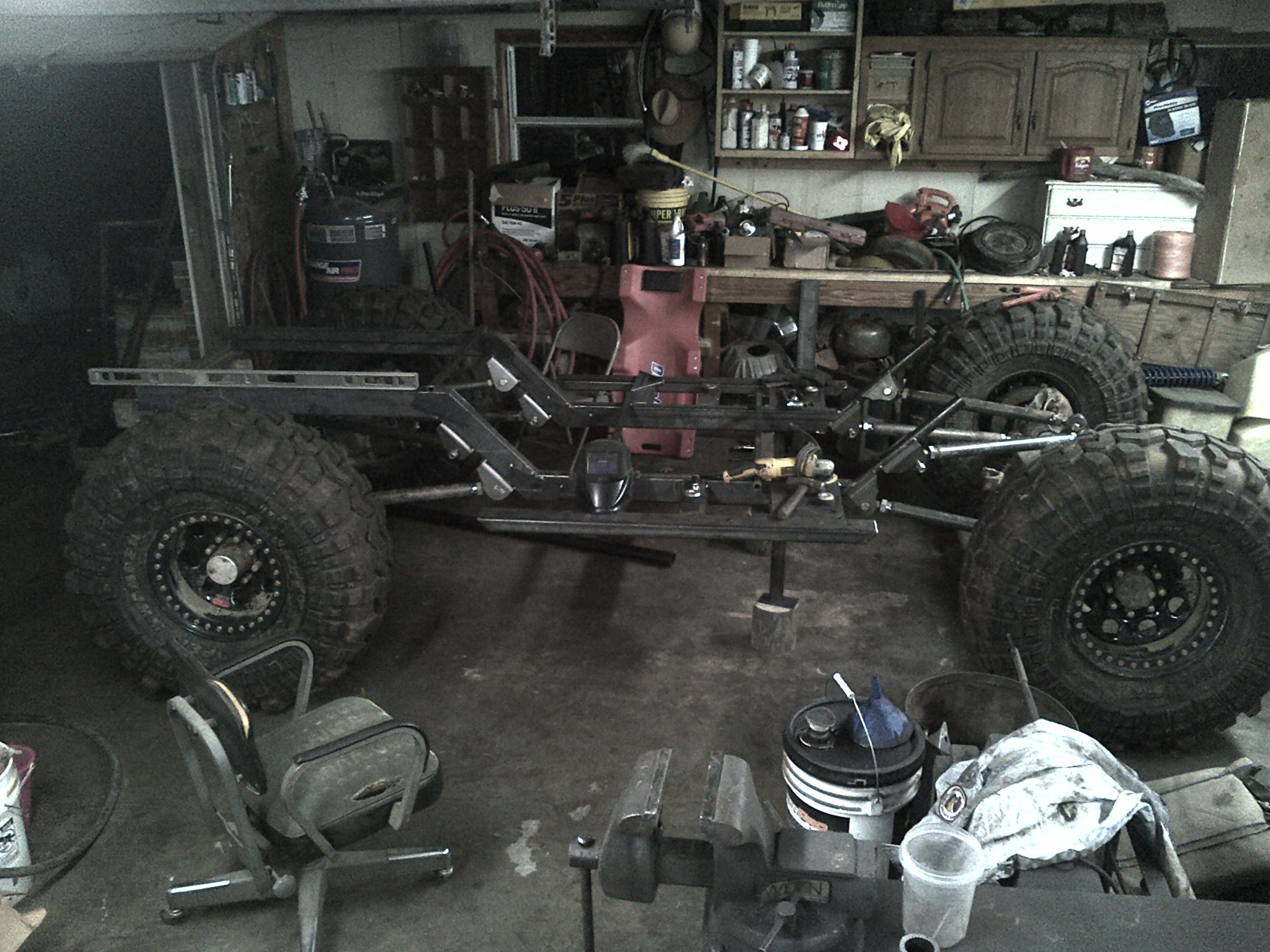

  • IMG-20140327-00236.jpg
    556.2 KB · Views: 66
  • IMG-20140327-00235.jpg
    518.3 KB · Views: 66

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS

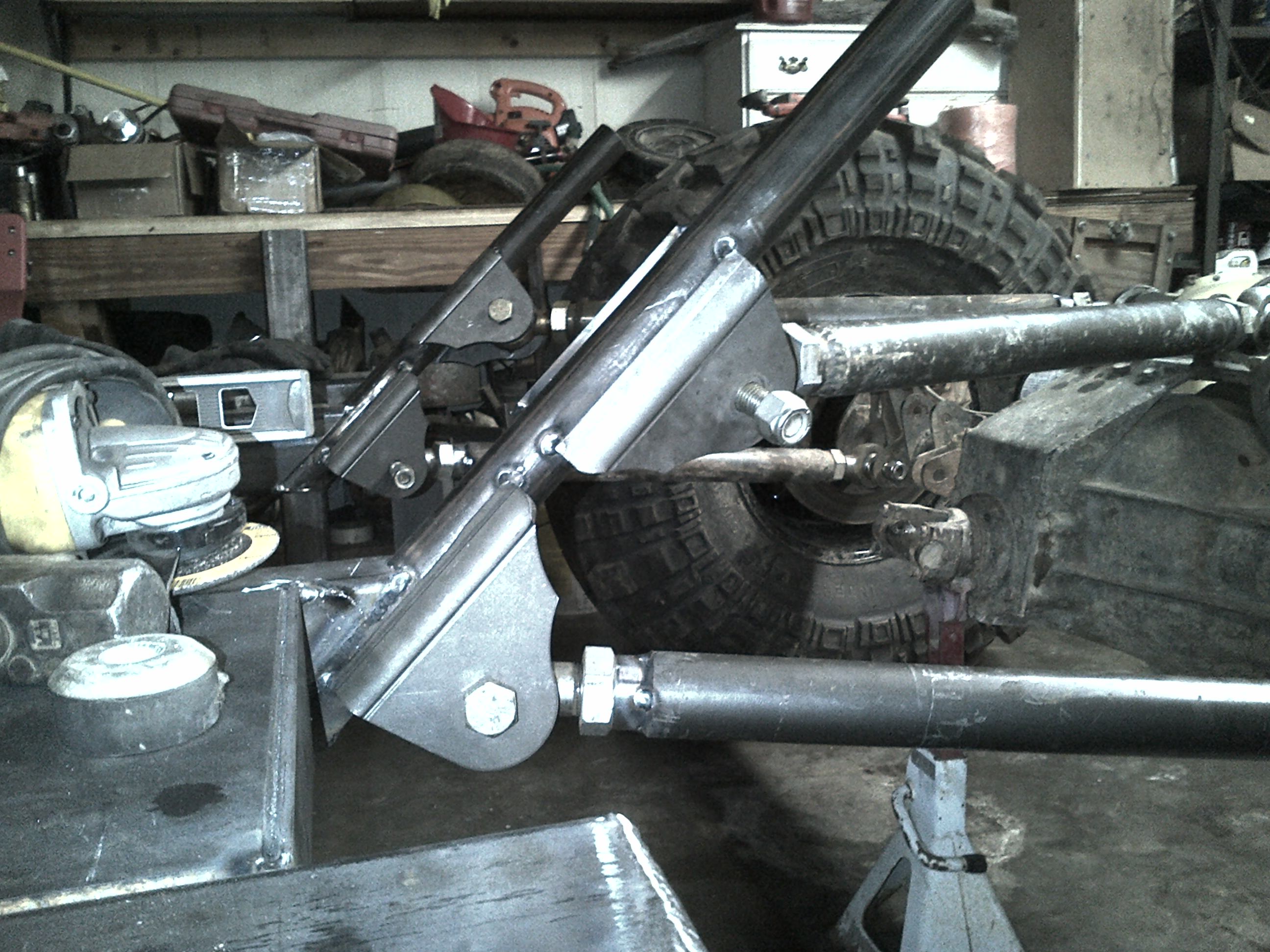

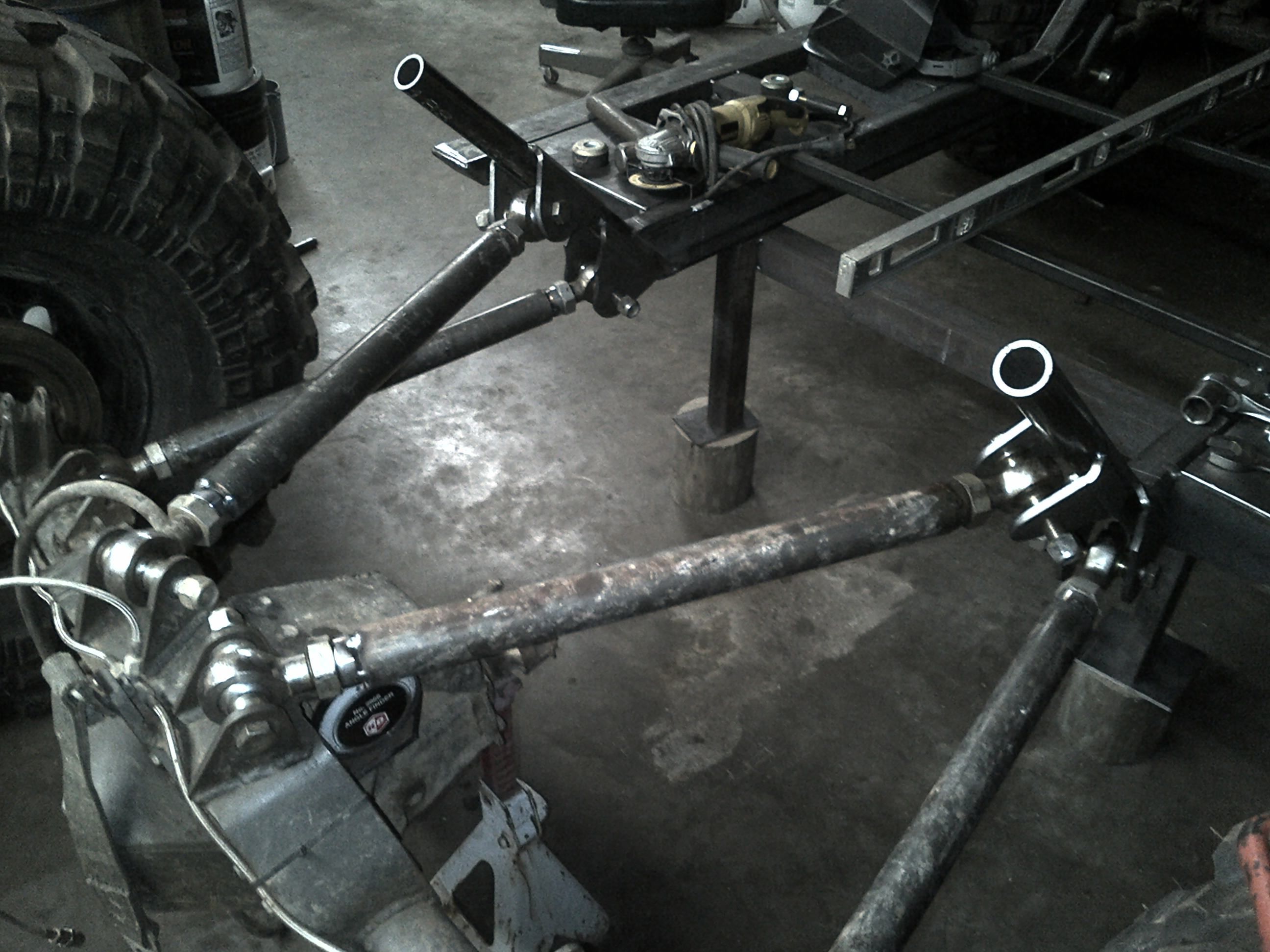

more


Attachments

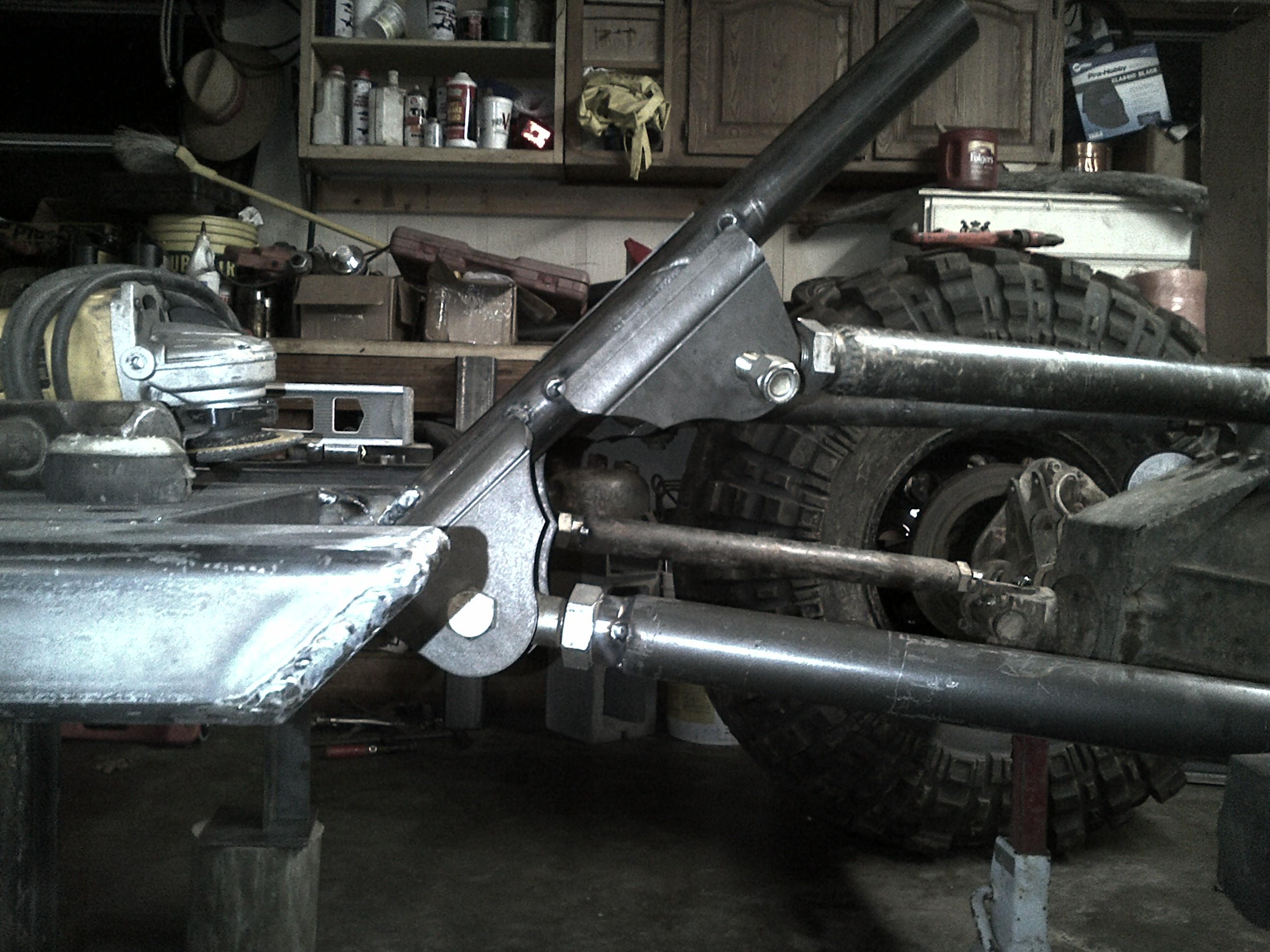

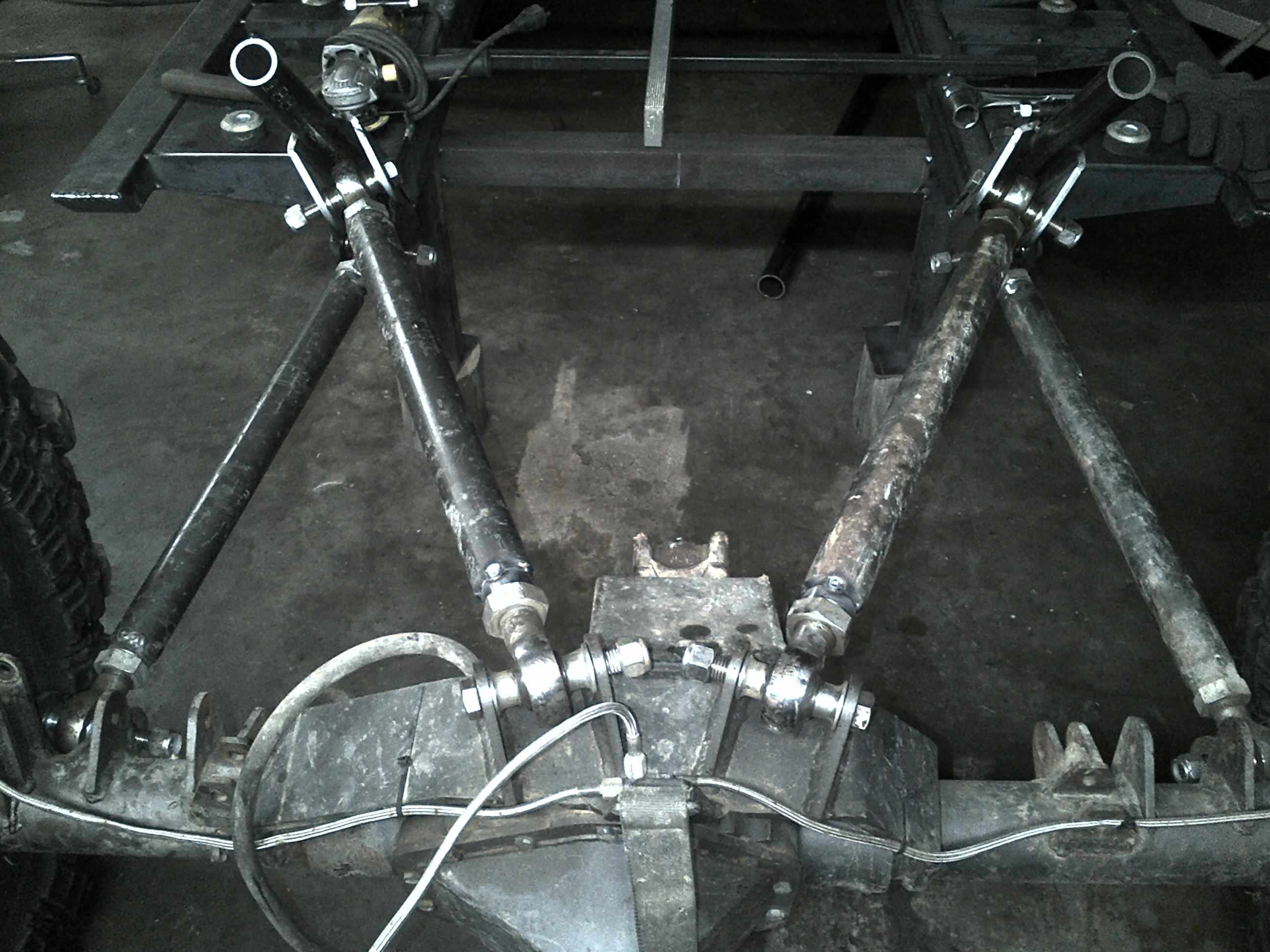

  • IMG-20140327-00239.jpg
    532.5 KB · Views: 64
  • IMG-20140327-00240.jpg
    452 KB · Views: 64
  • IMG-20140327-00241.jpg
    600.8 KB · Views: 61
  • IMG-20140327-00242.jpg
    520.7 KB · Views: 59

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more

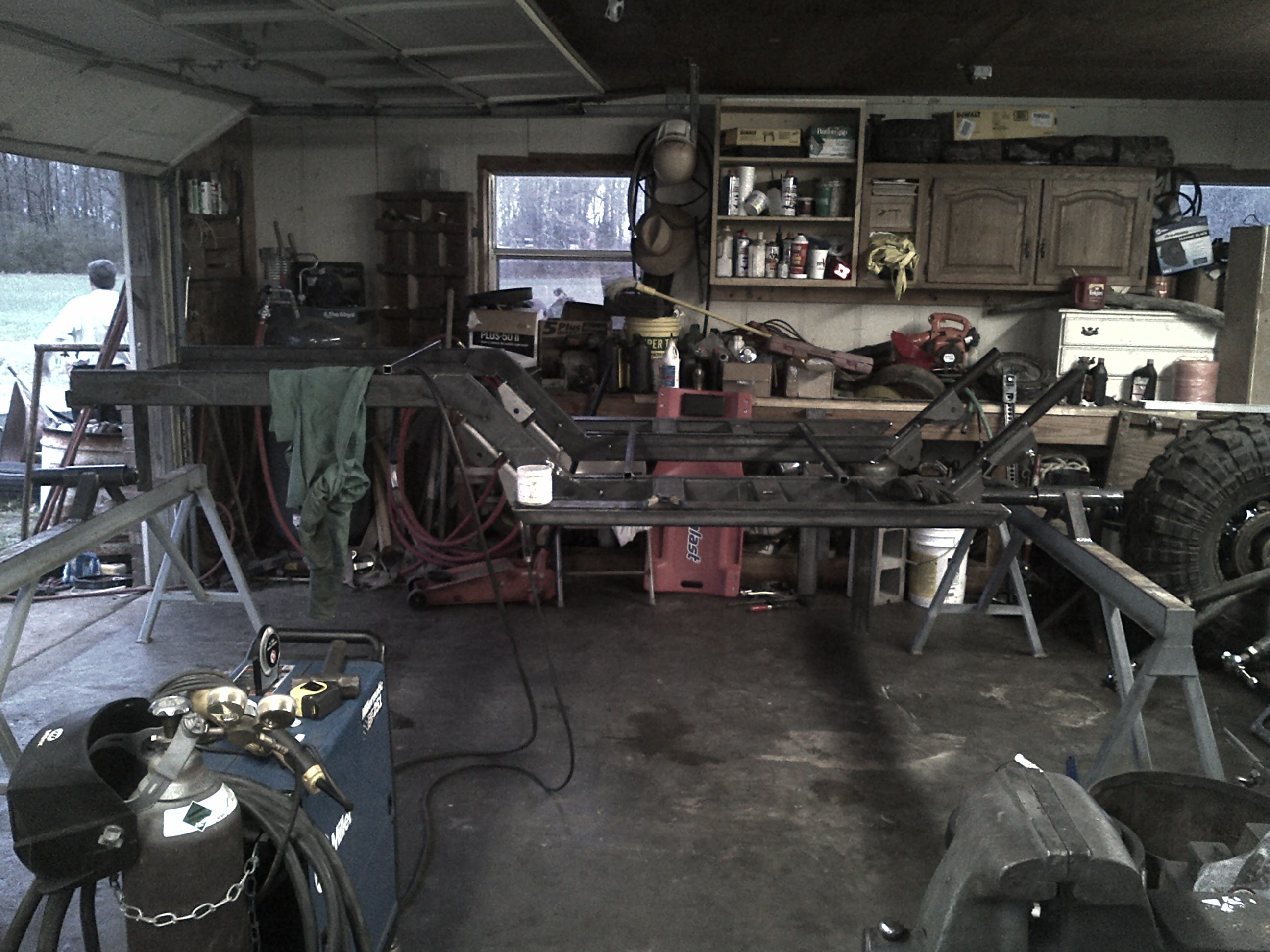

Attachments

  • IMG_2216.jpg
    397.1 KB · Views: 57
  • imagejpeg_0.jpg
    116.3 KB · Views: 1,030
  • IMG-20140328-00244.jpg
    497.1 KB · Views: 55

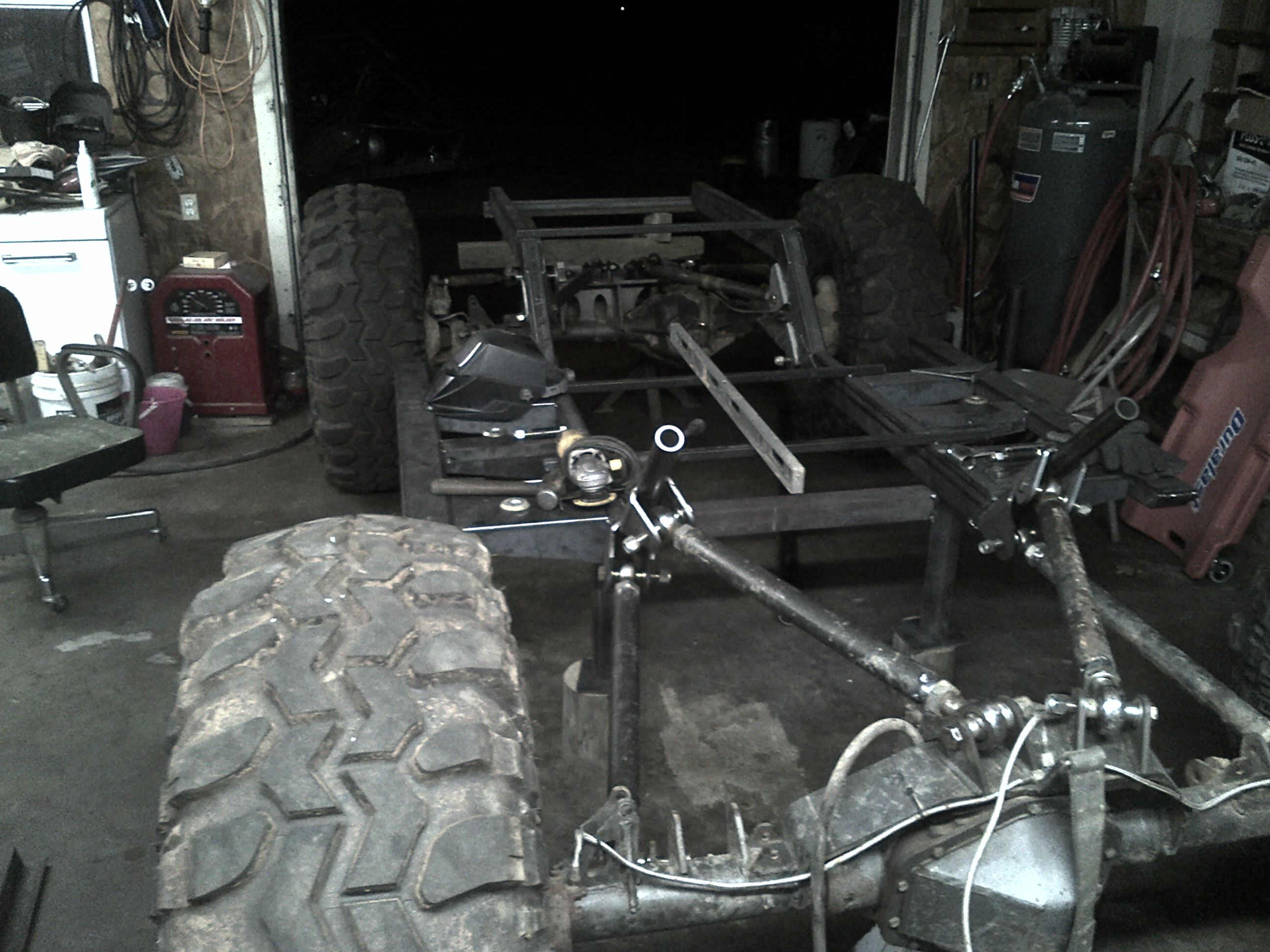

  • IMG-20140327-00243.jpg
    486.4 KB · Views: 50

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS

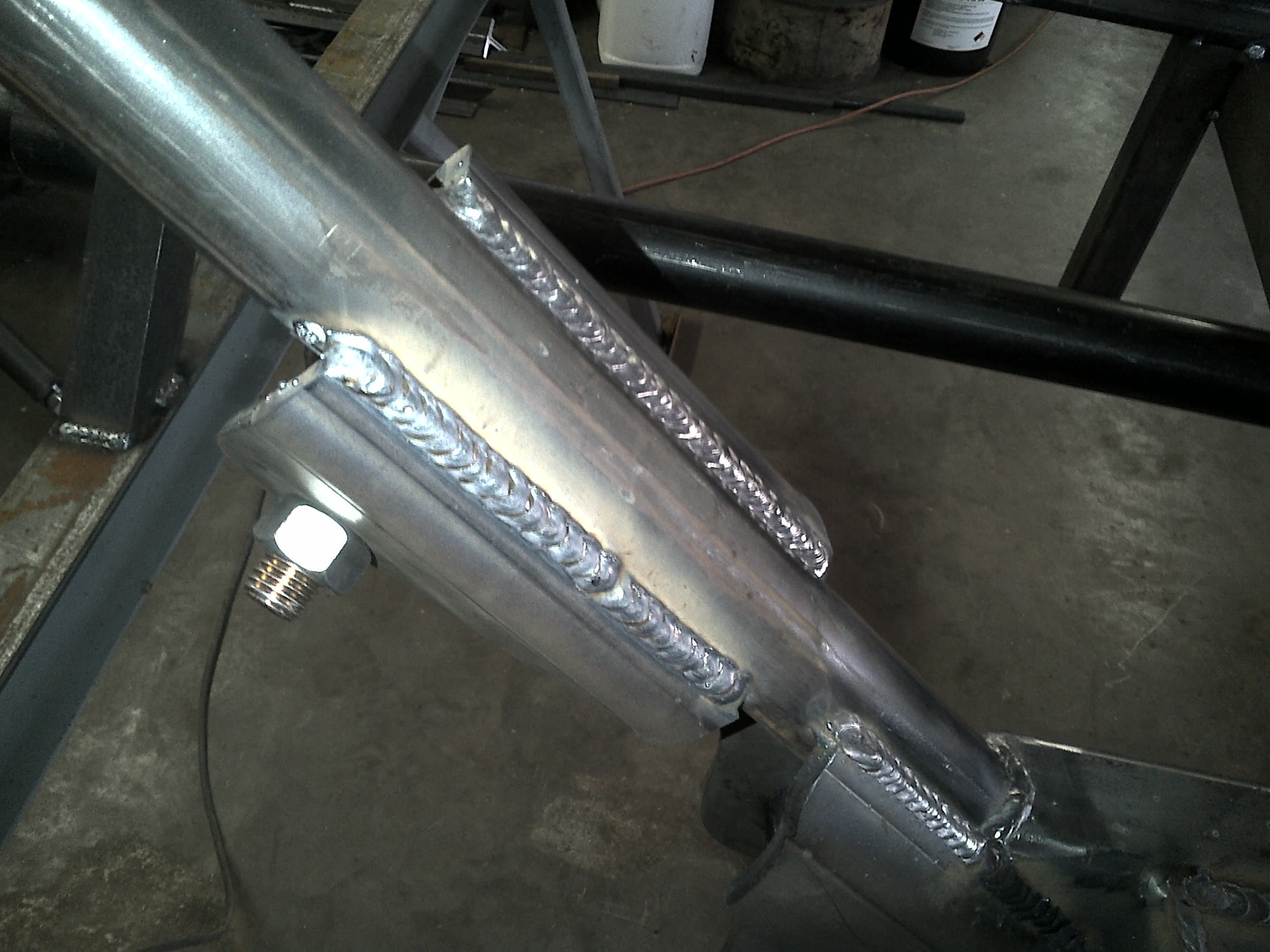

more


Attachments

  • IMG-20140329-00252.jpg
    405.9 KB · Views: 62

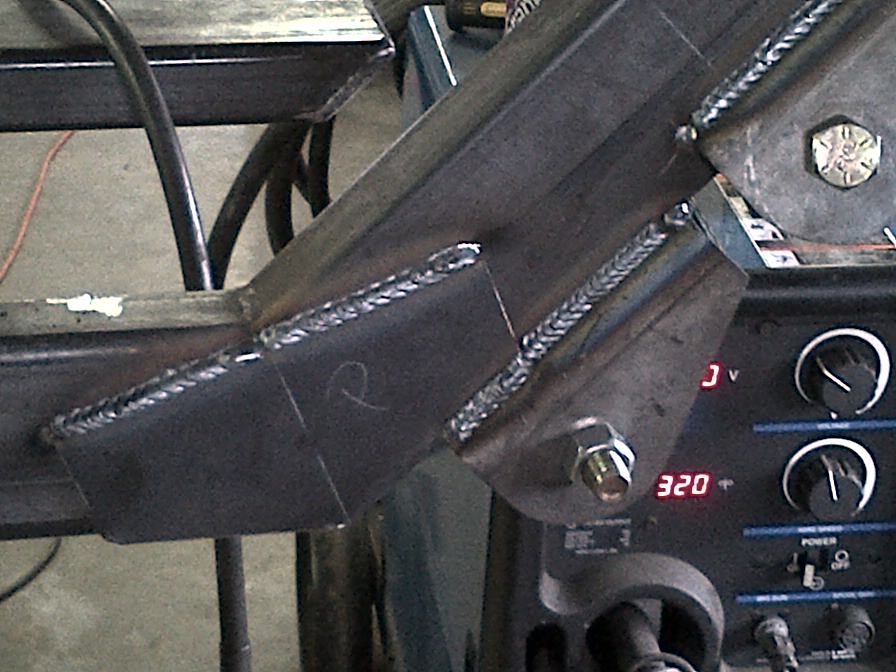

  • IMG-20140329-00251.jpg
    91.3 KB · Views: 54

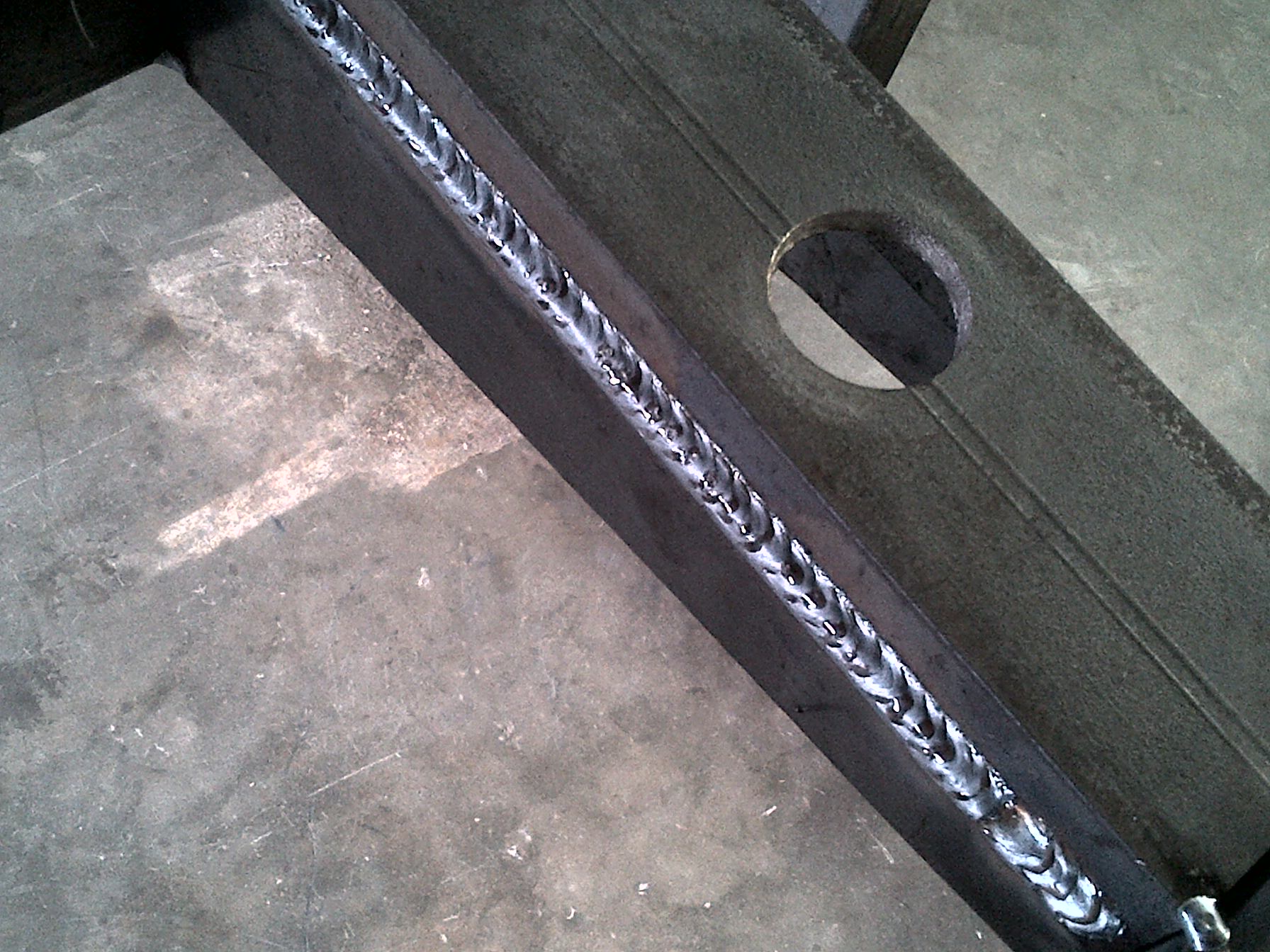

  • IMG-20140329-00249.jpg
    368.3 KB · Views: 54

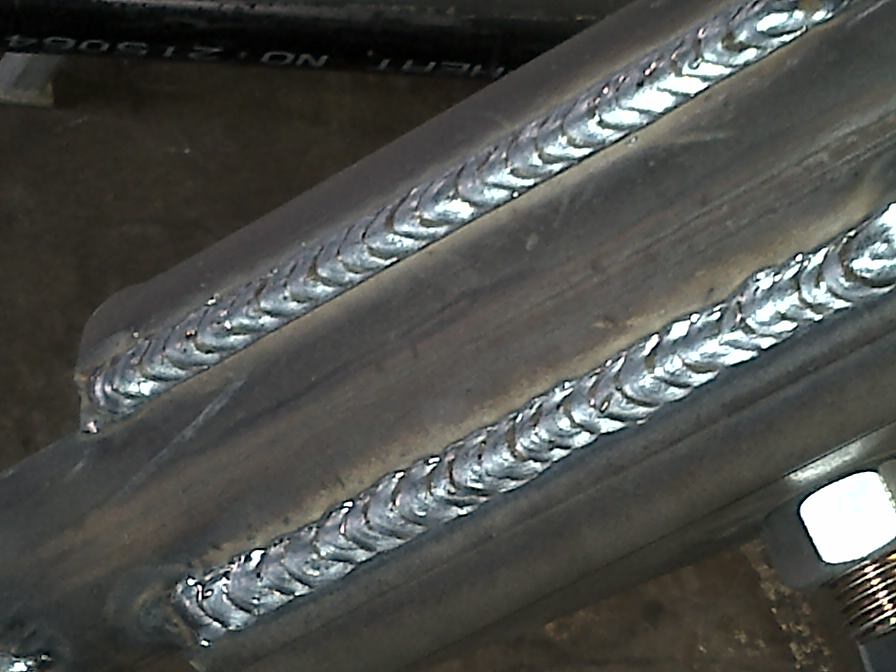

  • IMG-20140329-00247.jpg
    66.3 KB · Views: 55

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more


Attachments

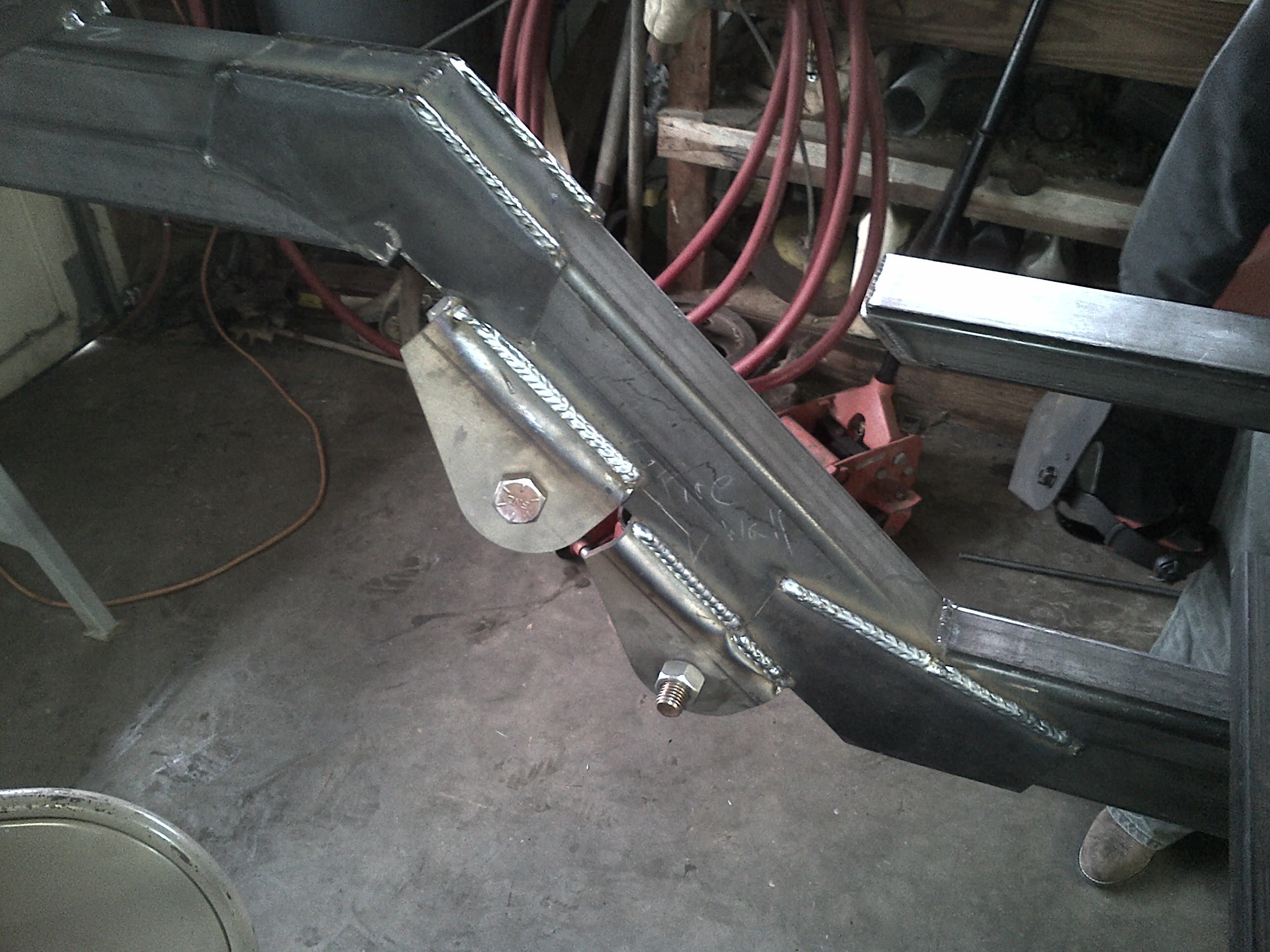

  • IMG-20140329-00262.jpg
    540.2 KB · Views: 53

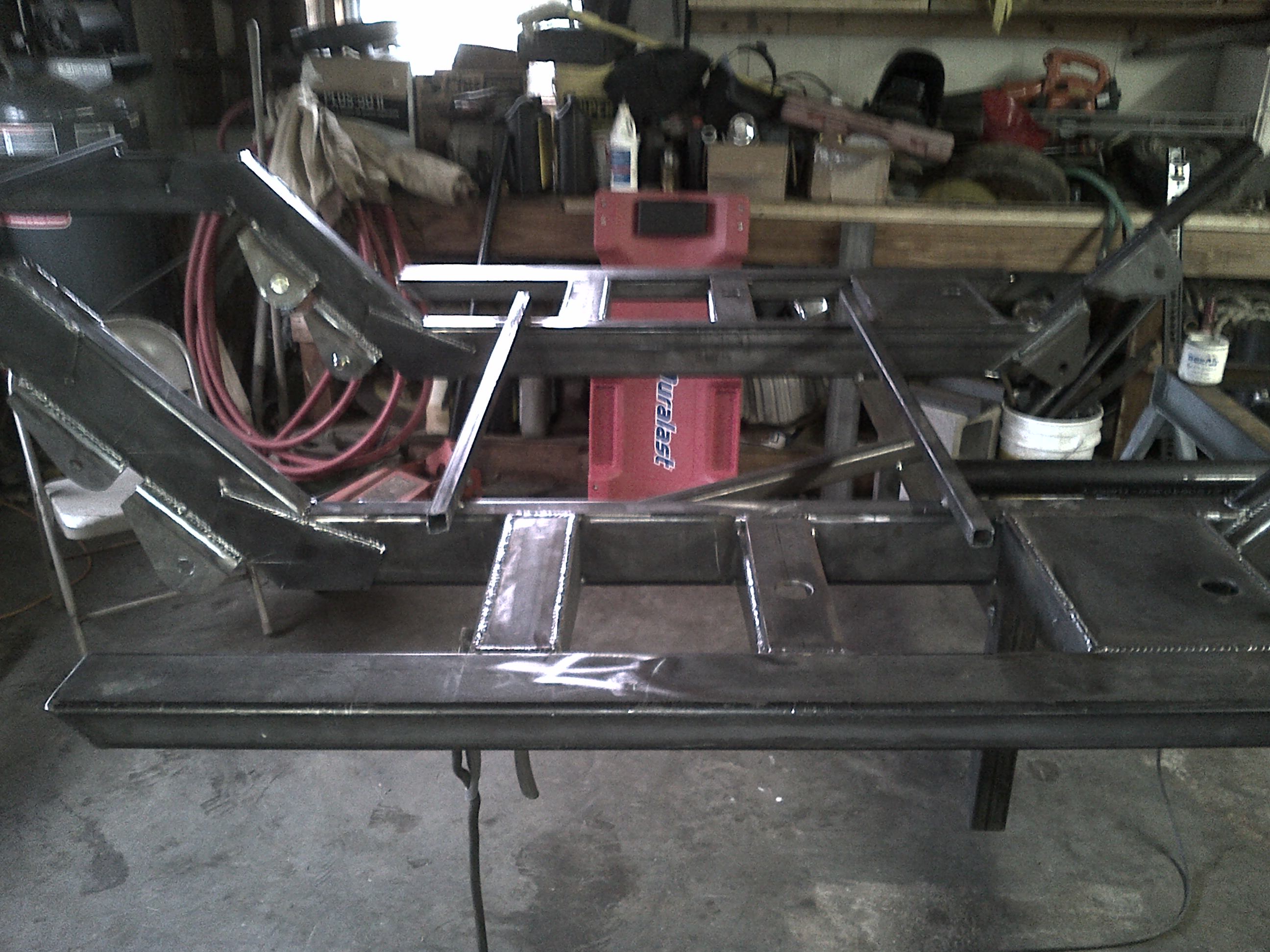

  • IMG-20140329-00263.jpg
    576 KB · Views: 52

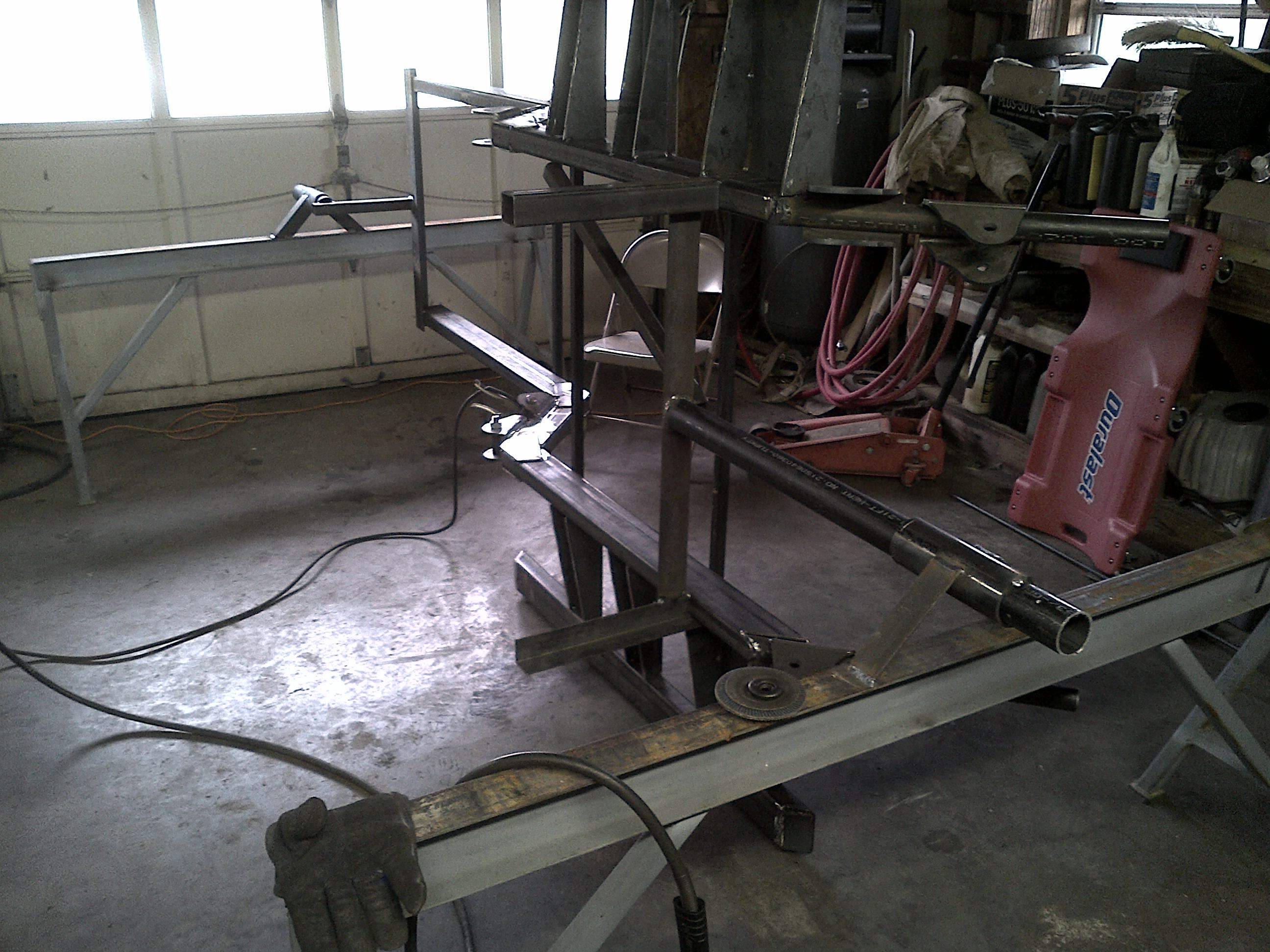

  • IMG-20140329-00264.jpg
    615.6 KB · Views: 52

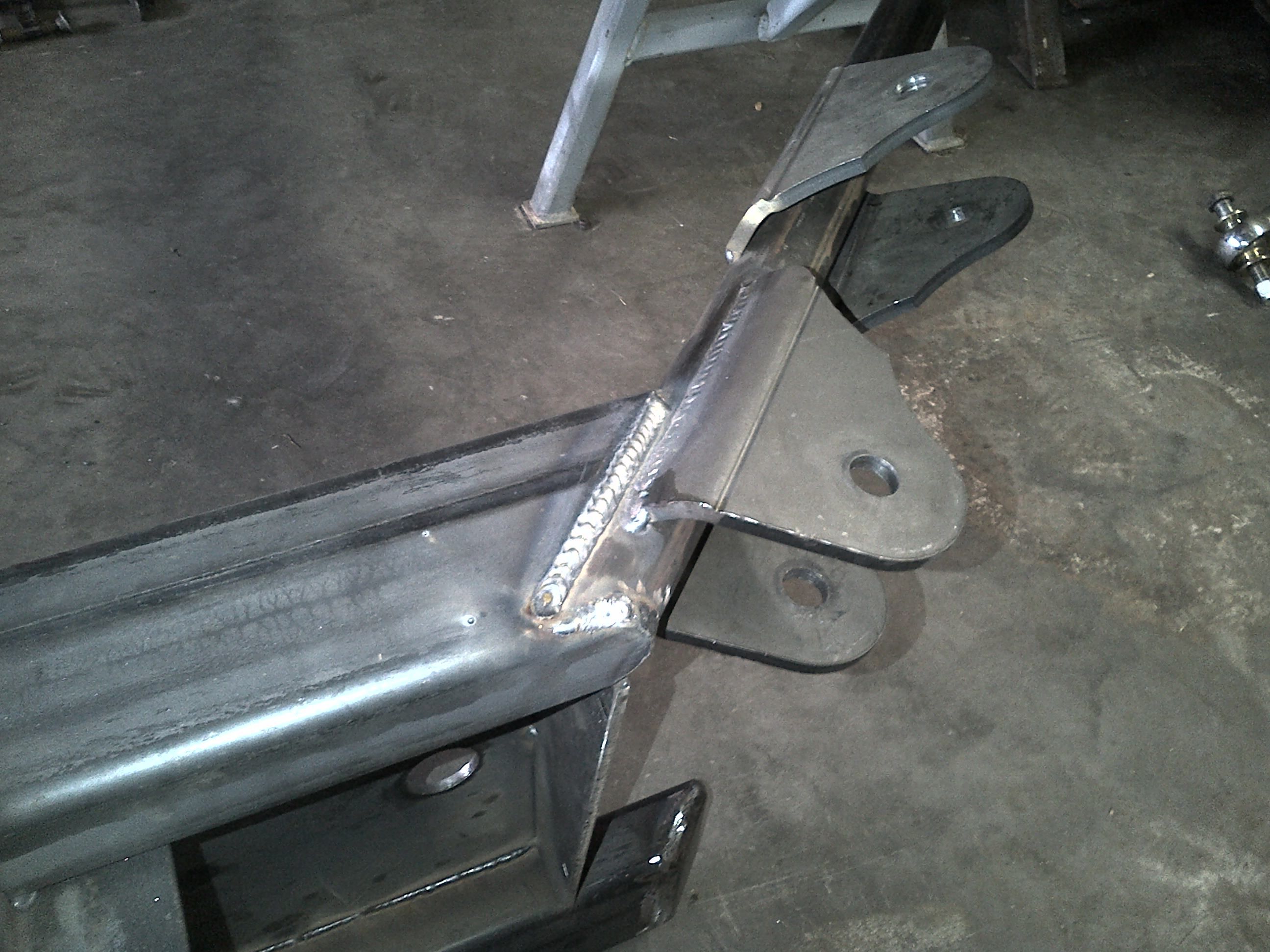

  • IMG-20140329-00265.jpg
    542.8 KB · Views: 50

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more


Attachments

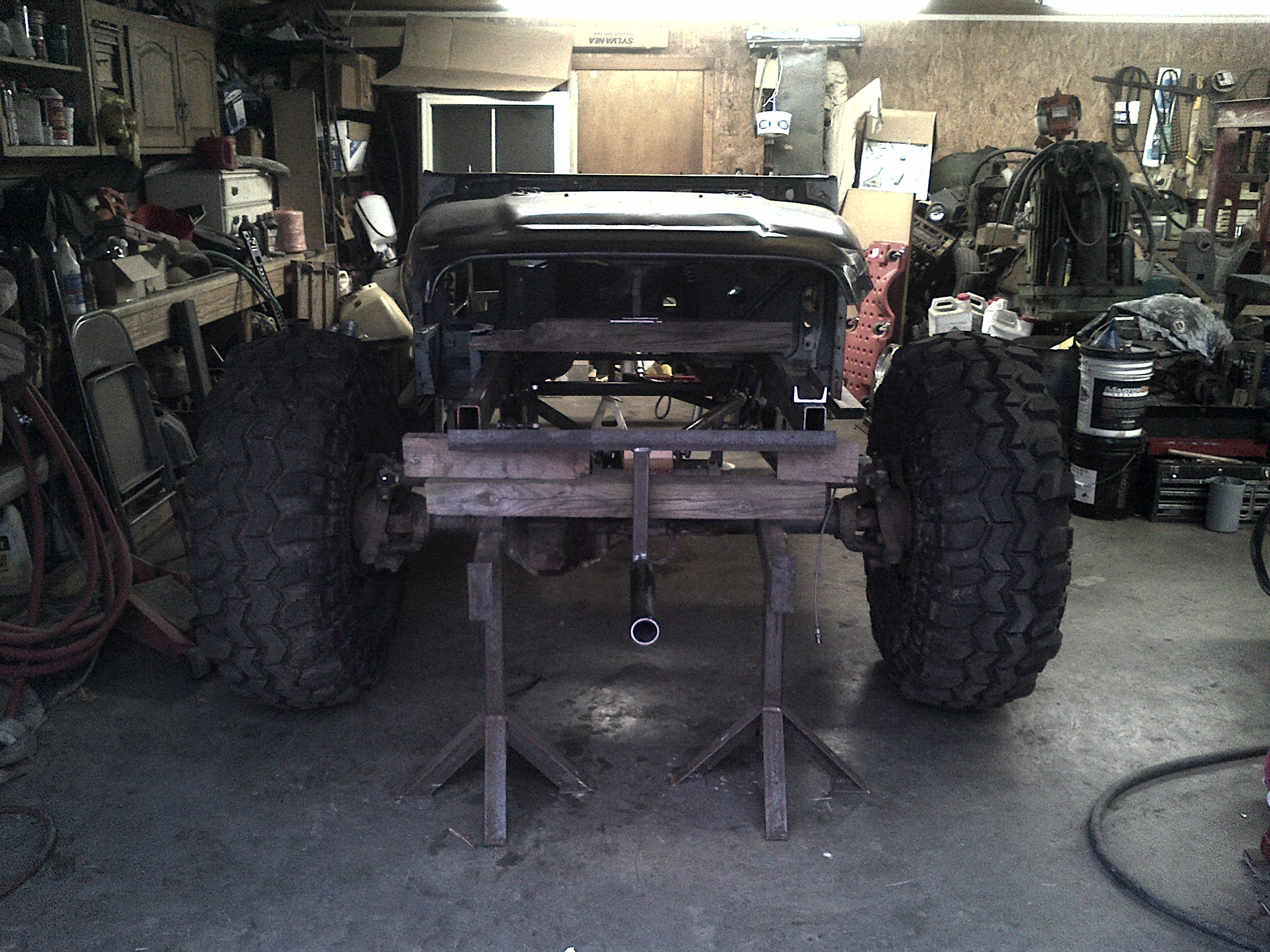

  • IMG-20140329-00271.jpg
    751.3 KB · Views: 51

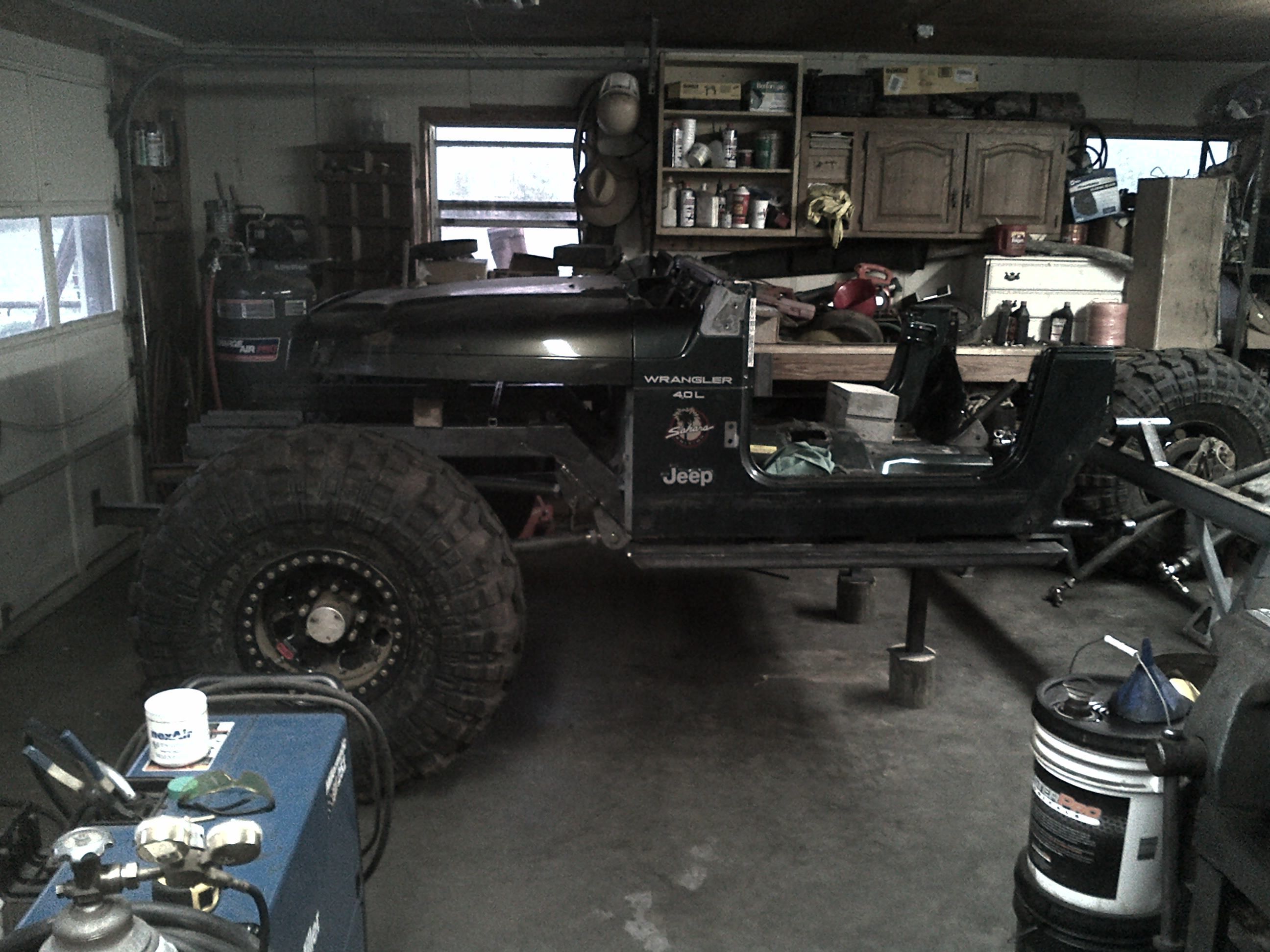

  • IMG-20140329-00270.jpg
    503.9 KB · Views: 53

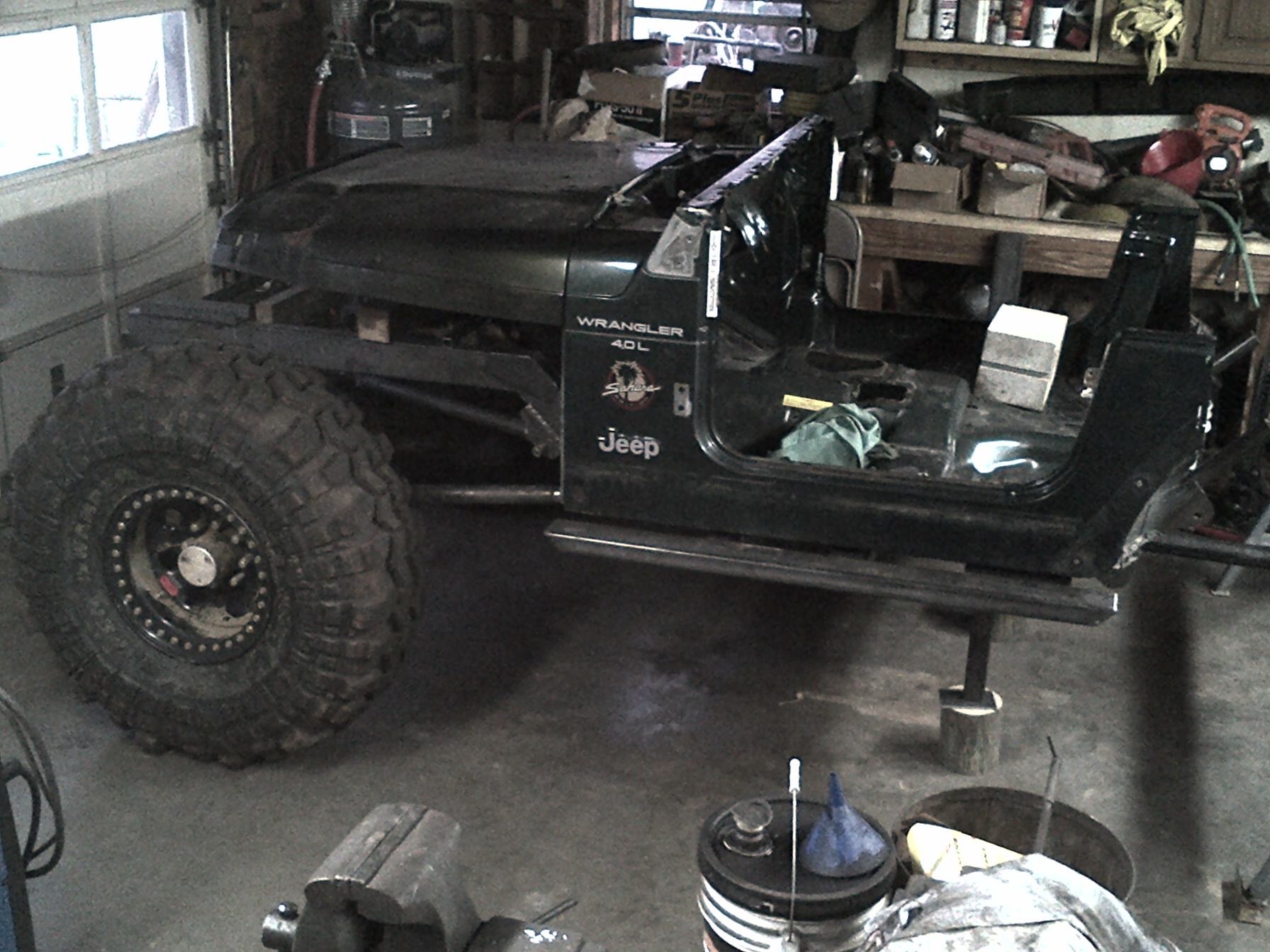

  • IMG-20140329-00269.jpg
    264.9 KB · Views: 50

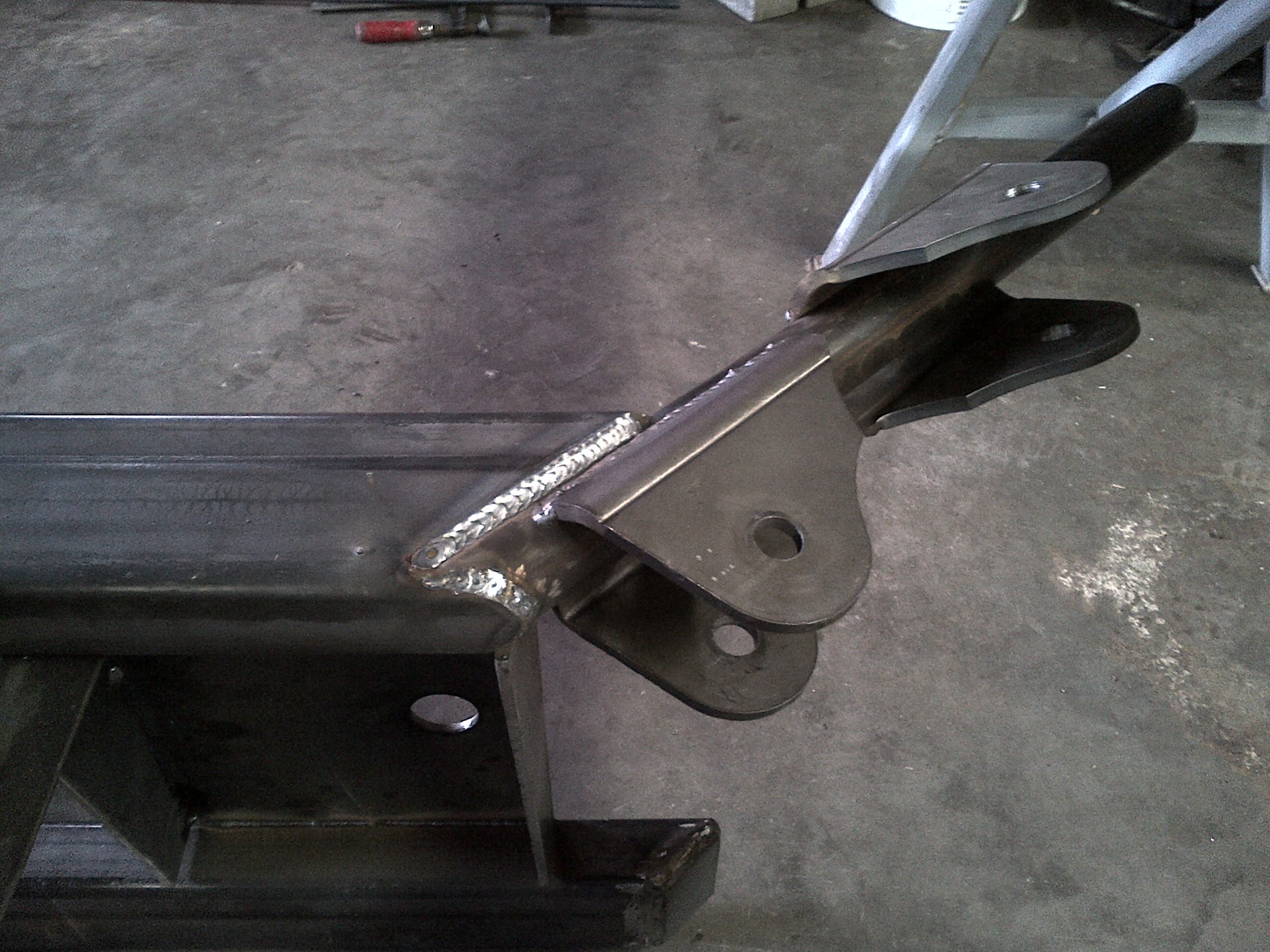

  • IMG-20140329-00266.jpg
    655.2 KB · Views: 53

Roy_Hobbs

Well-Known Member
Joined
Apr 20, 2011
Messages
124
Location
Tupelo, MS
more


Attachments

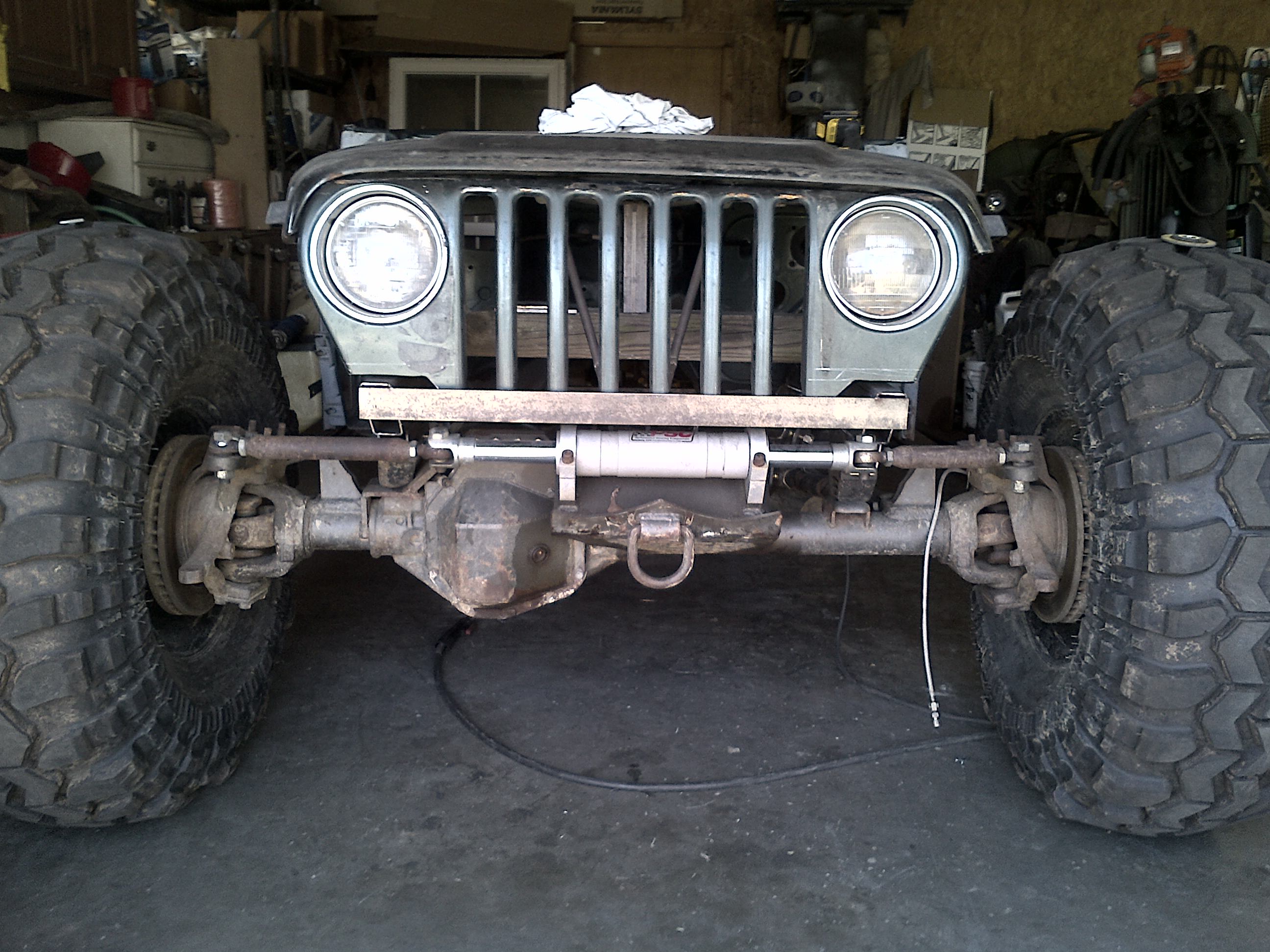

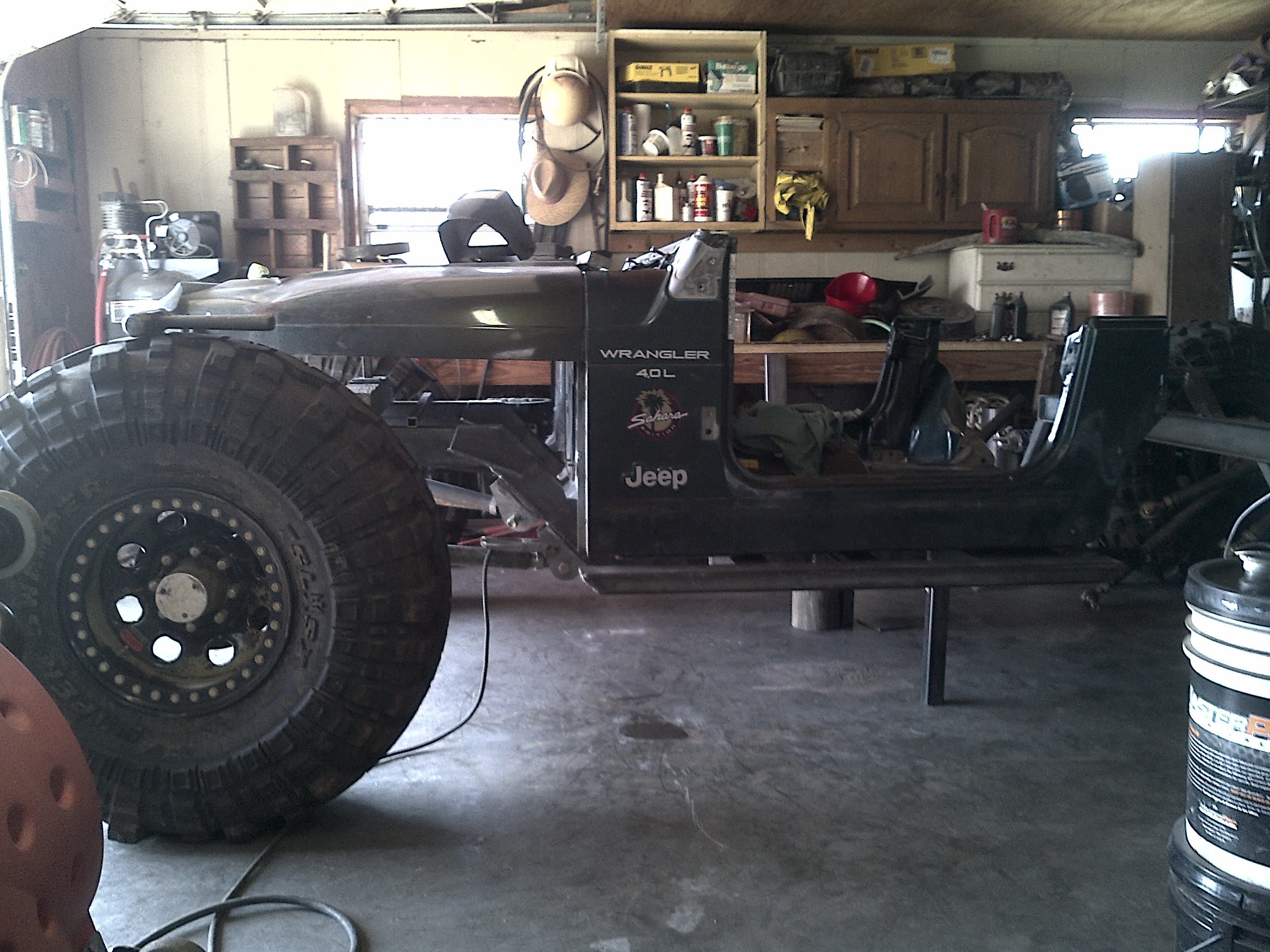

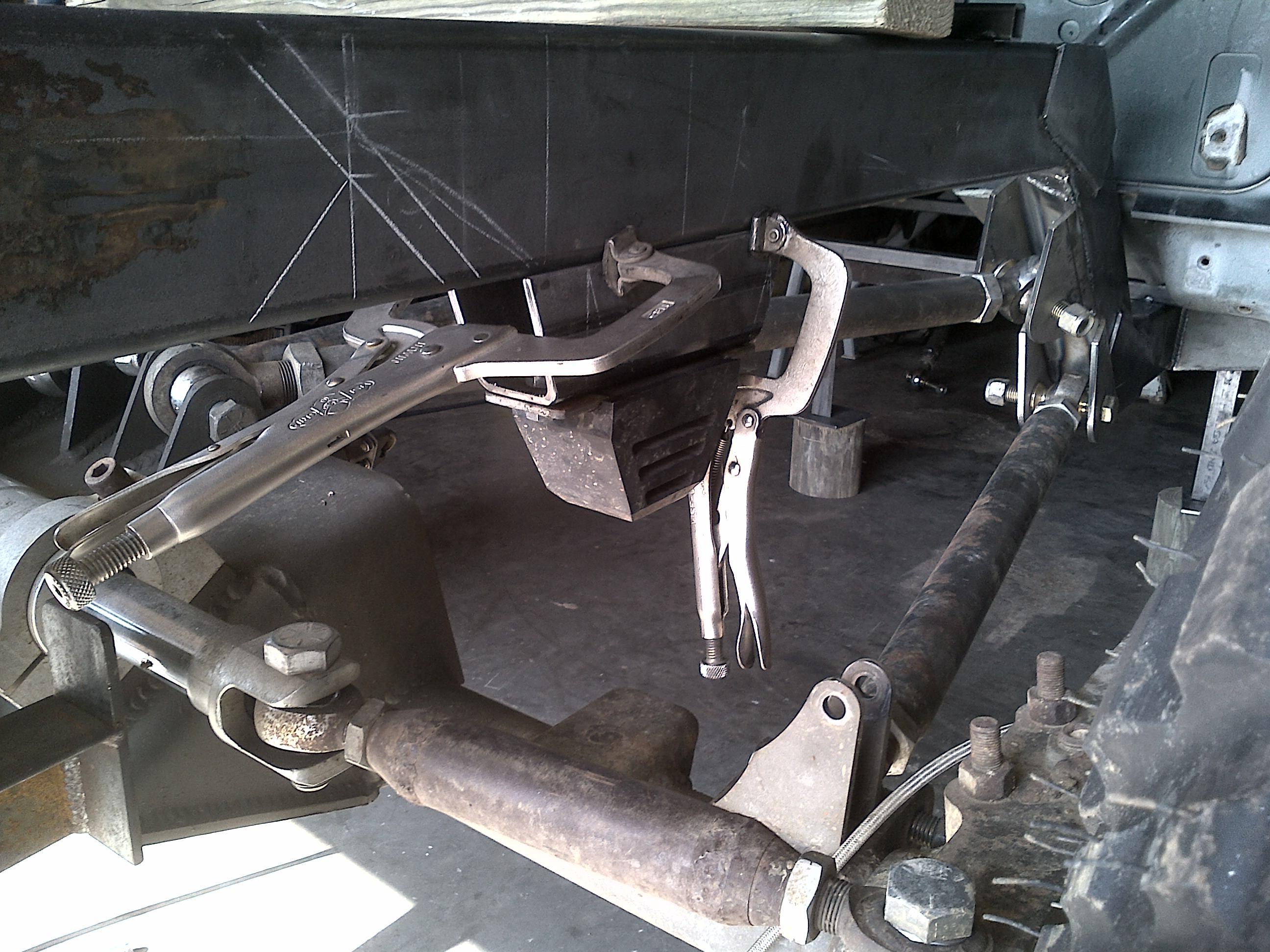

  • IMG-20140330-00272.jpg
    617.5 KB · Views: 60
  • IMG-20140330-00274.jpg
    614.3 KB · Views: 61

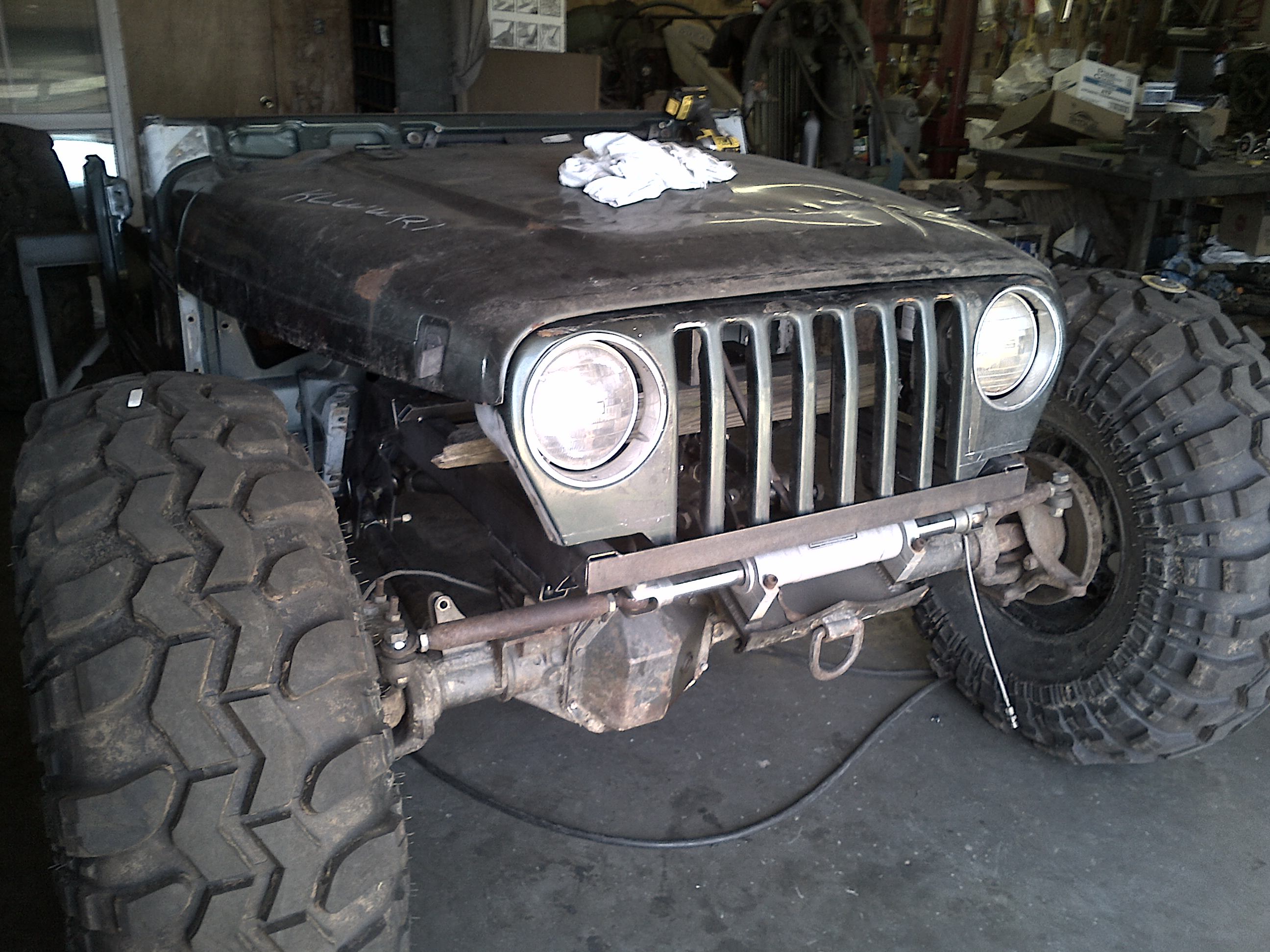

  • IMG-20140330-00277.jpg
    580.8 KB · Views: 61
  • IMG-20140330-00278.jpg
    612 KB · Views: 62

1TONTJ

Amateur Hardcore
Joined
Feb 1, 2008
Messages
425
Location
North Louisiana
Roy_Hobbs said:
Which atlas did you go with in "blak out"? and what are your axle gears? Wondering if i made right choice on my atlas.

5:1 Atlas and 4.56 gears. I figured if it ended up being too low, it would be easier to change gears than the transfer case. The Powerglide has the standard 1.76 ratio.
