OG Plowboy 14-Bolt Front and Rear Axles

Patriot Customs

Well-Known Member
Joined
Mar 1, 2013
Messages
133
Location
Dubois,PA

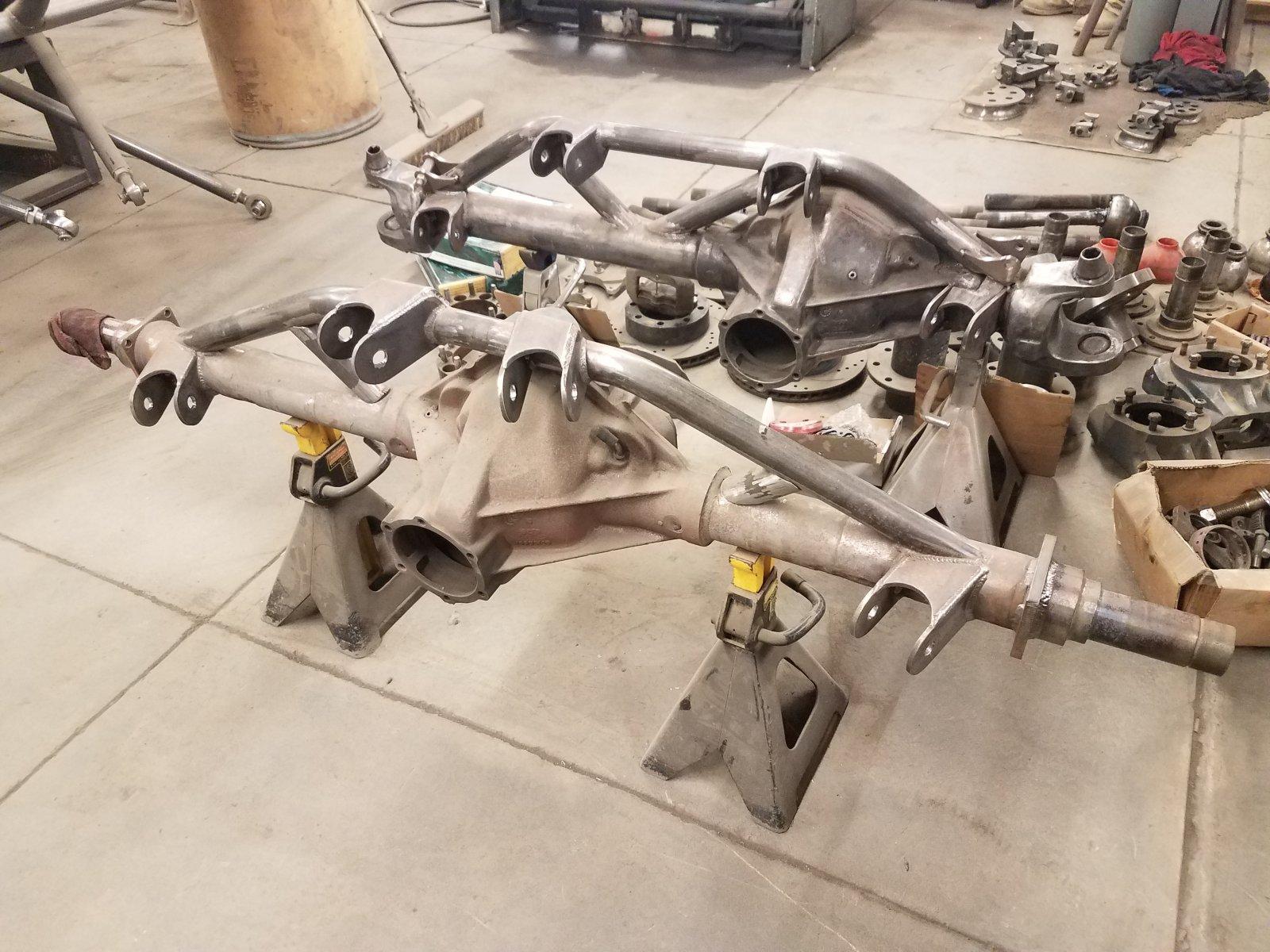

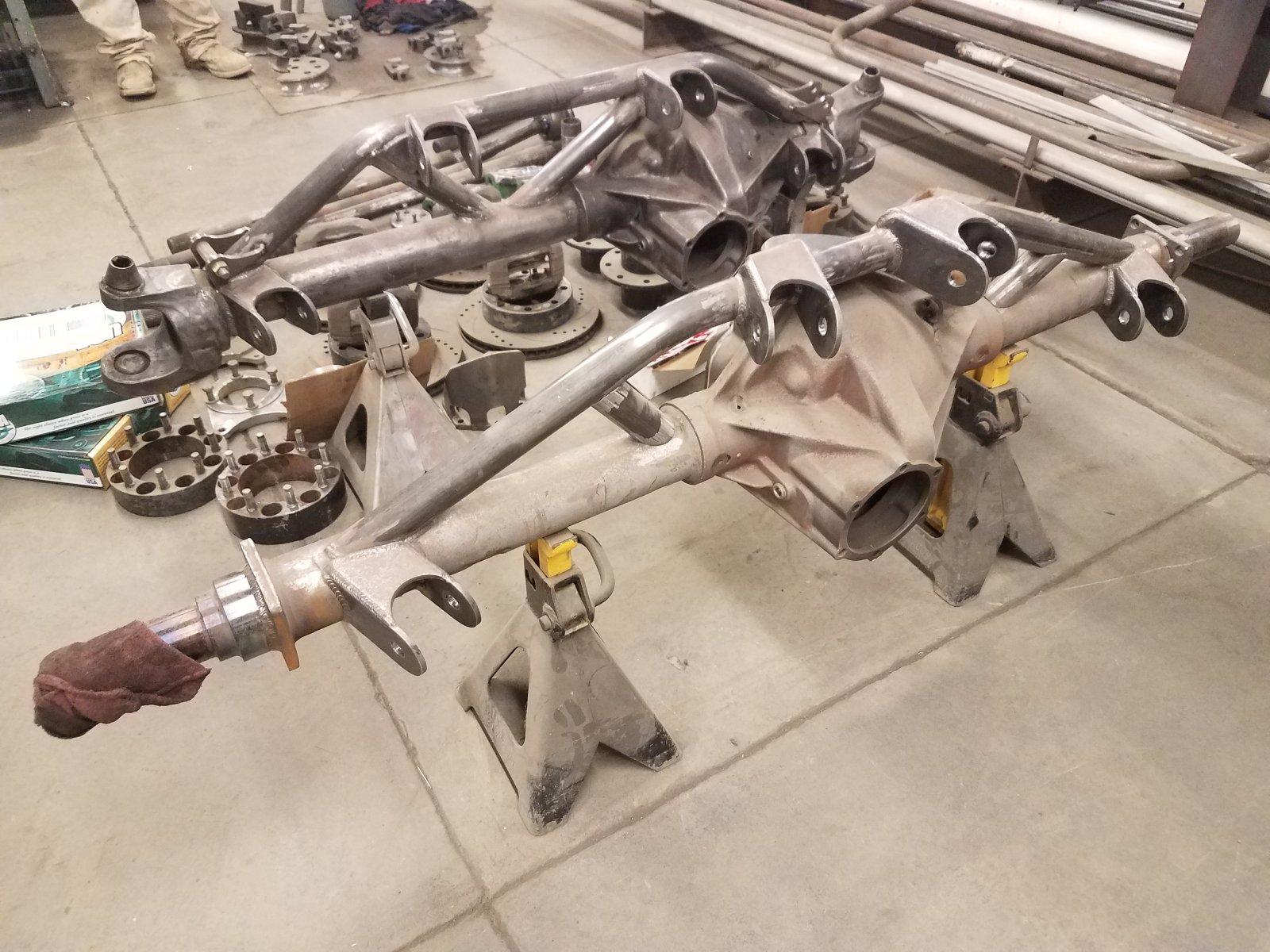

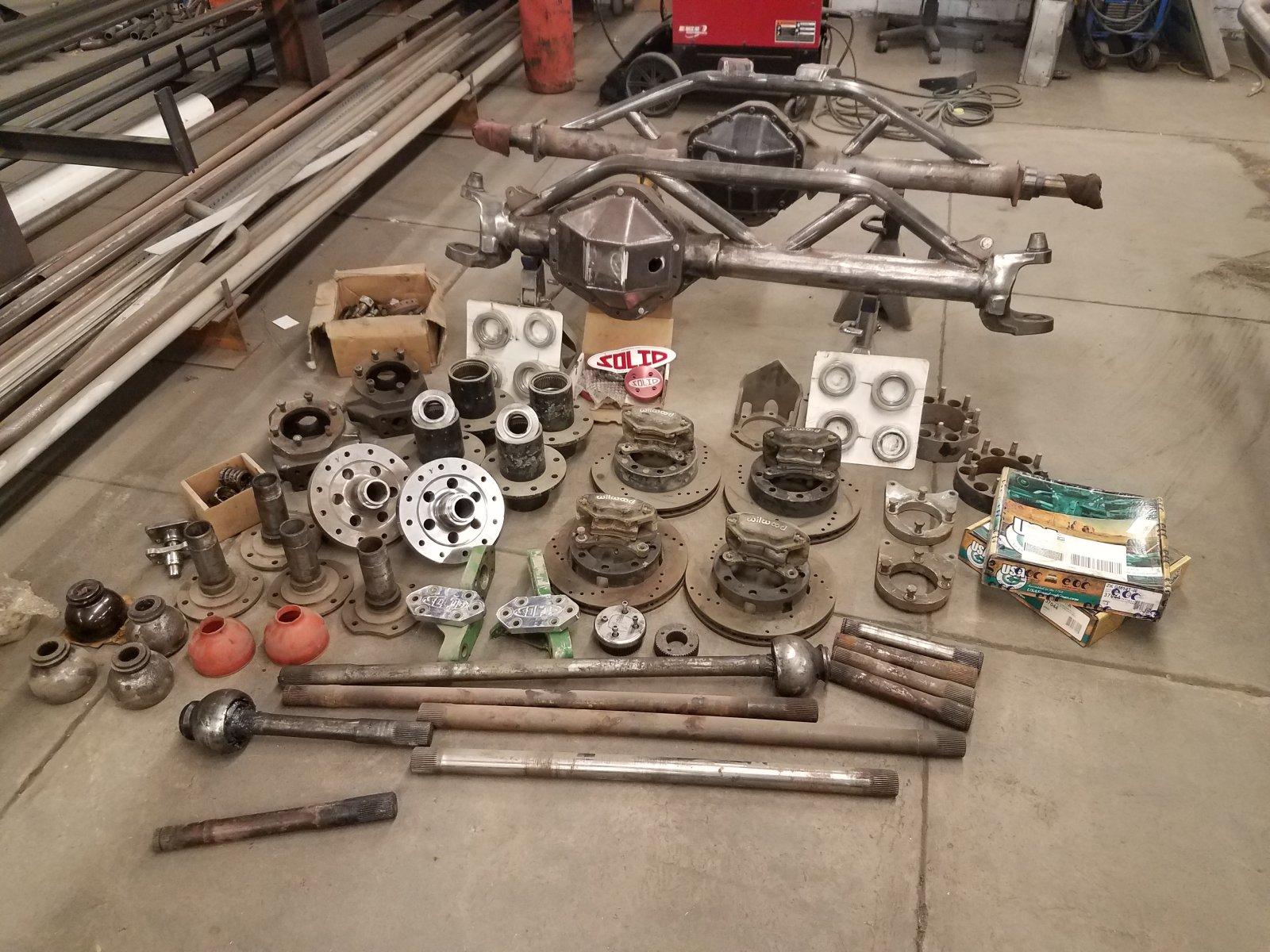

Here is the original "Plowboy" Axle set up. Everything is here to have complete running axles, with the exception of Ring & Pinions. The front housing is original. The truss was cut off and reworked. The rear axle housing is not from the original build, as it has been replaced and trussed along with new spindles. Been a while since I was involved with this project but I'll do my best to describe and list what is all here. Everything you see in photos goes (welder and steel excluded). If I leave anything unanswered, such as technical specs, please feel free to reach out. I can take any additional photos or pull dimensions as requested.

$9800 (Will consider trades for a built LS 427)
Reynoldsville, Pa 15851
814-Five Nine One-53hundred

-14-Bolt Steer Axle housing
-NEW Solid full spool
-(2)Solid inner Cs
-(2)Solid Outer Knuckles
-(2)Solid steering arms
-(2)Solid hubs
-(4) Solid spindles
-(2) kingpin part sets
-(2) 40-Spline RCV Axle shaft sets. Passenger and driver.

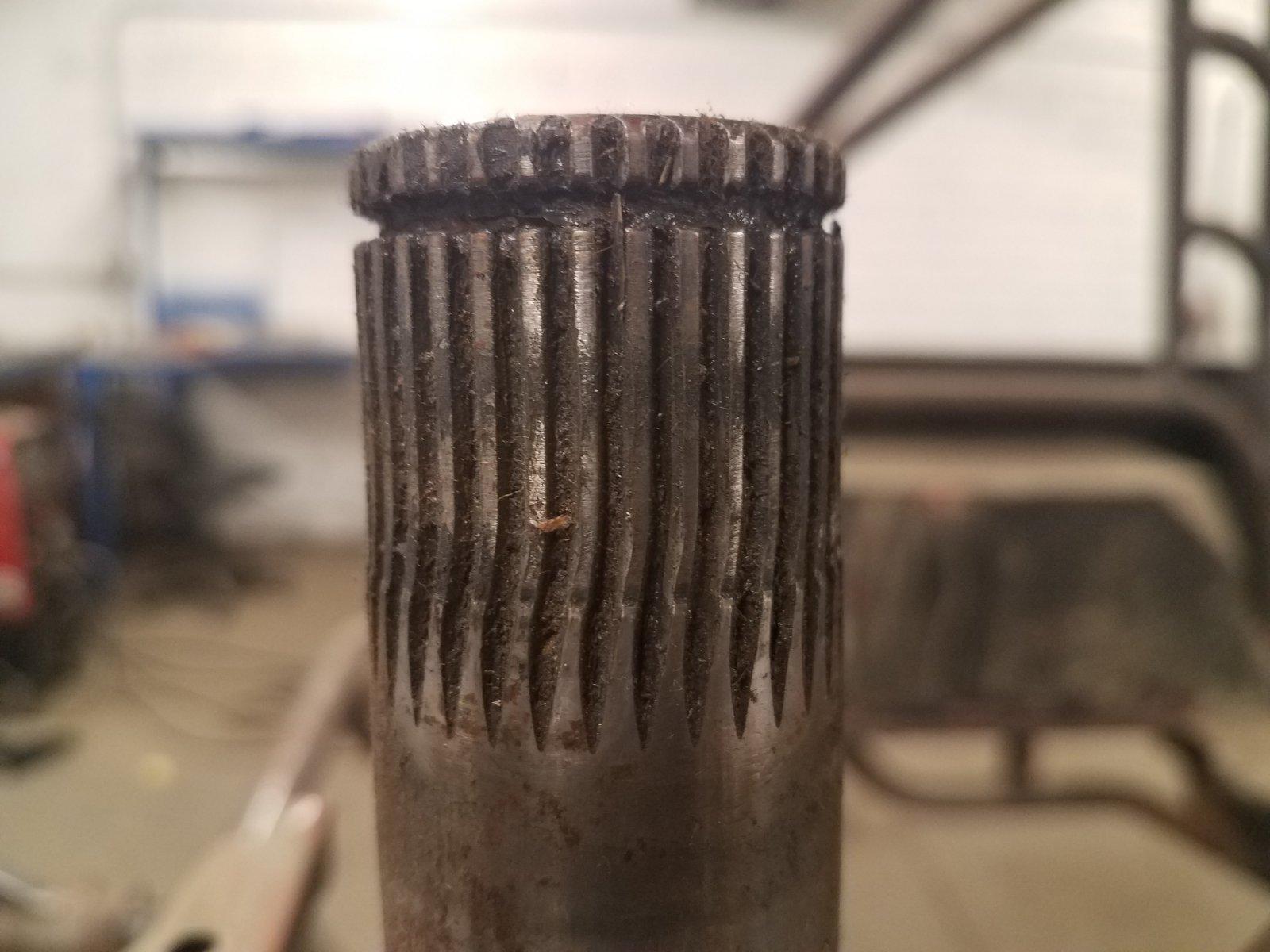

-(4) Outer stub shafts (1 has twisted splines, as shown in photo)

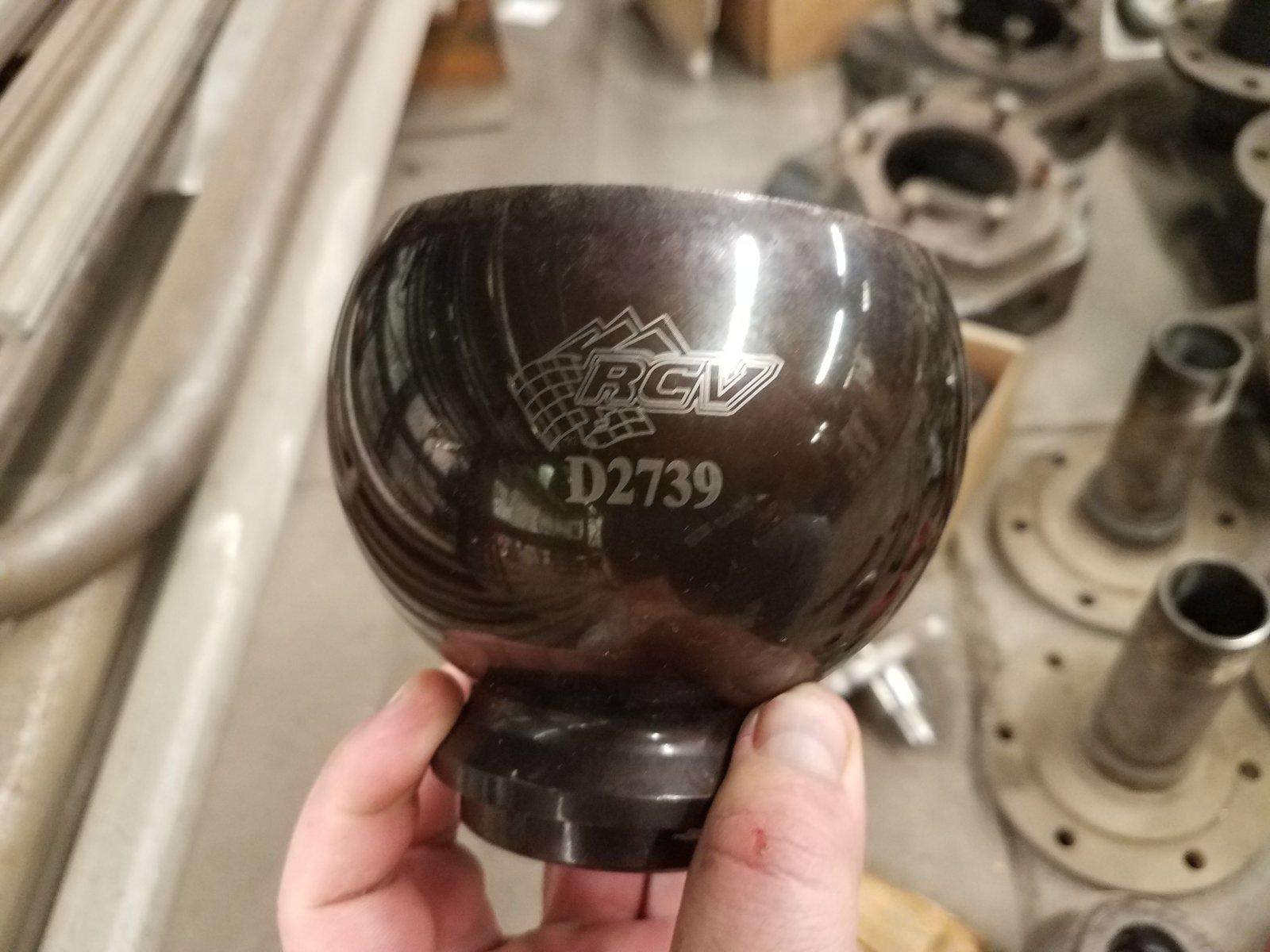

-(5) Bells (A couple have been rebuilt)
-(1) NEW bell
-Wilwood drilled and slotted rotors
-Wilwood calipers
-3/8" HD Diff cover
-NEW Pinion guard

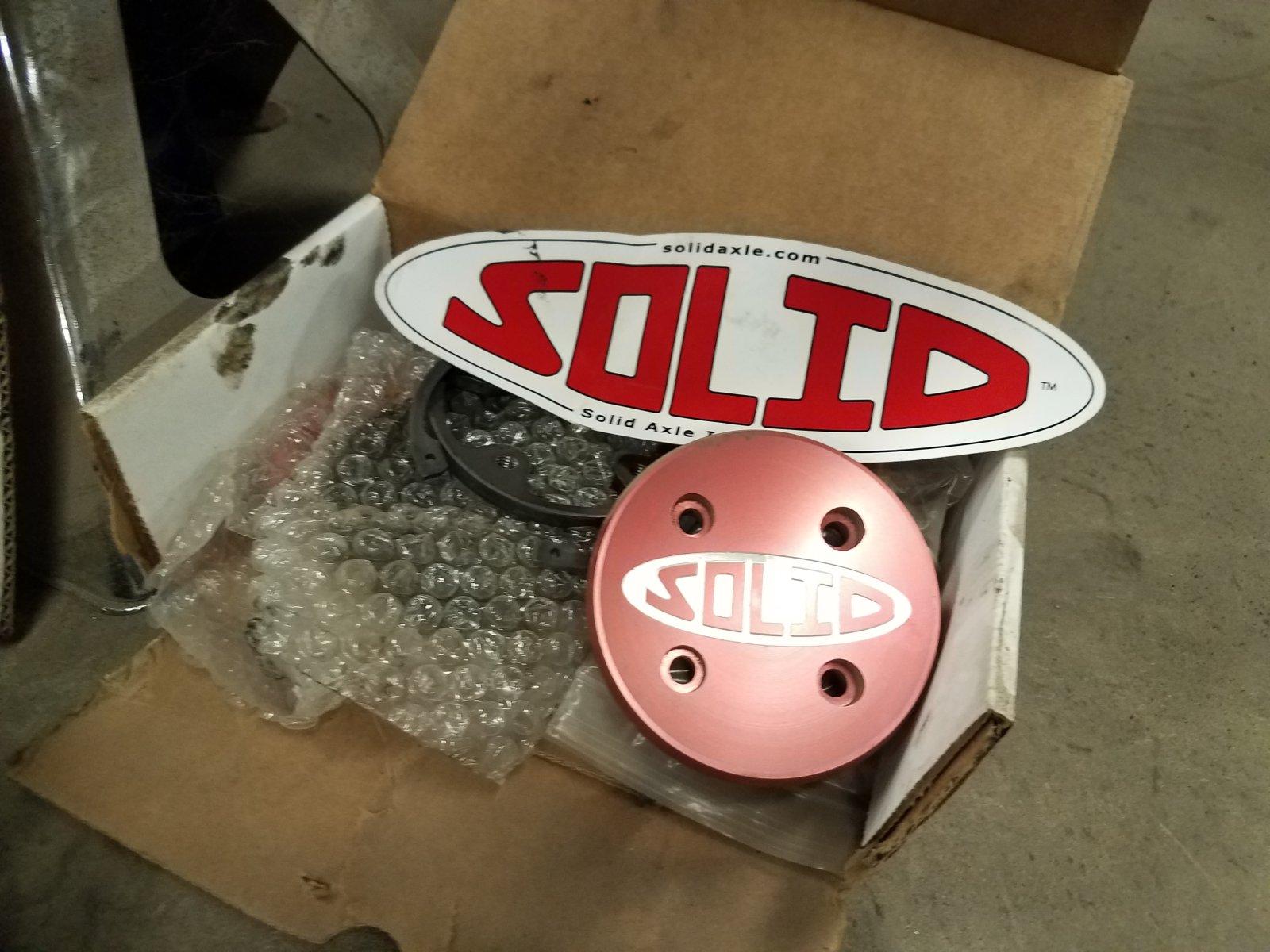

-NEW Solid drive flange kit

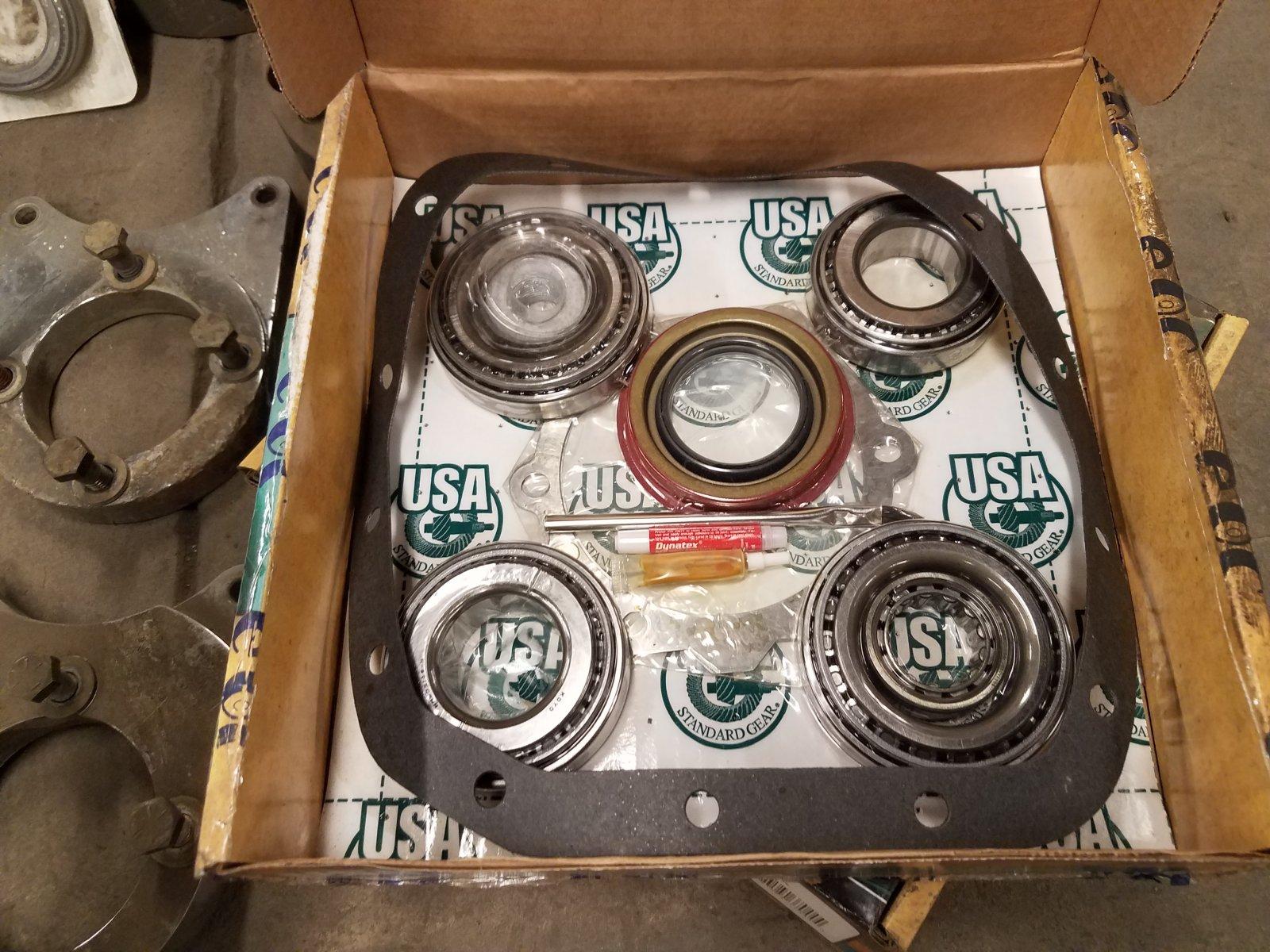

-NEW R&P install kit

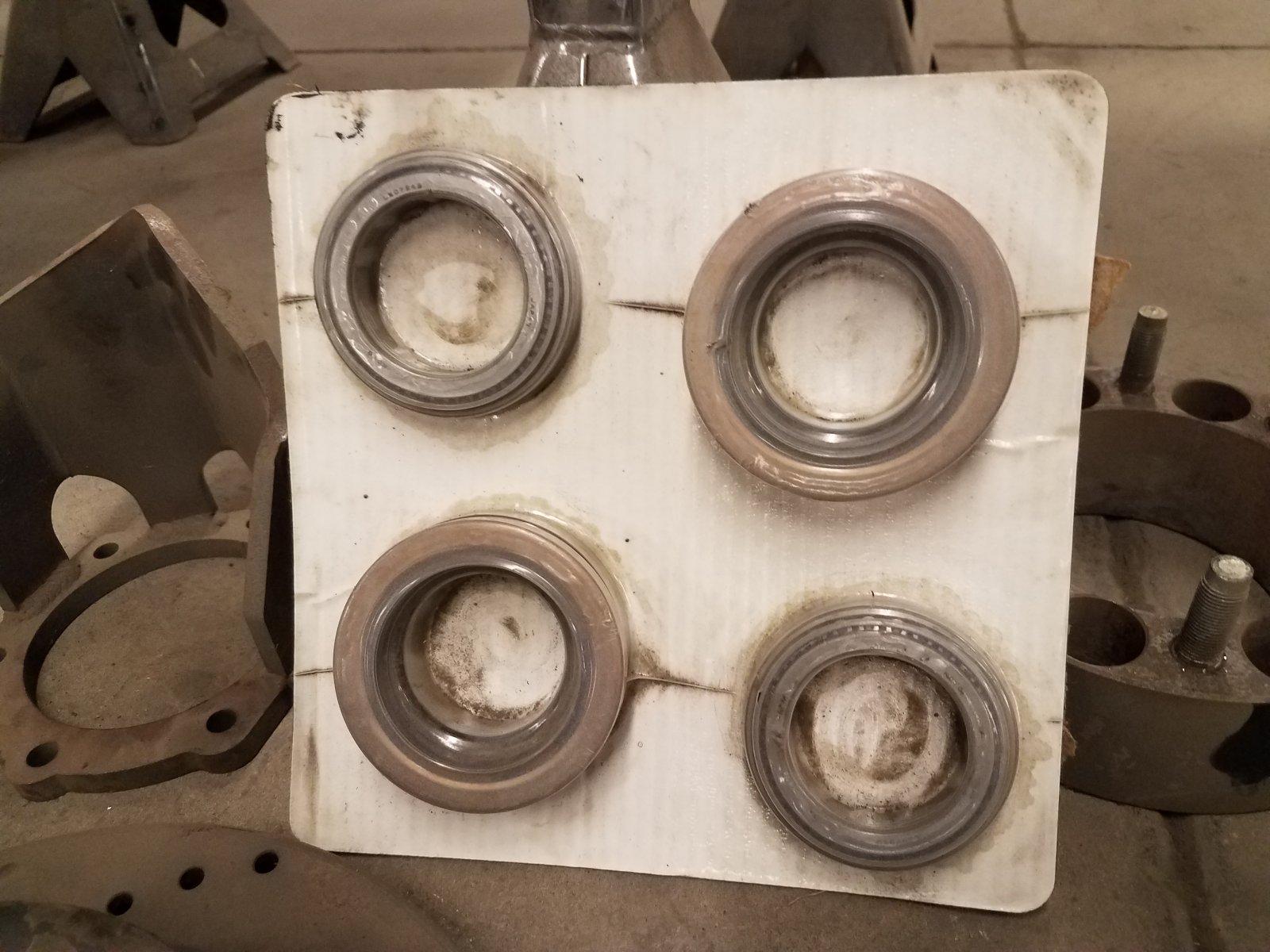

-NEW hub rebuild kit

-14-bolt rear housing
-NEW Solid full spool

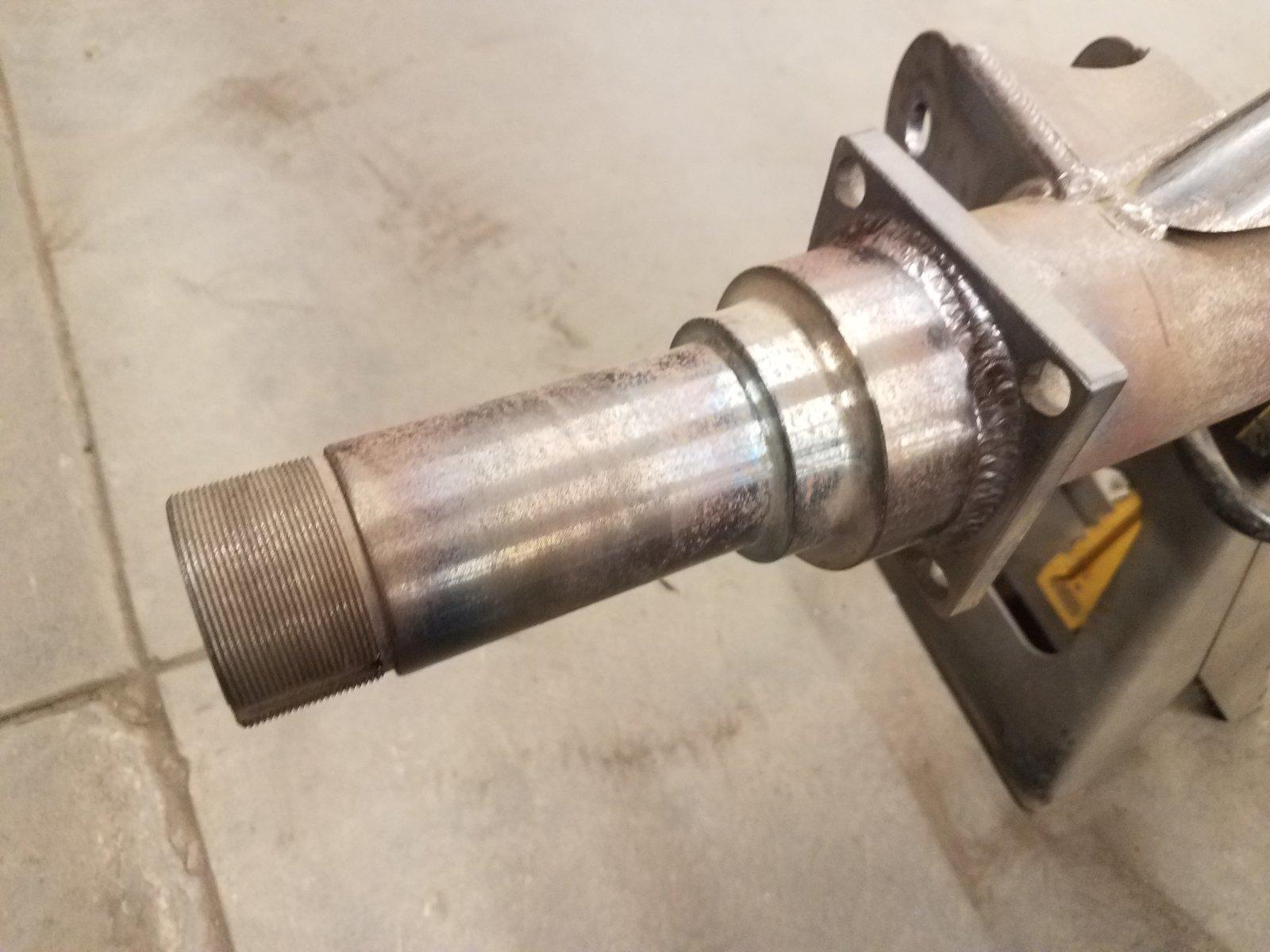

-NEW Solid spindles
-(2) Solid Hubs
-40-spline RCV axle shafts
-Wilwood drilled and slotted rotors
-Wilwood calipers
-New Ballistic Fab shave kit
-NEW Pinion guard

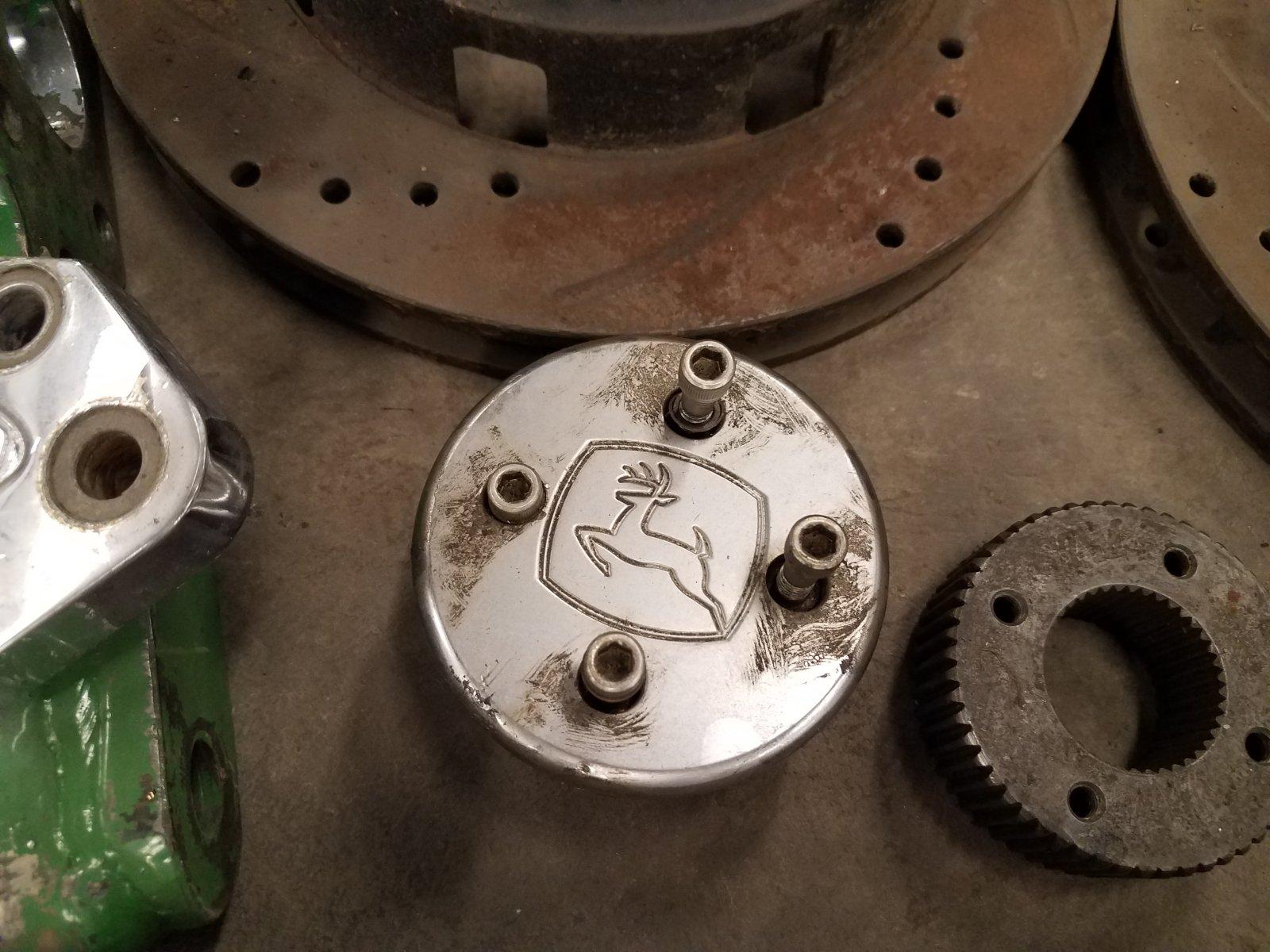

-Custom John Deer engraved Solid drive flange kit
-NEW R&P install kit
-NEW hub rebuild kit
