Well built XJ

rredalty

Well-Known Member
Joined
Aug 22, 2009
Messages
233

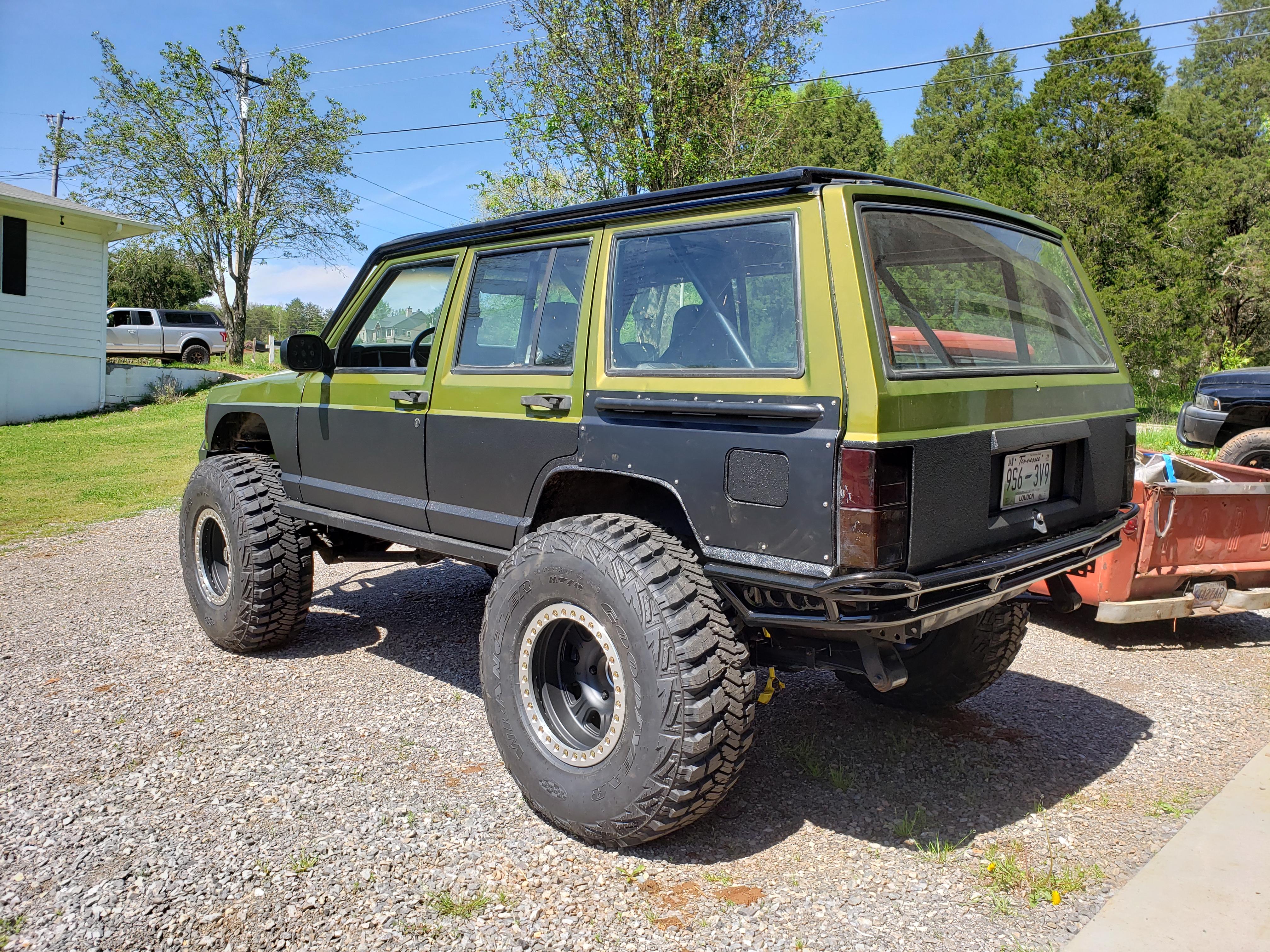

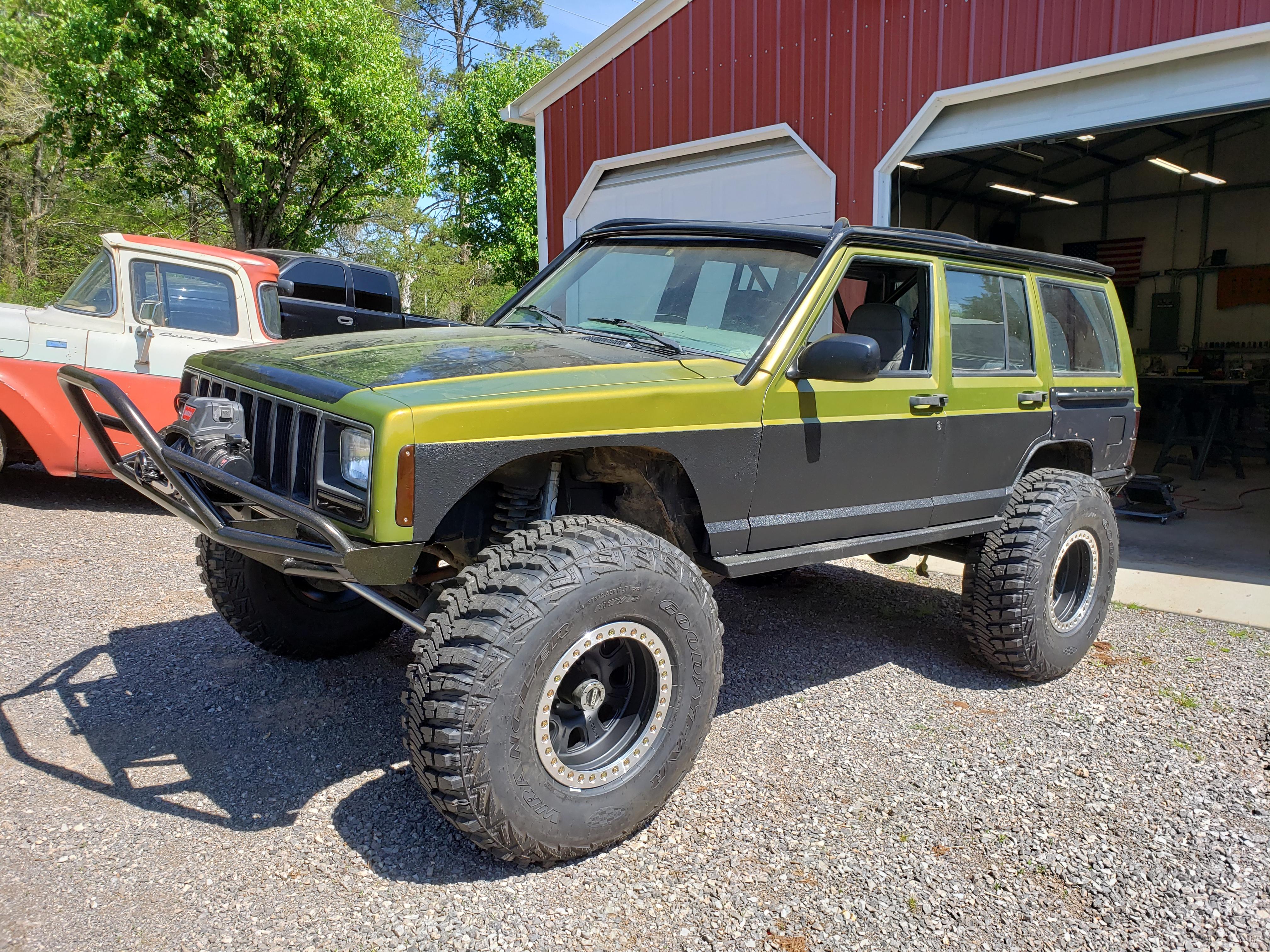

I built this Jeep years ago and have always wanted it back. After following it for 8 years I was able to make that a reality about 6 months ago. I have spent a lot of time and money cleaning things up and making some upgrades but I just haven't had the time to take it out even once and with 5 other vehicles,keeping this as another backup doesnt make much sense. I would consider trading for a trail only well built Juggy, buggy, plus $5-7k cash on my end. No projects, boats, bikes or rice. I am not hurting to sell. Located in Lenoir City, TN 37772. Price is $9500 FIRM.

865.556.9999


Basic overview...
-'89 Jeep Cherokee XJ
-'97+ Front clip and manual doors

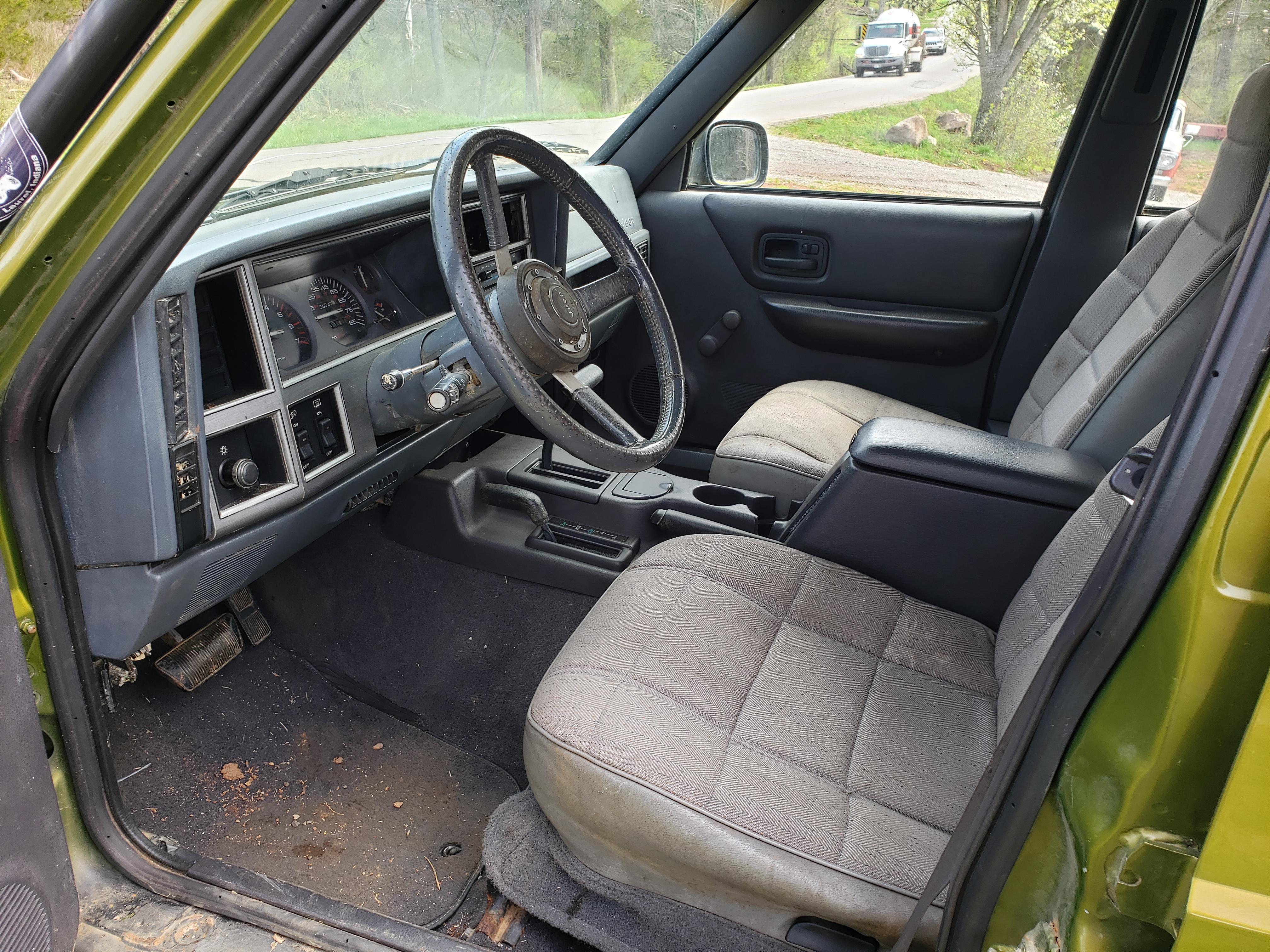

-Fresh '97+ interior swap from a super clean low mile donor n/c dash
-Good Heat but no a/c
-Everything works as it should, all gauges, switches and lights


Chassis...
-HD Offroad Engineering stiffeners front and mid
-2x6x1/4" box tube boatsided rockers, stock floor, 1.5"x.120" legs.

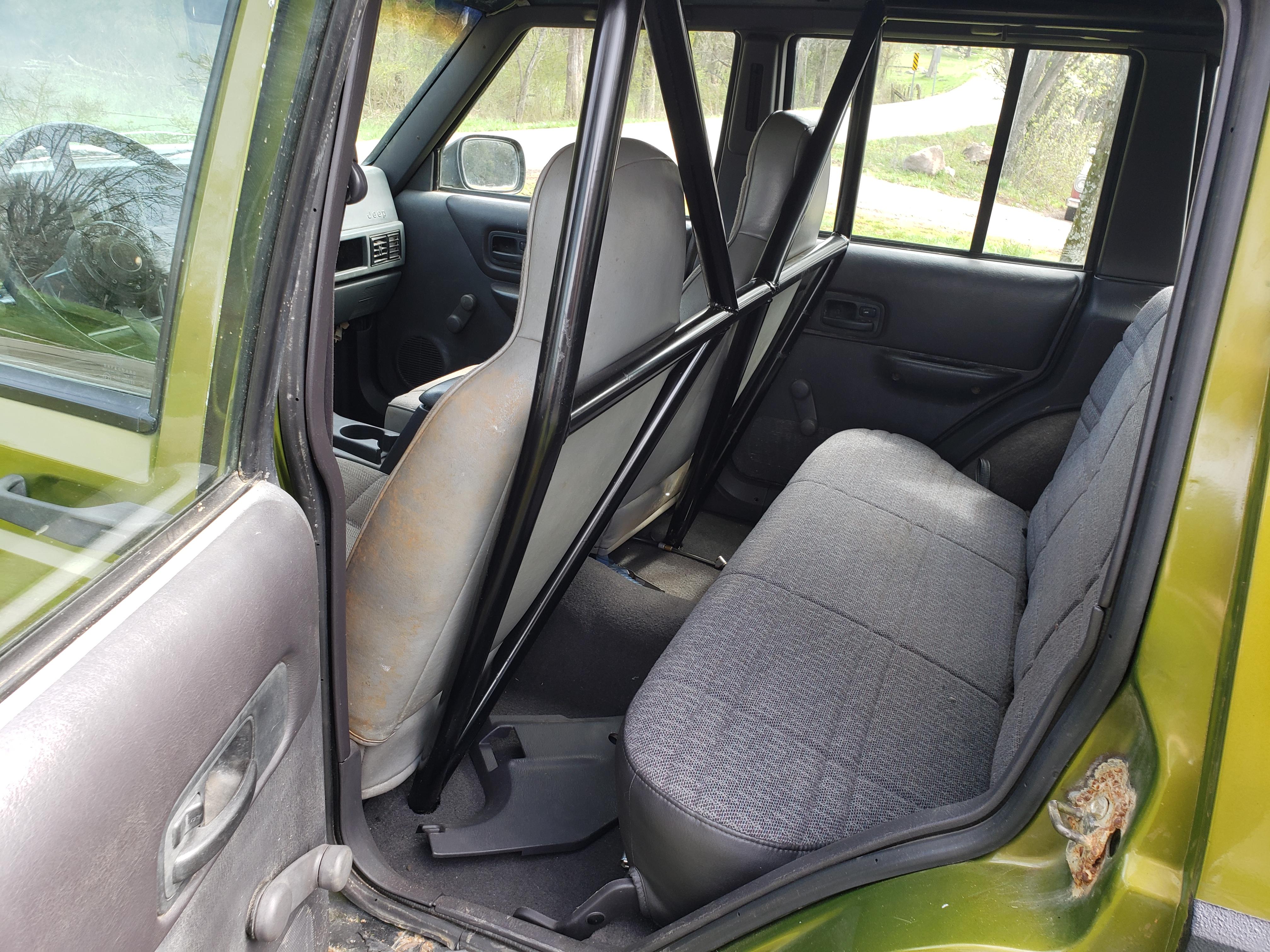

-1.5"x.120" hybrid cage, super tight fitment, ties into rockers at a-pillar and also has supports running to core support and stitch welded to inner fender structure.


Drivetrain...
-4.7l Stroker, approx 15kmi
-Renix high nickel block
-0630 H.O. head
-Speedpro pistons
-Comp 232-4 cam
-Ford 24# injectors and adjustable MAP sensor
-'99+ horseshoe intake manifold
-Stock H.O. throttle body
-10.4:1 compression, requires 91+ octane
-Stock AW-4
-Stock NP231 with Crown SYE.
-New Adam's Driveline 1310-1350 H.D. rear driveshaft


Axles...
-F250 H.D. D44 front, cut to 61" WMS
-4.88 Gears
-Aussie locker
-Nitro 4340 Shafts and Joints
-OTK steering with new WOD 7075 1.5" links and new Barnes heat treated himself
-Raised Trac bar with new hems
-Warn premium lock outs
-Recently serviced brakes and bearings.
-5x5.5


-Tera CRD high pinion D60 rear, 61" WMS
-New Yukon Super D60 4.88 gears/ bearings and install
-ARB locker
-35 spline 1.5" shafts, semi float
-New disc brake setup
-5x5.5


Wheels/ tires...
-Brand new set of 35" Baja Boss
-Brand new set of Raceline 231 with aluminum rings


Suspension...
-3 link front, passenger side upper
-4.5" Superride coils
-FOX 4.5" shocks front and rear
-IRO 3.5" rear leafs
-H.D. Offroad Engineering shackle relocation boxes
-1.5" Rubicon Express shackles
-Barnes4wd U-bolt eliminators


Armor...
-One off front bumper, 1/2" side plates, fully captured steering box hardware, 1.75" .120" tube
-New Warn VR-8 winch with synthetic rope and aluminum fairlead
-One off rear bumper, super tight fitment, captures factory mounts and has supports on sides that tie back in front of the rear shackle boxes.
-JCR Quarter armor.


Attachments

  • 20200409_151321.jpg
    2.2 MB · Views: 1,006
  • 20200409_151337.jpg
    2.3 MB · Views: 493
  • 20200313_135058.jpg
    1.7 MB · Views: 345
  • 20200313_135105.jpg
    1.5 MB · Views: 364

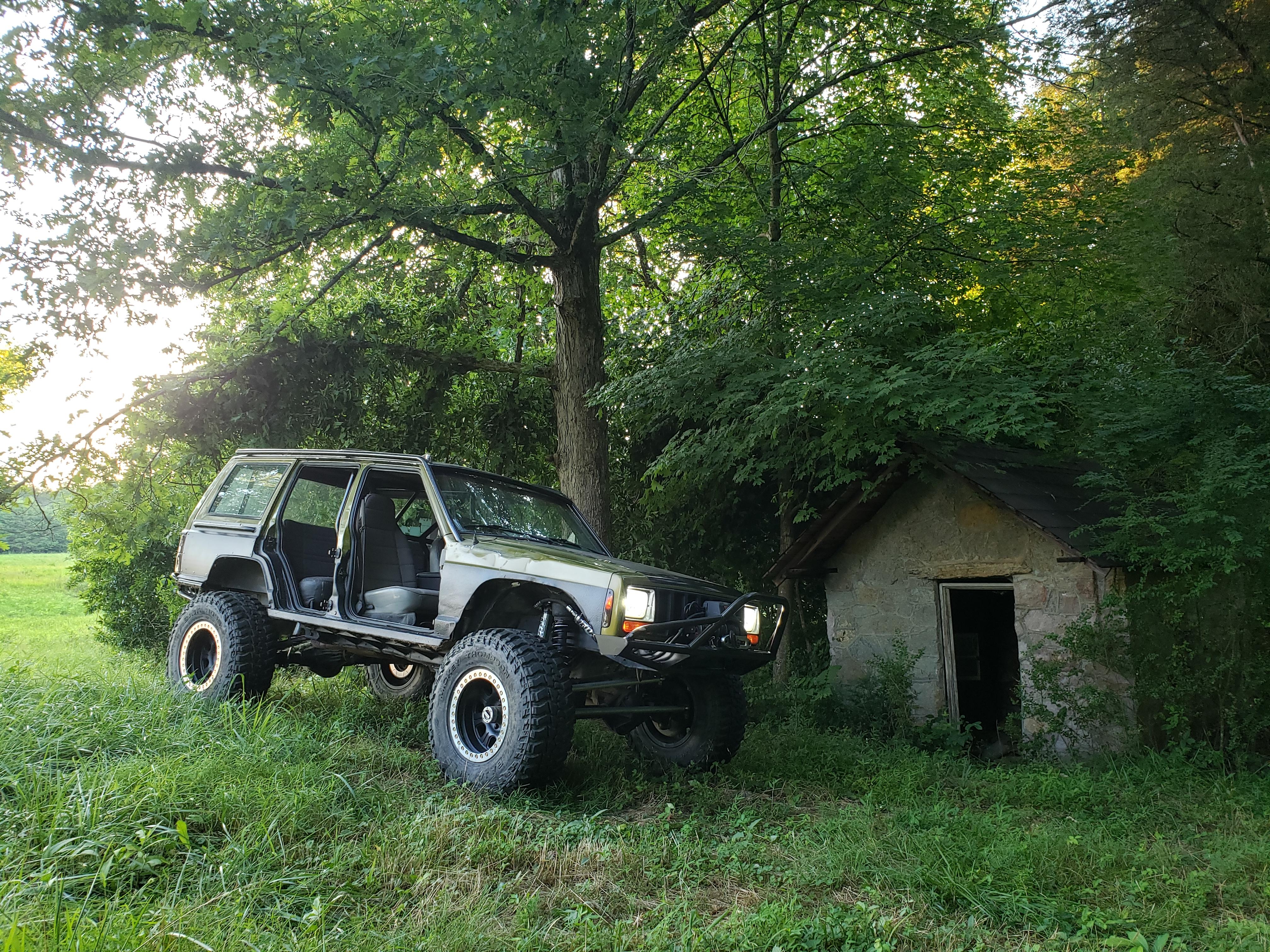

I've pretty well decided to hang onto it at this point. I'd still consider a reasonable offer but the previously listed price is no longer correct. Now has a new set of Fox 2.5"x12" smooth body reservoir shocks on the front with some Stnergy progressive coils. Fox 2.0"x12" res rears. New 2" 7075 lowers with new 1.25" heims. New Corbeau seats with PRP harnesses. IronManFab steering box brace. Antirock with new forged arms....


Attachments

  • 20200702_202039.jpg
    2.6 MB · Views: 308
