This has been my project for 2 years now, just pulled outta the shop one week ago. Not really planning on selling it unless the money is there. The men that helped build it and I have thought of everything we've always wanted in a buggy and tried to fit it all into this project. The price is firm, so don't bother wasting my time with lowball offers. So lets get to the build thread.
Custom chassis
*2x4 frame rails, all tubing 1 3/4" DOM
*Removable engine cage
*Not the curved chassis's you see now
*Wilwood dual mastercylinder brakes w/ 4 piston Wilwood Pinion Brakes
*Linelocked parking brake
*Four-linked with 2" DOM 1" Heims
*18" Fox Remote Res Coilovers
*All hardlined brakes with Kevlar drop lines
*Custom curved aluminum fuel cell that follows body lines
*Dual BTF Battery boxes
*Dual Kirky race seats w/ covers
*4 point harnesses
*Warn 9000 HP Powerplant winch/compressor
Powertrain
*Blueprinted and Balanced 383 ci Stroker
*Crower Cam w/ Hydraulic Lifters
*Zorian Roller Race Heads
*BBK TPI with BBK Throttle body and Rams
*MSD 6-AL w/ 6000 limiter
*Summit Racing Pro Electric Waterpump
*Hooker Headers to Magnaflow exhaust 2 3/4" pipe
*Aluminum rear mount Radiator hardlined w/ 2" pipe
*TH400 with custom stall converter
*ArtCarr Shifter
*Stak 2 speed
*Custom driveshafts
*Custom Cut-Down and Mohawked Rockwells
*4ws w/ POS double ended rams
*POS Pump, filter, cooler
*U-Joint Style
*Narrowed, running short side shafts on both ends
*New Boots
Tire and Wheels
*Brand New 44x18-15 TSL's
*84 bolt double sided beadlocks
Electronics
*Shady Wiring Full chassis harness
(Every connection is soldered and heatshrank, no shitty crimped connectors.)
*Everything is relayed and fused
*Autometer Sport Comp gauges
*Jenson remote mount MP3 player (waterproof)
*Dual 6" amplified speaker (waterproof)
*Chassis length LED rock lights
*Dual Rigid Industries 6" LED lightbars
*Custom mounted Bullet LED brake and tailights
*Dual LED interior lights
*LED rear facing engine run-light
*Dual Optima Batteries
*18" Radiator fan mounted in custom Aluminum shroud
*Custom designed cockpit heating and cooling
Everything on the buggy that is not steel is 1/8" aluminum plate. The dash is custom built as is firewall, flooring, rear firewall. The rear cooler rack is also an insulated speaker box.
If interested in the buggy shoot me a message and I will email pics. Every light on the buggy is LED, can light up the woods for a week straight and never drain a battery. The buggy has never seen a trail yet, never had a shake down run. It is brand new. The tires still have tits the engine has had the cam broke in and the oil changed. The chassis has not been powder coated, as I am planning on running it this season and tearing it back down next summer, when the heat kills all my riding buddies will to ride. Still have small details to finish on the buggy.
Price as is 24000.00
Custom chassis
*2x4 frame rails, all tubing 1 3/4" DOM
*Removable engine cage
*Not the curved chassis's you see now
*Wilwood dual mastercylinder brakes w/ 4 piston Wilwood Pinion Brakes
*Linelocked parking brake
*Four-linked with 2" DOM 1" Heims
*18" Fox Remote Res Coilovers
*All hardlined brakes with Kevlar drop lines
*Custom curved aluminum fuel cell that follows body lines
*Dual BTF Battery boxes
*Dual Kirky race seats w/ covers
*4 point harnesses
*Warn 9000 HP Powerplant winch/compressor
Powertrain
*Blueprinted and Balanced 383 ci Stroker
*Crower Cam w/ Hydraulic Lifters
*Zorian Roller Race Heads
*BBK TPI with BBK Throttle body and Rams
*MSD 6-AL w/ 6000 limiter
*Summit Racing Pro Electric Waterpump
*Hooker Headers to Magnaflow exhaust 2 3/4" pipe
*Aluminum rear mount Radiator hardlined w/ 2" pipe
*TH400 with custom stall converter
*ArtCarr Shifter
*Stak 2 speed
*Custom driveshafts
*Custom Cut-Down and Mohawked Rockwells
*4ws w/ POS double ended rams
*POS Pump, filter, cooler
*U-Joint Style
*Narrowed, running short side shafts on both ends
*New Boots
Tire and Wheels
*Brand New 44x18-15 TSL's
*84 bolt double sided beadlocks
Electronics
*Shady Wiring Full chassis harness
(Every connection is soldered and heatshrank, no shitty crimped connectors.)
*Everything is relayed and fused
*Autometer Sport Comp gauges
*Jenson remote mount MP3 player (waterproof)
*Dual 6" amplified speaker (waterproof)
*Chassis length LED rock lights
*Dual Rigid Industries 6" LED lightbars
*Custom mounted Bullet LED brake and tailights
*Dual LED interior lights
*LED rear facing engine run-light
*Dual Optima Batteries
*18" Radiator fan mounted in custom Aluminum shroud
*Custom designed cockpit heating and cooling
Everything on the buggy that is not steel is 1/8" aluminum plate. The dash is custom built as is firewall, flooring, rear firewall. The rear cooler rack is also an insulated speaker box.
If interested in the buggy shoot me a message and I will email pics. Every light on the buggy is LED, can light up the woods for a week straight and never drain a battery. The buggy has never seen a trail yet, never had a shake down run. It is brand new. The tires still have tits the engine has had the cam broke in and the oil changed. The chassis has not been powder coated, as I am planning on running it this season and tearing it back down next summer, when the heat kills all my riding buddies will to ride. Still have small details to finish on the buggy.
Price as is 24000.00

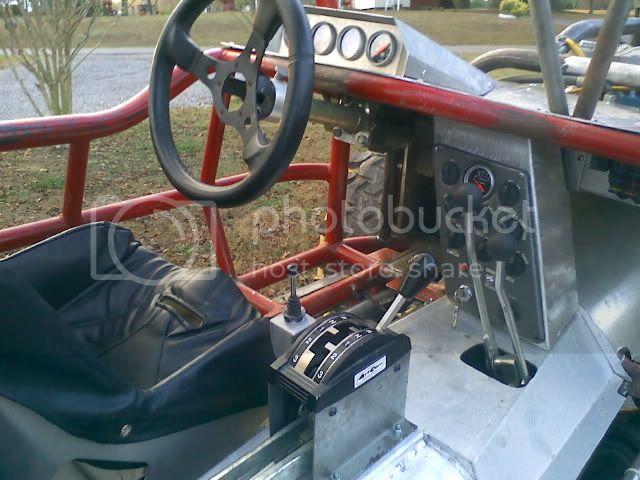

It pains me to post these two shitty pix
when it warms up lol. Im gonna try to make it out there to hpo the 18th. I would think there would be riding sunday too but Im just guessing.
TTT
