Sold/Expired 2012 Kore Buggy LS, Atlas, 42"Krawlers

alli85

Well-Known Member
Joined
Apr 15, 2010
Messages
241

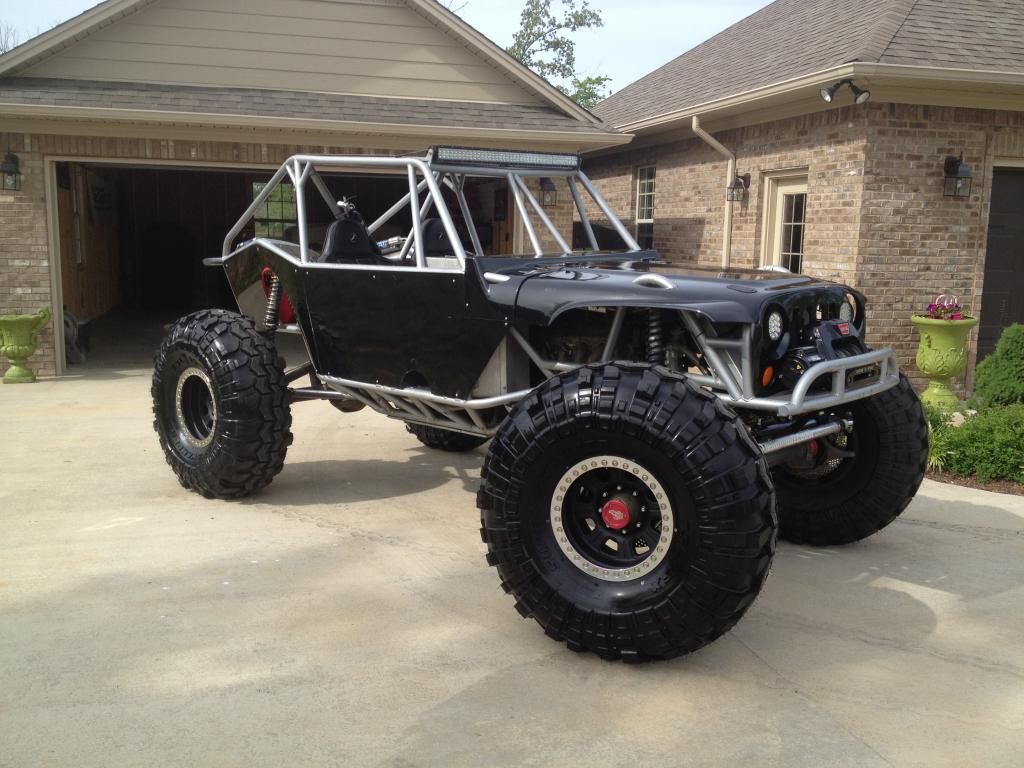

2012 Buggy For Sale

Kore 54" Defender Chassis with custom front end

21" belly clearance, 75" top of cage, 110" WB, 7" uptravel front, 8.5" uptravel rear

Jim's Fiberglass JK Grille, Hood, & Cowl
Essentially Offroad custom interior €" all aluminum €" front firewall, floor & tunnel all covered with line-x

Custom aluminum dash with Autometer volt, temp, oil PSI & Trans temp gauges €" aluminum center console with cubby hole and 2 cup holders

2007 Chevy 6.0 with LS2 intake, Throttle body & injectors €" Dyno tuned - WOD accessory re-locator kit for PWR steering and alternator €" Kevko pan with Lokar locking braided dip stick €" Summit Racing Headers €" single dump exhaust with Magnaflow muffler

PSC N-Pump, steering valve & reservoir

Performance Torque Converters (PTC) TH400 with reverse manual valve body & compression braking €" HD aluminum deep pan €" lokar locking braided dip stick

Atlas II 3.0 transfer case with HD outputs and 1410 yokes €" standard mechanical shifters
Trans and transfer case vents are routed to an All-Star catch can to prevent spills during a rollover

Front end" EOR built 14 Bolt" 5.13 gears, Detroit Locker, Barnes 4wd Diff high clearance cover - Solid Axle inner C's, knuckles & high steer arms " Yukon Hardcore Spindles and Hubs " RCV nickel plated shafts, RCV drive flanges " Spidertrax 3/8 thick drilled rotors, Willwood Dynalite calipers & pads " all stainless braided brake lines, pinion guard, 1410 yoke

Rear end " 14 bolt €" 5.13 gears, welded carrier, Barness 4wd high clearance cover, Spidertrax 3/8 thick drilled rotors, Willwood Dynalite calipers & pads €" all stainless braided brake lines, stock axle shafts with a set of spare shafts, pinion guard, 1410 yoke

PRC Custom Aluminum 30x19 Radiator €" AN fittings, steam port built in (steam port plumbed with AN/Stainless braided line

Dirt track style aluminum shifter with EOR cable set up €" no detents (other than park)

Fox 2" remote reservoir shocks with PAC racing springs (16" rear, 14" front)
Fox 2" x 4" bump stops on the front
7075 Aluminum links 1.25" heims on the lowers, 7/8" heims on the uppers

Wheels & Tires- 20" HD Trailready Beadlocks w/ 42" Red Label Krawlers & Full Matching Spare

12 gallon fuel cell with AN fittings/braided hose €" Walbro pump w/ WIX corvette filter/reg
HD driveshafts with 1410 spicer joints - EOR carrier bearing set-up

LED tail lights and reverse lights €" can install a yellow and a blue in the reverse lights to be KOH legal
LED Headlights (2500 lumen per light) & 40" LED Light Bar (Crazy Bright)

Optima Yellow Top Battery in BTF tray

Brand New Warn 9.5cti w/ 100ft Rope Winch

Corbeau Ultra seats with Crow 3" padded 5 point harnesses
Aluminum roof and side panels

Professionally painted with Ford Tuxedo Black Metallic w/ double pearl

½" 6061 aluminum skid plate

Located Lawrenceburg TN

Price 45Kobo Will take RZR (at least 900) or Zero Turn Mower on Trade- Text or Call Nathan 931-629-3779

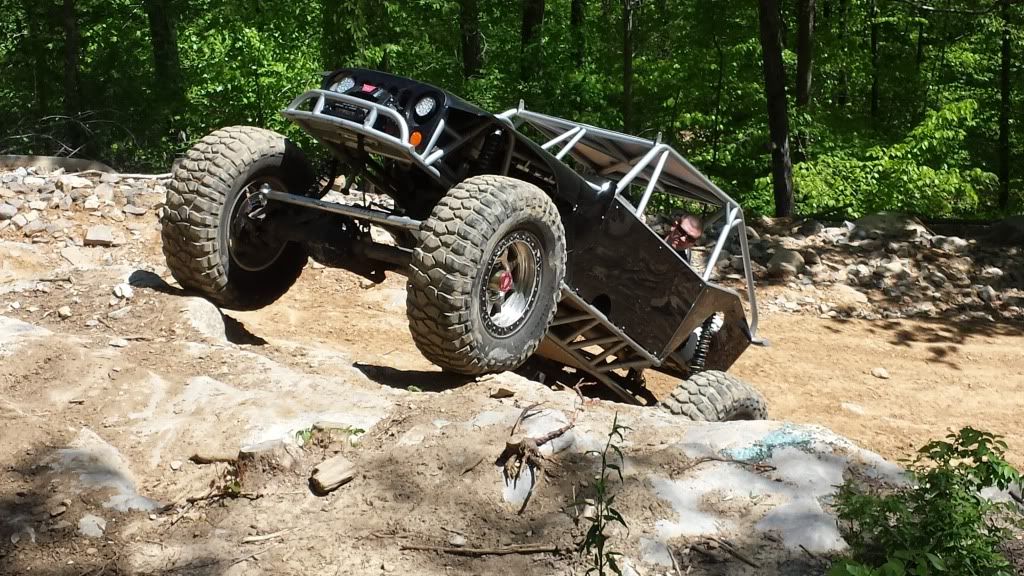

Seen this in some pics from the SRRS race this past weekend and was wandering who's it was cause its badass! Good luck with your sell

Thanks for posting Daniel. I know everyone on here understands the post so not trying to be smart ass but after being called & ask. I'm asking $45,000. Also would take a RZR or Zero Turn Mower in on partial trade! Sorry if it wasn't clear!

Riding Season is in full swing & someone needs one stout built buggy! Could work with someone on delivery if that helps someone out.

I've road with this rigg almost every time it's been out since Nathon has owned it. Not on single issue alway put back on trailer the same way it came off. Dam good rigg. Want be buying someone's problems with this rigg. Ready to bounce or trail ride

Bump. Could do Brand New 43" SX Stickys if someone wanted those instead of the Krawlers.

Buford85 said:
Bump. Could do Brand New 43" SX Stickys if someone wanted those instead of the Krawlers.

Dang that looks awesome.

This buggy is top notch no corners cut for sure, will make someone a awesome bouncer/trail rig :woot:

bump for an awesome buggy - it can crawl with the best or bounce if you feel the need
can't buy the parts alone for this price :****:










Bump for a buggy with more moves than a baby squirrel.
