Sold/Expired Colorado Buggy LS 6.0

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
EXTERIOR / INTERIOR
2005 Colorado/Canyon extended cab
1 3/4 .120 DOM on cage, .188 on lower frame rail and impact areas

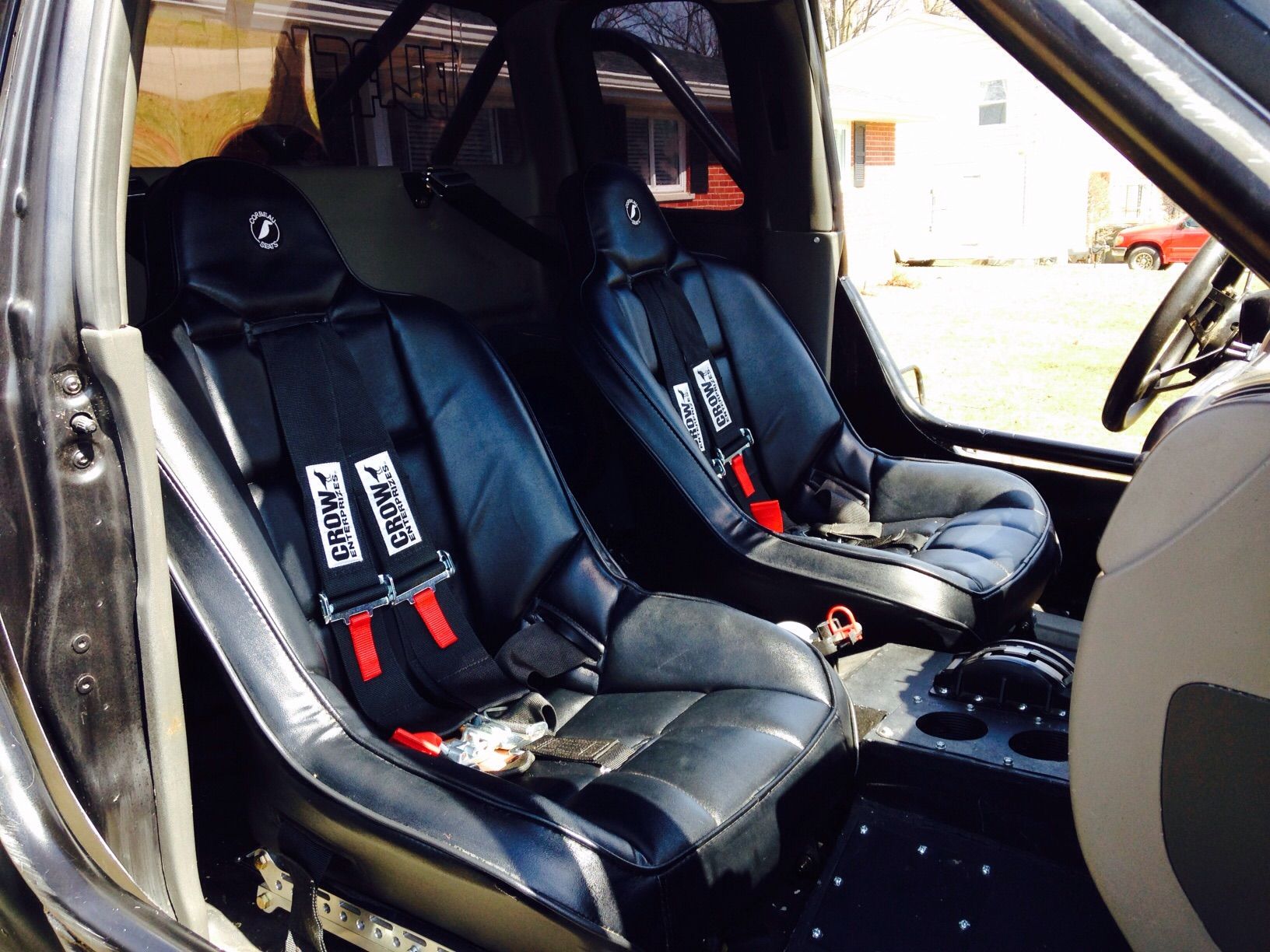

Corbeau Baja SS Seats
5 point Crow Harnesses
Small homemade bench style padded seat with lap belt (will fit smaller person / kid)
Full marine stereo system for ipod / mp3 hookup

DRIVETRAIN
LQ4 - Jim's Performance Harness & Tune, Hooker Headers
Built th350 - TCI internals, TCI pan, TCI full reverse manual valve body, art carr shifter
Atlas II case - 3.8:1 HD outputs 1350 yokes
.188 chromo driveshafts - Carolina Driveline


AXLES
Jana 76 front axle
Yukon chromo axles
4.10 gears
undercover fab diff cover

14 bolt rear w/ disc brakes
4.10 gears
undercover fab shaved diff cover


STEERING
PSC 2.5x8 SE ram
PSC P-pump
PSC Reservoir
Charlynn-Eaton Orbital


SUSPENSION
Front - Dual Triangulated 4 link - 1 3/4" .250 uppers with 3/4" heims, 2" .250 lowers with 1 1/4" heims
Rear - Dual Triangulated 4 link - 1 3/4" .250 uppers with 3/4" heims, 2" .250 lowers with 1 1/4" heims
Fox 2.0 Emulsion coilovers - 16s in rear / 14s in front
Currie Anti-rock sway bar in rear
Poly urethane bumps front and rear
Trail-Gear 6-ply limit straps on all 4 corners


OTHERS
TWF double beadlocks w/ inner and outer reinforcement rings
43" Super Swamper SX's - 90% or better just recently cut
31x19 Triple Pass aluminum radiator w/ dual 10'' fans
Transmission and steering coolers w/ fan
Full exhaust (muffler included but not currently installed)
Custom 15 gallon fuel cell w/ airtex e8248 fuel pump
TWF 20" light bar
42" curved Light bar on top as well
full 1/2" 6061 aluminum skid plate
Optima Red Top battery w/ quikcar disconnect switch

$28k OBO

Call/text 513-460-1806
Located in Cincinnati, OH

http://www.hardlinecrawlers.com/forums/index.php?topic=35034.0


jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH
.


Attachments

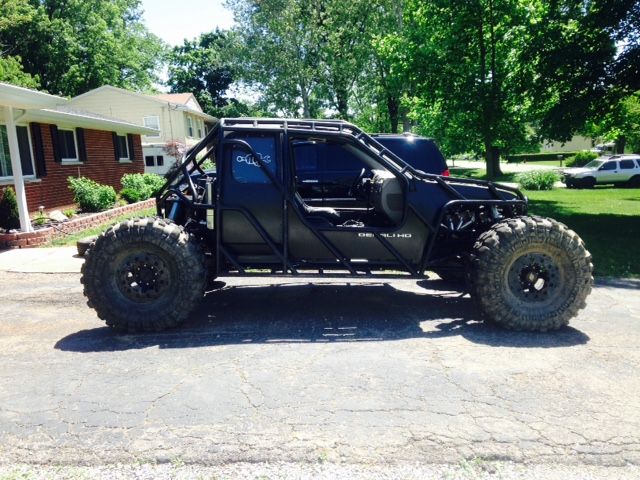

  • blacked out.jpg
    blacked out.jpg
    87.3 KB · Views: 2,243

jsg1113

Well-Known Member
Joined
Feb 1, 2012
Messages
190
Location
Cincinnati, OH

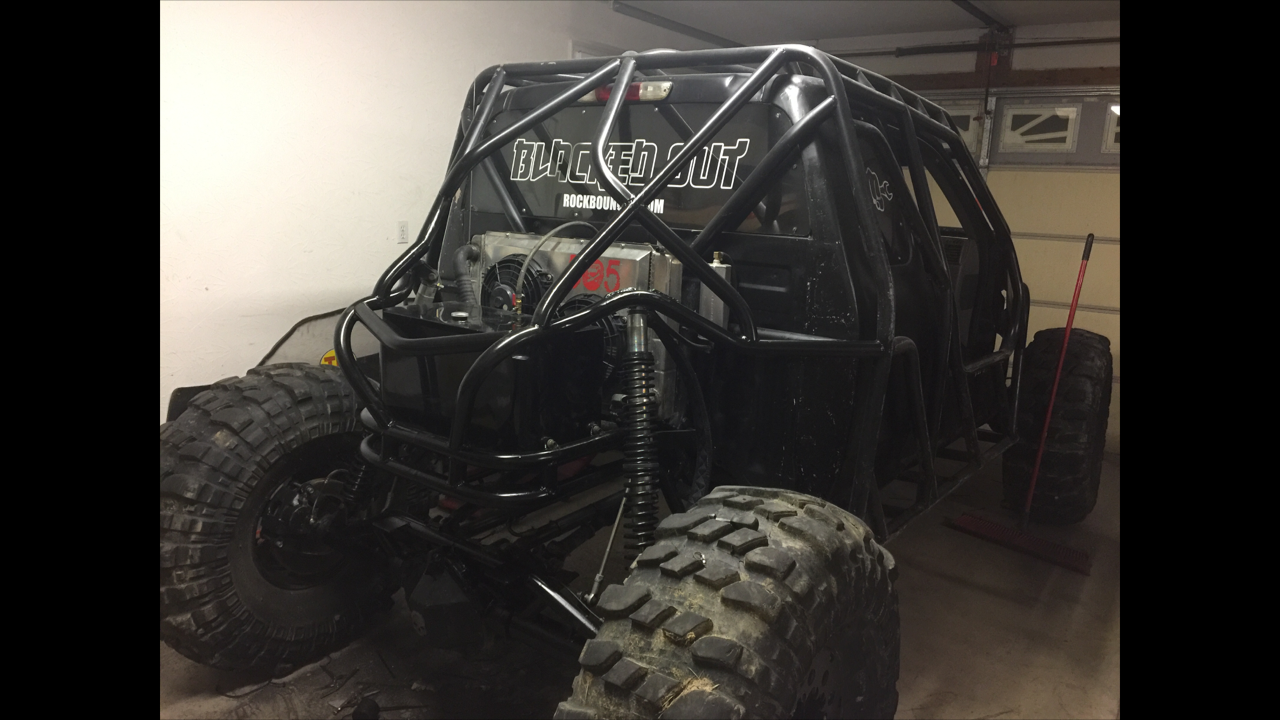

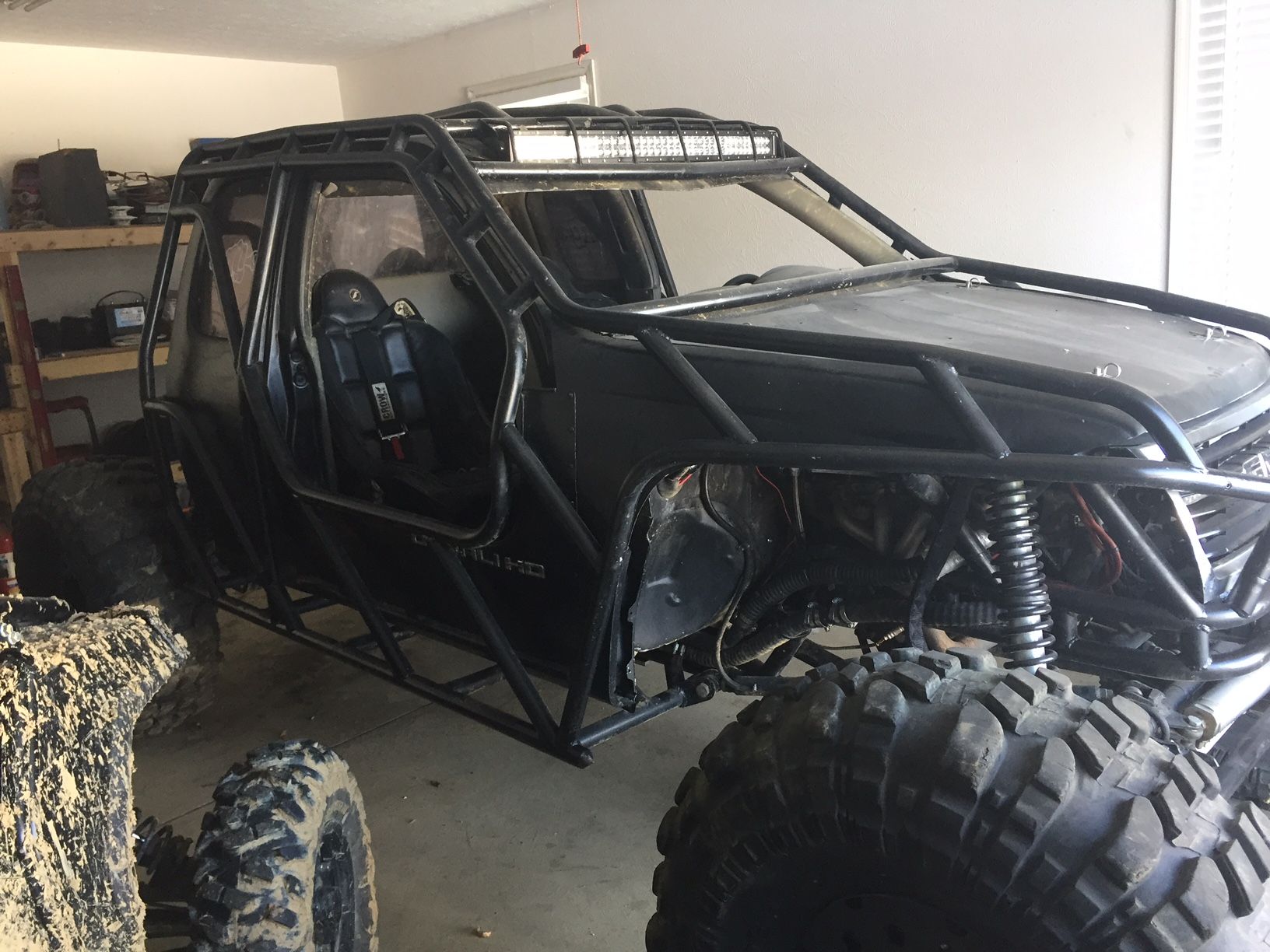

Since the above pic I have added a 42" light bar on top of the windshield and changed the cage a little in the back.

Also has new marine stereo system... 1000w amp, 2 6x9 speakers in back, 2 6 inch round speakers in front kick panels.

Can send more pics upon requests and there are several in the attached link from my build thread.

Have tons of spare parts including motor parts, spare PSC pump, driveshafts, axles for front and rear, water pump, etc.
