Sold/Expired Holset HX35G Turbocharger

Sam · Jan 15, 2015

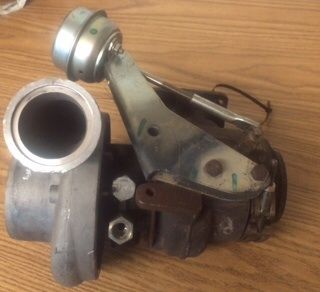

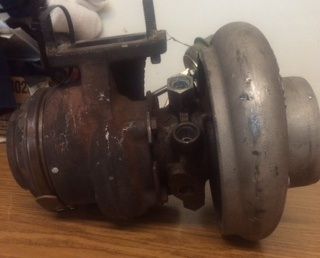

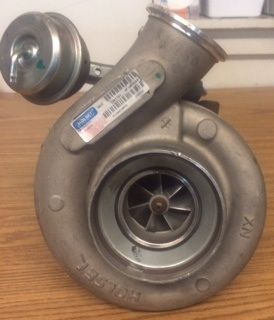

For Sale Holset HX35G Turbocharger, from Cummins Diesel 5.9 or for any turbo project, slight used $250 each or 2 for $400 + shipping... also open to trade dana 300, ls f body oil pan, ls engine parts, dana 60 1350 yokes, dana 300 1350 yokes, psc steering parts, etc
Location Heflin AL 36264
Between Birmingham Alabama and Atlanta Georgia On I-20
Heflin Al 36264
Cell 530 314 1387

Sam · Jan 15, 2015

1slowhatch · Jan 15, 2015

Do they have provisions for water and oil cooling? Genuine Holset? Do you know the compressor and exhaust wheel measurements?

Sam · Jan 15, 2015

1slowhatch said:
Do they have provisions for water and oil cooling? Genuine Holset? Do you know the compressor and exhaust wheel measurements?

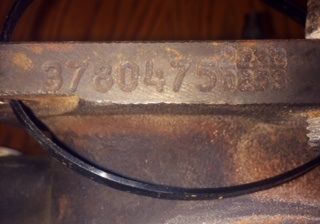

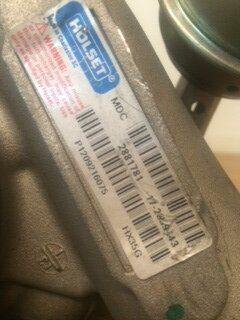

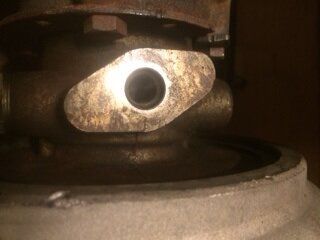

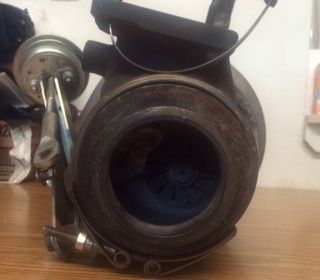

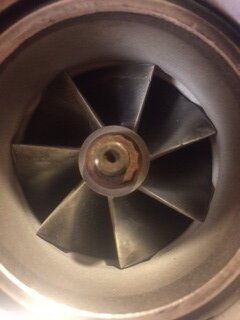

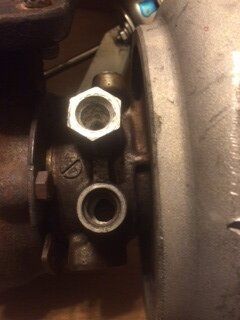

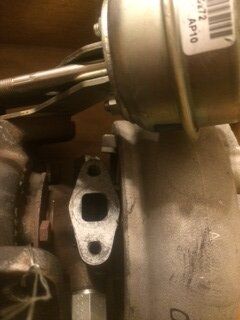

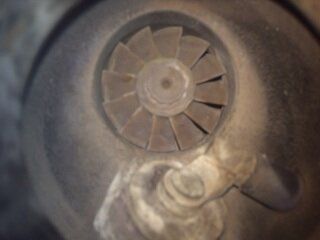

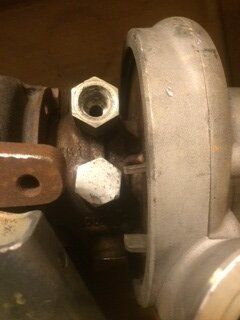

Yes these HX35 are genuine holset turbo. as for provisions oil has 2 and coolent has 3 with 1 blocked.... wheel measurement the best i could do is compressor 56mm and exhaust 55mm ( have not taken the turbo apart)... These turbo came of buses with cummins 6bt.... as for the turbine has 7 blade and no play at all... I have add more pic if it help...

i have found on them on the inner web.....

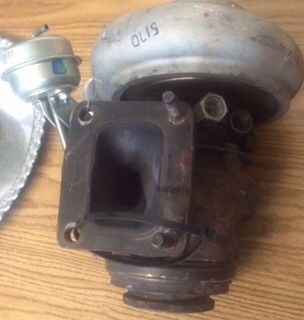

(The 7blade hx35 has a 56mm compressor inducer. This is found on the 1999-2002 cummins manual pickups. The compressor flows 60lb/min according to the compressor map and logged results from a member here. The bolton BEP housing with the hx35 turbine wheel do not SEAM to have enough flow to really reach the potential of 60lb/min. But many have logged over 50lb/min so far and seen 500whp. The stock hx35 12cm^2 twinscroll turbine housing is a t3 flange housing. This mated to a NON-divided runner manifold has produced a 132mph trap speed with a full weight 1g AWD. This is about 600whp. So the flow is there with the stock housing if you use a non-divided manifold. The spool speed of the 7blade hx35 is similar to the 8blade hx35 with 20+ psi by 3500rpms in the bolton housing and by 4000rpms with the stock housing with a non-divided manifold.)
