Another industry first from Rogue Fabrication! Shaped dimple dies. Set your fabwork apart from the crowd or use just the right shape to get the most weight benefit possible from your dimpling. Triangular holes in your tube gussets or square holes in your tie plates will cut more weight than round holes. If you are looking for a way to make your company's bumpers, cagework, custom chassis, or other products stand out in your industry, you just found it!
How to use: Cut your shape out on a plasma table, laser cutter, or with a grinder. Use a bolt, H frame press, or knockout driver to pull the die halves together over the material to dimple the hole with these dies.
These are machined in the US out of 4140 Chromoly that is made and heat treated here is the US. Shapes are 1.5-2 inches tall. Max capacity 1/8 inch plate steel. Did we mention FREE SHIPPING!?
Set includes:

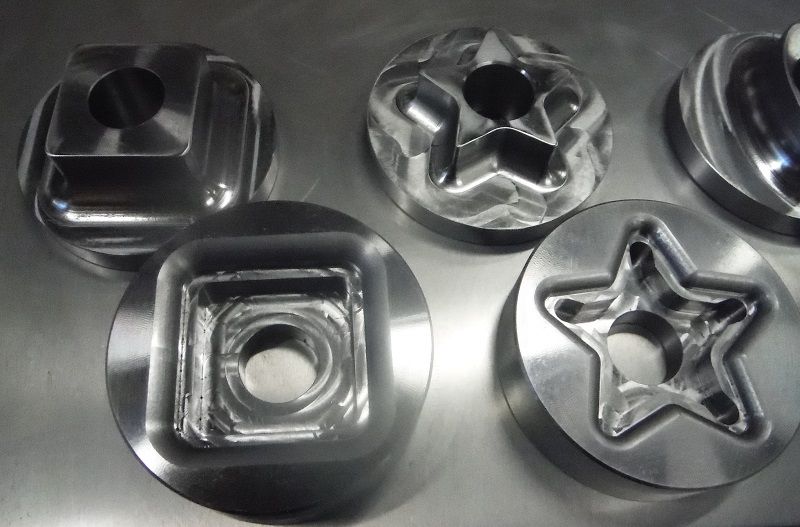

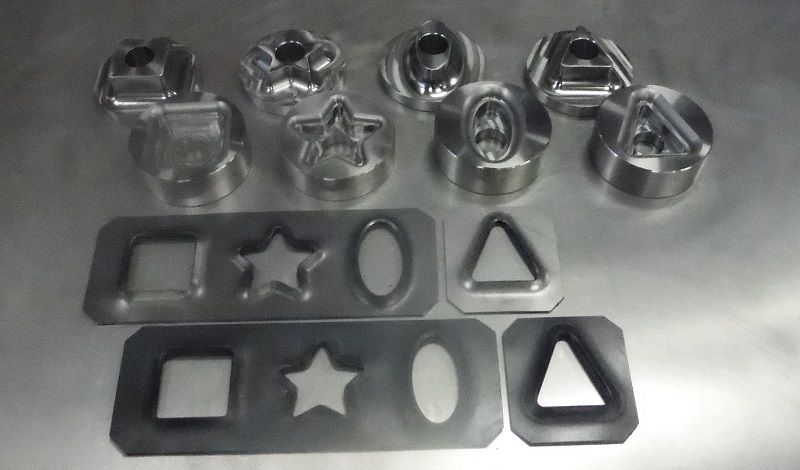

Complete set of 4 shaped dies for square, triangle, ellipse/oval, and star.

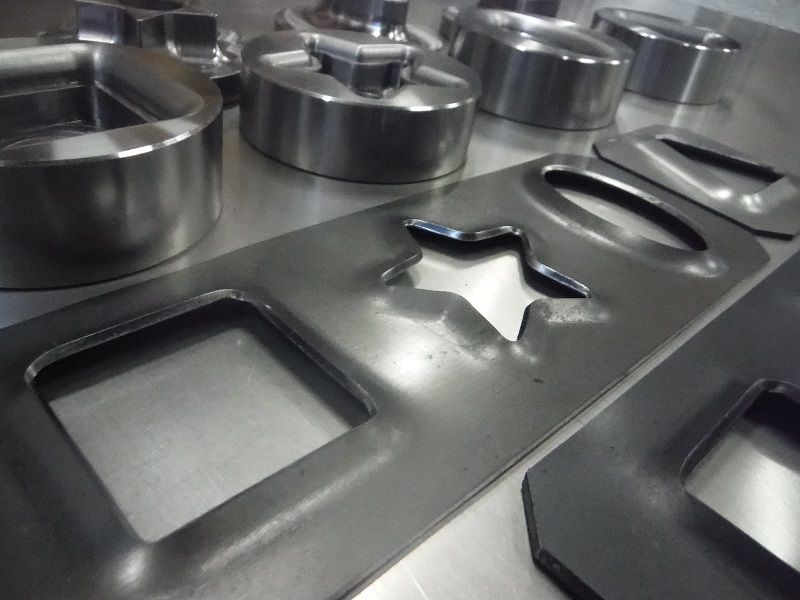

Stencil/test plate shown in pictures (ships flat/undimpled).
DXF and PDF files of cutout shapes for your use in producing these shapes.
We are not selling these individually right now, only as a set. We are also making a larger set that will be 2.5-3 inch shapes. If you want to know why these cost more than round dimple dies, there are a couple of reasons. The first big one is the machine time. These have to be made on a milling machine due to the shape (not perfectly round features), and in general a mill will cost double what a lathe will to remove material. They are more complex to machine, inspect, fixture, etc. The second reason only applies to some dimple dies you may compare ours to. Some other dimple dies are imported or made from imported material or are cast (most on Pirate are not any of these things). Patent pending.
These guys are $499 shipped to your door in 3 days! Click HERE or on any picture to go our web page to order or call us at 503-389-5413 and we will get a set to you ASAP. They are in stock and ready.
