Sold/Expired Spidertrax Rear Axle (Brand New)

Status
Not open for further replies.

RocYJ

Well-Known Member
Joined
Jan 31, 2020
Messages
48

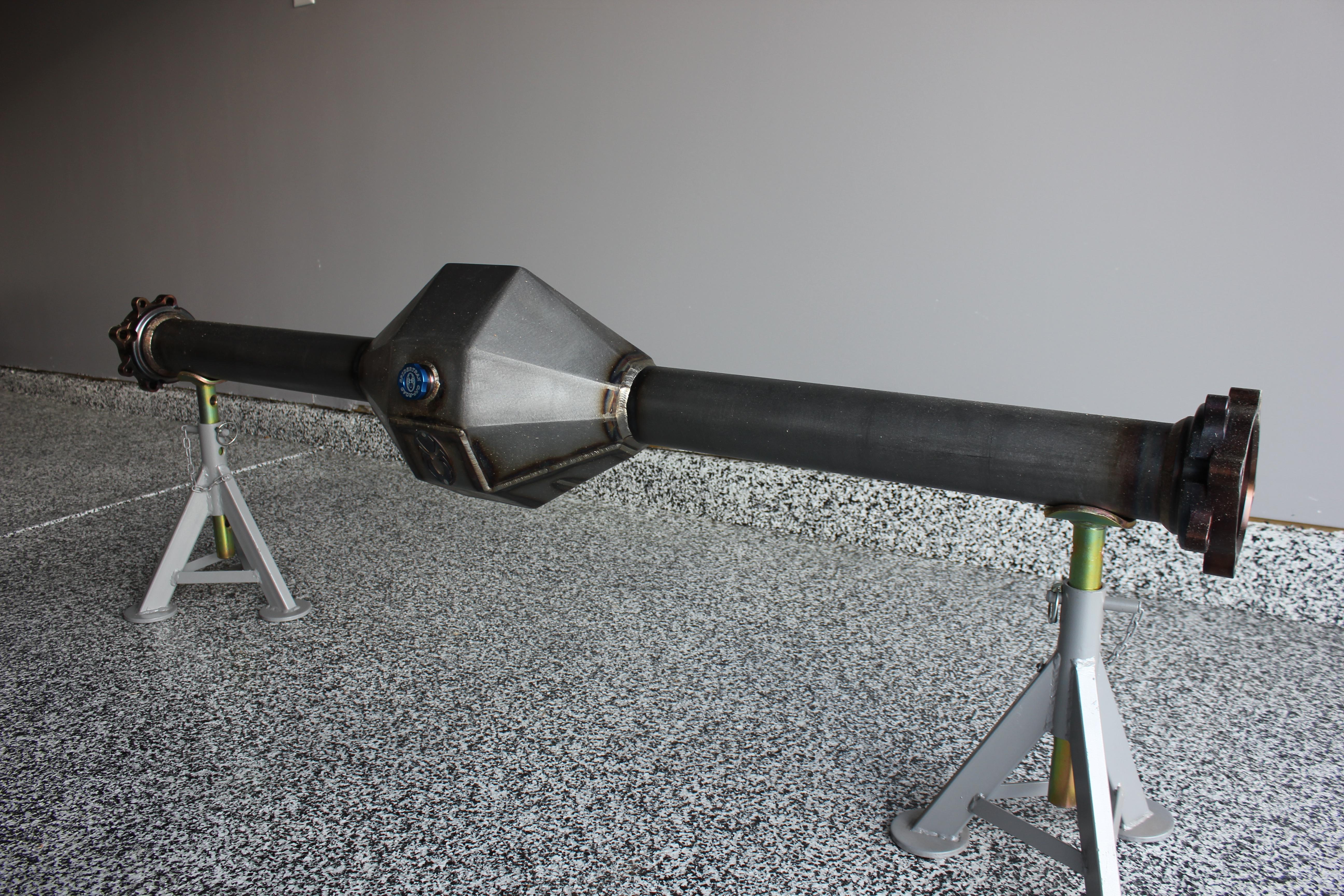

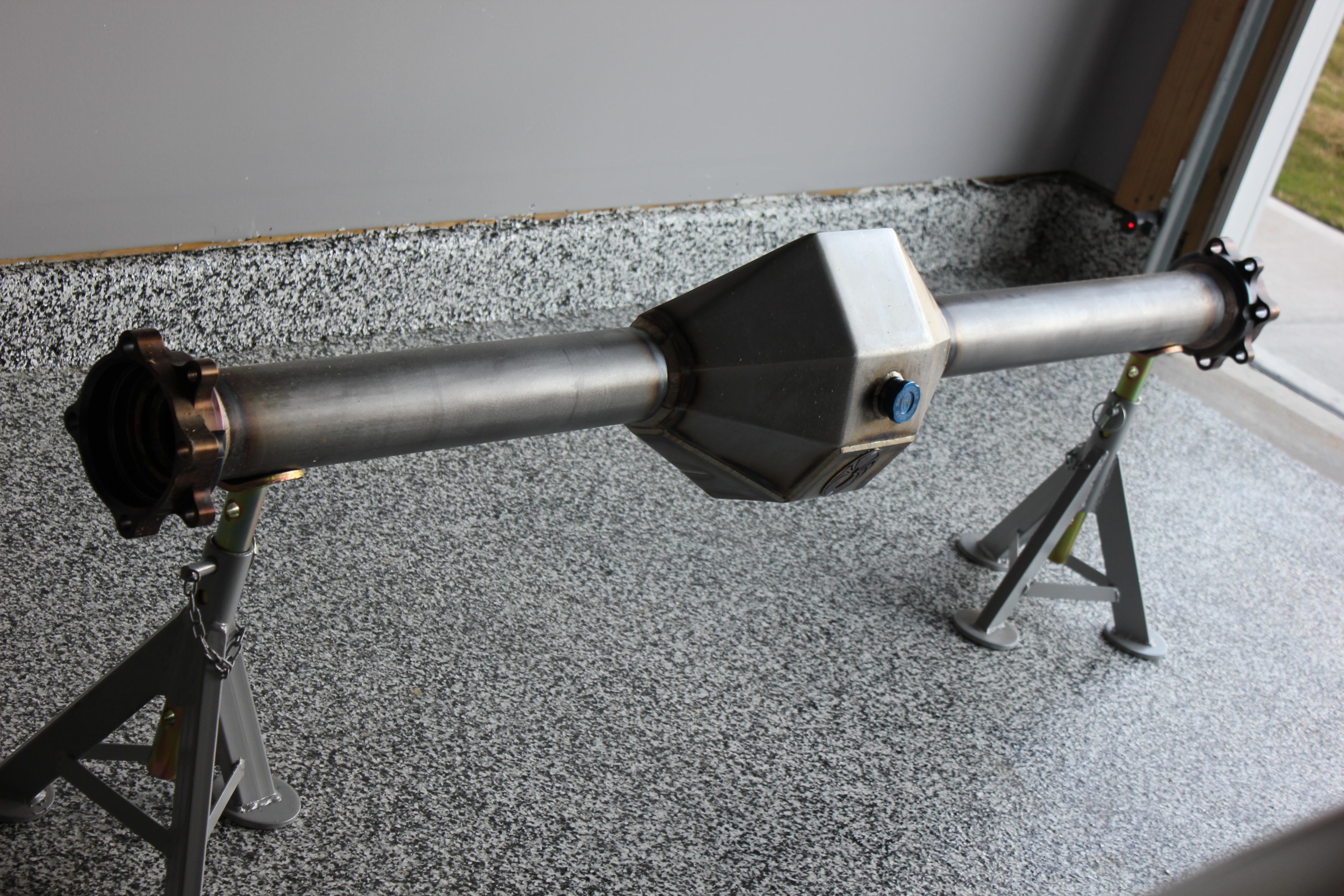

3.5” Pro Series (chromoly and heat treated)
Full width (69.5 WMS)
Centered pinion location
Spidertrax full floater ends tig welded on
Spidertrax threaded fill plug tig welded with Spidertrax threaded cap.
4130 Spidertrax skid plate tig welded to the bottom of the center section.

All welding done by the pros at Spidertrax.

Axle is brand new with bare tubes. Going another direction with my build.

$1800

I’m located in Birmingham, I travel between Alabama and South Carolina often. Willing to deliver halfway if youre in the southeast.

Last edited:

Markrobinson

Well-Known Member
Joined
Aug 13, 2010
Messages
594
3.5” Pro Series (chromoly and heat treated)
Full width (69.5 WMS)
Centered pinion location
Spidertrax full floater ends tig welded on
Spidertrax threaded fill plug tig welded with Spidertrax threaded cap.
4130 Spidertrax skid plate tig welded to the bottom of the center section.

All welding done by the pros at Spidertrax.

Axle is brand new with bare tubes. Going another direction with my build.

$1800

I’m located in Birmingham, I travel between Alabama and South Carolina often. Willing to deliver halfway if youre in the southeast.
View attachment 122774View attachment 122776View attachment 122775View attachment 122777View attachment 122778
Do those ends take 99-04 UBs? I know they used to use those before they switched to their own in house built ones


Waffle

Well-Known Member
Joined
Sep 6, 2016
Messages
155
My 5yr old house built Spidertrax hubs will swap with the 99-04 UB's. Found out by accident when I was trying to source the o-ring that wasn't provided. They have a 3rd generation out now that can be rebuilt without sending them in, but no idea if those are the same as well.

My Q is, is this the older Spidertrax housing that ONLY fits 9" gears or the second generation that fits 10" as well?


RocYJ

Well-Known Member
Joined
Jan 31, 2020
Messages
48
Do those ends take 99-04 UBs? I know they used to use those before they switched to their own in house built ones

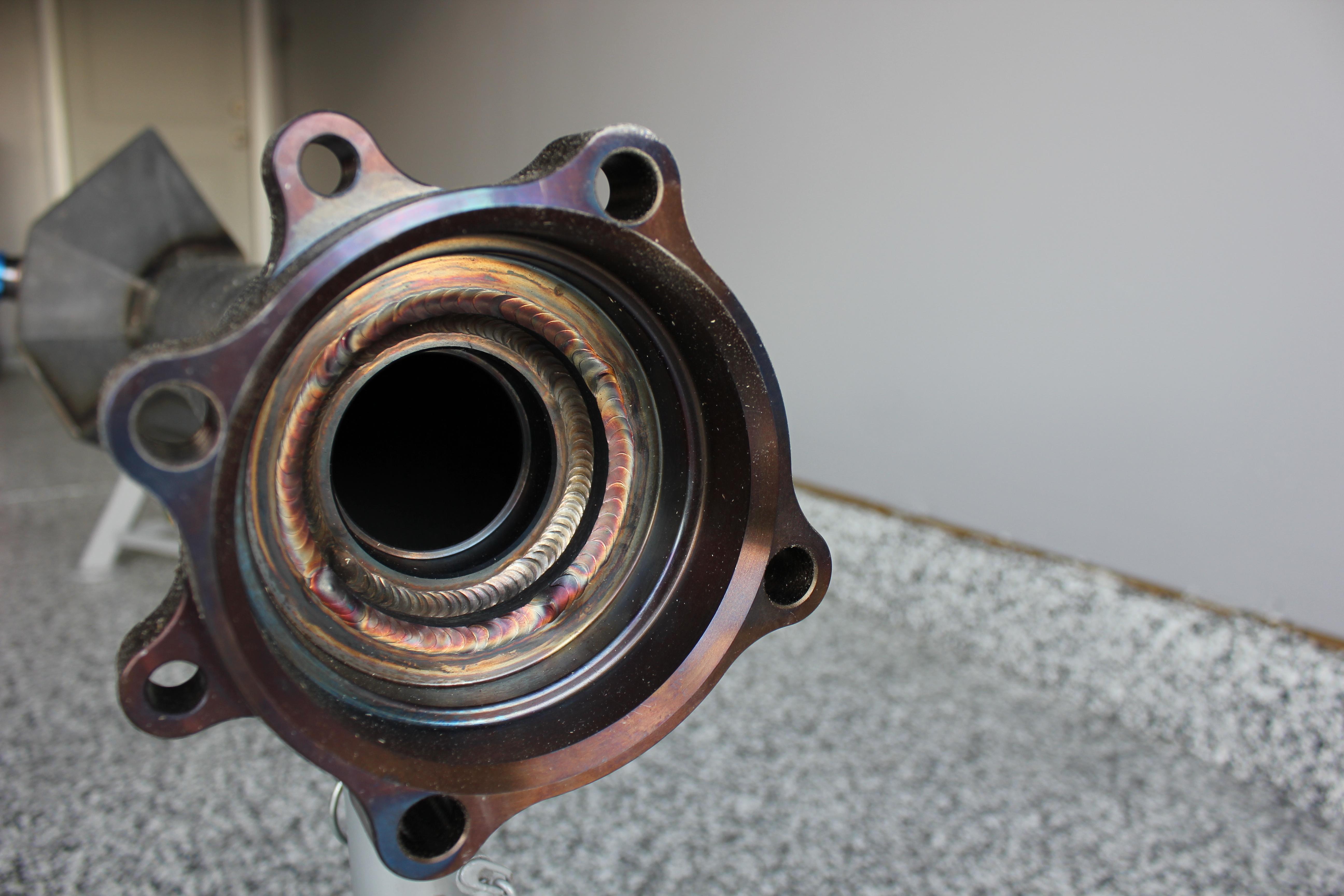

The housing has their “3.5” ultimate full floater ends.” The ends are built around 04 unit bearing dimensions. I dont see why they wouldnt work. The Spidertrax unit bearings carry the advantage of having a chromoly construction, the elimationn of a drive slug, and are 100% rebuildable.

There are two versions of Spidertrax unit bearing cups offered. The ultimate floater end, which is based off the 04 unit bearings and the Spidertrax pro series floater end which is based off the 05+ unit bearings.


RocYJ

Well-Known Member
Joined
Jan 31, 2020
Messages
48
They have a 3rd generation out now that can be rebuilt without sending them in, but no idea if those are the same as well.
I dont think anything changed exepct it’s rebuildable now.


RocYJ

Well-Known Member
Joined
Jan 31, 2020
Messages
48
My Q is, is this the older Spidertrax housing that ONLY fits 9" gears or the second generation that fits 10" as well?

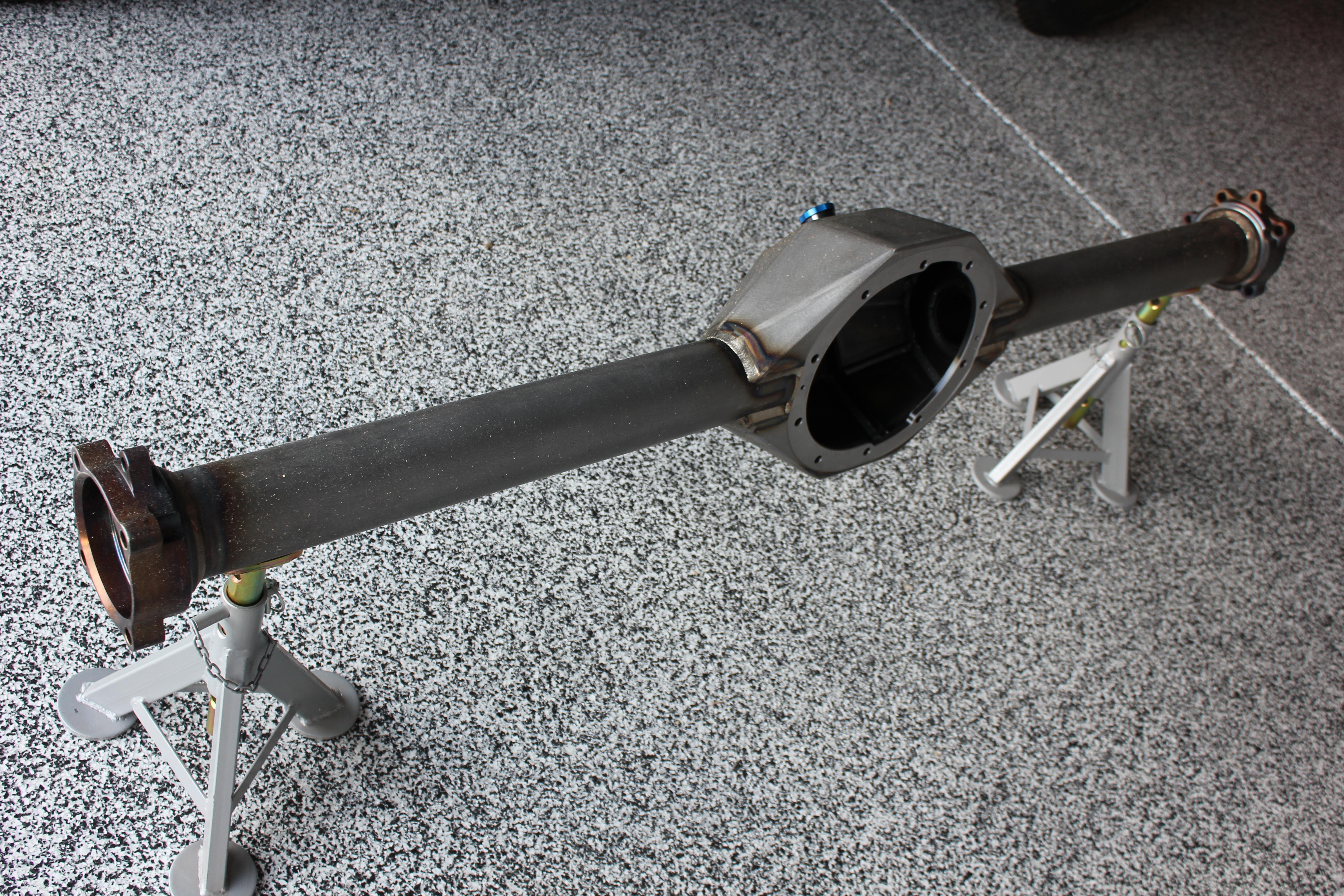

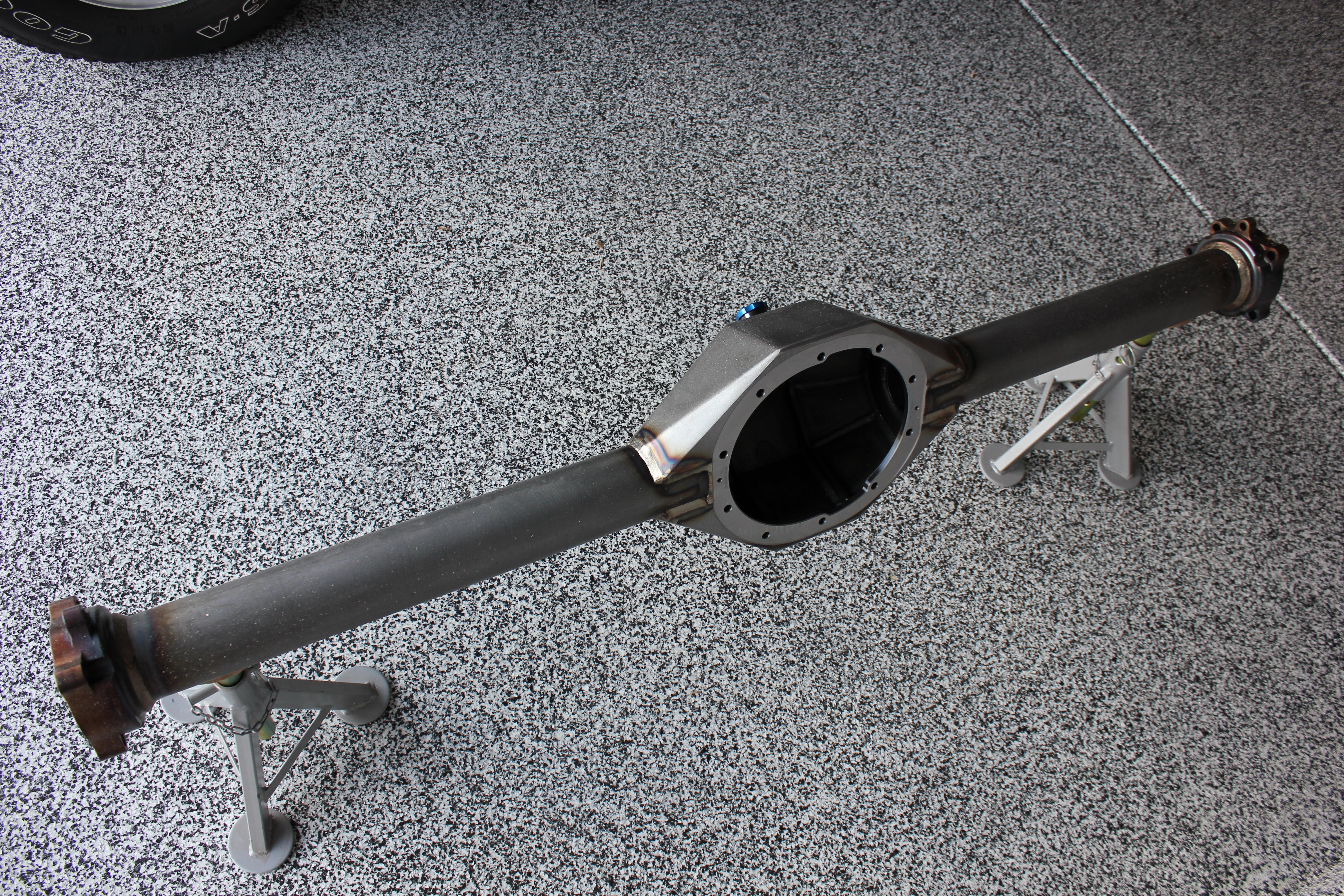

It’s their latest generation, ordered and built in 2020. All their housing are now machined to accept 9”, 9.5” and 10” inch gears as seen in the 2nd and 4th photo. Even the true 10” third from TubeWorks(soon to be released) will fit without issue.
