jsg1113
Well-Known Member
EXTERIOR

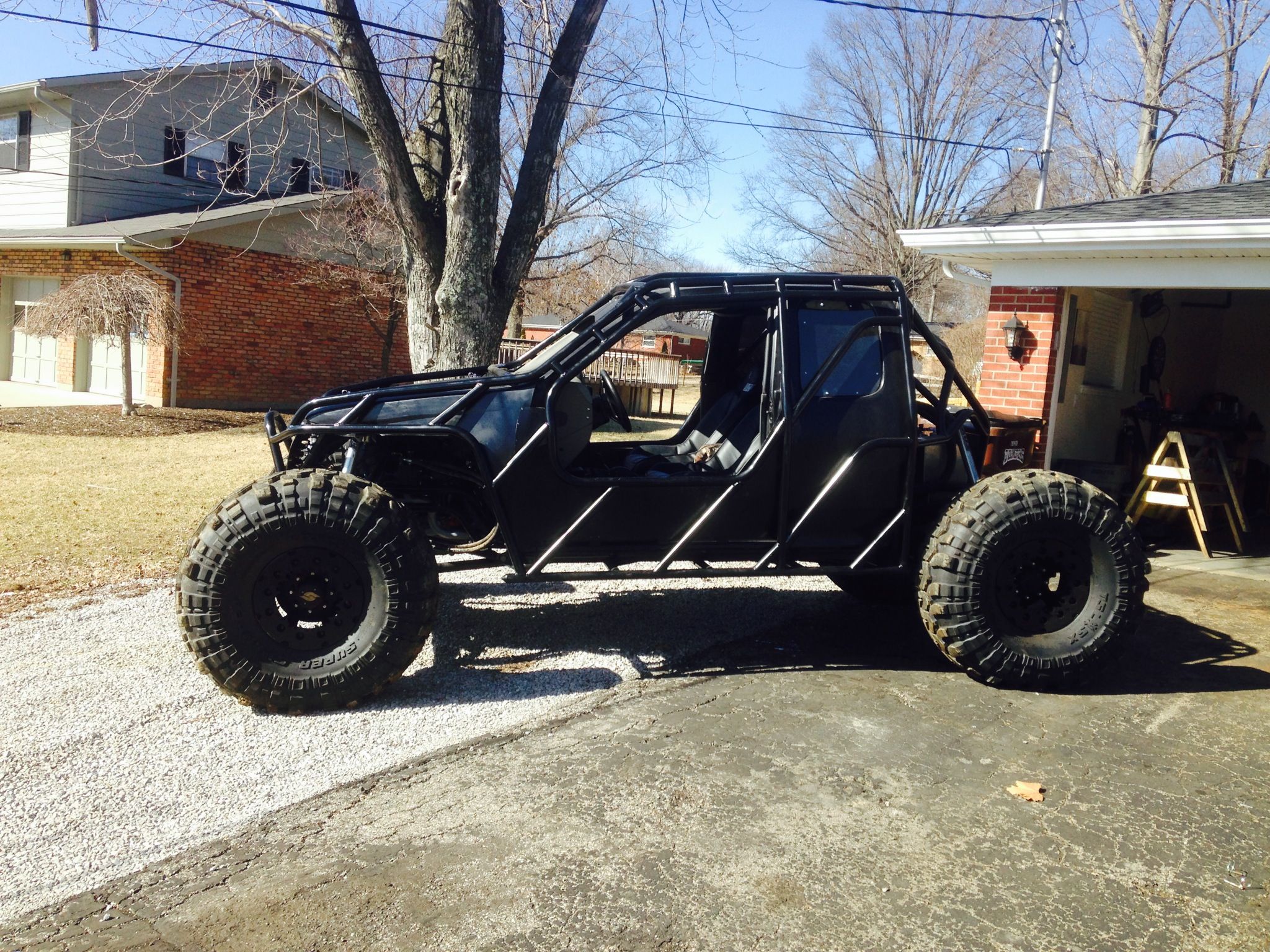

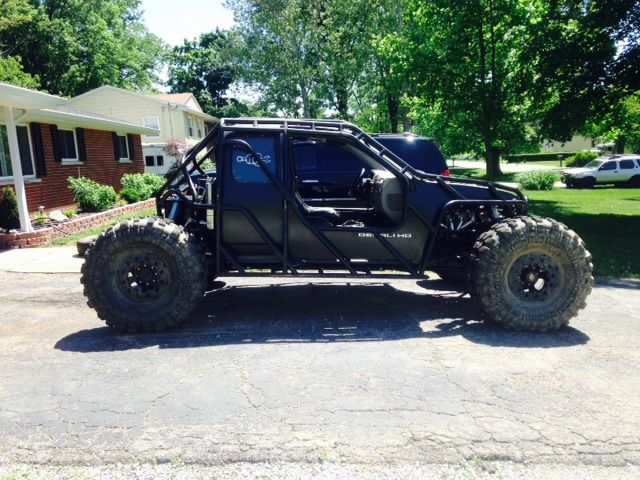

2005 Colorado/Canyon extended cab
1 3/4 .120 DOM on cage, .188 on lower frame rail and impact areas
DRIVETRAIN
2006 LQ4 - Jim's Performance Harness & Tune, Hooker Headers
Built th350 - TCI internals, TCI pan, TCI full reverse manual valve body, art carr shifter
Atlas II case - 3.8:1 HD outputs 1350 yokes
.188 chromo driveshafts - Carolina Driveline
AXLES
Chevy Dana 60 front
Yukon chromo axles
5.38 gears
Yukon grizzly locker
undercover fab diff cover
14 bolt rear w/ disc brakes
5.38 gears
welded carrier
undercover fab shaved diff cover
STEERING
PSC 2.5x8 SE ram
PSC P-pump
PSC Reservoir
Charlynn-Eaton Orbital
SUSPENSION
Front - Dual Triangulated 4 link - 1 3/4" .250 uppers with 3/4" heims, 2" .250 lowers with 1 1/4" heims
Rear - Dual Triangulated 4 link - 1 3/4" .250 uppers with 3/4" heims, 2" .250 lowers with 1 1/4" heims
Fox 2.0 Emulsion coilovers - 16s in rear / 14s in front
Currie Anti-rock sway bar in rear
Poly urethane bumps front and rear
Trail-Gear 6-ply limit straps on all 4 corners
OTHERS
TWF double beadlocks w/ inner and outer reinforcement rings
43" Super Swamper SX's - 90% or better just recently cut
31x19 aluminum radiator w/ -16 AN braided nylon lines
Custom 15 gallon fuel cell
TWF 20" lightbar
1/2" 6061 aluminum skid plate
Truck was finished in March 2014. New motor installed just a few weeks ago.
$28k OBO
Call/text 513-460-1806
Located in Cincinnati, OH
http://www.hardlinecrawlers.com/forums/index.php?topic=35034.0
