Sold/Expired Supercharged 2 seat buggy- FS or Trade???

NOVI FED COUPE

Well-Known Member
Joined
Nov 10, 2009
Messages
1,748
Powertrain
Motor - Supercharged Ford 3.8L, bored 30 over, ported Eaton SC, ceramic coated pistons, 10% OD pulley (~14 PSI), cam, FMIC, etc
Trans - Ford C4,NEW ART CARR SHIFTER WITH ROCK GATES, 2000 stall Torque Converter, Art Carr rev man VB with comp braking FRESH REBUILD
T-case - Ford Dana 20, AA 32 spline output assembly, custom cable twin stick, KOZ custom clocking ring
Driveshafts - built by Joint Clutch and Gear, 1410s rear, 1330s front
Front Axle - 1989 Ford D60, KOZ highsteer arms, lincoln locked, GLO front diff cover, 35 spline alloys, NEW SOLID DRIVE FLANGES, NEW 5.38 GEARS
Rear axle - 1989 Ford Sterling 10.25, lincoln locked, NEW 5.38 GEARS

Suspension
Links - Triangulated 4 link front and rear, QA1 heims, 7/8 x 7/8, 1-3/4" x 3/8" lowers, 1-1/2" x 1/4" uppers, weld in bungs.
Shocks - Fox 14"x2" fronts, 12"x2" rear

Steering - Full Hydro, Danfoss orbital, TSC single end ram, 1-1/2" x 1/4" tie rod, 3/4 x 3/4 heims.

Tires and Rims - Walker Evans wheels and like new Krawlers

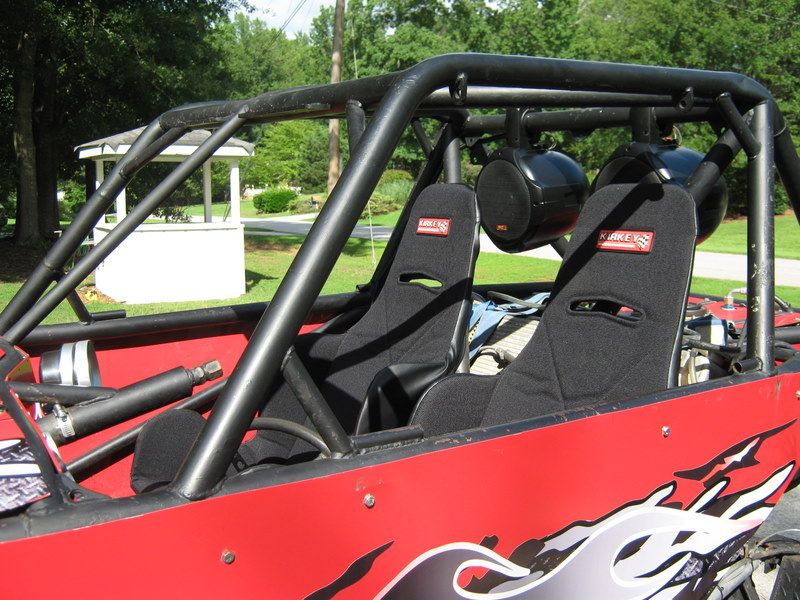

Misc - 108" WB, 82" outside tire to outside tire, 20" belly, kirkey seats, MSD external fuel pump, Optima red top, HID headlights,Nice stereo system, Dual Wilwood master cylinders

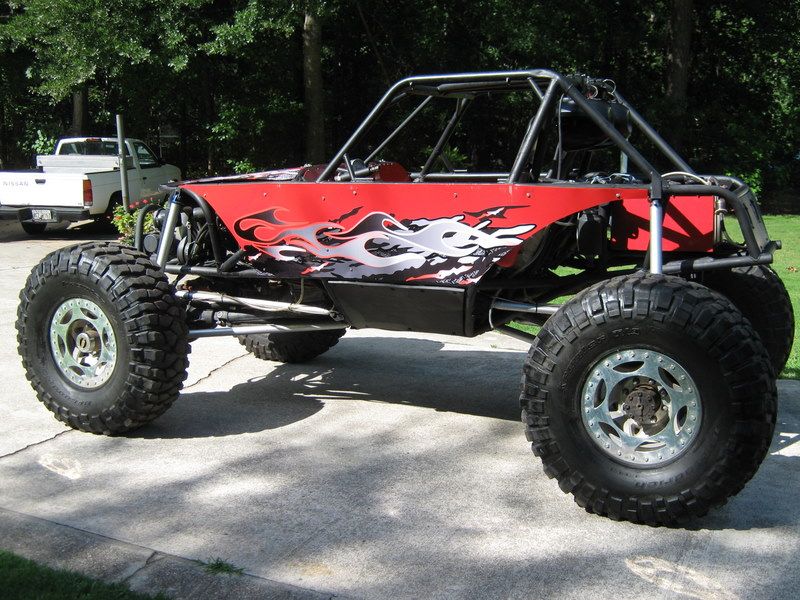

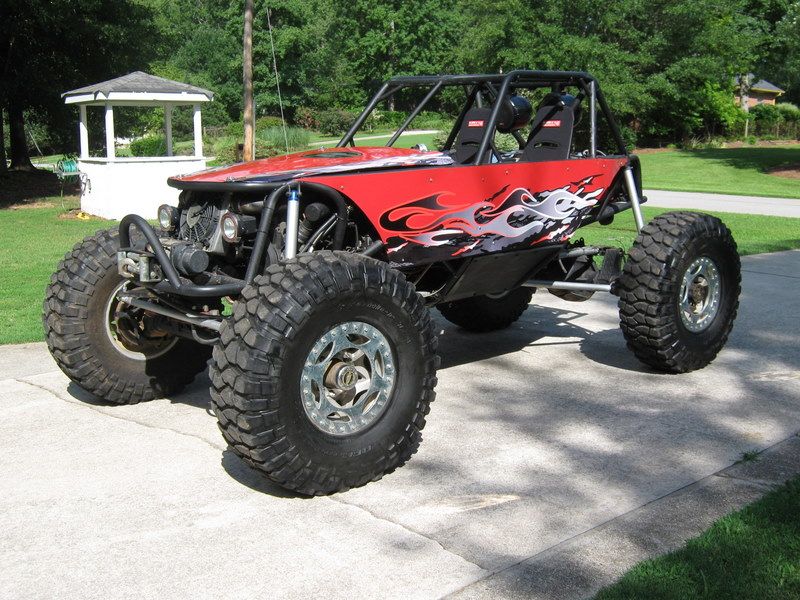

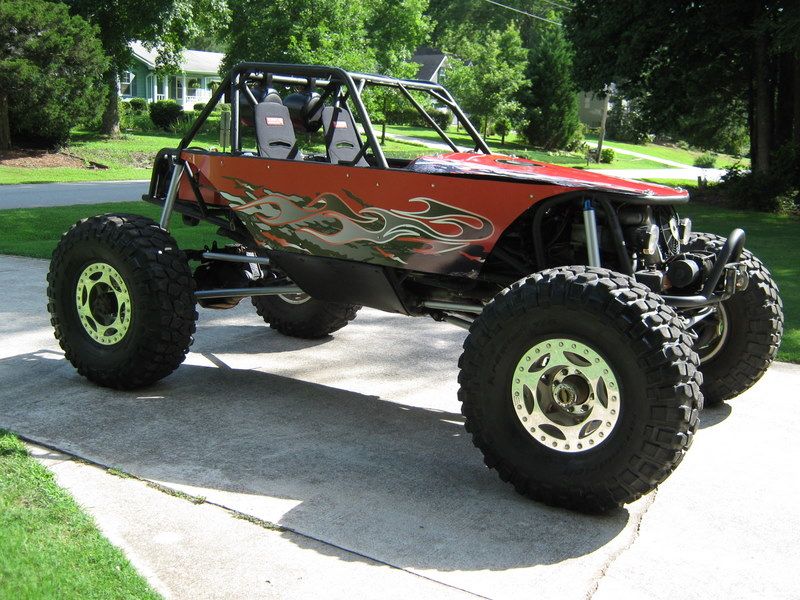

Most of you know I just recently bought this rig. I have added some new parts and cleaned it up. It was just @ Choccolocco and did good. Had an issue with the t-case shifters which is fixed. It also really needed to have lower gears. I just pulled the 4.10 gears and put in 5.38 gears. Its reliable and a very nice buggy for the money. I do not have to or need to sell just simply testing the waters.

Possible trade for a RZR-S plus cash, diesel truck or????
Asking $16,500 678-725-1181


Attachments

  • IMG_0669.JPG
    142 KB · Views: 1,936
  • IMG_0670.JPG
    137.2 KB · Views: 1,939
  • IMG_0671.JPG
    124.9 KB · Views: 1,942
  • IMG_0674.JPG
    133.9 KB · Views: 1,936
  • IMG_0676.JPG
    144.5 KB · Views: 1,898
Guys so you know...I will not trade even for a RZR I dont care how much you have sunk in it...thats not my problem. I have had a few good offers so far...keep them coming.

fordcontraption01 said:
All those FORD parts are what make this buggy in my opinion love this thing unique motor awesome mochine.

Thanks man...I appreciate. I am trying to come up with some kind of Ford hood/grille to finish it off with!

U b interested in trsdung for a 89 hatchback with a 331 striket and 6 point cage c4 trans

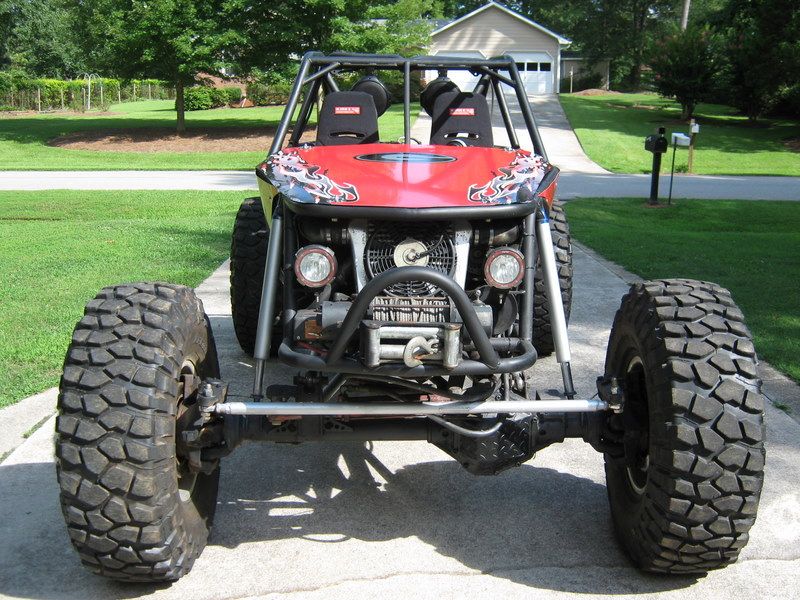

Got a better pic of the radiator setup. How much heat do you get off of it.

I can take a few more pics. It has never gotten over 175-180...sitting dead stop on the trail running in the middle of august.

tengis said:
Got a better pic of the radiator setup. How much heat do you get off of it.
Thanks, I was also wanting to know how hot it gets sitting in the seats with the rad. right behind you.

The buggy never gets hot I rode allday at grayrock in the summer and never got hot! and it is not bad inside of it either
Bump for ya!

tengis said:
Thanks, I was also wanting to know how hot it gets sitting in the seats with the rad. right behind you.

Sorry I missed this, but lay is 100% correct. Buggy doesnt get hot, and sitting inside is just like normal.

Havea few guys pretty serious we'll see what happens.
