18" air shocks on jeep tj

98_tj · Feb 23, 2016

Has anyone ran 18" air shocks on a jeep tj body? If so did you keep the back frame? Tube chassis on the back? How long of links for a 4 link with triangulated uppers?
I am just about to start my 1ton axle swap on my tj, i will be running ~2006 super duty axles.

juicetenn · Feb 23, 2016

My jeep is got 18" air shocks.

I didn't build it but the shocks mounts on the rear are frenched ( think that's the right term for it) into the frame.

Sent from my SAMSUNG-SGH-I337 using Tapatalk

RebelRider · Feb 23, 2016

Are you going to stretch it? I don't see you using all of that stroke with anything close to a stock wheelbase. Unless you already have them, it seems like they would be a waste.

98_tj · Feb 23, 2016

Re:

Yes I am going to stretch it

mudpup · Feb 23, 2016

Mine is stretched to 105", back halved with tube and I only use 14" air shocks in the rear. Plenty of down travel, and about 4" of uptravel. High pinion rear 60 and I never bind.

09zkrankin · Feb 23, 2016

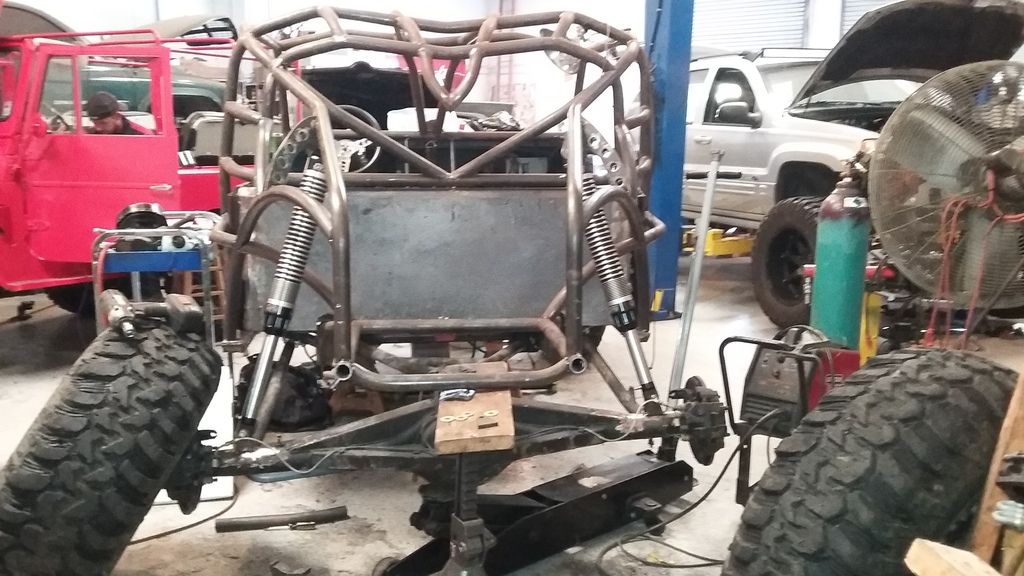

Mine is sitting at 112", frame is chopped off right at the top of the upturn, its a yj not a tj, but close. I just tubed out the rear and stepped it in far enough so that the shocks would clear, running 18" 2.5 fox airs.

Sent from my SAMSUNG-SM-G890A using Tapatalk

98_tj · Feb 23, 2016

Re: Re: 18" air shocks on jeep tj

09zkrankin said:
Mine is sitting at 112", frame is chopped off right at the top of the upturn, its a yj not a tj, but close. I just tubed out the rear and stepped it in far enough so that the shocks would clear, running 18" 2.5 fox airs.

Sent from my SAMSUNG-SM-G890A using Tapatalk

Do you have any pictures?

Sent from my SGP311 using Tapatalk
