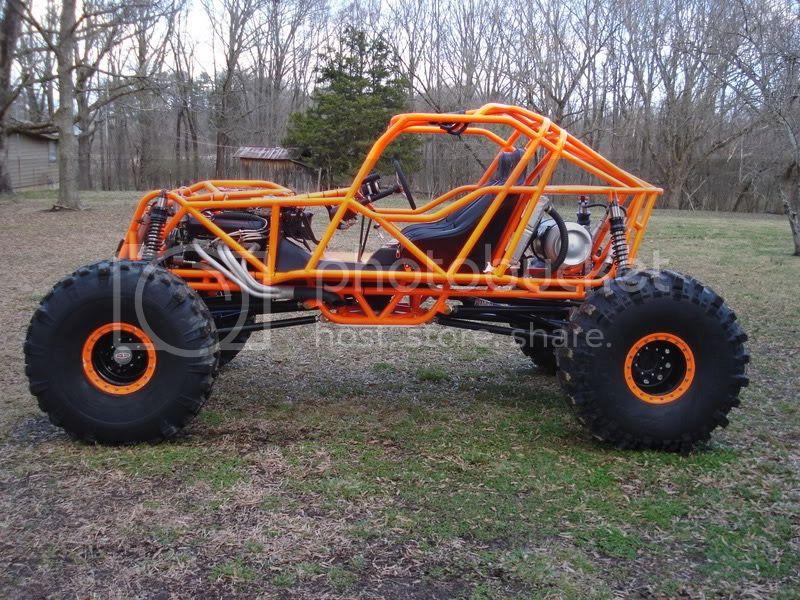

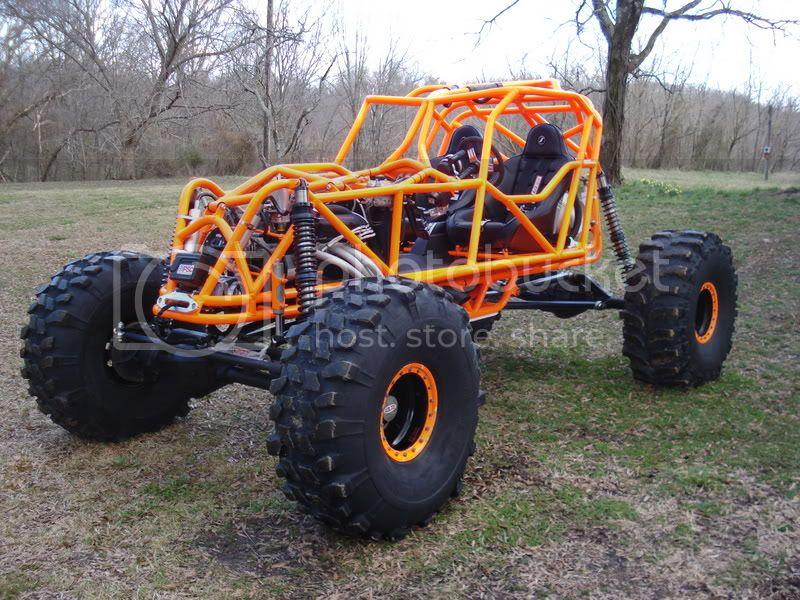

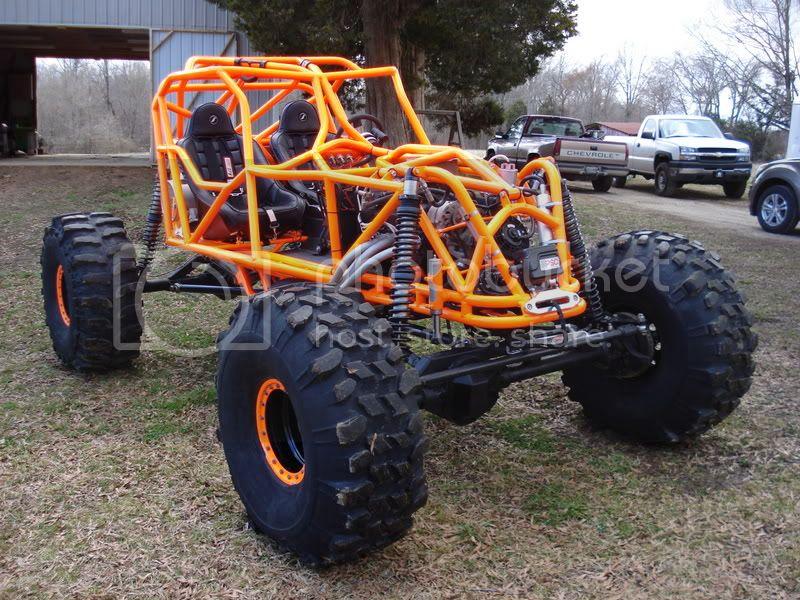

As the title says, 2009 Jimmy Smith Buggy for sale. Getting out of crawling for a while and would like to sell. Price $21,500.
Frame:
Jimmy Smith built in Aug 2009
All .120 DOM 1 3/4 Tubing except where links attach which is .250 2" Tubing
Powder Coated
Links are 2" .250 DOM with 1 1/4 Heims
120" Wheelbase
50" Wide
24" Ground Clearance
78" Overall Height
Suspension:
Custom Traingulated 4-link front and rear
Ballistic 2.5 Coilover Shocks all 4 corners
4" Ballistic Bump Stops in Front

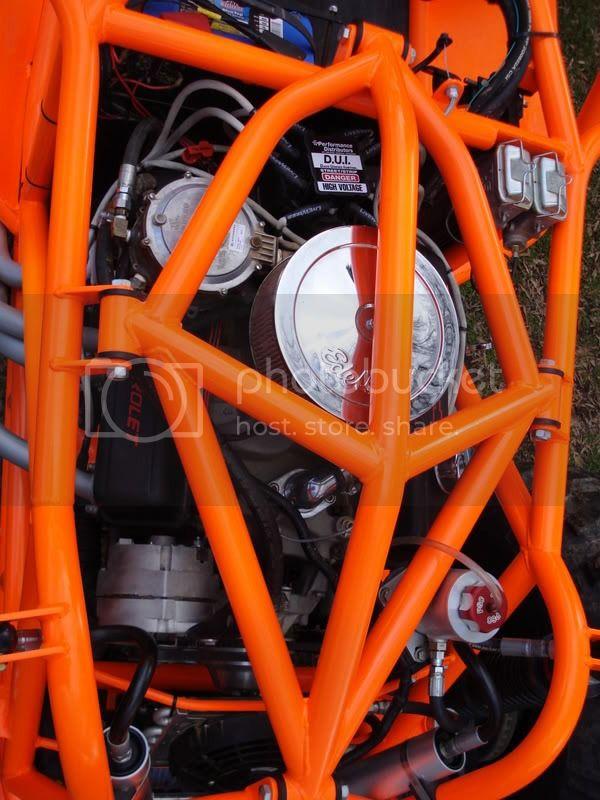

Engine:
Chevy 408CI (500HP)
Balanced and Blueprinted
305 Competition Cam
186 Heads w/202 1.6 Valves
Steel Crank
4-Bolt Main
5.7 Rods
ARP Bolts
Roller Rockers
Aluminum 1:1 Pulleys
8 Qt Oil Pan
Alum High Flow Water Pump
DUI Distributor
DUI Live 8mm Wires
Afco 31" Aluminum Rad w/Electric Fan and Alum Shroud
Weiland Intake
425 Propane Set Up
Drive Train:
Built TH350
Beefed up Bell Housing
3500 TCI Stall
B&M Shifter
205 Transfer Case
Woodley Clocking Adaptor
1410 Rear Yoke
1350 Front Yoke
Custom Long Travel Drive Shafts

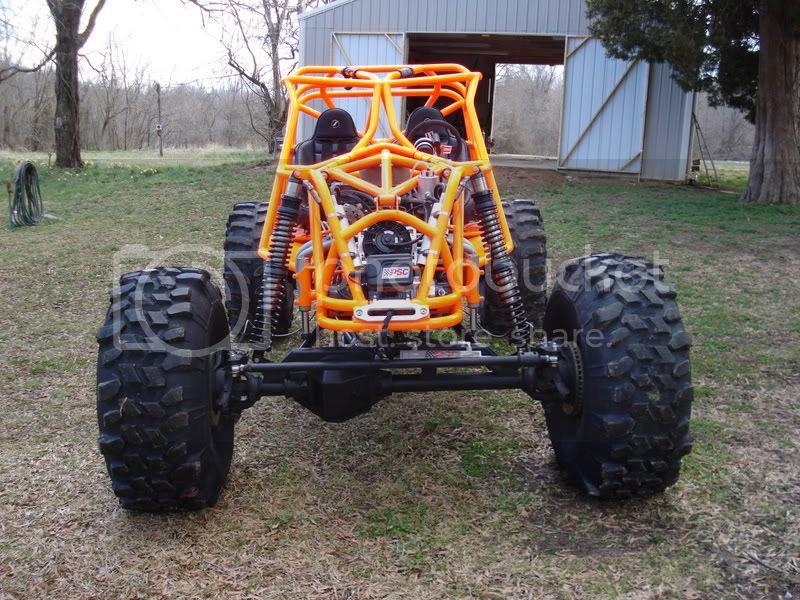

Front Axle:
Dana 60
5.38 Yukon
Detroit Locker
35 Spline Inner and Outer Yukon Chromoley Shafts
Solid Brand Axle Hubs
Balistic Differential Cover
Custom Truss
Ballistic High Steer Arms
PSC Steering set up with cooler and fan
Rear Axle:
GM 14 Bolt
Shaved
Disc Brakes
Welded Carrier
Custom Truss
5.38 Yukon Gears
Heavy Diff Cover
Tires:
Front
Tennessee Cut 44" TSL's
10" 2.5 Backspace MRW Beadlocks
Rear
Cut 44" Boggers
12" 3.5 Backspace MRW Beadlocks
Misc:

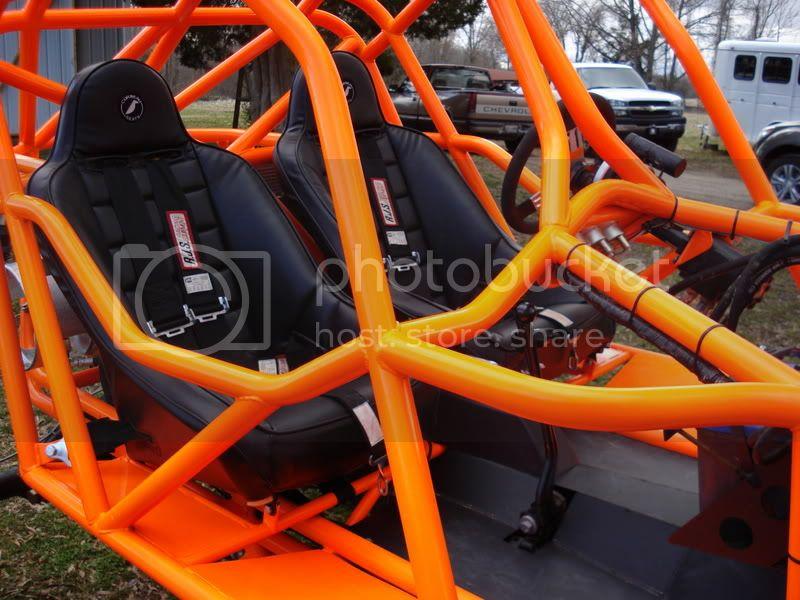

Corbeau Baja SS Ultra's
5 Point RCI Harness
12,000lb Warn Winch with Rope
Call John at 731-267-4179 with questions.
