4 wheel steer supercharged Honda transaxle buggy

big_rigger

New Member
Joined
Feb 12, 2024
Messages
1
2021 Honda 4 wheel steer transaxle buggy

2 seat mid engine transaxle buggy

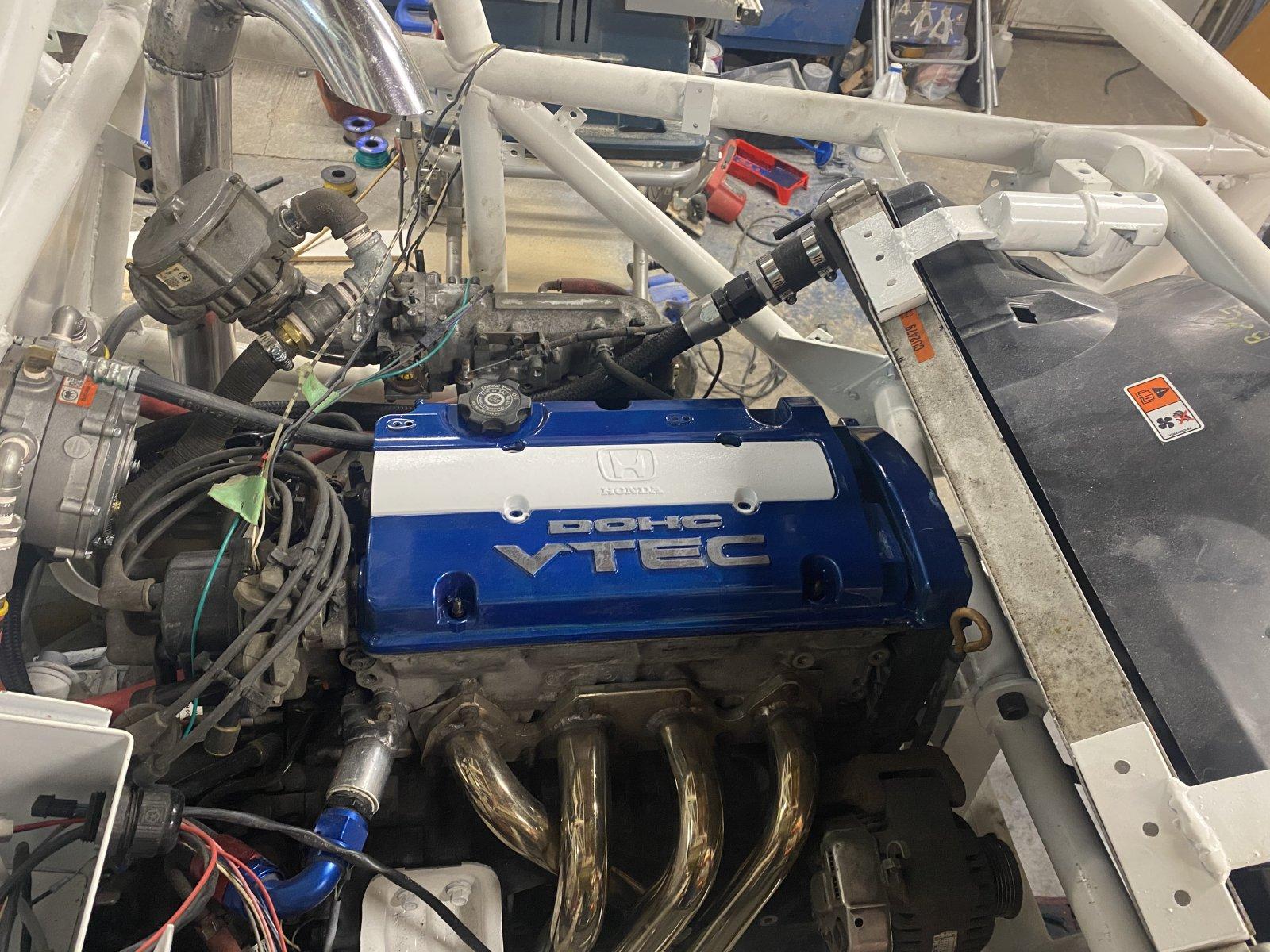

Supercharged Honda h22
Built bottom end closed deck block sleeved with iron liners

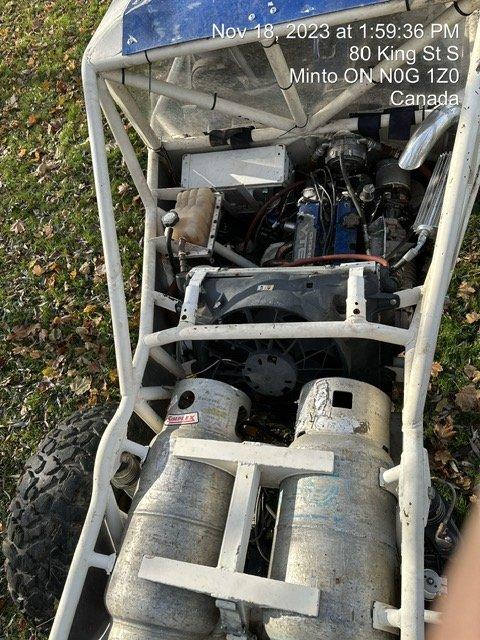

Turbo tuff rods forged pistons arp main and head studs new oil pump new timing belt reverse rotation Eaton m62 supercharger runs on propane. Making 10lbs of boost I have a smaller pulley for 15lbs as well Comes with 4 33lb tanks with good test dates
Overkill cooling system -16 an fittings and braided lines

Honda 5 speed transaxle 76-1 crawl ratio. A 5.15-1 final drive gear is available for this trans if you really wanted to crawl with it bring it to 98-1

Aam 9.25 axles. Front and rear with 5.38 gears ballistic diff covers

16" ori stx struts with reservoirs
Radflow 3" air bump stops

Front and rear steer psc cylinders with self center on the rear
Rear steering controls are on transmission shifter joystick
Crank driven hydraulic gear pump

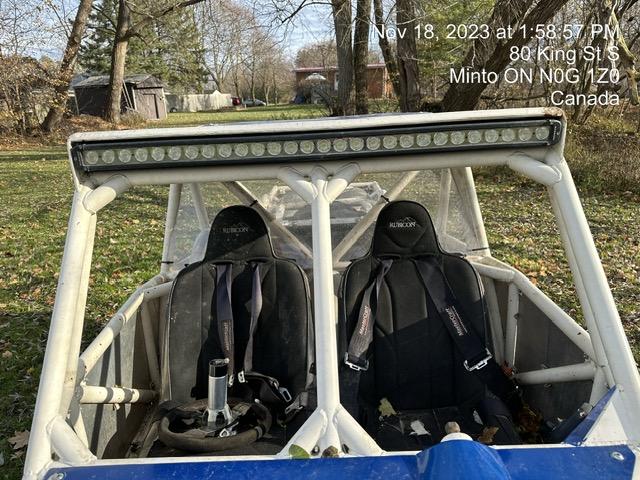

Mastercraft seats and harnesses

44" pit bull rockers on recentered h1 beadlocks tires have lots of tread but are well used

Warn 8274 winch odyssey battery

Chassis is all 1.75 .120 wall dom tubing
All links have 1.25 emf rebuildable rod ends
lowers are 2" 1/4 wall slugged with aluminum

Flat belly with ar400 plate
Hanning single row light bar. Led running lights

Stainless exhaust youshimura mufflers

I do have an ownership to aid in sale from Canada to us

Comes with lots of spare parts including 2 complete axles spare engine , propane system , cooling fans

$12,000usd
Located in harriston Ontario Canada. 2.5 hrs from the border

Any questions call or text 1-519-722-1051
