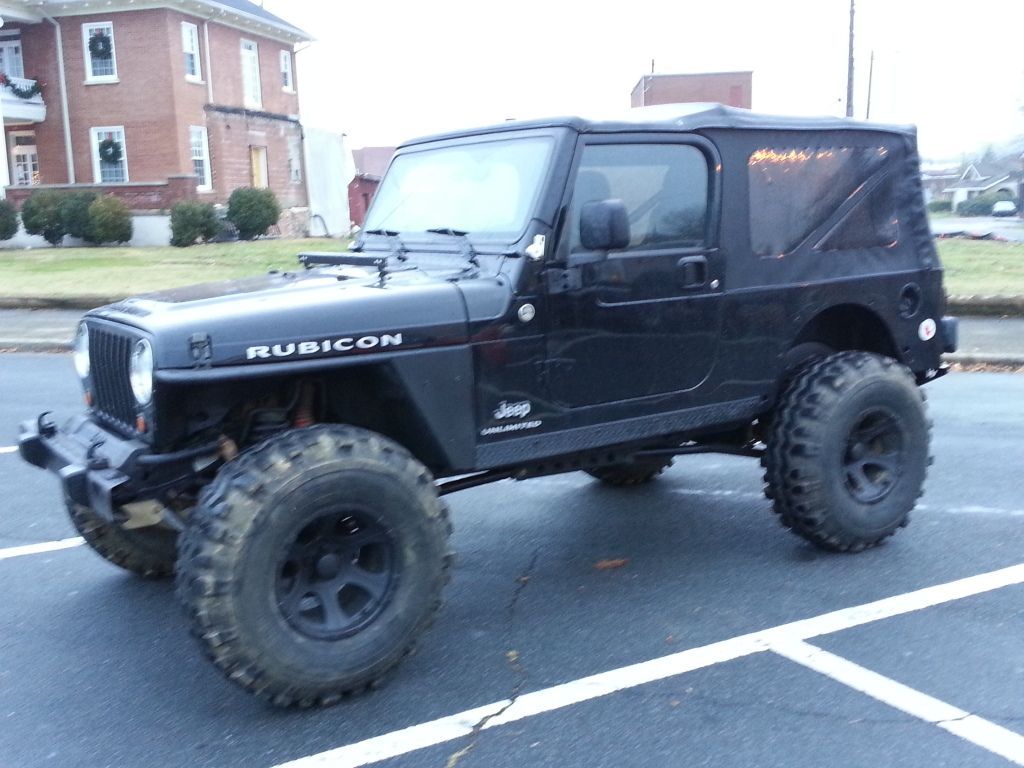

Trade the trusty TJ off on 12/5/13 for a Rubicon LJ.
Tube fenders
3 1/2" lift Rock Krawler long arm 3 link front/4link rear and skid plate
Tom Woods drive shafts front and rear
Rock Krawler crossover steering
Adjustable track bar kind of quick sway bar disconnects
36 13 r16 TSL Radials
Bed liner interior
Hard doors
Has a dent on the bottom of the rear corner and the paint isn't perfect but it still shines


lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

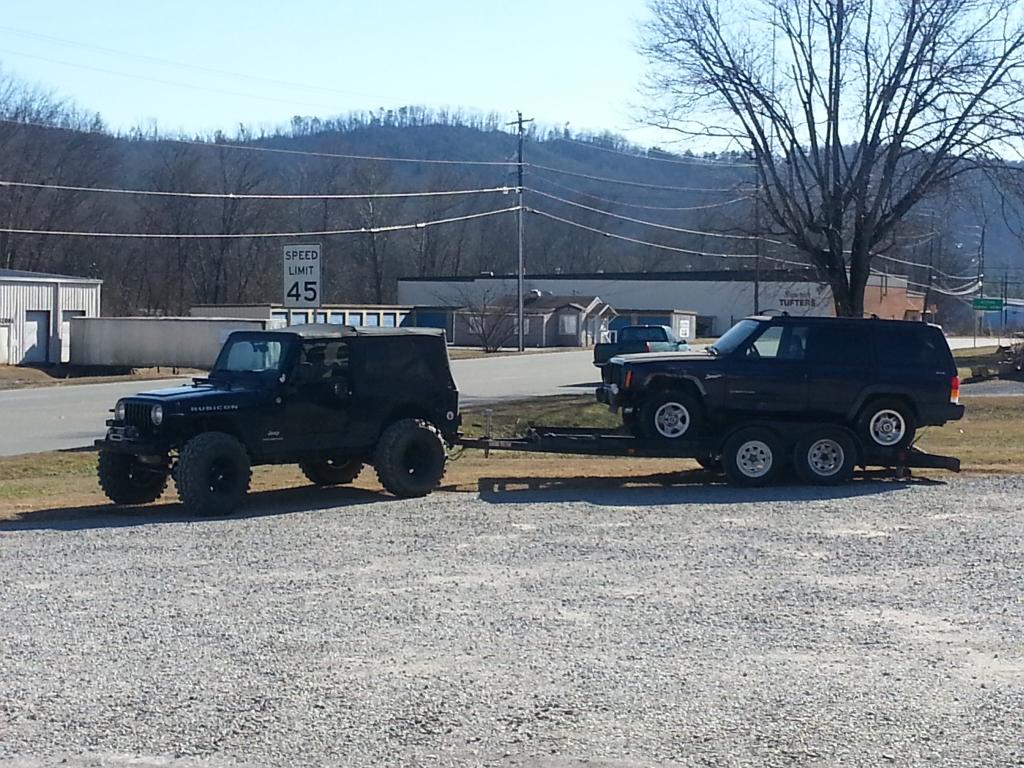

DD pic


Attachments

  • 20131205_080053_zpscda02209.jpg
    122 KB · Views: 96
  • 20140118_142218_zps5e1b47ab.jpg
    163 KB · Views: 76

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

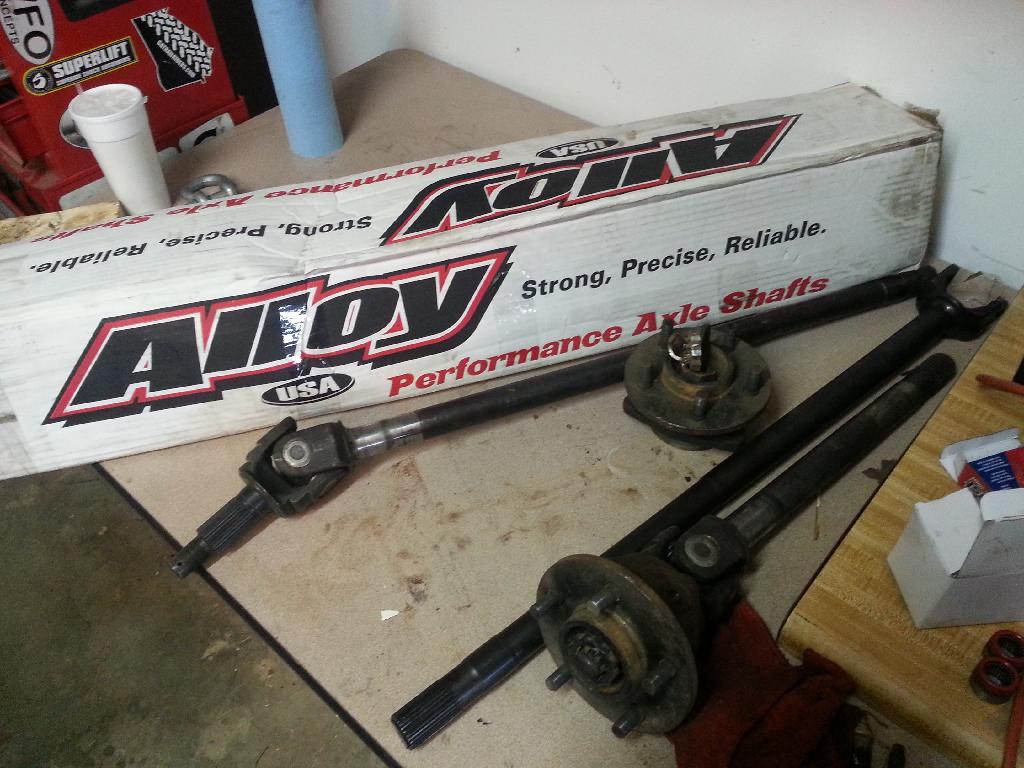

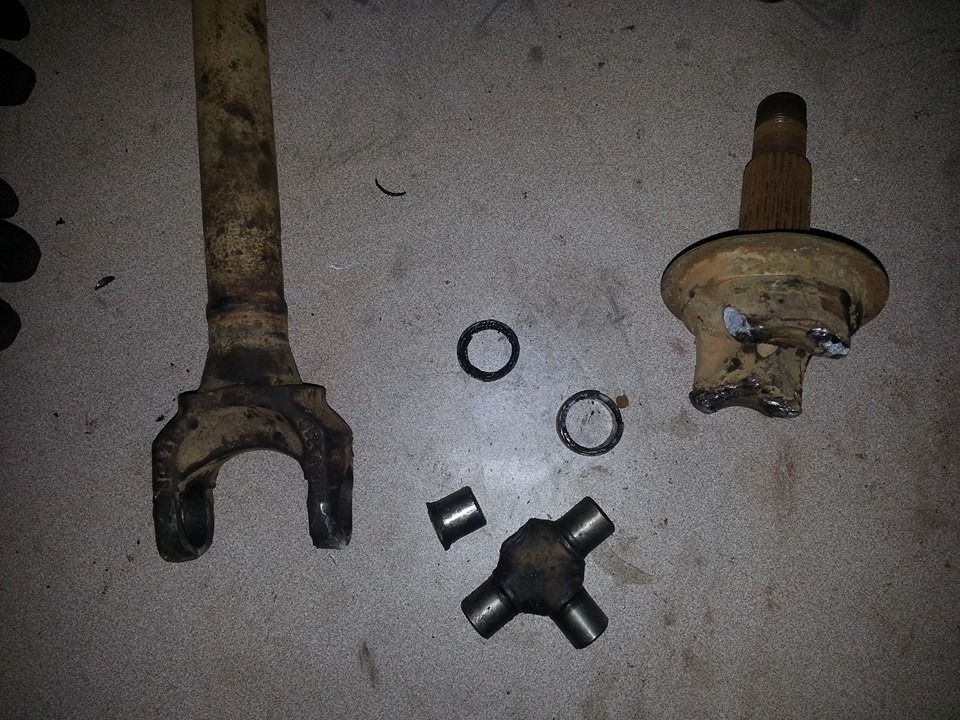

Upgraded to chrome alloy axles in the 44's front and rear after destroying the stockers. Broke the chrome alloy axles got them warrantied and then upgraded to 05 supeduty axles.


Attachments

  • driverside_zpsfbd5e400.jpg
    139 KB · Views: 68
  • 20140201_100218_zpsrxda31ta.jpg
    115 KB · Views: 67

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

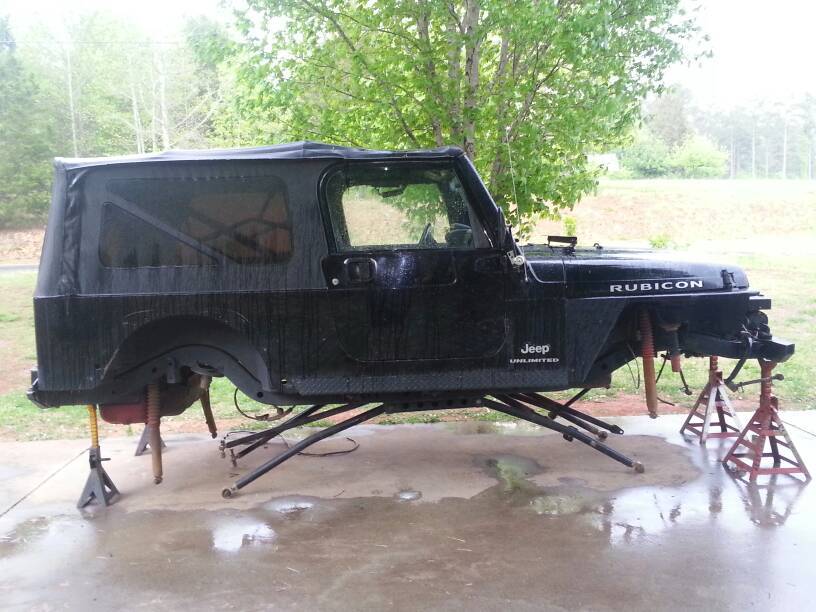

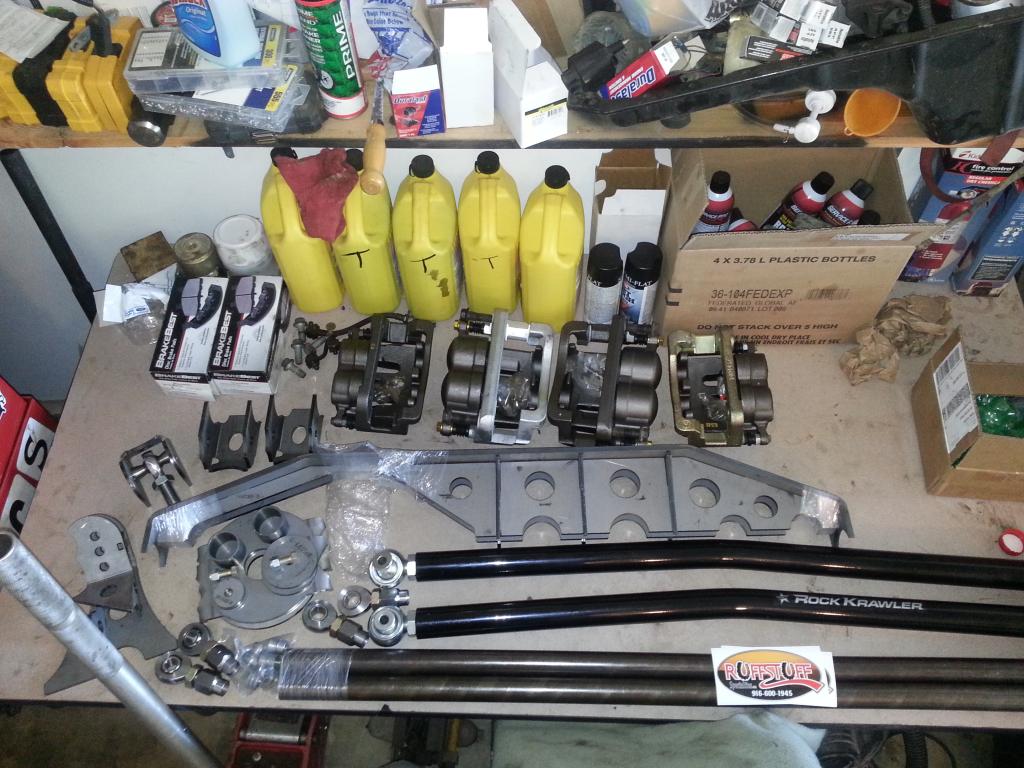

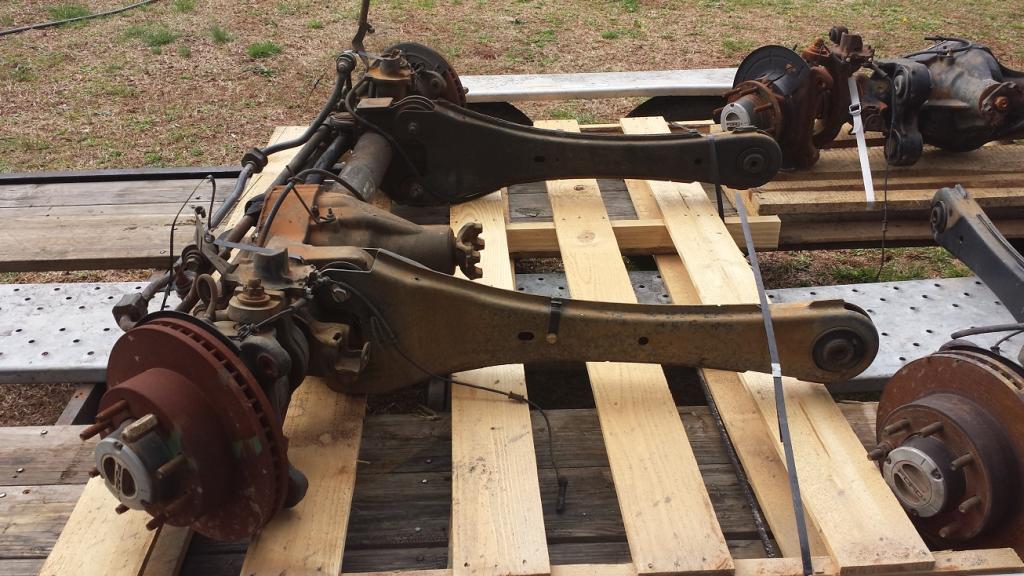

The fun begins.


Attachments

  • 20140519_174227_zpsytesa1vf.jpg
    135.1 KB · Views: 69
  • 05SD_zps062b43de.jpg
    115.4 KB · Views: 82

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

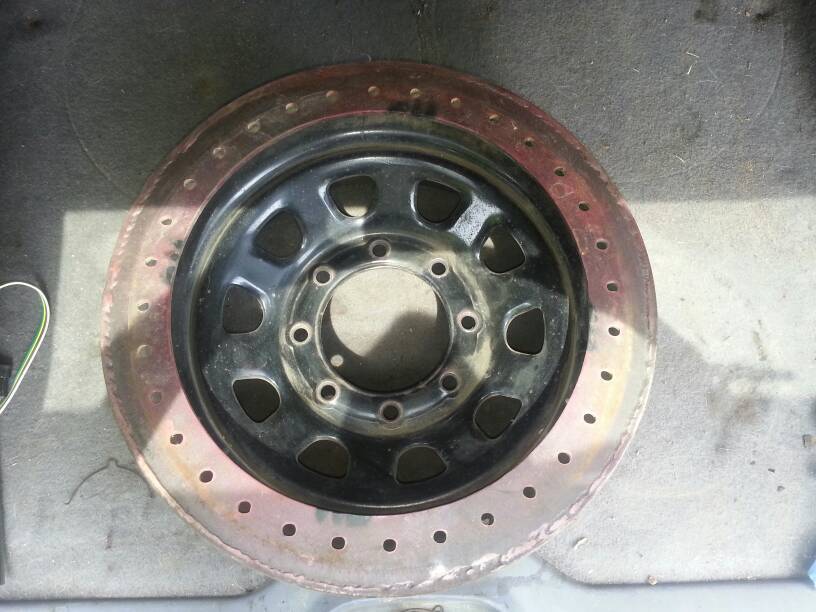

Picked up a set of used weld on beadlocks 8*170 pattern from here on Hardline.


Attachments

  • ra7e7ane.jpg
    63.9 KB · Views: 74

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

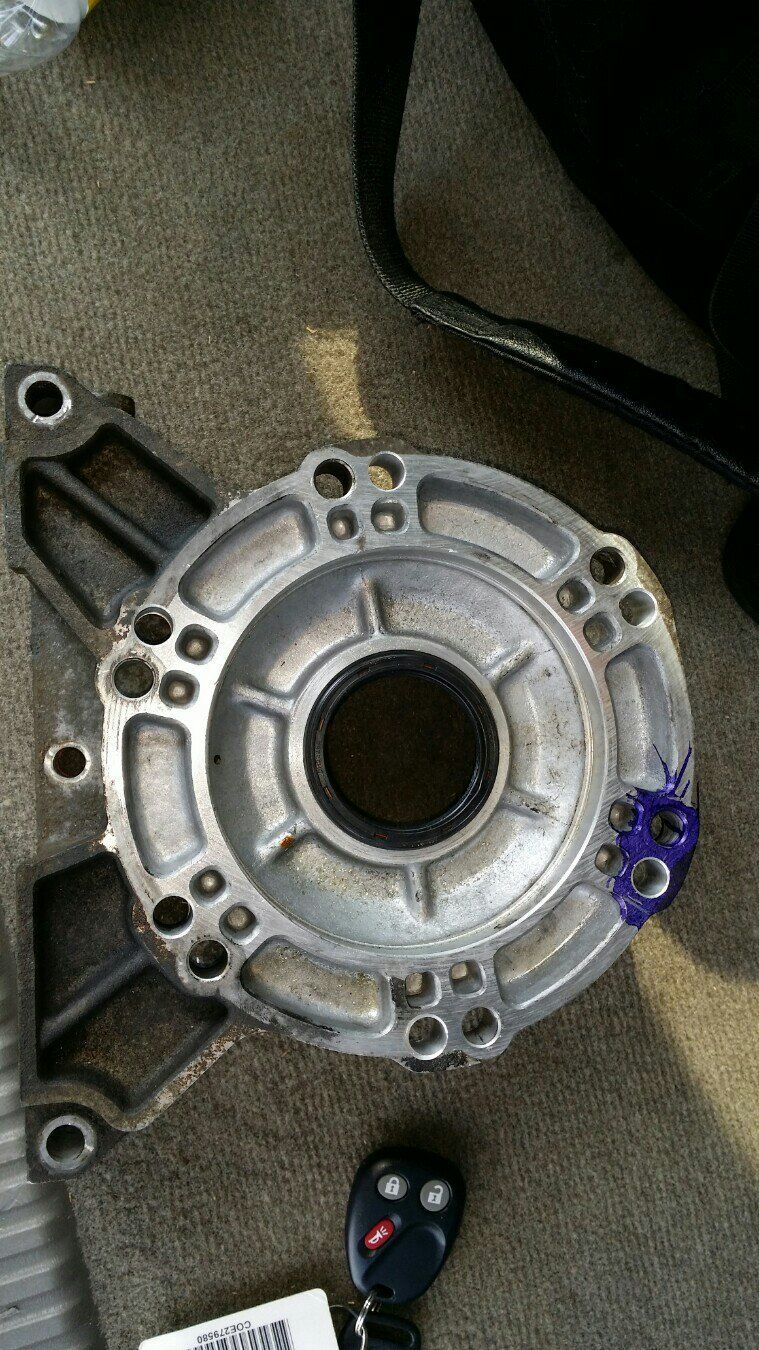

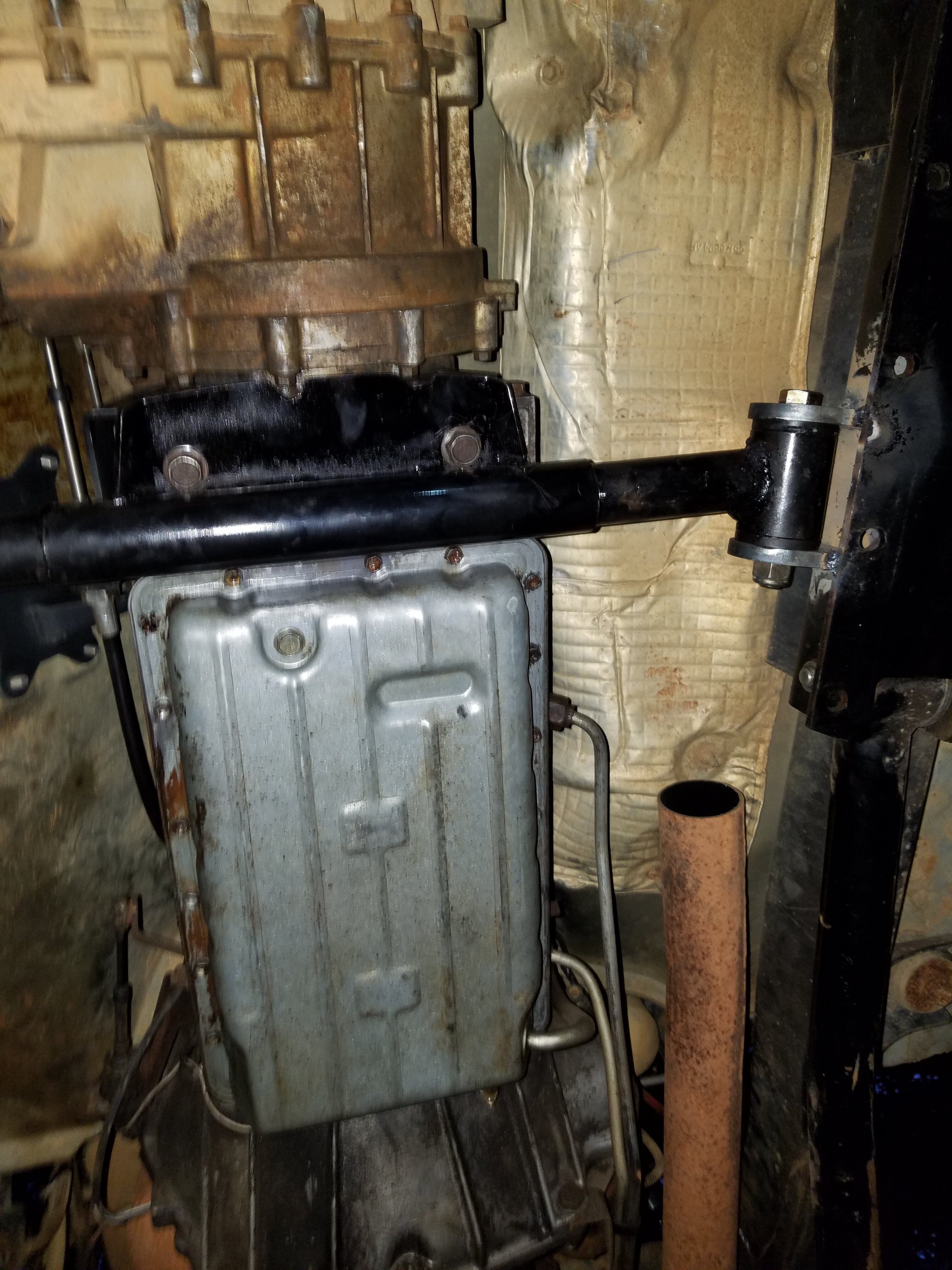

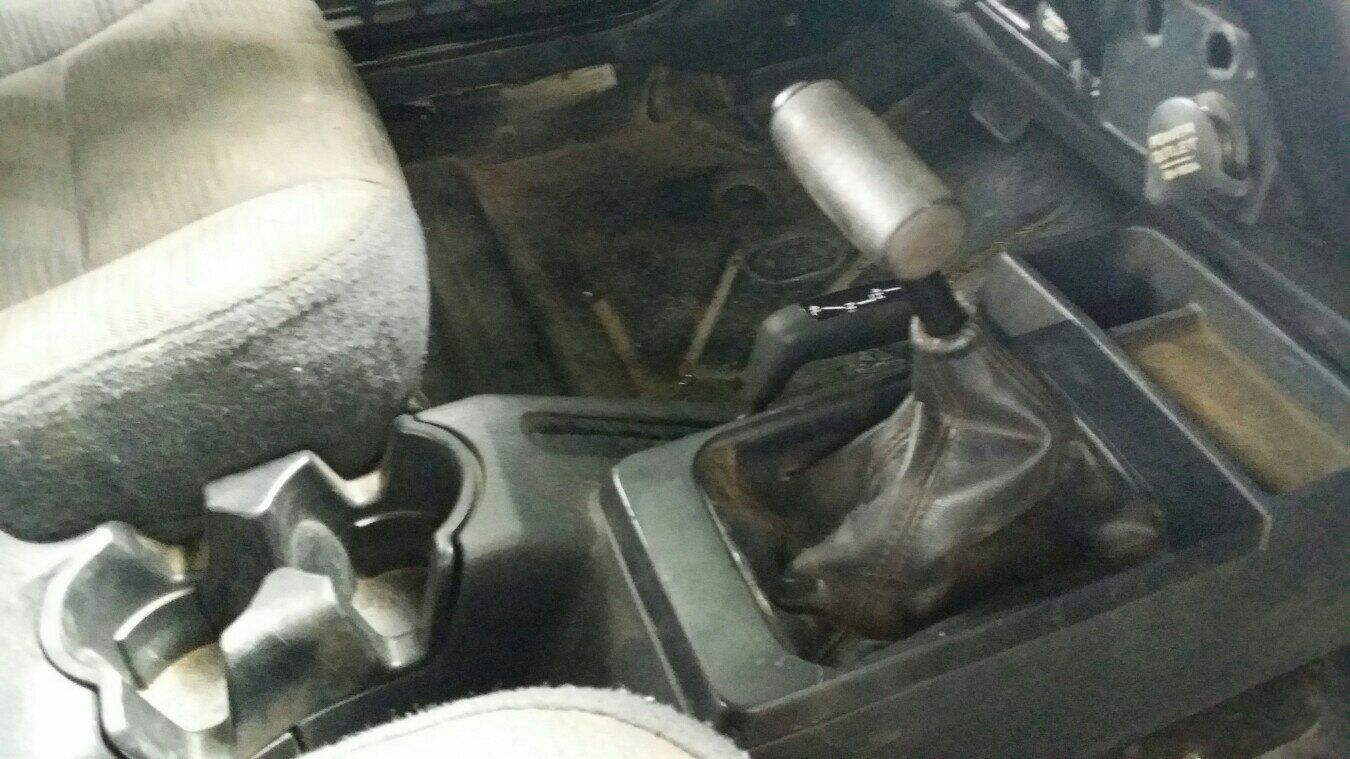

Swapped in an AW4, TCM and shifter out of and XJ. Reclocked the tcase by drilling a new set of hole in the aw4 trail shaft. Had to buy the crazy balancer to move the CPS to the front. Put together a cross member mount for the transmission so I can drop the belly pan without having to support the trans and tcase with a jack.


Attachments

  • 8uhuga5e.jpg
    266.2 KB · Views: 66
  • aputesa7.jpg
    151.3 KB · Views: 67
  • 39993746_10213118361295695_7422817786688176128_n.jpg
    71.3 KB · Views: 62
  • 20161009_192757.jpg
    1.5 MB · Views: 80

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga
Swapped in the pedal assembly from an XJ so I could get rid of the third pedal.


Attachments

  • 8u8ytuma.jpg
    158.9 KB · Views: 75
  • ypy4utuh.jpg
    230.9 KB · Views: 61

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

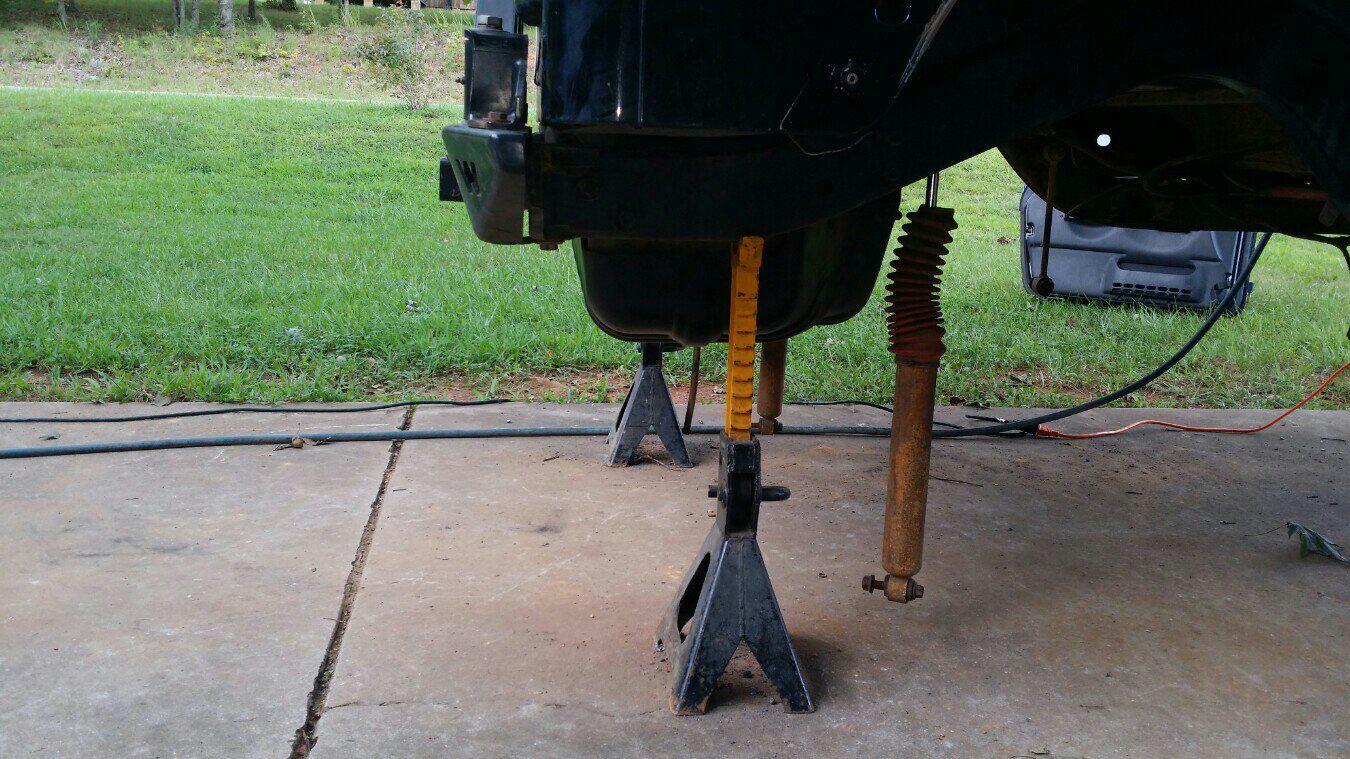

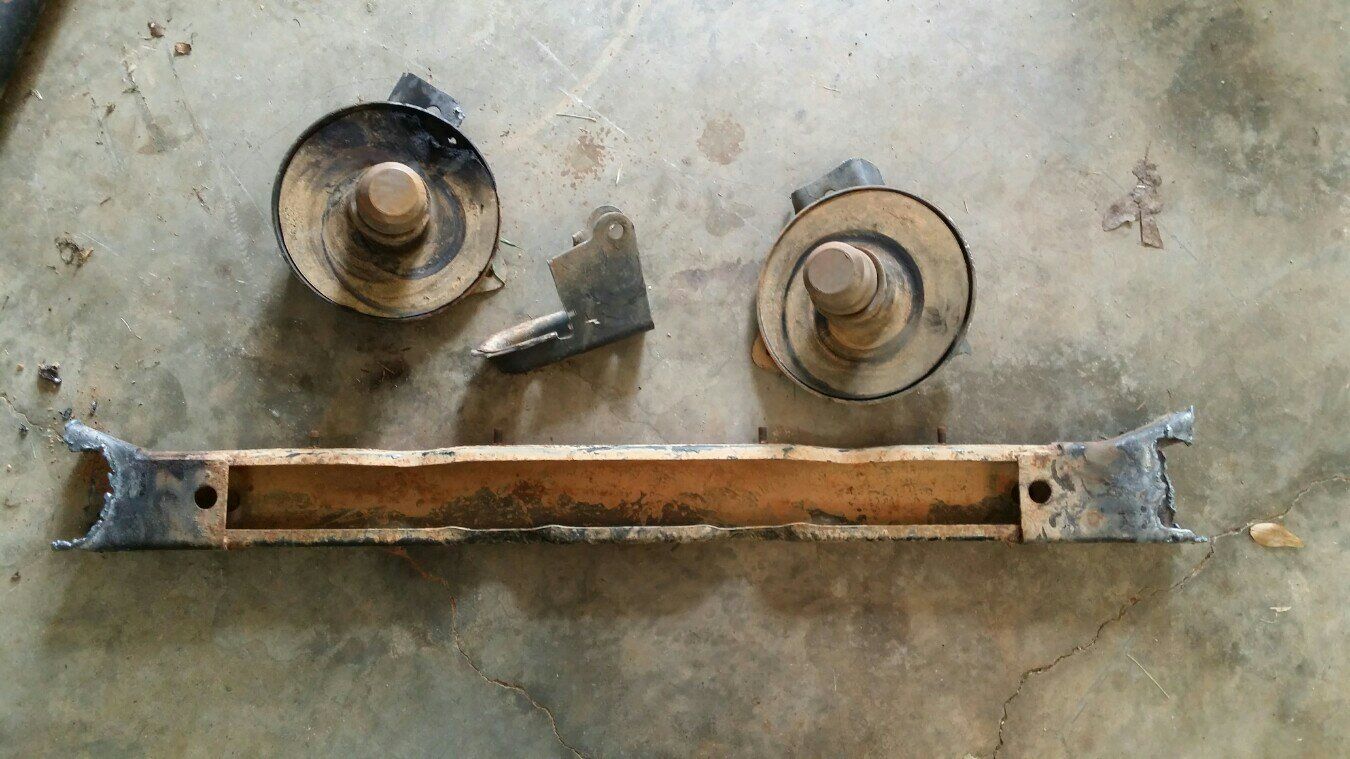

Had to remove some cross bracing in the rear and move the gas tank to fit the 10.5 and wb stretch I had planned. Just a little time and two nut serts and I was done.


Attachments

  • atutyvus.jpg
    171 KB · Views: 63
  • 8y6e3e7e.jpg
    225.4 KB · Views: 88

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

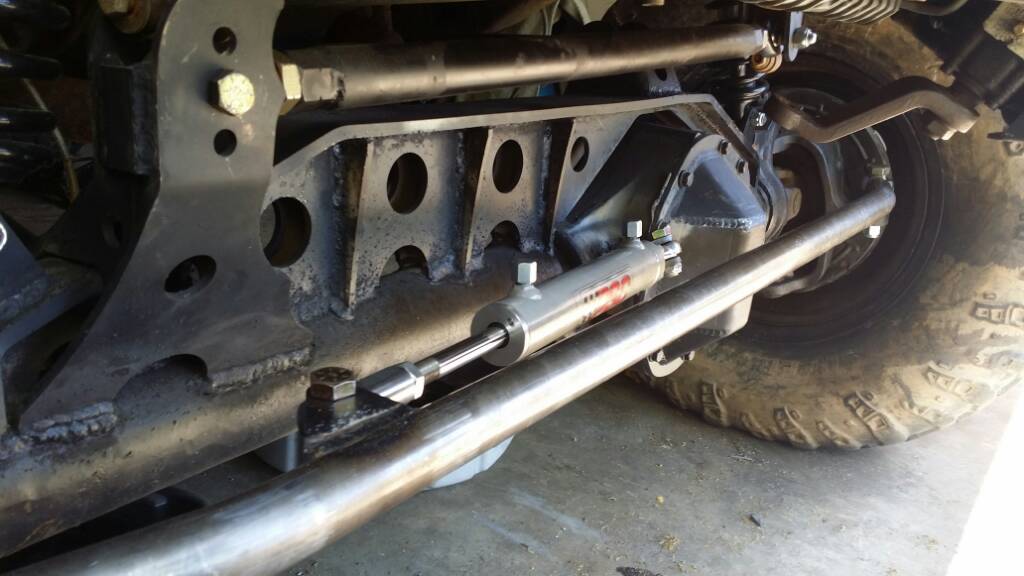

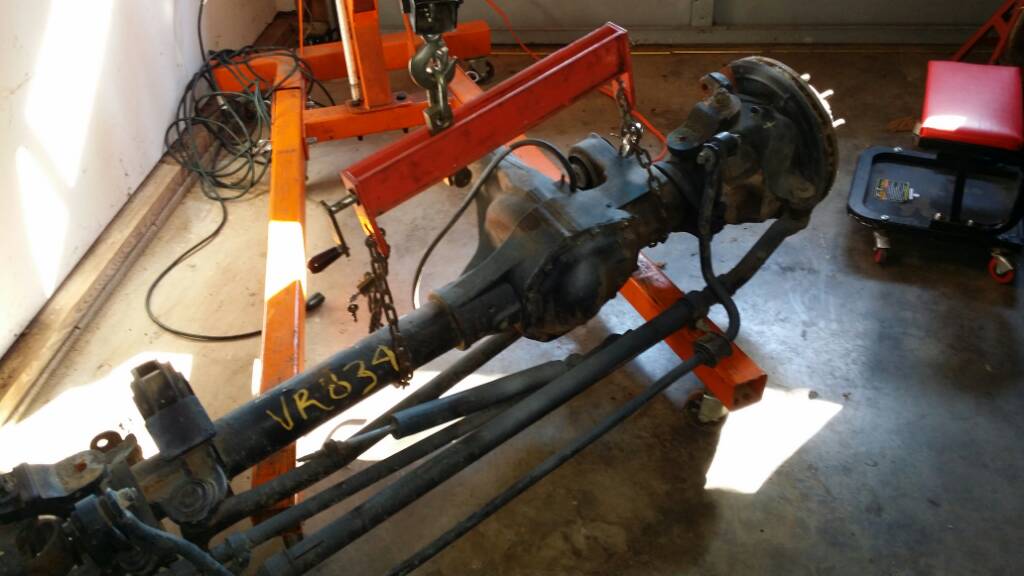

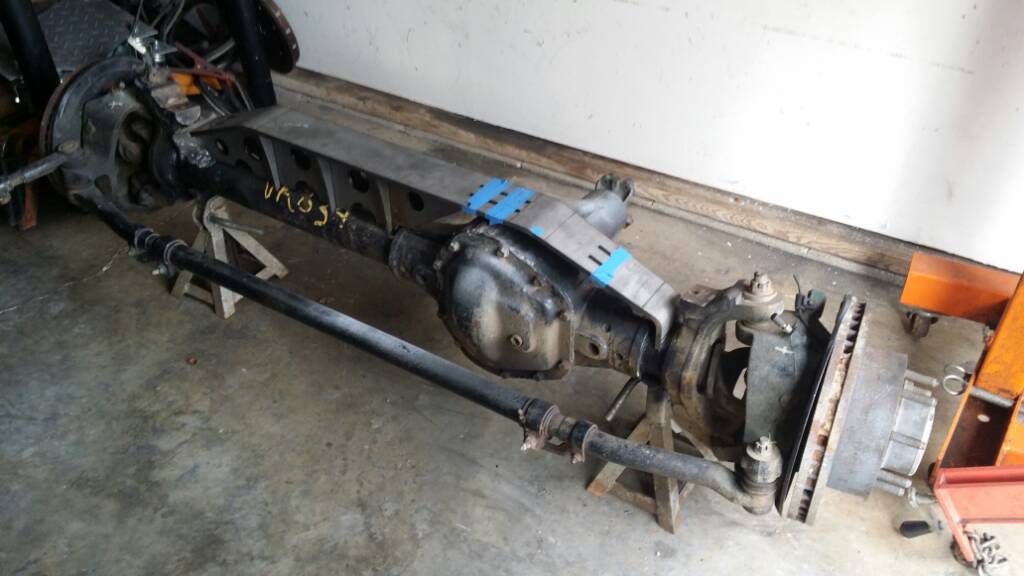

Finally got around to doing some work on the front axle. When I put the truss on the front nobody was making one for the TJ superduty swap so I had to get a tuss for a snow fight front and get creative with a grinder.


Attachments

  • 697c71ea53bc9716ed48e019aef35d69.jpg
    66.6 KB · Views: 64
  • c117b7eca0e1c87a2caf328dbc8021a9.jpg
    60.1 KB · Views: 86
  • 407763bfdc90a9c4bce3fdb1edcbad3c.jpg
    70 KB · Views: 62
  • 84a1814cc54fa300075efa1c56820a44.jpg
    65.7 KB · Views: 64

muddinmetal

Guntersville, AL
Joined
Jan 9, 2012
Messages
6,389
Location
Guntersville, AL
Thank you so much for posting this! And "they" said this forum was "unusable"

It is so cool to see the slow transformation over the years with such good narration and documentation


lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

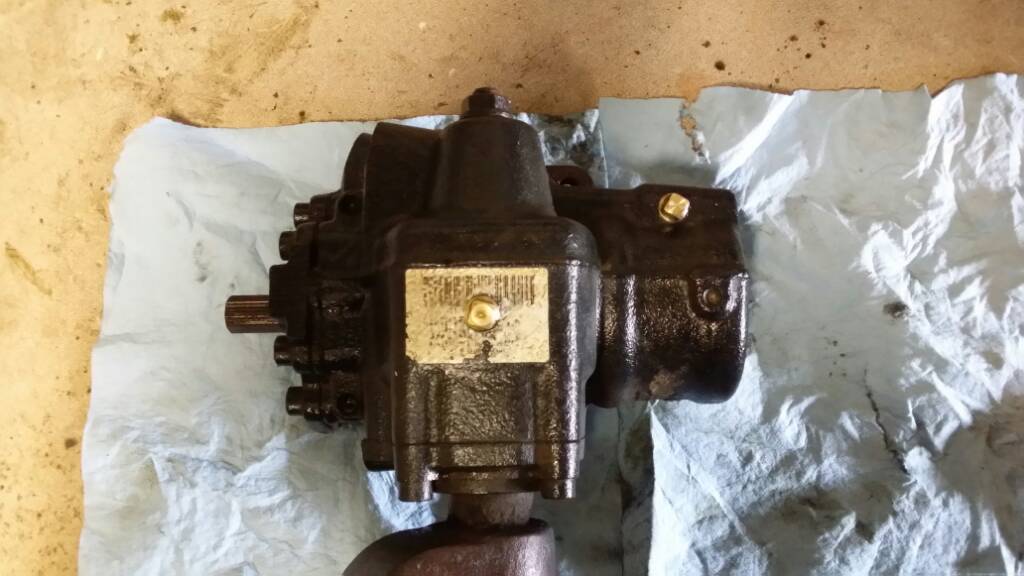

First, go around I drilled and tapped the stock mercedes steering box for hydro assist. I had a 50/50 chance of my mercedes box working without any problems on the road at highway speed and I lost that coin toss. It worked great on the trails but was twitchy and scary on the road.


Attachments

  • 28e634fed6736aff3e022c2f518e9af3.jpg
    67.6 KB · Views: 68

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga
muddinmetal said:
Thank you so much for posting this! And "they" said this forum was "unusable"

It is so cool to see the slow transformation over the years with such good narration and documentation

This is the 3-4 time I have tried to post a build thread, I am really glad it's working today.


lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

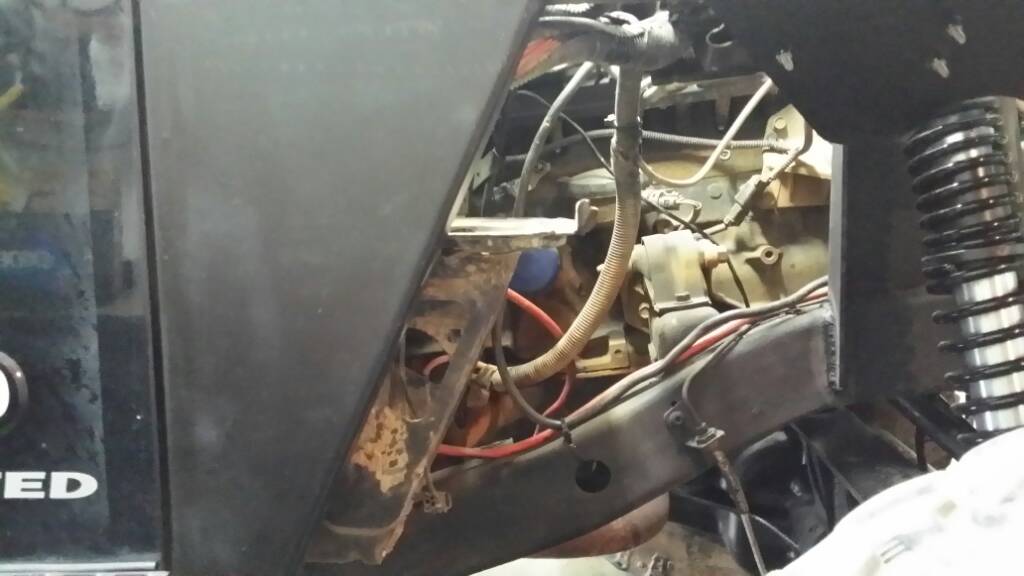

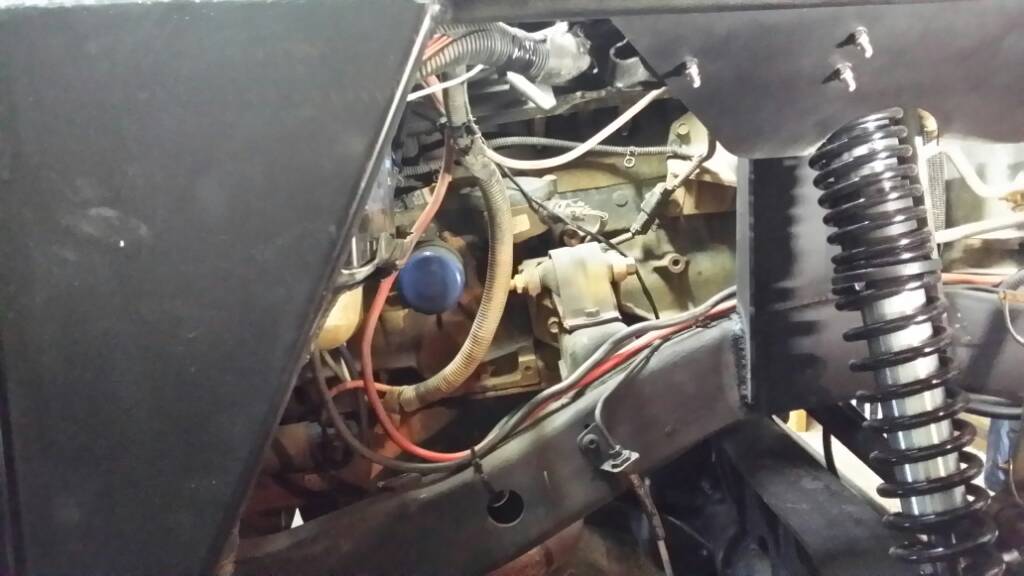

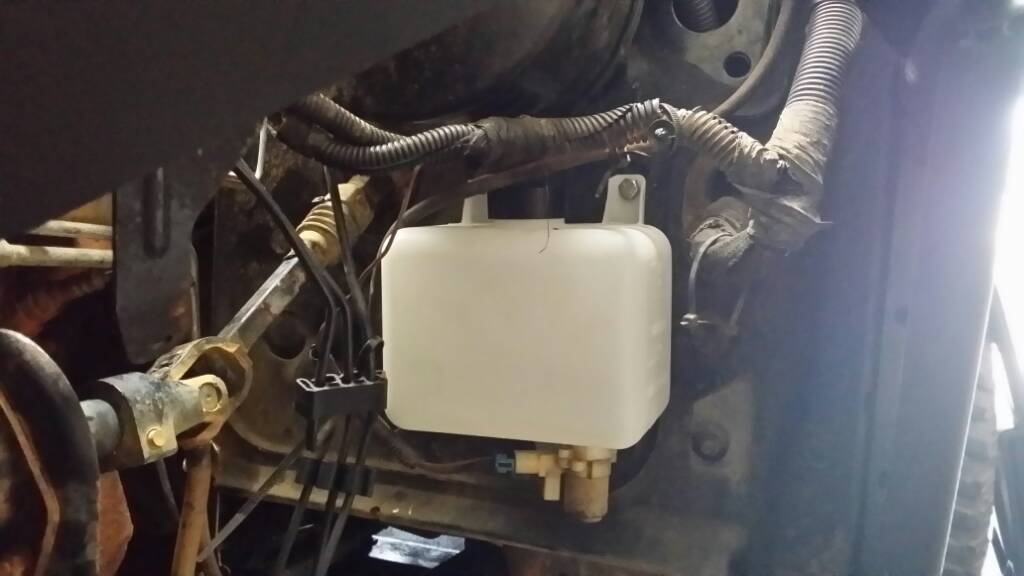

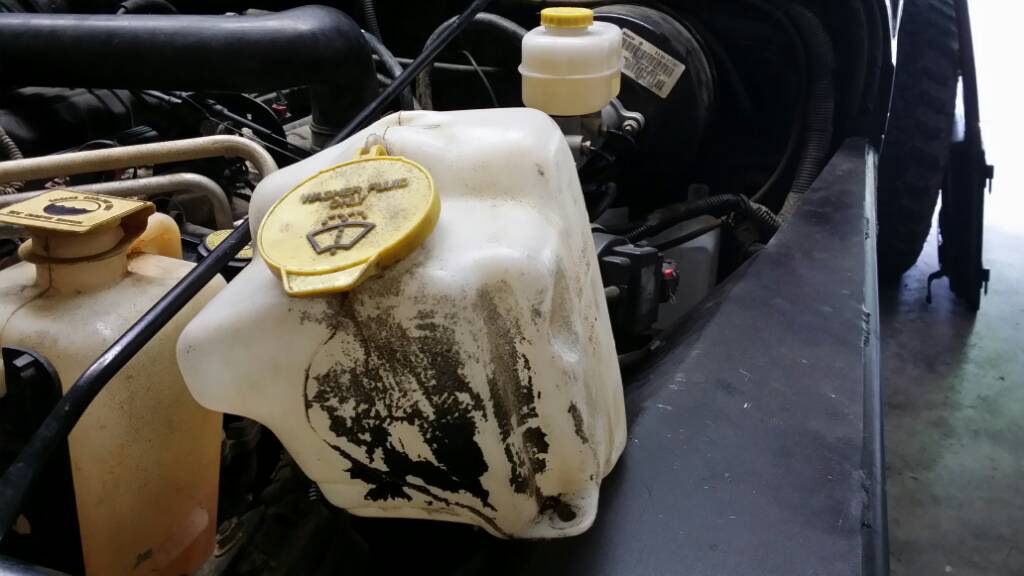

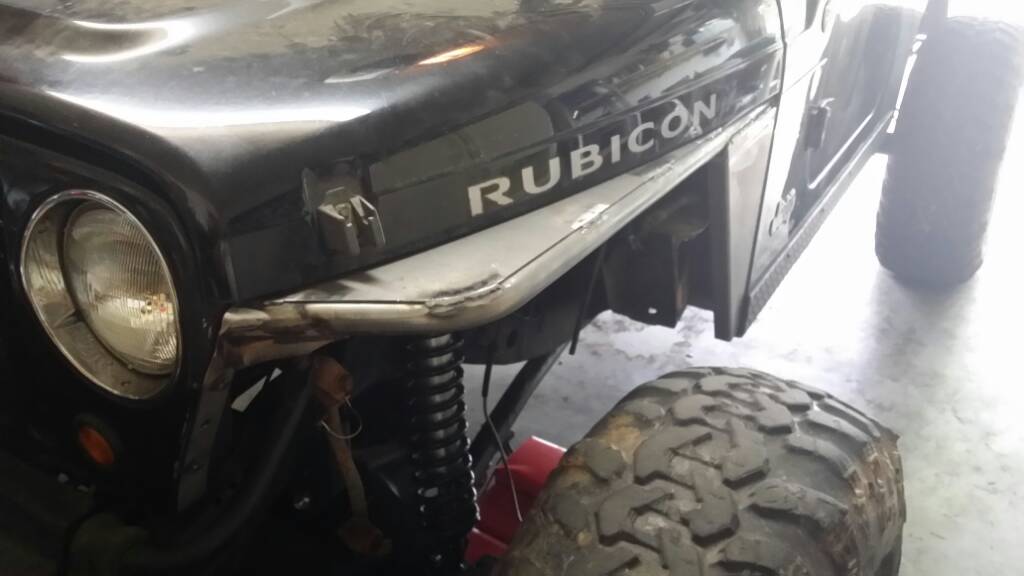

Picked up some DIY front fenders. got them together and had to trim the battery box and replace and relocate the windshield washer tank


Attachments

  • 769c431149b0a015040091a179a09b16.jpg
    60 KB · Views: 77
  • 17bc00c768a77fca84220e4511a7e0d7.jpg
    53.1 KB · Views: 55
  • d4968efb50bc679fac43ead0f1f162e3.jpg
    45.9 KB · Views: 55
  • 854487f38df6221d114206e08032cce9.jpg
    59.3 KB · Views: 57
  • 7e606f33d72d5ea3caf434964d2b179c.jpg
    49.5 KB · Views: 61

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

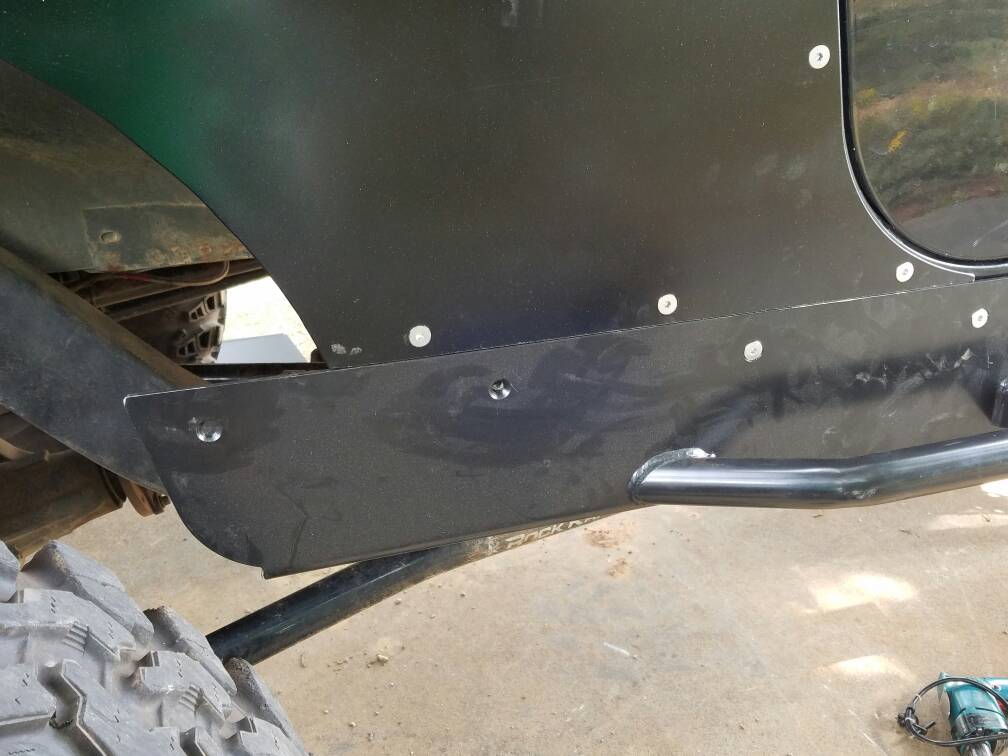

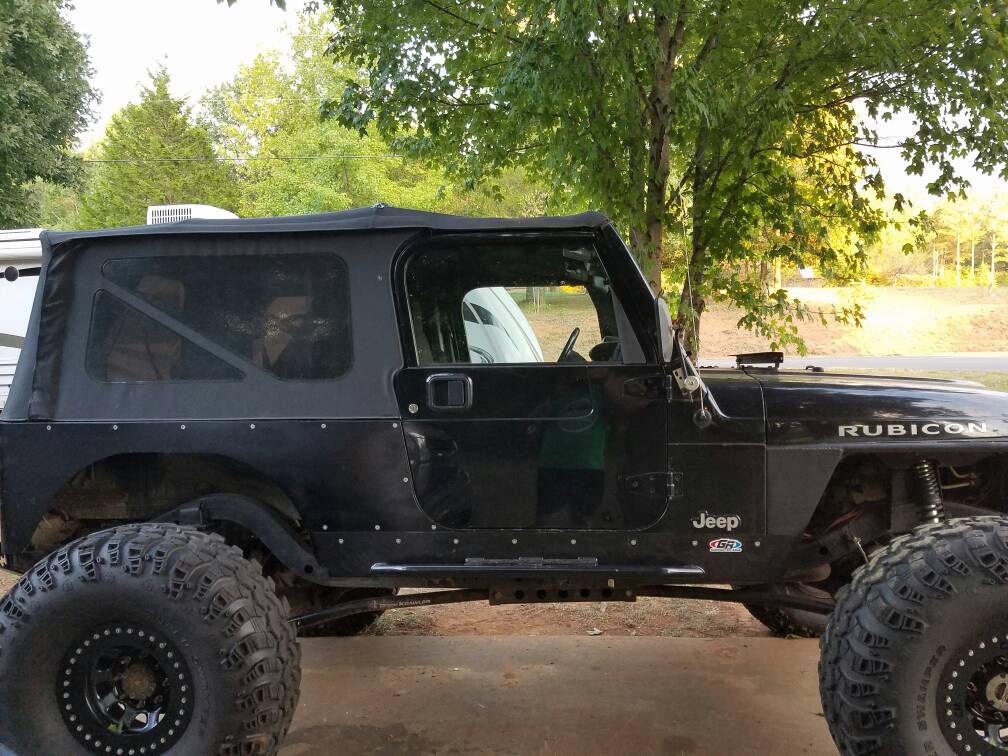

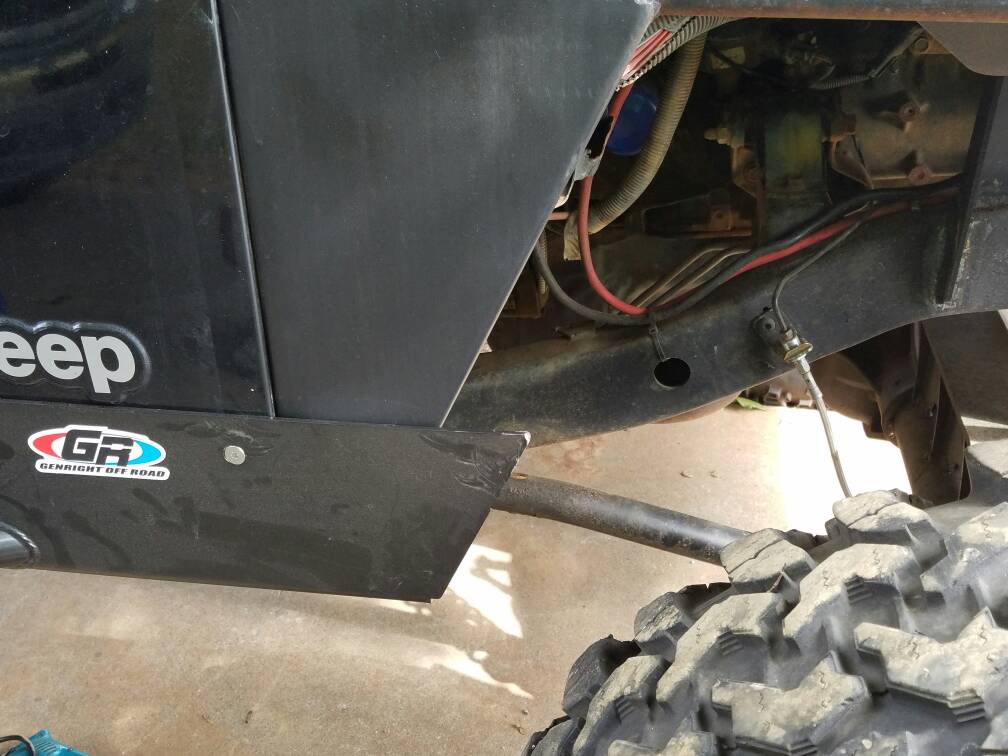

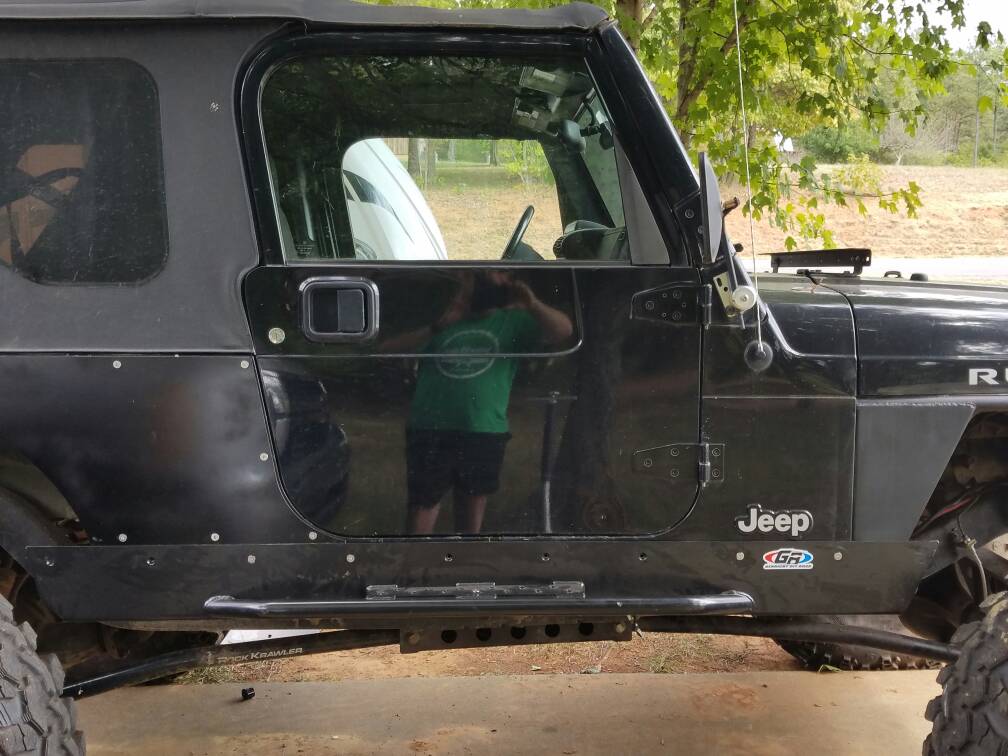

Added some armour to the old girl because I like them with a little meat on the bone. Picked up some rear blanks and made the wheel opening to fit my stretch. Also had to trim a little off the front to make it look right with the DIY fenders.


Attachments

  • 6277a01391ff380bc54fd3e211a5de08.jpg
    133.4 KB · Views: 82
  • 31ab59b3dc8e26bb00bda6ac38aa430b.jpg
    84.4 KB · Views: 66
  • 18b6708dca9a993c89c49ac783c3393c.jpg
    73.1 KB · Views: 62
  • 7dbad5c1bf6d835b32261ee7fa374e44.jpg
    96 KB · Views: 57

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

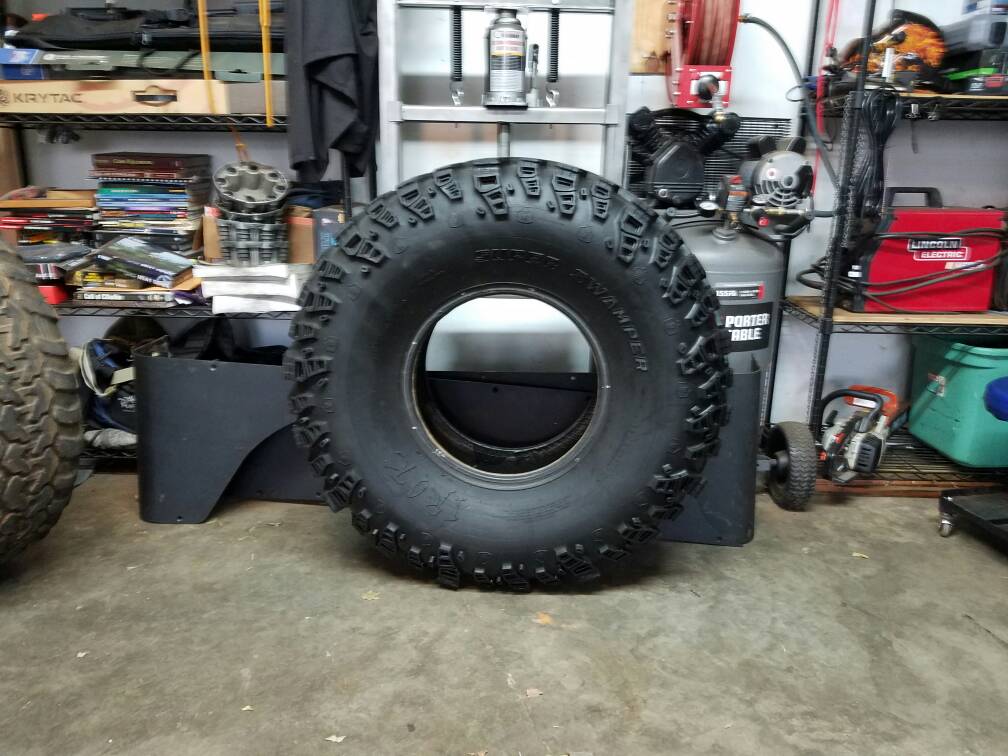

I stumbled upon 5 new 42's for next to nothing. I know Iroc's are not everyone's first choice but they have worked well for me so far.


Attachments

  • 8c45b541d46afc8cd4fa105a55d6c8d9.jpg
    105.6 KB · Views: 61
Last edited:

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

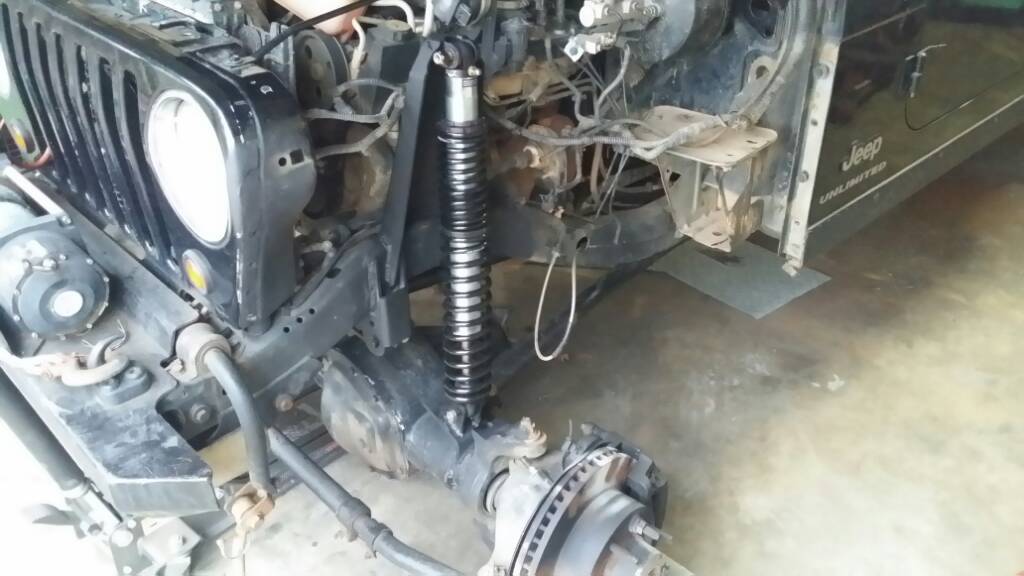

I should have put a disclaimer at the begining of this thread about things being a little out of order and this being a crappy build thread. I added some coil overs to the front.


Attachments

  • f47d4734f3f6494f25e685c3519cc3ff.jpg
    66.5 KB · Views: 59

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

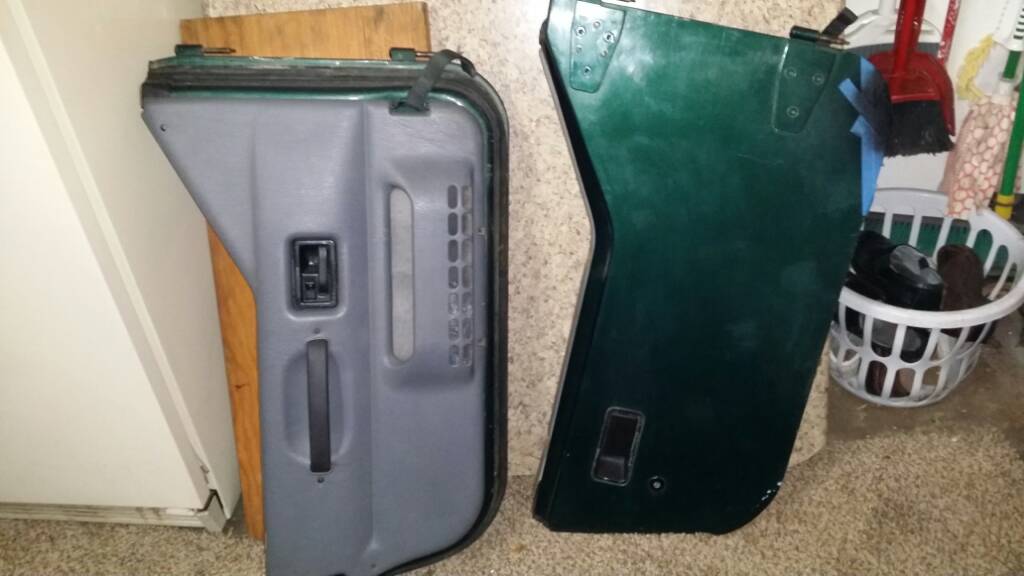

I picked up a set of half doors for $100 and with a quick color change, they are perfect for the trail.


Attachments

  • a1eae66c731425a710da68696d35e68d.jpg
    55.3 KB · Views: 65

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

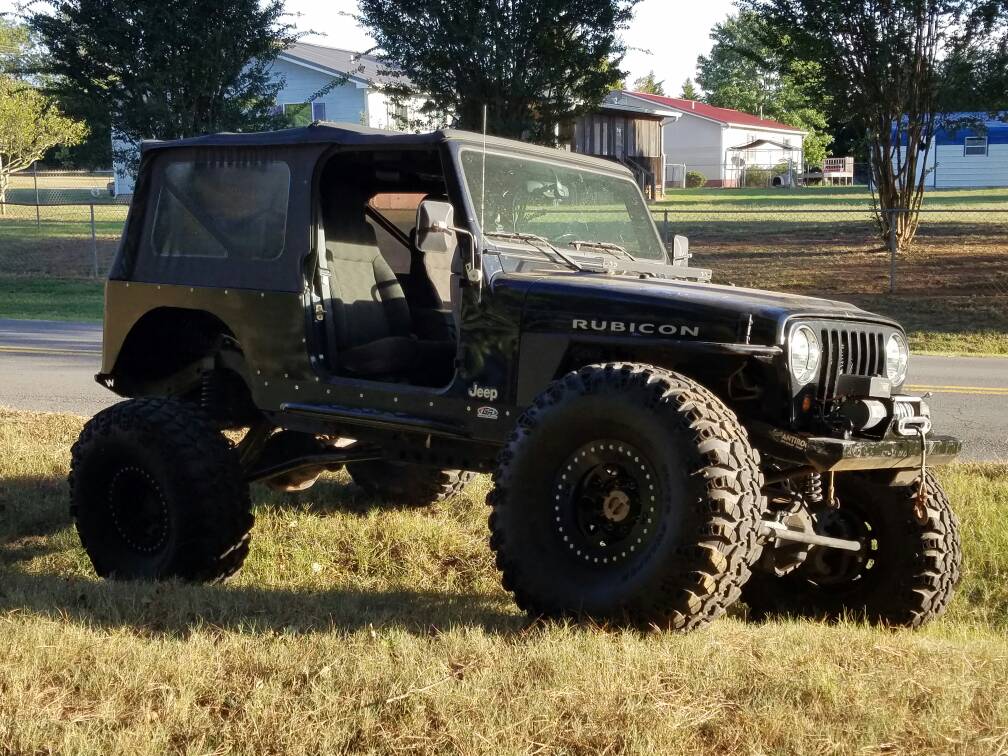

Build ended up coming out with a WB over just over 110" on a 3 link front and 4 link rear.
Hydro assist.
Coil overs on the front with triple rate coil springs in the rear.
5.13 gears in the D60 and 10.5.
I still had AC\Heat, cruise control and the transmission shifted like it was factory. But the steering was twitchy on the road.

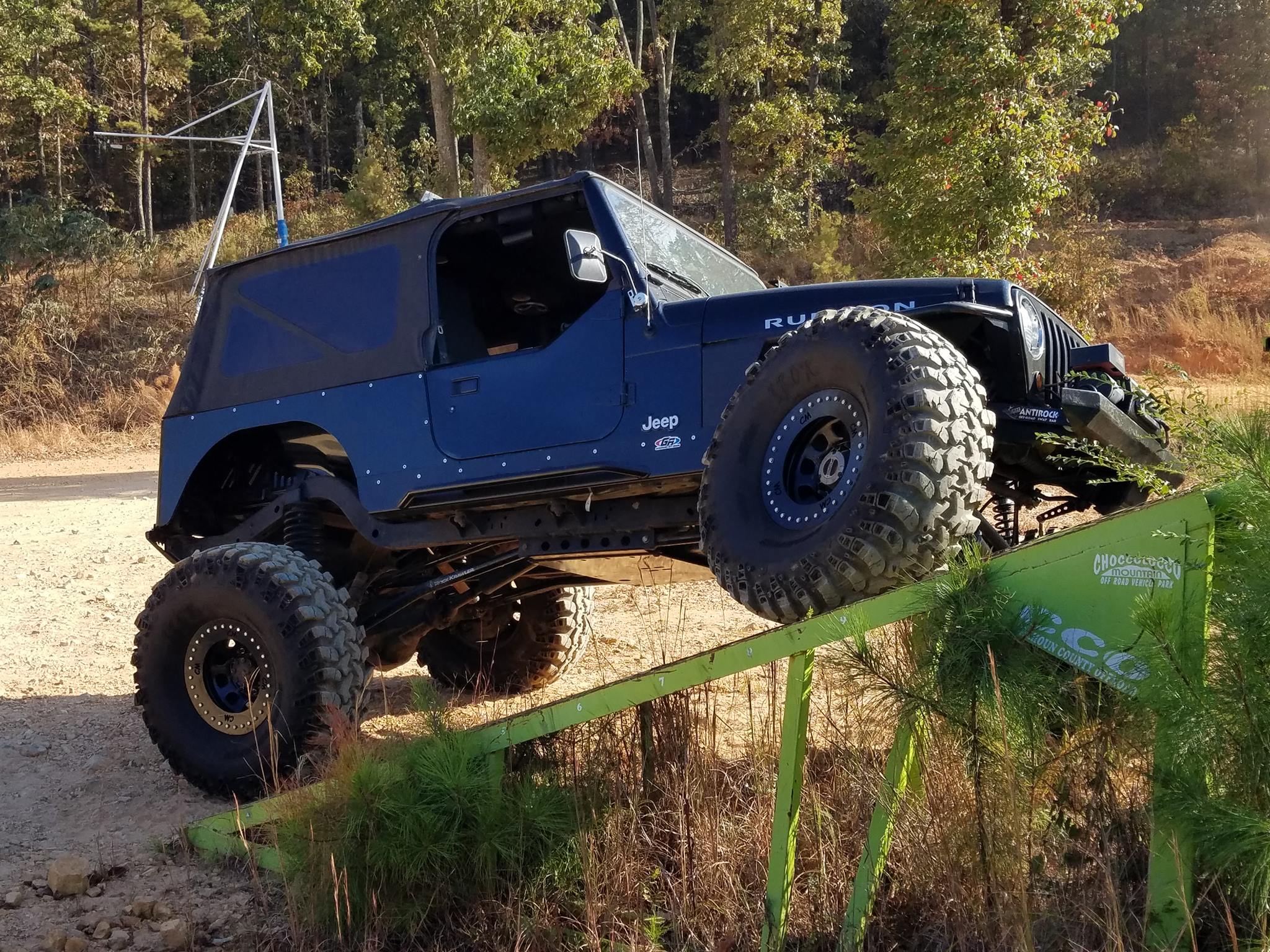

Took it to Choccolocco for the shake down run.


Attachments

  • 7e4030c393b21986831af18532d02f7d.jpg
    173.2 KB · Views: 69
  • LjFlex.jpg
    644.2 KB · Views: 71

lt99ls1

Well-Known Member
Joined
Aug 16, 2011
Messages
209
Location
Dalton Ga

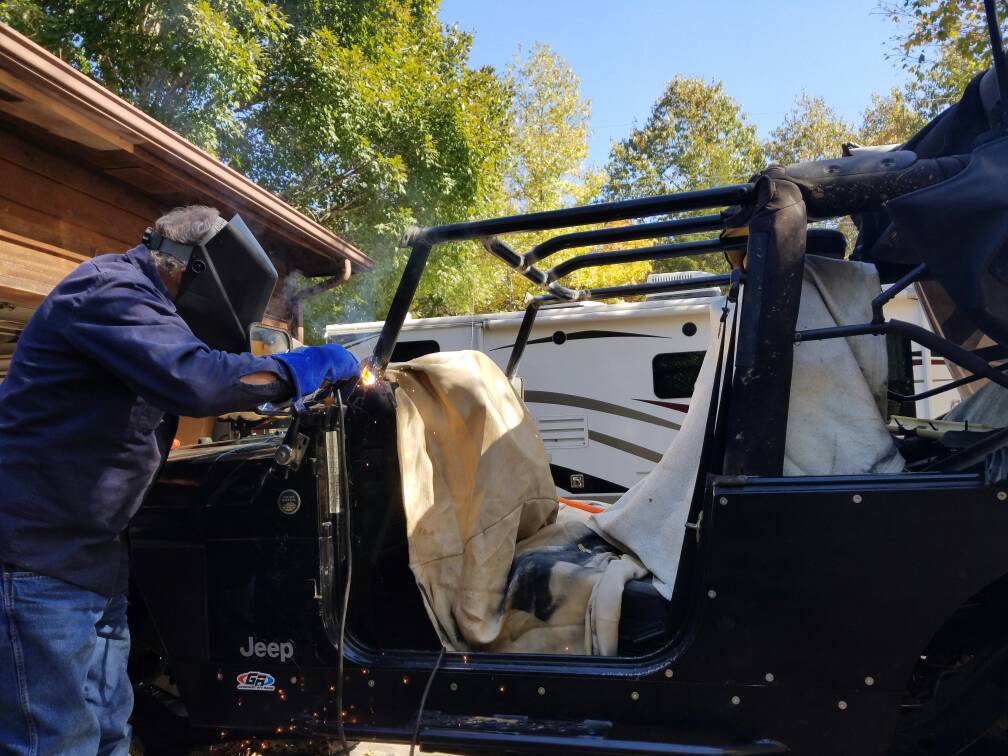

Got a little brave on the first run and decided I need to add a little more protection in the form of add on front cage.


Attachments

  • e5086193eb5741af135ae8069a6713d0.jpg
    114.6 KB · Views: 72
