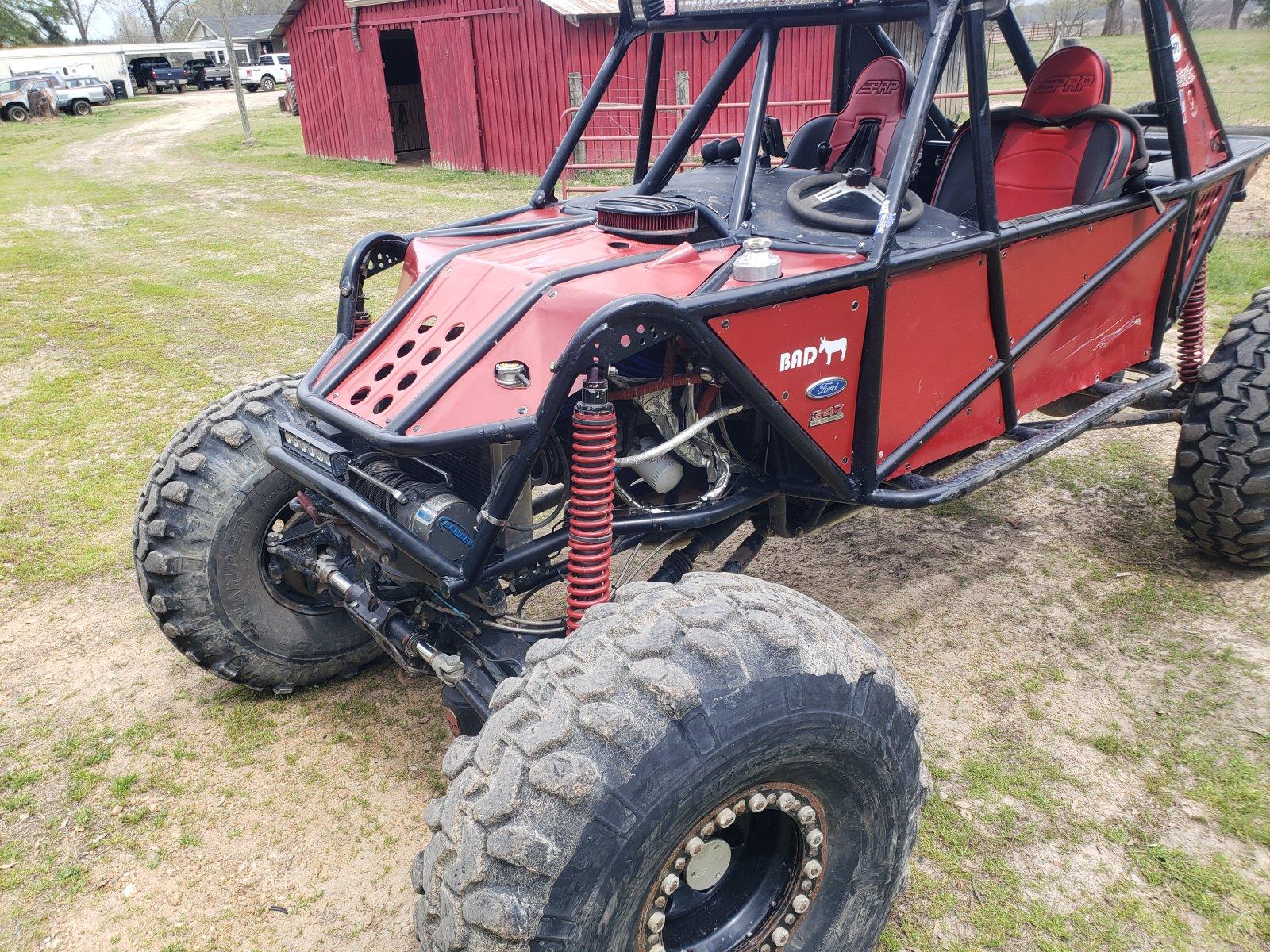

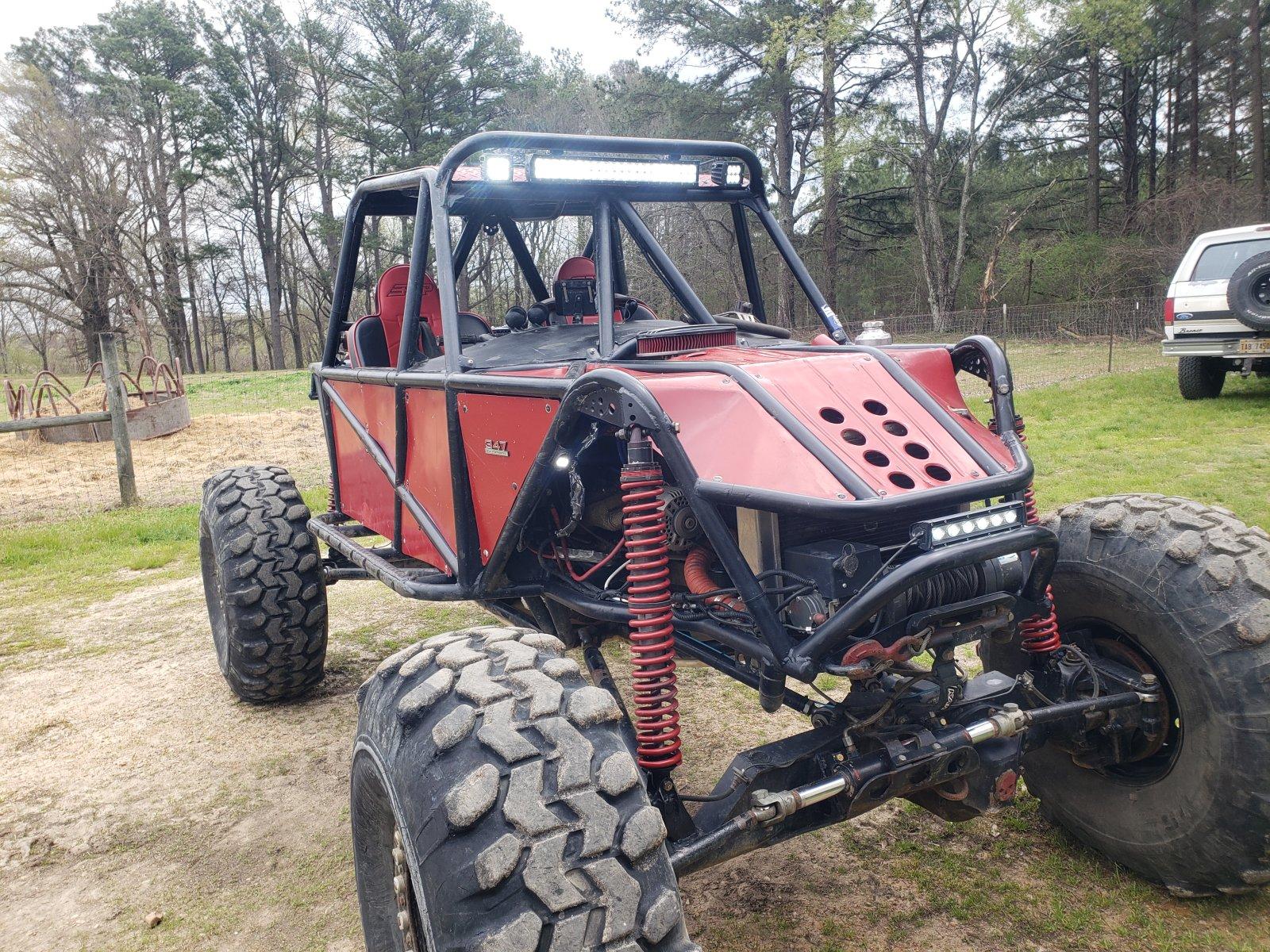

For Sale TUBE CHASSIS ROCK BUGGY

[bronco69drp]

Location: north Mississippi

Price: 35K

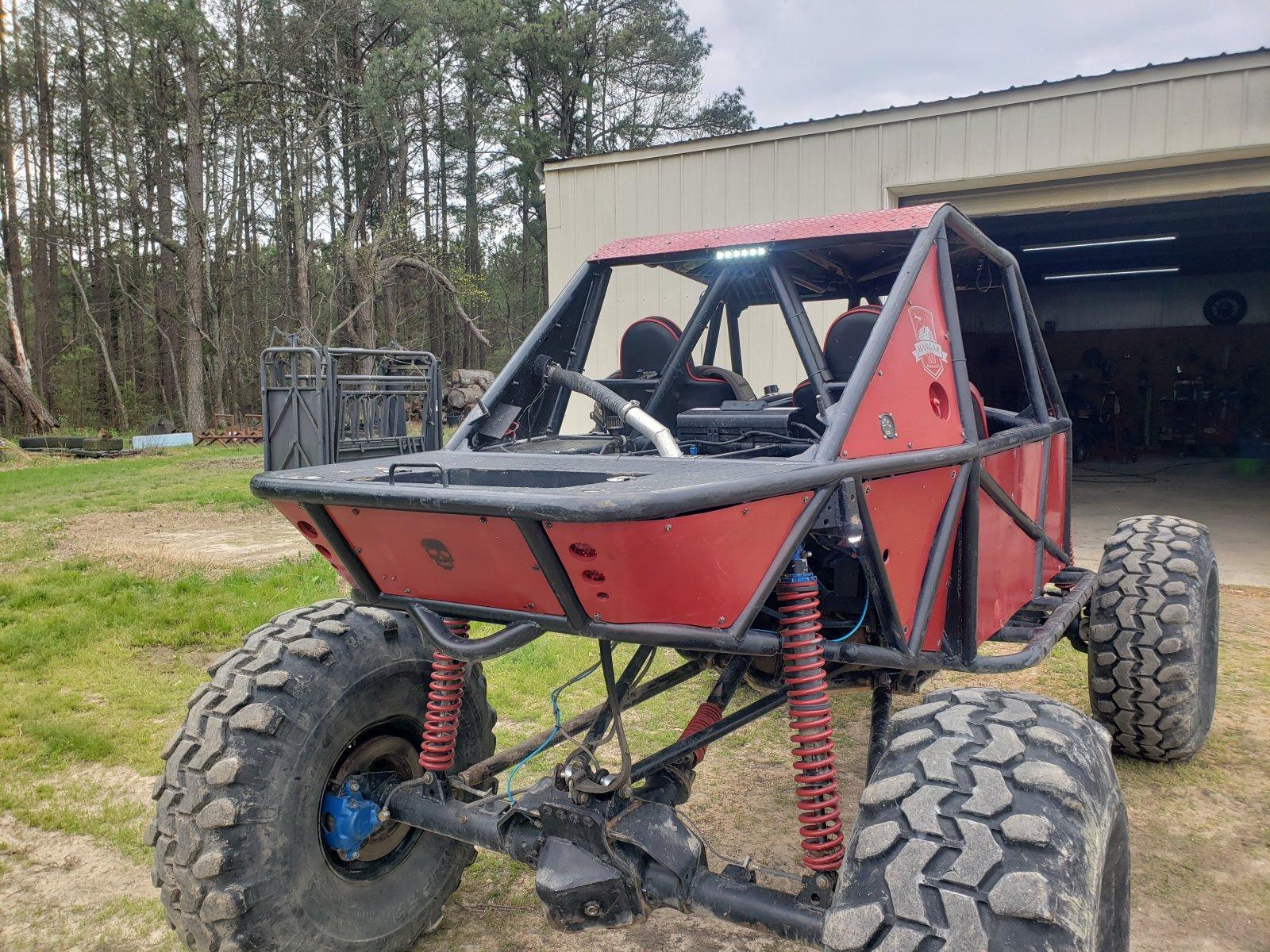

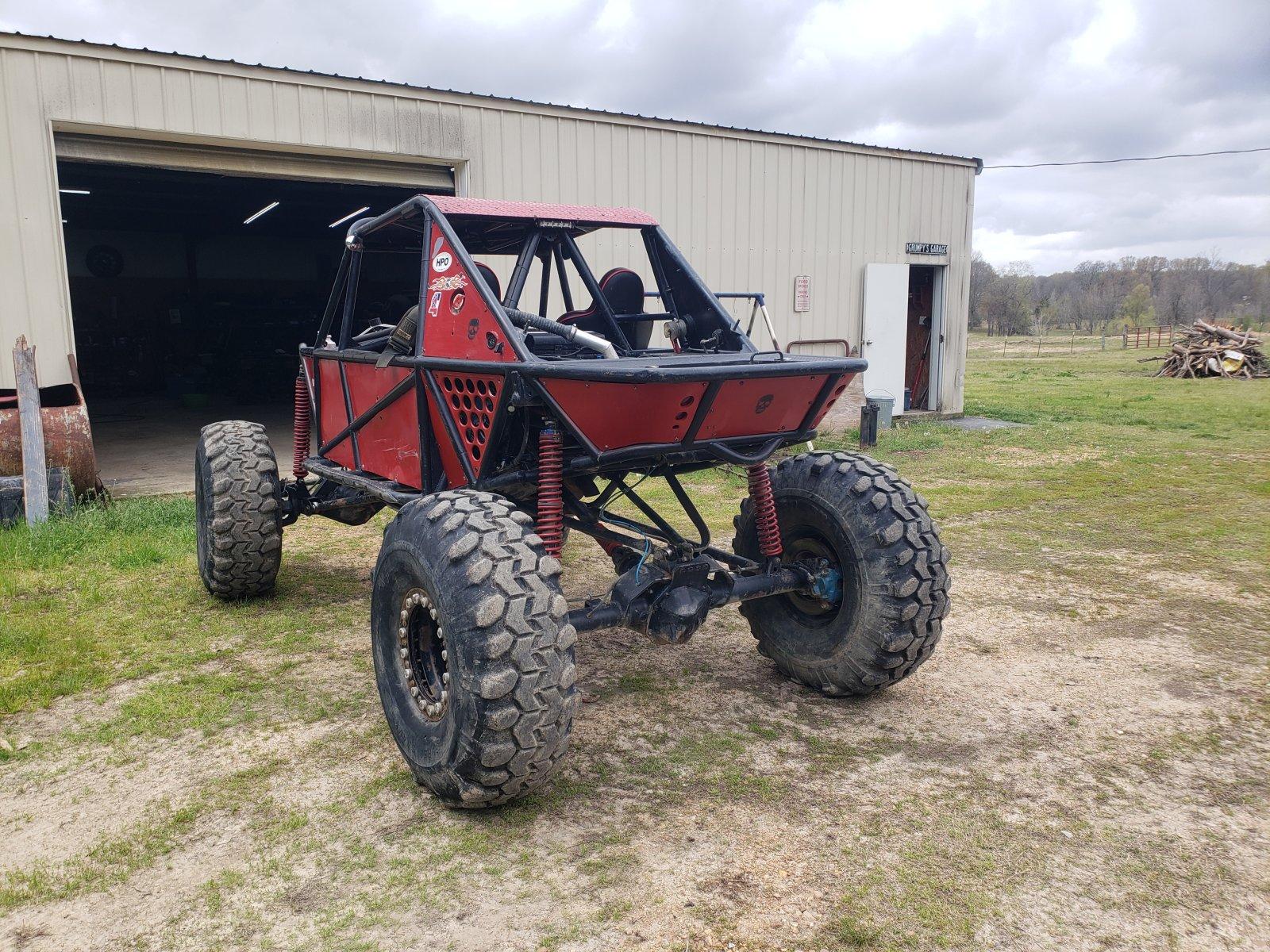

Trail ready crawler built with comfort & drivability in mind.

Comfortable to just trail ride in all day with the performance to tackle any hill or obstacle.

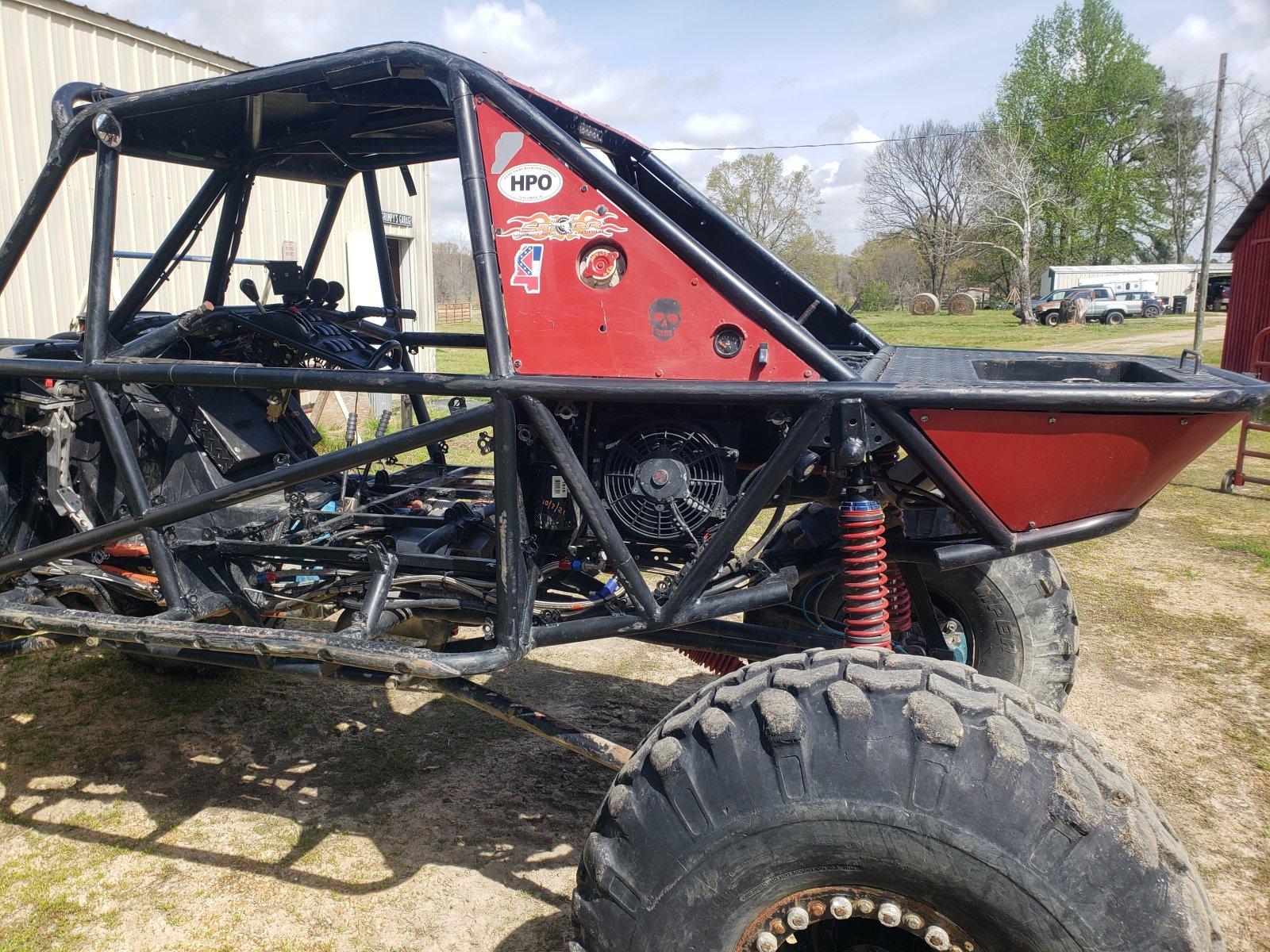

Full tube chassis(1.75 od/.120 wall)

Chromoly links(heat treated)

42" tsl's on steel beadlock wheels

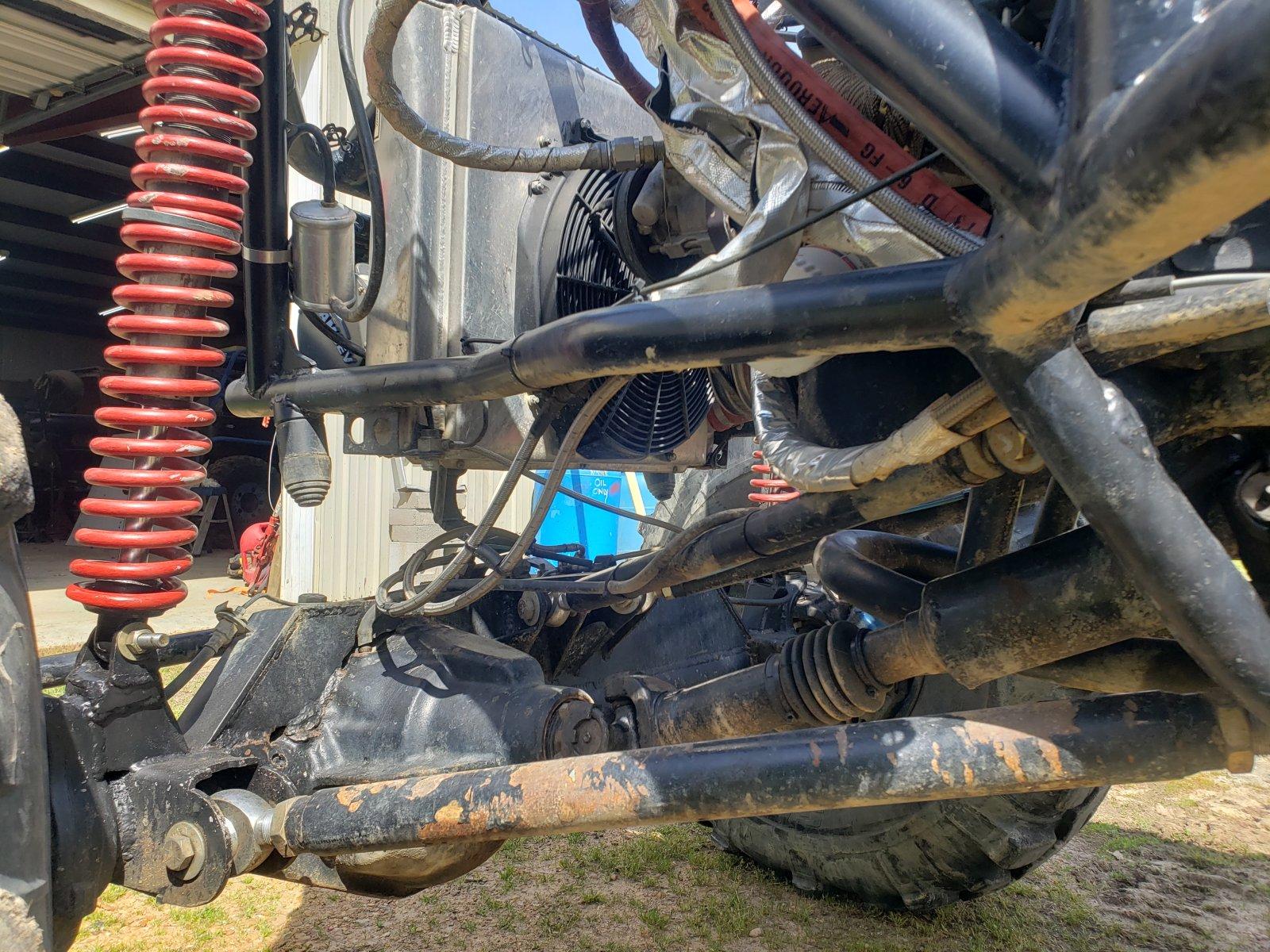

Hi-pinion front d69 with 35 spline chromoly axles & drive flanges

Rear d60 with chromoly 35 spline axles

Front & rear ARB lockers

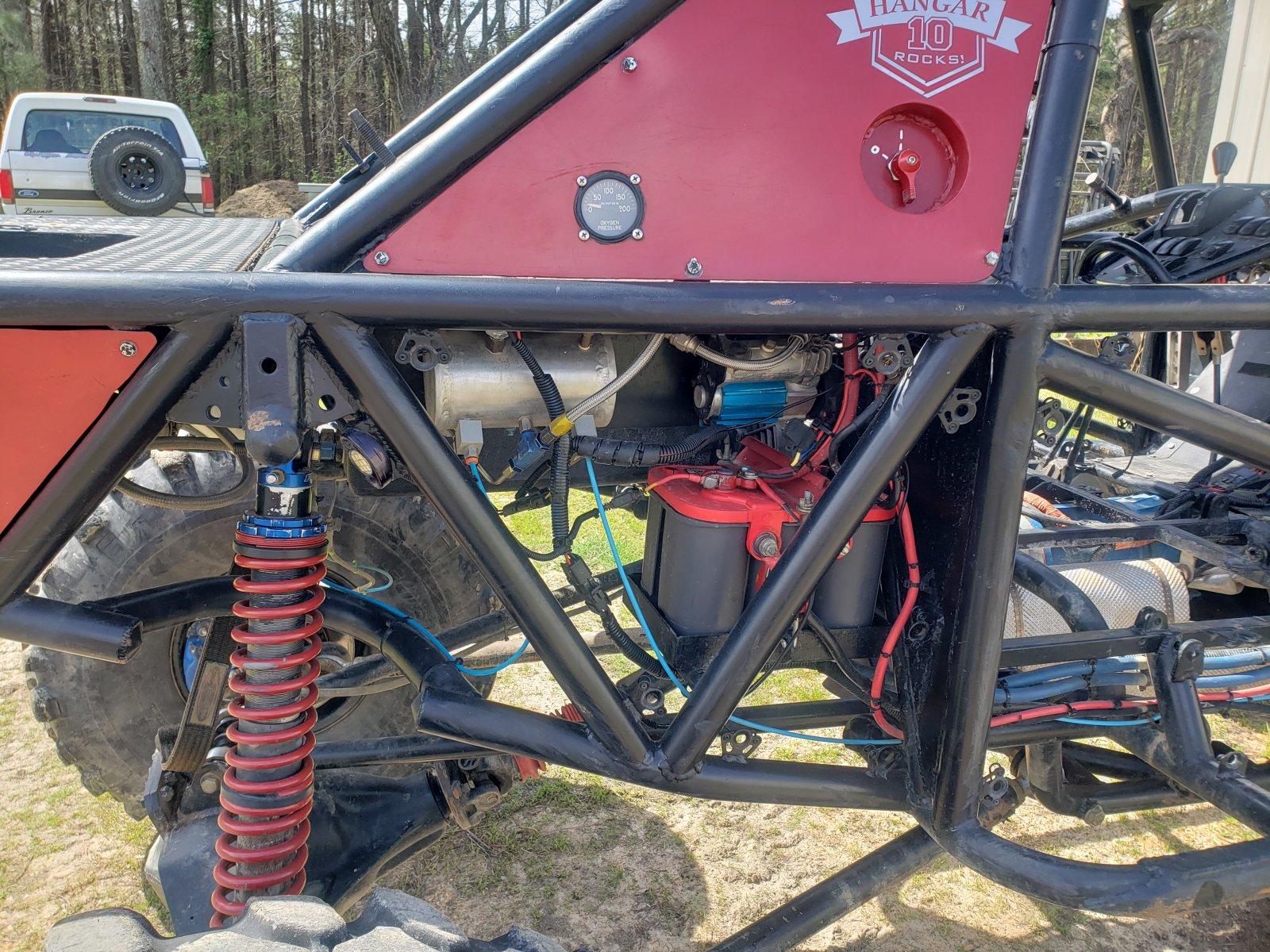

ARB compressor & tank

5.38 gears

Hydraulic steering

4 wheel disc brakes

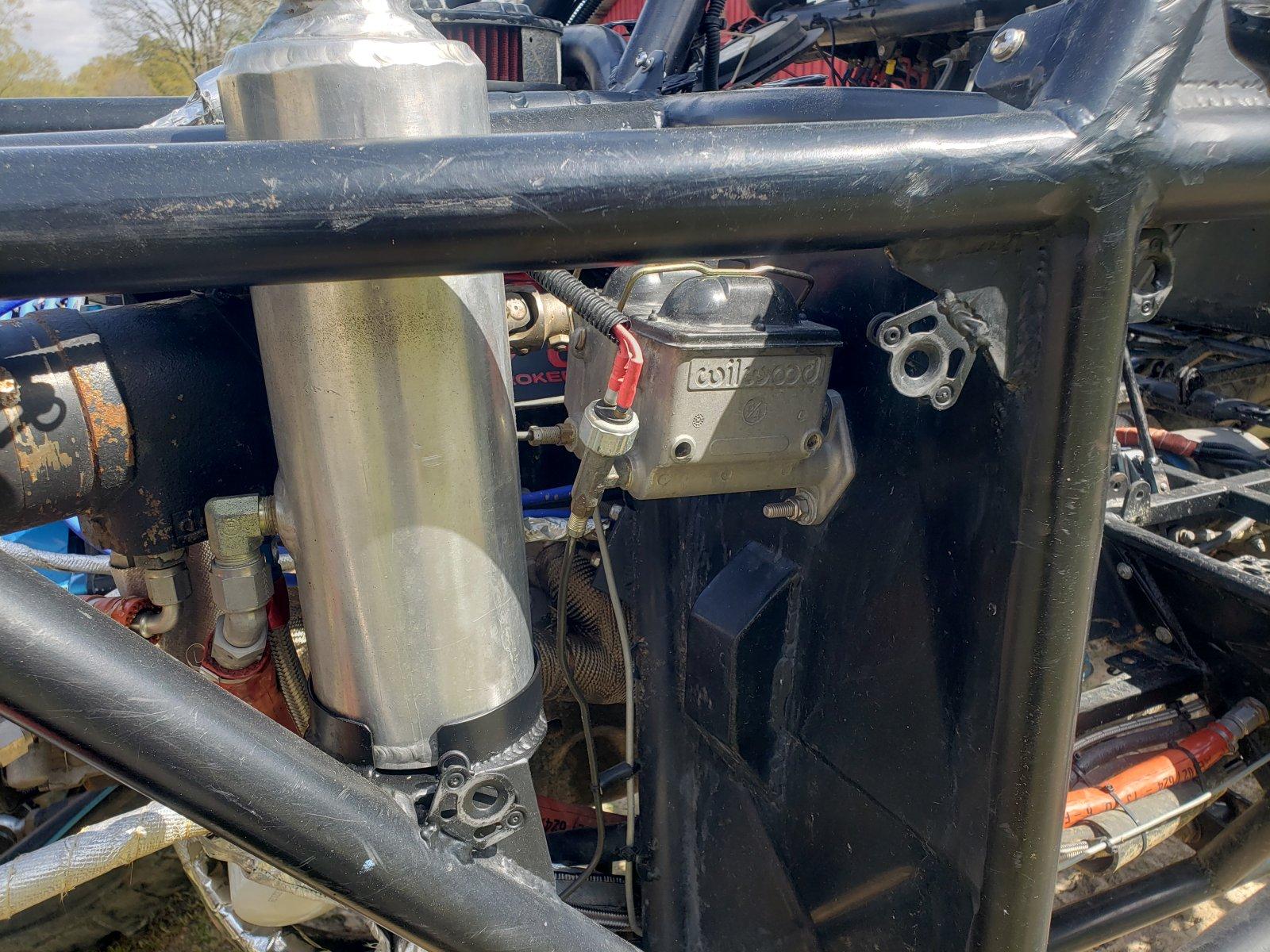

Dual(front/rear) wilwood master cylinders

Fox 2.0 dual rate coilovers

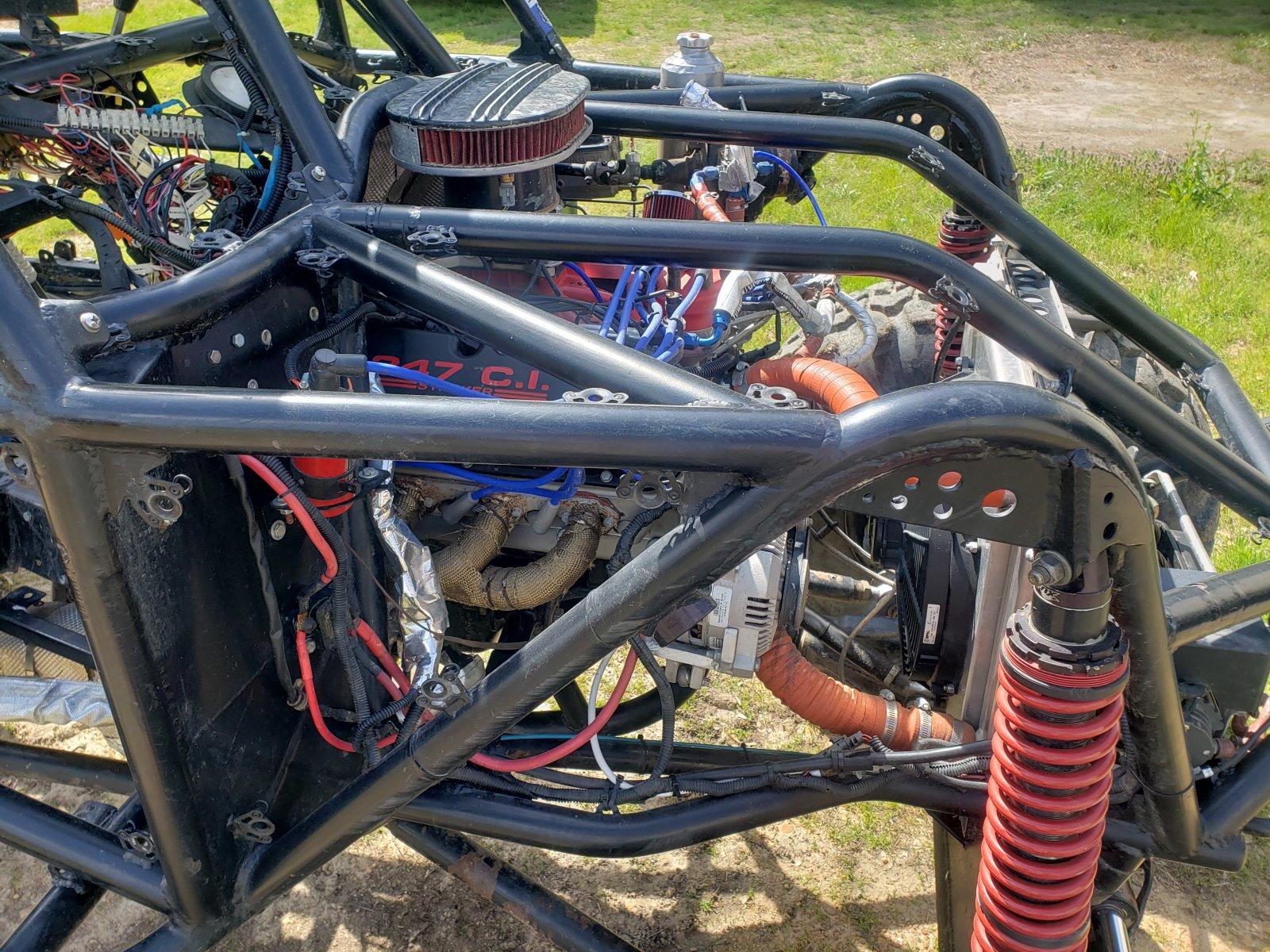

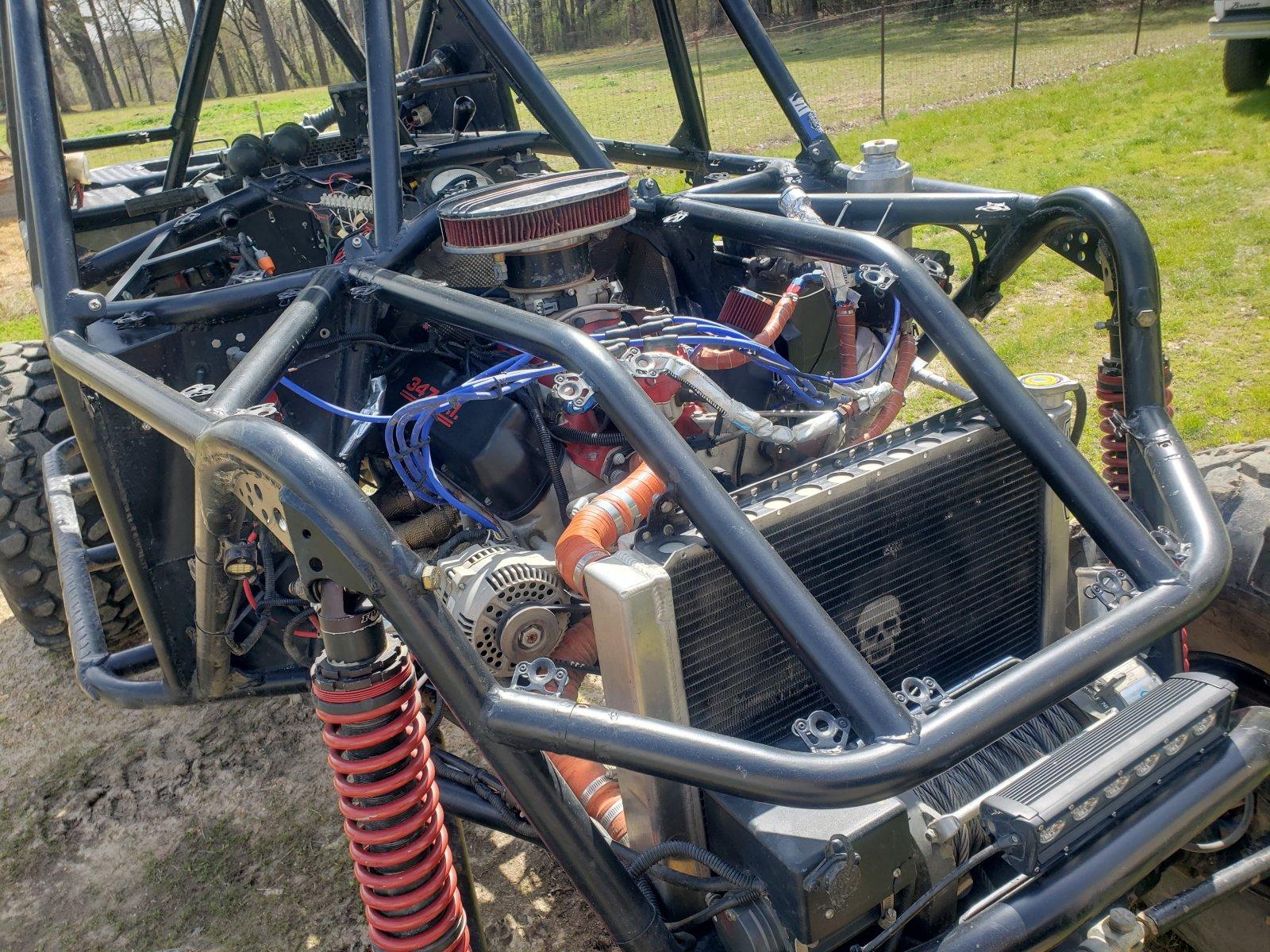

Ford 347 stroker blueprint crate engine

HP & Torque: 415 HP / 415 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .543 Intake / .554 Exhaust Lift and 218 Intake / 226 Exhaust Duration @ .050 - 112° LSA

Pistons: Forged

Crankshaft: Steel Crank - 3.400" Stroke and Forged 5.400" Rods

Edelbrock pro flo 4 efi system Self learning or fully tunable without a laptop.

Aluminum radiator with spal electric fan

Electric water pump

2 external transmission coolers with electric fans

External engine oil cooler with electric fan

C6 transmission with art carr shifter

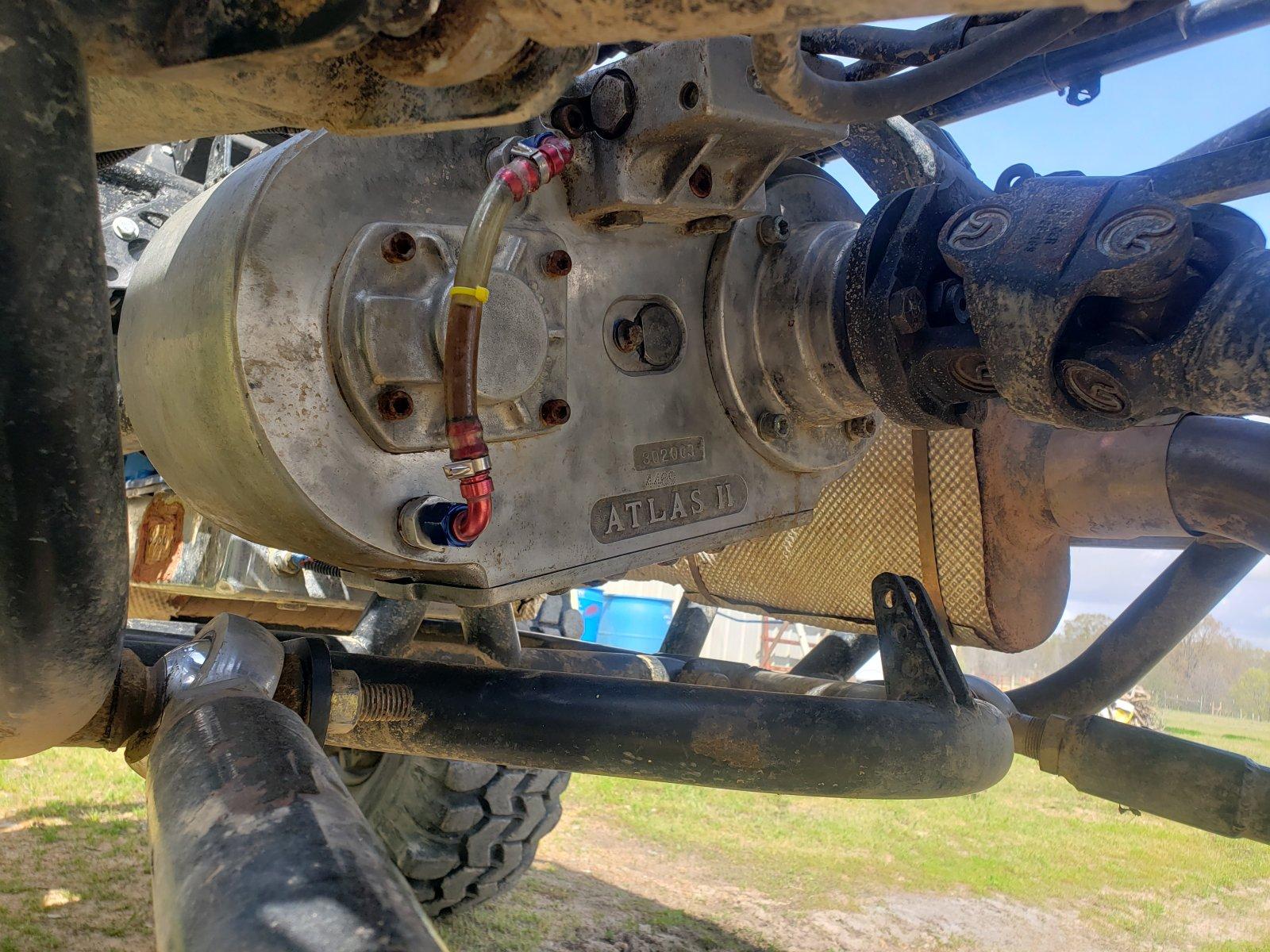

Atlas II 3.8 ratio transfer case

Ramsey 9k winch

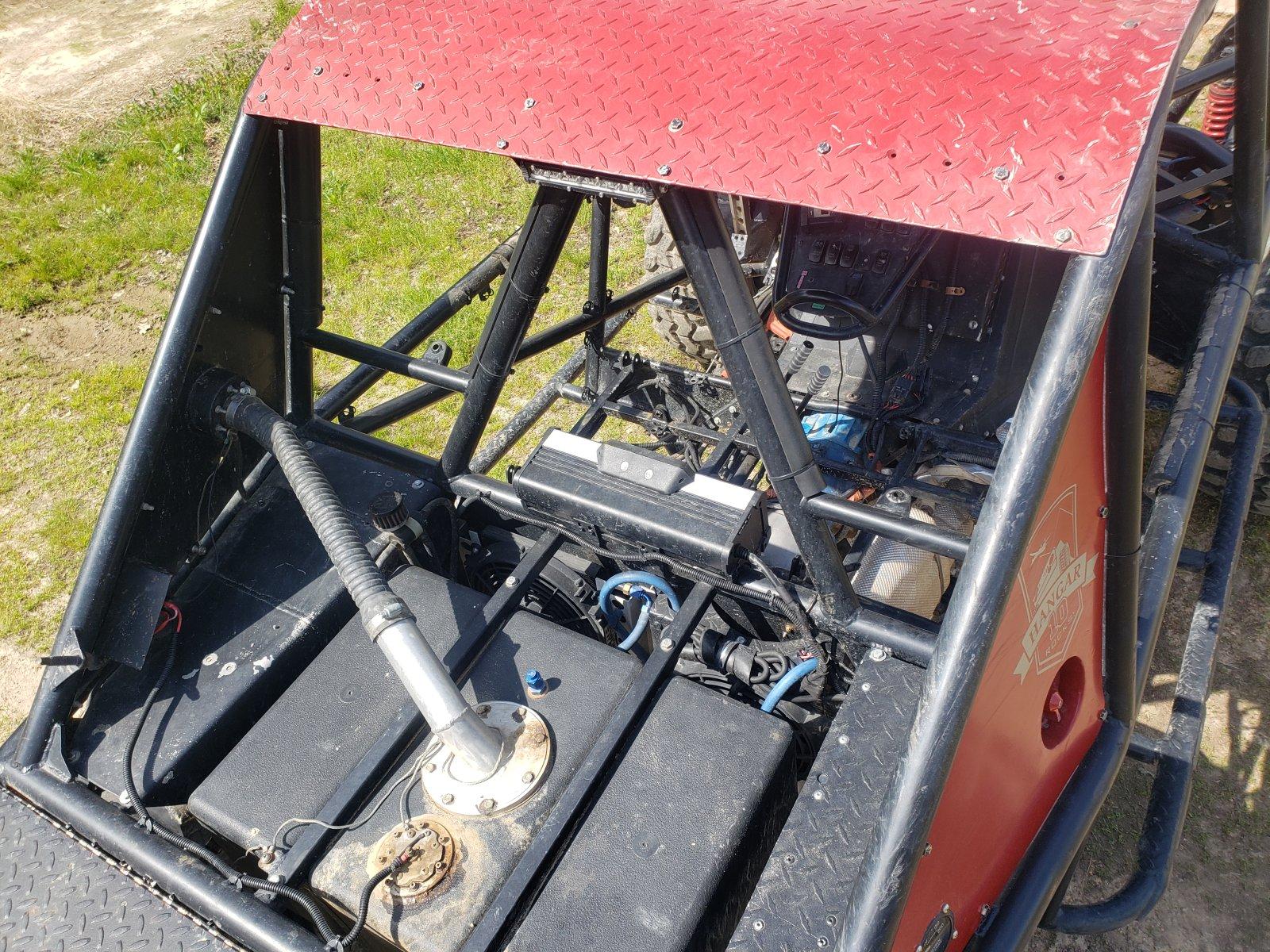

15 gal poly fuel cell

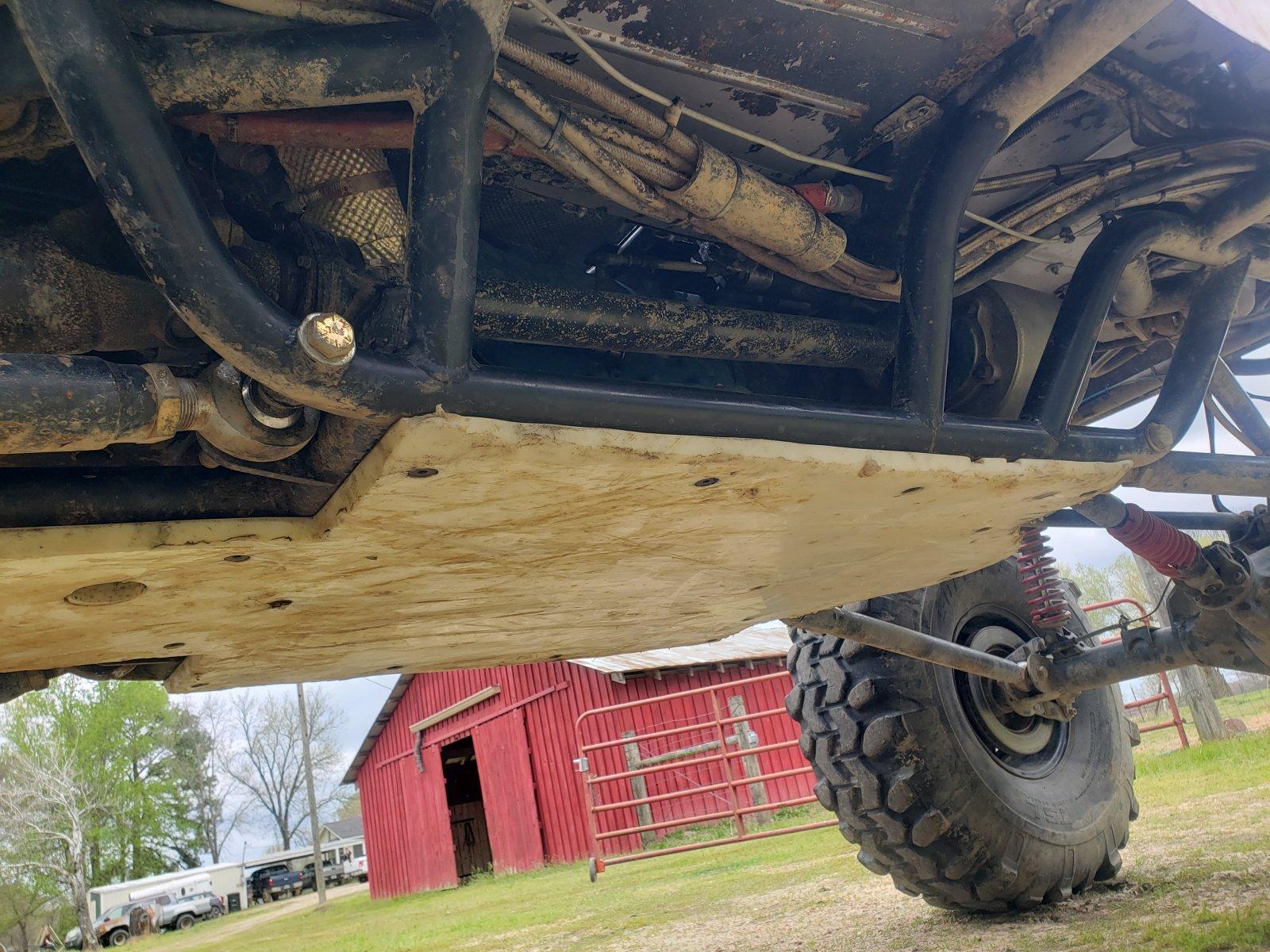

½" thick uhmw belly pan

Prp suspension seats

Crow padded shoulder 5 point harnesses

Led rock lights on all 4 corners

Forward facing led light bars

Boss Bluetooth stereo

Rear latching trunk aera with recess for 32 quart yeti cooler.

All side & floor panels fabricated with dzuse fasteners for easy access.



Feel free to message me with any Questions.
