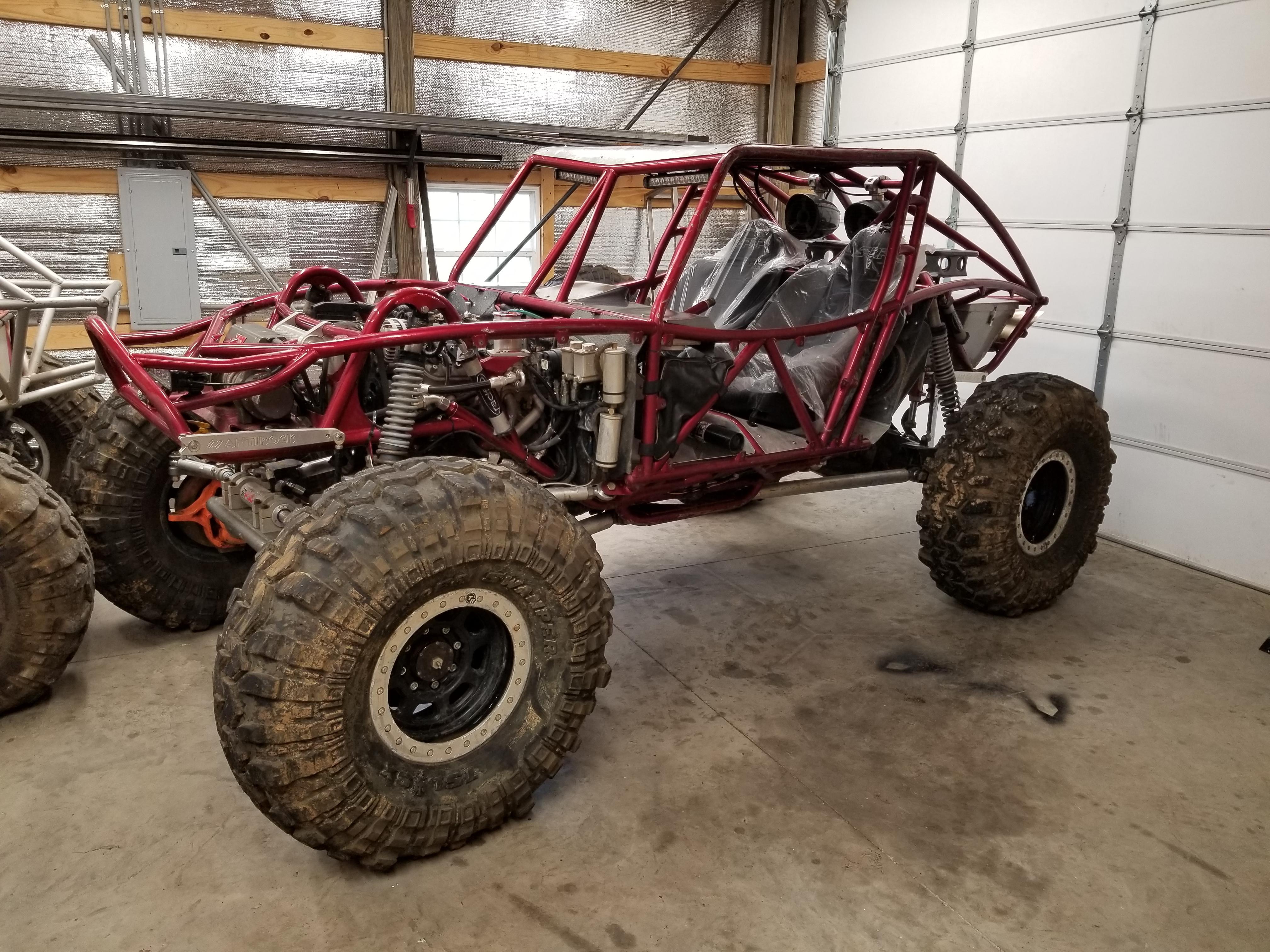

Andrew (redneckengineered) and I had been talking about him either having a new chassis built and me swapping parts or doing a full tear down and refresh on his current buggy. He was happy with just about everything on his current and the OG Revolution WOD chassis. So the decision was made to go through with the full tear down and refresh. Andrew had a good list of specific points he wanted addressed or updated. This buggy was built in 2011, lots has changed since then and some parts were already updated along the way. But the hope was to bring things up to speed with the current technology.

Andrew had already ordered some new seats and stripped the panels off to do a good pressure washing before I tore into it.

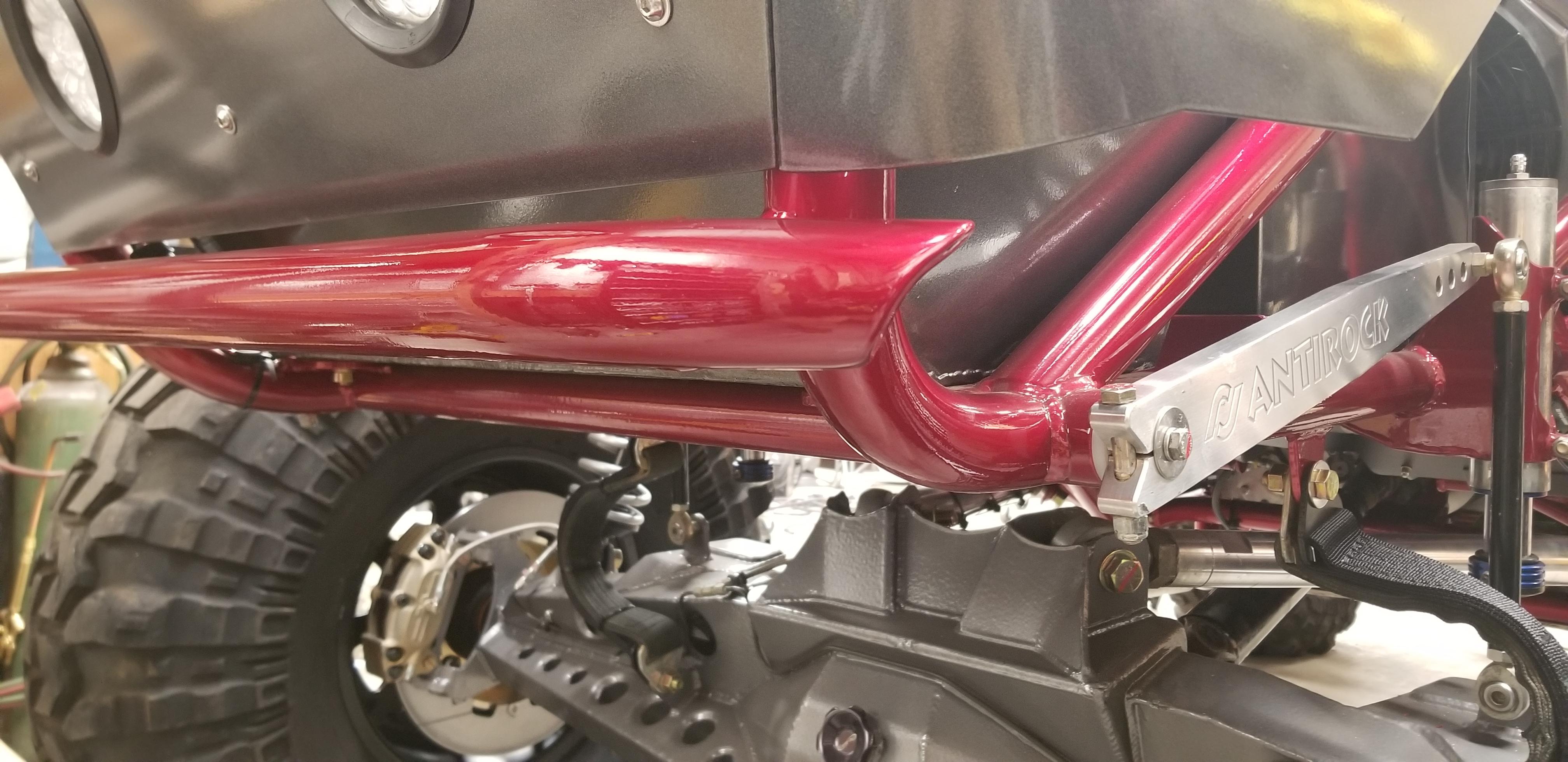

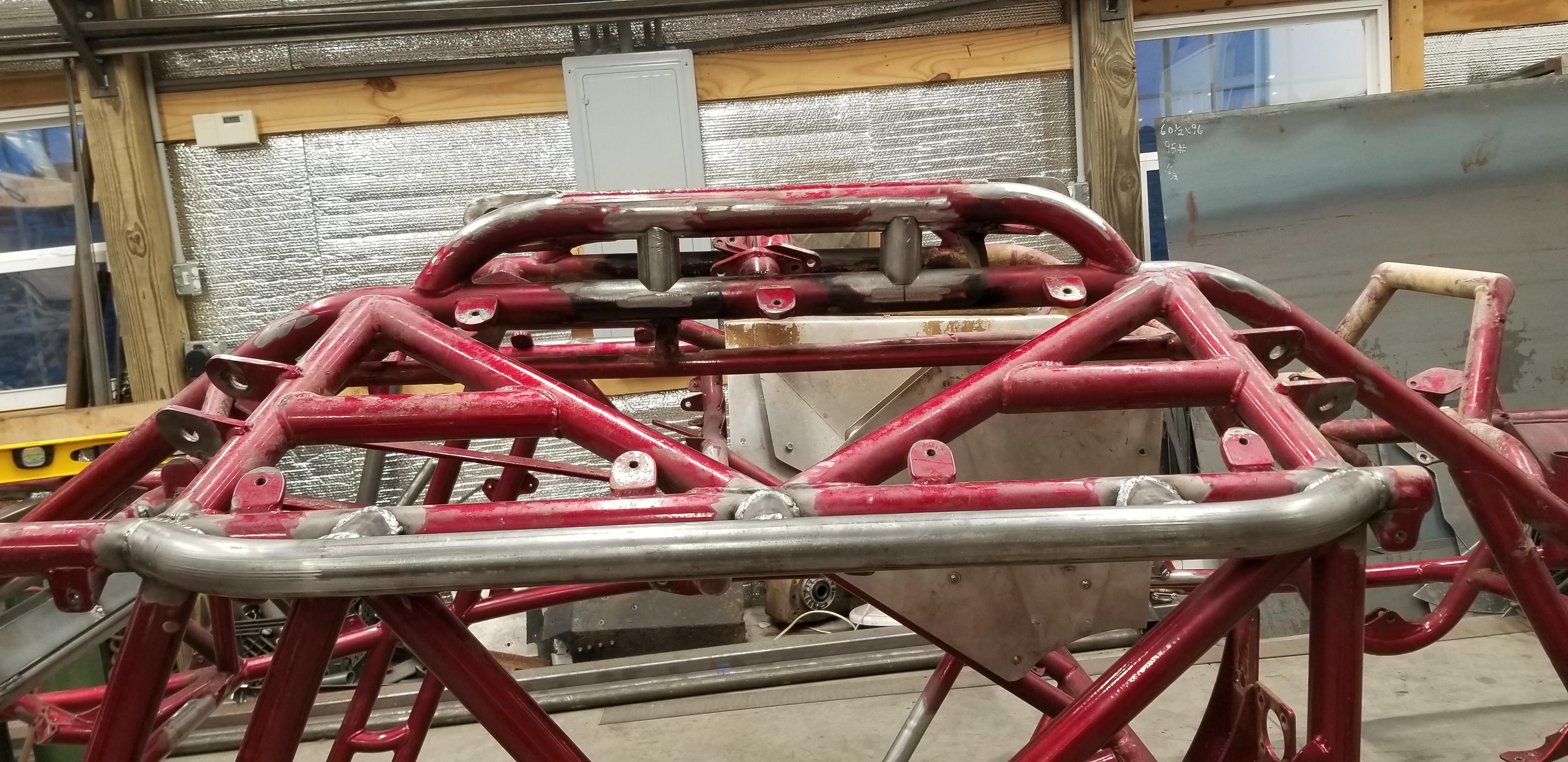

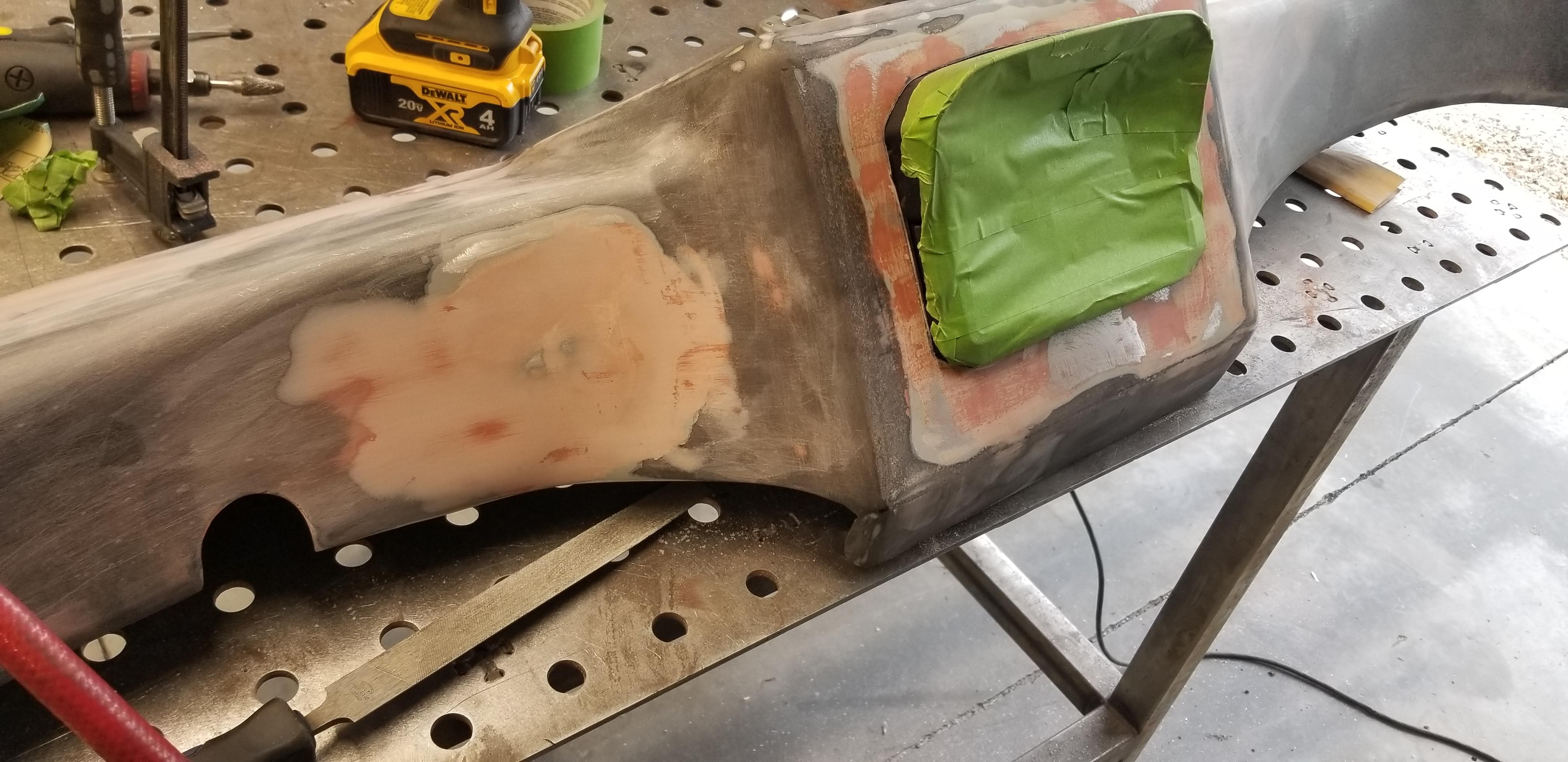

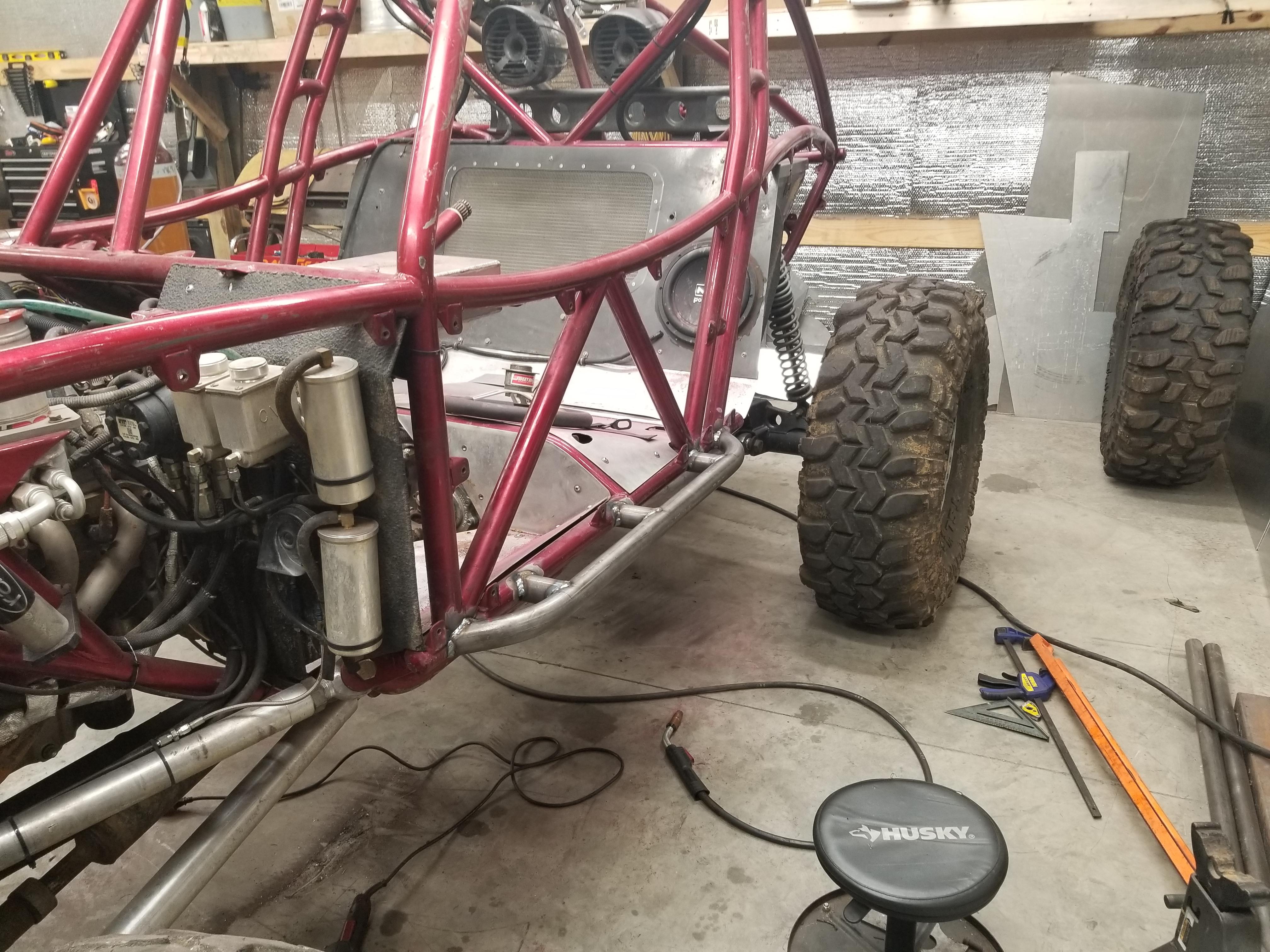

First thing to do was add some rub rails and fix some damage tubes.

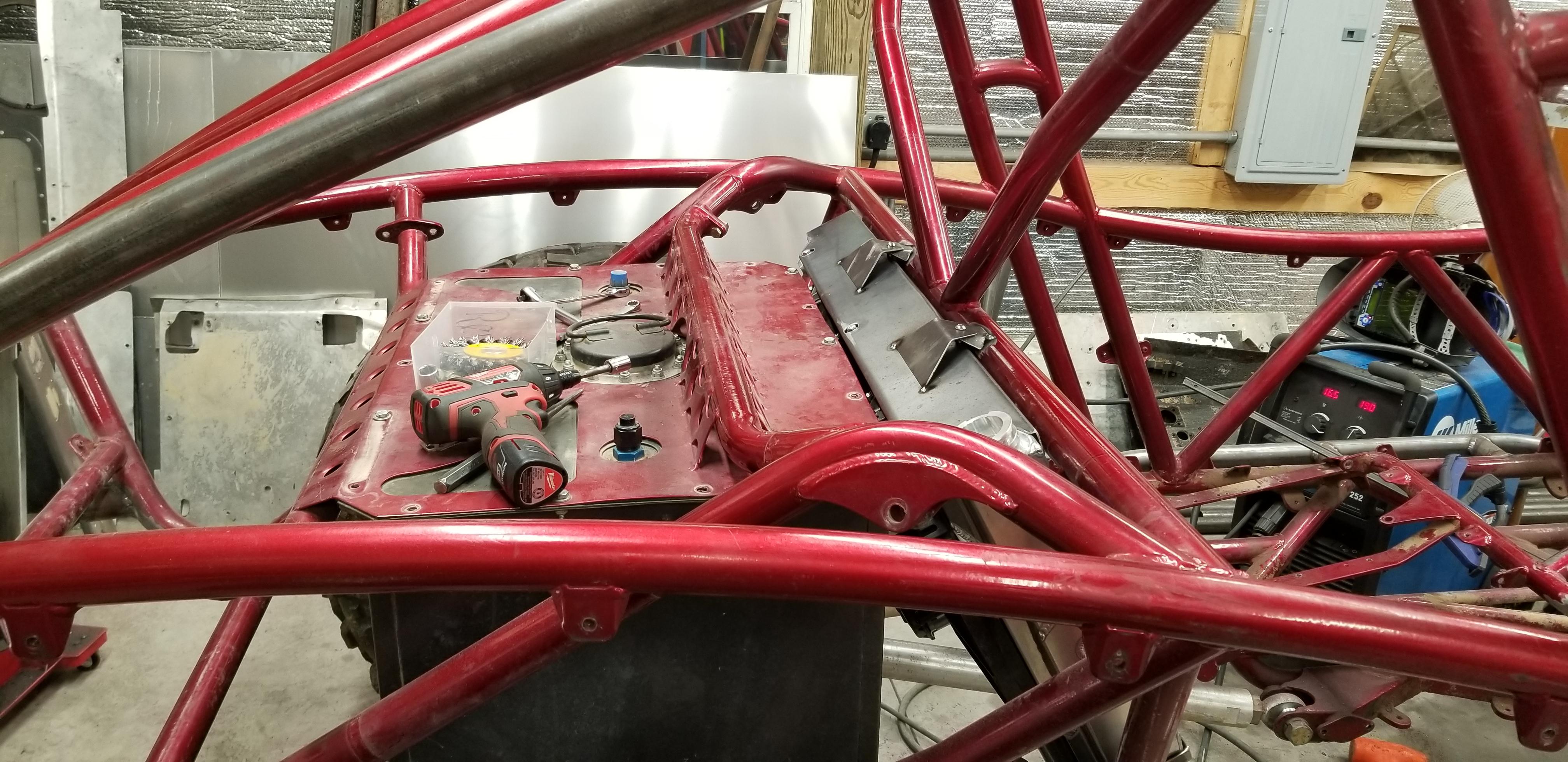

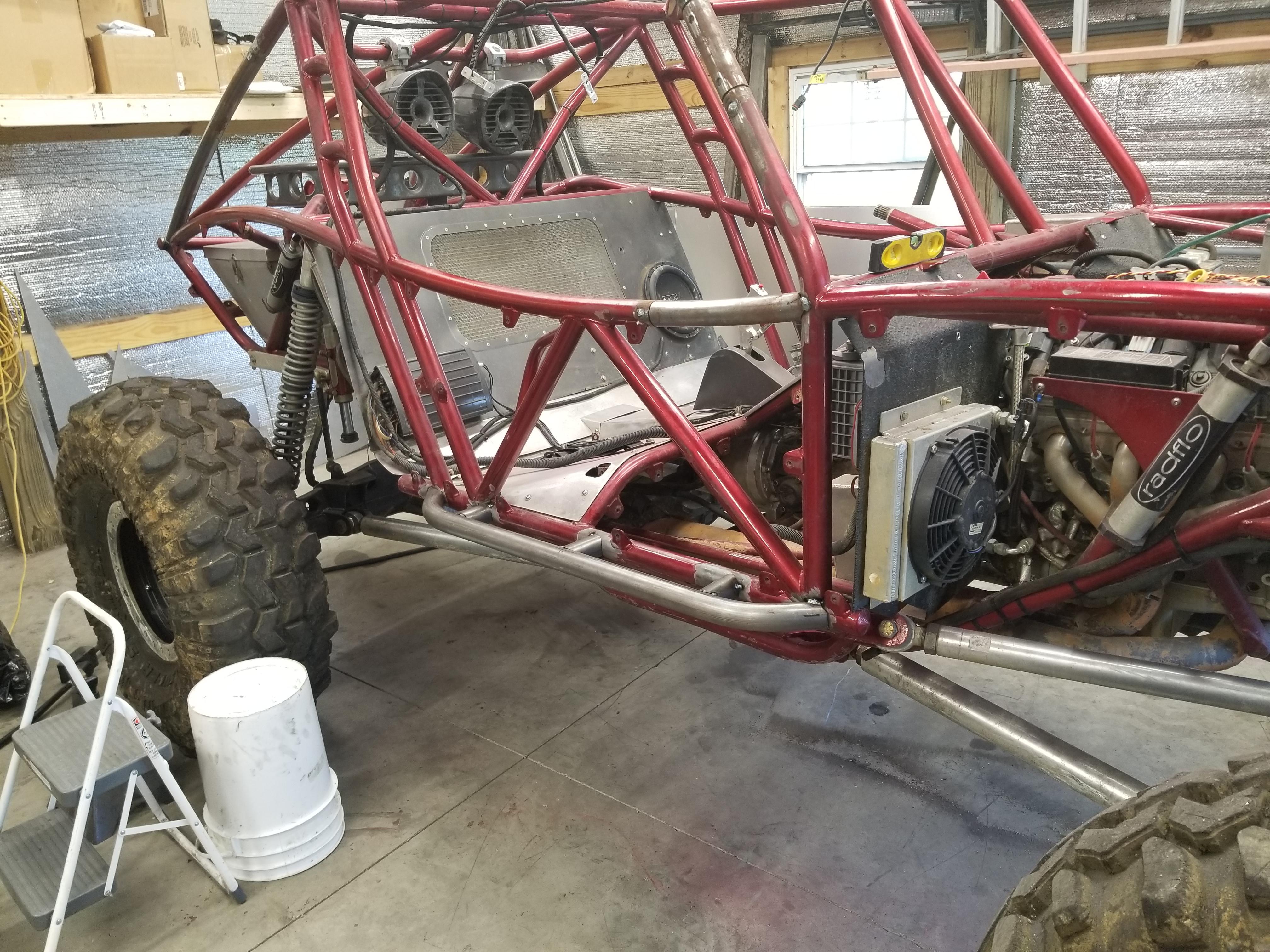

Transmission cooling was one thing Andrew wanted to update. You can see above the smaller griffin fluid cooler he had been using. While it worked ok, it left something to be desired. I have been running a large CBR fluid cooler on my buggy for a few years. We decided that was the way to go. It's a tight fit but it's in there.

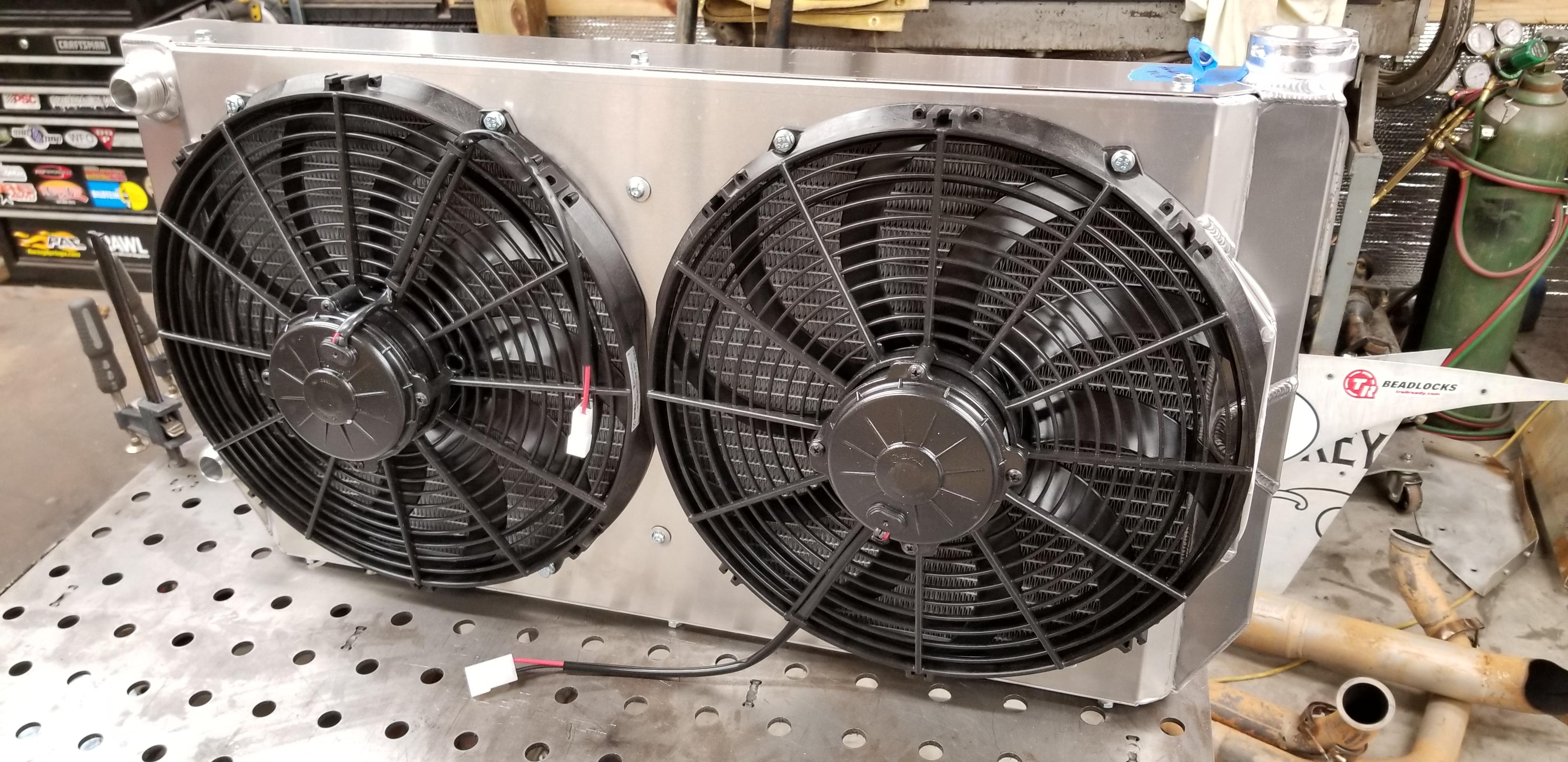

Upgraded radiator was also a must. Andrew hadn't had any major heat issues but it was something he didn't want to have any concern about anymore. Again CBR got the nod. Quality is second to none.

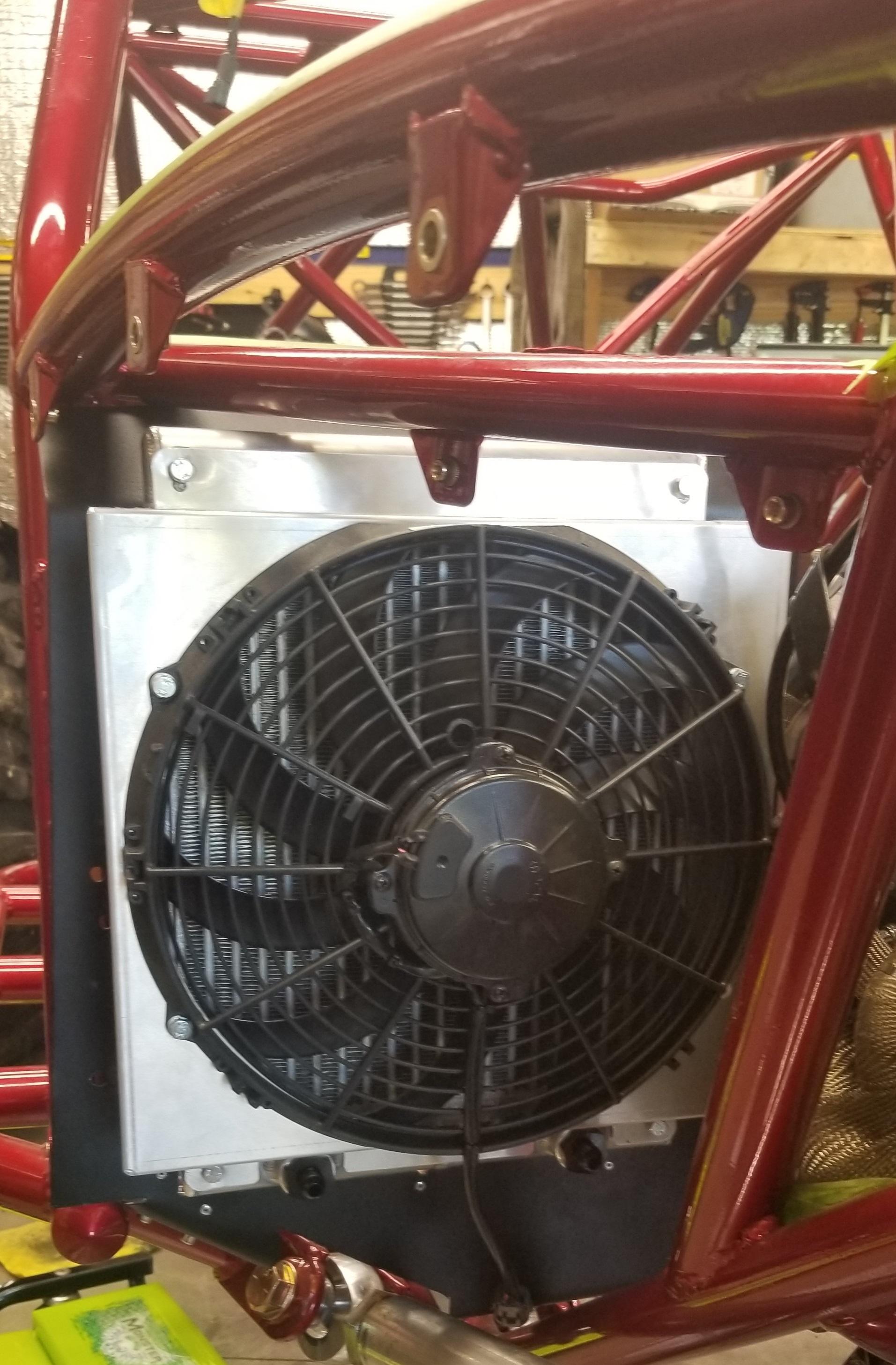

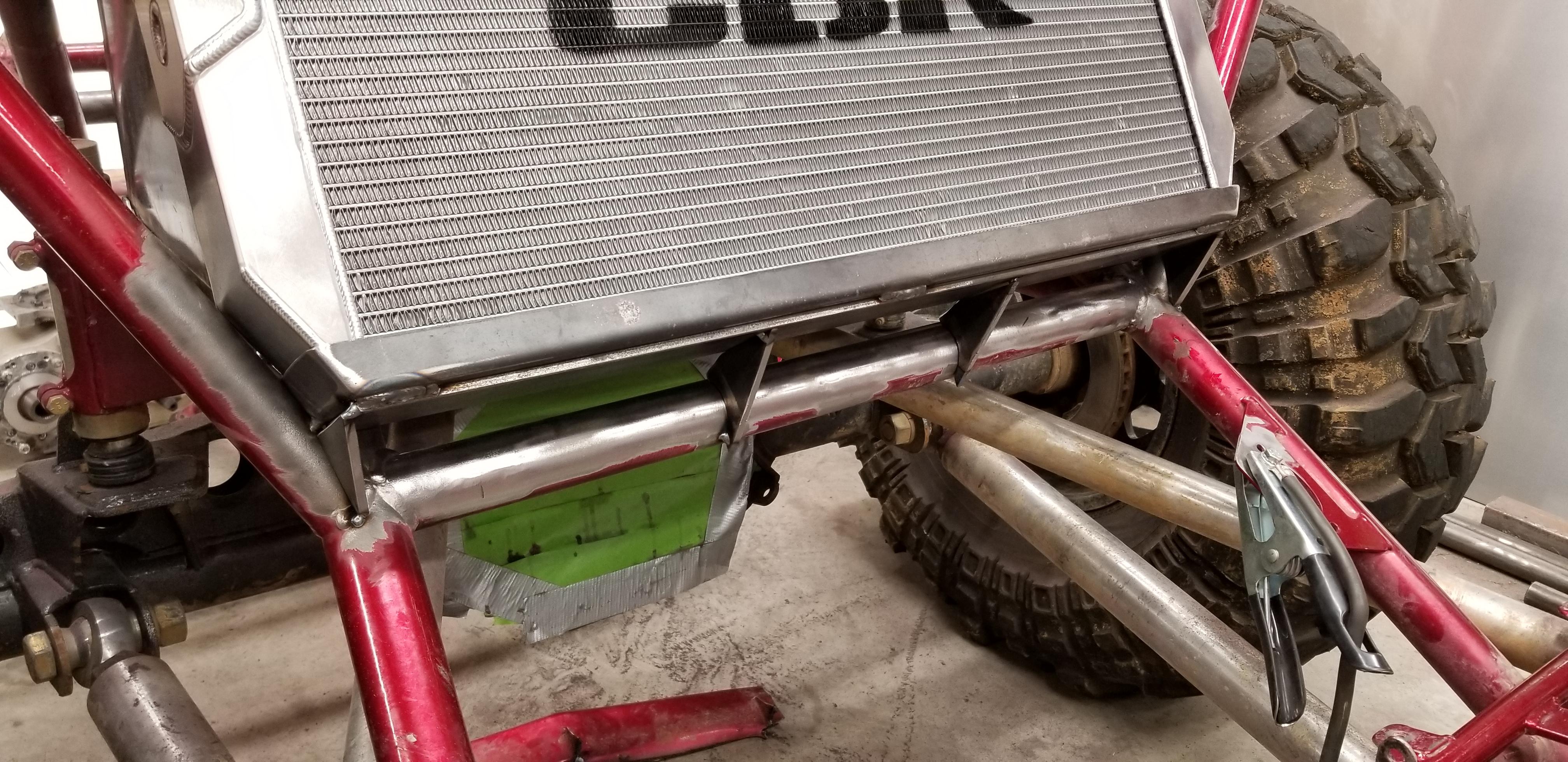

I built a "sandwich" style mount for the radiator. That way any chassis movement does not get transferred to the radiator.

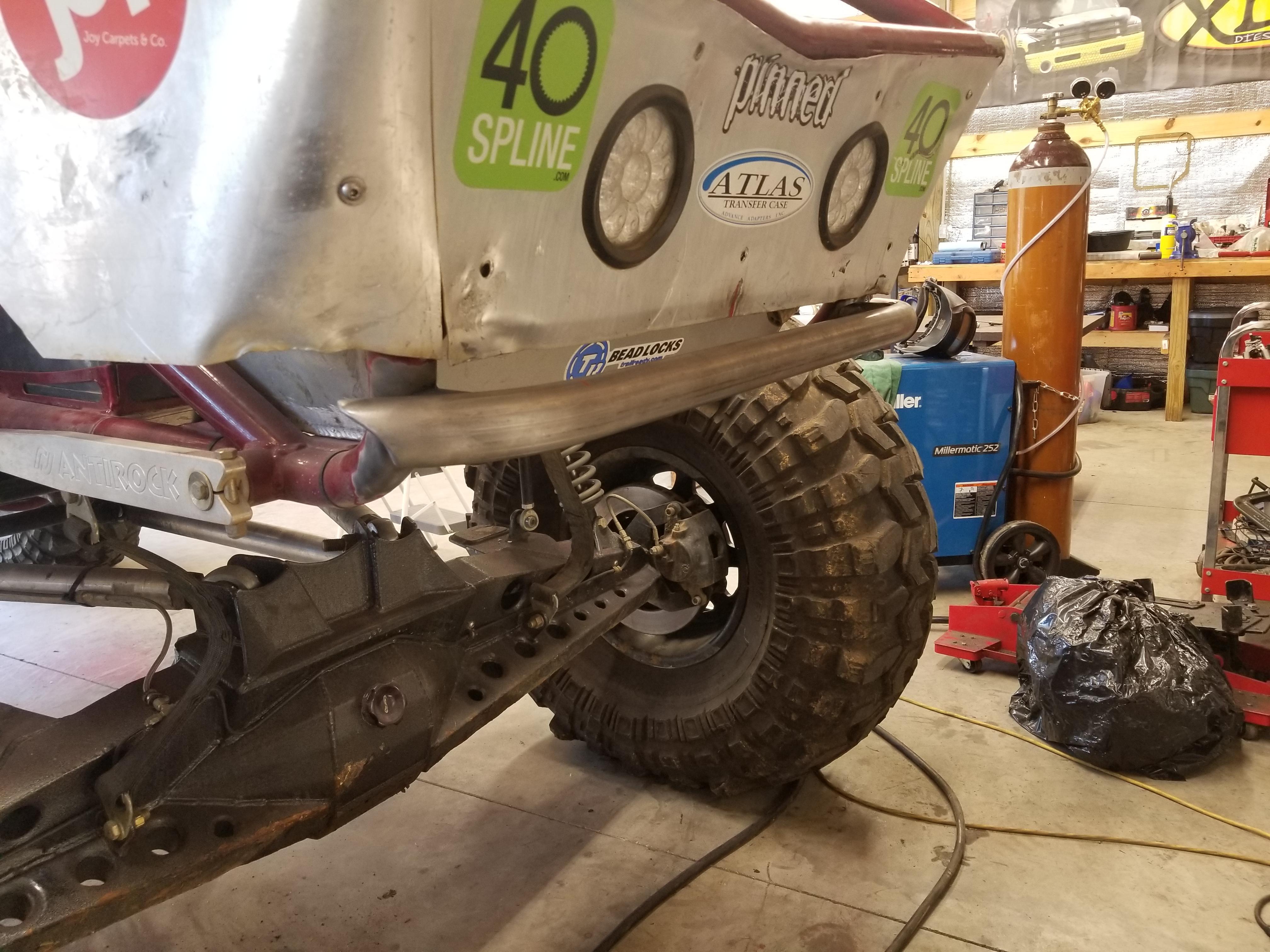

Added a rear "bumper" for them late night trail racing! It's .250 wall if anyone thinks they want to test it! LOL

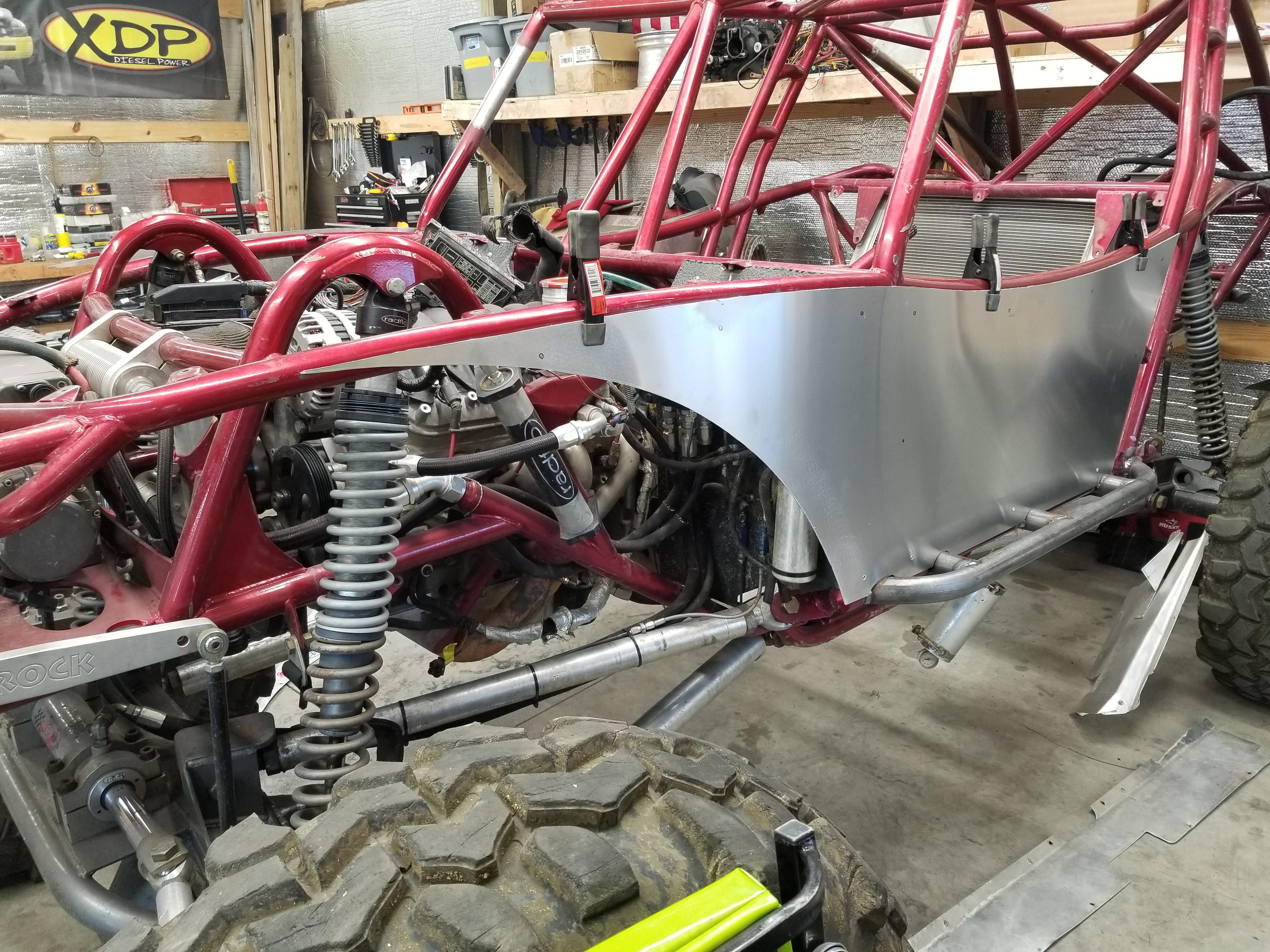

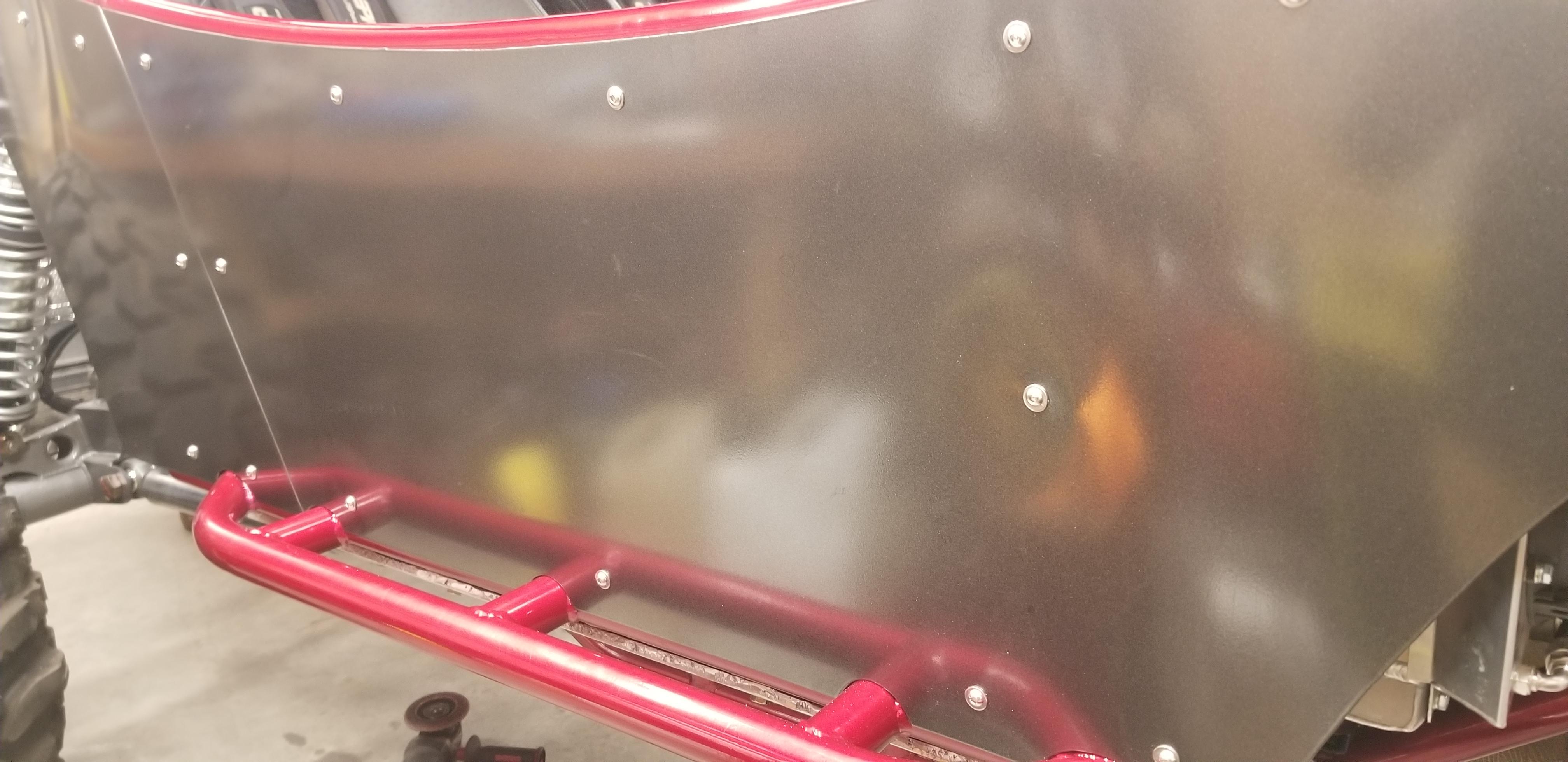

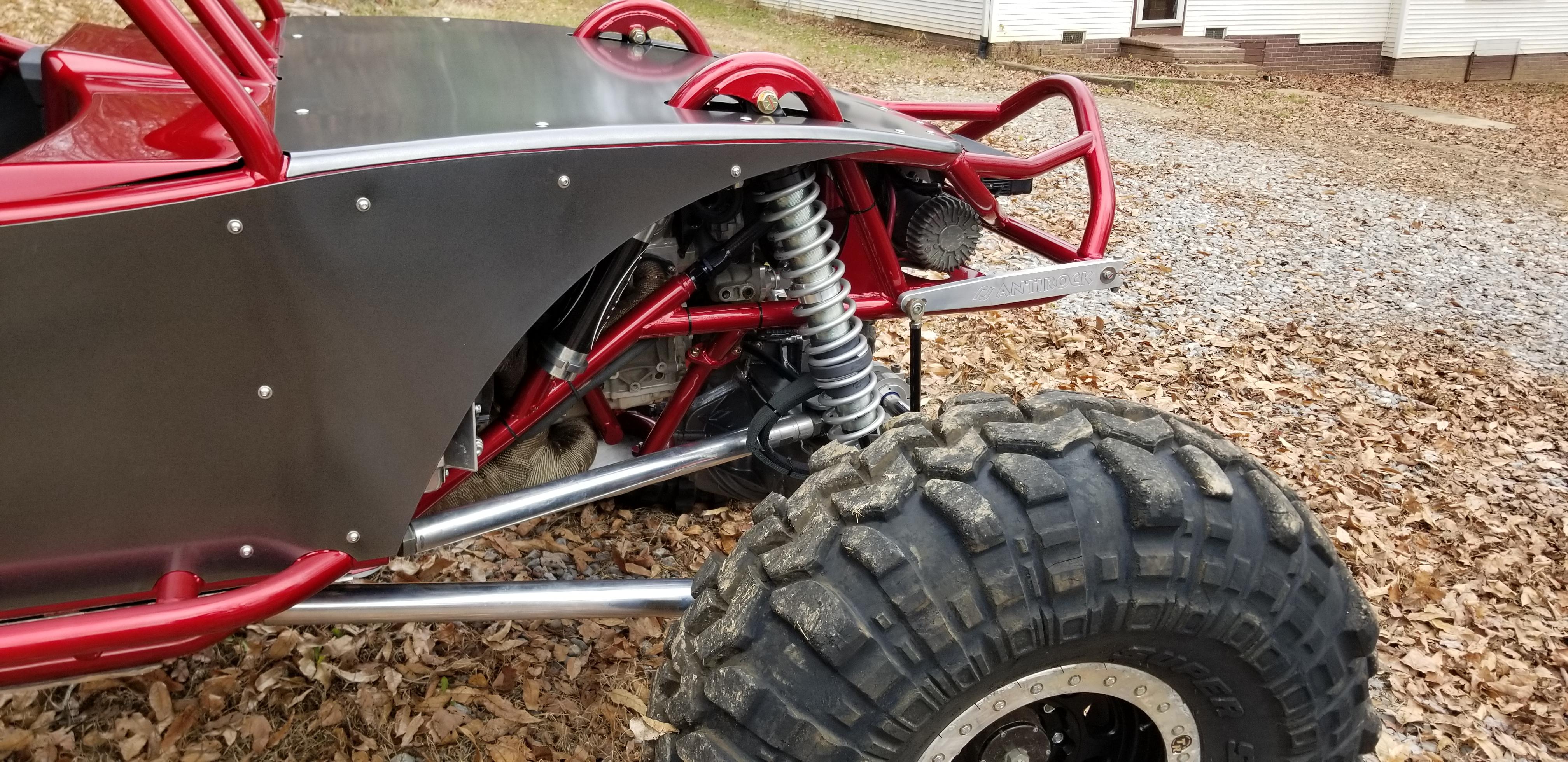

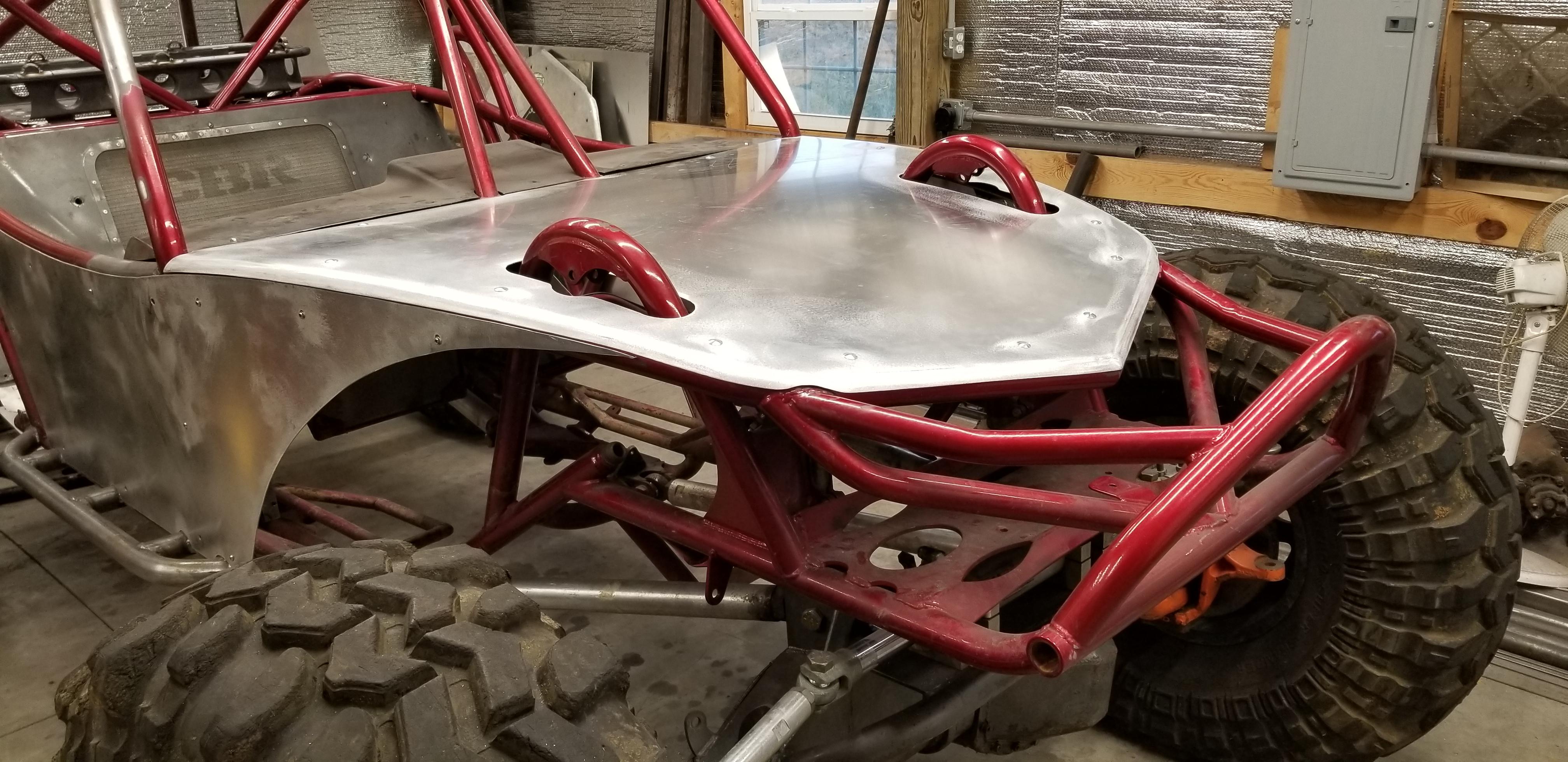

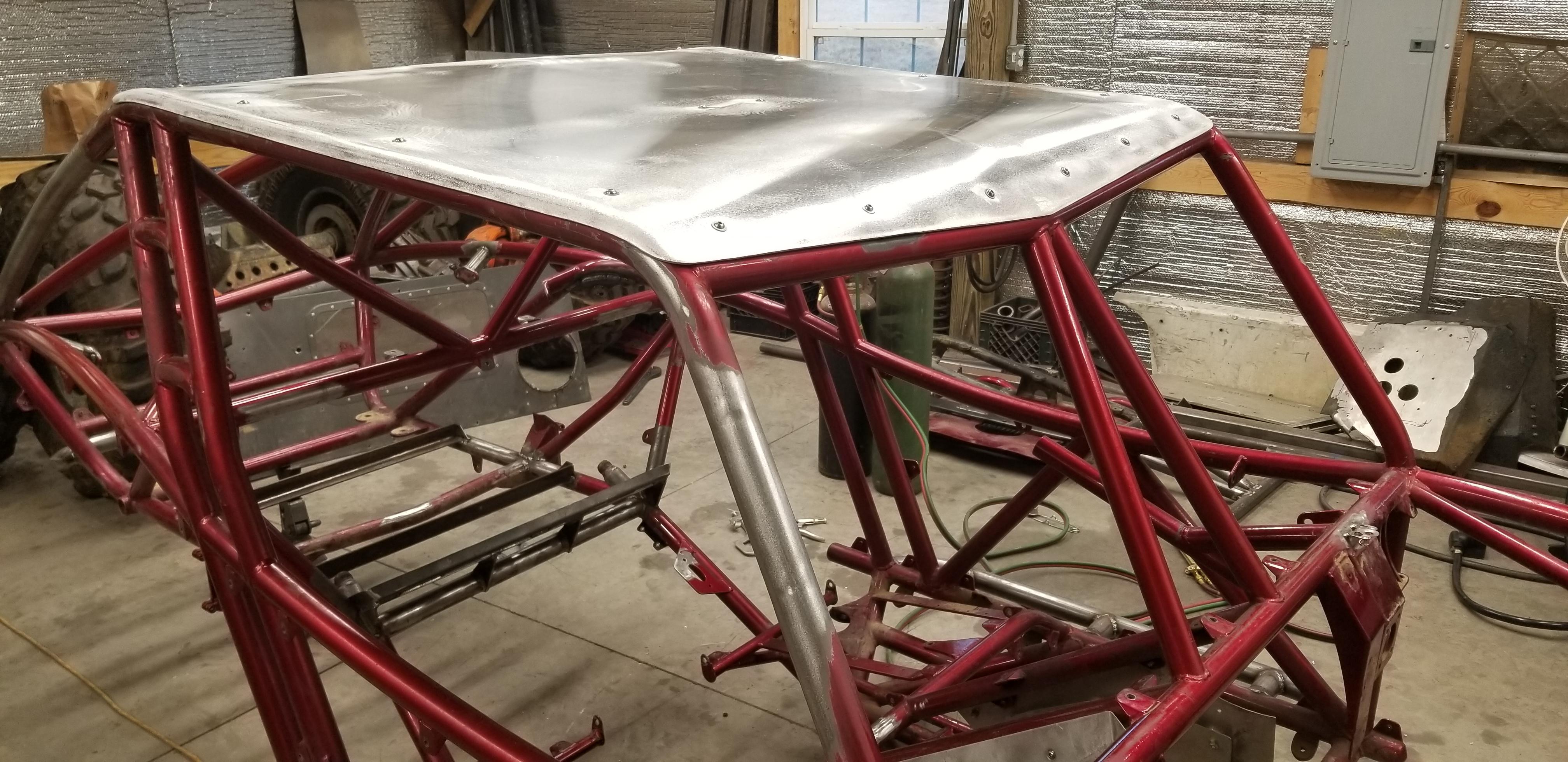

Fresh skins




wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky
More aluminum

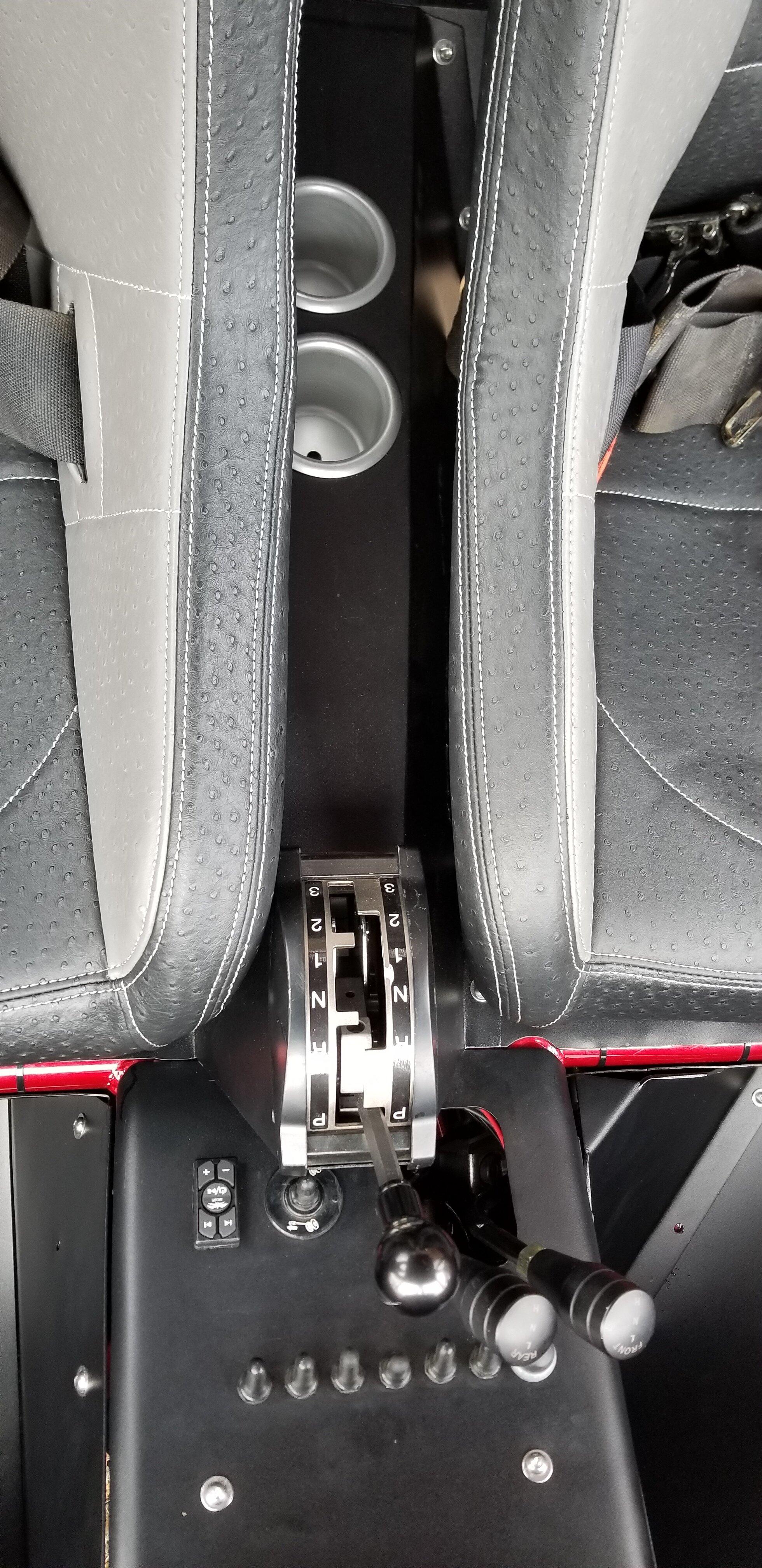

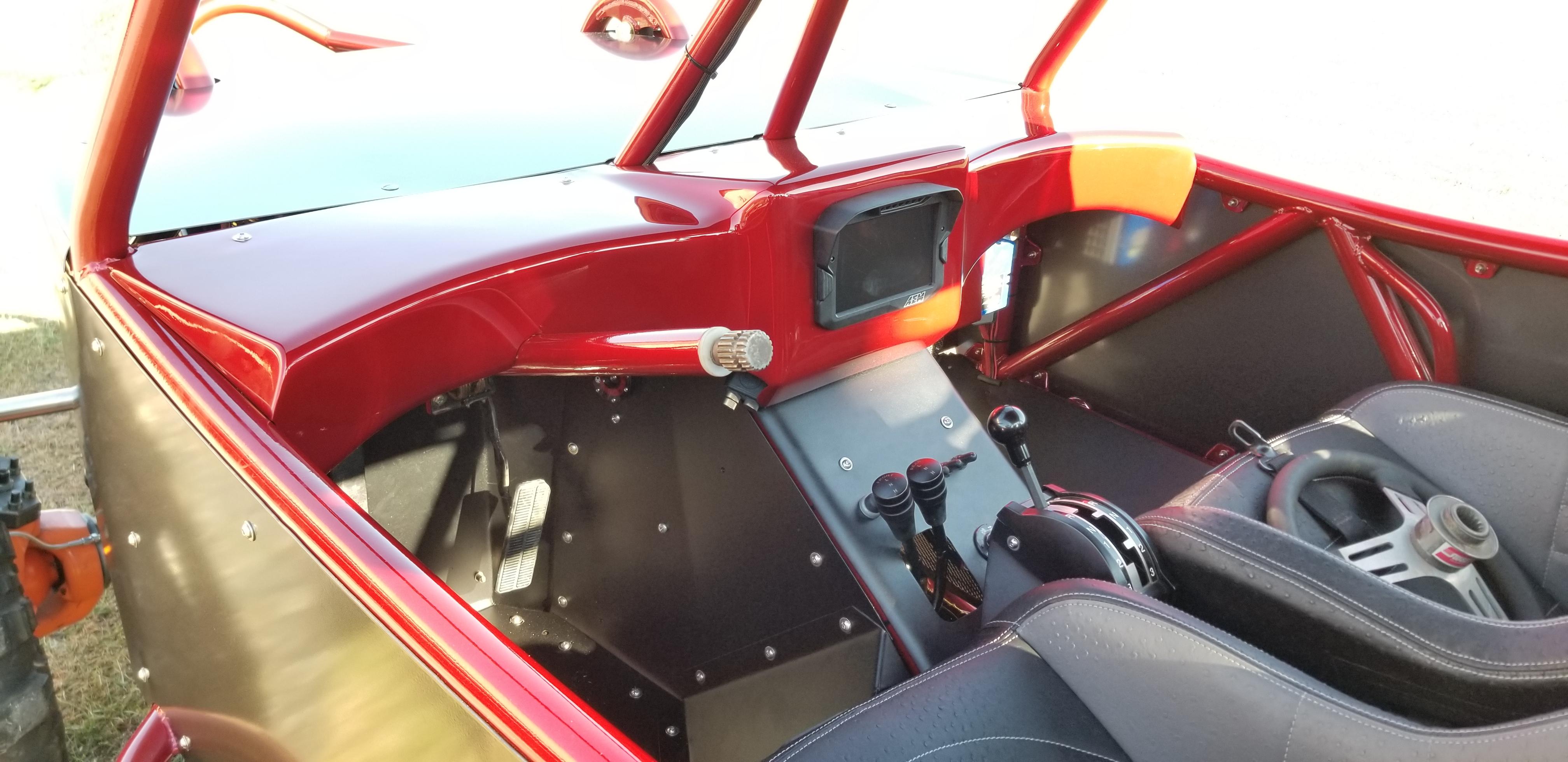

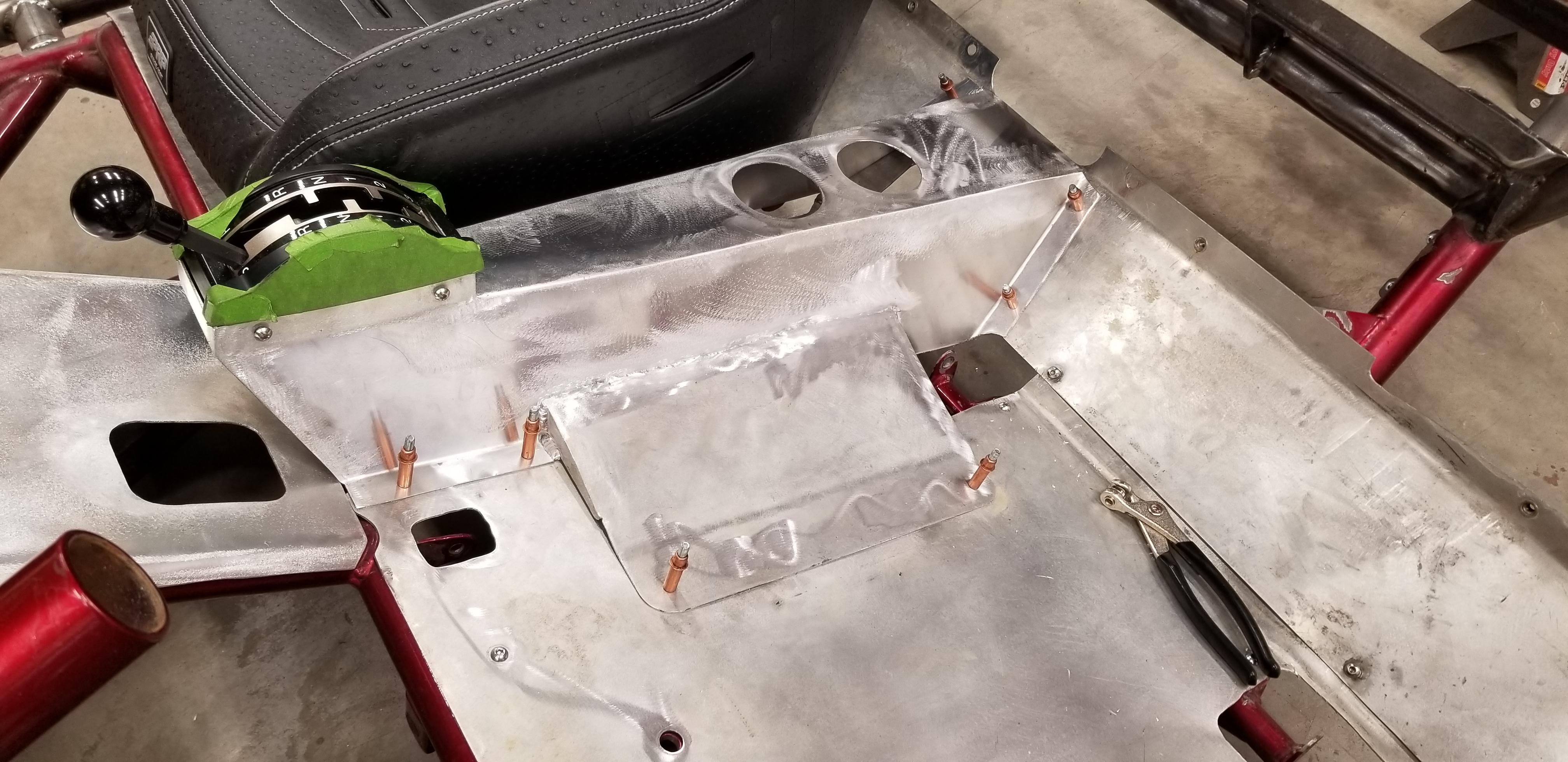

New shifter and console with cup holders.

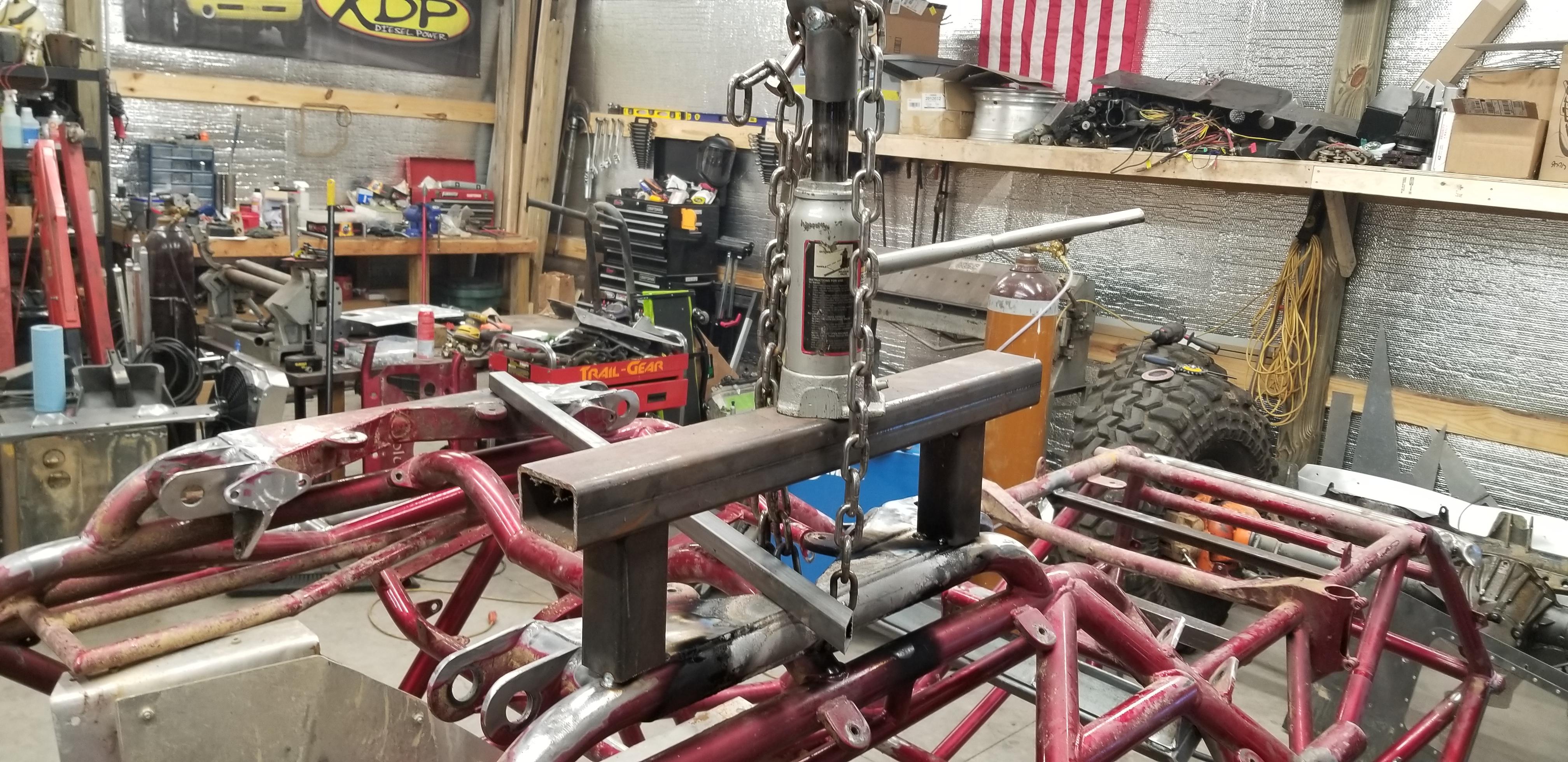

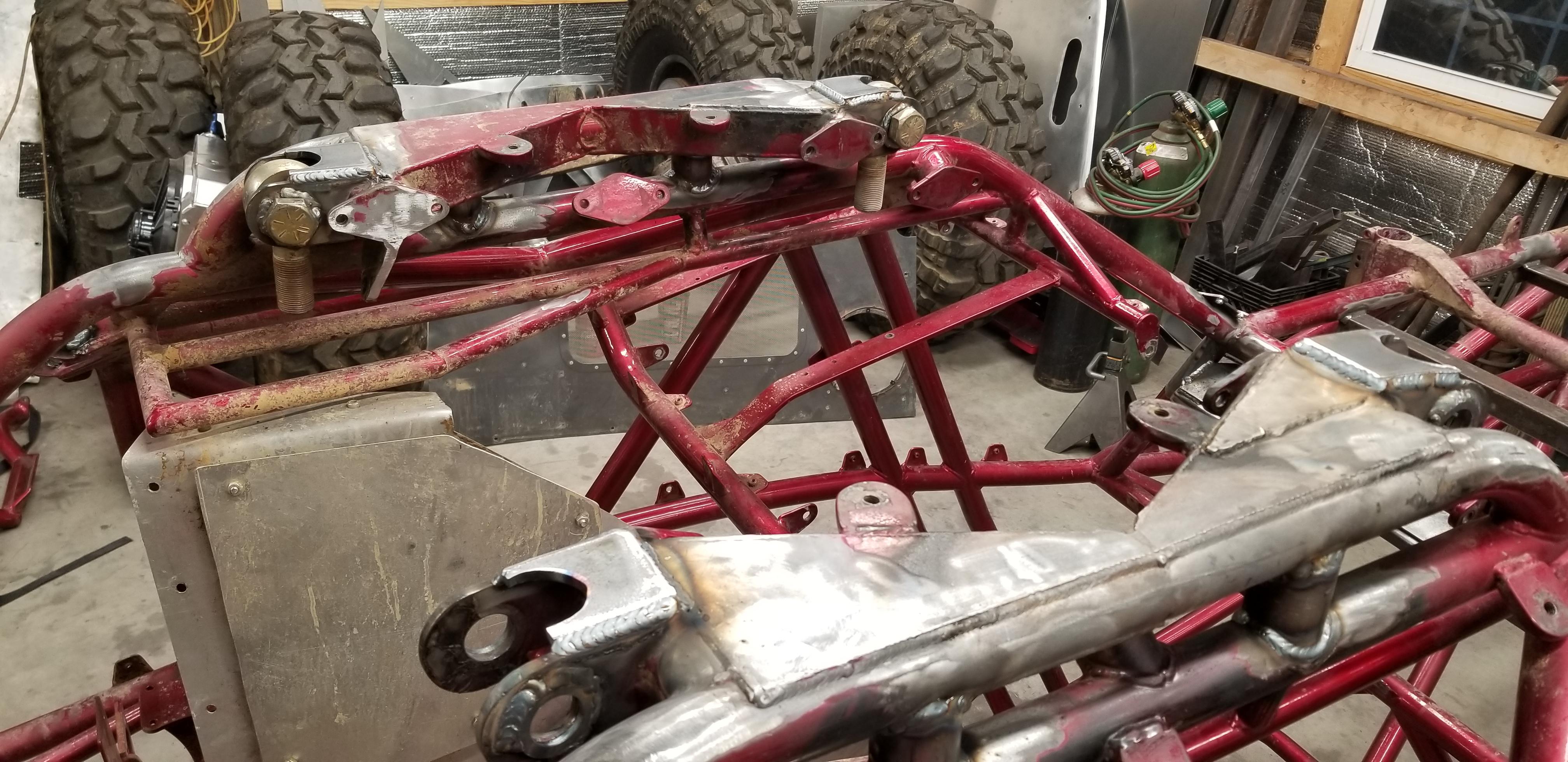

Straitened and reinforced the lower bars on the chassis

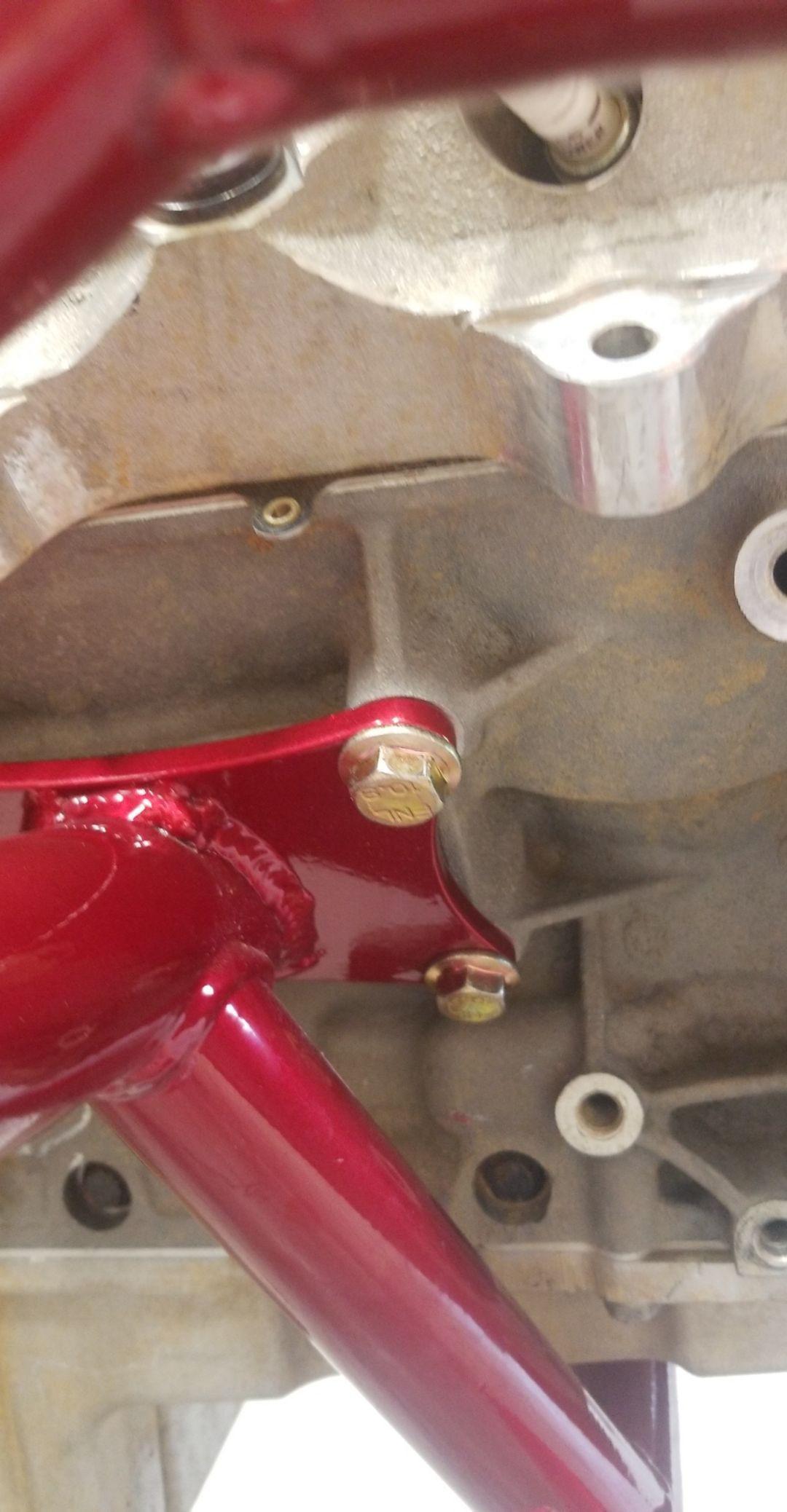

All link tabs and shock tabs got weld washers. Lower link tabs got reinforcement!

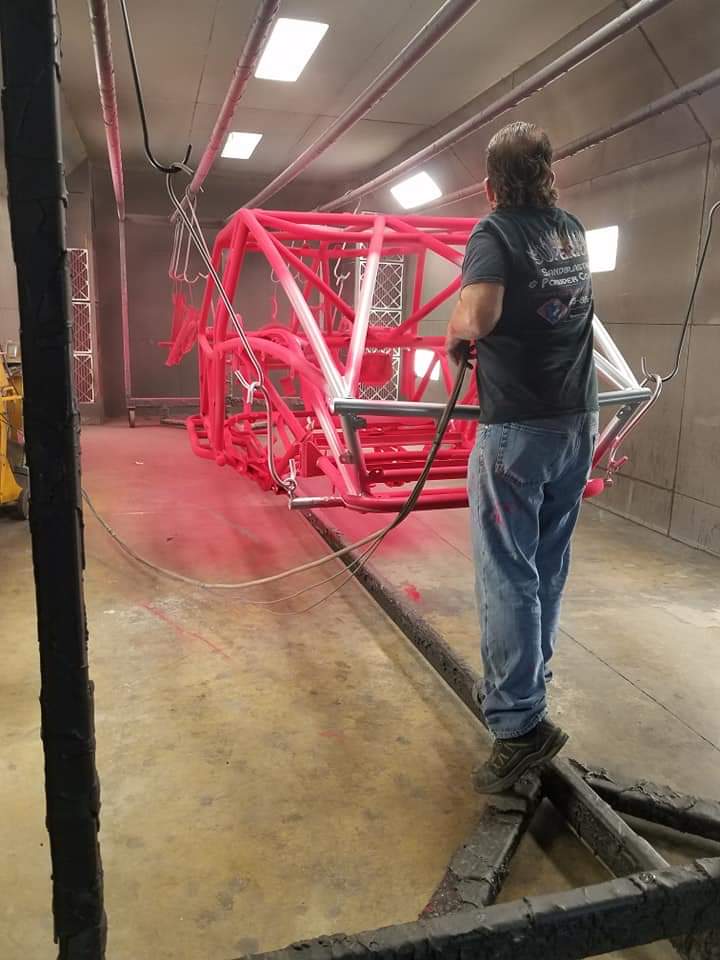

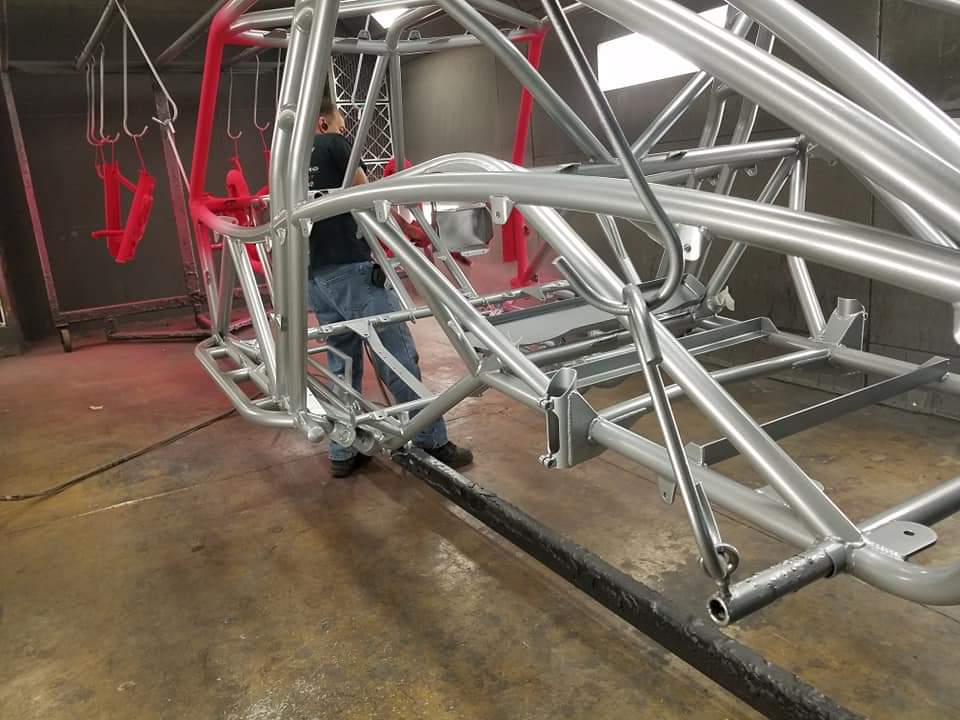

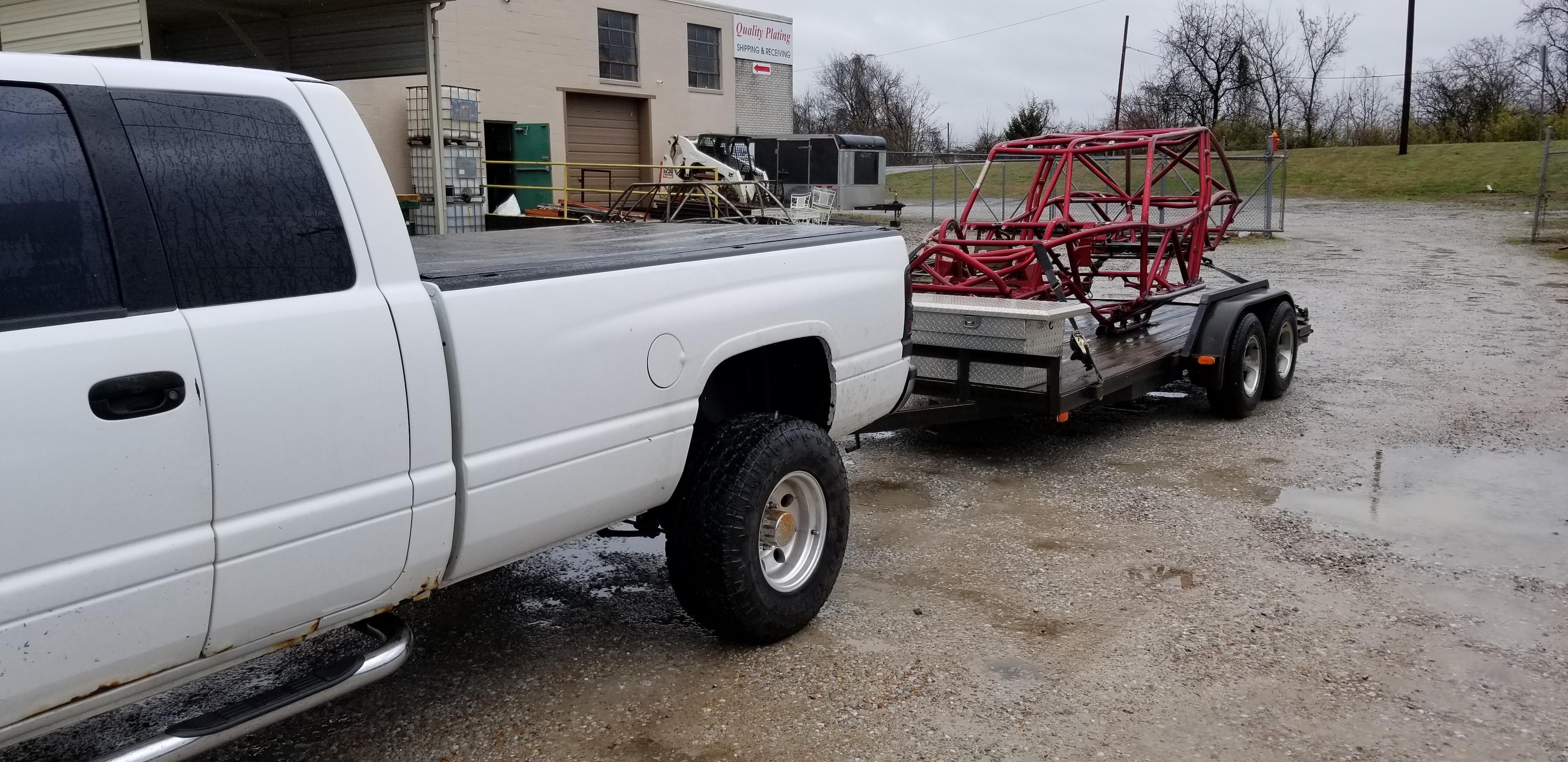

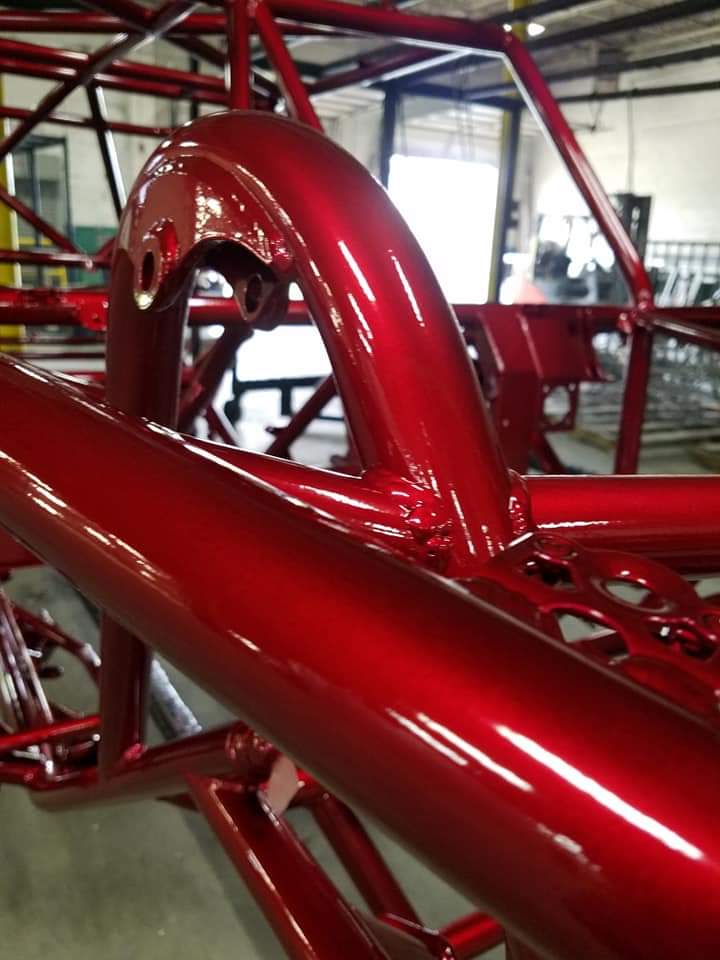

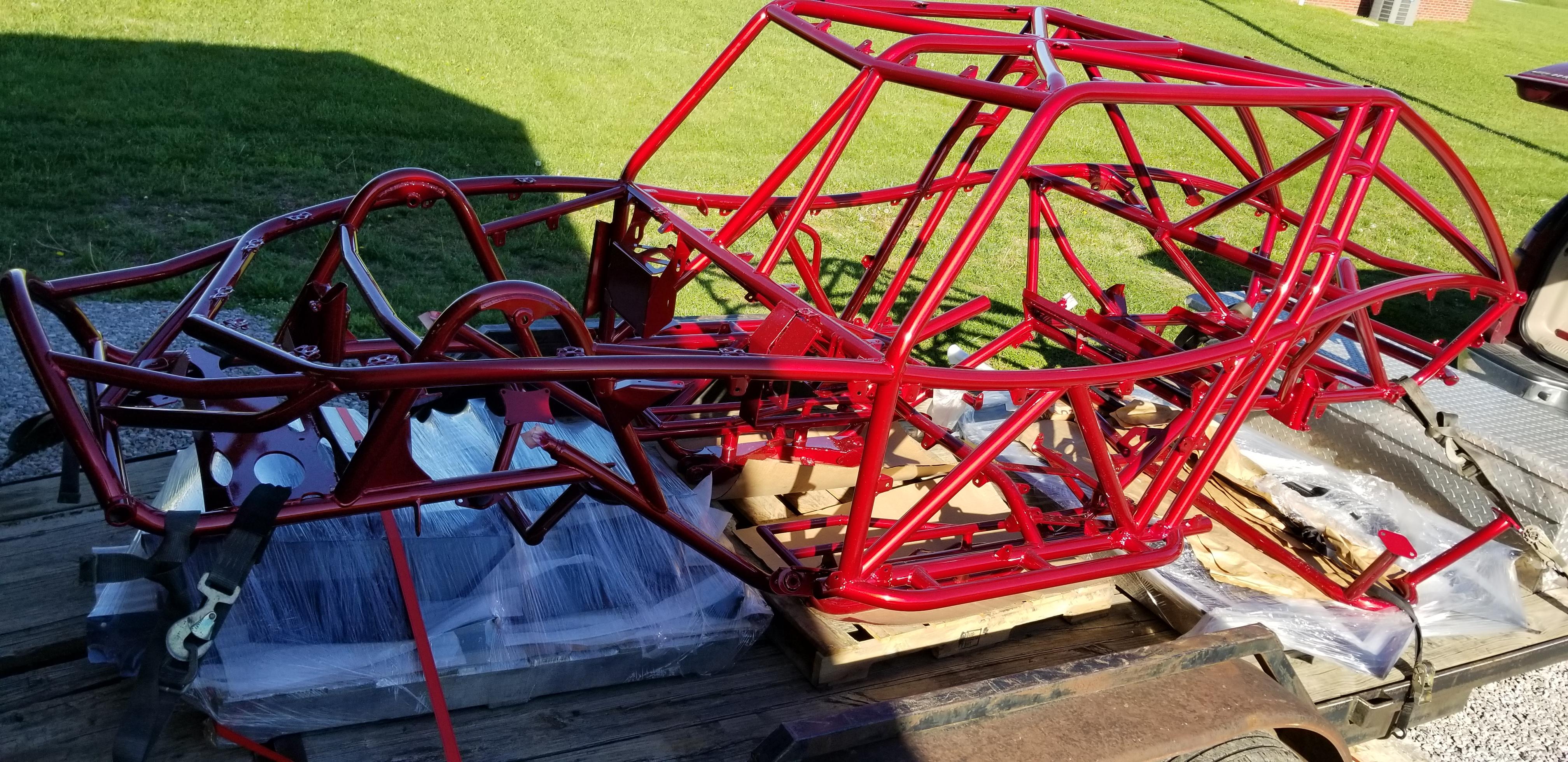

Obviously there was a ton of other work but that was basically the high points before the chassis got sent to Nashville to be re powder coated


wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky
Something in particular Andrew wanted to upgrade was the gauges. He had done a bunch of research and decided on the AEM CD-7 set up.

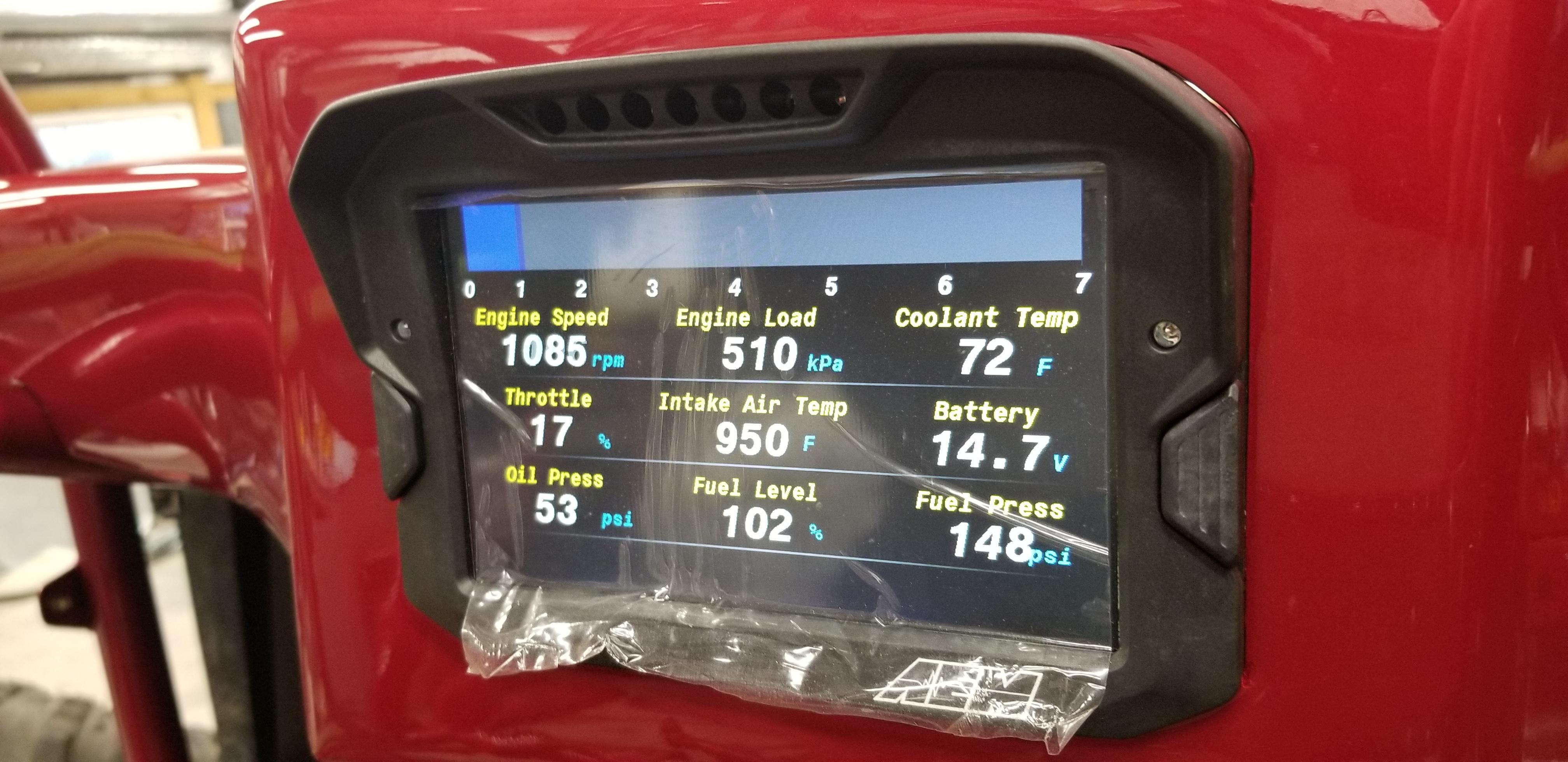

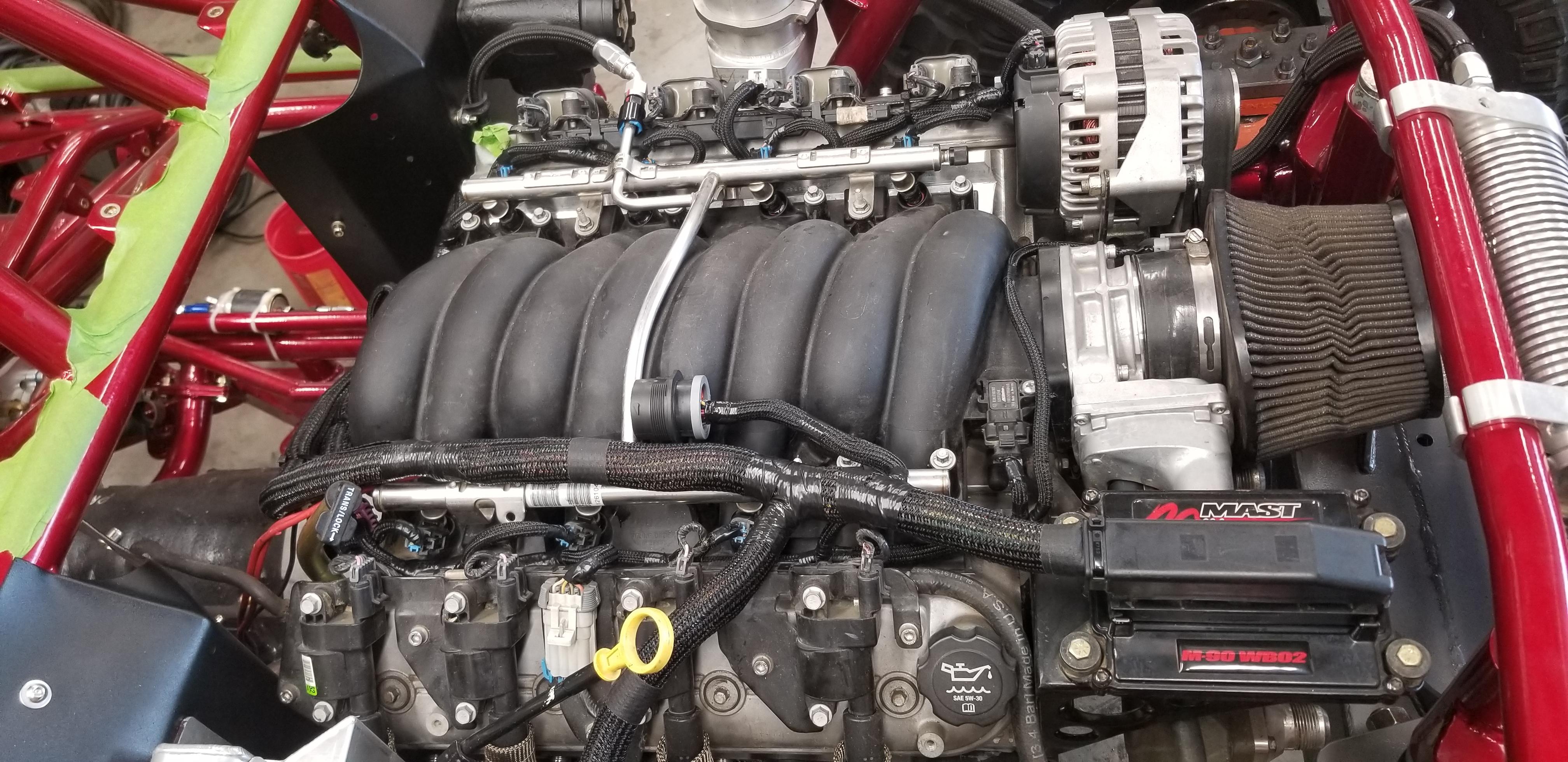

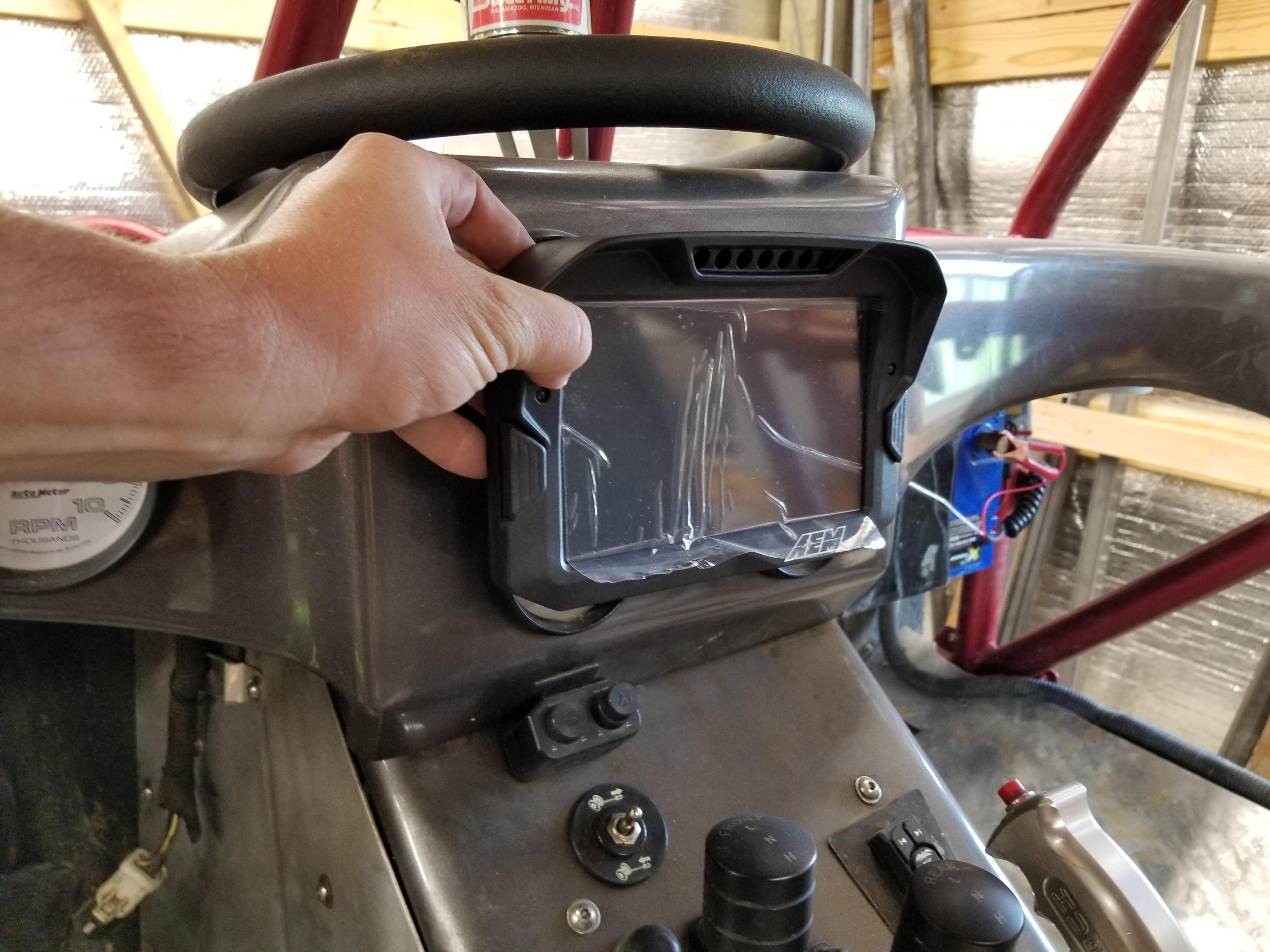

Andrew worked with both MAST motorsports and AEM to get the MAST ECM and AEM CD-7 to work together. This is the basic display you get. Andrew has a custom lay out and back ground he can share.


wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky

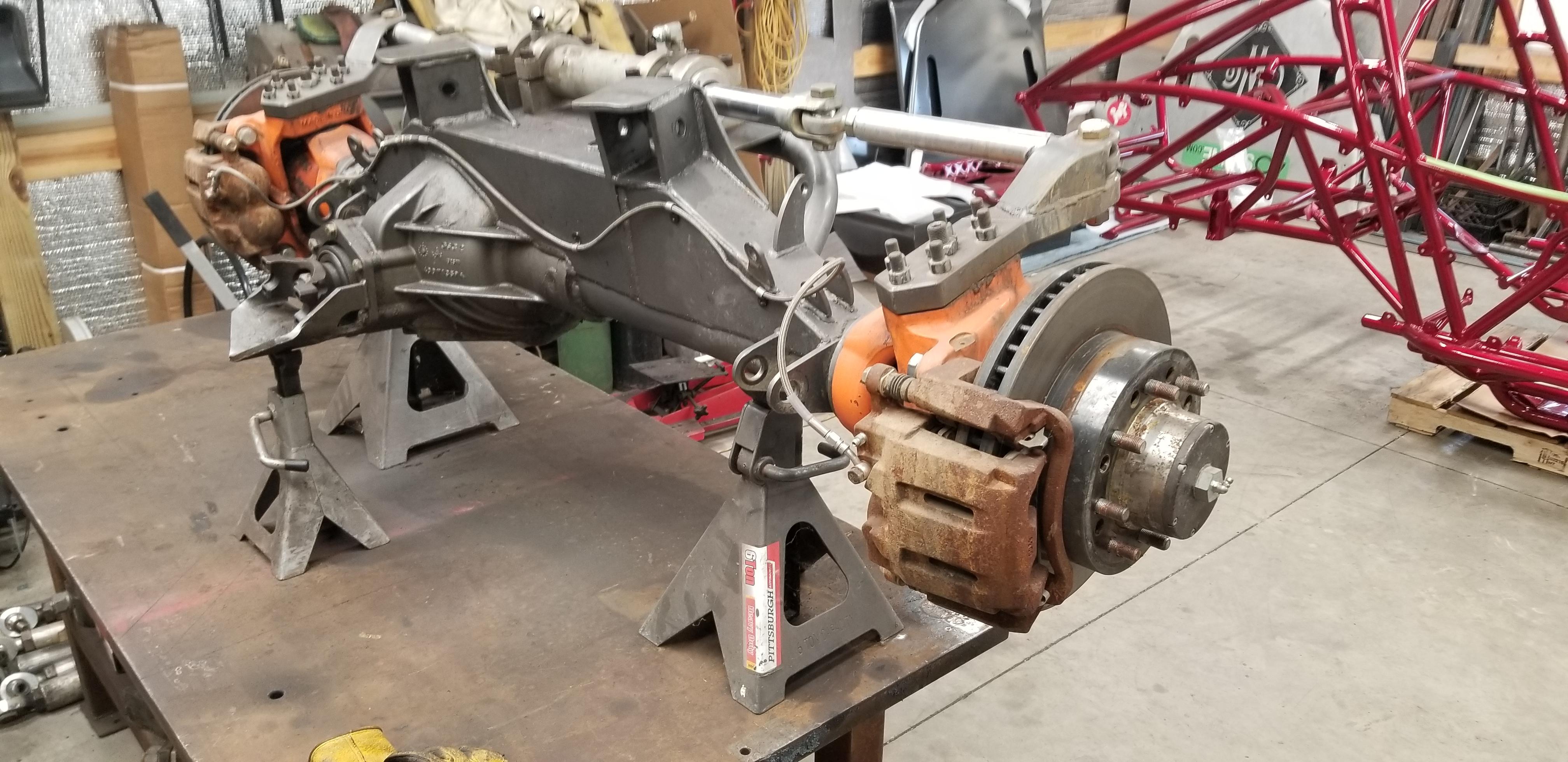

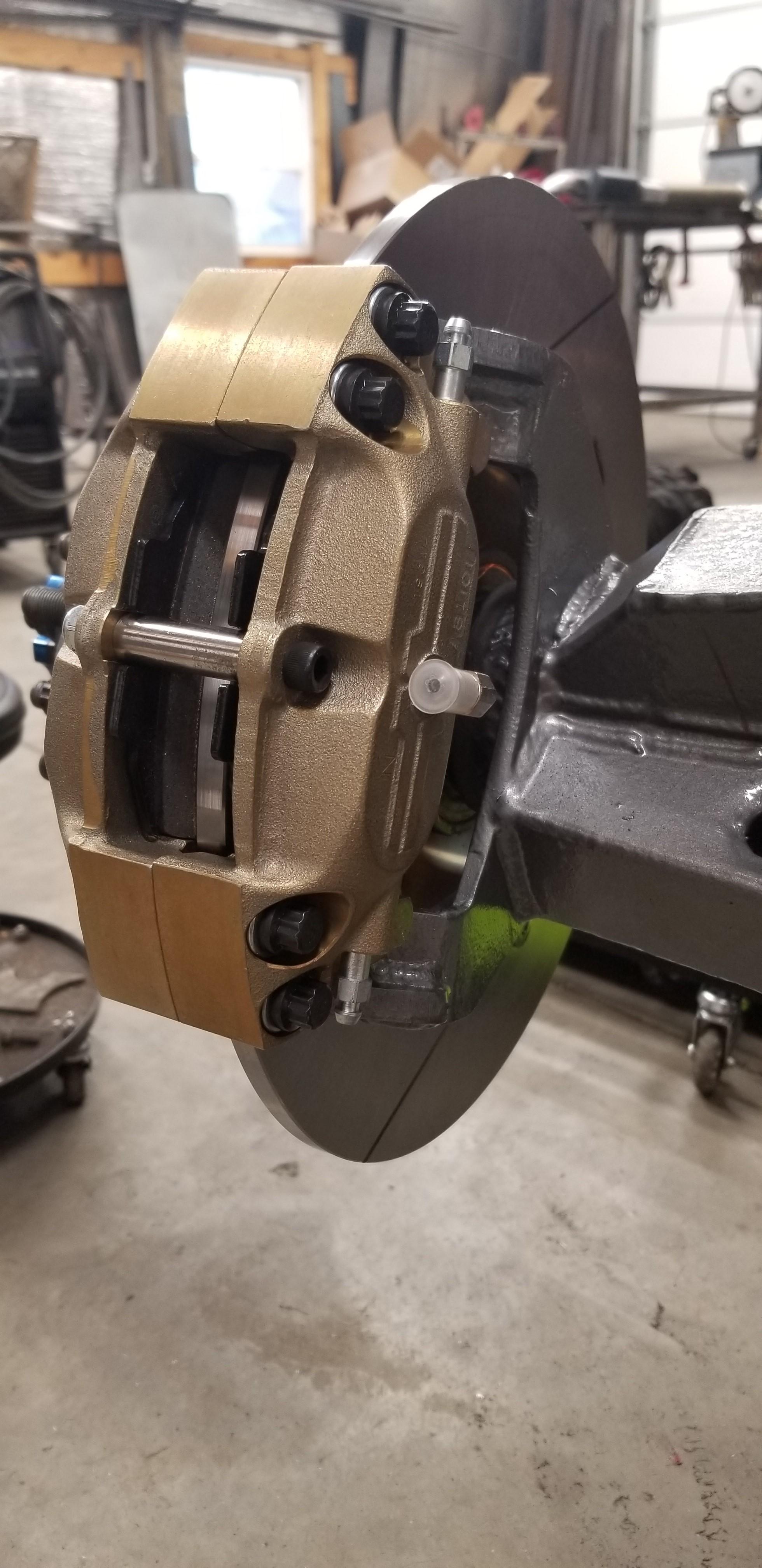

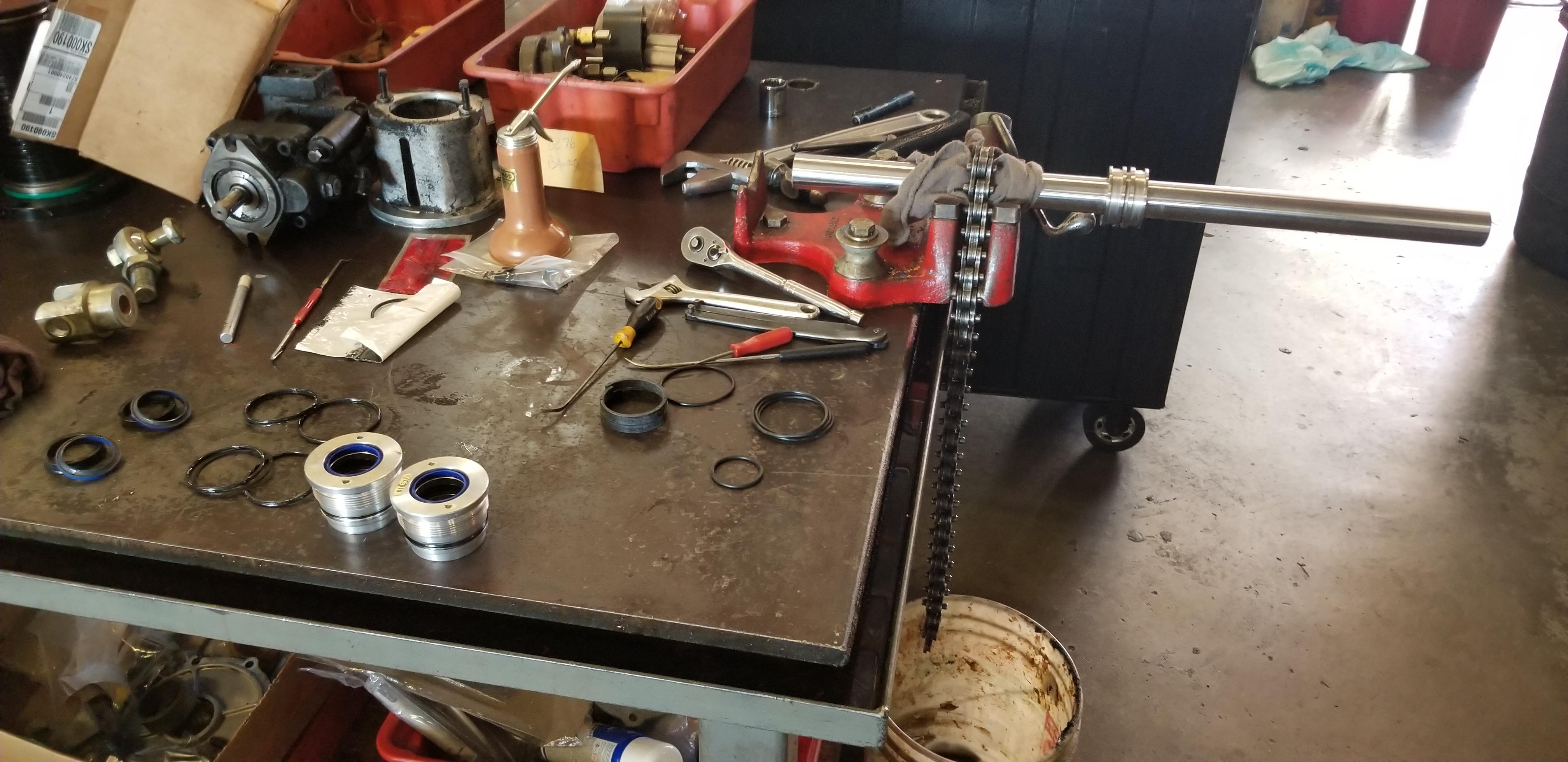

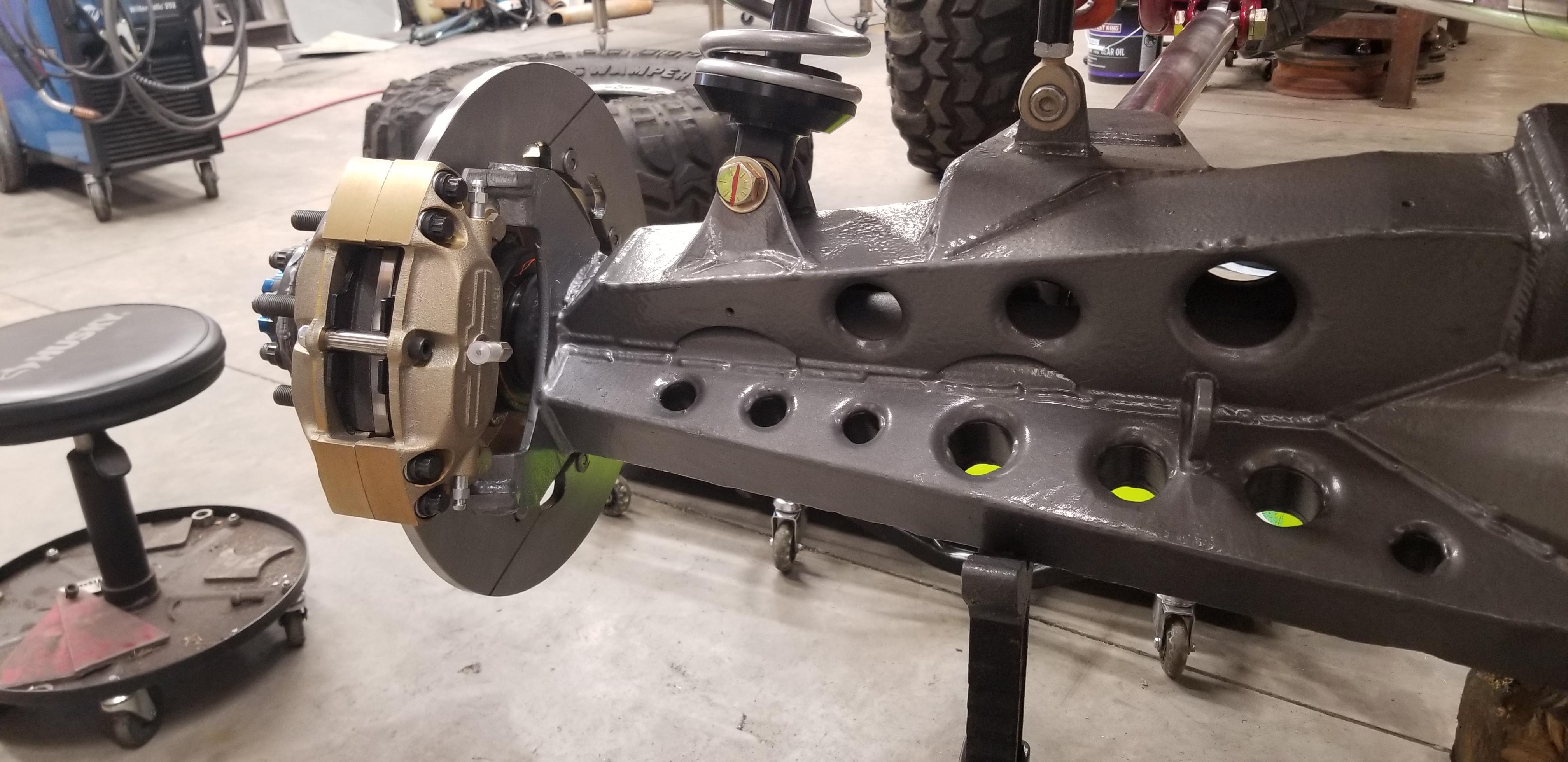

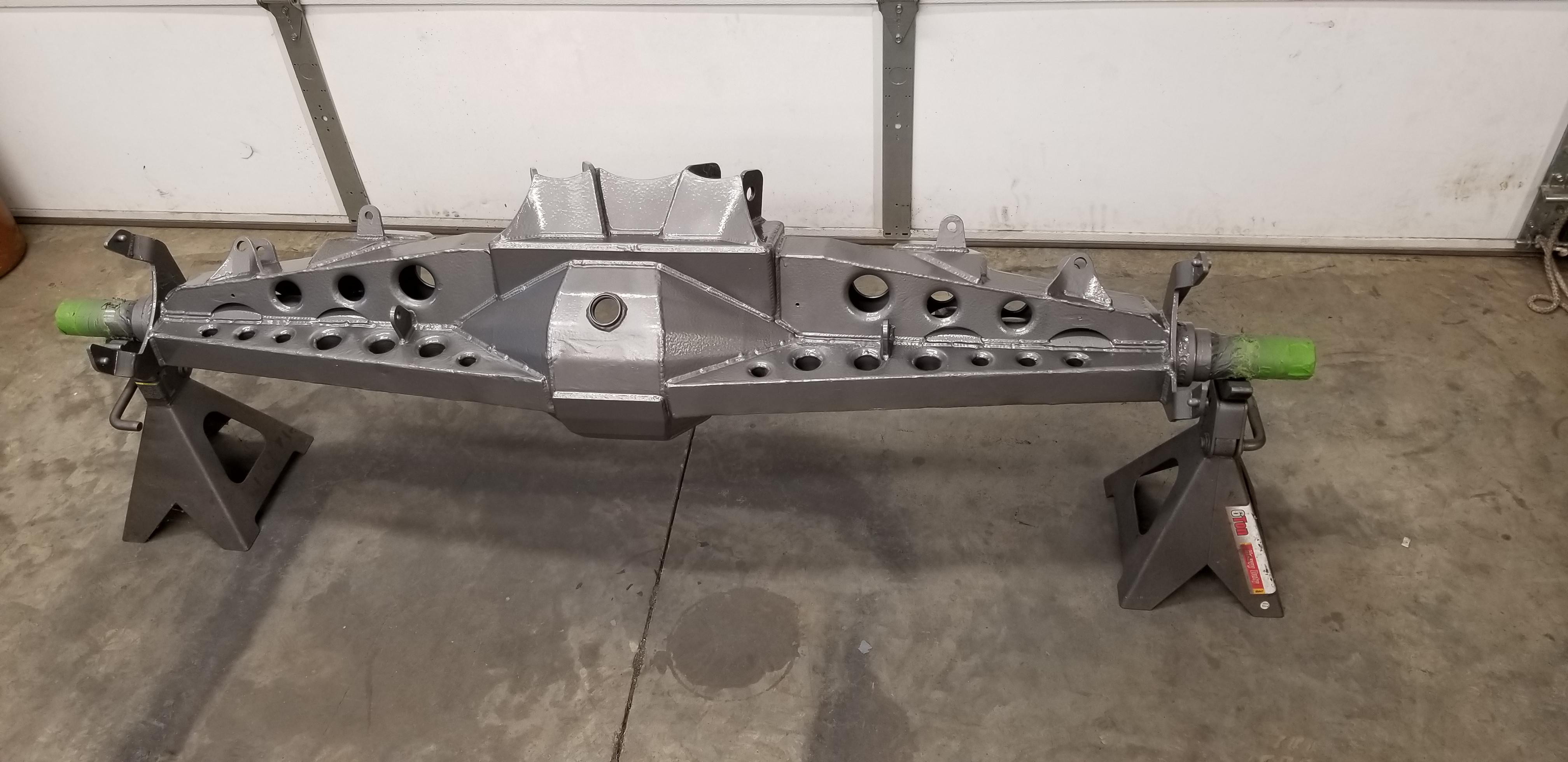

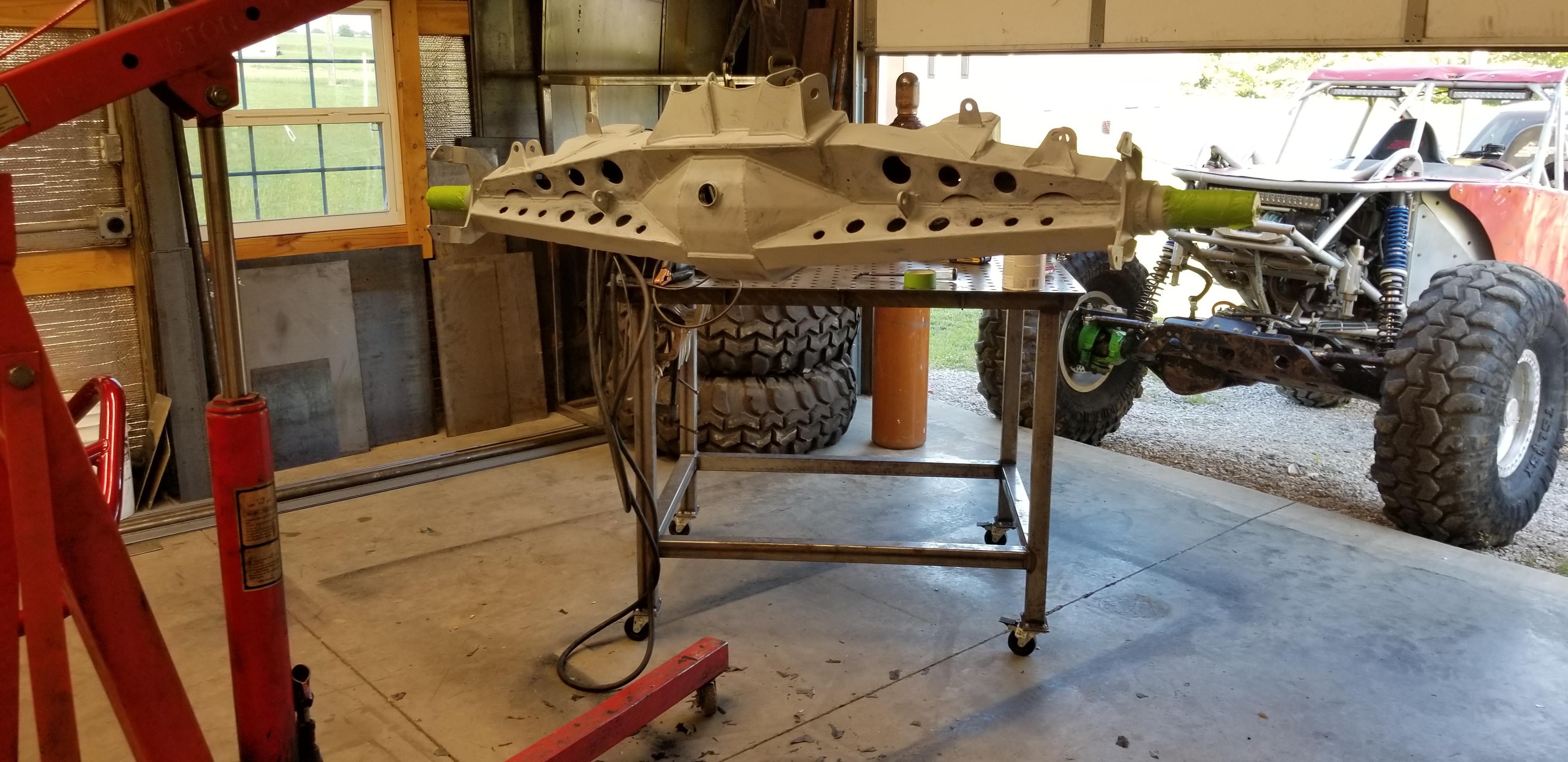

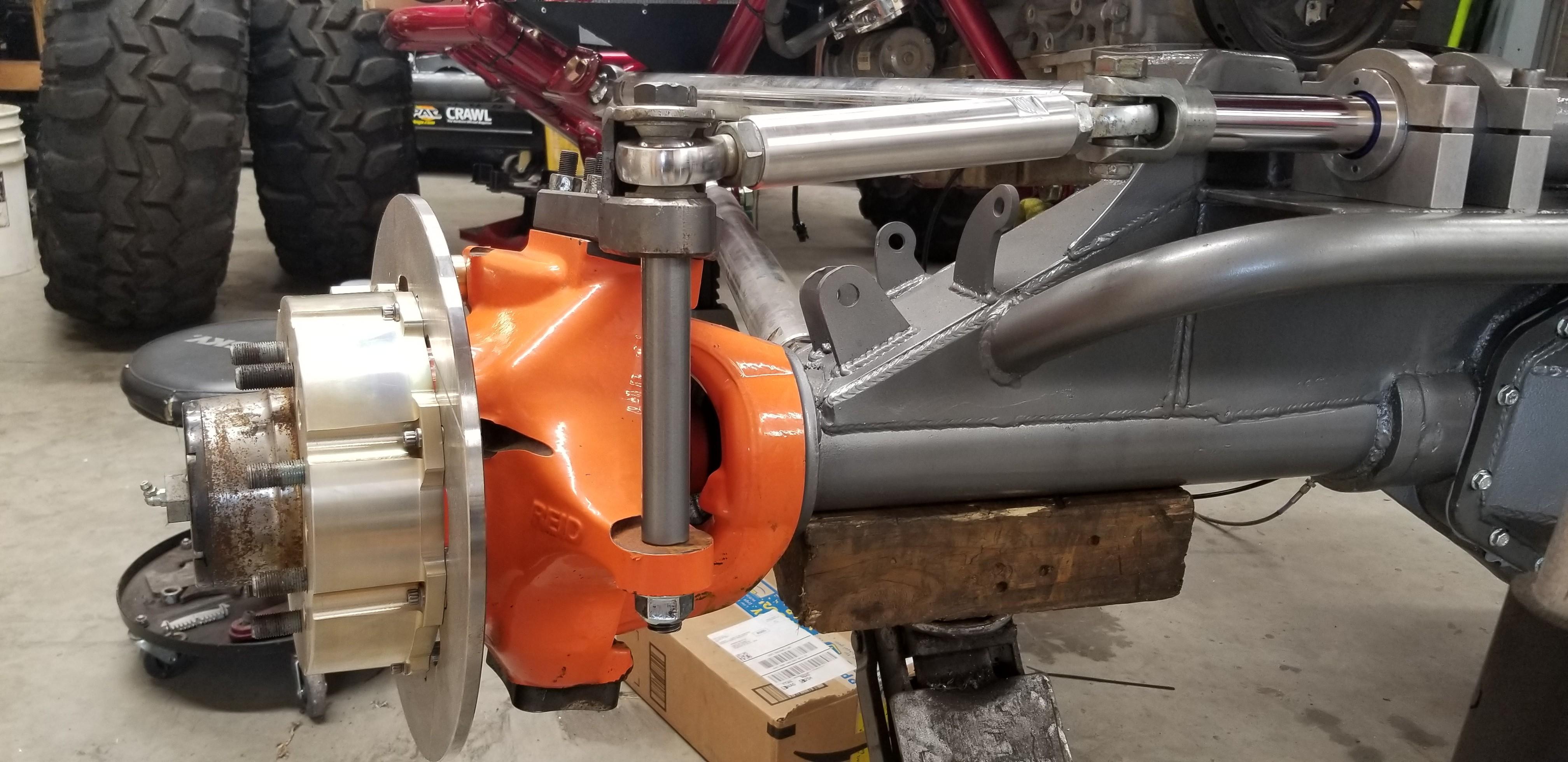

Both front and rear axles got some love. Front axle was pretty fresh build so I pulled the cover, inspected, resealed everything and painted the housing. The braided brake lines had to go. Steering ram got rebuilt, lightened things up quite a bit with new Mark Williams brake kit and tied the steering arms into the knuckle.











wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky

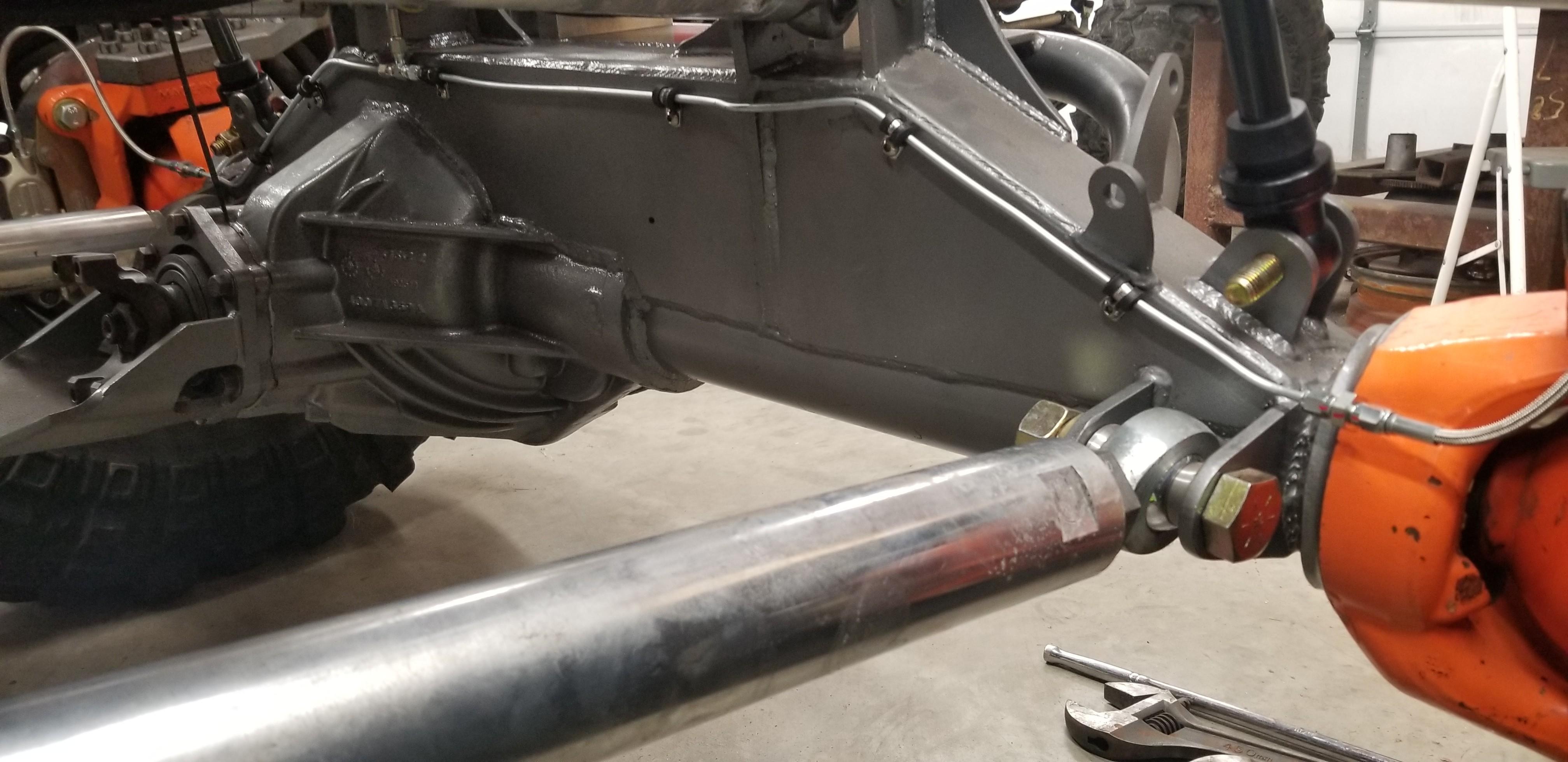

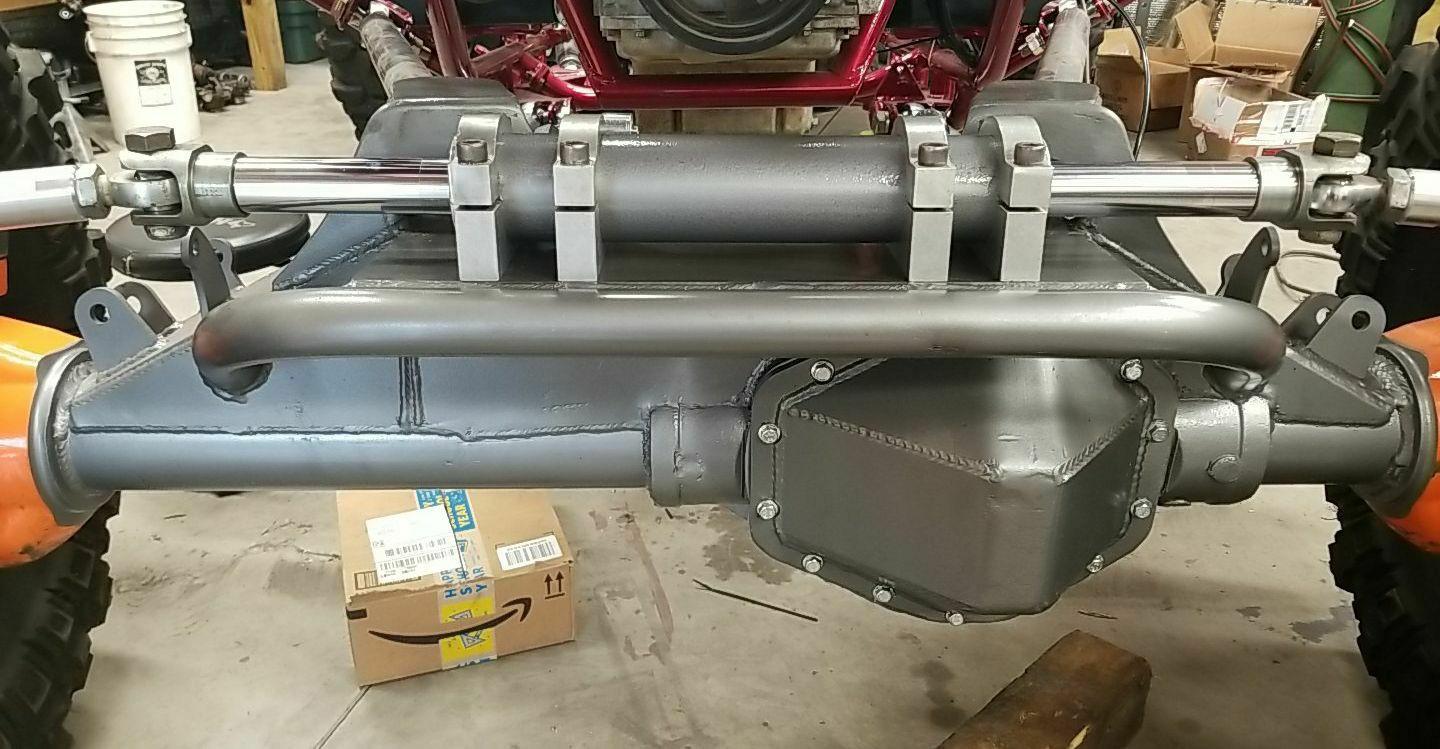

The rear was torn down completely and the third member was sent off to be freshened up. Axle got fresh paint and new Mark Williams brake kit.








wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky

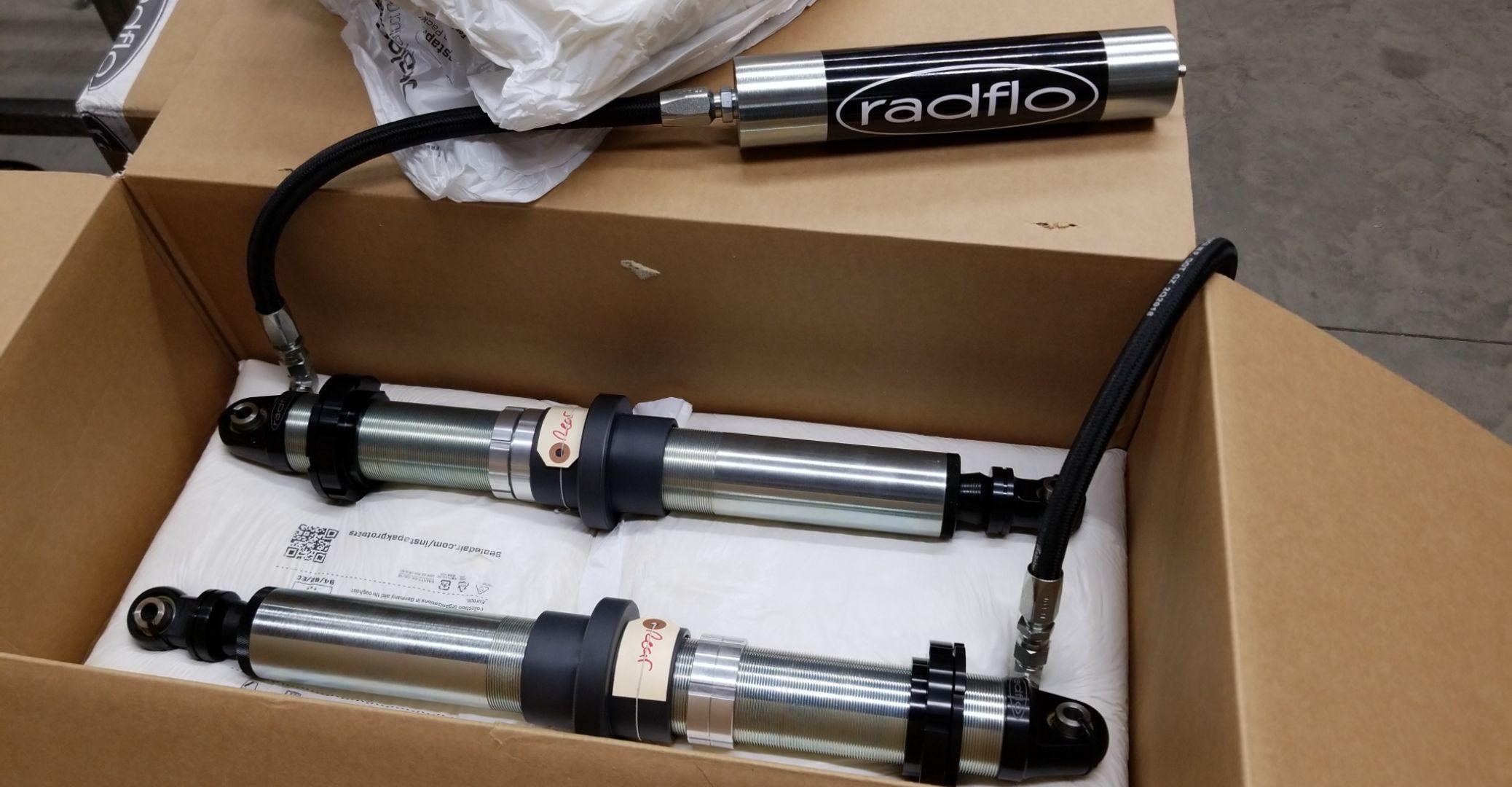

We couldn't just go back with the 2.0 radflo's he had before. Andrew pulled the trigger to step up to some 2.5's! I also shortened the stroke on his bump stops and rebuilt them.

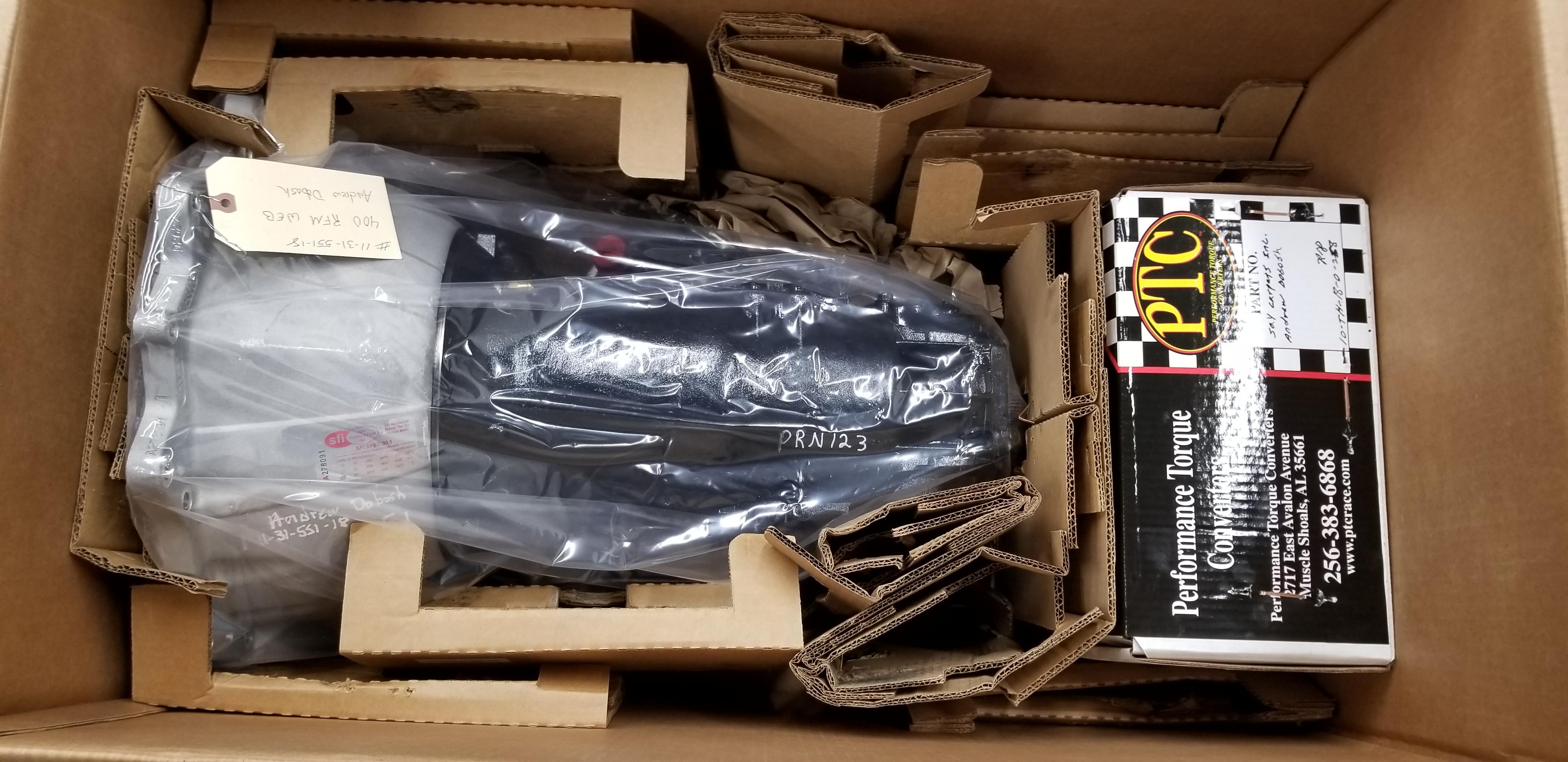

Transmission was sent back to PTC to be freshened up and added an ultra bell

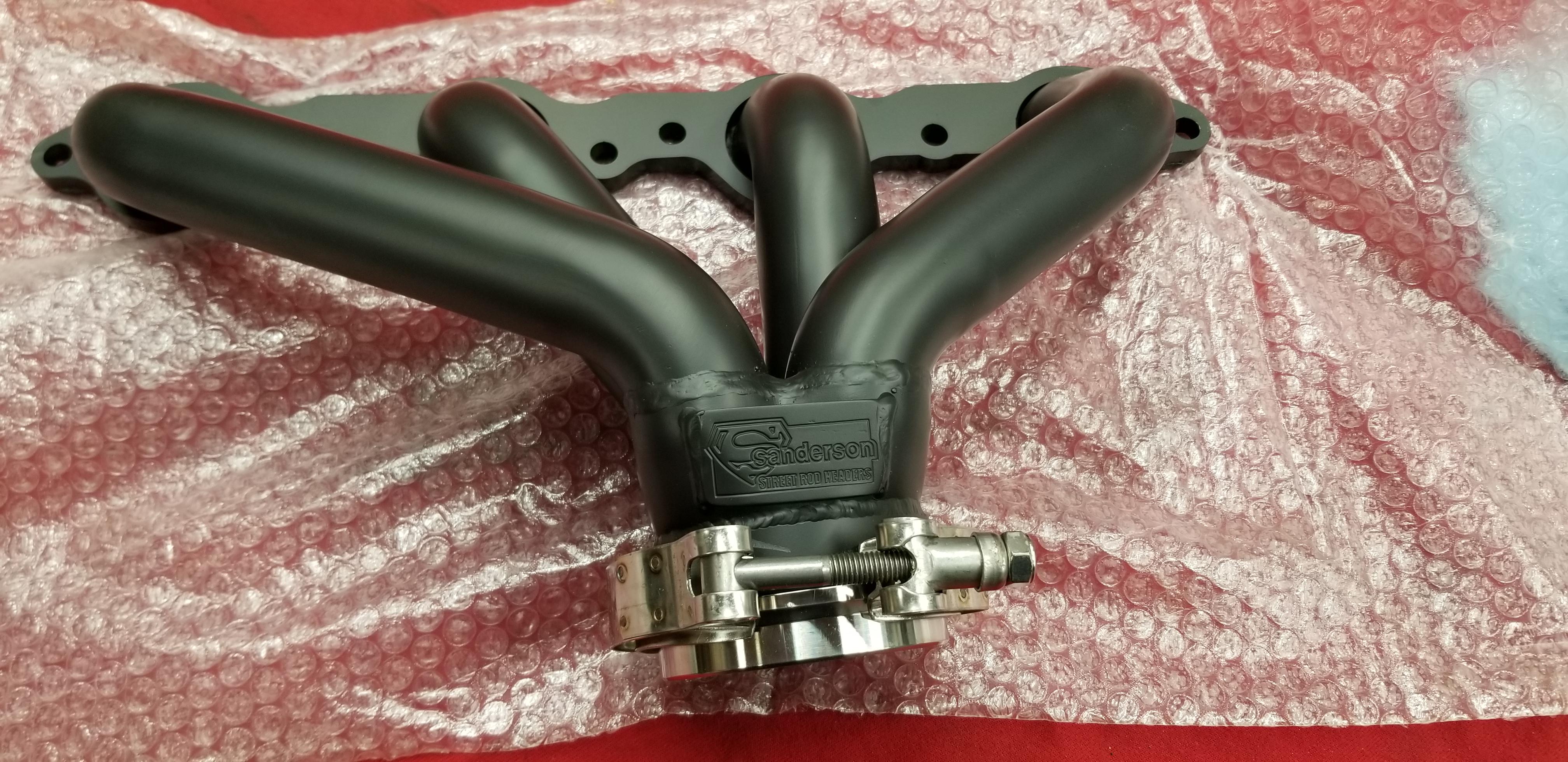

Fresh Sanderson headers with v bands welded on from WOD

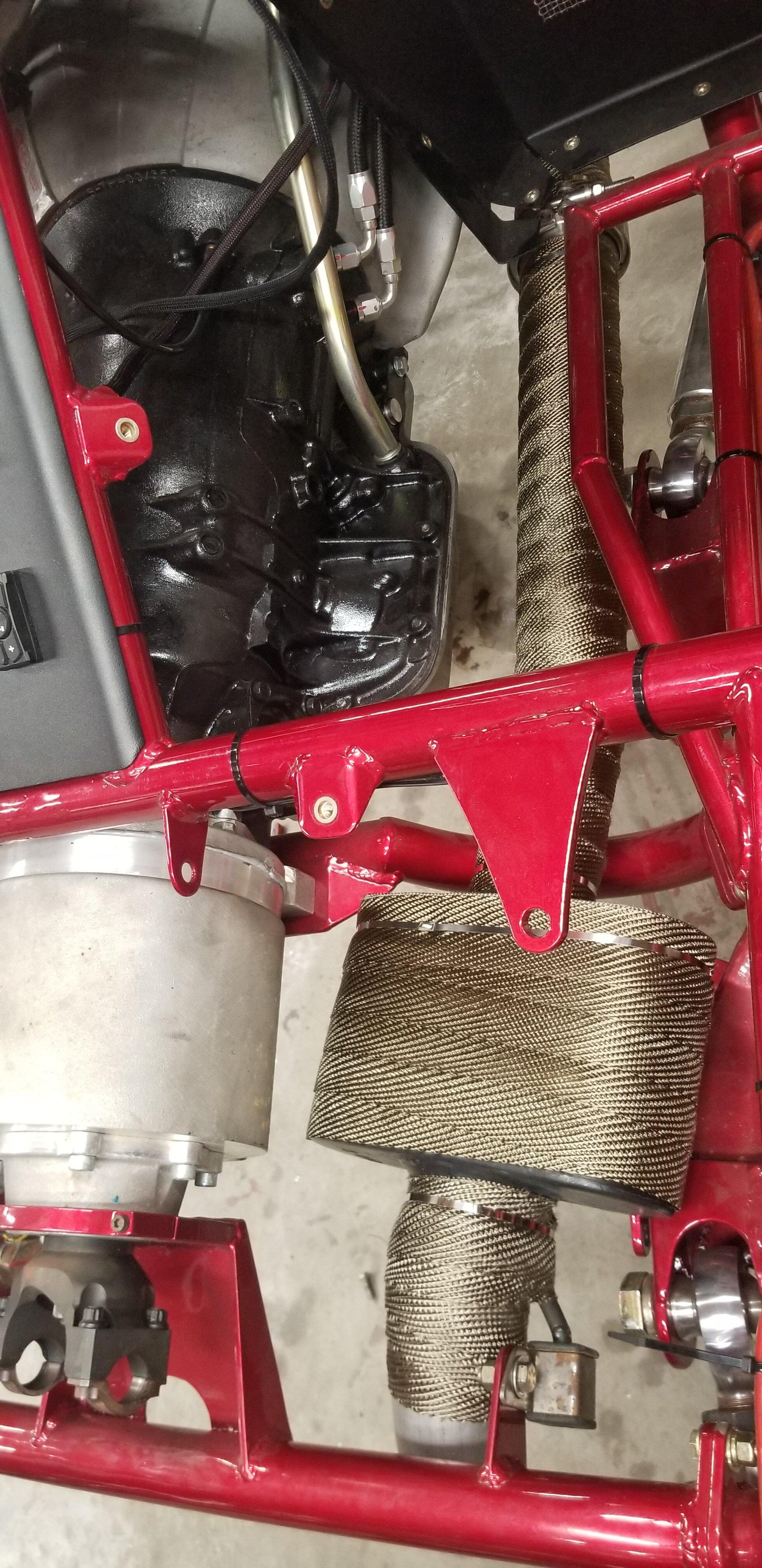

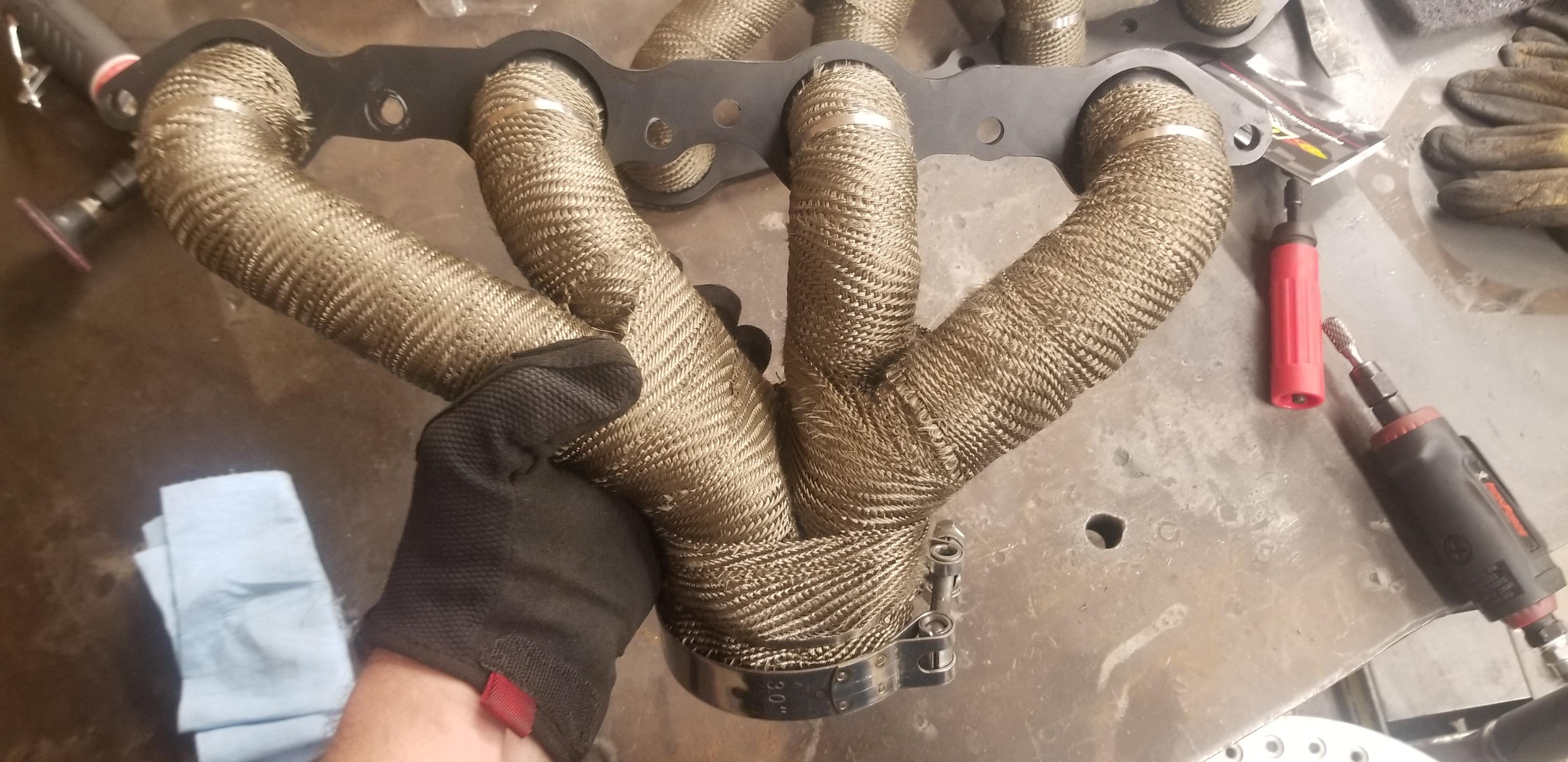

I wrapped with DEI titanium heat wrap

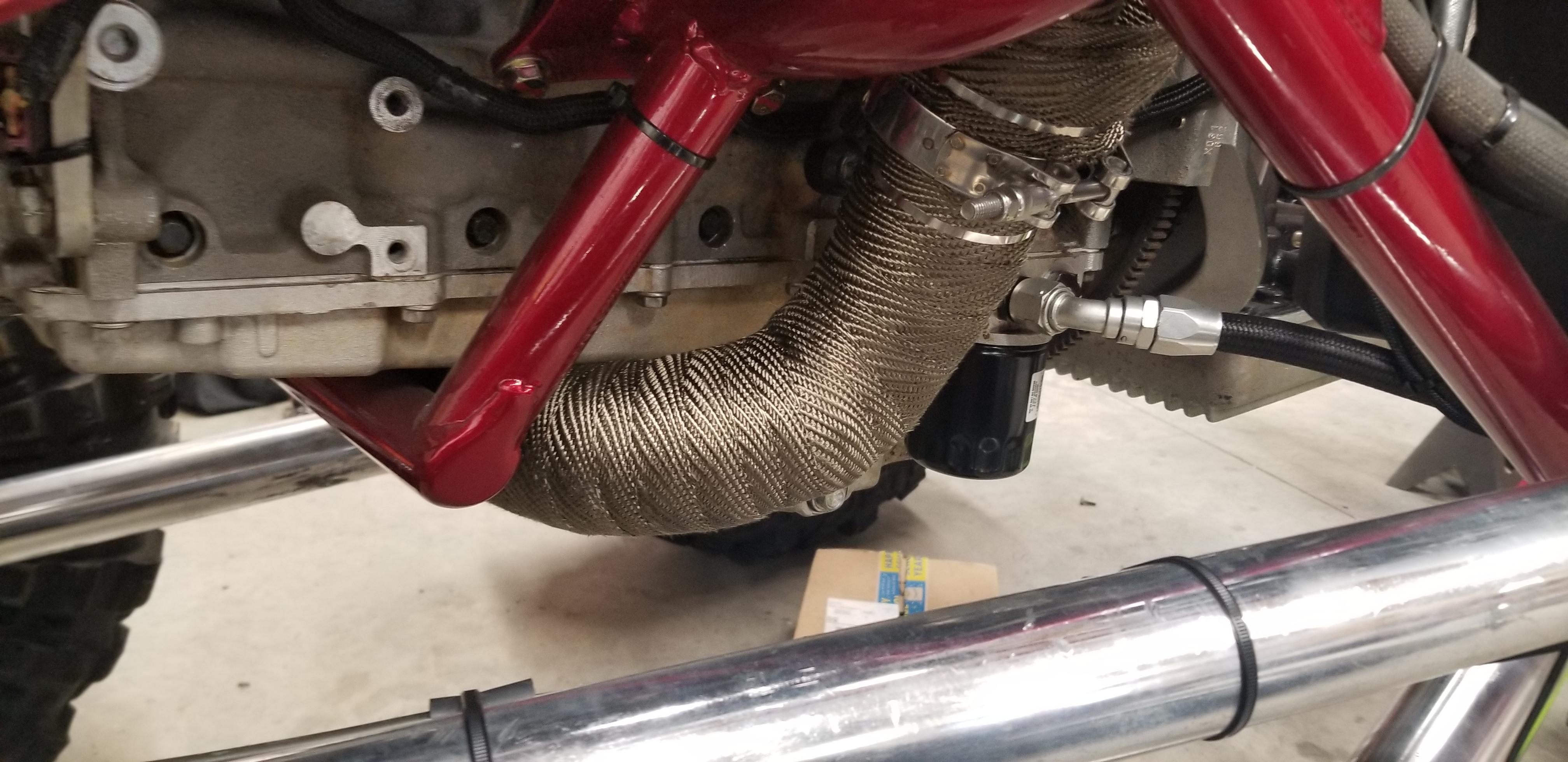

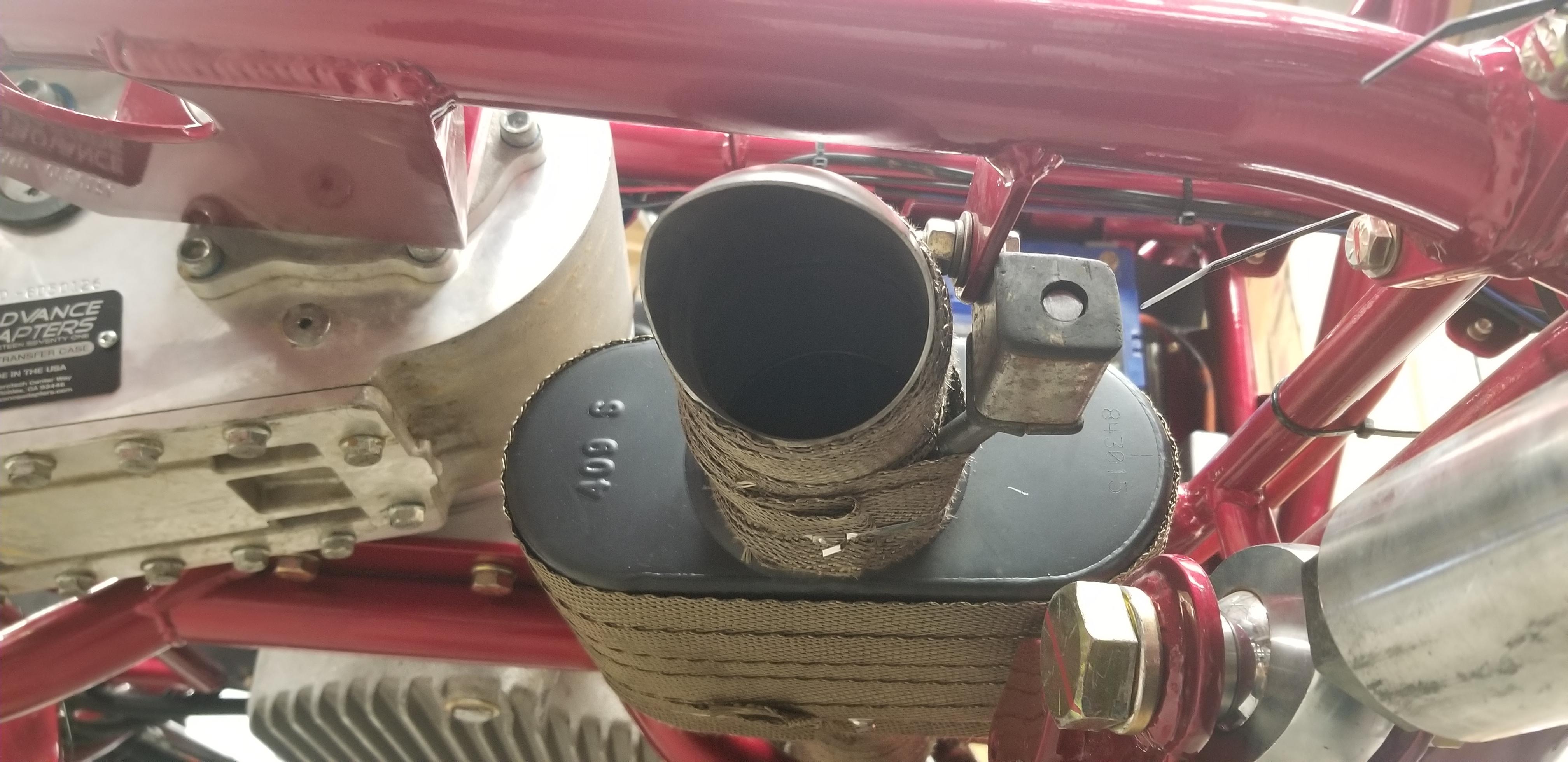

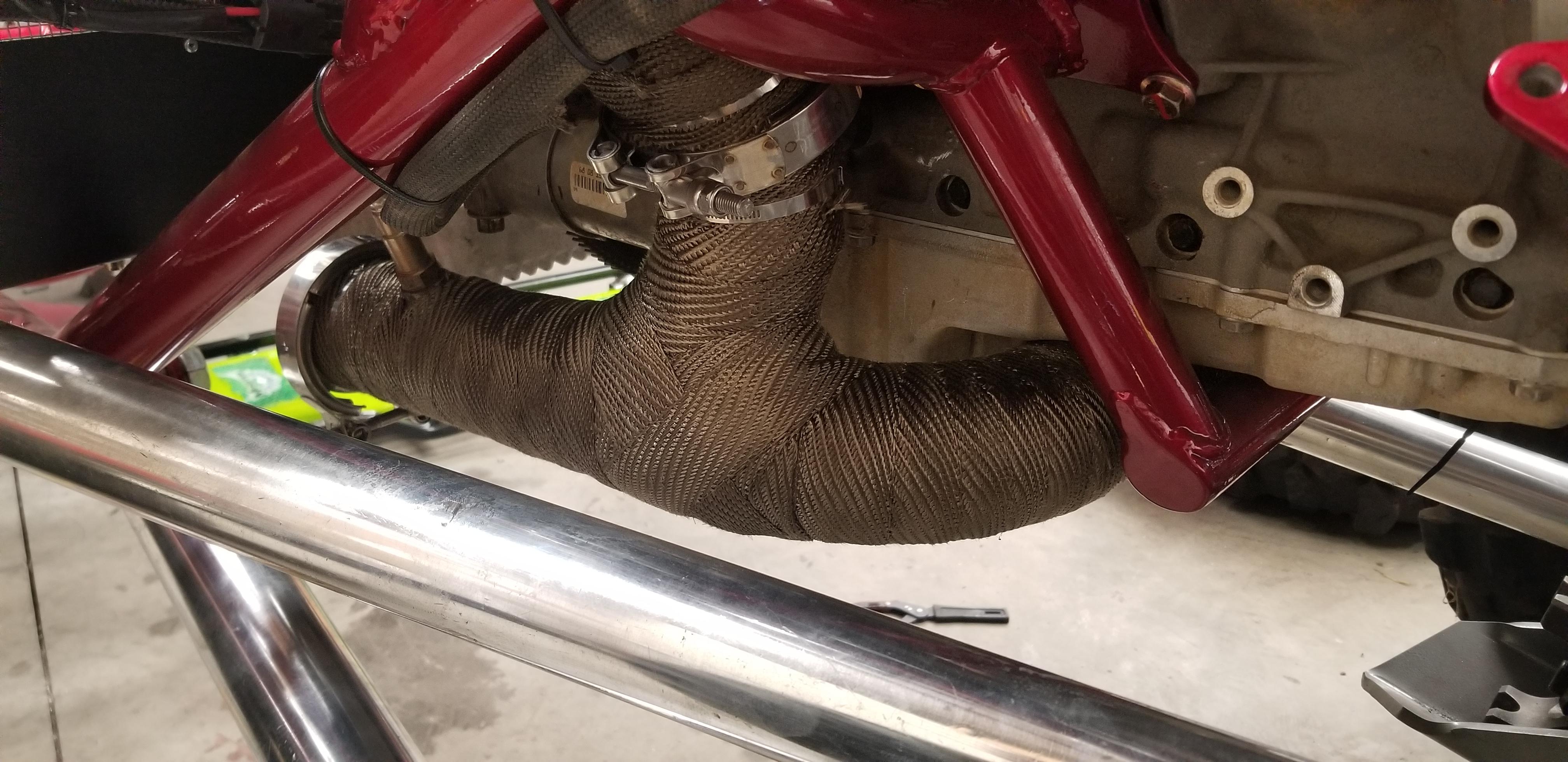

New exhaust through out and muffler. All wrapped.








wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky

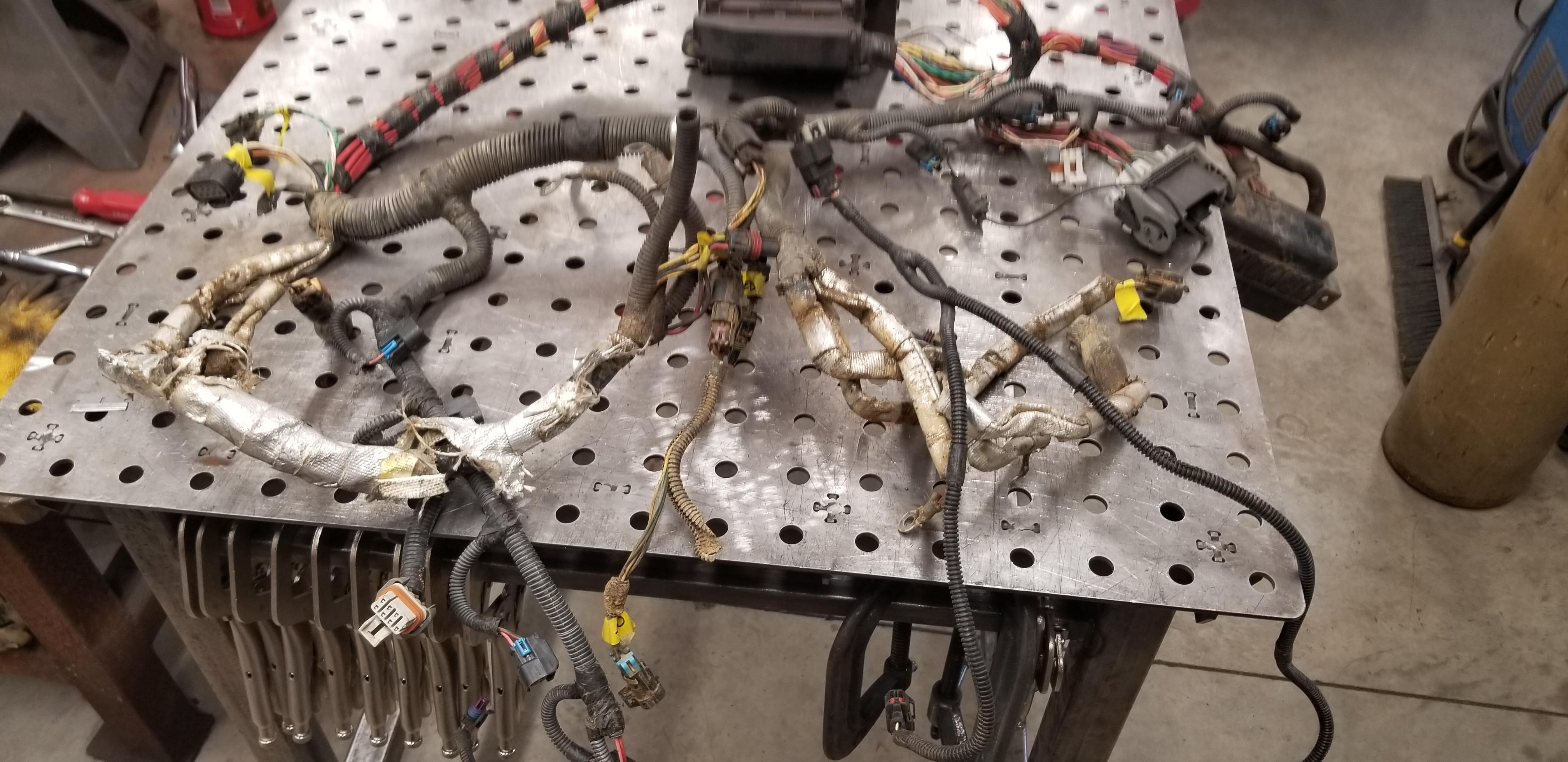

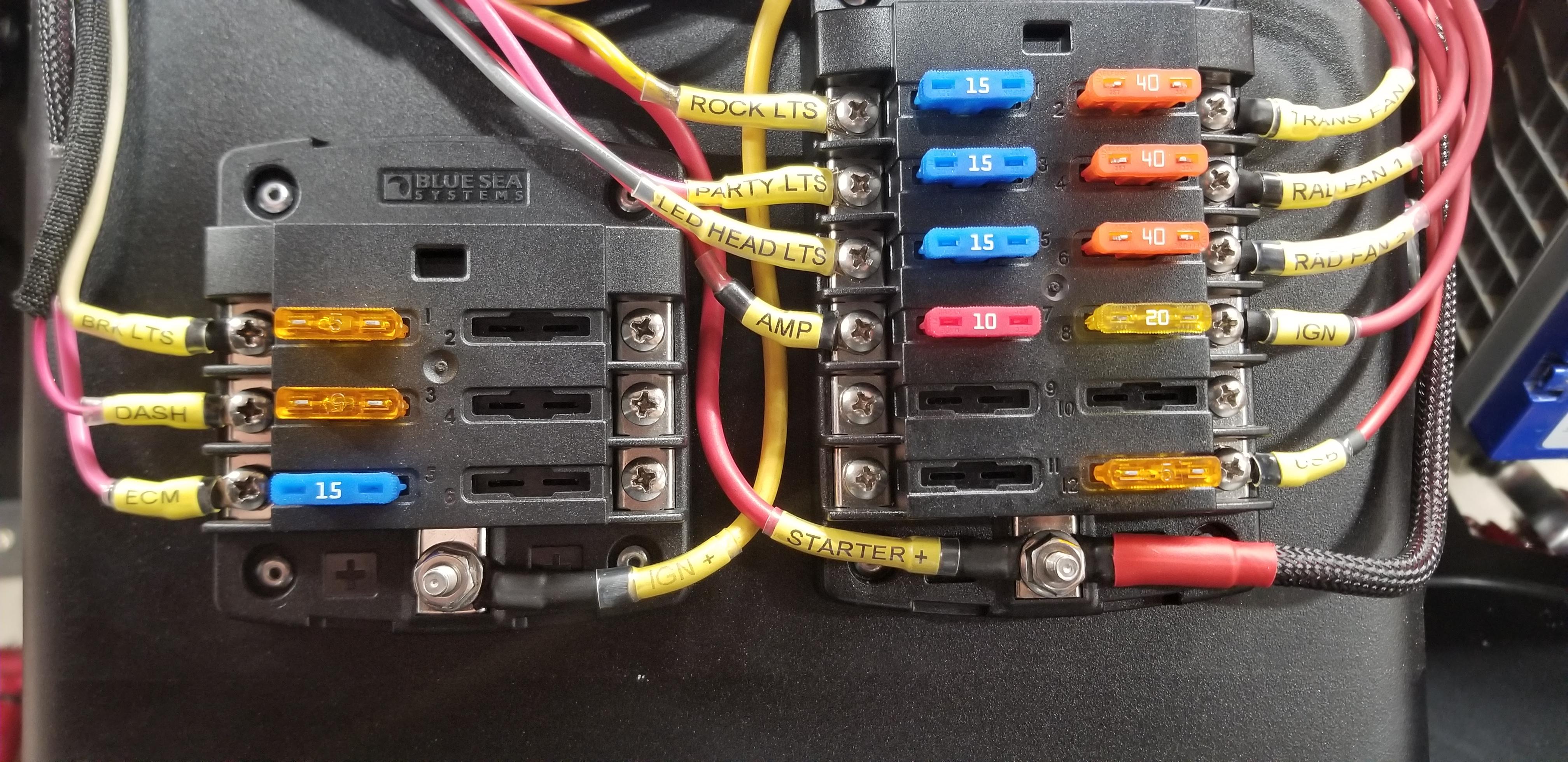

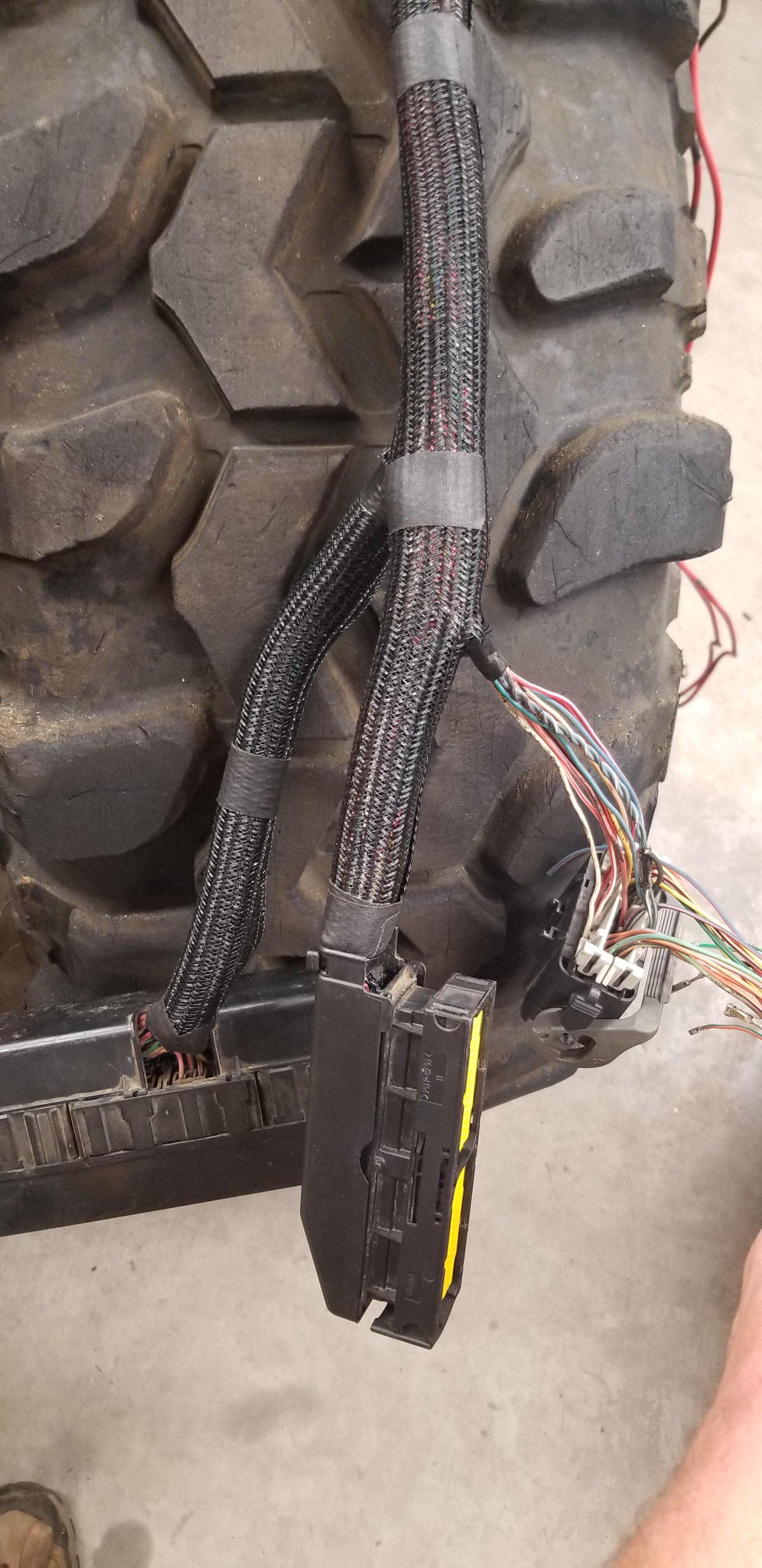

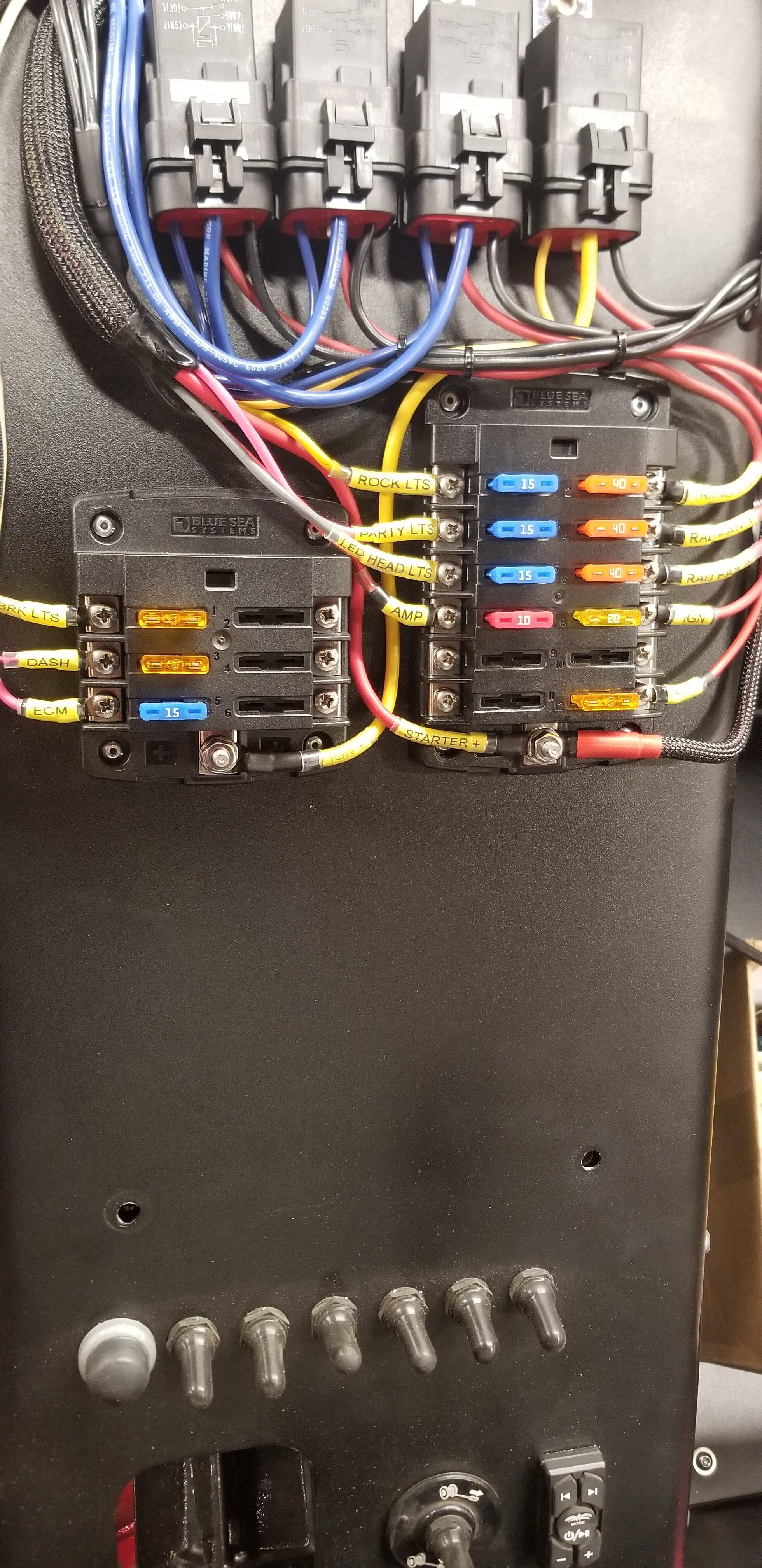

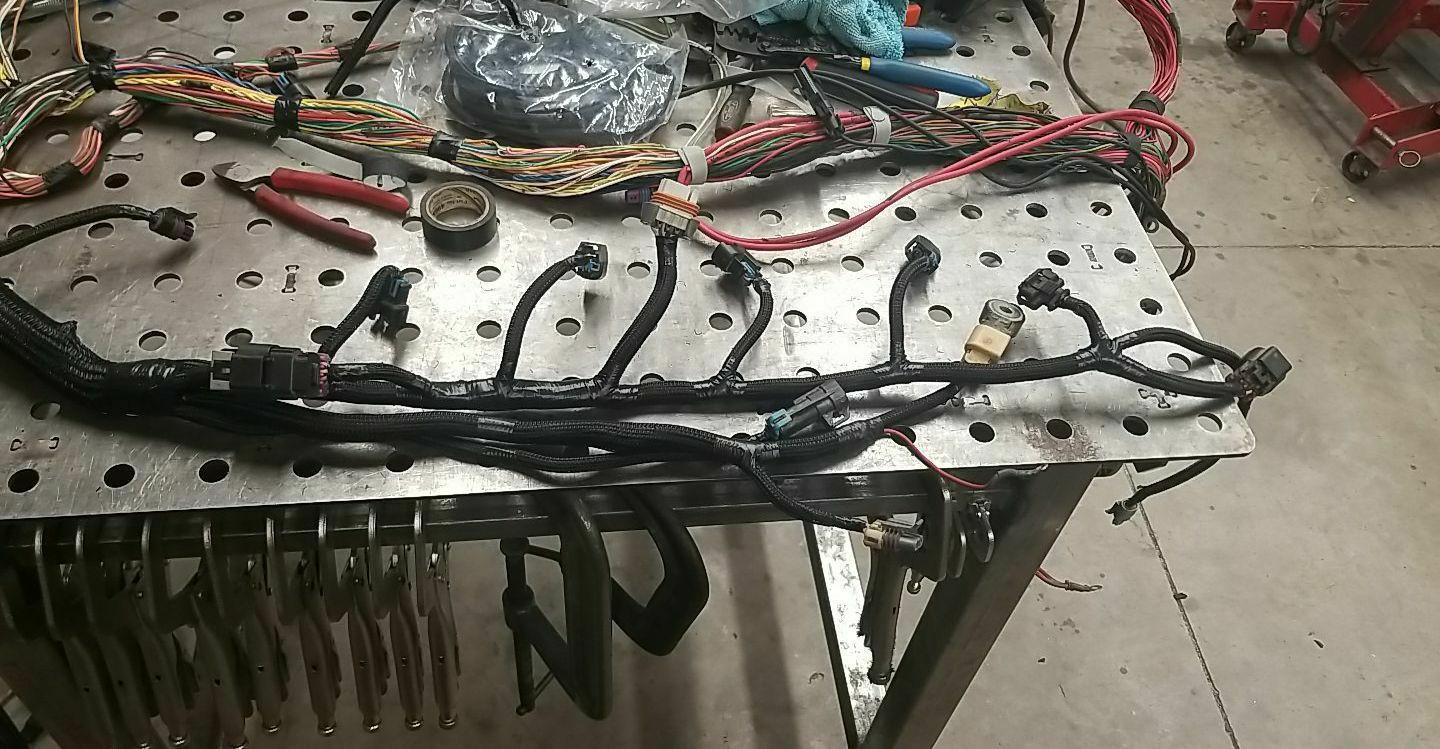

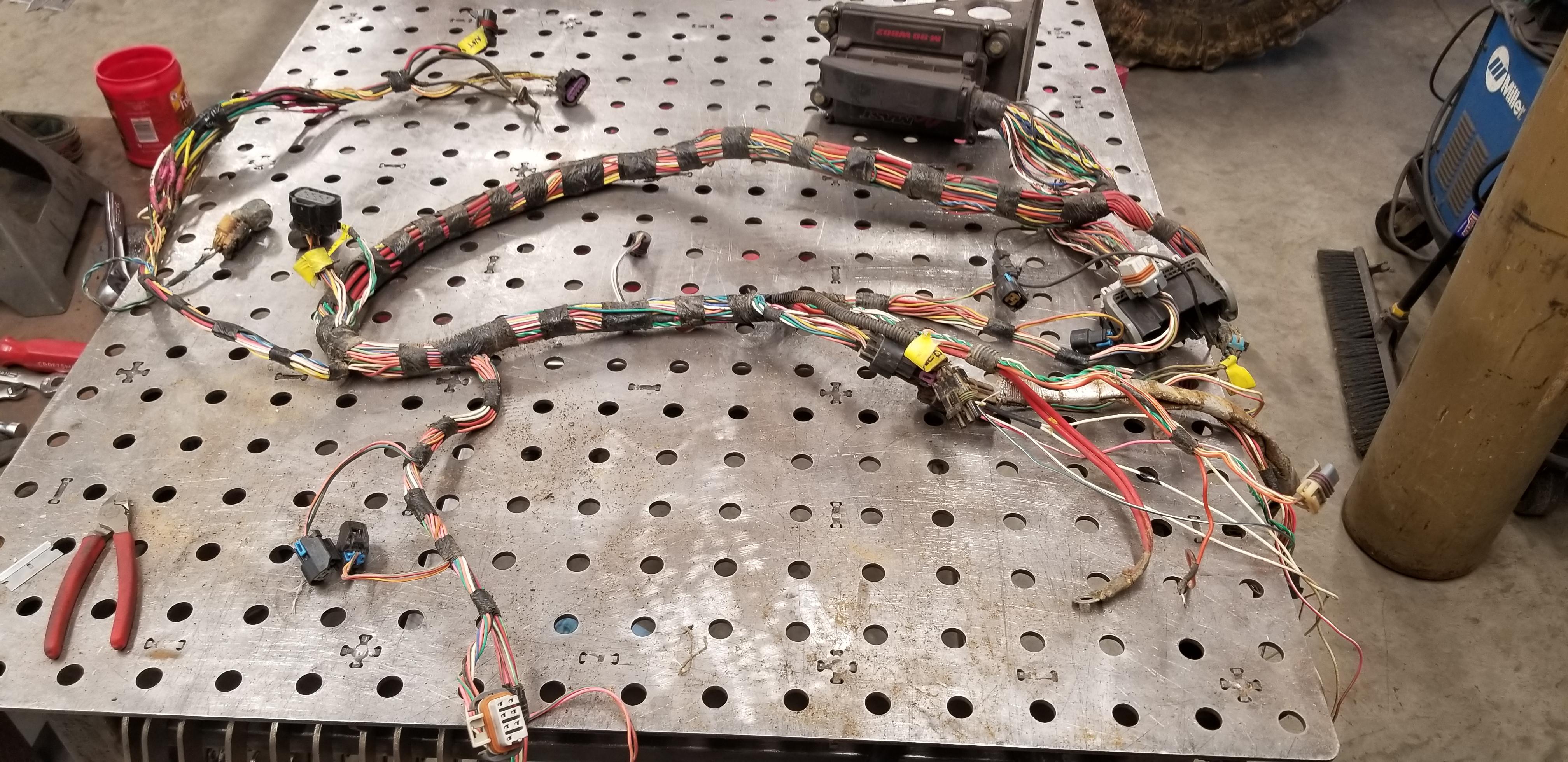

Wiring and plumbing is something I enjoy. I thinned out his engine harness and replaced the plastic loom with mesh. All accessory wiring was replaced. New switches, fuse panels and relays. All new hoses everywhere.

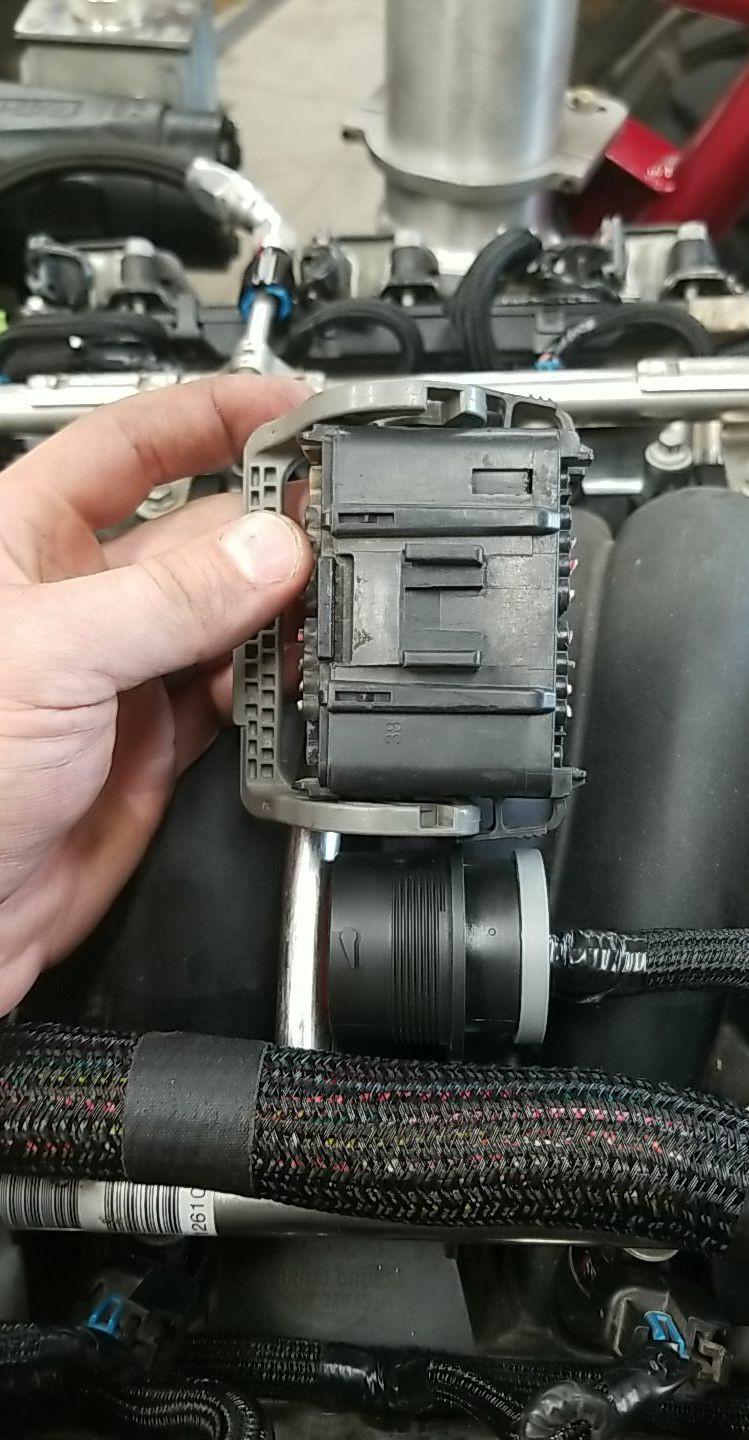

Got rid of this large factory connector

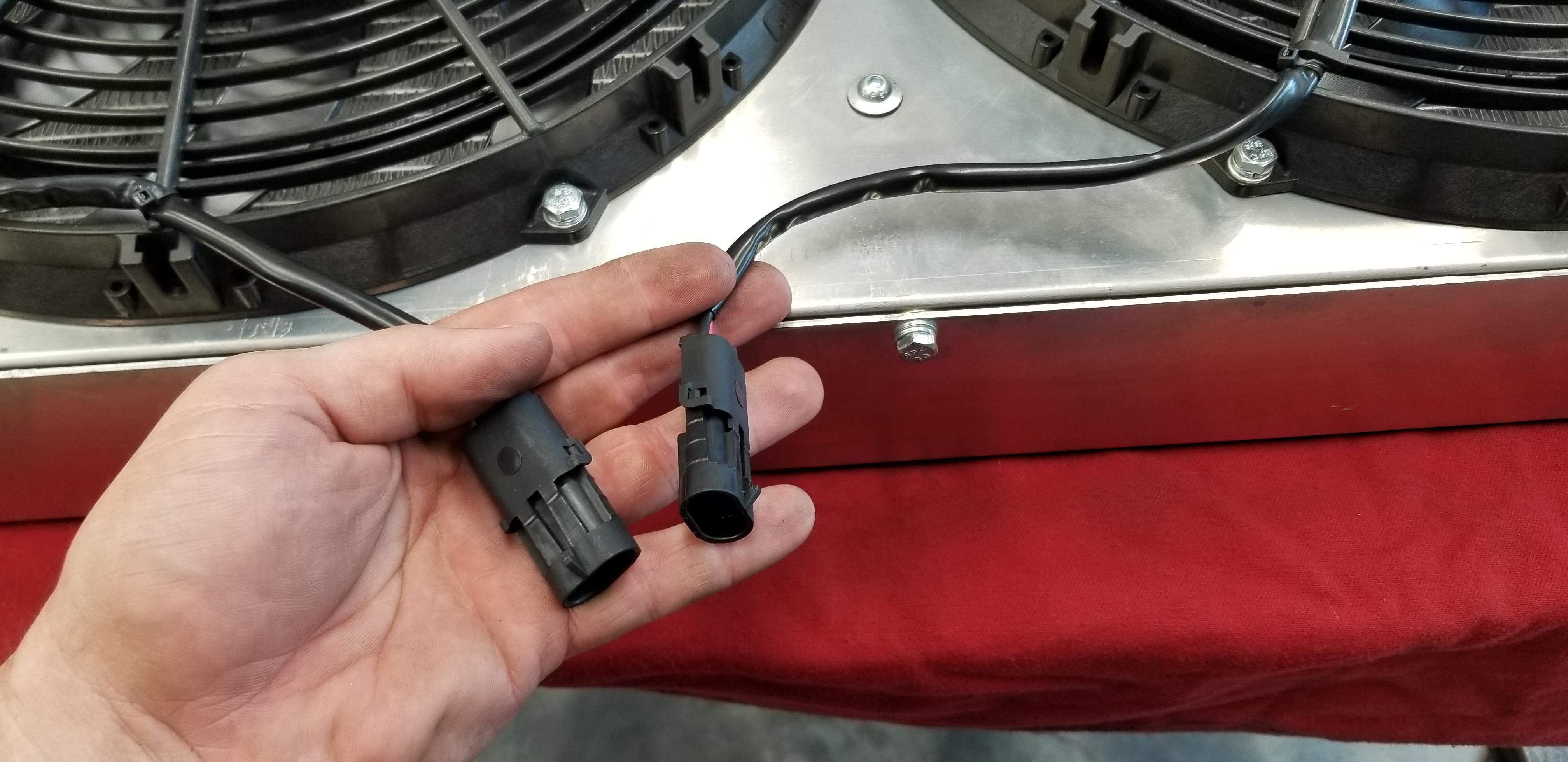

Ditched the white connectors the SPAL fans come with for some weatherpak






wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky

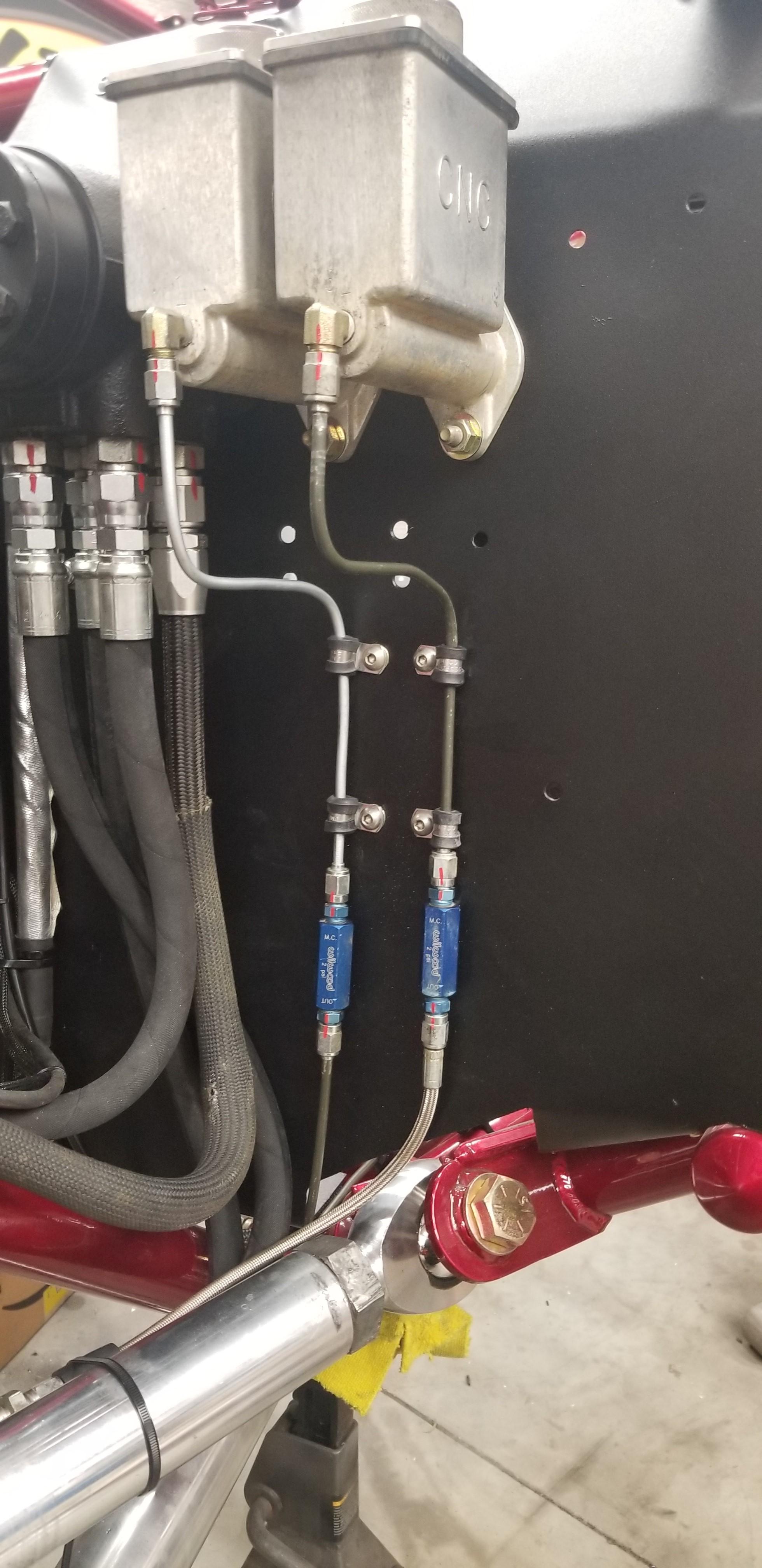

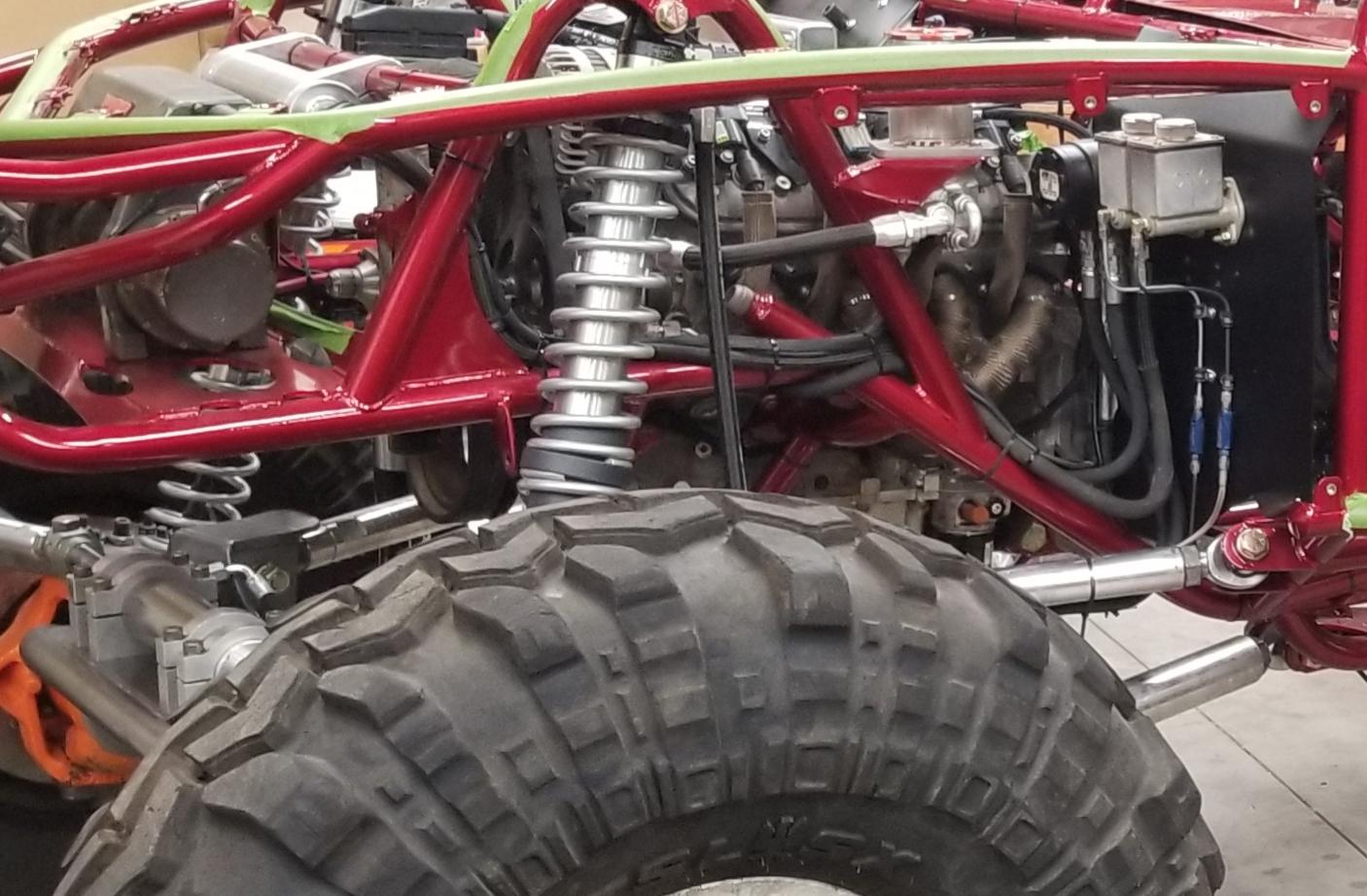

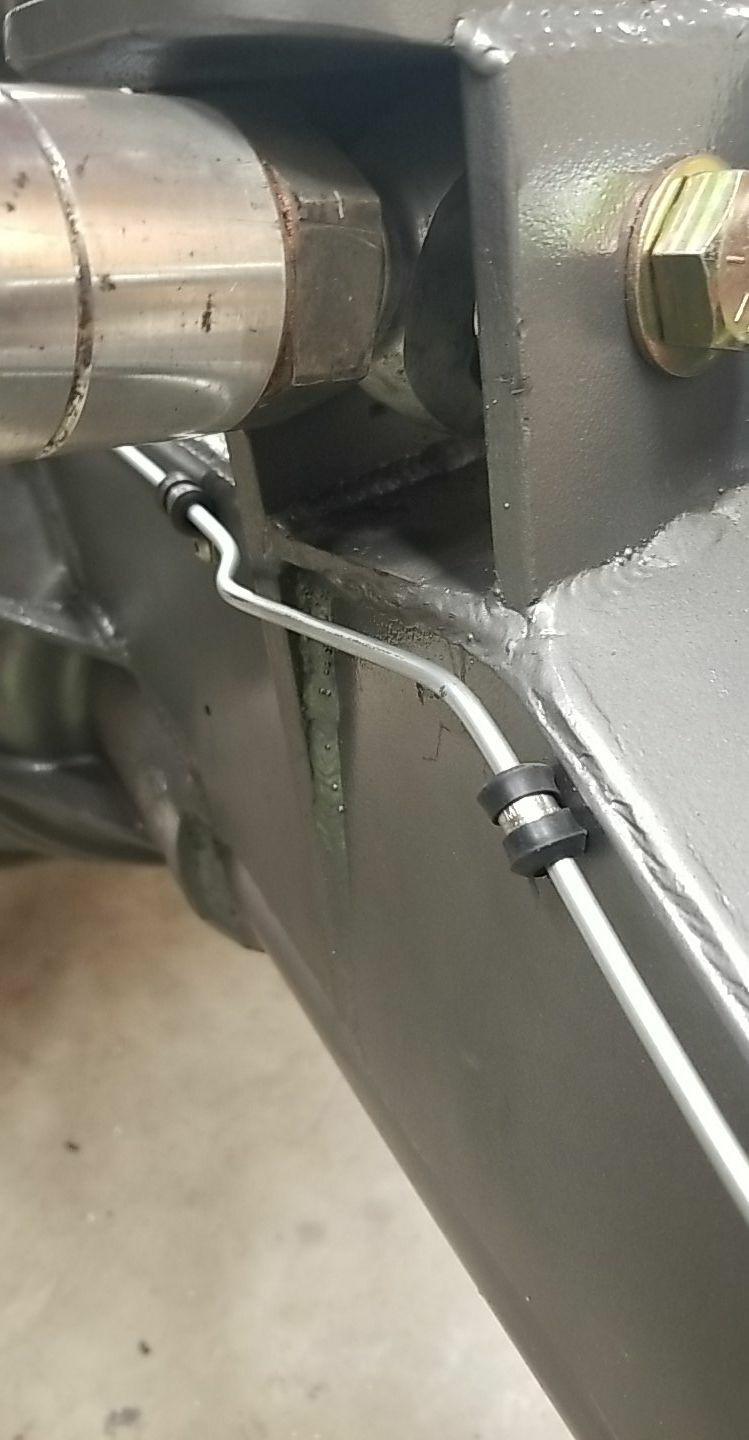

All new hydraulic lines made in house and replaced a few brake lines

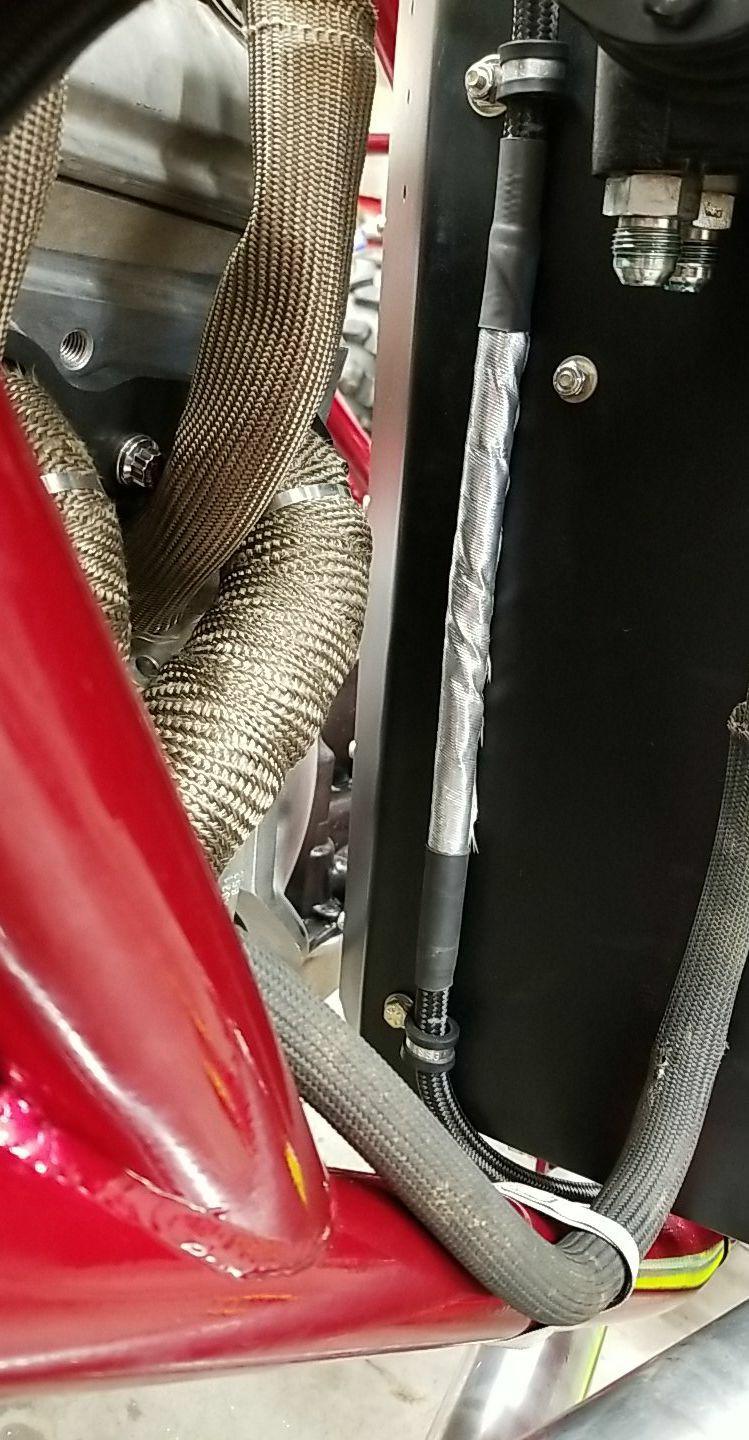

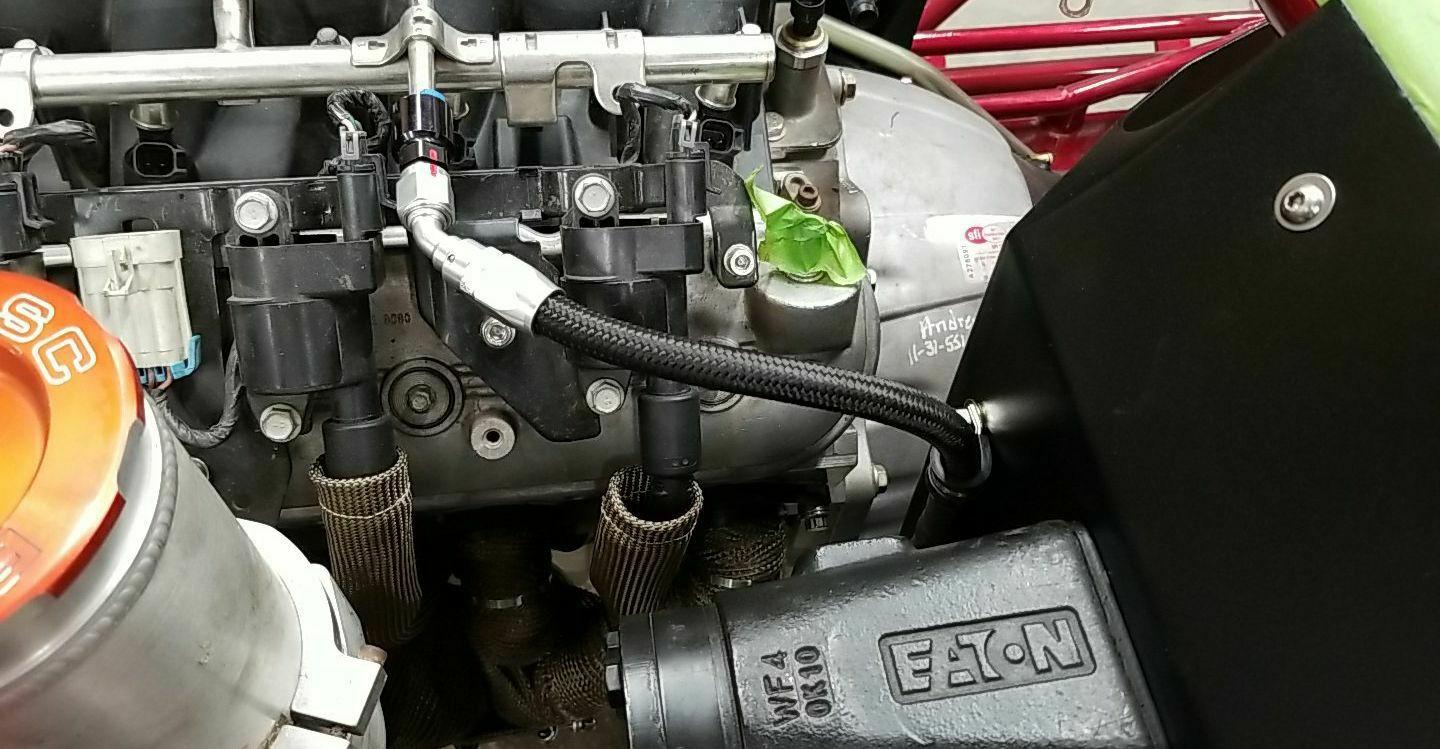

New fuel line with heat wrap and secured to the fire wall




wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky
Random details

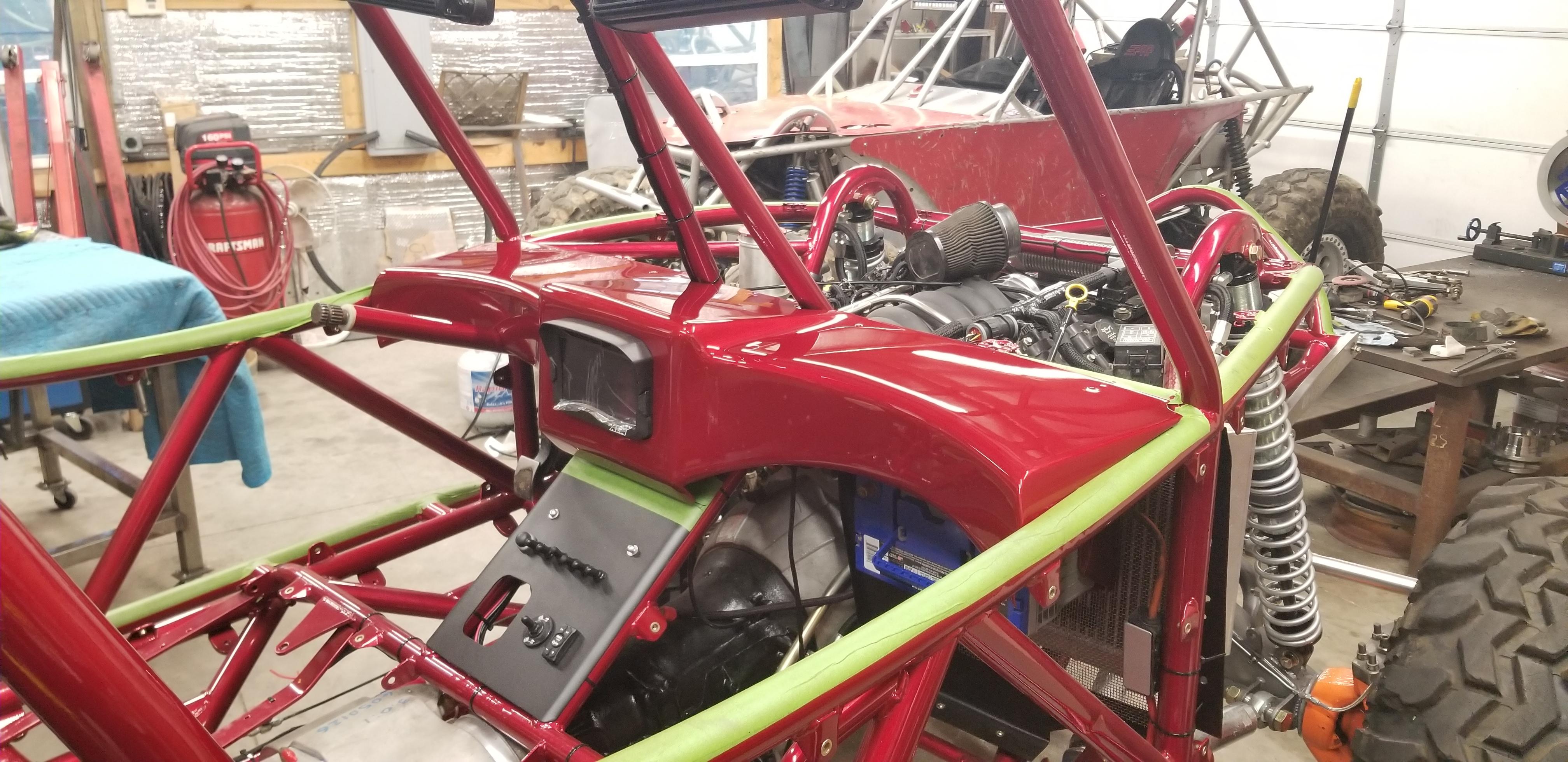

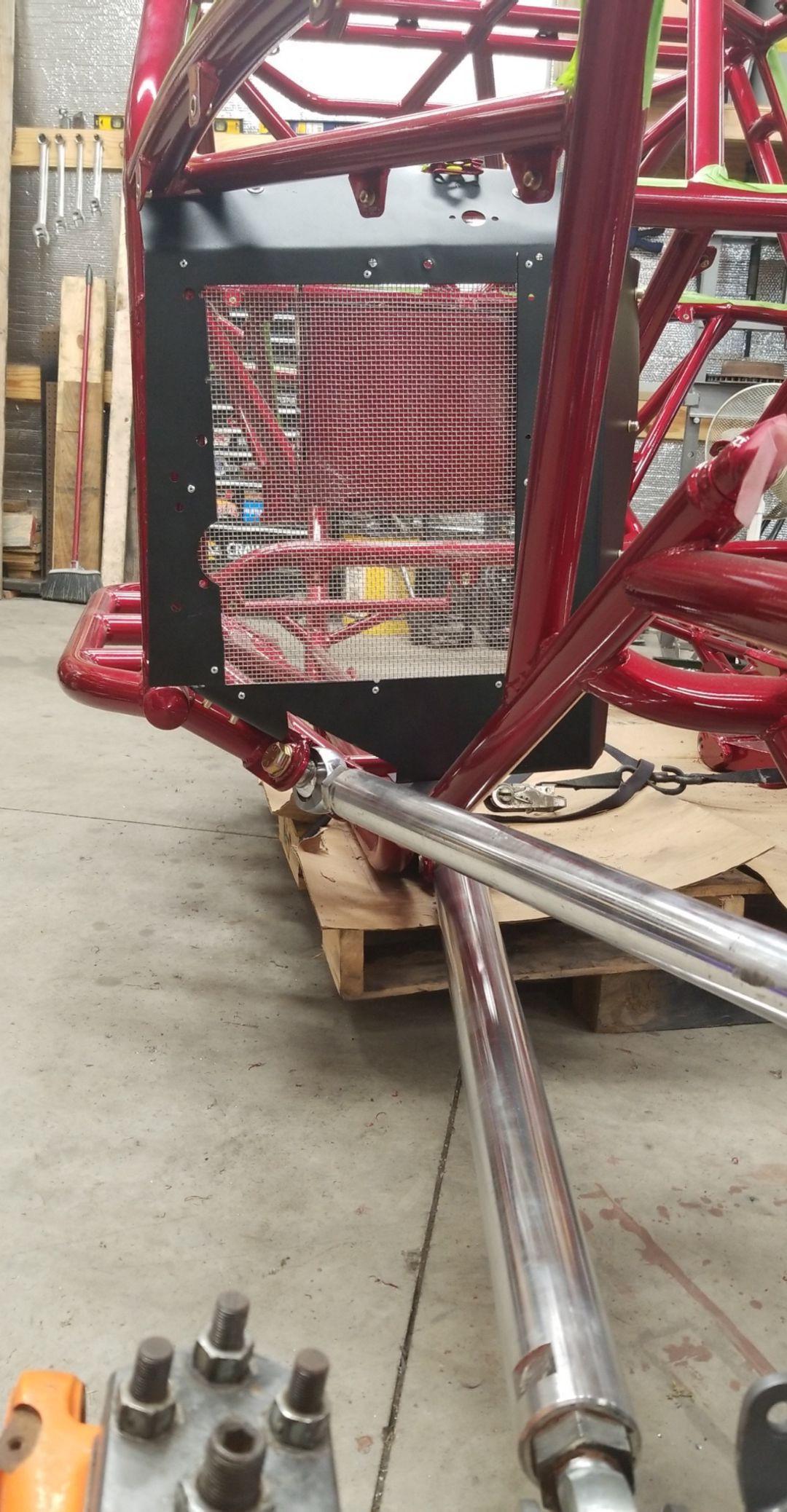

Used the existing panels but cut this one out and added wire mesh to allow some air flow around the trans cooler

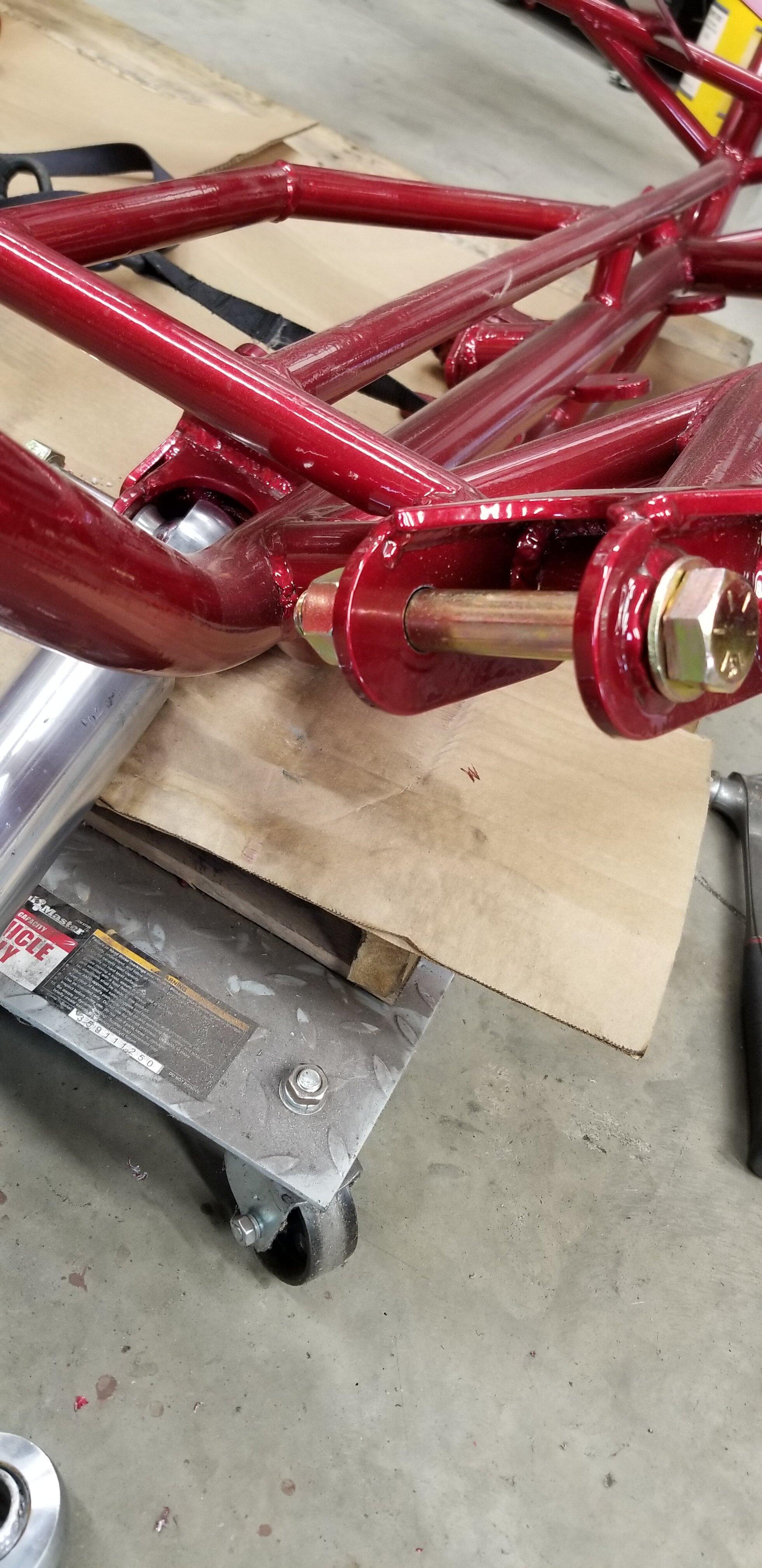

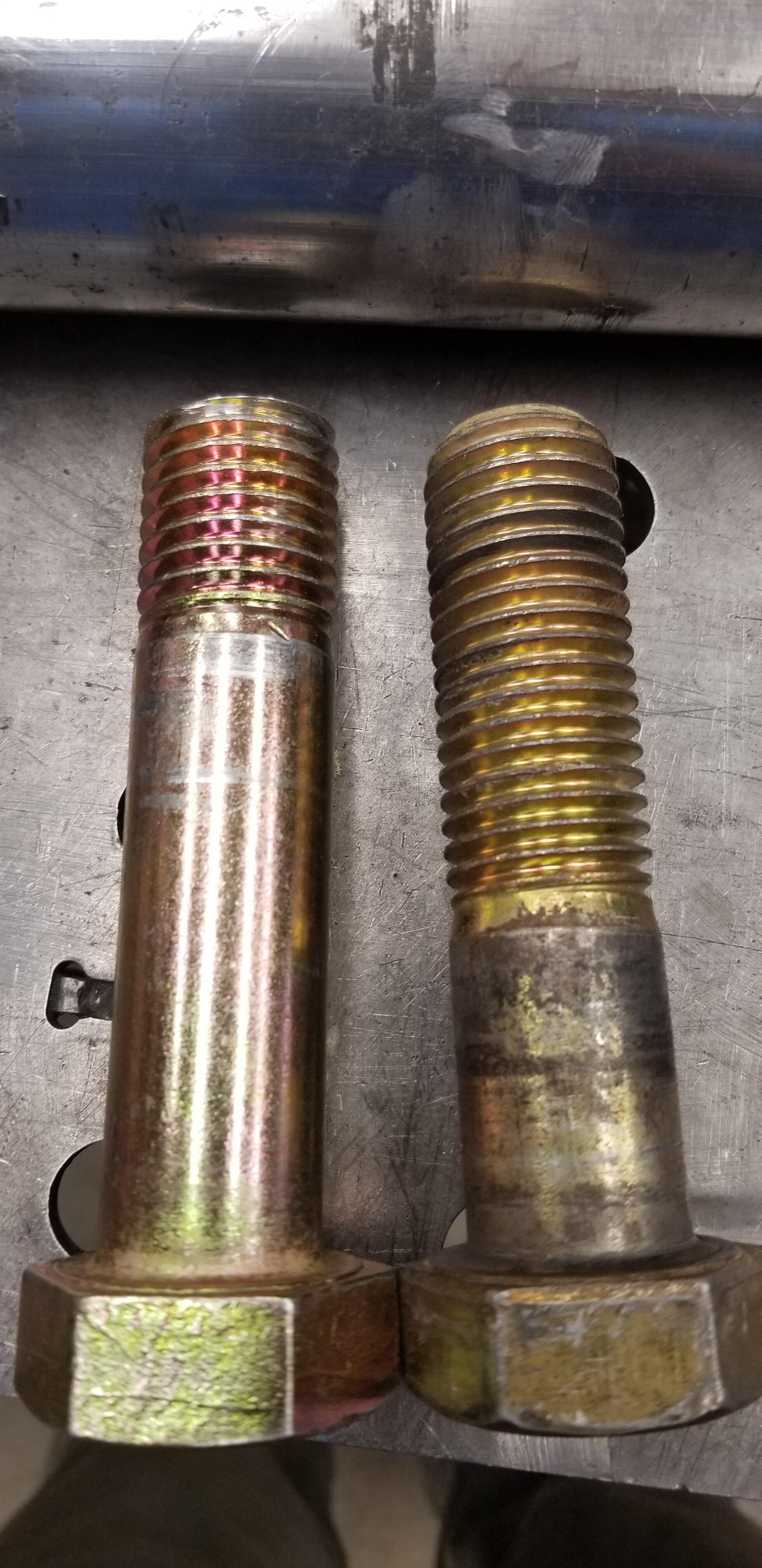

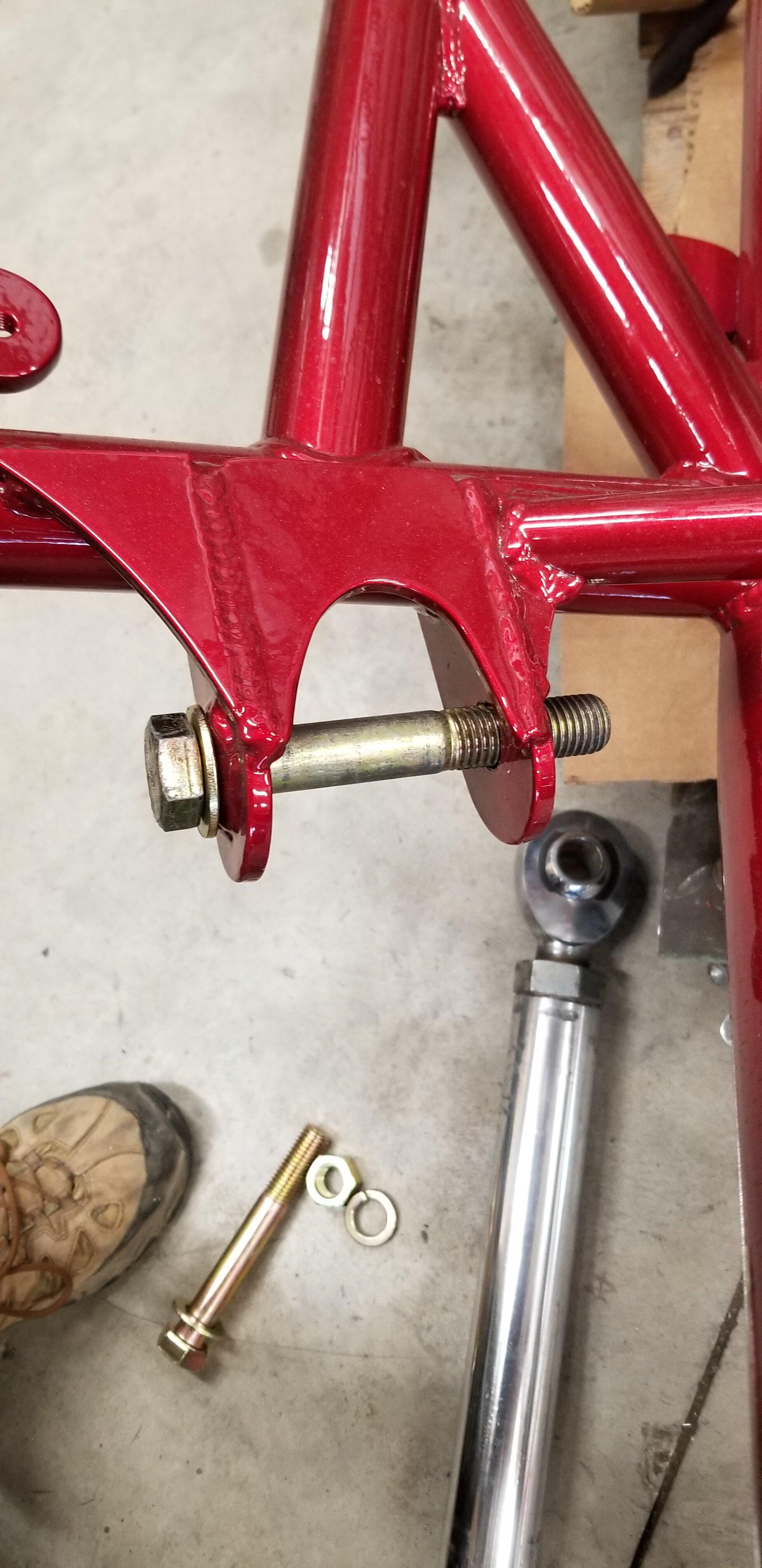

Something I like to do is make sure the link tabs and shock tabs are contacting the shank of the bolts. I buy longer bolts and trim to fit. This gives you the most strength in what I feel like is critical points.


New hardware


Old hardware




wizzo

Well-Known Member
Joined
Dec 5, 2007
Messages
1,983
Location
glasgow, ky

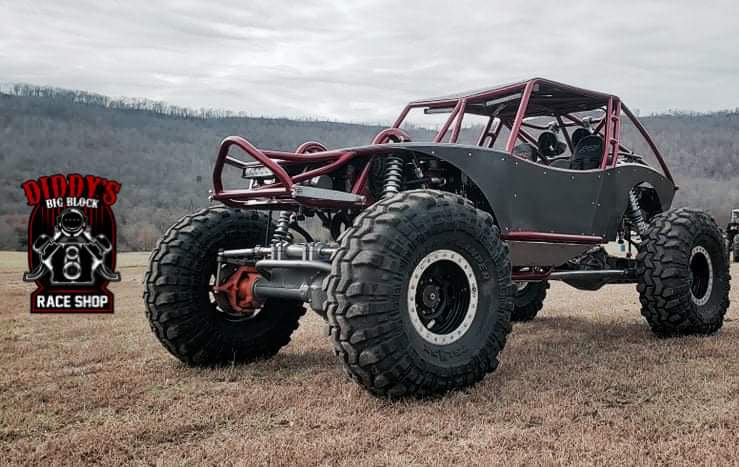

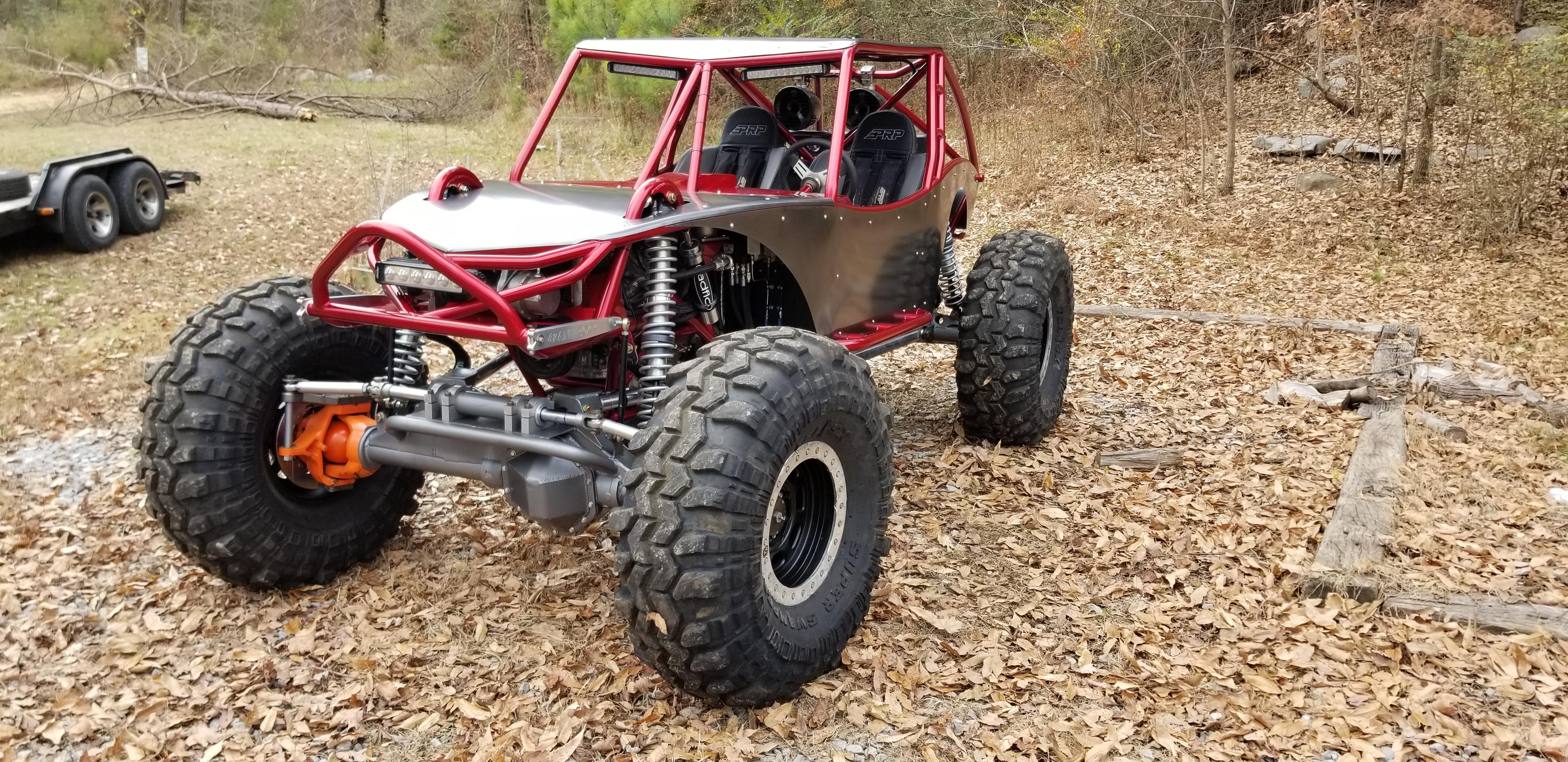

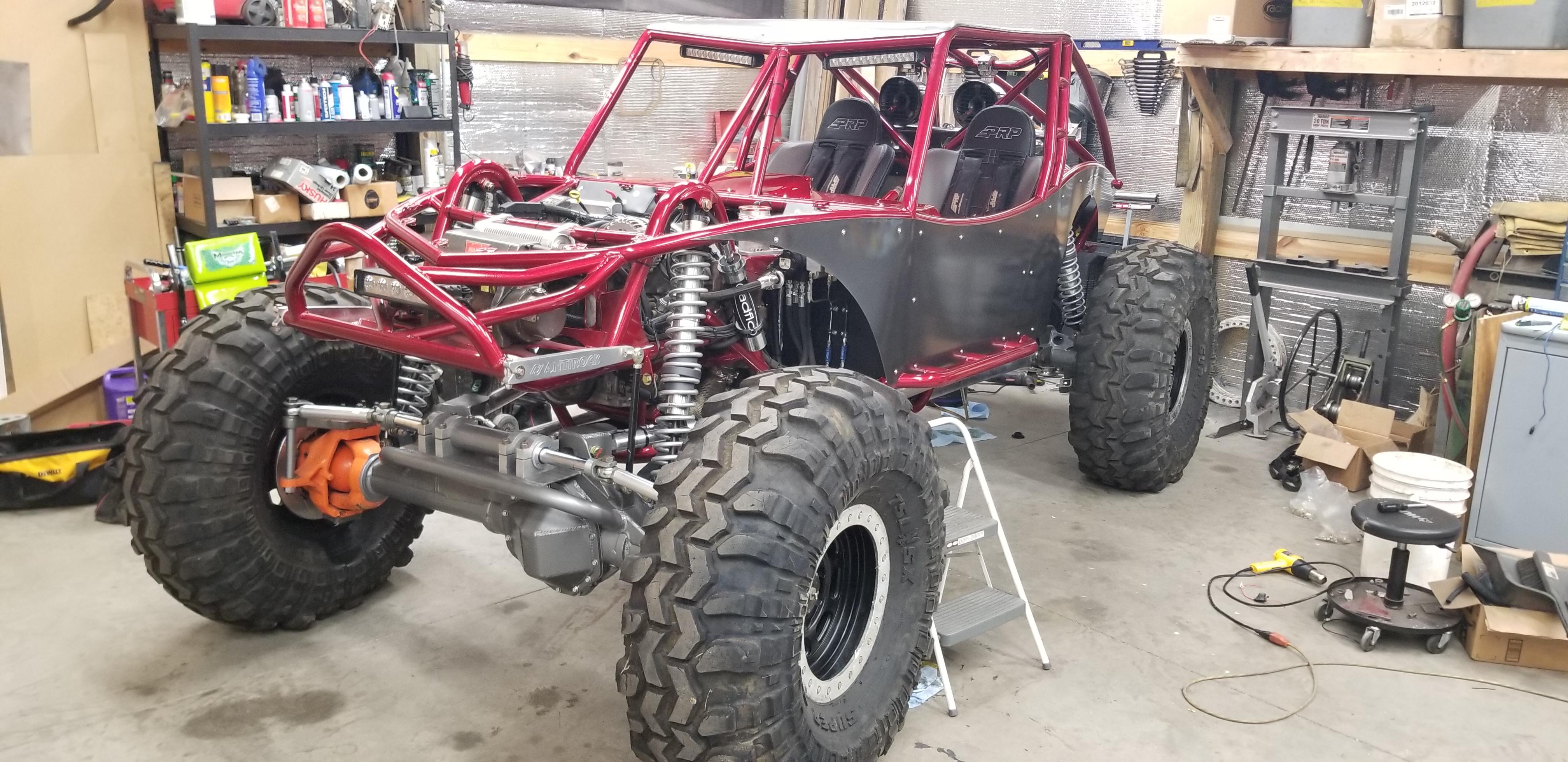

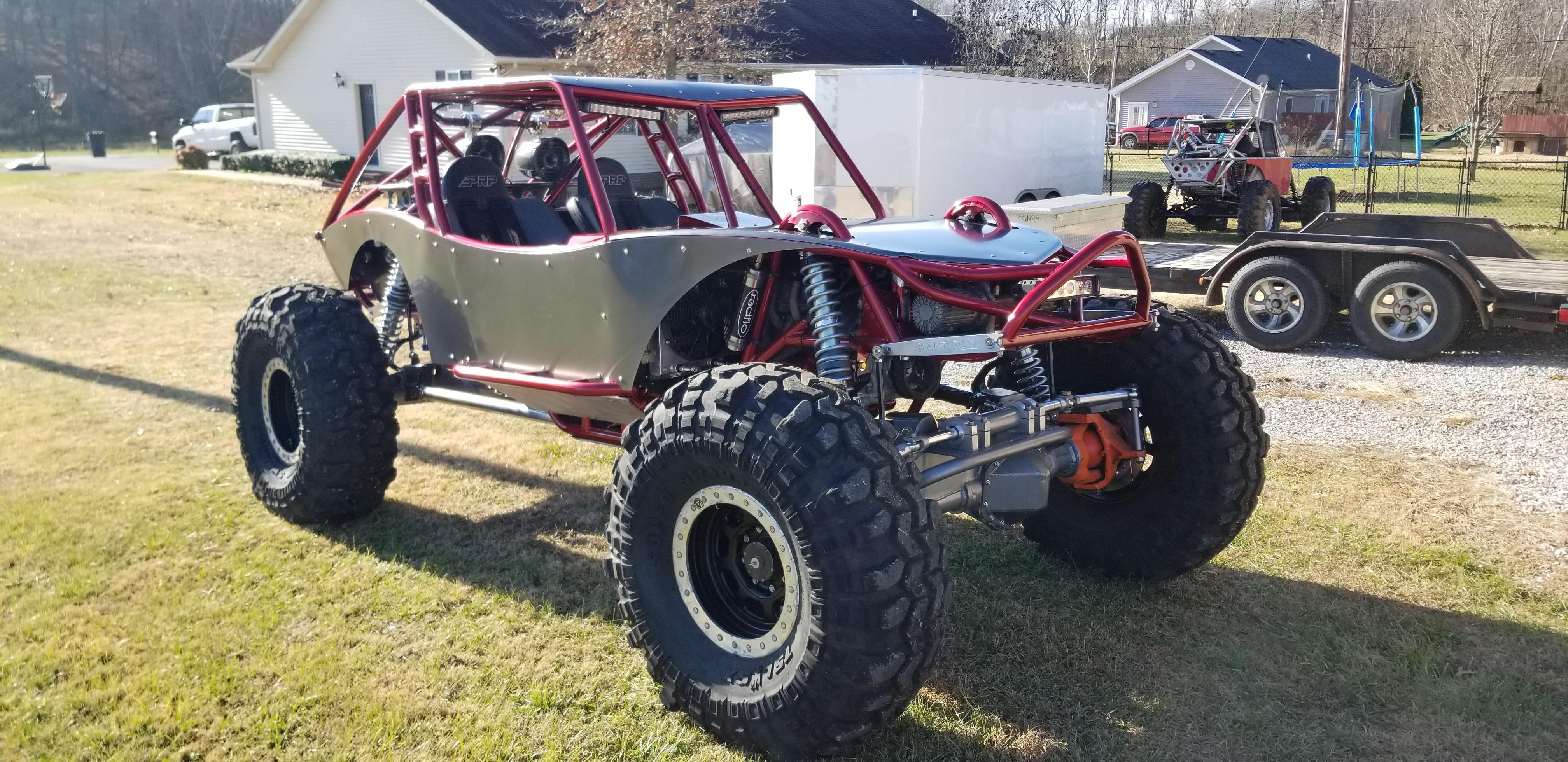

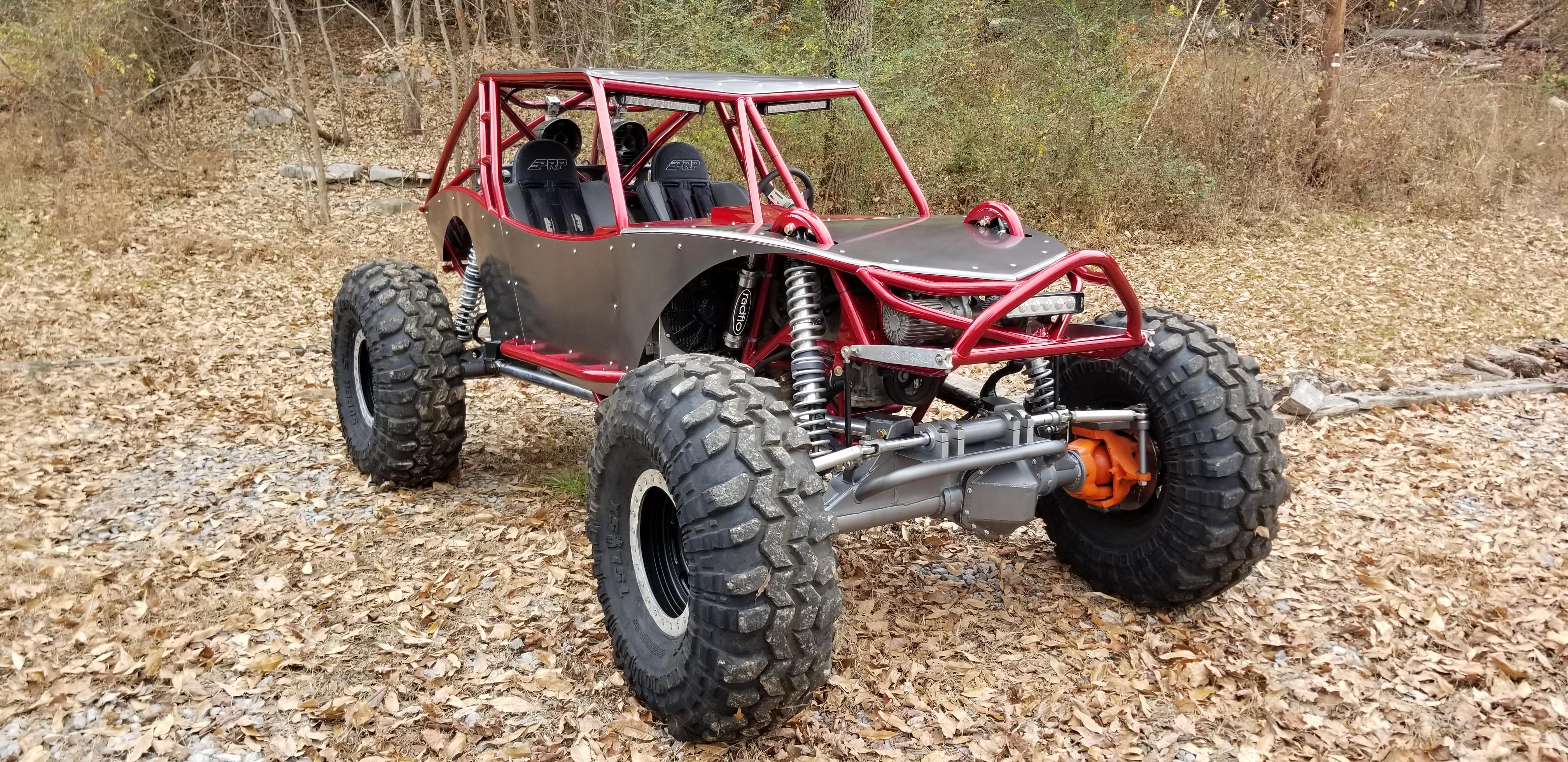

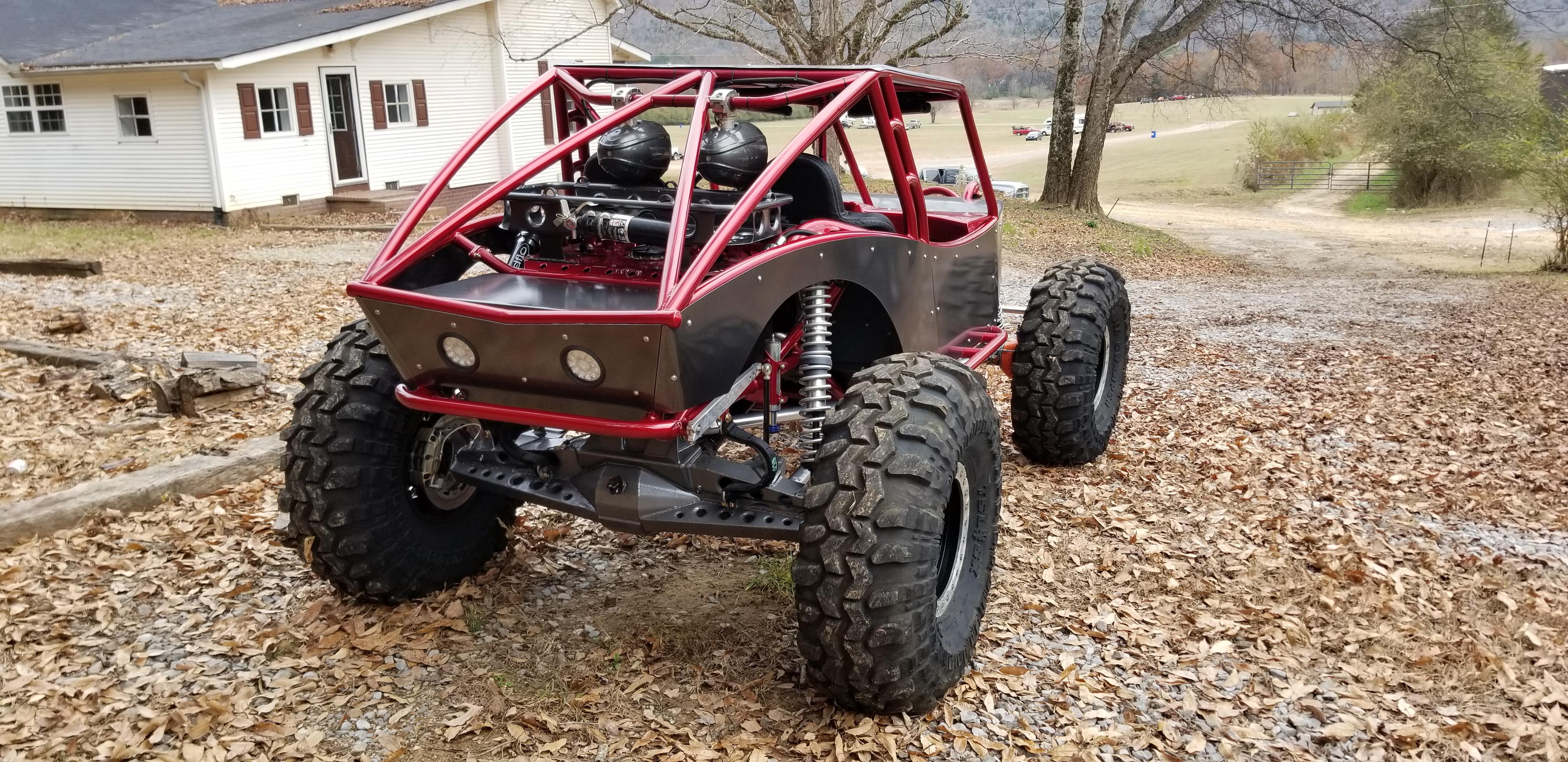

Chattanooga Whiskey Buggy 2019 Refresh Walk Around

I truly appreciate the chance to rebuild this buggy for one of my best friends. It was a very nice buggy to start with and hopefully Andrew will enjoy it for many years to come.

Any questions yall have about things I did etc, I'll be glad to answer. I hope to be able to keep adding tech to Hardline.
