Well..here it is and how it went down...kinda. We are on the way to pick up Ray's new to him yota truggy thing. The topic of small chassis's comes up and long story short, I made a joke about him just having my first chassis instead of buying someone else's. Still haven't figured out why, but he was up for it.

Discussed a few things, stuff he liked and things he didn't. It was settled, tiny little yota buggy on tons. I made a 2" long sketch and next thing I saw was 10 sticks of dom.



Took me a bit and a shim or two to get it all squared and right, but eventually I got the main rails and sliders put together



Yea..it's a wood table

Started making my way up, b pillars, lower part of the windshield,door bars tacked in to start getting things squared up at the beltline.





You're going to notice quite a few things going on in the background throughout the thread. When we started this adventure I also started building my shed into shop.

A pillar and roof bar. All the bpillar tube is 188 as well as the sliders and main rails.

That should be plenty for a yota powered buggy right?????? Heh stay tuned.







Start of the oh so important x brace in the bpillar.



This particular section of the build is lacking pictures.

While I was getting the bulk tube work done on the chassis, we went on a few rides.Grayrock being one and GMP being the other, Ray quickly decided that yotapower wasn't for him.

He dropped the yota off, I stole the axles and cool stuff, warn comp winch,powertank, and a few other odds and ends. Leftovers went back on the trailer never to be heard from again.

...


FlatlandFSJ

Well-Known Member
Joined
Feb 12, 2014
Messages
1,068
Location
SoWal Florida
Windshield and roof bars, checking seat stuff.



Getting the artec stuff fitted to the 60 from the yota







You may start noticing a slightly bigger motor then a 22r.



He decided sbc/th350/atlas would be a good idea. So I stuffed some mock up stuff I had into it and started seeing how it would work in the space I built for a 22r and 5speed.

Atlas seems to fit, always looks good fresh out the crate.



Link mounts for the axle side, 1/4" with 1/8" weld washers.





First time I mocked up tires and all on it.



FlatlandFSJ

Well-Known Member
Joined
Feb 12, 2014
Messages
1,068
Location
SoWal Florida
Somewhere along the lines, the go faster bug was caught. Thankfully Ray got it, it made telling him I built his chassis for trailing arms alot easier. Since that required a new set of shocks..we went big, 2.5" remote res 16" from accutune on all 4 corners.





Mocking up bumps and shocks, this being an idea I pulled from my head and not a cad file, it took me a lil bit to make everything fit the way I wanted.




Shock boxes for the rear









FlatlandFSJ

Well-Known Member
Joined
Feb 12, 2014
Messages
1,068
Location
SoWal Florida
Checking things at bump up front.



First we ditched the yota power, now we ditched the sbc...Ray decided if we gonna do it, we might as well put a big boy ls in it. Snatched the sbc, stuck a p-ayr mock up motor in it.









Radiator and shroud mounted...ish







Getting the dash together, brakes and orbital mocked into place.



Still got a decent view, even with the low roof.



Mocking up the front coilover



Checking rear coilover and trailing arm stuff.




I'll have another set of posts coming later today, almost got you guys caught up with the build.


1tonyj

Well-Known Member
Joined
Dec 29, 2011
Messages
1,452
Location
Panama City

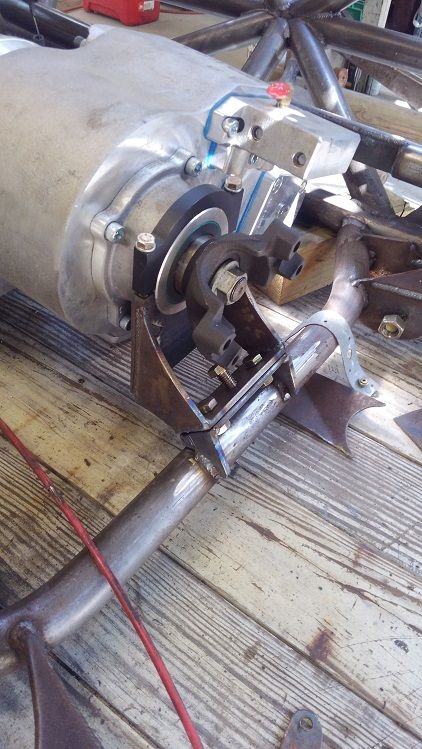

We are hard mounting everything. Got a TMR rear Atlas support and also have a front support going in.


Attachments

  • KIMG0448.JPG
    85.1 KB · Views: 118

1tonyj

Well-Known Member
Joined
Dec 29, 2011
Messages
1,452
Location
Panama City

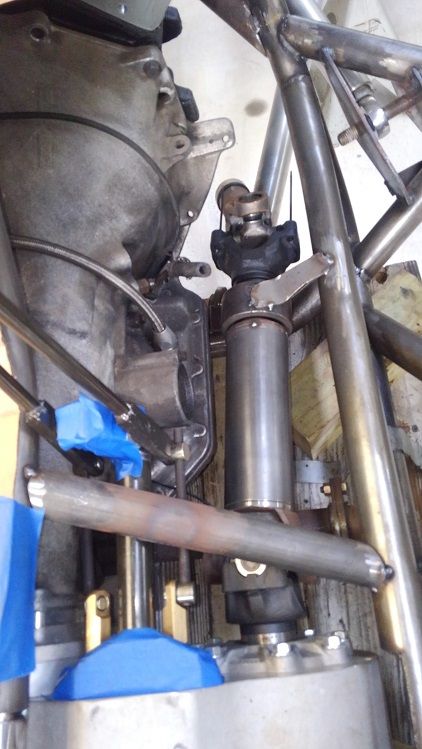

Running WOD's carrier bearing. Here its just mocked into position but gets welded in later. Also running WOD's links...love their stuff!


Attachments

  • KIMG0503.JPG
    63.1 KB · Views: 110
  • KIMG0157.JPG
    72.7 KB · Views: 107

1tonyj

Well-Known Member
Joined
Dec 29, 2011
Messages
1,452
Location
Panama City

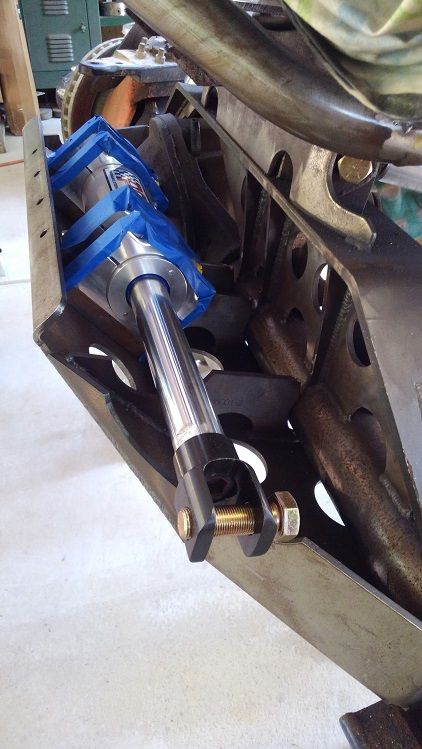

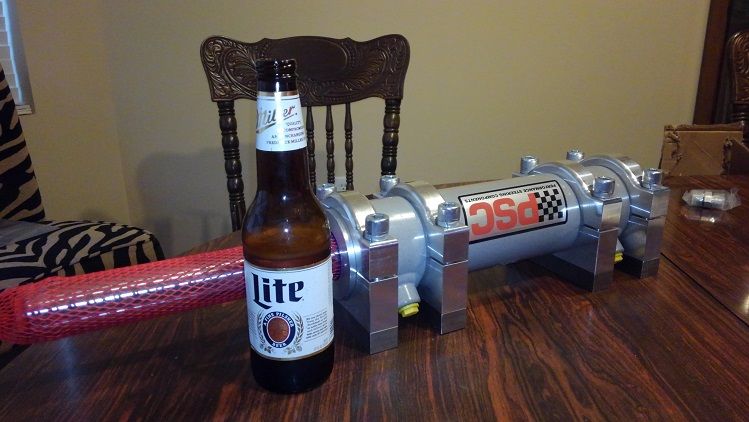

Wanted to make sure we had plenty of turning power so I ordered the big 2.75" ram from PSC.....will be pushing it with a CBR pump. This ram is big...its tight in the Artec truss.


Attachments

  • KIMG0227.JPG
    59.9 KB · Views: 108
  • KIMG0475.JPG
    64.6 KB · Views: 112

1tonyj

Well-Known Member
Joined
Dec 29, 2011
Messages
1,452
Location
Panama City

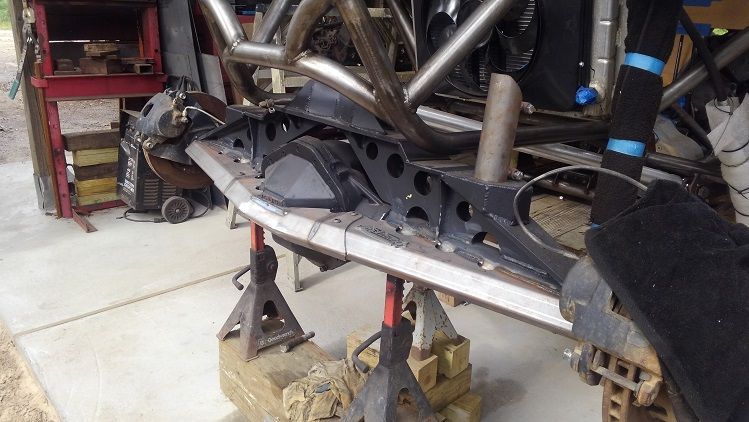

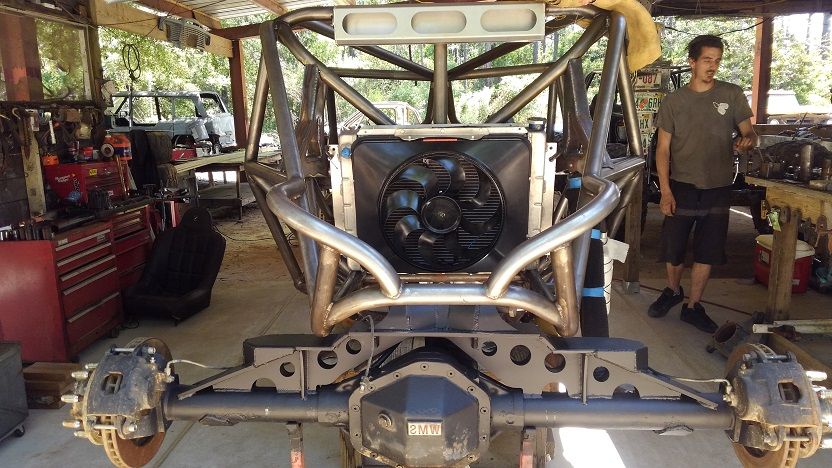

Rear axle already had an artec truss on it but Dillion cut it up to fit the chassis at bump and added bump pads. Then just for the hell of it threw on a back bone truss.


Attachments

  • KIMG0497.JPG
    75.1 KB · Views: 149
  • KIMG0413.JPG
    115.5 KB · Views: 121

1tonyj

Well-Known Member
Joined
Dec 29, 2011
Messages
1,452
Location
Panama City

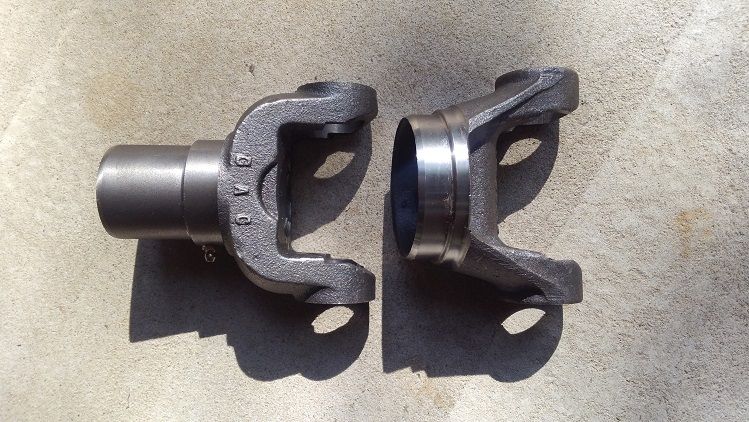

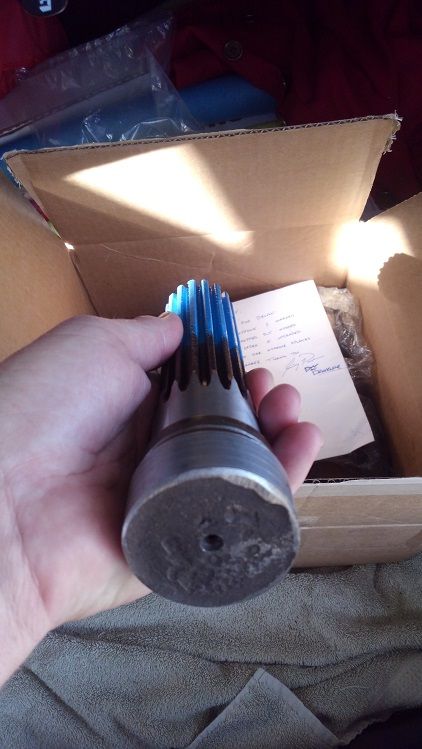

For drive shafts everything is 1410 and .250 wall. I ordered the extreme duty kits from EOR. These things are beef. You can see the extreme duty weld yoke on the left compared to a standard weld yoke.


Attachments

  • KIMG0451.JPG
    96.1 KB · Views: 113
  • KIMG0443.JPG
    54.4 KB · Views: 109

1tonyj

Well-Known Member
Joined
Dec 29, 2011
Messages
1,452
Location
Panama City

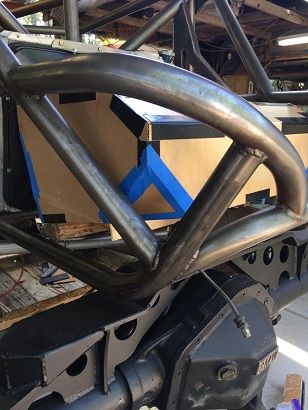

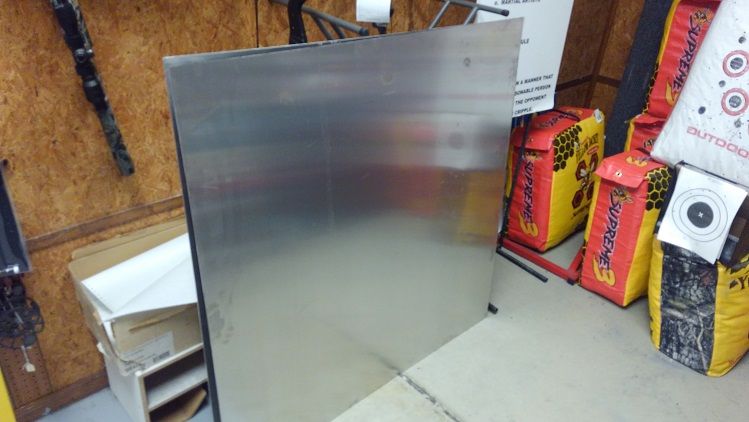

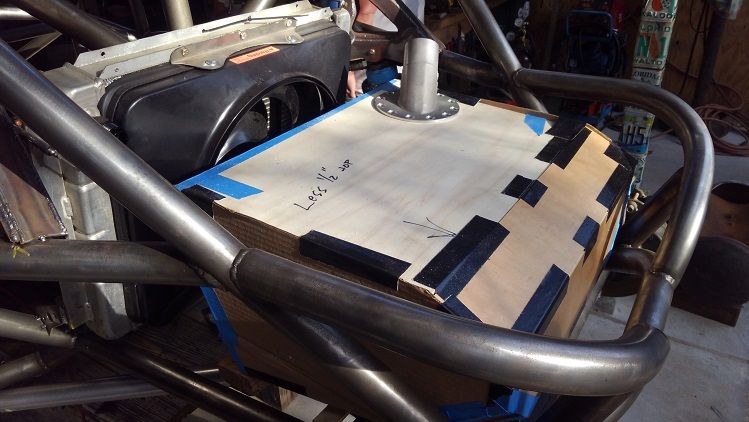

Picked up some 5052 aluminum for the fuel cell and started mock up. Will be running a Hydramat inside.


Attachments

  • KIMG0303.JPG
    54.8 KB · Views: 105
  • KIMG0452.JPG
    67.3 KB · Views: 102
  • 32781.jpeg
    32 KB · Views: 831

1tonyj

Well-Known Member
Joined
Dec 29, 2011
Messages
1,452
Location
Panama City
Thxs fellas! The chassis design and everything else is all Dillion. I just told him I wanted a mix of a bomber style chassis with a little southeastern influence lol.


FlatlandFSJ

Well-Known Member
Joined
Feb 12, 2014
Messages
1,068
Location
SoWal Florida
Getting close to caught up.

Seat and steering wheel getting close to final placement, Ray then swapped to the ultra style seat, which has a taller head rest portion to help keep his head off the shock mount, it'll show up later in the pictures.



Getting the rough templates made for the dash and console



Floor stuff as well



Stuck a set of some big ol boggers on it.



FlatlandFSJ

Well-Known Member
Joined
Feb 12, 2014
Messages
1,068
Location
SoWal Florida
Getting some protection put around the yokes on the atlas. Just in case a ujoint let's go, don't want the shaft whipping around to the seats.





Top plate on the brake mount



Main mount for the brakes



Started working on the headers, these ended up being the only thing that caused a problem with the addition of a V8 instead of the 4banger.





Couple small sections to rework, but this side comes out easy enough. That was the main concern with the space they had to live in
