"T's" 89 4Runner Build

[Got Coal?]

Here is what it starts at

The magic stick

The pile of worthless ****

Bitches all up on my **** already



[wizzo]

looks like a good start. just be careful of where you mount your shackles and front hanger. seems like most of the lift co's set you up for a good amount of lift but not a great amount of travel. i'm in the process of moving my shackle mounts from my TG kit this weekend.



[Got Coal?]

looks like a good start. just be careful of where you mount your shackles and front hanger. seems like most of the lift co's set you up for a good amount of lift but not a great amount of travel. i'm in the process of moving my shackle mounts from my TG kit this weekend.

Did u mount them where the kit said to and didnt have good travel.



[muchado]

sweeet I'll be watching this one



[wizzo]

I followed TG's instructions for setting up the springs for a truck w/ the v6. They suggested pushing the front cross member forward and centering the shackle mount between the body mount. Doing this was good for lift but not good for taking advantage of possible suspension travel. I do like having the front hanger forward b/c it helps keep the tires out of the fire wall, I’m running 37's. So what I decided to do was keep the front hanger where it is (b/c it would be a bitch to move and i like the axle further forward) and move the shackle mounts forward and lower on the frame. Basically I measured the top leaf spring when it's flat, which was 48". Then measured from the center of the front hanger bolt hole back 48" to a point about 1 inch off the frame. From that point I measure 5" (that is the length of my shackles bolt holes) forward at an angle to a point on the frame where I could put the shackle tube. This way I can use all the potential travel of the leaf spring and this will give me a lower stance. I’m sure I’ll be doing some fender trimming.

I'll try and get some pics this weekend, hope this helps.



[Got Coal?]

Yeh thanks. I will be running 36's. I went with 5" in the rear because of the ass of a runner being so heavy.



[CheapJ7]

looks like you've been doin work son...

cant wait to see that bish out on the trails...



[watkins]

shame it was so damn cold in that shop!

you getting there grasshopper, stay at it.

wade



[wizzo]

some pics of what i was talk'n bout

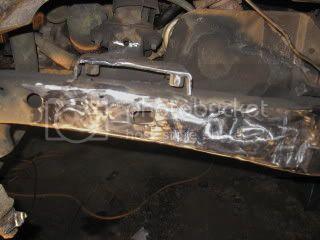

you can see in this pic where the old shackle mount was

here is the pass side finished up and old holes were plated over

i'll have some pics with the springs mounted and weight on em tom. morning



[wizzo]

shackle angle



[Got Coal?]



[Got Coal?]

Got my old Rocks and Locks back.



[wontwork]

That thing turned out to be a very nice trail rig. :****:



[Got Coal?]

Thanks man

Just got my spool and locker yesterday gonna try to install this weekend. :****:

All i like is sliders, back bumper, and chromo Longs

Then wheel my ass off and tooooo much



[P]

Defianetly put protection on it before you wheel it. That will be a cool driver / wheeler



[Got Coal?]

You know me i gotta be able to drive mine and drank :****:



[wizzo]

looks good!



[corey]

Glad to see you got the tire shine on them bitches



[Got Coal?]

Just the pressure washer



[watkins]

Got my old Rocks and Locks back.

those are some sexy tars and locks!

bitch looks alot better w/o the stripes!

need to chop a pic of mine and see what it would look like.

wade
